XML blocks XML STRUCTURE The most basic building blocks of an XML file are elements, attributes and comments. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 1

Elements • Elements define sections of information within an XML file and are defined using so called “XML tags”. • XML tags consist of an opening tag and a closing tag which together mark the borders of the information section. • An opening tag represents the name of the element enclosed by “<” and “>” and a closing tag would contain the same name enclosed by “</” and “>”, where the “/” indicates that this is a closing tag. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 2

Examples of an Element • An element called “Patient. Height” with the information representing the patient height, 181, enclosed in the “Patient. Height” XML tags <Patient. Height> 181 </Patient. Height> • If for some reason the element contains no information, the element will be described in a single tag which represents a merged start and end tag as the “/” is now moved to the end of the element <Patient. Height/> Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 3

Examples of an Element (cont’d) • Elements within an XML document can be nested. This allows the information to be bundled. The following example shows the nesting of patient information such as height and weight nested within the “Patient. Information” element. <Patient. Information> <Patient. Height> 181 </Patient. Height> <Patient. Weight> 78 </Patient. Weight> </Patient. Information> Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 4

Attributes • Attributes allow for additional descriptive information to be added to the element tag. • The attribute is placed after the name of the element but within the start tag. • The syntax for an attribute is the name of the attribute, in this case “Unit” followed by an equal sign and the value of the attribute in quotes. <Patient. Height Unit="Inch"> 71. 2 </Patient. Height> • If the element contains no information the element will be described in a single tag. • An example of an empty element with an attribute is shown <Patient. Height Unit="Inch"/> Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 5

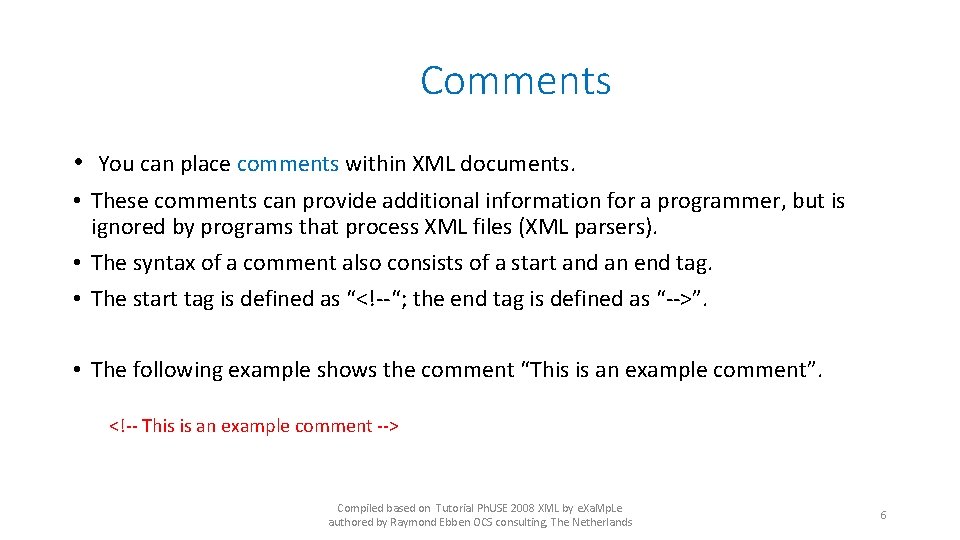

Comments • You can place comments within XML documents. • These comments can provide additional information for a programmer, but is ignored by programs that process XML files (XML parsers). • The syntax of a comment also consists of a start and an end tag. • The start tag is defined as “<!--“; the end tag is defined as “-->”. • The following example shows the comment “This is an example comment”. <!-- This is an example comment --> Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 6

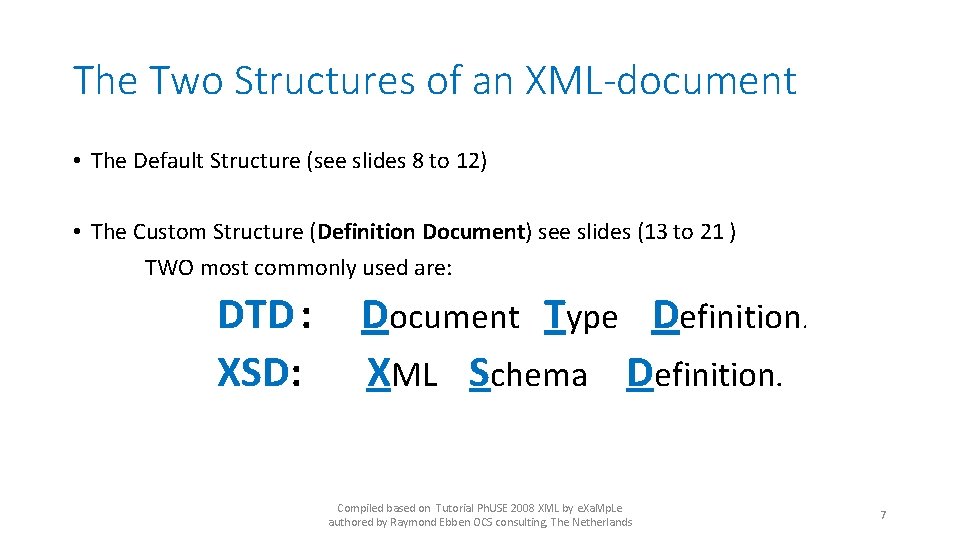

The Two Structures of an XML-document • The Default Structure (see slides 8 to 12) • The Custom Structure (Definition Document) see slides (13 to 21 ) TWO most commonly used are: DTD : XSD: Document Type Definition. XML Schema Definition. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 7

THE DEFAULT STRUCTURE OF AN XML DOCUMENT • XML is a structured language. • The default structure of any XML file is defined in the XML specification for creating XML files. • These specifications are defined and maintained by W 3 C (http: //www. w 3. org/XML/) which is an international consortium responsible for developing protocols and guidelines to define web standards. • XML files that adhere to this standard are referred to as “a well-formed XML”. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 8

Basic Rules for a well-formed XML file • The most basic rules are : • The XML file must contain a single “root” element (to nest the content of the • • XML file). Every element must be correctly nested. Non-empty elements must have begin and end tags. Empty elements are denoted by a single tag ending with a slash (/). All attribute values must be enclosed in double quotation marks or single quotation marks. • The content of the XML file is case sensitive. • Special Characters in the content must be “escaped”. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 9

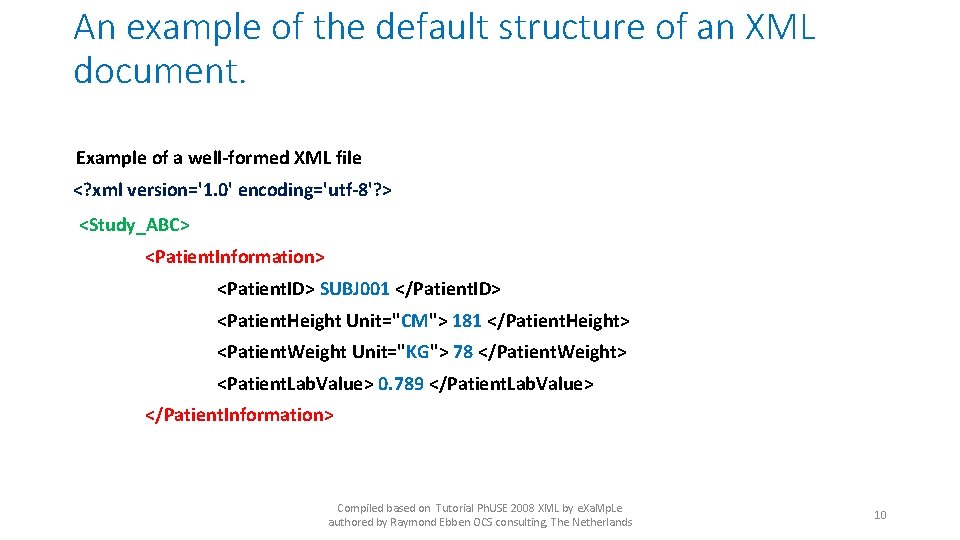

An example of the default structure of an XML document. Example of a well-formed XML file <? xml version='1. 0' encoding='utf-8'? > <Study_ABC> <Patient. Information> <Patient. ID> SUBJ 001 </Patient. ID> <Patient. Height Unit="CM"> 181 </Patient. Height> <Patient. Weight Unit="KG"> 78 </Patient. Weight> <Patient. Lab. Value> 0. 789 </Patient. Lab. Value> </Patient. Information> Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 10

Cont’d ; The example of a default XML document <Patient. Information> <Patient. ID> SUBJ 002 </Patient. ID> <Patient. Height Unit="CM"/> <Patient. Weight Unit="KG"/> <Patient. Lab. Value/> </Patient. Information> <Patient. ID> SUBJ 003 </Patient. ID> <Patient. Height Unit="CM"> 173 </Patient. Height> <Patient. Weight Unit="KG"> 66 </Patient. Weight> <Patient. Lab. Value> < 0. 434 </Patient. Lab. Value> </Patient. Information> </Study_ABC> Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 11

Comments on the Example • The mandatory element to indicate the file type. <? xml version='1. 0' encoding='utf-8'? > It describes the version of XML and the encoding type. • The single root element for nesting the information of the file is: “Study_ABC”. • Special Characters : <, &, and > are represented as : A double quotation mark as : " A single quotation mark as : &apos; Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands < , & , > 12

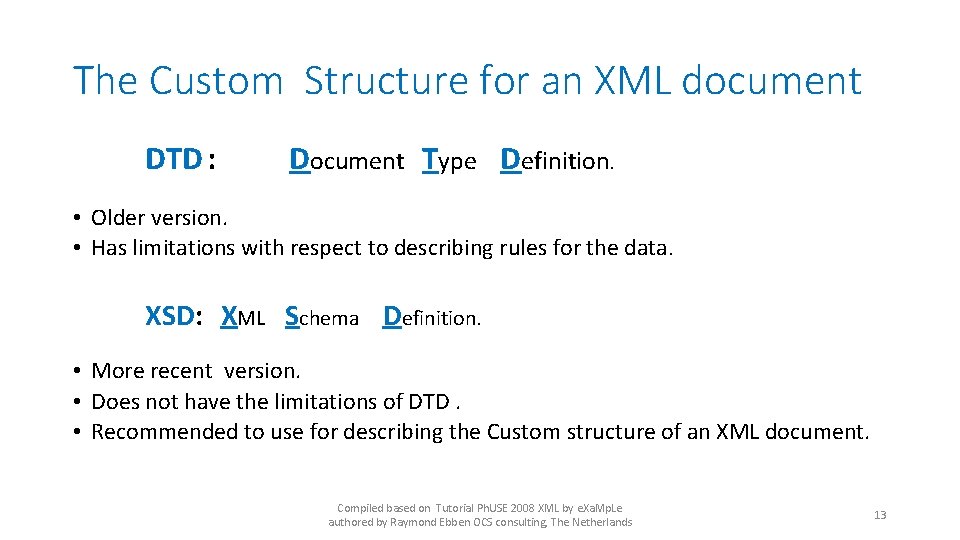

The Custom Structure for an XML document DTD : Document Type Definition. • Older version. • Has limitations with respect to describing rules for the data. XSD: XML Schema Definition. • More recent version. • Does not have the limitations of DTD. • Recommended to use for describing the Custom structure of an XML document. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 13

Back to the same example If we look at the structure of the XML file we can see that: • The element “Study_ABC“ is the root element of the file, which nests the content of the XMLfile. • Within this nesting the element “Patient. Information” occurs multiple times. • The element “Patient. Information” nests the elements “Patient. ID”, “Patient. Height”, “Patient. Weight” and “Patient. Lab. Value”. • This means: “Study_ABC” has multiple patients and for each patient the ID, height, weight and lab value are stored”. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 14

Back to the example (cont’d) • When examining the individual elements, we can see that the: Elements “Patient. Height” and “Patient. Weight”contain an attribute called “Unit”. • Regarding the type of data in the elements, we can see that: The element “Patient. ID” must be a character value, The elements “Patient. Height” and “Patient. Weight” are (most likely) numeric values, and that The “Patient. Lab. Value” must be character, as we can see the “<” sign in the last value. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 15

Back to the example cont’d: • So, by examining the XML file in the example we have described : and The structure, The elements, The additional information of the elements in the form of attributes, The type of data to be stored in the different elements. • The XSD describing the Custom Structure of the same example is on the next slides: Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 16

XSD describing the Custom Structure of the Example 1. <? xml version="1. 0" encoding="utf-8" ? > 2. <xs: schema attribute. Form. Default="unqualified" element. Form. Default="qualified" 3. xmlns: xs="http: //www. w 3. org/2001/XMLSchema"> 4. <xs: element name="Study_ABC"> 5. <xs: complex. Type> 6. <xs: sequence> 7. <xs: element max. Occurs="unbounded" name="Patient. Information"> 8. <xs: complex. Type> 9. <xs: sequence> 10 <xs: element name="Patient. ID" type="xs: string" /> 11. <xs: element name="Patient. Height"> 12. 13. 14. 15. <xs: complex. Type> <xs: simple. Content> <xs: extension base="xs: decimal"> <xs: attribute name="Unit" type="xs: string" use="required" /> Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 17

Cont’d ; XSD describing the Custom Structure of the Example: 16. </xs: extension> 17. </xs: simple. Content> 18. </xs: complex. Type> 19. </xs: element> 20. <xs: element name="Patient. Weight"> 21. 22. 23. 24. <xs: complex. Type> <xs: simple. Content> <xs: extensionbase="xs: decimal"> <xs: attribute name="Unit" type="xs: string" use="required" /> 25. </xs: extension> 26. </xs: simple. Content> 27. </xs: complex. Type> 28. </xs: element> 29. <xs: element name="Patient. Lab. Value" type="xs: string" /> Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 18

Cont’d : XSD describing the Custom Structure of the Example: 30. </xs: sequence> 31. </xs: complex. Type> 32. </xs: element> 33. </xs: sequence> 34. </xs: complex. Type> 35. </xs: element> 36. </xs: schema> -----36 lines of code. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 19

Final Comments on the XSD describing the Custom structure of the Example: Comments: • Line 2(schema) closes with line 36(schema). • Line 4 root (element “Study_ABC” ) closes with line 35(element). • Line 5(complex type) closes with line 34(complex type). • Line 6(sequence ) closes with line 33(sequence). • Line 7 (element) closes with line 32(element). • Line 8(complex type) closes with line 31(Complex type). • Line 9 (sequence ) closes with line 30 (sequence). • Line 10, 11, 20 and 29 are all elements on the same depth (Patient. ID), (Patient. Height), (Patient. Weight) and (Patient. Lab. Value) respectively. • Line 15 and Line 24 (attribute name”Unit”) are at the same depth. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 20

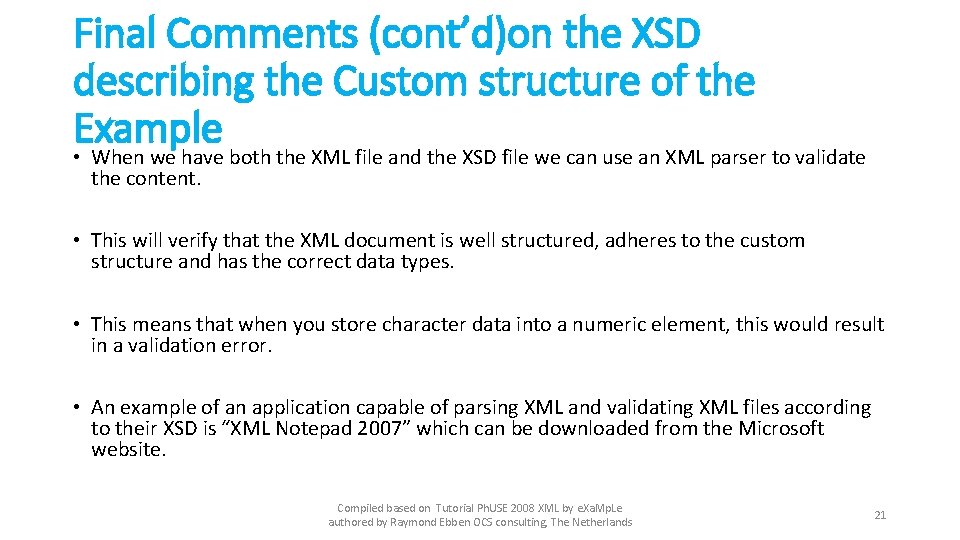

Final Comments (cont’d)on the XSD describing the Custom structure of the Example • When we have both the XML file and the XSD file we can use an XML parser to validate the content. • This will verify that the XML document is well structured, adheres to the custom structure and has the correct data types. • This means that when you store character data into a numeric element, this would result in a validation error. • An example of an application capable of parsing XML and validating XML files according to their XSD is “XML Notepad 2007” which can be downloaded from the Microsoft website. Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 21

Recommended Reading • Check the following sources: 1) Read this for more background information on XML and XML specifications http: //www. w 3. org/XML/ 2) Read this for a tutorial on XML http: //www. w 3 schools. com/xml/ Compiled based on Tutorial Ph. USE 2008 XML by e. Xa. Mp. Le authored by Raymond Ebben OCS consulting, The Netherlands 22
