X線連星のLow/Hard状態における 降着円盤 雑誌会 2008年 4月14日(月) 略語:BHB: Black Hole Binary ISCO: Inner most Stable Circular Orbit HS状態 vs LH 状態

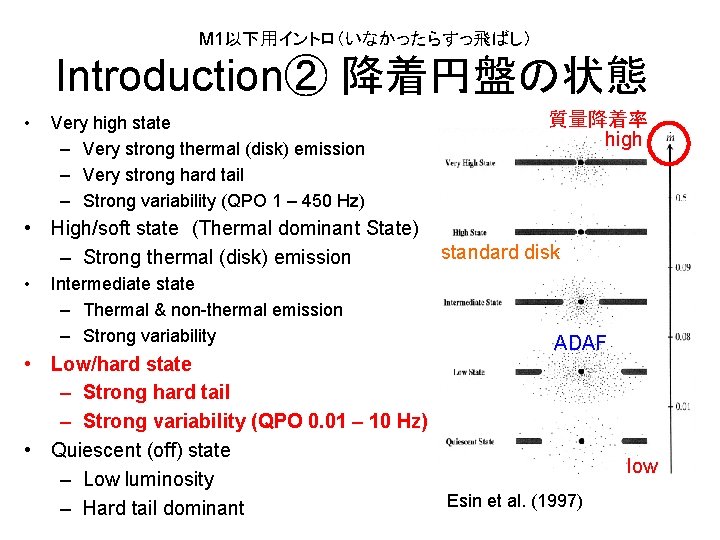

M 1以下用イントロ(いなかったらすっ飛ばし) Introduction② 降着円盤の状態 • Very high state – Very strong thermal (disk) emission – Very strong hard tail – Strong variability (QPO 1 – 450 Hz) • High/soft state (Thermal dominant State) – Strong thermal (disk) emission • Intermediate state – Thermal & non-thermal emission – Strong variability 質量降着率 high standard disk ADAF • Low/hard state – Strong hard tail – Strong variability (QPO 0. 01 – 10 Hz) • Quiescent (off) state – Low luminosity Esin et al. (1997) – Hard tail dominant low

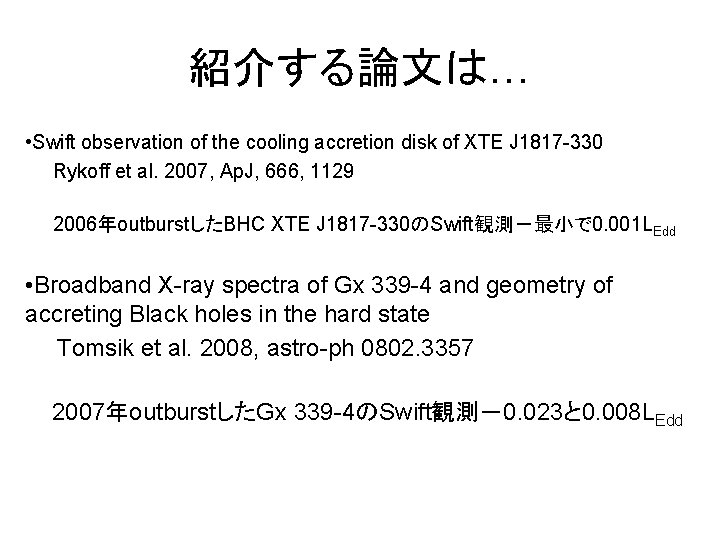

紹介する論文は… • Swift observation of the cooling accretion disk of XTE J 1817 -330 Rykoff et al. 2007, Ap. J, 666, 1129 2006年outburstしたBHC XTE J 1817 -330のSwift観測-最小で 0. 001 LEdd • Broadband X-ray spectra of Gx 339 -4 and geometry of accreting Black holes in the hard state Tomsik et al. 2008, astro-ph 0802. 3357 2007年outburstしたGx 339 -4のSwift観測-0. 023と 0. 008 LEdd

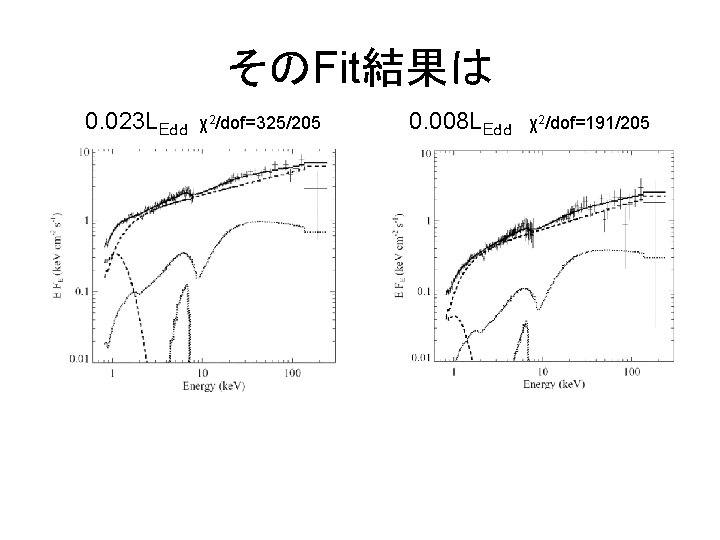

そのFit結果は 0. 023 LEdd χ2/dof=325/205 0. 008 LEdd χ2/dof=191/205

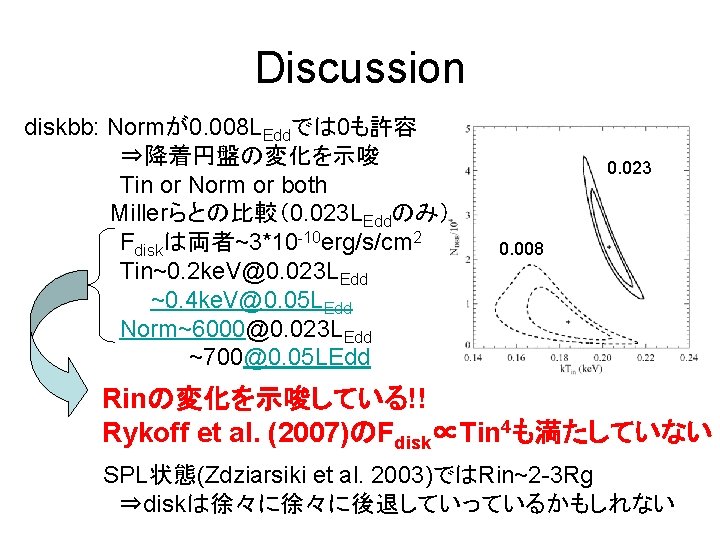

Discussion diskbb: Normが0. 008 LEddでは 0も許容 ⇒降着円盤の変化を示唆 Tin or Norm or both Millerらとの比較(0. 023 LEddのみ) Fdiskは両者~3*10 -10 erg/s/cm 2 Tin~0. 2 ke. V@0. 023 LEdd ~0. 4 ke. V@0. 05 LEdd Norm~6000@0. 023 LEdd ~700@0. 05 LEdd 0. 023 0. 008 Rinの変化を示唆している!! Rykoff et al. (2007)のFdisk∝Tin 4も満たしていない SPL状態(Zdziarsiki et al. 2003)ではRin~2 -3 Rg ⇒diskは徐々に徐々に後退していっているかもしれない

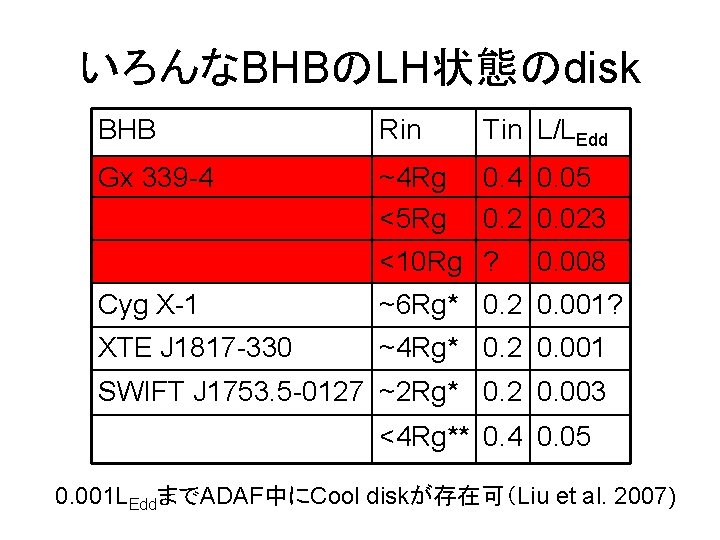

いろんなBHBのLH状態のdisk BHB Rin Tin L/LEdd Gx 339 -4 ~4 Rg <5 Rg 0. 4 0. 05 0. 2 0. 023 <10 Rg ? 0. 008 Cyg X-1 ~6 Rg* 0. 2 0. 001? XTE J 1817 -330 ~4 Rg* 0. 2 0. 001 SWIFT J 1753. 5 -0127 ~2 Rg* 0. 2 0. 003 <4 Rg** 0. 4 0. 05 0. 001 LEddまでADAF中にCool diskが存在可(Liu et al. 2007)
