XJABEFT Ramin Abdul Structural and Layout Engineer Design
X-JAB-EFT Ramin Abdul - Structural and Layout Engineer, Design Engineer Jacob Beiting - Project Manager, Design Engineer Evan Johnston - Propulsion and Energy Engineer, Design Engineer
Table of Contents 1. 2. 3. 4. 5. 6. 7. Overview X-JAB Video Engine Design Fuel Saving X-JAB Design and Flow Simulation Layout of X-JAB References
Overview The overall goal of this project is a challenge presented by NASA; the challenge is to design an ultra efficient commercial transport for 2045 with the potential to surpass 30%-60% reduction of energy. The basis for comparison of the X-JAB is a 2005 best-in-class aircraft, we have chosen the Boeing 747 -400 as the basis for our aircraft. The overall task of this challenge is to achieve a dramatic reduction in energy consumption through innovative airframe and propulsion systems, new approaches to integration of the airframe and propulsion systems, and new operational paradigms.

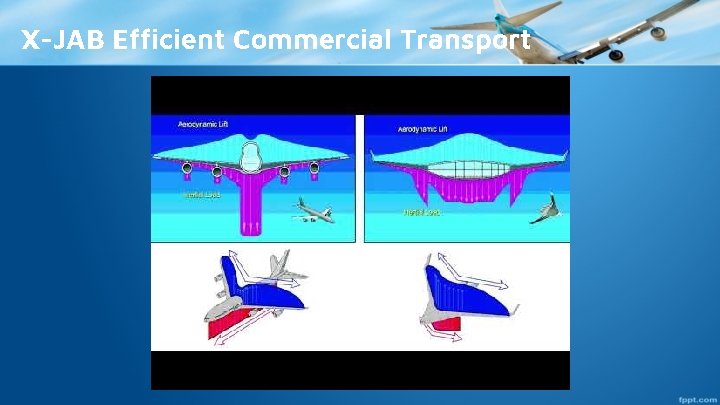

X-JAB Efficient Commercial Transport
Lift Verification ➔ Boeing 747 -400 ◆ Max takeoff weight: 3559. 75 k. N ◆ Weight at beginning of cruise: 3401 k. N ◆ Weight at end of cruise: 2554 k. N ◆ Average cruise weight: 2977. 6 k. N ◆ Freestream velocity: 255. 9 m/s ◆ Density of air at cruise altitude: 0. 38857 kg/cu. m ◆ Wing reference area: 509. 9 sq. m ◆ Lift coefficient at average cruise weight: 0. 4590
Engine Design Thrust per Engine (lb) Boeing 747400 X-JAB-EFT Takeoff 45, 000 37, 430 Cruise 10, 000 8, 318 ➔ 4 Engines ◆ Compression ratio: 60 ◆ Fan pressure ratio: 1. 3 ◆ Bypass ratio: 20. 243 ◆ Burner exit temperature: 1600 K ◆ Core to fan thrust ratio: 5. 764 ◆ Thrust per engine (cruise): 37, 000 N ◆ Total engine air intake: 554. 16 kg/s ◆ Specific fuel consumption: 1. 3*10 -5

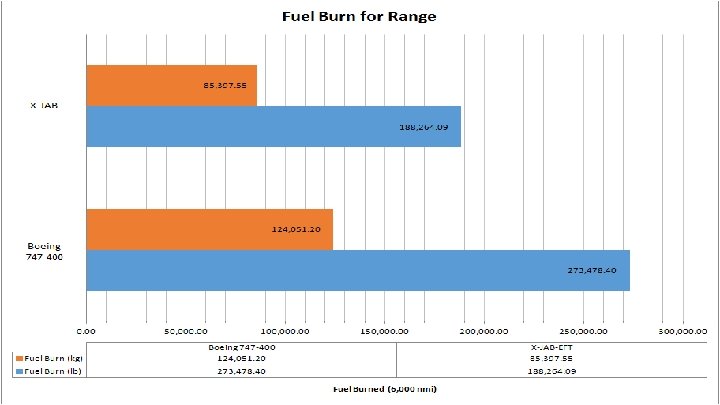

Fuel Savings X-JAB-EFT Boeing 747 -400 Fuel Capacity (L) 162, 816 203, 520 Fuel Burn per Seat (kg) 205. 3 292. 8 Fuel Burn [ATL to LAX (L)] 49, 228 68, 577 Fuel Cost (ATL to LAX) $27, 349. 79 $38, 098. 00 Fuel Cost per Person (ATL to LAX) $65. 74 $91. 58 Ticket Savings per Person $25. 84
X-JAB Design (Airfoil Selection) Fuselage Wing
X-JAB DESIGN Boeing X-48 B
X-JAB Flow Simulation Parameters: Standard Day Steady Level Flight Altitude = 34400 ft Pressure = 24531 Pascals Density = 0. 3884 kg/m^3 Mach Speed = 0. 855 Wetted Area 0 f 1098 m^2
Layout of Aircraft

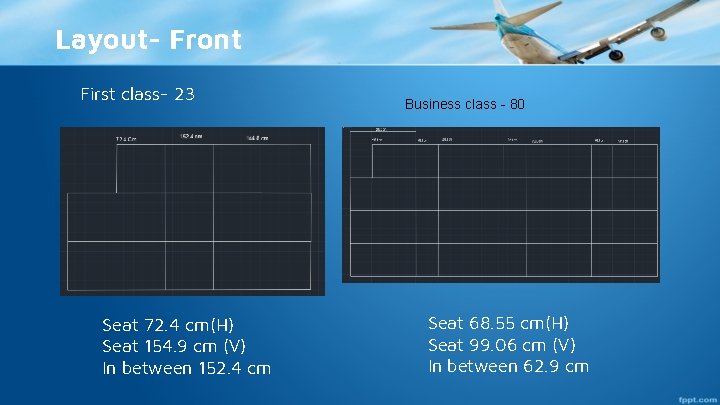

Layout- Front First class- 23 Seat 72. 4 cm(H) Seat 154. 9 cm (V) In between 152. 4 cm Business class - 80 Seat 68. 55 cm(H) Seat 99. 06 cm (V) In between 62. 9 cm
Economy Class Economy - 313 Seat 50. 36 cm(H) Seat 81. 28 cm (V) In between 49. 5 cm Storage L= 1. 18 m H=4. 72 m W = 4, 536 kg
References https: //www. nasa. gov/aeroresearch 747 -400/-400 ER - Boeing, http: //www. boeing. com/resources/boeingdotcom/company/about_bca/startup/pdf/historical/747 -400 -passenger. pdf University Engineering Design Challenge 2017 -2018, https: //aero. larc. nasa. gov/files/2012/11/Ultra-Efficient-Commercial-Transport-Challenge. pdf Picture of F-117 http: //www. defenselink. mil/ Picture of X-45 http: //archive. darpa. mil/j-ucas/X-45/gallery. htm Picture of X-48 http: //www 1. dfrc. nasa. gov/Gallery/Photo/X-48 B/HTML/ED 06 -0198 -62. html Blended Wing CAD Drawing https: //grabcad. com/library/bwb-blended-wing-body-aircraft-1 Boeing 747 -400 CAD Drawing https: //grabcad. com/library/boeing-747 -1 BWB https: //commons. erau. edu/cgi/viewcontent. cgi? article=1187&context=ijaaa BWB http: //citeseerx. ist. psu. edu/viewdoc/download? doi=10. 1. 1. 459. 9447&rep=rep 1&type=pdf Atmosphere calculator https: //www. digitaldutch. com/atmoscalc/
