XHTML & CSS By Trevor Adams

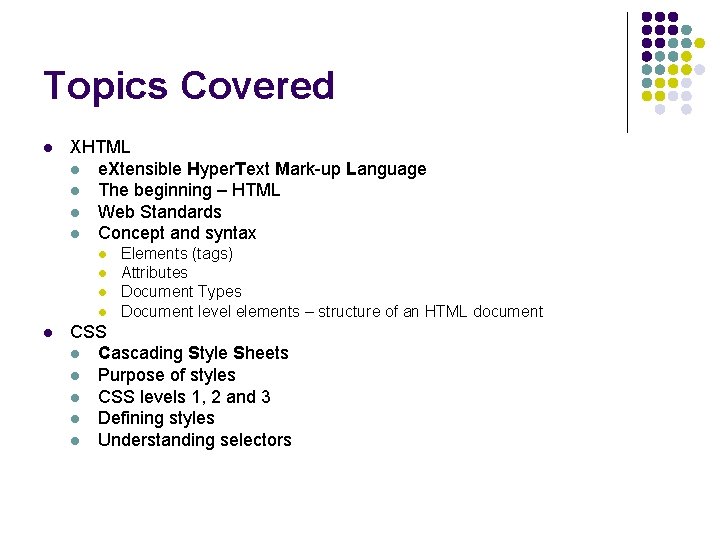

Topics Covered l XHTML l e. Xtensible Hyper. Text Mark-up Language l The beginning – HTML l Web Standards l Concept and syntax l l l Elements (tags) Attributes Document Types Document level elements – structure of an HTML document CSS l Cascading Style Sheets l Purpose of styles l CSS levels 1, 2 and 3 l Defining styles l Understanding selectors

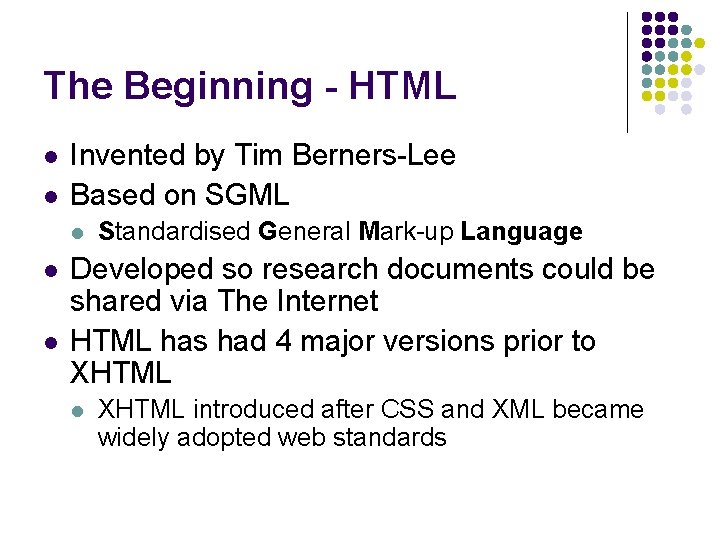

The Beginning - HTML l l Invented by Tim Berners-Lee Based on SGML l l l Standardised General Mark-up Language Developed so research documents could be shared via The Internet HTML has had 4 major versions prior to XHTML l XHTML introduced after CSS and XML became widely adopted web standards

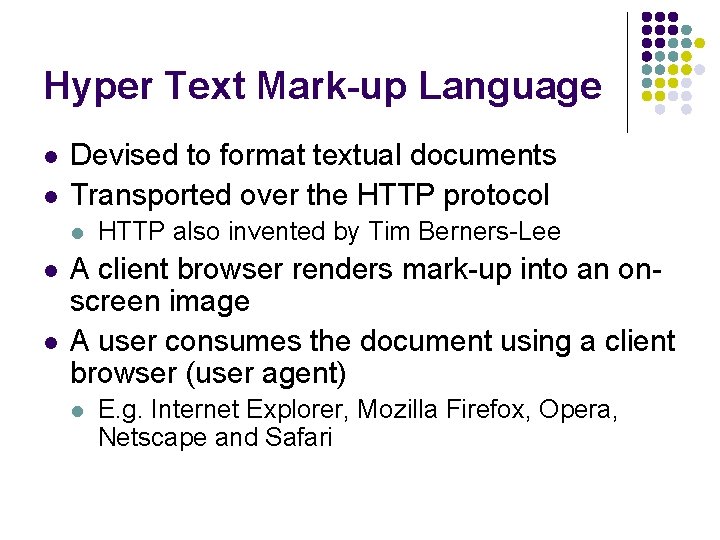

Hyper Text Mark-up Language l l Devised to format textual documents Transported over the HTTP protocol l HTTP also invented by Tim Berners-Lee A client browser renders mark-up into an onscreen image A user consumes the document using a client browser (user agent) l E. g. Internet Explorer, Mozilla Firefox, Opera, Netscape and Safari

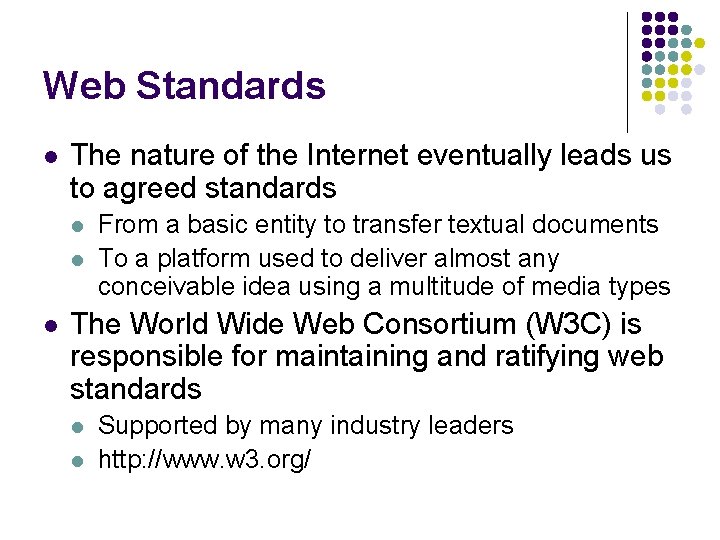

Web Standards l The nature of the Internet eventually leads us to agreed standards l l l From a basic entity to transfer textual documents To a platform used to deliver almost any conceivable idea using a multitude of media types The World Wide Web Consortium (W 3 C) is responsible for maintaining and ratifying web standards l l Supported by many industry leaders http: //www. w 3. org/

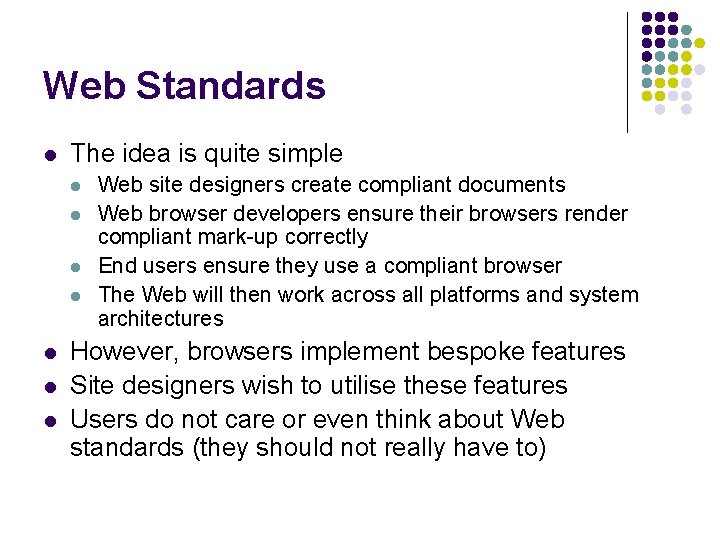

Web Standards l The idea is quite simple l l l l Web site designers create compliant documents Web browser developers ensure their browsers render compliant mark-up correctly End users ensure they use a compliant browser The Web will then work across all platforms and system architectures However, browsers implement bespoke features Site designers wish to utilise these features Users do not care or even think about Web standards (they should not really have to)

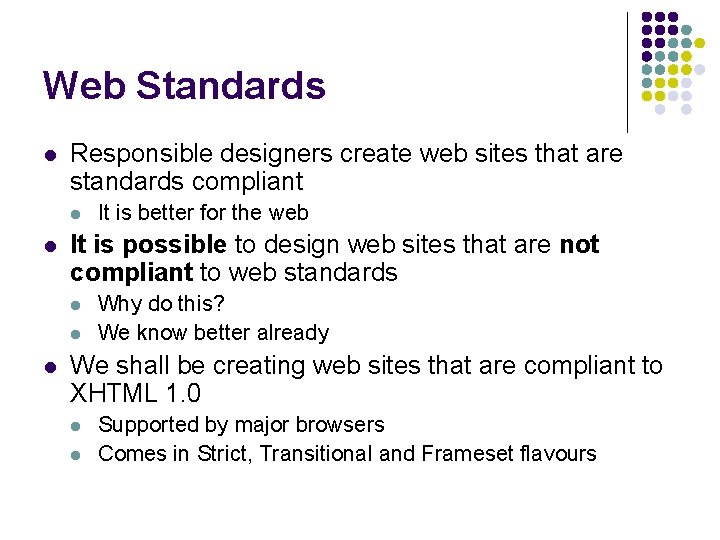

Web Standards l Responsible designers create web sites that are standards compliant l l It is possible to design web sites that are not compliant to web standards l l l It is better for the web Why do this? We know better already We shall be creating web sites that are compliant to XHTML 1. 0 l l Supported by major browsers Comes in Strict, Transitional and Frameset flavours

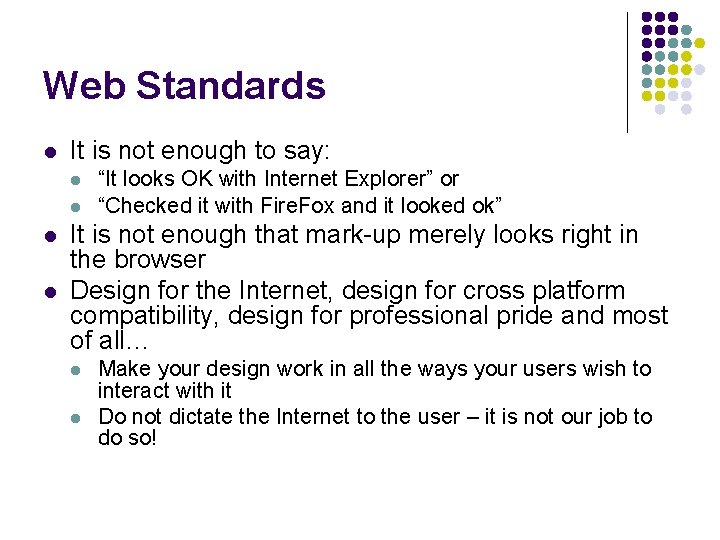

Web Standards l It is not enough to say: l l “It looks OK with Internet Explorer” or “Checked it with Fire. Fox and it looked ok” It is not enough that mark-up merely looks right in the browser Design for the Internet, design for cross platform compatibility, design for professional pride and most of all… l l Make your design work in all the ways your users wish to interact with it Do not dictate the Internet to the user – it is not our job to do so!

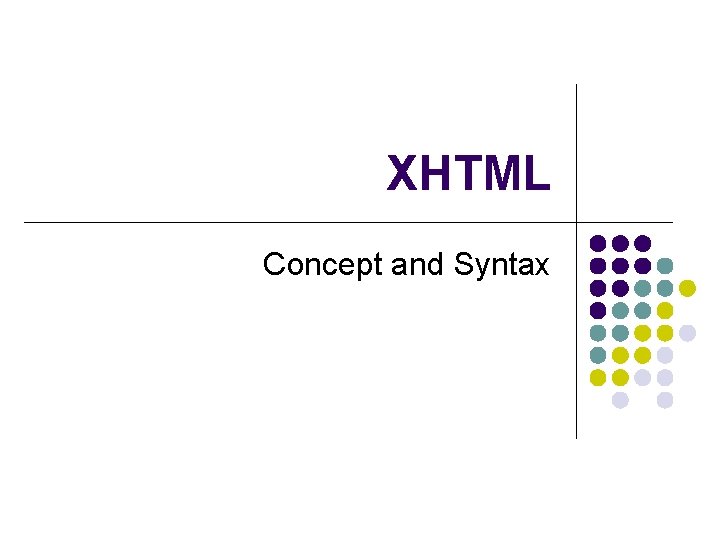

XHTML Concept and Syntax

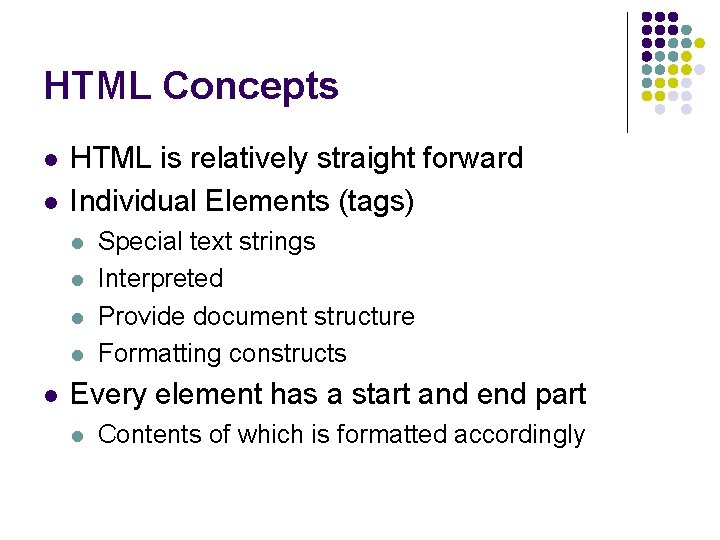

HTML Concepts l l HTML is relatively straight forward Individual Elements (tags) l l l Special text strings Interpreted Provide document structure Formatting constructs Every element has a start and end part l Contents of which is formatted accordingly

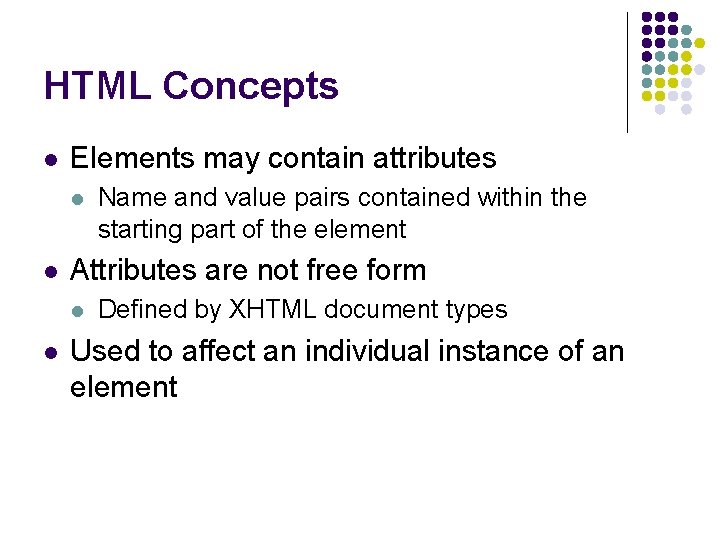

HTML Concepts l Elements may contain attributes l l Attributes are not free form l l Name and value pairs contained within the starting part of the element Defined by XHTML document types Used to affect an individual instance of an element

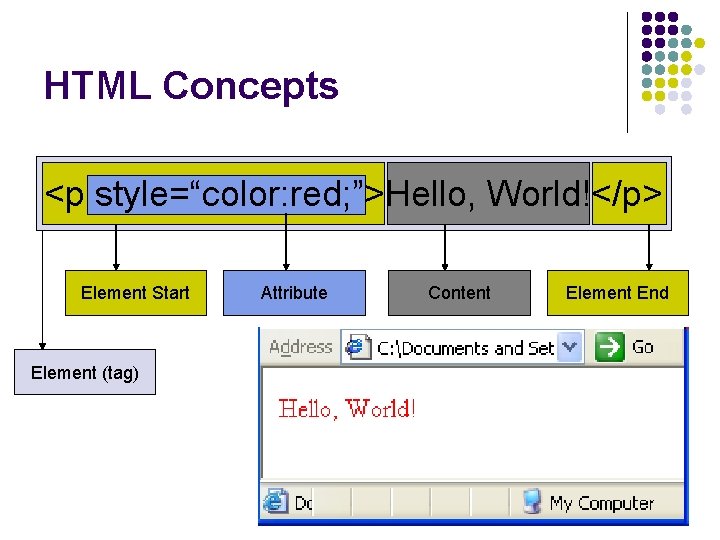

HTML Concepts <p style=“color: red; ”>Hello, World!</p> Element Start Element (tag) Attribute Content Element End

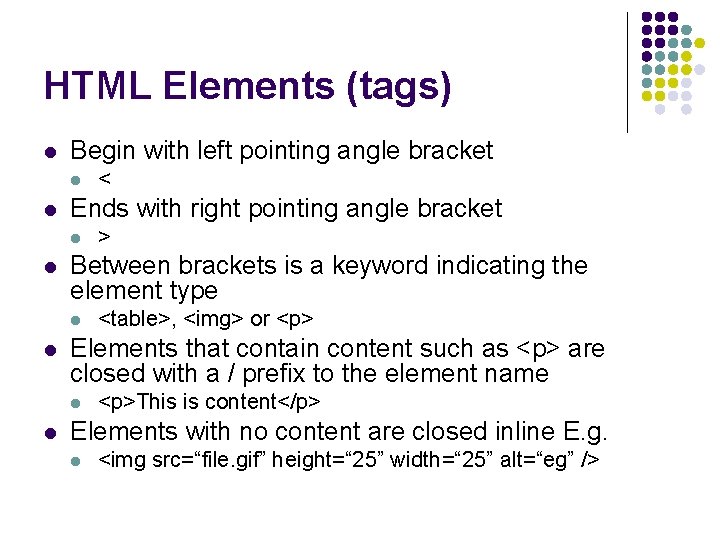

HTML Elements (tags) l Begin with left pointing angle bracket l l Ends with right pointing angle bracket l l <table>, <img> or <p> Elements that contain content such as <p> are closed with a / prefix to the element name l l > Between brackets is a keyword indicating the element type l l < <p>This is content</p> Elements with no content are closed inline E. g. l <img src=“file. gif” height=“ 25” width=“ 25” alt=“eg” />

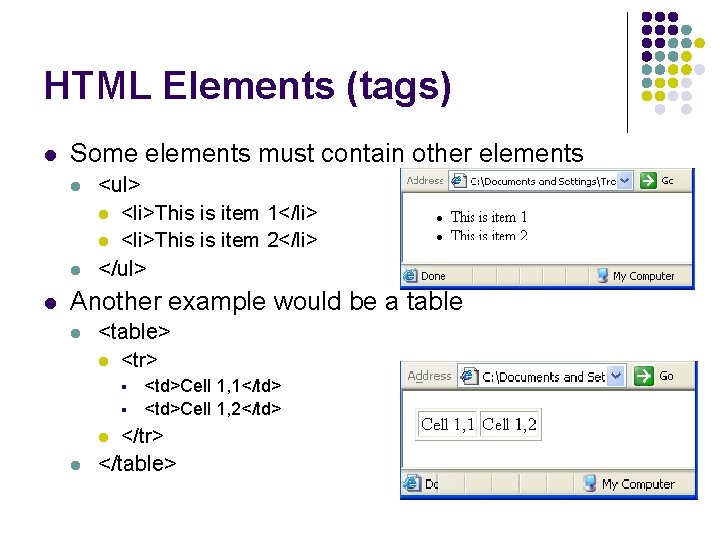

HTML Elements (tags) l Some elements must contain other elements l l l <ul> l <li>This is item 1</li> l <li>This is item 2</li> </ul> Another example would be a table l <table> l <tr> § § </tr> </table> l l <td>Cell 1, 1</td> <td>Cell 1, 2</td>

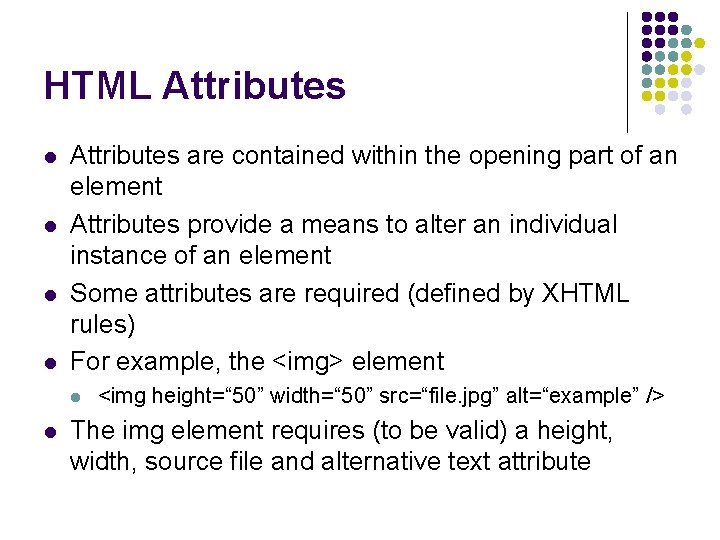

HTML Attributes l l Attributes are contained within the opening part of an element Attributes provide a means to alter an individual instance of an element Some attributes are required (defined by XHTML rules) For example, the <img> element l l <img height=“ 50” width=“ 50” src=“file. jpg” alt=“example” /> The img element requires (to be valid) a height, width, source file and alternative text attribute

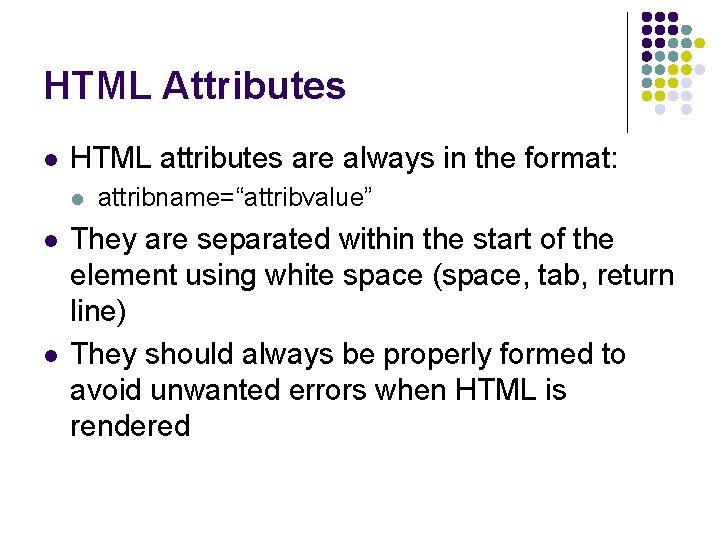

HTML Attributes l HTML attributes are always in the format: l l l attribname=“attribvalue” They are separated within the start of the element using white space (space, tab, return line) They should always be properly formed to avoid unwanted errors when HTML is rendered

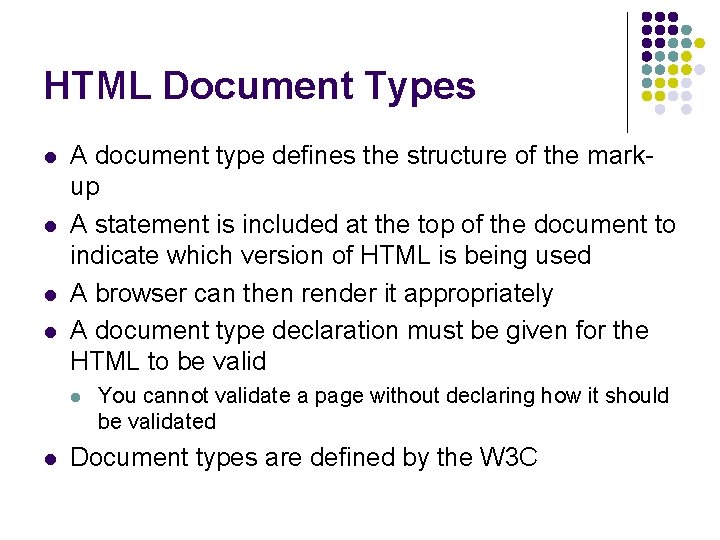

HTML Document Types l l A document type defines the structure of the markup A statement is included at the top of the document to indicate which version of HTML is being used A browser can then render it appropriately A document type declaration must be given for the HTML to be valid l l You cannot validate a page without declaring how it should be validated Document types are defined by the W 3 C

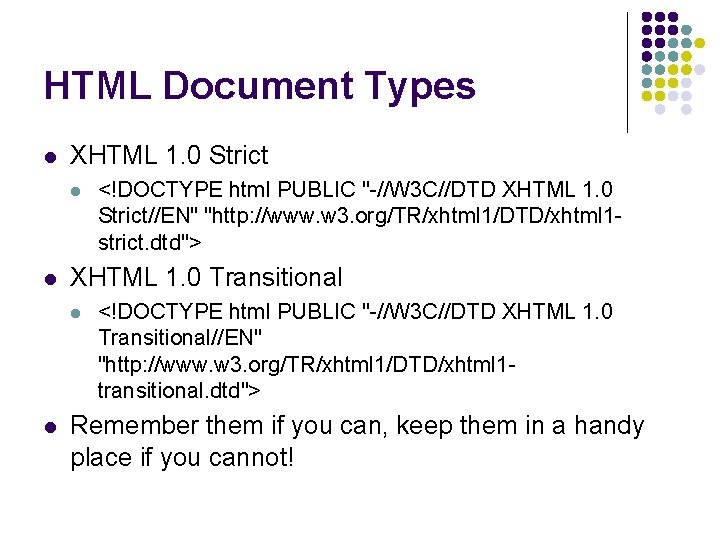

HTML Document Types l XHTML 1. 0 Strict l l XHTML 1. 0 Transitional l l <!DOCTYPE html PUBLIC "-//W 3 C//DTD XHTML 1. 0 Strict//EN" "http: //www. w 3. org/TR/xhtml 1/DTD/xhtml 1 strict. dtd"> <!DOCTYPE html PUBLIC "-//W 3 C//DTD XHTML 1. 0 Transitional//EN" "http: //www. w 3. org/TR/xhtml 1/DTD/xhtml 1 transitional. dtd"> Remember them if you can, keep them in a handy place if you cannot!

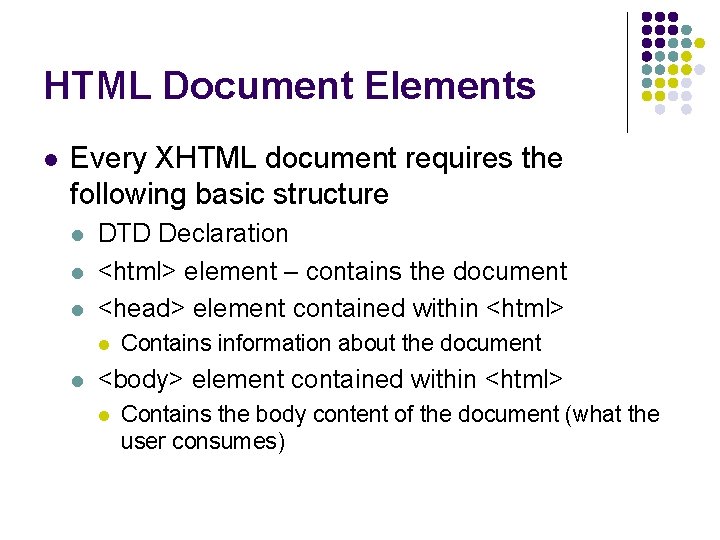

HTML Document Elements l Every XHTML document requires the following basic structure l l l DTD Declaration <html> element – contains the document <head> element contained within <html> l l Contains information about the document <body> element contained within <html> l Contains the body content of the document (what the user consumes)

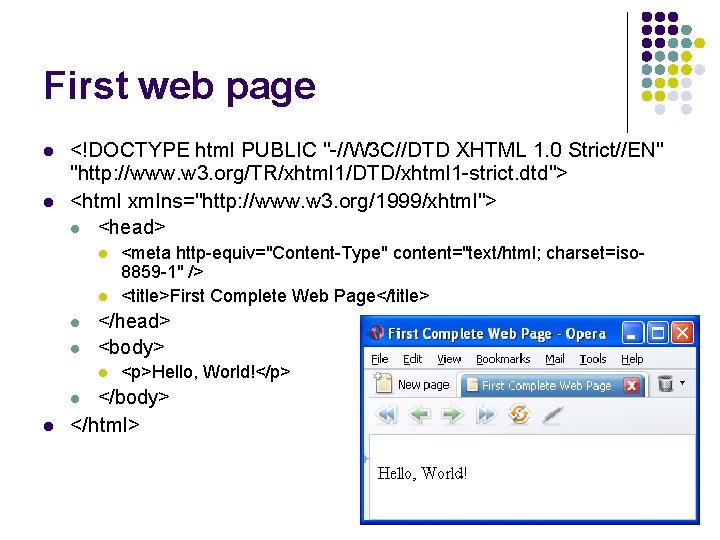

First web page l l <!DOCTYPE html PUBLIC "-//W 3 C//DTD XHTML 1. 0 Strict//EN" "http: //www. w 3. org/TR/xhtml 1/DTD/xhtml 1 -strict. dtd"> <html xmlns="http: //www. w 3. org/1999/xhtml"> l <head> l l </head> <body> l l l <meta http-equiv="Content-Type" content="text/html; charset=iso 8859 -1" /> <title>First Complete Web Page</title> <p>Hello, World!</p> </body> </html>

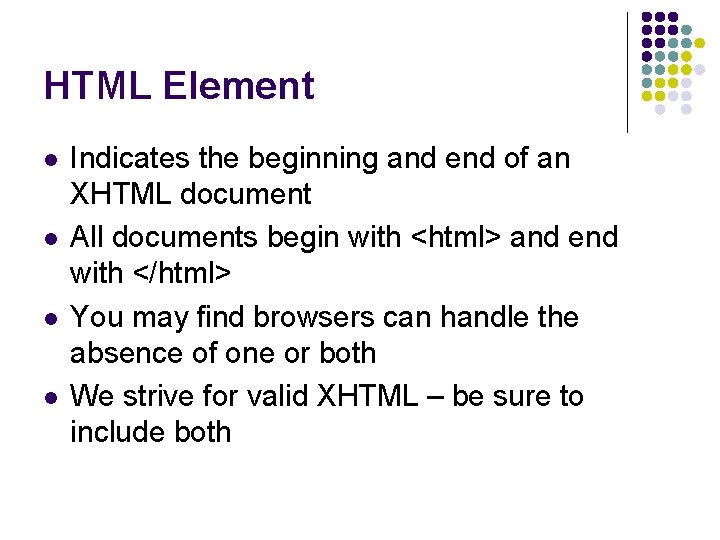

HTML Element l l Indicates the beginning and end of an XHTML document All documents begin with <html> and end with </html> You may find browsers can handle the absence of one or both We strive for valid XHTML – be sure to include both

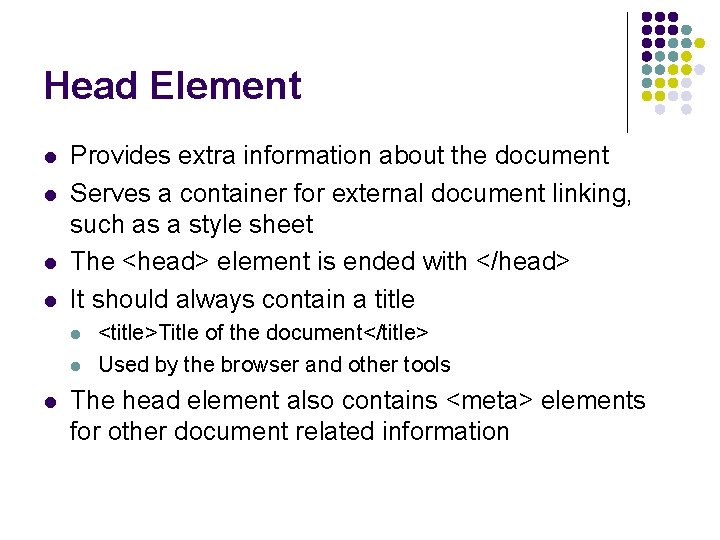

Head Element l l Provides extra information about the document Serves a container for external document linking, such as a style sheet The <head> element is ended with </head> It should always contain a title l l l <title>Title of the document</title> Used by the browser and other tools The head element also contains <meta> elements for other document related information

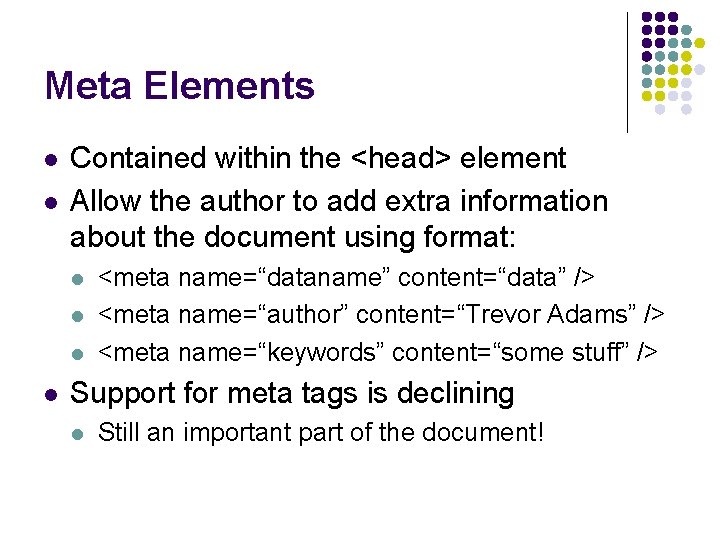

Meta Elements l l Contained within the <head> element Allow the author to add extra information about the document using format: l l <meta name=“dataname” content=“data” /> <meta name=“author” content=“Trevor Adams” /> <meta name=“keywords” content=“some stuff” /> Support for meta tags is declining l Still an important part of the document!

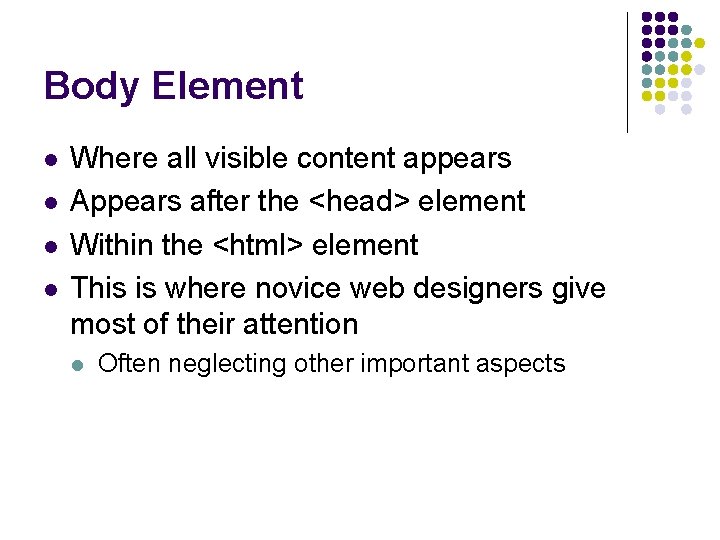

Body Element l l Where all visible content appears Appears after the <head> element Within the <html> element This is where novice web designers give most of their attention l Often neglecting other important aspects

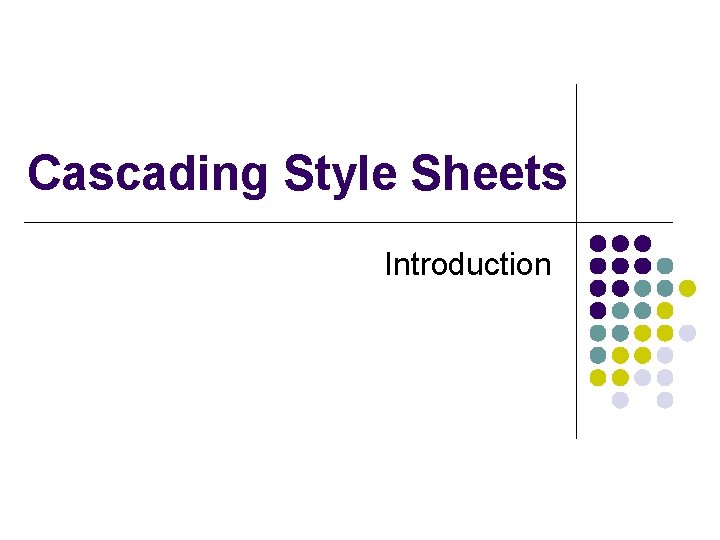

Cascading Style Sheets Introduction

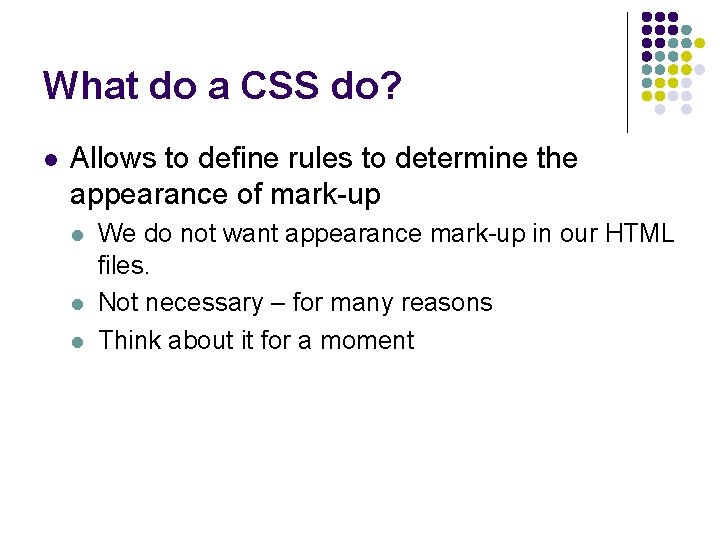

What do a CSS do? l Allows to define rules to determine the appearance of mark-up l l l We do not want appearance mark-up in our HTML files. Not necessary – for many reasons Think about it for a moment

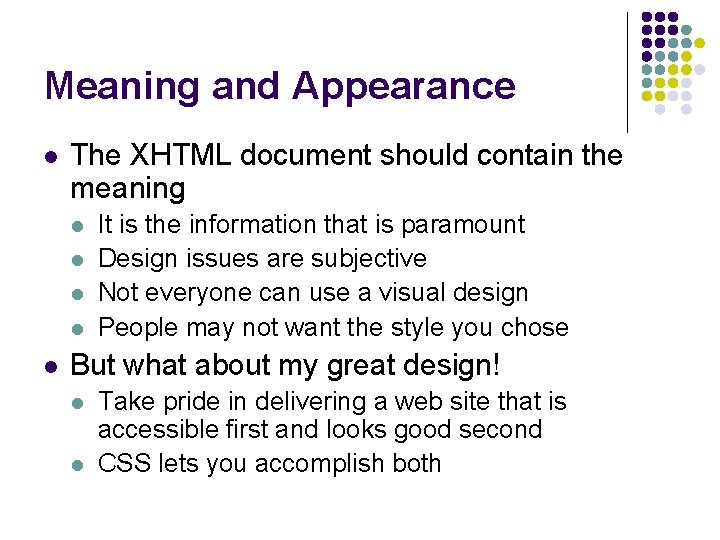

Meaning and Appearance l The XHTML document should contain the meaning l l l It is the information that is paramount Design issues are subjective Not everyone can use a visual design People may not want the style you chose But what about my great design! l l Take pride in delivering a web site that is accessible first and looks good second CSS lets you accomplish both

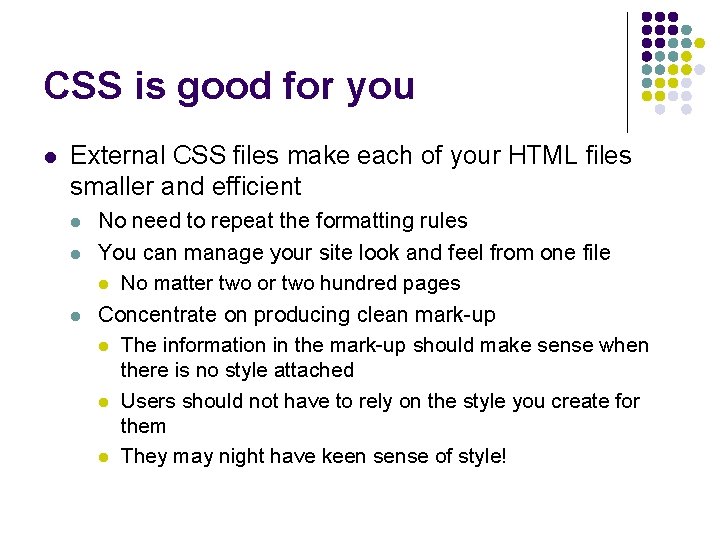

CSS is good for you l External CSS files make each of your HTML files smaller and efficient l l l No need to repeat the formatting rules You can manage your site look and feel from one file l No matter two or two hundred pages Concentrate on producing clean mark-up l The information in the mark-up should make sense when there is no style attached l Users should not have to rely on the style you create for them l They may night have keen sense of style!

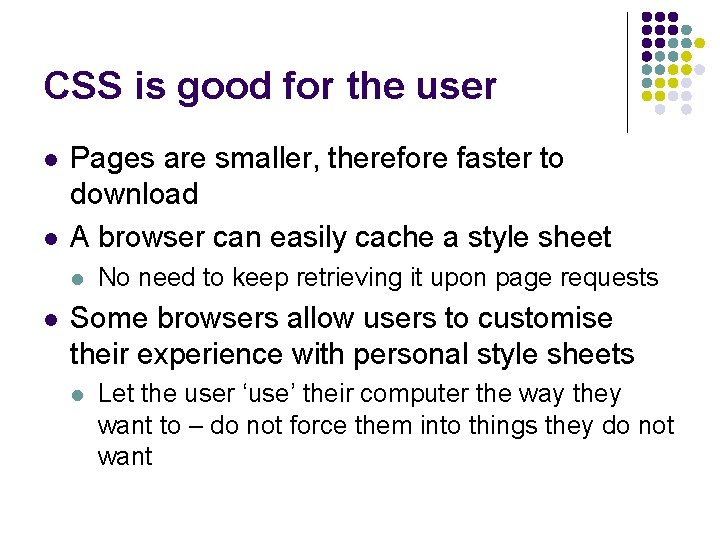

CSS is good for the user l l Pages are smaller, therefore faster to download A browser can easily cache a style sheet l l No need to keep retrieving it upon page requests Some browsers allow users to customise their experience with personal style sheets l Let the user ‘use’ their computer the way they want to – do not force them into things they do not want

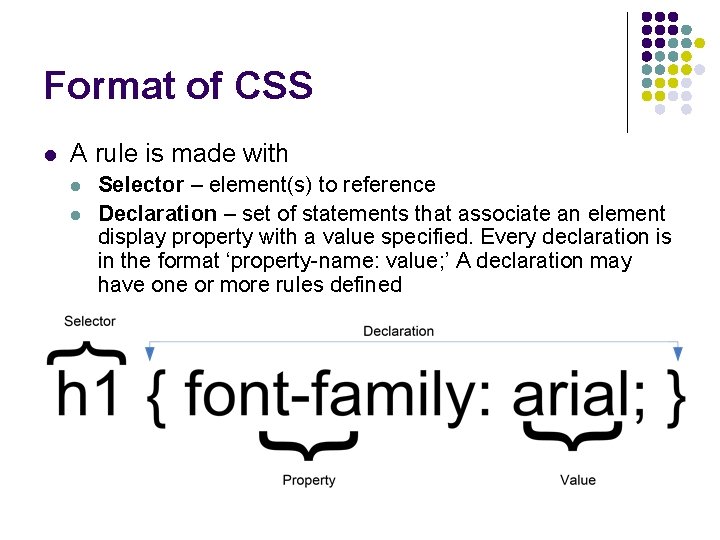

Format of CSS l A rule is made with l l Selector – element(s) to reference Declaration – set of statements that associate an element display property with a value specified. Every declaration is in the format ‘property-name: value; ’ A declaration may have one or more rules defined

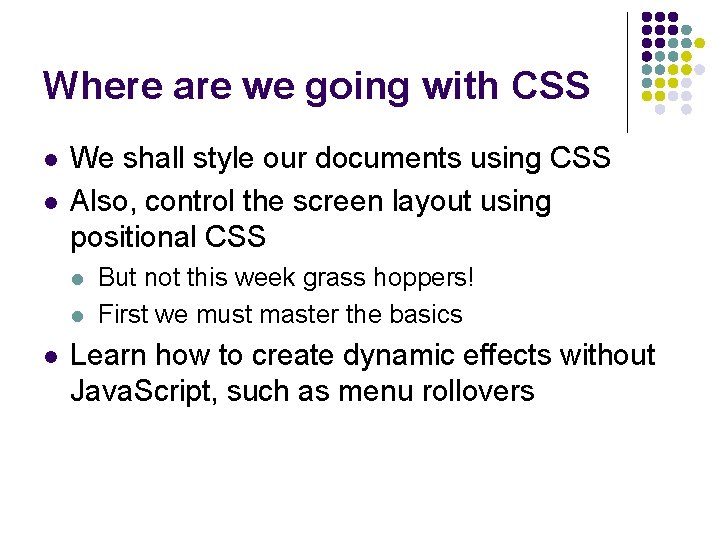

Where are we going with CSS l l We shall style our documents using CSS Also, control the screen layout using positional CSS l l l But not this week grass hoppers! First we must master the basics Learn how to create dynamic effects without Java. Script, such as menu rollovers

In the mean time l Complete the tutorial work this week l l Attempt the further exercises Help you gain understanding Take your time – it is a huge topic Get comfortable with XHTML and editors l l Notepad can be your friend just as much as Macromedia® Dreamweaver® Attempt to gain understanding of what WYSIWIG editors are doing for you
