XFP 1 2 LOOP NETWORKABLE ANALOGUE ADDRESSABLE FIRE
XFP 1 -2 LOOP NETWORKABLE ANALOGUE ADDRESSABLE FIRE PANELS

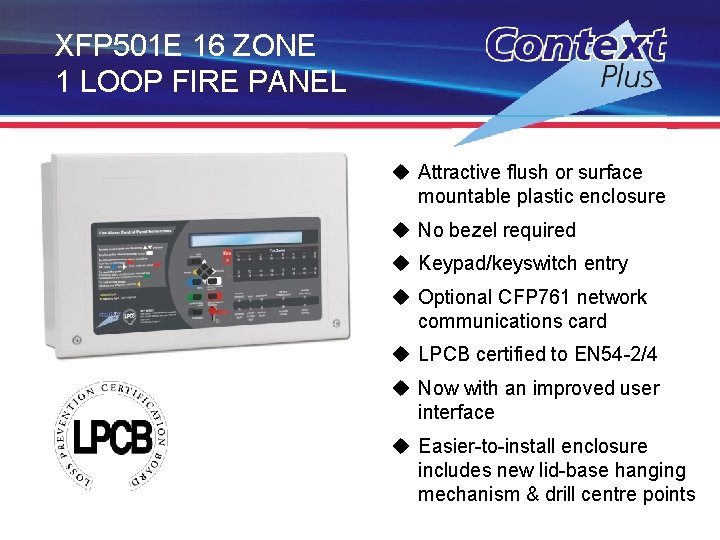

XFP 501 E 16 ZONE 1 LOOP FIRE PANEL u Attractive flush or surface mountable plastic enclosure u No bezel required u Keypad/keyswitch entry u Optional CFP 761 network communications card u LPCB certified to EN 54 -2/4 u Now with an improved user interface u Easier-to-install enclosure includes new lid-base hanging mechanism & drill centre points
XFP 501/502 32 ZONE 1/2 LOOP FIRE PANEL XFP 502 32 ZONE 2 LOOP FIRE PANEL u Supplied in a metal enclosure u Optional AFP 385 flush bezel u Optional AFP 711 network communications card u Keypad/keyswitch entry u LPCB certified to EN 54 -2/4 u Now with an improved user interface

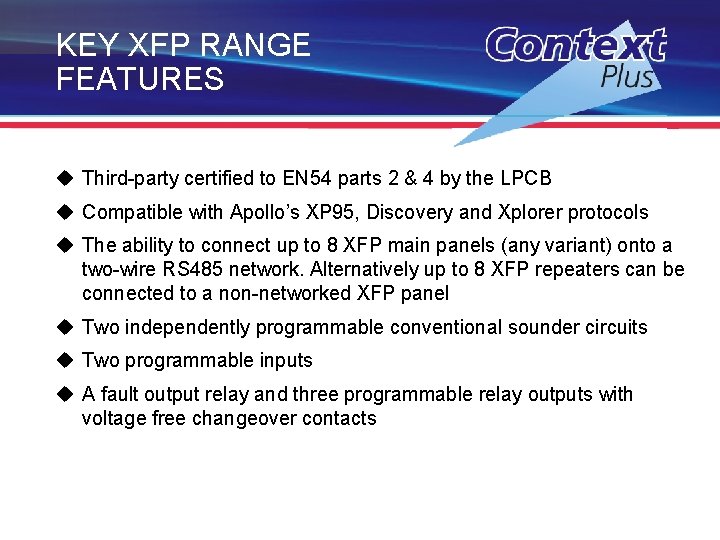

KEY XFP RANGE FEATURES u Third-party certified to EN 54 parts 2 & 4 by the LPCB u Compatible with Apollo’s XP 95, Discovery and Xplorer protocols u The ability to connect up to 8 XFP main panels (any variant) onto a two-wire RS 485 network. Alternatively up to 8 XFP repeaters can be connected to a non-networked XFP panel u Two independently programmable conventional sounder circuits u Two programmable inputs u A fault output relay and three programmable relay outputs with voltage free changeover contacts

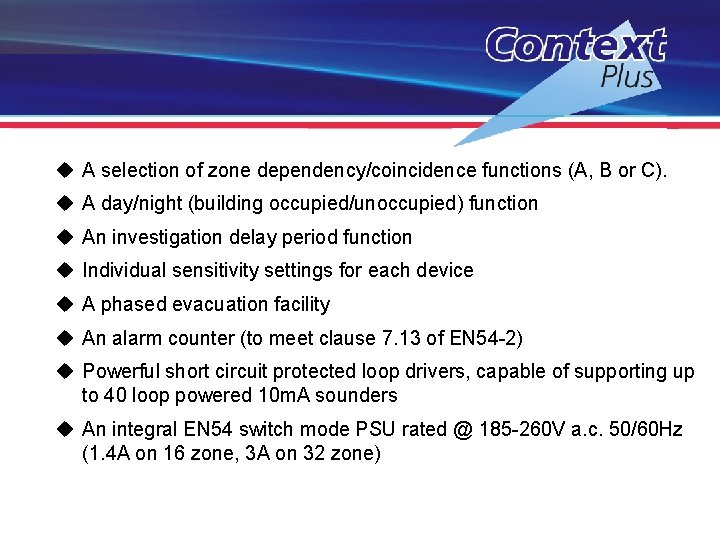

u A selection of zone dependency/coincidence functions (A, B or C). u A day/night (building occupied/unoccupied) function u An investigation delay period function u Individual sensitivity settings for each device u A phased evacuation facility u An alarm counter (to meet clause 7. 13 of EN 54 -2) u Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10 m. A sounders u An integral EN 54 switch mode PSU rated @ 185 -260 V a. c. 50/60 Hz (1. 4 A on 16 zone, 3 A on 32 zone)
u Adjustable contamination levels u Earth fault monitoring u Keypad or keyswitch entry to Access Levels 2 and 3 u An easy to read, 80 character back-lit display u 40 characters of custom text per device u 999 event monitoring u Comprehensive test, maintenance & commissioning functions (including auto-learn loops, monitor a point, test outputs, one man walk test & loop continuity test) u An intuitive upload-download PC program
NETWORKING FEATURES u Allows up to eight XFP panels to be interconnected over a two-wire RS 485 network (max. length 1 km). Alternatively up to 8 XFP repeaters can be connected to a non-networked XFP panel u Any variant of master panel (1 loop 16 zone and 1 or 2 loop 32 zone) can be networked together. u All master panels can accept faults, fires, disablements and control actions from other master panels. u All master panels monitor others for network wiring faults. u Time and date common to all master panels u All master panels require a network communications card.
XFP 707 PROGRAMMING SOFTWARE u Windows 2000/XP/Vista compatible u Intuitive ‘look and learn’ approach to programming u Requires a PC with a 9 -way serial port u Kit includes 2 m long SAF 7070000 programming lead (lead can be purchased separately) u Comprehensive ‘Help’ files included in software u Free software updates available at www. c-tec. co. uk u Short-form programming/system capability guide included with all panels
A typical XFP addressable loop
A typical XFP network

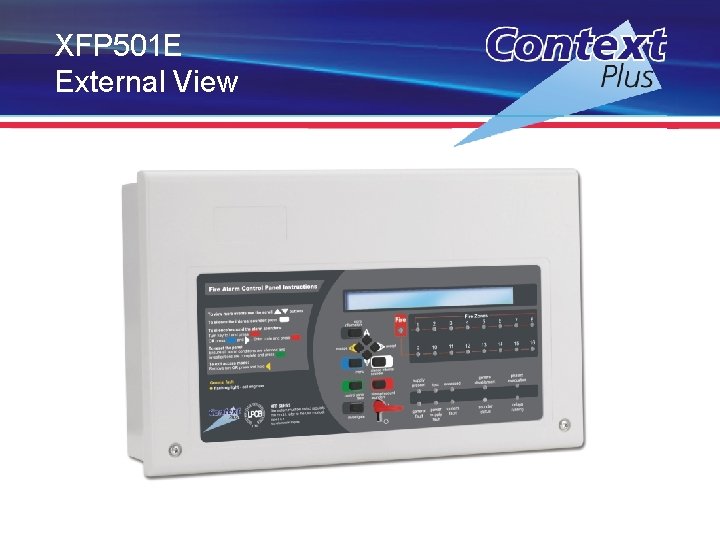

XFP 501 E External View
XFP 501 E Internal View POWER SUPPLY PCB OPTIONAL NETWORK COMMUNICATION CARD (mounts at the back of the enclosure) MAIN CONTROL PCB
XFP 501/502 External View
XFP 501/502 Internal View OPTIONAL NETWORK COMMUNICATION CARD SWITCH, INDICATOR & DISPLAY PCB MAIN CONTROL PCB POWER SUPPLY PCB

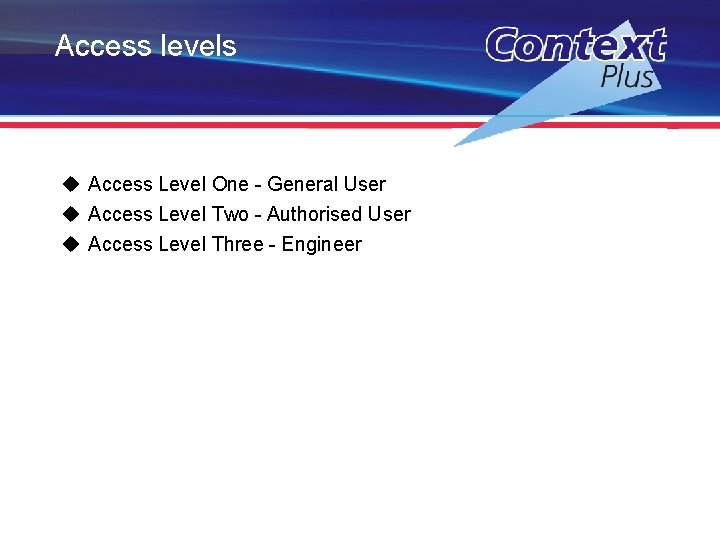

Access levels u Access Level One - General User u Access Level Two - Authorised User u Access Level Three - Engineer

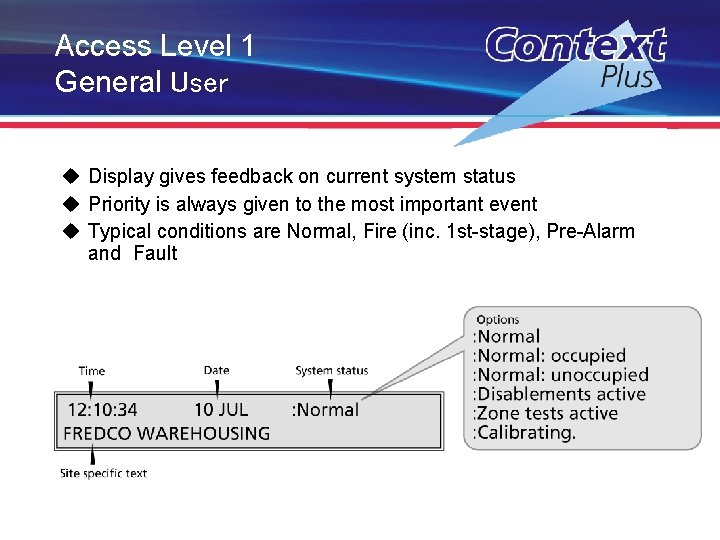

Access Level 1 General User u Display gives feedback on current system status u Priority is always given to the most important event u Typical conditions are Normal, Fire (inc. 1 st-stage), Pre-Alarm and Fault

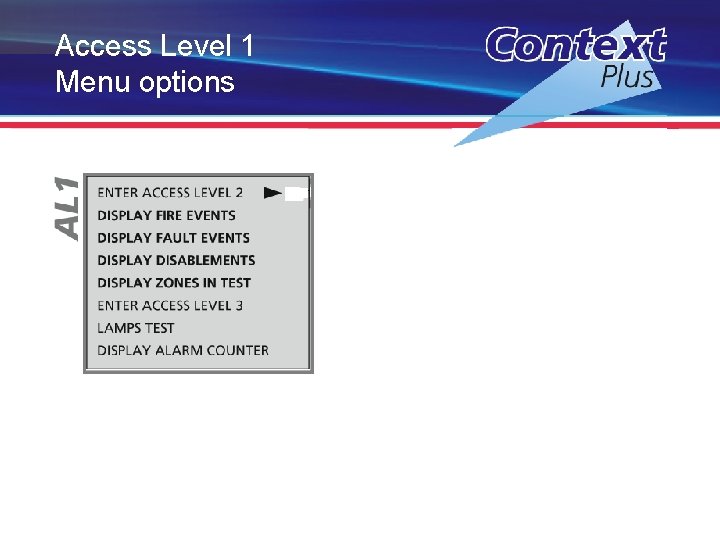

Access Level 1 Menu options
Access Level 2 Authorised User u Passcode or keyswitch protected. u Makes active the XFP’s SILENCE/RESOUNDERS, RESET and INVESTIGATE CONTROLS u Allows access to the XFP’s authorised user menu options.

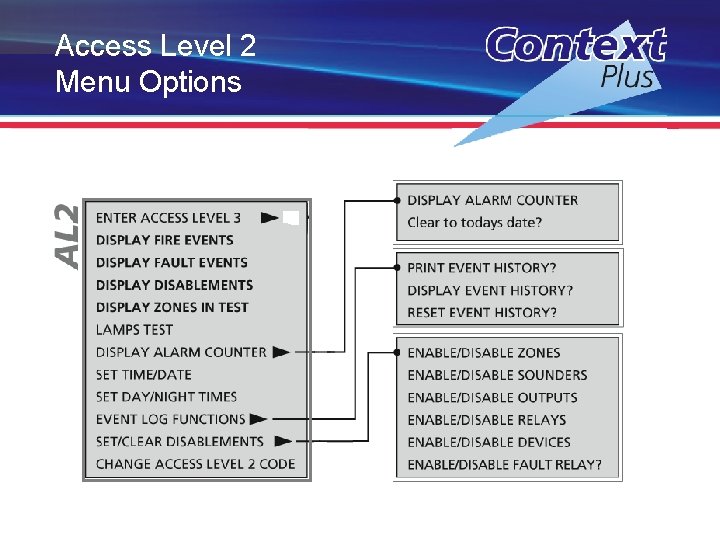

Access Level 2 Menu Options
Access Level 3 Engineer u Passcode or keyswitch protected u Makes active the XFP’s SILENCE/RESOUNDERS, RESET and INVESTIGATE CONTROLS u Allows access to the XFP’s engineer menu options.

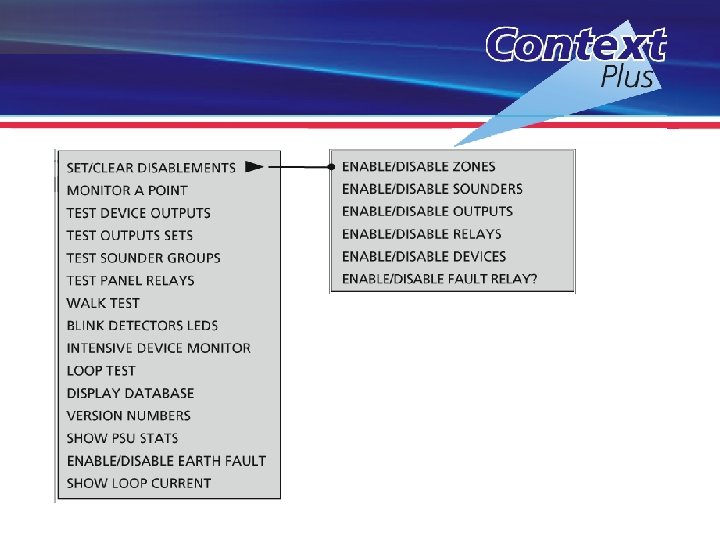

Access Level 3 Menu Options
Programming
Programming
Programming
Programming
CONTACT DETAILS CONTEXT PLUS LIMITED 175 Mauldeth Road, Manchester M 14 6 SG. Tel: +44 (0) 161 257 2541 Fax: +44 (0) 161 225 8817 E-Mail: xportsales@xportsales. com Visit our website at www. xportsales. com © XFP Presentation Rev 3. Although this presentation is current at the time of production, it may be revised, updated or superseded at a later date. If in doubt, you are advised to check the current revision number of the presentation by calling our sales desk on +44 (0)1942 322744.
