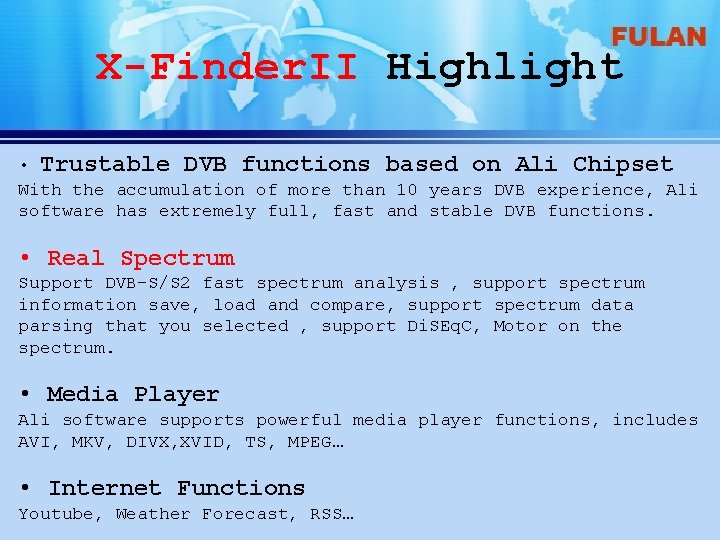

XFinder II Highlight Trustable DVB functions based on

X-Finder. II Highlight • Trustable DVB functions based on Ali Chipset With the accumulation of more than 10 years DVB experience, Ali software has extremely full, fast and stable DVB functions. • Real Spectrum Support DVB-S/S 2 fast spectrum analysis , support spectrum information save, load and compare, support spectrum data parsing that you selected , support Di. SEq. C, Motor on the spectrum. • Media Player Ali software supports powerful media player functions, includes AVI, MKV, DIVX, XVID, TS, MPEG… • Internet Functions Youtube, Weather Forecast, RSS…

X-Finder Overview

X-Finder Menu

X-Finder KEY FEATURES Video decoder: MPEG-4/H. 264, MP@ML, MP@HL, MP@L 4. 1, HP@L 4. 1, XVID, Div. X Video solution: 1080 p, 1080 i, 720 p, 576 p, 480 p, 576 i, 480 i Audio decoder: MPEG-1, MPEG-2, MP 3, LPCM, AAC LC, HE-AAC, DD+ Low power consumption in Stand-by mode, less than 1. 0 Watt Smart card interface for Conax CAS 7, CAM support HDMI HD Video/Audio output Di. SEqc 1. 0, 1. 1, 1. 2 and USALS, Unicable support Smart LAN 10/100 Mbps Ethernet USB 2. 0 high speed USB Wi-Fi support PVR function support, 1 channel recording and 1 channel play back Media player ready Electronic Program Guide(EPG) supported(7 Days) Teletext support by VBI & OSD You. Tube, Youporn, Weather forecast and RSS Reader Functions Picture in Graphic (PIG) function support Fast scan function support Software upgrade via USB 2. 0, RS 232, RS 485, HTTP, FTP Support DVB-S/S 2 fast spectrum analysis Constellation function Built-in U Disk(32 Gbits) High resolution 7″ TFT LCD Large lithium battery capacity, over 5 hours working time

X-Finder Front panel

X-Finder Rear Panel

X-Finder package

X-Finder Spec 　 Chipset Model Processor frequency OS Video Codec Video Resolution Audio Codec RAM 　 Ali M 3516 Dual High Performance 32 -bit CPU ALI TDS MPEG-4/H. 264, MP@ML, MP@HL, MP@L 4. 1, HP@L 4. 1, XVID, Div. X 1080 p, 1080 i, 720 p, 576 p, 480 p, 576 i, 480 i MPEG-1 layer 1/2, MPEG-2 Layer II, MP 3, LPCM, AAC LC, HE-AAC, DD+ DDRIII 1108 16 bit with capability of 256 MBytes Flash Serial Flash 16 MB Tuner DVB-S 2 * 1 + DVB-T 2 * 1(DVB-T, DVB-C support) Front Panel 7 inch LCD CA Slot YES * 1 CI Slot NO HDMI YES RCA NO U Disk USB Built-in U Disk(32 Gbits) 1 Ethernet YES * 1 Battery 11. 1 V/5000 m. AH RS 232 Dimension YES 242 mm. X 160 mm. X 46 mm

END Thank you!
