XENA网络测试系统 Oct. 2014

议程 q 公司介绍 q Xena. Bay硬件介绍 q Xena. Bay软件基本介绍 q Xena. Manager软件介绍 q Xena 2544介绍 @Xena Oct. 2014 ©Xena. Networks, July 2011

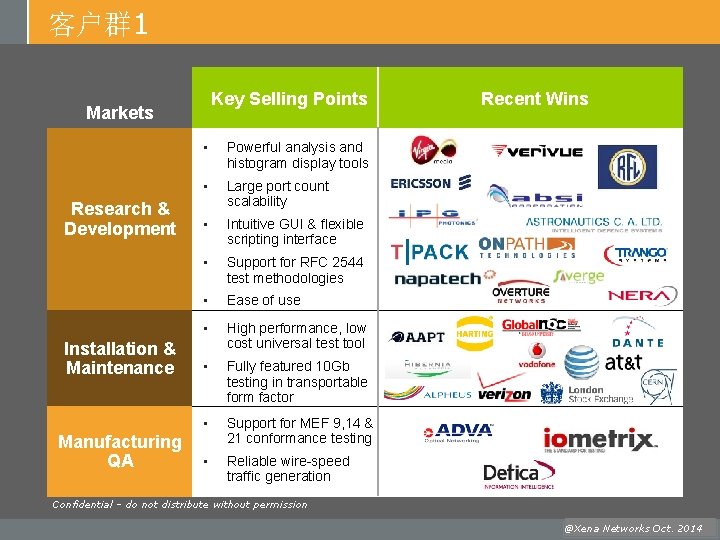

客户群 1 Key Selling Points Markets Research & Development Installation & Maintenance Manufacturing QA • Powerful analysis and histogram display tools • Large port count scalability • Intuitive GUI & flexible scripting interface • Support for RFC 2544 test methodologies • Ease of use • High performance, low cost universal test tool • Fully featured 10 Gb testing in transportable form factor • Support for MEF 9, 14 & 21 conformance testing • Reliable wire-speed traffic generation Recent Wins Confidential – do not distribute without permission @Xena Oct. 2014 ©Xena. Networks, July 2011 @Xena Networks Oct. 2014

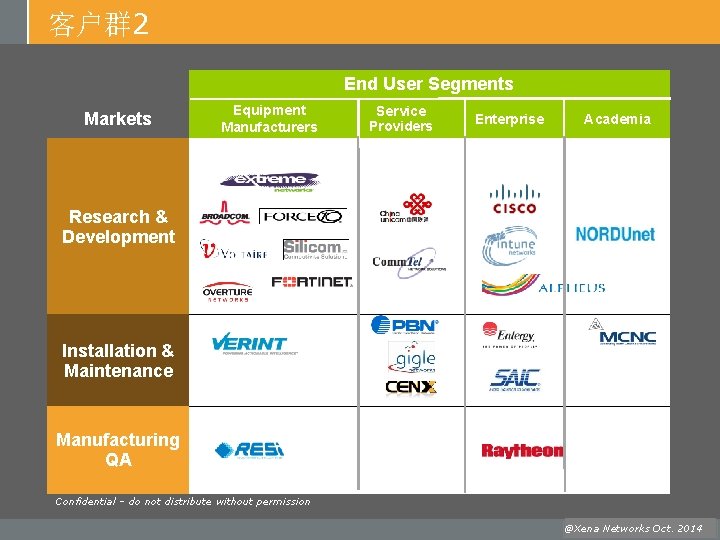

客户群 2 End User Segments Markets Equipment Manufacturers Service Providers Enterprise Academia Research & Development Installation & Maintenance Manufacturing QA Confidential – do not distribute without permission @Xena Oct. 2014 ©Xena. Networks, July 2011 @Xena Networks Oct. 2014

议程 q 公司介绍 q Xena. Bay硬件介绍 q Xena. Bay软件基本介绍 q Xena. Manager软件界面 q Xena 2544介绍 @Xena Networks Oct. 2014 ©Xena Networks, July 2011

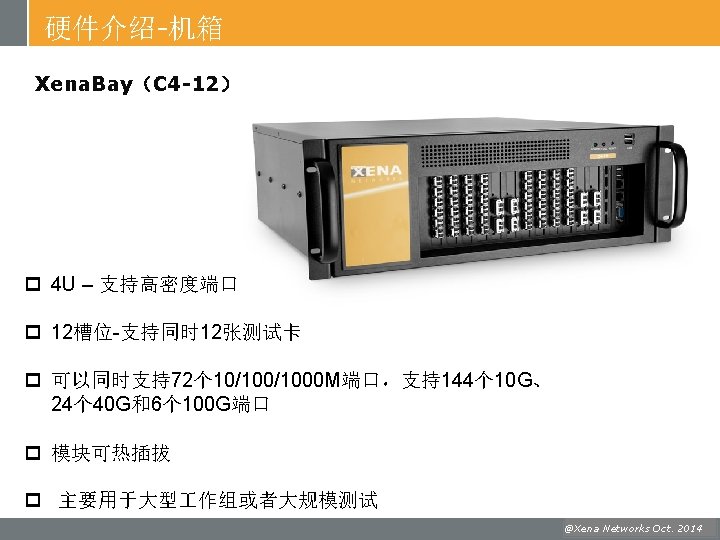

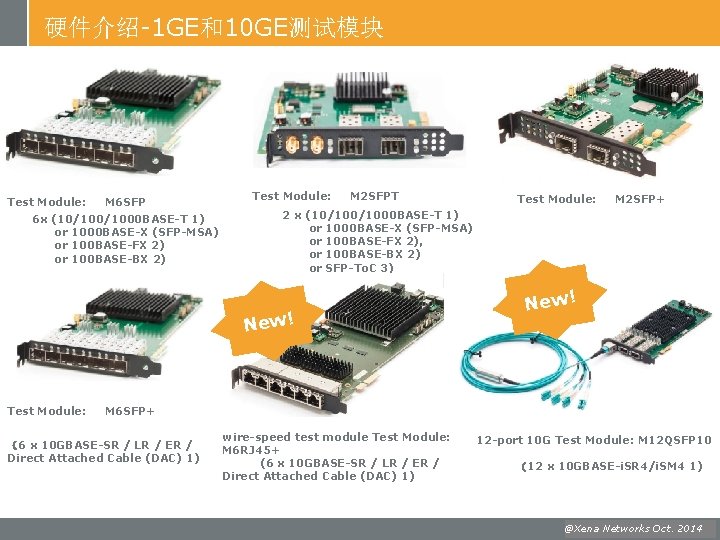

硬件介绍-1 GE和10 GE测试模块 Test Module: M 6 SFP 6 x (10/1000 BASE-T 1) or 1000 BASE-X (SFP-MSA) or 100 BASE-FX 2) or 100 BASE-BX 2) Test Module: M 2 SFPT M 2 SFP+ 2 x (10/1000 BASE-T 1) or 1000 BASE-X (SFP-MSA) or 100 BASE-FX 2), or 100 BASE-BX 2) or SFP-To. C 3) New! Test Module: New! M 6 SFP+ （6 x 10 GBASE-SR / LR / ER / Direct Attached Cable (DAC) 1) wire-speed test module Test Module: M 6 RJ 45+ (6 x 10 GBASE-SR / LR / ER / Direct Attached Cable (DAC) 1) 12 -port 10 G Test Module: M 12 QSFP 10 （12 x 10 GBASE-i. SR 4/i. SM 4 1) @Xena Oct. 2014 ©Xena. Networks, July 2011

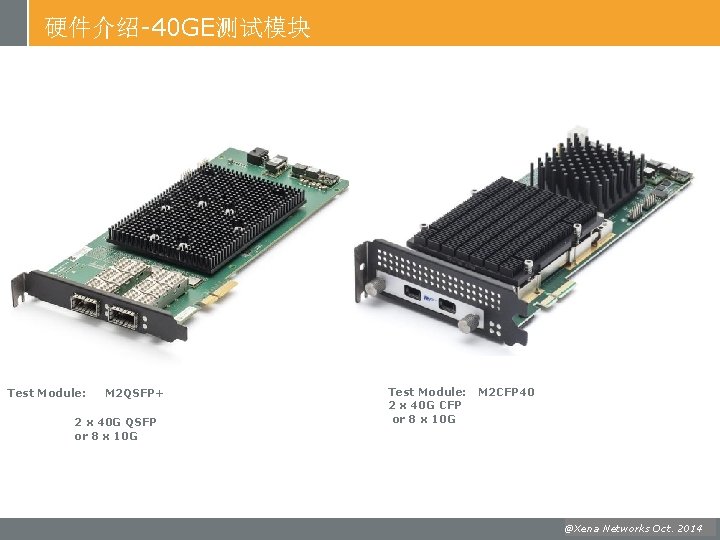

硬件介绍-40 GE测试模块 Test Module: M 2 QSFP+ 2 x 40 G QSFP or 8 x 10 G Test Module: 2 x 40 G CFP or 8 x 10 G M 2 CFP 40 @Xena Oct. 2014 ©Xena. Networks, July 2011

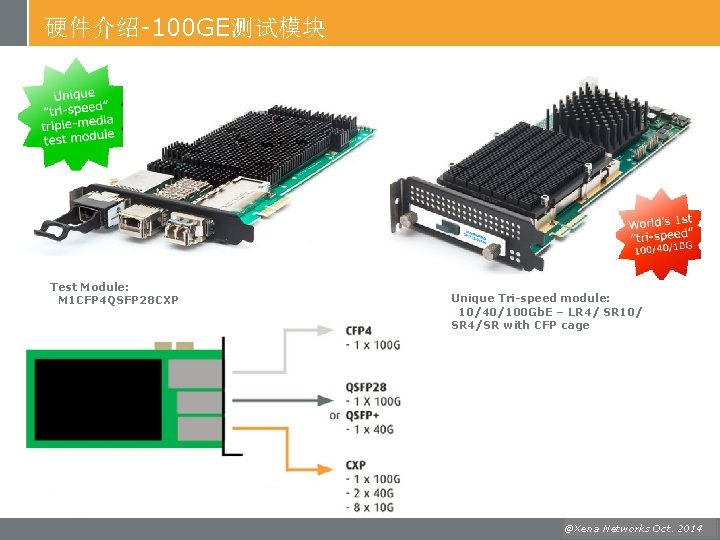

硬件介绍-100 GE测试模块 Test Module: M 1 CFP 4 QSFP 28 CXP Unique Tri-speed module: 10/40/100 Gb. E – LR 4/ SR 10/ SR 4/SR with CFP cage @Xena Oct. 2014 ©Xena. Networks, July 2011 @Xena Networks Oct. 2014

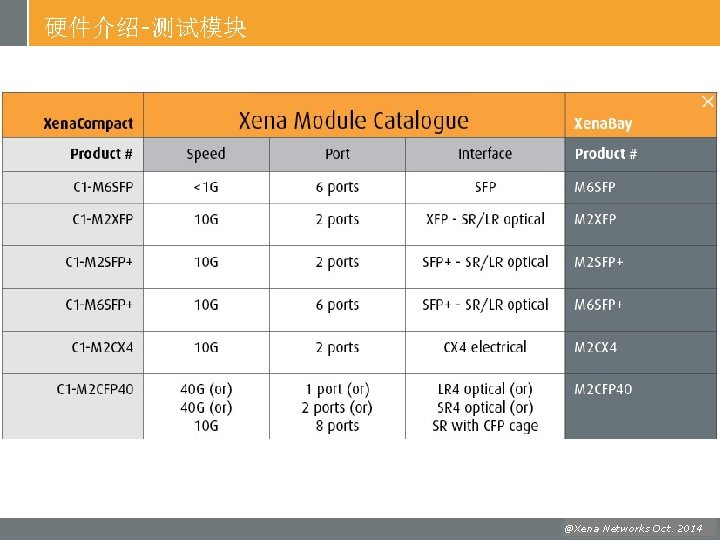

硬件介绍-测试模块 @Xena Oct. 2014 ©Xena. Networks, July 2011 @Xena Networks Oct. 2014

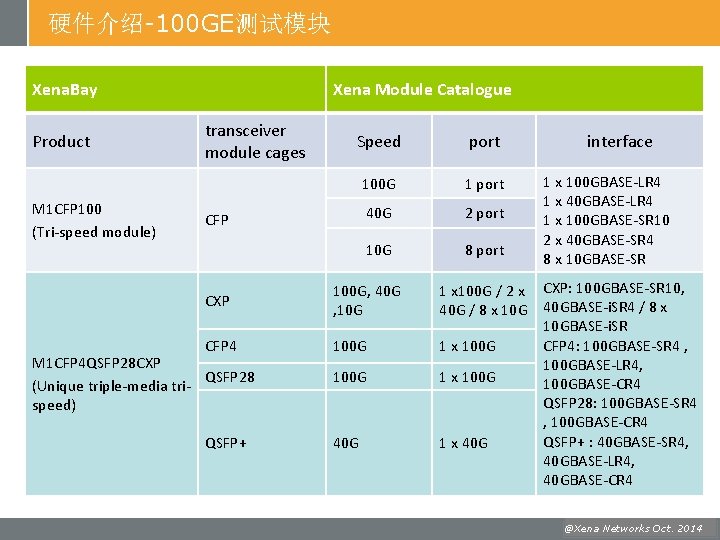

硬件介绍-100 GE测试模块 Xena. Bay Product M 1 CFP 100 (Tri-speed module) Xena Module Catalogue transceiver module cages Speed port 100 G 1 port 40 G 2 port 10 G 8 port CFP CXP 100 G, 40 G , 10 G CFP 4 100 G M 1 CFP 4 QSFP 28 CXP QSFP 28 (Unique triple-media trispeed) QSFP+ 100 G 40 G interface 1 x 100 GBASE-LR 4 1 x 40 GBASE-LR 4 1 x 100 GBASE-SR 10 2 x 40 GBASE-SR 4 8 x 10 GBASE-SR 1 x 100 G / 2 x CXP: 100 GBASE-SR 10, 40 G / 8 x 10 G 40 GBASE-i. SR 4 / 8 x 10 GBASE-i. SR CFP 4: 100 GBASE-SR 4 , 1 x 100 GBASE-LR 4, 1 x 100 GBASE-CR 4 QSFP 28: 100 GBASE-SR 4 , 100 GBASE-CR 4 QSFP+ : 40 GBASE-SR 4, 1 x 40 GBASE-LR 4, 40 GBASE-CR 4 @Xena Oct. 2014 ©Xena. Networks, July 2011 @Xena Networks Oct. 2014

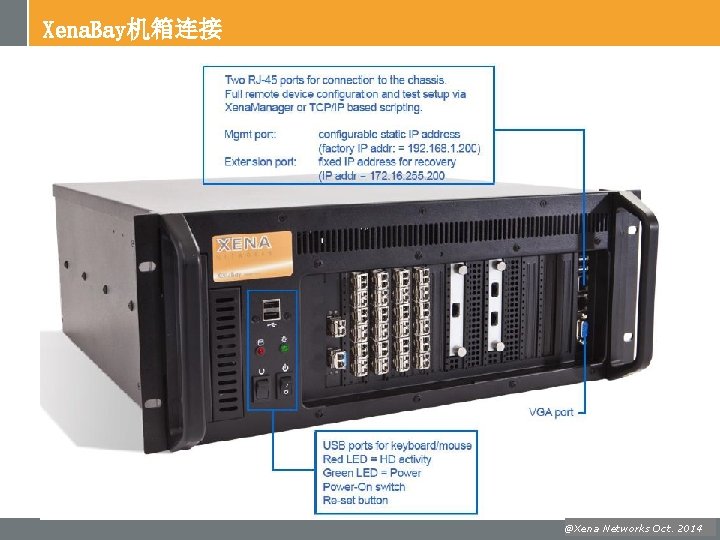

Xena. Bay机箱连接 @Xena Oct. 2014 ©Xena. Networks, July 2011

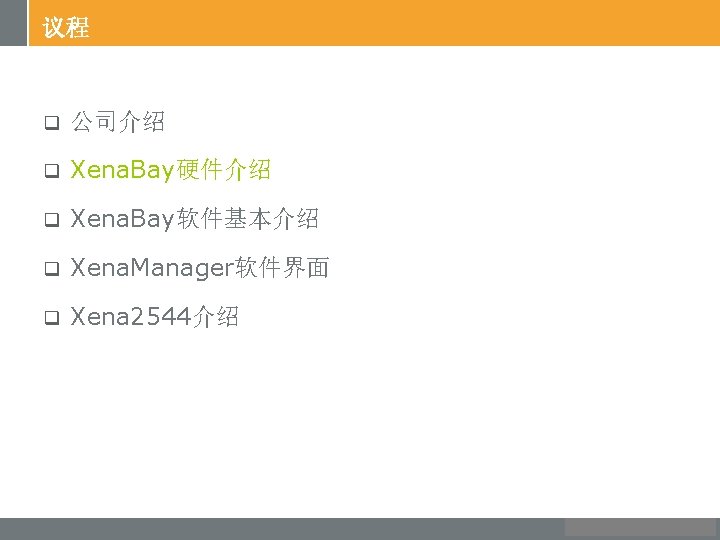

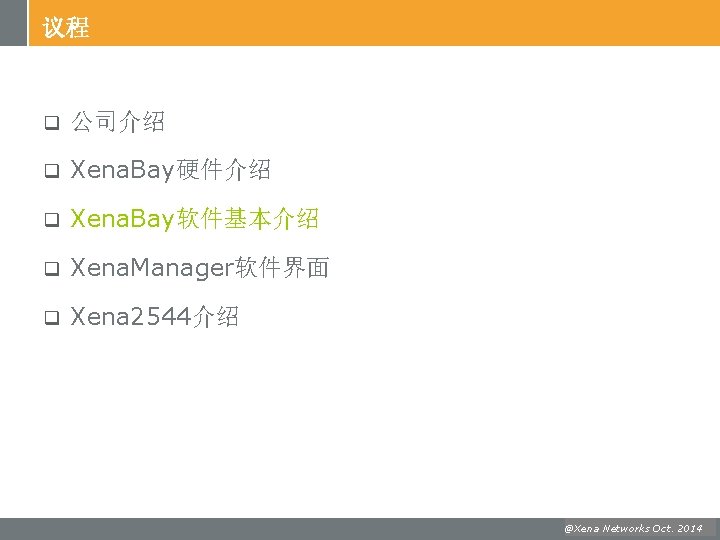

议程 q 公司介绍 q Xena. Bay硬件介绍 q Xena. Bay软件基本介绍 q Xena. Manager软件界面 q Xena 2544介绍 @Xena Oct. 2014 ©Xena. Networks, July 2011

议程 q 公司介绍 q Xena. Bay硬件介绍 q Xena. Bay软件基本介绍 q Xena. Manager软件界面 q Xena 2544介绍 @Xena Oct. 2014 ©Xena. Networks, July 2011

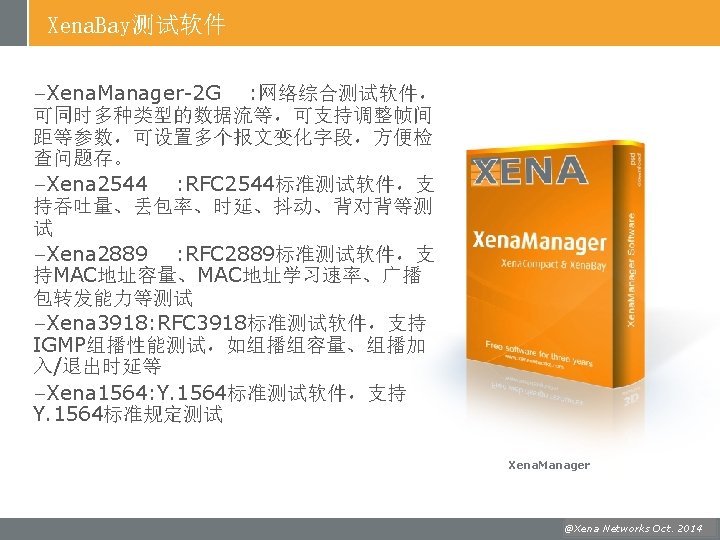

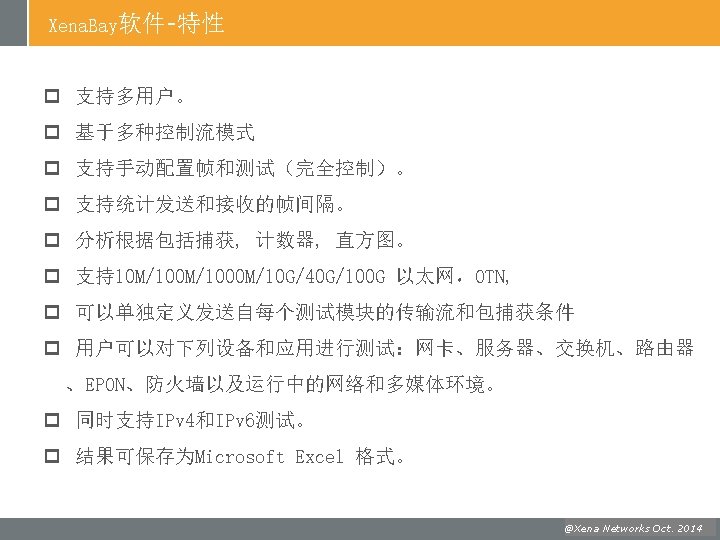

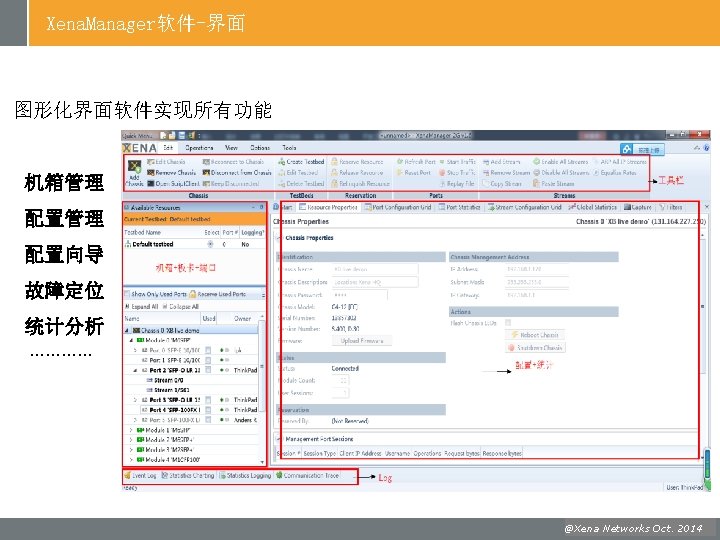

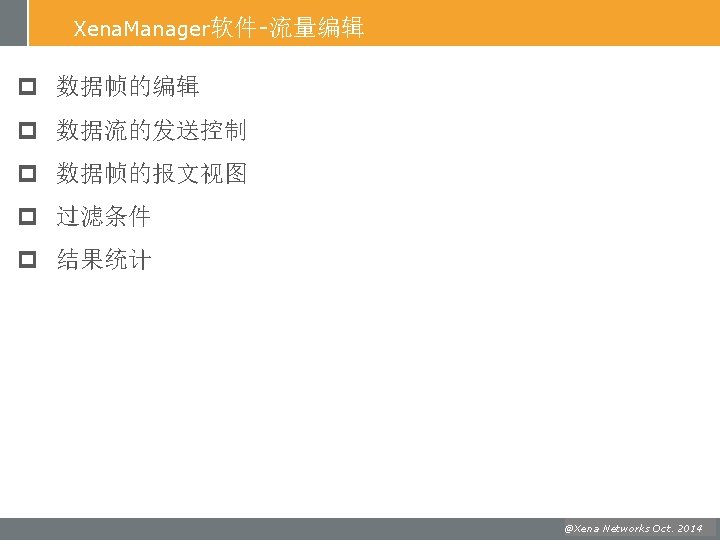

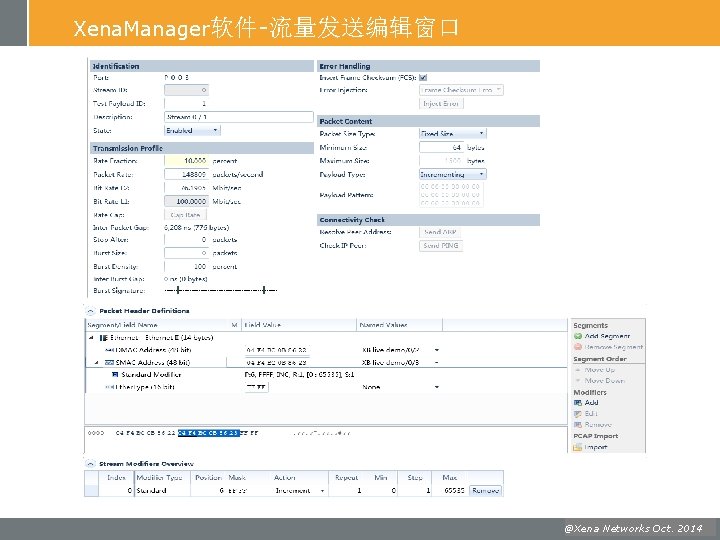

Xena. Manager软件-流量发送编辑窗口 @Xena Oct. 2014 ©Xena. Networks, July 2011

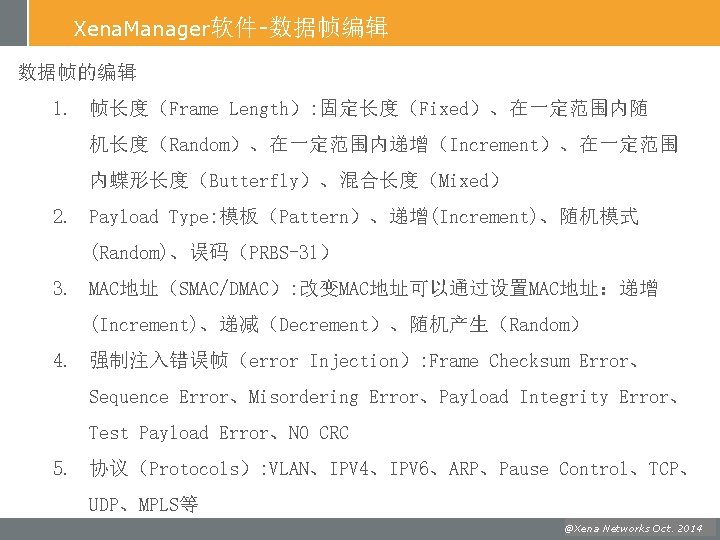

Xena. Manager软件-数据帧编辑数据帧的编辑 1. 帧长度（Frame Length）: 固定长度（Fixed）、在一定范围内随机长度（Random）、在一定范围内递增（Increment）、在一定范围内蝶形长度（Butterfly）、混合长度（Mixed） 2. Payload Type: 模板（Pattern）、递增(Increment)、随机模式 (Random)、误码（PRBS-31） 3. MAC地址（SMAC/DMAC）: 改变MAC地址可以通过设置MAC地址：递增 (Increment)、递减（Decrement）、随机产生（Random） 4. 强制注入错误帧（error Injection）: Frame Checksum Error、 Sequence Error、Misordering Error、Payload Integrity Error、 Test Payload Error、NO CRC 5. 协议（Protocols）: VLAN、IPV 4、IPV 6、ARP、Pause Control、TCP、 UDP、MPLS等 @Xena Oct. 2014 ©Xena. Networks, July 2011

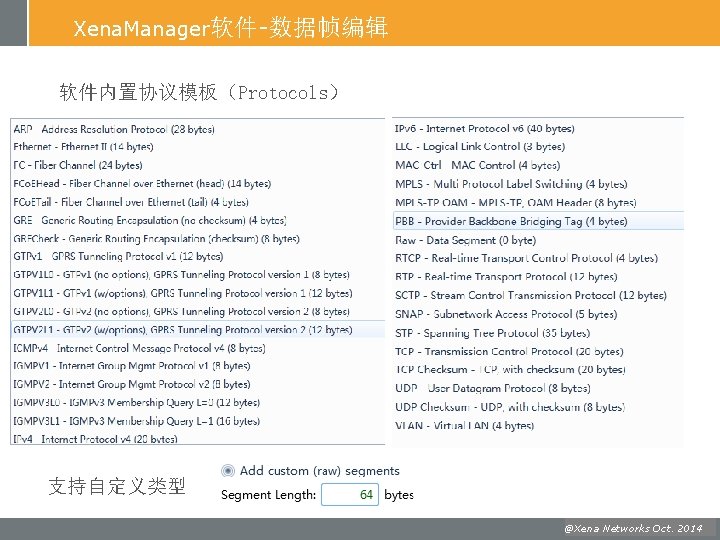

Xena. Manager软件-数据帧编辑软件内置协议模板（Protocols）支持自定义类型 @Xena Oct. 2014 ©Xena. Networks, July 2011

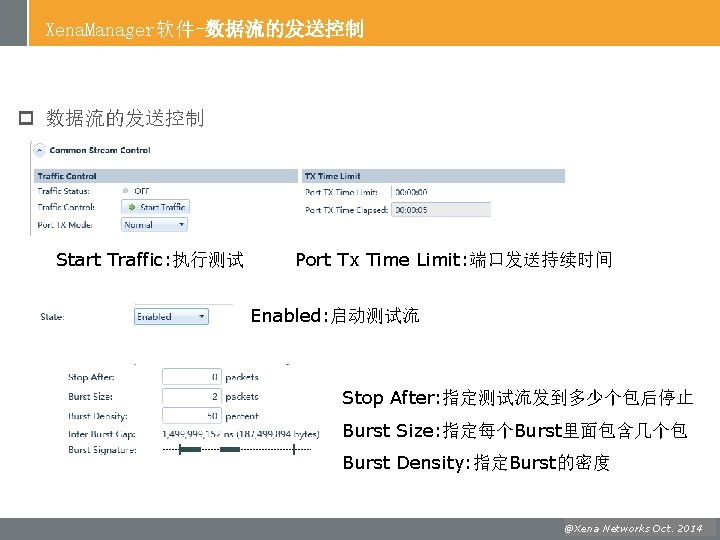

Xena. Manager软件-数据流的发送控制 p 数据流的发送控制 Start Traffic: 执行测试 Port Tx Time Limit: 端口发送持续时间 Enabled: 启动测试流 Stop After: 指定测试流发到多少个包后停止 Burst Size: 指定每个Burst里面包含几个包 Burst Density: 指定Burst的密度 @Xena Oct. 2014 ©Xena. Networks, July 2011

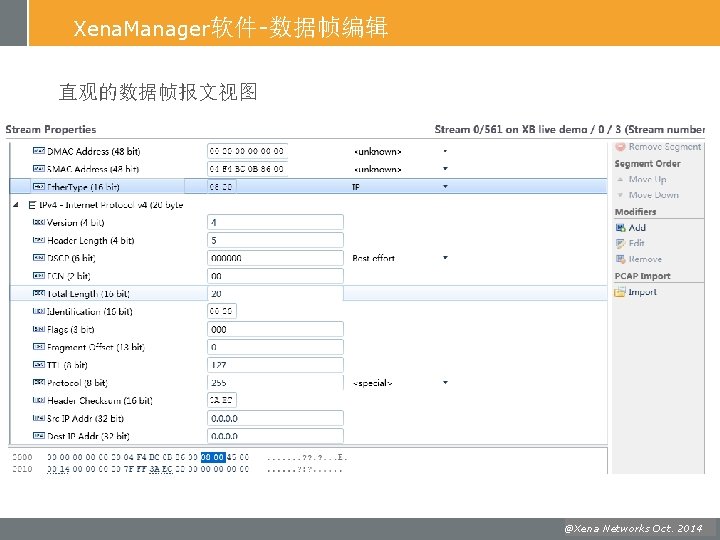

Xena. Manager软件-数据帧编辑直观的数据帧报文视图 @Xena Oct. 2014 ©Xena. Networks, July 2011

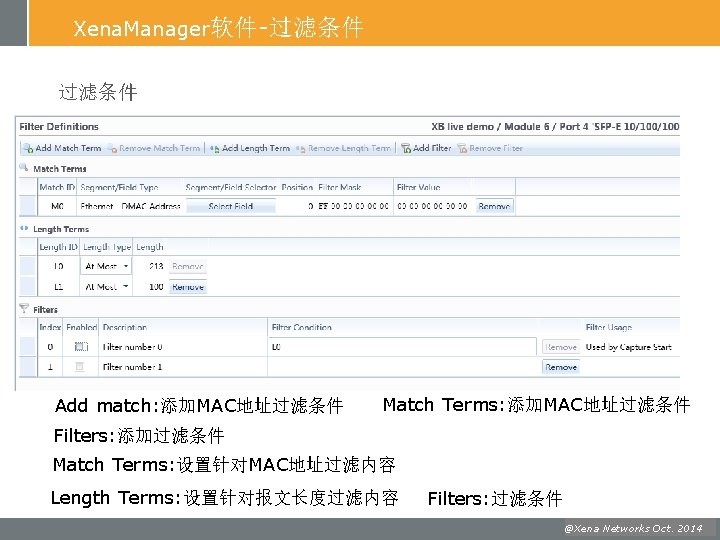

Xena. Manager软件-过滤条件 Add match: 添加MAC地址过滤条件 Match Terms: 添加MAC地址过滤条件 Filters: 添加过滤条件 Match Terms: 设置针对MAC地址过滤内容 Length Terms: 设置针对报文长度过滤内容 Filters: 过滤条件 @Xena Oct. 2014 ©Xena. Networks, July 2011

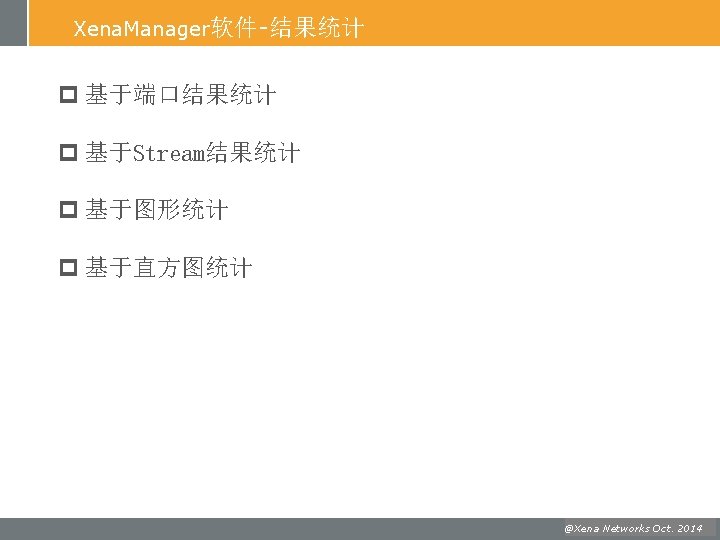

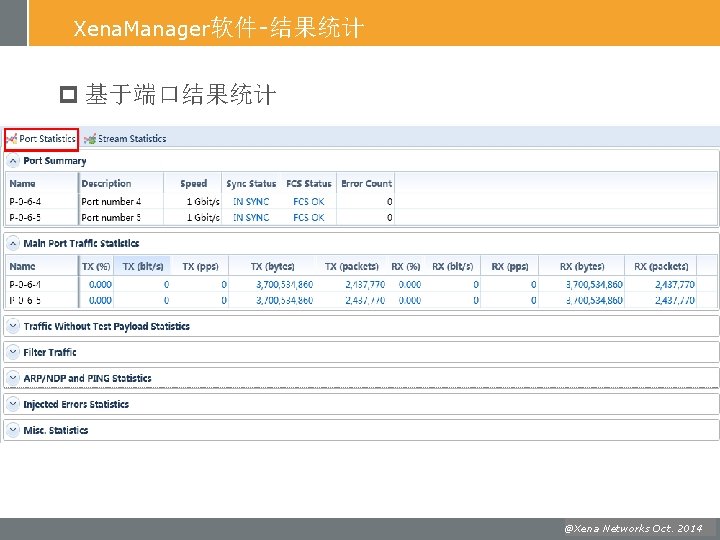

Xena. Manager软件-结果统计 p 基于端口结果统计 @Xena Oct. 2014 ©Xena. Networks, July 2011

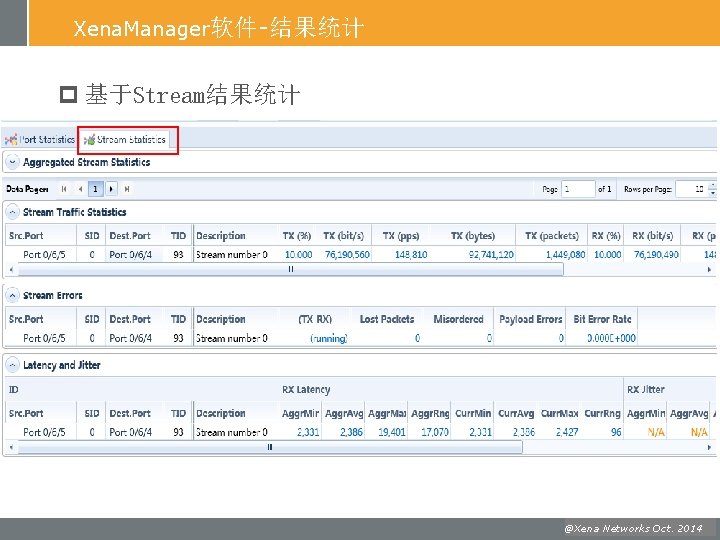

Xena. Manager软件-结果统计 p 基于Stream结果统计 @Xena Oct. 2014 ©Xena. Networks, July 2011

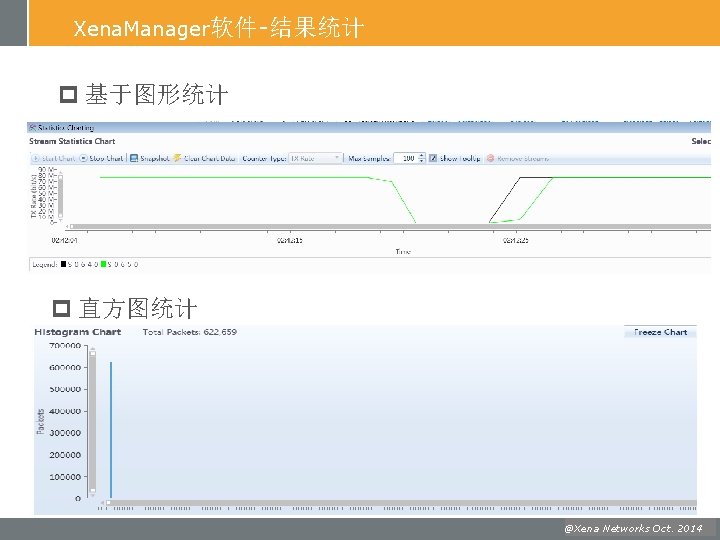

Xena. Manager软件-结果统计 p 基于图形统计 p 直方图统计 @Xena Oct. 2014 ©Xena. Networks, July 2011

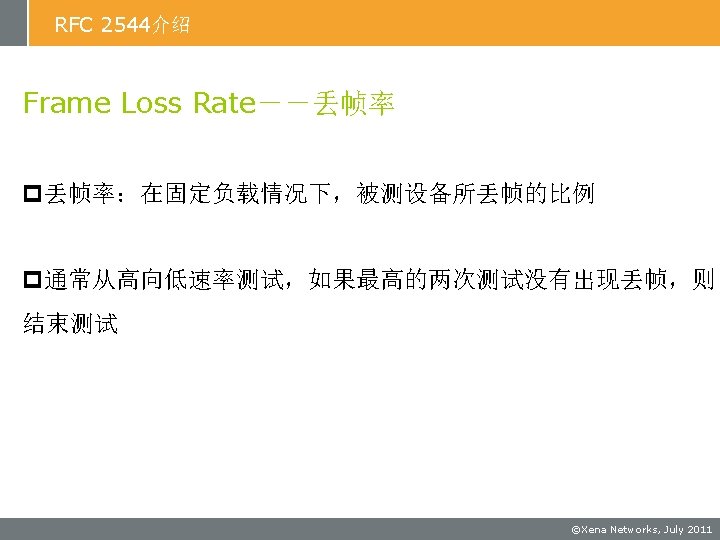

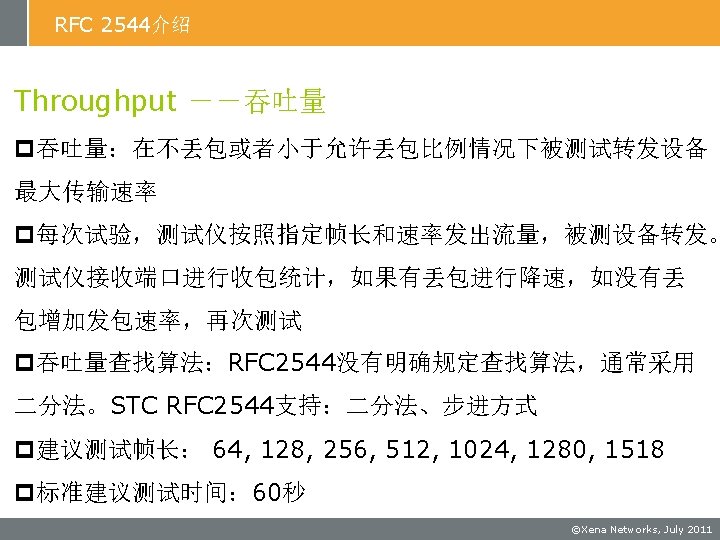

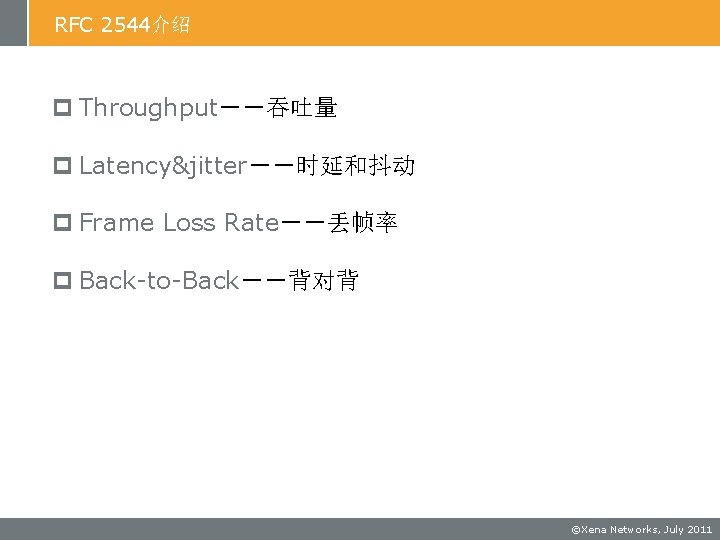

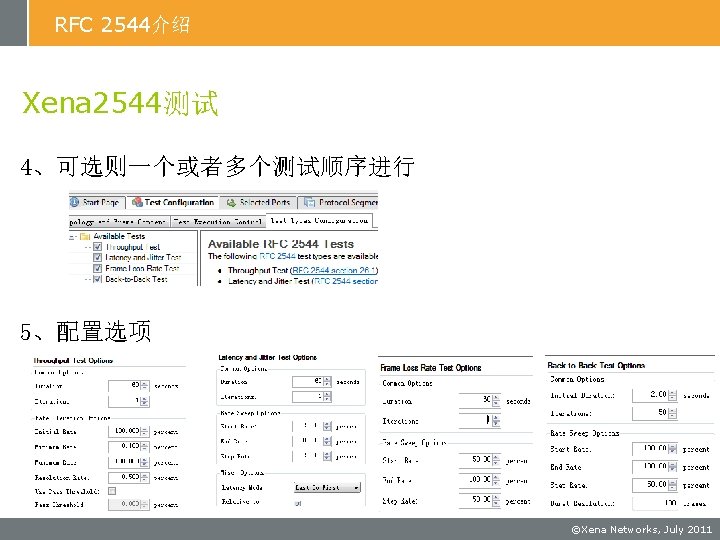

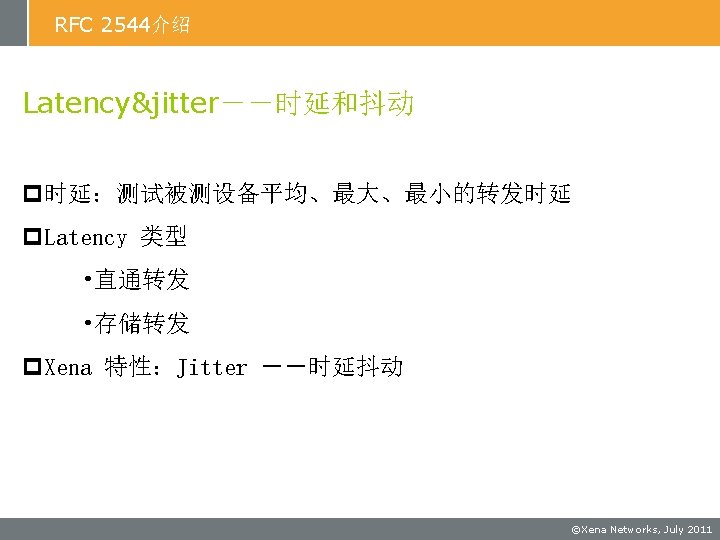

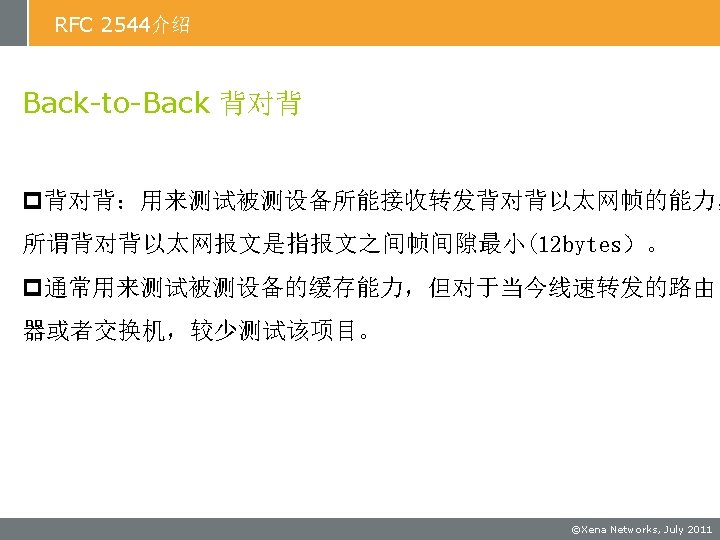

RFC 2544介绍 p Throughput－－吞吐量 p Latency&jitter－－时延和抖动 p Frame Loss Rate－－丢帧率 p Back-to-Back－－背对背 ©Xena Networks, July 2011

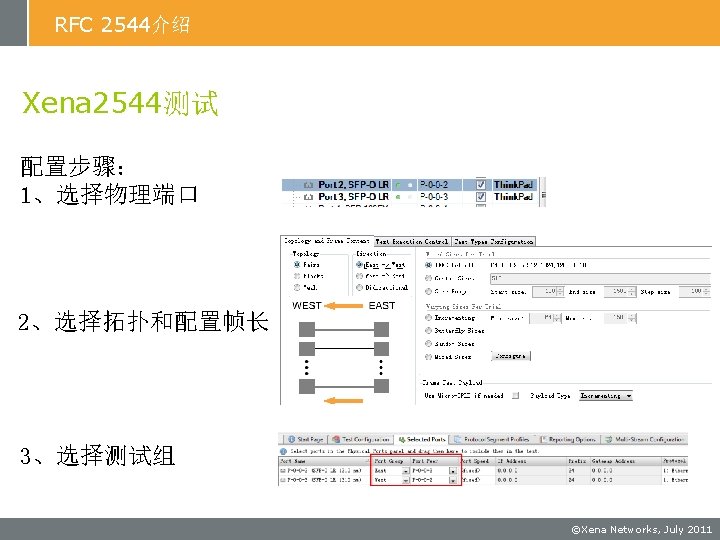

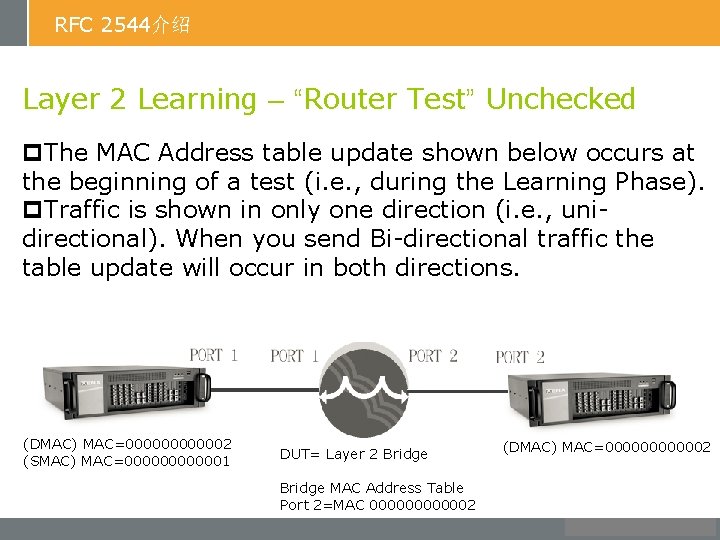

RFC 2544介绍 Layer 2 Learning – “Router Test” Unchecked p. The MAC Address table update shown below occurs at the beginning of a test (i. e. , during the Learning Phase). p. Traffic is shown in only one direction (i. e. , unidirectional). When you send Bi-directional traffic the table update will occur in both directions. (DMAC) MAC=0000002 (SMAC) MAC=0000001 DUT= Layer 2 Bridge MAC Address Table Port 2=MAC 0000002 (DMAC) MAC=0000002 @Xena Networks Oct. 2014 ©Xena Networks, July 2011

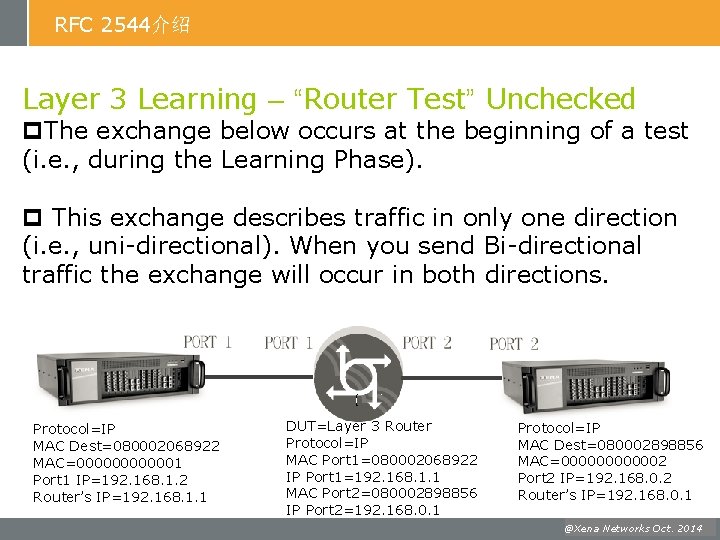

RFC 2544介绍 Layer 3 Learning – “Router Test” Unchecked p. The exchange below occurs at the beginning of a test (i. e. , during the Learning Phase). p This exchange describes traffic in only one direction (i. e. , uni-directional). When you send Bi-directional traffic the exchange will occur in both directions. Protocol=IP MAC Dest=080002068922 MAC=0000001 Port 1 IP=192. 168. 1. 2 Router’s IP=192. 168. 1. 1 DUT=Layer 3 Router Protocol=IP MAC Port 1=080002068922 IP Port 1=192. 168. 1. 1 MAC Port 2=080002898856 IP Port 2=192. 168. 0. 1 Protocol=IP MAC Dest=080002898856 MAC=0000002 Port 2 IP=192. 168. 0. 2 Router’s IP=192. 168. 0. 1 @Xena Oct. 2014 ©Xena. Networks, July 2011
