XChange Fast Flush From Lujan USA Cooling System

X-Change Fast Flush From Lujan USA Cooling System Service Made Easy. . . Press “enter” to start presentation Ver. 020613

Table of Contents The Need for Coolant X-Change The X-Change Fast Flush X-Change Advantages Operating Instructions Contact Lujan USA Instructions for this presentation Use the arrow keys to view the previous or next page. Pressing enter will take you to the next page. Press “esc” at any time to close the presentation. Mouse buttons are active. Click on blue links to jump to new section. Press “esc” at any time to close presentation

Why flush cooling systems? Over time, antifreeze deteriorates and turns acidic. The acidic coolant attacks an engine from the inside out. Particulate, rust, and minerals also become suspended in the coolant. These solids act like sandpaper to attack an engine. Components damaged include: • Water pump • Radiator • Heater core • Thermostat • Intake manifolds • Cylinder heads • Engine block • Soft plugs • Engine sensors • Heater control valves • Transmission coolers Click here to return to table of contents

Coolant also looses it’s ability to protect the engine Potential problems include: • • Lost freeze protection Lost overheat protection Lost cooling system lubrication Lost corrosion protection Click here to return to table of contents

Engine freeze-up or overheating can cause serious and expensive damage • Cracked or warped head • Water pump damage • Cracked or warped block • Radiator damage Corrosion Electrolysis Restricted or Plugged Passages Seal Failure Motorists can avoid these costly repairs by having their engine coolant flushed and replaced periodically. Click here to return to table of contents

Most people don’t even know their cooling system needs service Today's coolants do not change color when they deteriorate. Most drivers don't realize that their coolant needs to be changed until their car breaks down! In the past, coolant changed color when it needed replacement. In today's vehicles, coolant does not change appearance when it needs changing. Coolant X-Change is an important service to provide your customers Click here to return to table of contents

Industry experts recommend coolant X-Change every 2 years or 24, 000 miles! Click here to return to table of contents

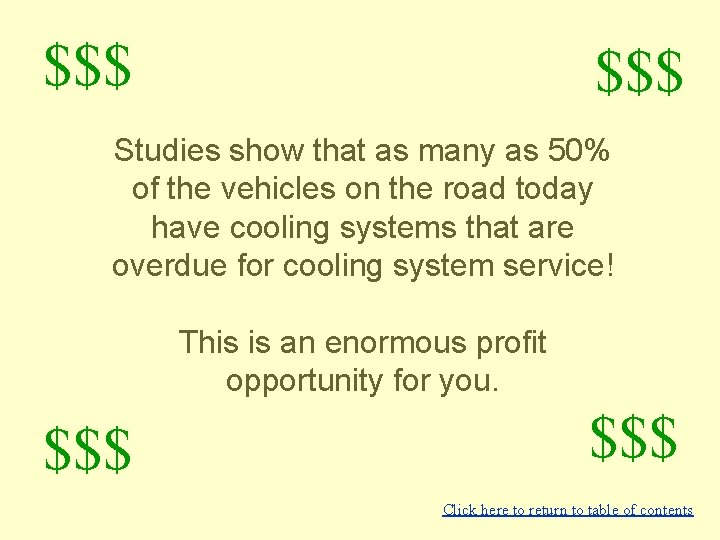

$$$ Opportunity $$$ Studies show that as many as 50% of the vehicles on the road today have cooling systems that are overdue for cooling system service! This is an enormous profit opportunity for you. $$$ Click here to return to table of contents

X-Change Fast Flush from Lujan USA Cooling system service generates fast, easy profits for your auto repair business. With the X-Change Fast Flush you can generate large profits with virtually no comebacks! Click here to return to table of contents

Introducing The X-Change Fast Flush Cooling System Service Made Easy. . . Click here to return to table of contents

The X-Change Fast Flush is a powerful new profit center for your business. The X-change is a fast, easy, and affordable way to increase your profits while providing an important service that your customers need! Click here to return to table of contents

How does the X-Change work? The X-Change connects to the upper radiator hose and uses a direct displacement method of coolant X -Change. The vehicles water pump is used to dispense new coolant from the top tank while used coolant is collected in an internal tank. By using the vehicles water pump, the X-Change does not introduce air into the system. The X-Change includes a built-in transfer pump to empty the overfill reservoir or transfer coolant. Click here to return to table of contents

X-Change Advantages ? X-Change increases your shops productivity, complete cooling system flush and fill in about 15 minutes ? X-Change uses direct displacement coolant X-Change, this method replaces all of the old coolant including block, heater core, radiator, and hoses ? X-Change eliminates coolant spills during cooling system service ? Air is not used in displacement process, air does not enter the cooling system using the X-Change ? Liquid transfer pump provides clean, simple, and fast method of transferring coolant ? Simple operation, simple hook-up, no hose cutting or flush tees ? Separate multiple coolants with optional extra tank ? Fifteen gallon used coolant storage ? X-Change is easy to move around and its compact design saves valuable shop space Click here to return to table of contents

The X-Change is designed with both the shop owner and the user in mind! Oversize, Heavy Duty Wheels Easily roll over extension cords. 20” Suction Wand Reaches Deep Into Overfill Reservoirs Locking Wheel Keeps the X-Change from Moving While In Use Storage Trays Provide Convenient Storage For Small Parts & Tools Brass Ball Valves Provide Durable Positive Shut-off Click here to return to table of contents

Rapid Payback = Rapid Profit Billing per Job Labor Cost $49. 95 $7. 50 Technicians pay $15. 00/hr. , average technician time 0. 5 hr. Coolant cost per job (1. 5 x$4. 99) Total Cost per Job $7. 48 $14. 98 Profit Billing per Job Less Total Cost per Job Profit per Job Weekly Return (5 Jobs per Week) $49. 95 $14. 98 $34. 97 $174. 85 Annual Net Profit $9, 092. 20 Even if you only do one job per week, your net profit from the X-Change will be $1, 818. 44 per year!!! Click here to return to table of contents

You already have built-in sales You already replace water pumps, radiators, heater cores, thermostats and other cooling system parts. These components often fail because the coolant has lost is ability to lubricate and protect them. Frequently the coolant has turned acidic and actually is the cause of the parts failure. To protect the engine in your customers vehicle, you should flush and refill the coolant every time you replace one of these critical components. What other equipment provides this opportunity? Click here to return to table of contents

X-Change Specifications • Dimensions: Overall 69”Hx 22”Wx 22”D • Metal Housing: Color Safety Yellow - Dimensions: 17. 5”x 49”, With Two Built-in Storage Trays • Wheels: Two Swivel Wheels (one locking), Two Heavy Duty 8” Axle Mounted • Pump Motor: Maintenance Free, Low Noise 1/12 H. P. , 110 Volt • Hoses: Oil and Chemical Resistant, Reinforced High Tensile Reinforced Braided Clear Plastic Hose, 3/4” I. D. by 7’ • Hose Adapters: Four Step: 1”, 1 1/4”, 1 1/2”, 1 3/4” with Heavy Duty Brass Ball Valves. Suction Wand 20” • Pump: Impeller Design 1. 9 G. P. M. Fluid Viscosity 35 To 100 SSU, No Lubrication Required. • Top Tank (new coolant): 6 Gallons Polypropylene Construction • Bottom Tank (used coolant): 15 Gallons Polypropylene Construction • Warranty: 2 Year Limited Click here to return to table of contents

Simple operation means fast training and no comebacks ? The X-Change is extremely easy to use, it requires very little training. ? Most technicians can flush and fill a cooling system with the X-Change in about 15 minutes. ? Even lube shop personnel can use the X-Change with no comebacks. Click here to return to table of contents

If you don’t provide cooling system service, your competition will! Click here to return to table of contents

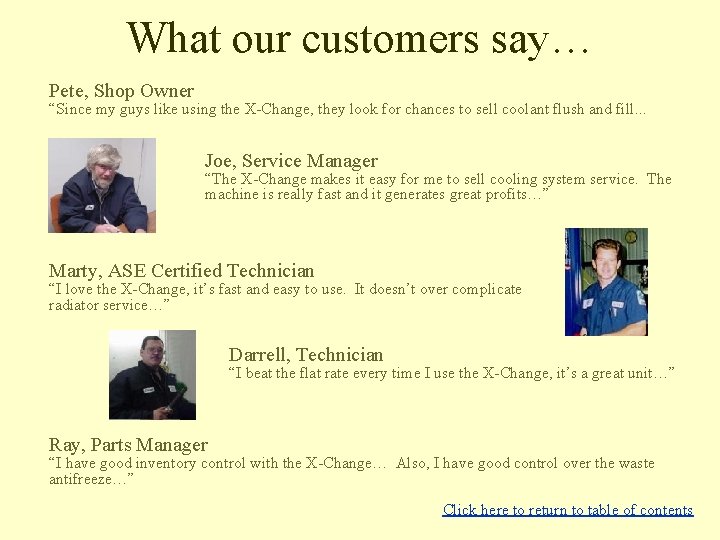

What our customers say… Pete, Shop Owner “Since my guys like using the X-Change, they look for chances to sell coolant flush and fill. . . Joe, Service Manager “The X-Change makes it easy for me to sell cooling system service. The machine is really fast and it generates great profits…” Marty, ASE Certified Technician “I love the X-Change, it’s fast and easy to use. It doesn’t over complicate radiator service…” Darrell, Technician “I beat the flat rate every time I use the X-Change, it’s a great unit…” Ray, Parts Manager “I have good inventory control with the X-Change… Also, I have good control over the waste antifreeze…” Click here to return to table of contents

Contact Information Lujan USA PO Box 411 Camillus, NY 13031 -0411 (888) 576 -4737 www. lujanusa. com sales@lujanusa. com Visit our website at www. lujanusa. com to see the Sniper Optical Headlight Aimer and our other automotive service products. . . Click here for step by step instructions on operating the X-Change Fast Flush Click here to return to table of contents
