XAS as conductivity tensor/ Maurits W. Haverkort Institute for theoretical physics, Heidelberg University, Heidelberg, Germany M. W. Haverkort@thphys. uni-heidelberg. de
Sum rules for linear dichroism: orbital occupation
XAS and the conductivity tensor (s) – an example for s to p Real Imaginary Absorption –Im[s] w 0 (in Landau Lifschitz absorption is Re[s])
But the conductivity tensor (s) is a TENSOR
But the conductivity tensor (s) is a TENSOR Absorption –Im[e. s. e]

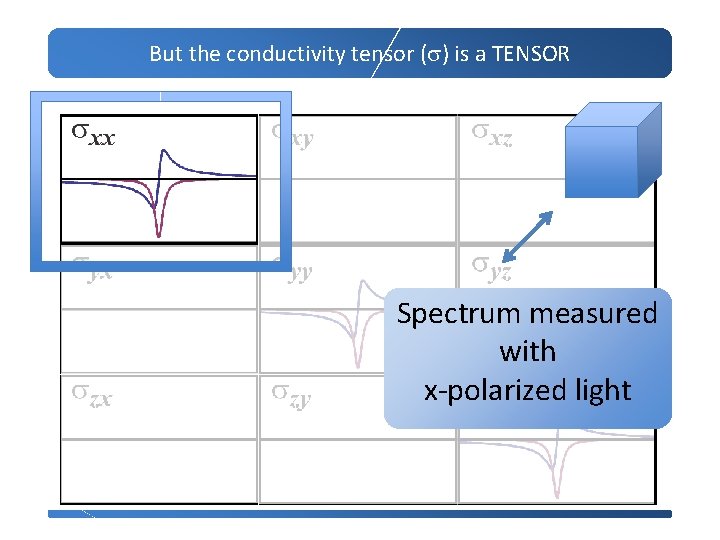

But the conductivity tensor (s) is a TENSOR Spectrum measured with x-polarized light
But the conductivity tensor (s) is a TENSOR Spectrum measured with y-polarized light
But the conductivity tensor (s) is a TENSOR Spectrum measured with z-polarized light

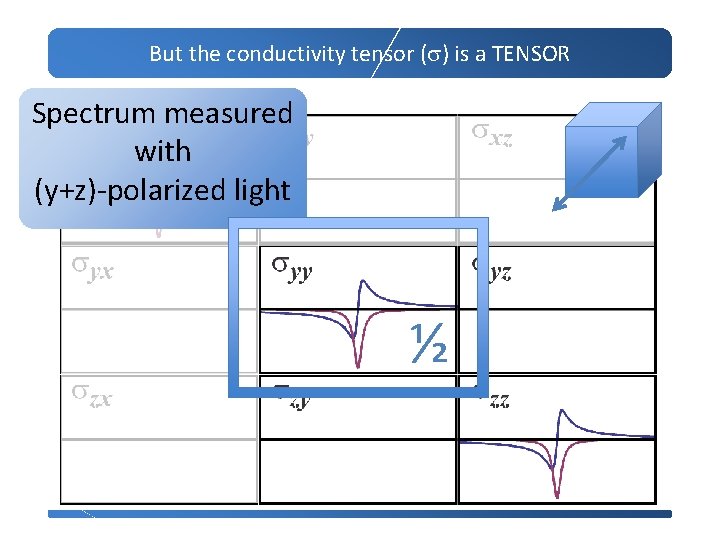

But the conductivity tensor (s) is a TENSOR Spectrum measured with (y+z)-polarized light
But the conductivity tensor (s) is a TENSOR Spectrum measured with (y+z)-polarized light ½
But the conductivity tensor (s) is a TENSOR Spectrum measured with (y+z)-polarized light ½
But the conductivity tensor (s) is a TENSOR Spectrum measured with (y+z)-polarized light ½
But the conductivity tensor (s) is a TENSOR Spectrum measured with (y+z)-polarized light ½
The conductivity tensor (s) in cubic symmetry
The conductivity tensor (s) in tetragonal symmetry
The conductivity tensor (s) in orthorhombic symmetry
The conductivity tensor (s) in monoclinic symmetry

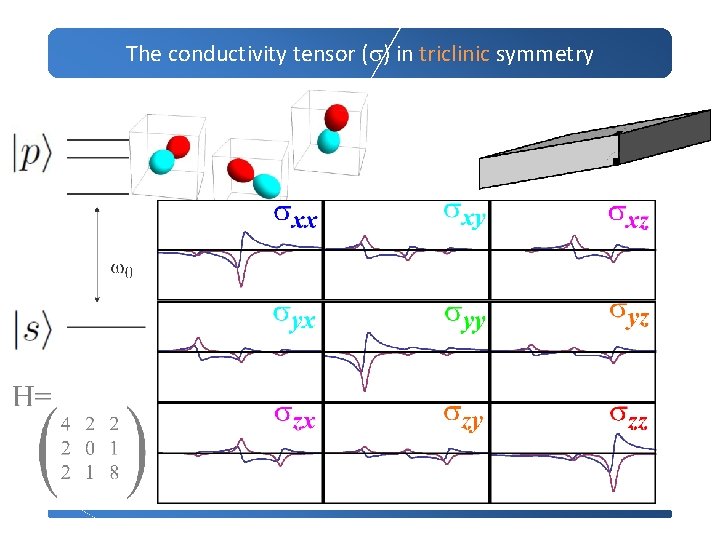

The conductivity tensor (s) in triclinic symmetry

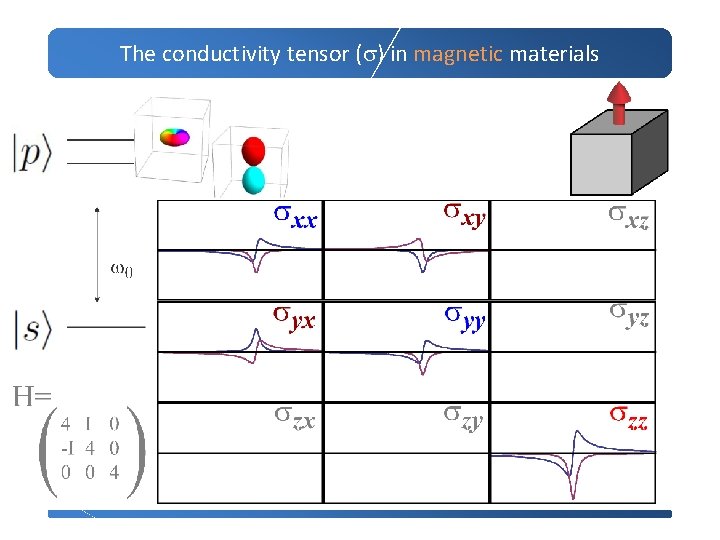

The conductivity tensor (s) in magnetic materials
The conductivity tensor (s) in magnetic materials
