x NOTAM Encoding exercises x NOTAM Workshop 2

x. NOTAM Encoding exercises x. NOTAM Workshop #2 Brussels, 20 -21 November 2007 Item 9 European Organisation for the Safety of Air Navigation 1

1. NOTAM Sample (A 1543/07 NOTAMN Q) EBBU/QMRLT/IV/NBO/A /000/999/5054 N 00429 E 005 A) EBBR B) 0711011830 C) 0711061830 E) RWY 25 L CLSD FOR DEP. ) 2

1. Event 3

1. Event 4

1. Affected features 5

1. Affected features New Airport/Heliport Usage 6

1. Timeslices 7

1. Timeslices 8

2. NOTAM Sample (J 4585/07 NOTAMN Q) EGPX/QRDCA/IV/BO /W /000/245/5839 N 00445 W 011 A) EGPX B) 0710010800 C) 0710011444 E) DANGER AREA EG D 802 ACTIVE F) SFC G) 24500 FT AMSL) 9

2. Event [J 4585/07] EG D 802 Active 2007 -10 -01 08: 00 2007 -10 -01 14: 44 (J 4585/07 NOTAMN Q) EGPX/QRDCA/IV/BO /W /000/245/5839 N 00445 W 011 A) EGPX B) 0710010800 C) 0710011444 E) DANGER AREA EG D 802 ACTIVE F) SFC G) 24500 FT AMSL) 10

2. Affected features Airspace. Usage 11 is. Specified. For. Airspace(type = D designator = EGD 802)

2. Timeslices 2007 -10 -01 08: 00 2007 -10 -01 14: 44 2005 -01 -01 08: 00 status. Activation ACTIVE upper. Limit 24500 upper. Limit. Reference MSL lower. Limit GND INACTIVE FT lower. Limit. Reference is. Specified. For 12 Airspace D, EGD 802

3. NOTAM Sample (A 1542/07 NOTAMN Q) EBBU/QOBCE/IV/M /A /000/999/5054 N 00429 E 005 A) EBBR B) 0711011830 C) 0711061830 E) CRANE ERECTED IN THE AXIS RWY 25 L. 400 M AT THE END OF RWY 25 L. 70 M/AMSL. NO ICAO MARKINGS. ) 13

3. Event [A 1542/07] Temporary crane at EBBR 2007 -11 -01 18: 30 2007 -11 -06 18: 30 (A 1542/07 NOTAMN Q) EBBU/QOBCE/IV/M /A /000/999/5054 N 00429 E 005 A) EBBR B) 0711011830 C) 0711061830 E) CRANE ERECTED IN THE AXIS RWY 25 L. 400 M AT THE END OF RWY 25 L. 70 M/AMSL. NO ICAO MARKINGS. ) 14

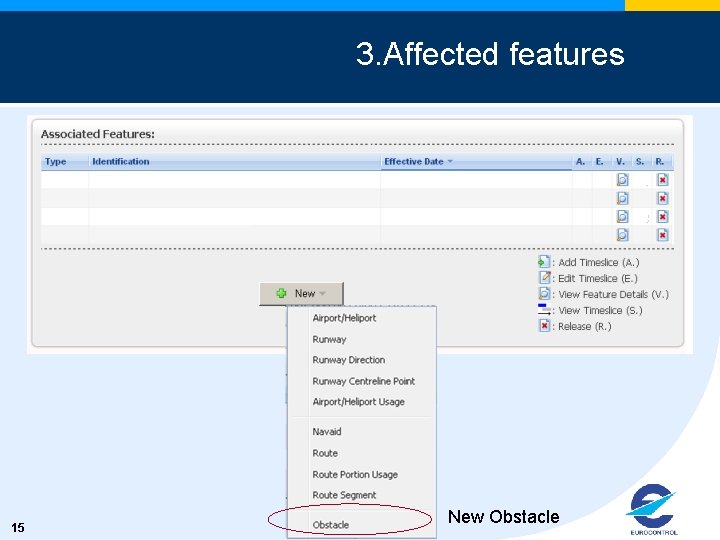

3. Affected features 15 New Obstacle

3. Timeslices 2007 -11 -01 18: 30 2007 -11 -06 18: 30 type CRANE marking. Pattern 16 V has. Point. Shape. Latitude 505400. 00 N has. Point. Shape. Longitude 0042900. 00 N has. Point. Shape. elevation 70 has. Annotation. note In the axis of RWY 25 L. 400 M at the end of RWY 25 L has. Annotation. property has. Point. Shape M

4. NOTAM Sample (B 6268/07 NOTAMR B 6005/07 Q) LIMM/QNMCT/IV/BO /AE/000/999/4411 N 01204 E 025 A) LIPK B) 0710011552 C) 0712202200 EST E) VOR/DME 'ITA' ON TEST DO NOT USE. REF NOTAM B 4981/07 AND AIP AGA 2 -19. 3. 3) 17

4. Event Homework 18

4. Affected features 19

4. Timeslices 20

5. NOTAM Sample (C 0249/07 NOTAMN Q) LSAS/QWALW/IV/BO /AW/000/050/4711 N 00744 E 002 A) LSPL B) 0709011000 C) 0709021600 D) 01 1000 -1600, 02 0600 -1600 E) AIR DISPLAY WILL TAKE PLACE AD LANGENTHAL, RADIUS 2. 5 KM (4711 N 00744 E, RADIUS 1. 4 NM). AREA TO BE AVOIDED. F) GND G) 5000 FT AMSL) 21

5. Event [C 0249/07] Air display AD Langenthal 2007 -09 -01 10: 00 2007 -09 -02 16: 00 (C 0249/07 NOTAMN Q) LSAS/QWALW/IV/BO /AW/000/050/4711 N 00744 E 002 A) LSPL B) 0709011000 C) 0709021600 D) 01 1000 -1600, 02 0600 -1600 E) AIR DISPLAY WILL TAKE PLACE AD LANGENTHAL, RADIUS 2. 5 KM (4711 N 00744 E, RADIUS 1. 4 NM). AREA TO BE AVOIDED. F) GND G) 5000 FT AMSL) 22

5. Affected features Airspace Usage 23

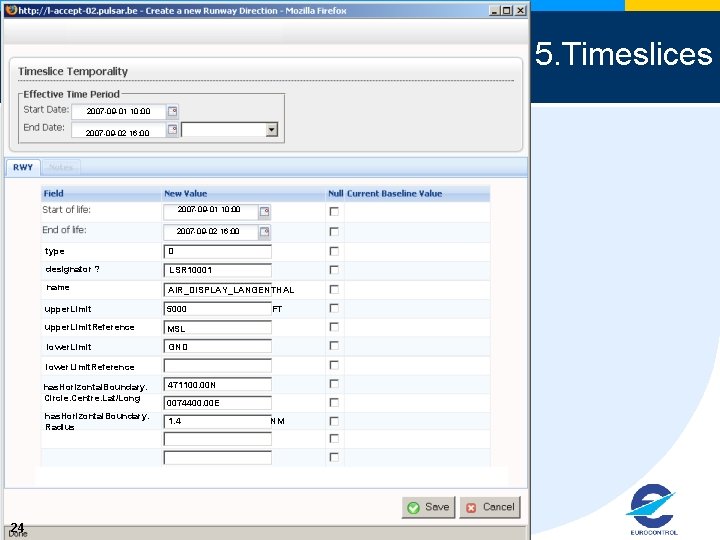

5. Timeslices 2007 -09 -01 10: 00 2007 -09 -02 16: 00 type D designator ? LSR 10001 name AIR_DISPLAY_LANGENTHAL upper. Limit 5000 upper. Limit. Reference MSL lower. Limit GND FT lower. Limit. Reference has. Horizontal. Boundary. Circle. Centre. Lat/Long has. Horizontal. Boundary. Radius 24 471100. 00 N 0074400. 00 E 1. 4 NM

5. Timeslices 2007 -09 -01 10: 00 2007 -09 -02 16: 00 status. Activation ACTIVE upper. Limit 5000 upper. Limit. Reference MSL lower. Limit GND FT lower. Limit. Reference activity is. Active. By is. Specified. For 25 AIRSHOW SAT 10: 00 – 16: 00 SUN 06: 00 – 16: 00 Airspace R, AIR_DISPLAY_LANGENTHAL

6. NOTAM Sample (A 1614/07 NOTAMN Q) LZBB/QARLC/IV/NBO/E /000/999/4847 N 01941 E 116 A) LZBB B) 0710010500 C) 0710311400 D) 01 -05 08 -11 15 -18 22 -25 0500 -1300, 12 19 26 0500 -1000, 29 -31 0600 -1400 E) CDR 1 AWY P 182 BTN EKLUS-BERVA CLSD FM FL 155 TO FL 245 DUE TO ACTIVATION OF LZR 221 A AND LZR 221 B. REF ENR 3. 3, ENR 5. 1. 2. ) 26

6. AIP Content – Baseline information 27

6. Event [A 1614/07] P 182 EKLUS-BERKA closed 155 -245 2007 -10 -01 05: 00 2007 -10 -31 14: 00 (A 1614/07 NOTAMN Q) LZBB/QARLC/IV/NBO/E /000/999/4847 N 01941 E 116 A) LZBB B) 0710010500 C) 0710311400 D) 01 -05 08 -11 15 -18 22 -25 0500 -1300, 12 19 26 0500 -1000, 29 -31 0600 -1400 E) CDR 1 AWY P 182 BTN EKLUS-BERVA CLSD FM FL 155 TO FL 245 DUE TO ACTIVATION OF LZR 221 A AND LZR 221 B. REF ENR 3. 3, ENR 5. 1. 2. ) 28

6. Affected features Route. Portion. Usage 29 affects P 182, starts. At EKLUS, ends. At BERVA

6. Timeslices 2007 -10 -01 05: 00 2007 -10 -31 14: 00 direction FORWARD cardinal. Direction NE? route. Availability 30 CLSD COND category. CDR_1 upper. Limit 245 upper. Limit. Reference STD lower. Limit 155 lower. Limit. Reference STD FL FL

6. Timeslices 31 UTC 01 -10 05 -10 ANY 05: 00 13: 00 UTC 08 -10 11 -10 ANY 05: 00 13: 00 UTC 15 -10 18 -10 ANY 05: 00 13: 00 UTC 22 -10 25 -10 ANY 05: 00 13: 00 UTC 12 -10 ANY 05: 00 10: 00 UTC 19 -10 ANY 05: 00 10: 00 UTC 26 -10 29 -10 26 -10 31 -10 ANY 06: 00 14: 00
