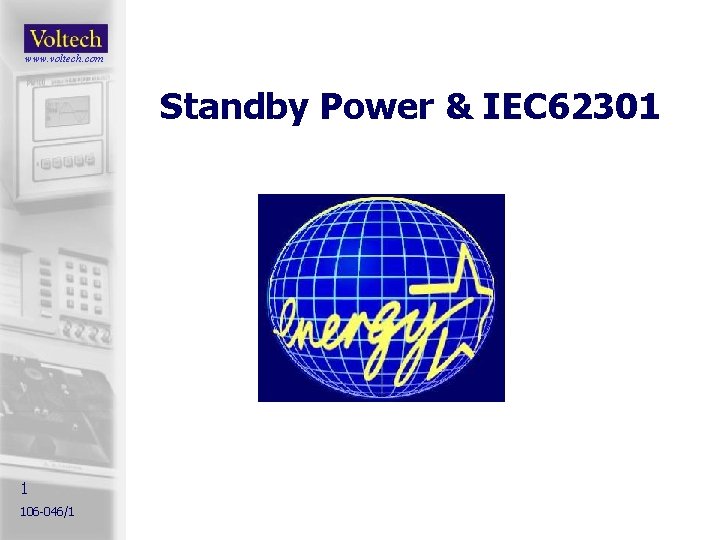

www. voltech. com Standby Power & IEC 62301 1 106 -046/1

www. voltech. com Standby Power • Legislative drive to reduce standby power consumption • Increased consumer awareness of cost to pocket and the environment With the political and market forces of climate change and rising energy costs their has been an International Agreement to reduce the energy consumption of electrical equipment in the “ standby mode “, this is known as the IEA “ 1 -watt Plan “ 2 106 -046/1 The agreed measurement standard and accuracy is IEC 62301

www. voltech. com Who Does This Affect ? All manufacturers of domestic products Every country can apply its own limits by directive or legislation. In Europe the generally accepted directive is the “ Energy Star” but Germany also has “Blue Angel” and Scandinavian countries have adopted the “Nordic Swan” The measurement standard for all the world wide directives is IEC 62301 3 106 -046/1

www. voltech. com 4 106 -046/1 Measurement Overview

www. voltech. com Check Test Environment The Voltage source must be verified through the test to comply with : Total Harmonic Content (THC) of the supply voltage must be less than 2% The THC is up to and including the 13 th harmonic Voltage Crest Factor shall be between 1. 34 and 1. 49 during the measurement 5 106 -046/1

www. voltech. com Power Measurement Accuracy The measurement standard requires a Watts measurement resolution of: 0. 01 W Load 10 W or less* 0. 1 W Load 10 -100 W 1 W Load greater than 100 W * Requires an instrument with a minimum current range of 10 m. A 6 106 -046/1

www. voltech. com Measurement Requirements The product should first be allowed to stabilize for a minimum of 5 minutes Then run a measurement test for 5 minutes Recording every second Vrms, Vcf, Vthd, V Harmonics ( up to 13 th ) Arms, Acf, Wrms Freq 7 106 -046/1

www. voltech. com Measurement Requirements Standby power is very small, with short bursts of power. The PM 1000+ has a 1 MHz bandwidth and high sample rate to capture these distorted waveforms 8 106 -046/1

www. voltech. com The Measurement System Key Points Universal Plug Socket for UUT External 1 ohm Shunt for low power 10 W< resolution 9 106 -046/1 Direct shunt connections for measurement of asymmetric waveforms which include a DC component (H 0)

www. voltech. com Power Stability Less than 5% deviation from the maximum value observed 10 106 -046/1 Measurements are stable and the Watts reading can be directly reported

www. voltech. com Stable Power ? No If the power measure varies by more the 5% then either of the following options may be chosen Average Power – calculate the average of all the power readings over the test period Accumulated Energy- measure the Whrs consumed by the load. To calculate the Average Power, divide the energy consumed in Whrs, by the measurement period. 11 106 -046/1

www. voltech. com The Compliance Test Report Product Details Test Parameters Measured Data Laboratory Details 12 106 -046/1

www. voltech. com Voltech Solution PM 1000+ Universal Break Out Box IEC 62301 Software 13 106 -046/1

www. voltech. com Benefits to the Manufacturer Complete Solution Ease of use Provides full Test Report Provides full Test Data PM 1000+ provides both accurate and stable readings due to superior bandwidth and high sample rates Provides confidence 14 106 -046/1
