www. thalesgroup. com/germany Thales Axle Counter The Challenges for a modern Train Detection System Joachim Janle Director Axle Counter Business

Axle Counter – Past Challenges 2 THALES u World-Wide market leader in Axle Counter Technology u More than 80 years experience with Axle Counters Title of presentation:

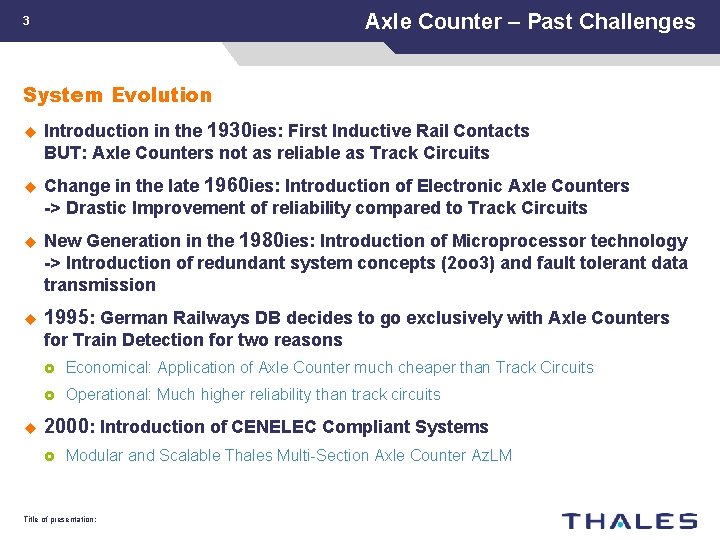

Axle Counter – Past Challenges 3 System Evolution u Introduction in the 1930 ies: First Inductive Rail Contacts BUT: Axle Counters not as reliable as Track Circuits u Change in the late 1960 ies: Introduction of Electronic Axle Counters -> Drastic Improvement of reliability compared to Track Circuits u New Generation in the 1980 ies: Introduction of Microprocessor technology -> Introduction of redundant system concepts (2 oo 3) and fault tolerant data transmission u 1995: German Railways DB decides to go exclusively with Axle Counters for Train Detection for two reasons u £ Economical: Application of Axle Counter much cheaper than Track Circuits £ Operational: Much higher reliability than track circuits 2000: Introduction of CENELEC Compliant Systems £ Modular and Scalable Thales Multi-Section Axle Counter Az. LM Title of presentation:

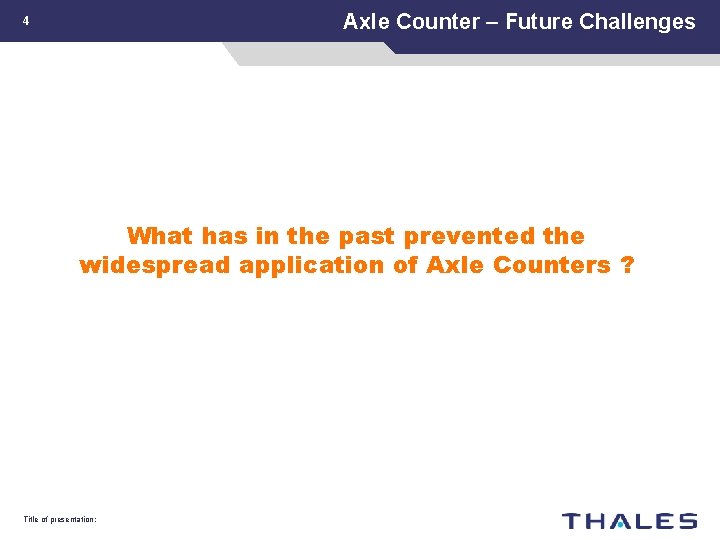

Axle Counter – Future Challenges 4 What has in the past prevented the widespread application of Axle Counters ? Title of presentation:

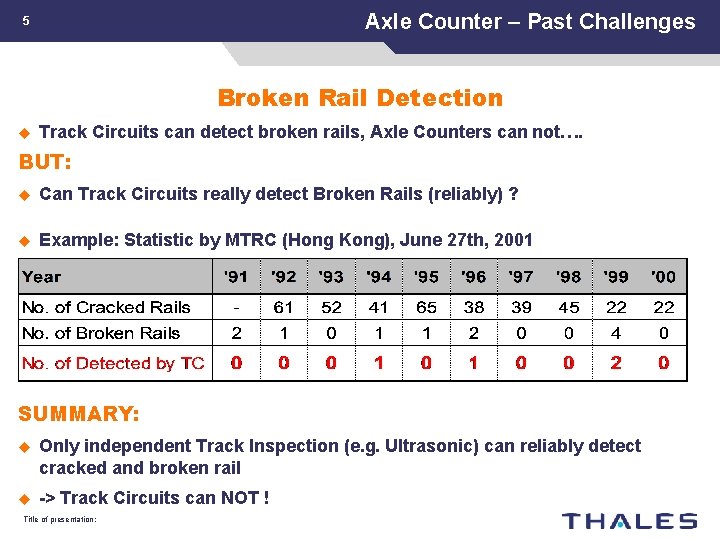

Axle Counter – Past Challenges 5 Broken Rail Detection u Track Circuits can detect broken rails, Axle Counters can not…. BUT: u Can Track Circuits really detect Broken Rails (reliably) ? u Example: Statistic by MTRC (Hong Kong), June 27 th, 2001 SUMMARY: u Only independent Track Inspection (e. g. Ultrasonic) can reliably detect cracked and broken rail u -> Track Circuits can NOT ! Title of presentation:

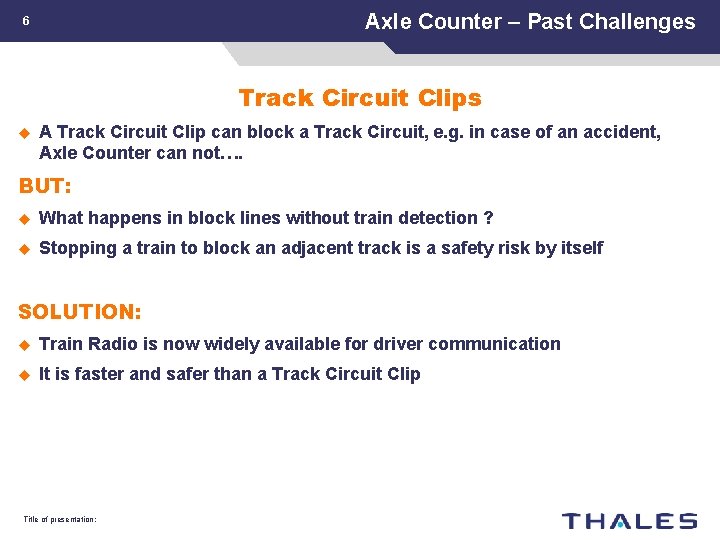

Axle Counter – Past Challenges 6 Track Circuit Clips u A Track Circuit Clip can block a Track Circuit, e. g. in case of an accident, Axle Counter can not…. BUT: u What happens in block lines without train detection ? u Stopping a train to block an adjacent track is a safety risk by itself SOLUTION: u Train Radio is now widely available for driver communication u It is faster and safer than a Track Circuit Clip Title of presentation:

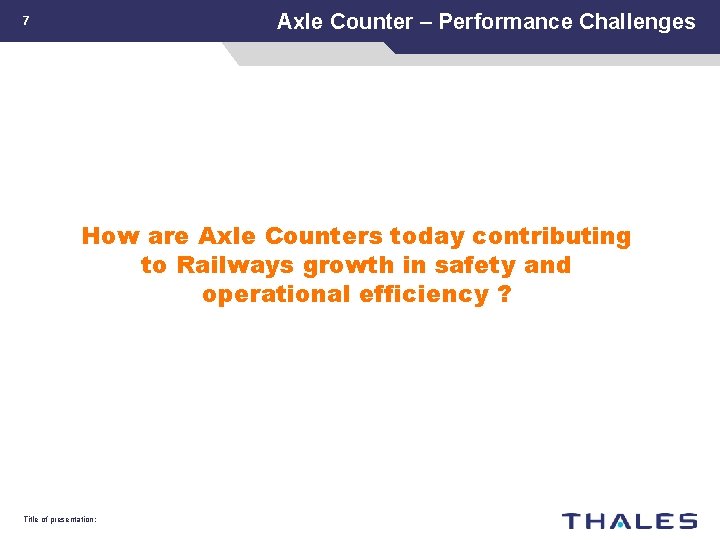

Axle Counter – Performance Challenges 7 How are Axle Counters today contributing to Railways growth in safety and operational efficiency ? Title of presentation:

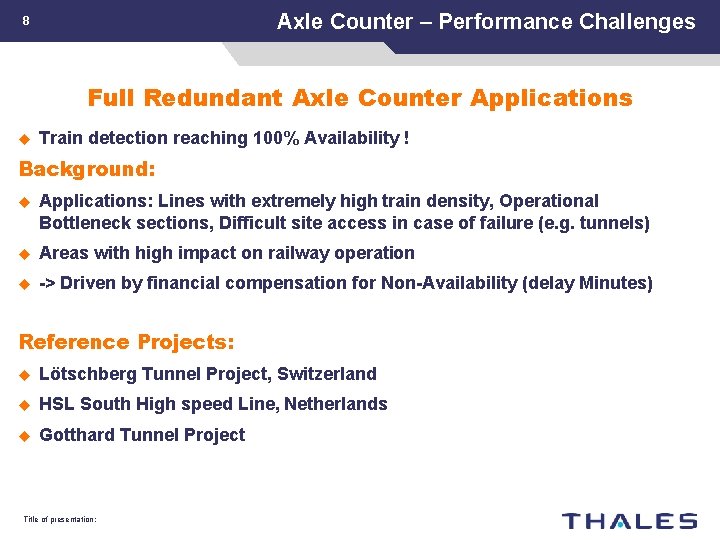

Axle Counter – Performance Challenges 8 Full Redundant Axle Counter Applications u Train detection reaching 100% Availability ! Background: u Applications: Lines with extremely high train density, Operational Bottleneck sections, Difficult site access in case of failure (e. g. tunnels) u Areas with high impact on railway operation u -> Driven by financial compensation for Non-Availability (delay Minutes) Reference Projects: u Lötschberg Tunnel Project, Switzerland u HSL South High speed Line, Netherlands u Gotthard Tunnel Project Title of presentation:

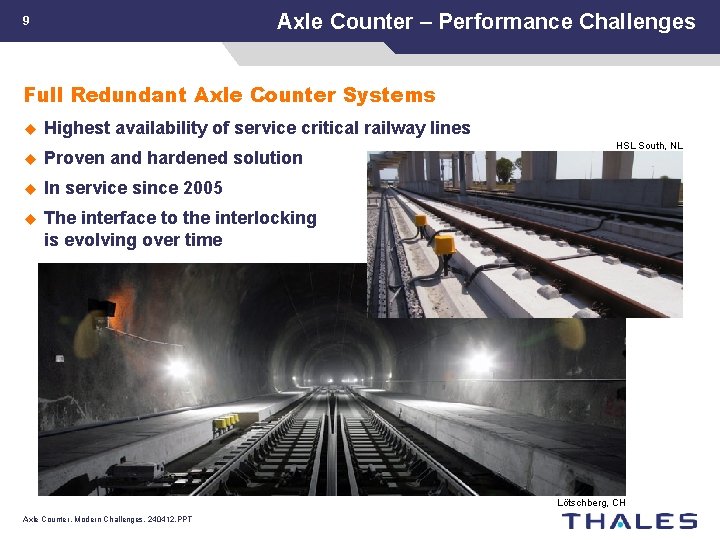

Axle Counter – Performance Challenges 9 Full Redundant Axle Counter Systems u Highest availability of service critical railway lines u Proven and hardened solution u In service since 2005 u The interface to the interlocking is evolving over time HSL South, NL Lötschberg, CH Axle Counter, Modern Challenges, 240412. PPT

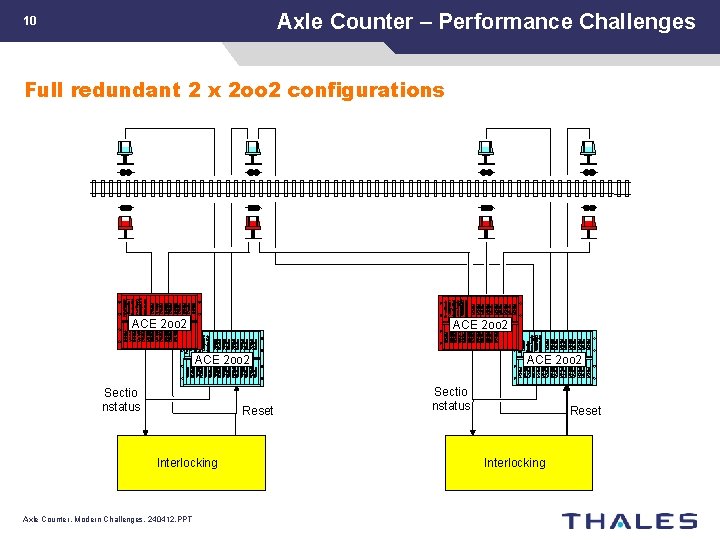

Axle Counter – Performance Challenges 10 Full redundant 2 x 2 oo 2 configurations DP DP ACE 2 oo 2 Sectio nstatus Reset Interlocking Axle Counter, Modern Challenges, 240412. PPT Sectio nstatus Reset Interlocking

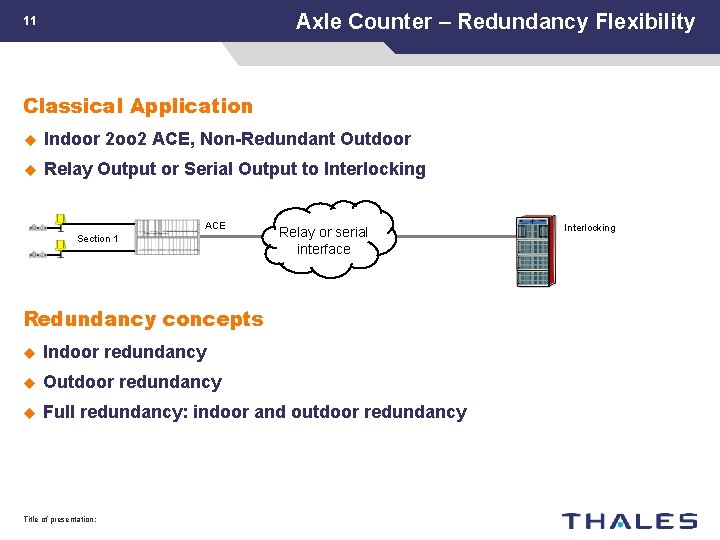

Axle Counter – Redundancy Flexibility 11 Classical Application u Indoor 2 oo 2 ACE, Non-Redundant Outdoor u Relay Output or Serial Output to Interlocking ACE Section 1 Relay or serial interface Redundancy concepts u Indoor redundancy u Outdoor redundancy u Full redundancy: indoor and outdoor redundancy Title of presentation: Interlocking

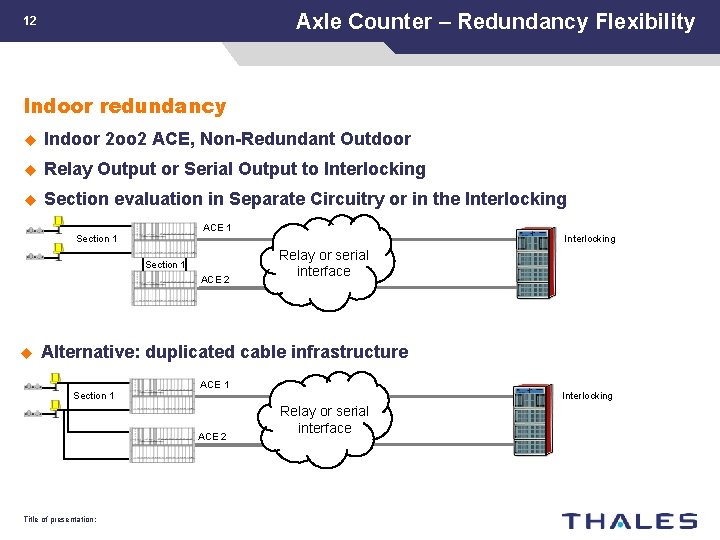

Axle Counter – Redundancy Flexibility 12 Indoor redundancy u Indoor 2 oo 2 ACE, Non-Redundant Outdoor u Relay Output or Serial Output to Interlocking u Section evaluation in Separate Circuitry or in the Interlocking ACE 1 Section 1 Interlocking Section 1 ACE 2 u Relay or serial interface Alternative: duplicated cable infrastructure Section 1 ACE 1 Interlocking ACE 2 Title of presentation: Relay or serial interface

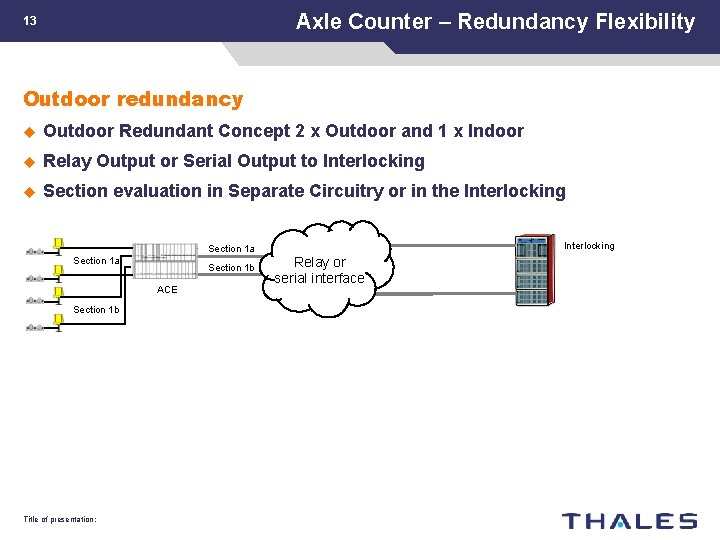

Axle Counter – Redundancy Flexibility 13 Outdoor redundancy u Outdoor Redundant Concept 2 x Outdoor and 1 x Indoor u Relay Output or Serial Output to Interlocking u Section evaluation in Separate Circuitry or in the Interlocking Section 1 a Section 1 b ACE Section 1 b Title of presentation: Interlocking Relay or serial interface

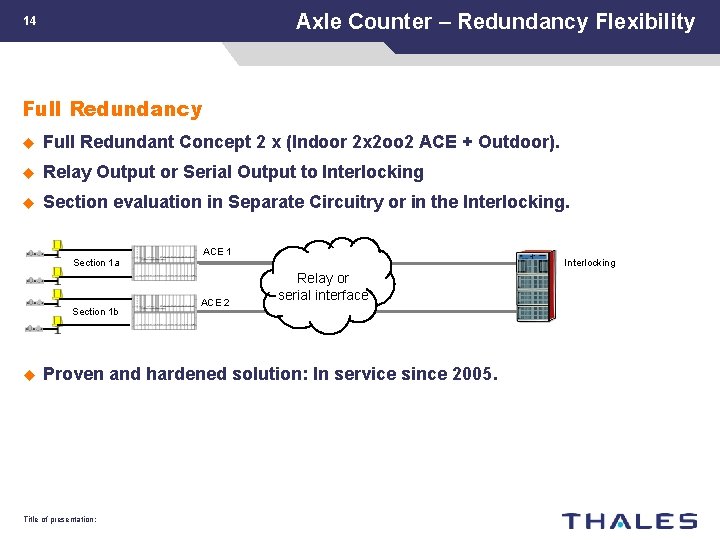

Axle Counter – Redundancy Flexibility 14 Full Redundancy u Full Redundant Concept 2 x (Indoor 2 x 2 oo 2 ACE + Outdoor). u Relay Output or Serial Output to Interlocking u Section evaluation in Separate Circuitry or in the Interlocking. ACE 1 Section 1 a Section 1 b u Interlocking ACE 2 Relay or serial interface Proven and hardened solution: In service since 2005. Title of presentation:

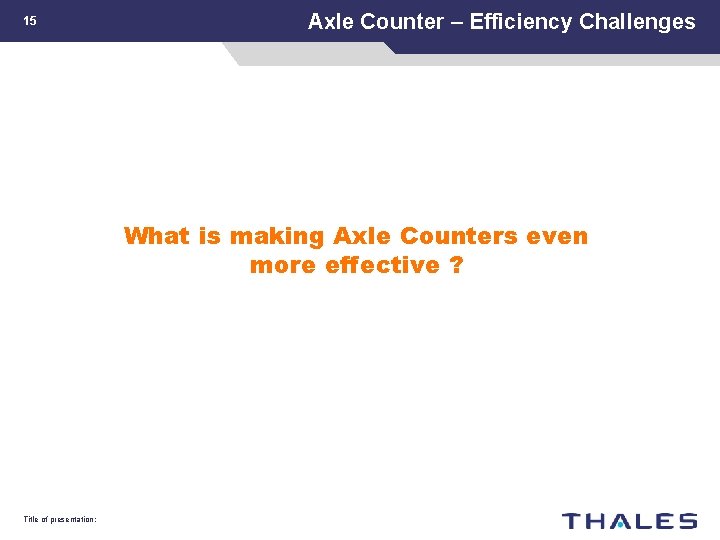

15 Axle Counter – Efficiency Challenges What is making Axle Counters even more effective ? Title of presentation:

Axle Counter – Efficiency Challenges 16 REDUCTION of OWNERSHIP COST SEAMLESS INTEGRATION into IP NETWORKS Text STANDARDIZED INTERFACE to ELECTRONIC INTERLOCKING NEW value adding AXLE COUNTER APPLICATIONS Axle Counter, Modern Challenges, 240412. PPT Key features of the Thales Az LM V 6 -series

Axle Counter – Efficiency Challenges 17 Reduction of Ownership Cost: The new Rail Contact SK 30 K u No disassembly for tamping and rail grinding £ Mounting over sleeper in combination with large rail profiles (e. g. UIC 60, S 54, …) u Cable outlet on/beside the sleeper (protection of cables) u Electrically compatible with the Sk 30 H Rail Contact u Improved compatibility with track maintenance vehicles Axle Counter, Modern Challenges, 240412. PPT

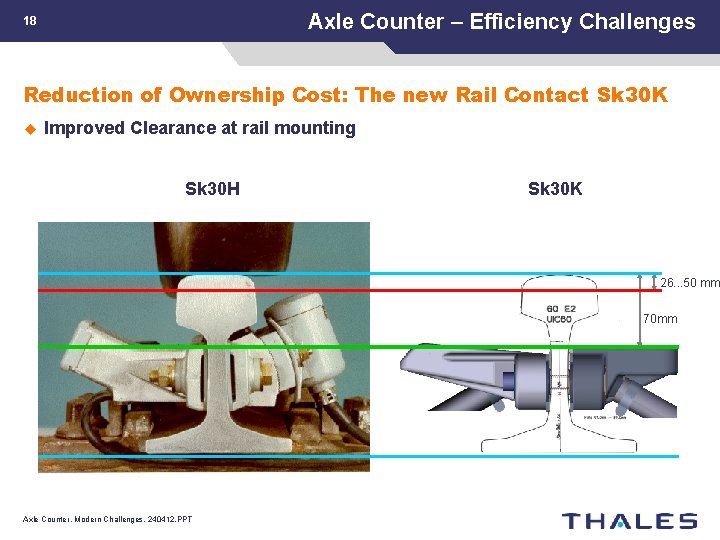

Axle Counter – Efficiency Challenges 18 Reduction of Ownership Cost: The new Rail Contact Sk 30 K u Improved Clearance at rail mounting Sk 30 H Sk 30 K 2 -way Vehicle Zone 26. . . 50 mm 70 mm Axle Counter, Modern Challenges, 240412. PPT

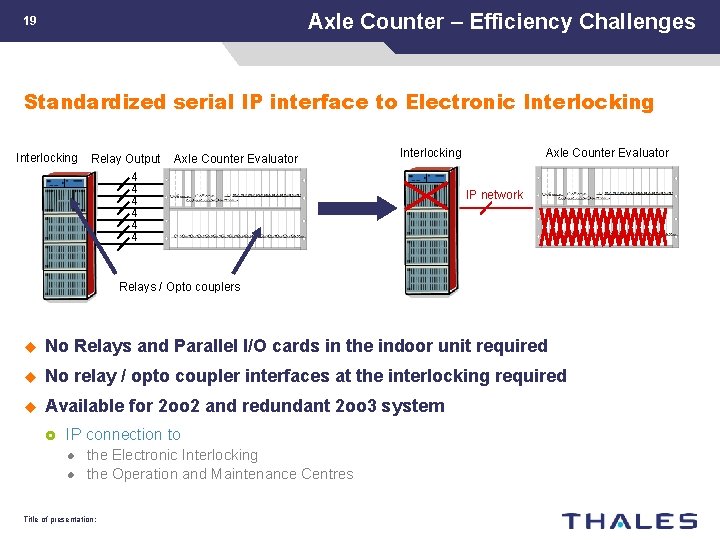

Axle Counter – Efficiency Challenges 19 Standardized serial IP interface to Electronic Interlocking Relay Output Axle Counter Evaluator Interlocking 4 4 4 Axle Counter Evaluator IP network Relays / Opto couplers u No Relays and Parallel I/O cards in the indoor unit required u No relay / opto coupler interfaces at the interlocking required u Available for 2 oo 2 and redundant 2 oo 3 system £ IP connection to l l the Electronic Interlocking the Operation and Maintenance Centres Title of presentation:

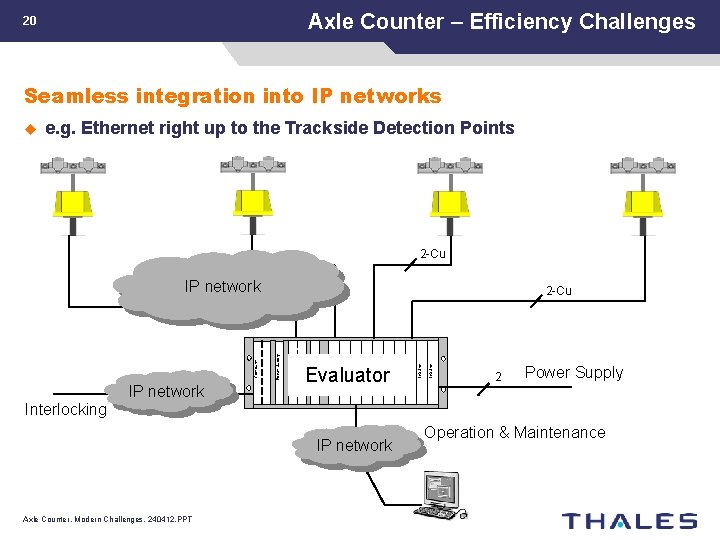

Axle Counter – Efficiency Challenges 20 Seamless integration into IP networks u e. g. Ethernet right up to the Trackside Detection Points 2 -Cu Interlocking IP network Axle Counter, Modern Challenges, 240412. PPT I/O-Slot Evaluator I/O-Slot I/O-Slot Power Supply Computer 2 -Cu Power Supply Computer IP network IP 2 Power Supply Operation & Maintenance

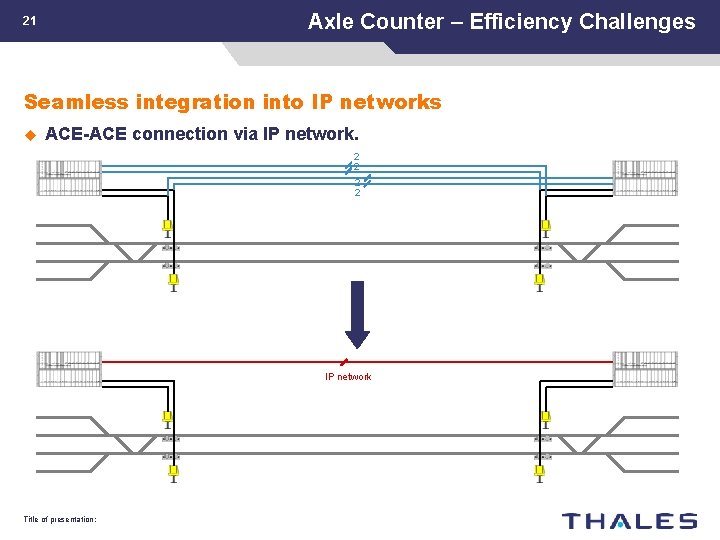

Axle Counter – Efficiency Challenges 21 Seamless integration into IP networks u ACE-ACE connection via IP network. 2 2 IP network Title of presentation:

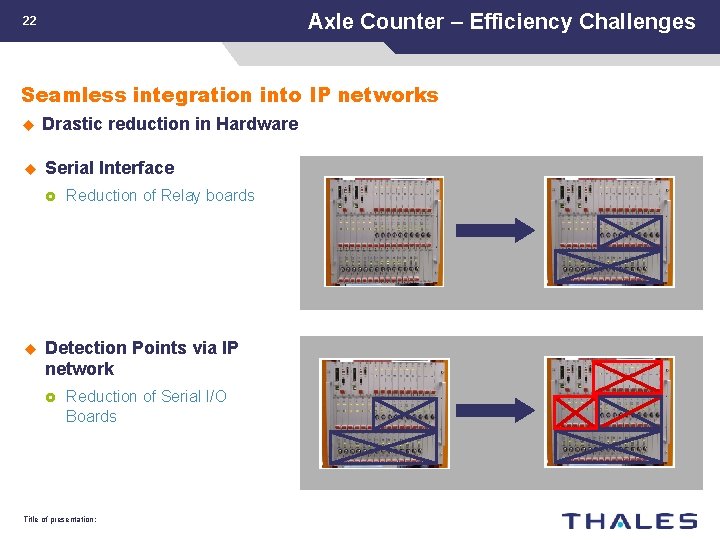

Axle Counter – Efficiency Challenges 22 Seamless integration into IP networks u Drastic reduction in Hardware u Serial Interface £ u Reduction of Relay boards Detection Points via IP network £ Reduction of Serial I/O Boards Title of presentation:

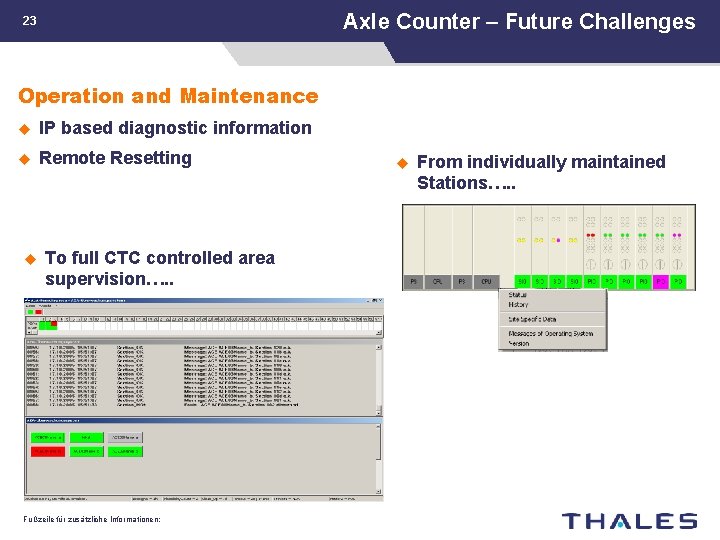

Axle Counter – Future Challenges 23 Operation and Maintenance u IP based diagnostic information u Remote Resetting u To full CTC controlled area supervision…. . Fußzeile für zusätzliche Informationen: u From individually maintained Stations…. .
