www sensoriaist eu Choreography Orchestration and Contracts Languages

Plan of the Talk An “open” world of services u Service composition u n

An “open” world of services u Service Oriented Computing is used to design systems

Let us organize problems… u Not only the issue of inter-operability (computing across different

An Example: Web Services -1 - -2 FIND SERVICE PUBLISH SERVICE -3 - SOAP

Buying an electronic ticket u Web search engines u Public advertisements u Friends u…

Buying an electronic ticketing service 1 ticketing service 2 ticketing service n

Buying an electronic ticket request ticketing service 1 ticketing service 2 ticketing service n

Buying an electronic ticketing service 1 no ticketing service 2 ticketing service n

Buying an electronic ticketing service 1 ticketing service 2 no ticketing service n

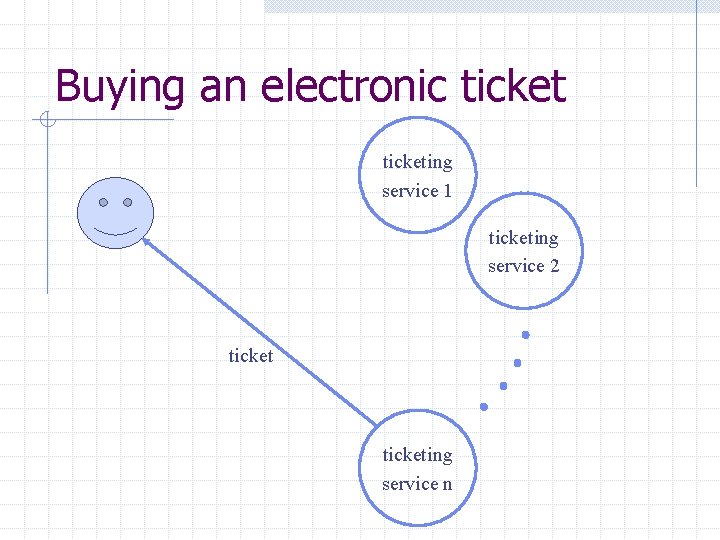

Buying an electronic ticketing service 1 ticketing service 2 request ticketing service n

Buying an electronic ticket [using an orchestrator]

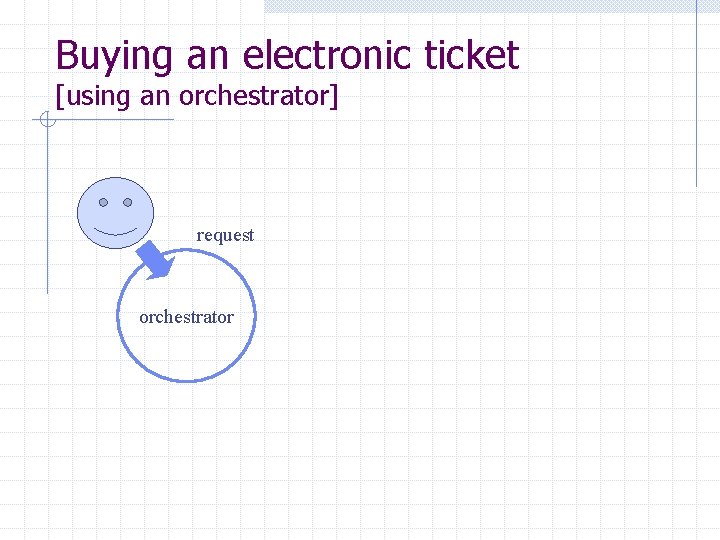

Buying an electronic ticket [using an orchestrator] request orchestrator

Buying an electronic ticket [using an orchestrator] ticketing service 1 ticketing service 2 orchestrator

Buying an electronic ticket [using an orchestrator] ticketing service 1 request orchestrator request ticketing

Buying an electronic ticket [using an orchestrator] ticketing service 1 ticket orchestrator ticketing service

Buying an electronic ticket [using an orchestrator] ticketing service 1 cancel ticketing service 2

Orchestration u The orchestrator provides a new “meta”-service u Central point of coordination: it

Orchestration Languages used to program orchestrators n n n XLANG: proposed by Microsoft in

XLANG: based on -calculus Start; Receive(req 1, req 2); ( ( Invoke(req 1)@srv 1;

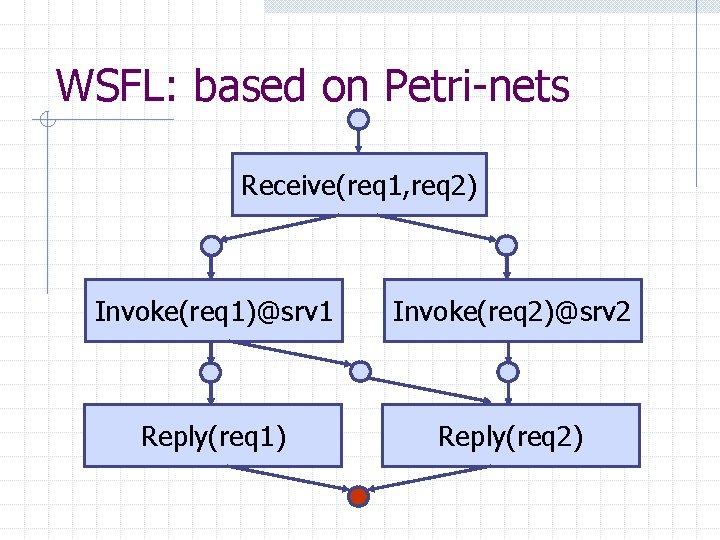

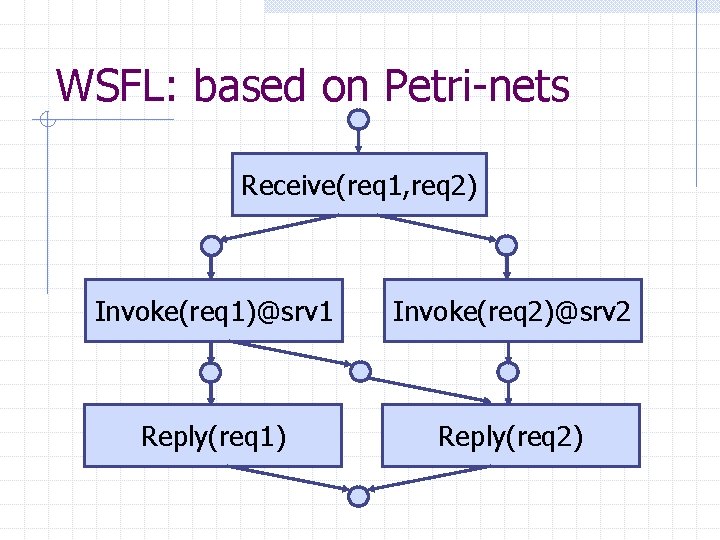

WSFL: based on Petri-nets Receive(req 1, req 2) Invoke(req 1)@srv 1 Invoke(req 2)@srv 2

WS-BPEL: join XLANG and WSFL Start; Receive(req 1, req 2); ( ( Invoke(req 1)@srv

WS-BPEL u Join n the WSFL and XLANG approaches Combine Petri-nets and -calculus u

Choreography Languages u Specification language (not executable) u No central point of coordination n

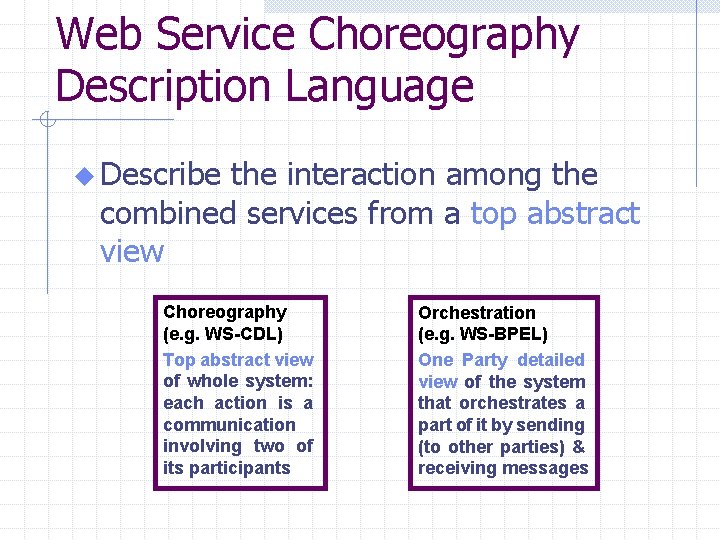

Web Service Choreography Description Language u Describe the interaction among the combined services from

Similar to Specification of Chryptographic Protocols u Protocol for the request to a trusted

WS-CDL u Global view of service interactions Seller Buyer Bank

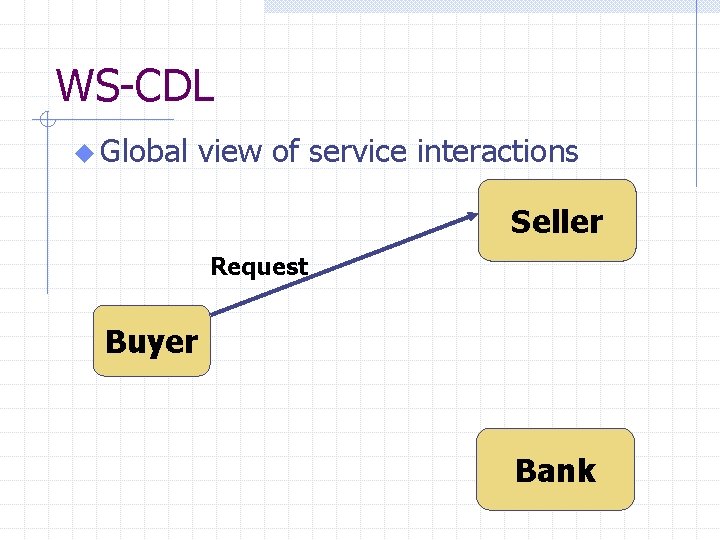

WS-CDL u Global view of service interactions Seller Request Buyer Bank

WS-CDL u Global view of service interactions Seller Request Offer Buyer Pay. Descr Bank

WS-CDL u Global view of service interactions Seller Request Offer Buyer Pay. Descr Payment

WS-CDL u Global view of service interactions Seller Request Offer Buyer Pay. Descr Confirm

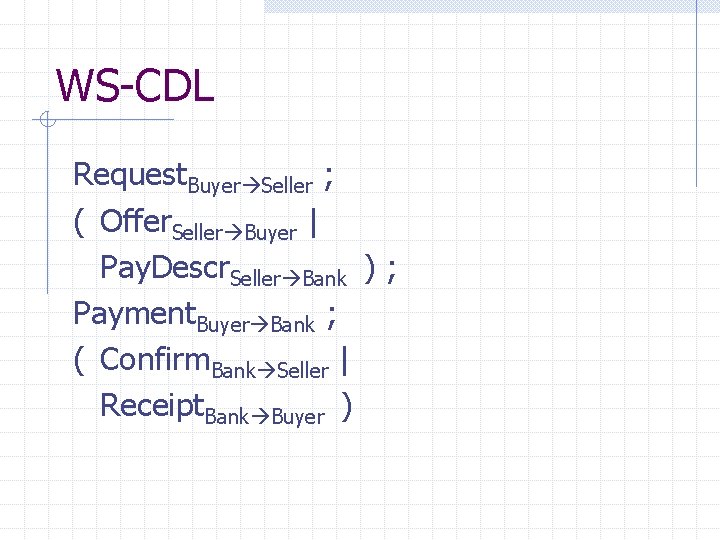

WS-CDL Request. Buyer Seller ; ( Offer. Seller Buyer | Pay. Descr. Seller Bank

BPEL 4 Chor u The WS-BPEL approach to choreography: n n Parallel composition of

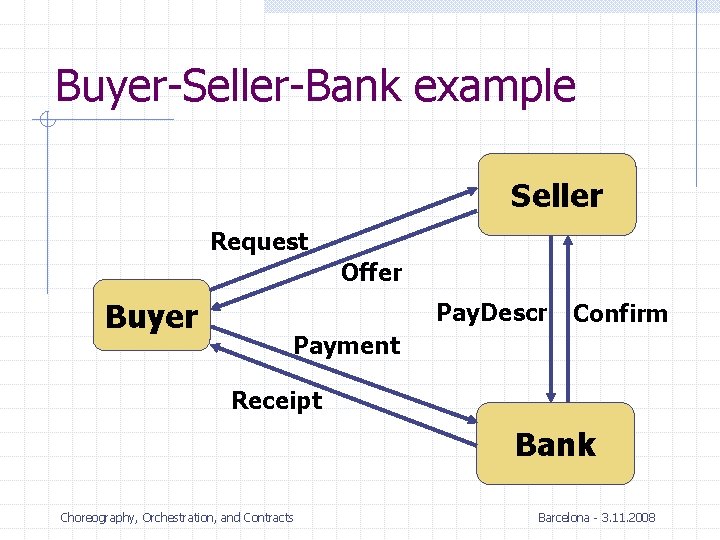

Buyer-Seller-Bank example Seller Request Offer Buyer Pay. Descr Confirm Payment Receipt Bank Choreography, Orchestration,

Projection of the Choreography on the Single Participants Buyer: Invoke(Request)@Seller; Receive(Offer); Invoke(Payment)@Bank; Receive(Receipt) Seller:

WS-CDL vs. BPEL 4 Chor u Can we always project a WS-CDL specification in

A Formal Model for WS-CDL u. A global choreography language: H : : =

A Formal Model for BPEL 4 Chor u. A local choreography language: P :

The “canonical” projection u Projection [[ H ]]t of choreography H to participant t

Example u Consider the global choreography: ar s ; bt u u Projection: [

Asynchronous communication u Reconsider the example assuming asynchronous communication [ as ; b u

A lattice of possible observation criteria Synchronous Sender Receiver Sender-receiver Disjoint

A lattice of possible observation criteria Synchronous Sender Receiver Sender-receiver Disjoint Assuming synchronous communication:

A lattice of possible observation criteria Synchronous Sender Receiver Sender-receiver Disjoint Assuming asynchronous communication:

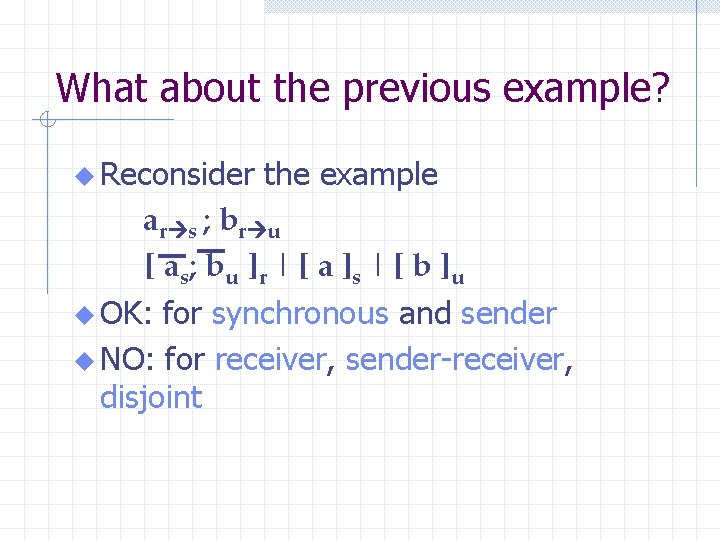

What about the previous example? u Reconsider the example ar s ; br u

Main results u For n each observation criterion: Sufficient conditions (connectedness, unique point of

Unique point of choice u In n n a choice H+H’ The sender of

Which equivalence between global and local choreographies? u u Synchronous bisimilarity: global transitions are

Example: Receiver bisimilarity u Global choreography: ar s ; bt s u Local choreography:

Contracts [FHRR 04][CCLP 06] u Contract: service “behavioural interface” that describes n n the

Contract Compliance u Verification of correctness of service composition based on their contracts: successful

Service Compliance: Formally u Services are compliant if the following holds for their composition

Example: compliant services u The following pairs of services are compliant: n n n

Directly Checking Conformance w. r. t. Choreography is conformant for participant 1 to public

Compliance-Preserving Contract Refinement ! Choreography projection Contract Part. 1 refines public registry Contract compliant

First Relation: Contract Refinement Choreography Contract Part. 1 refines public registry Contract compliant by

Formally: Subcontract Preorder ≤ between contracts C: n C’ ≤ C means C’ is

Definition of Preorder Induced from Independent Refinement Given a set of compliant contracts C

No maximal subcontract preorder … in general u Consider the system: [a]|[a] we could

Maximal pre-order u It n n n exists changing some assumptions: Limiting the considered

Output persistence u Output persistence means that given a process state P: n If

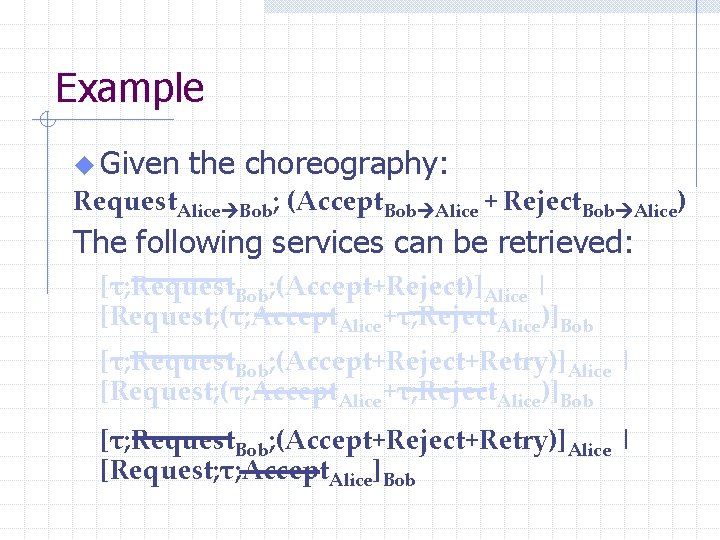

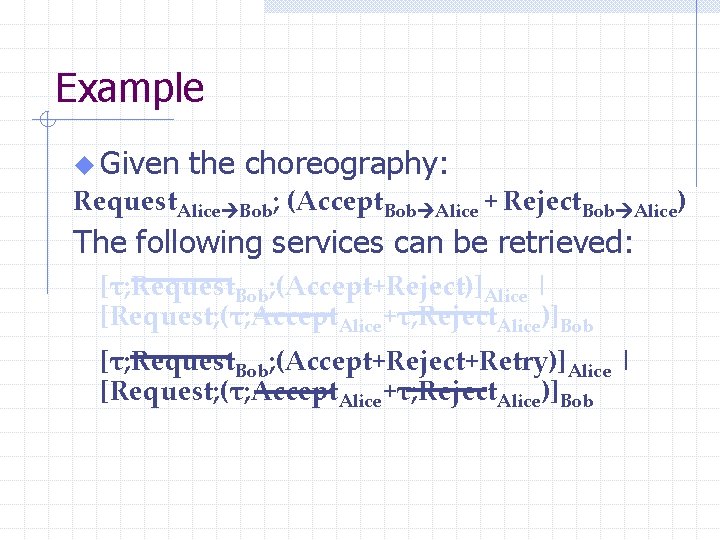

Example u Given the choreography: Request. Alice Bob; (Accept. Bob Alice + Reject. Bob

“Standard” Contract Compliance u. A n n n second example: S 1: invoke(a); invoke(b)

“Standard” Contract Compliance u. A n n n second example: S 1: (invoke(a); receive(b))*

“Standard” Contract Compliance u. A second example: S 1: (invoke(a); receive(b))* n S 2:

Example: strong compliant services u The following pairs of services are strong compliant: n

“Strong” refinement u It allows also refinement on names already in the interface: Receive(a);

Summary of Results u Refinement with knowledge about other initial contracts limited to I/O

Future work u Apply contract theory to real orchestration languages n JOLIE: Java Orchestration

Related work u Carbone, n n n Honda, Yoshida Global and End-point calculus similar

Related work u Fu, n n n Bultan, Su Service systems with message queues

Related work u Padovani n n et al. Contracts described with an ad-hoc transition

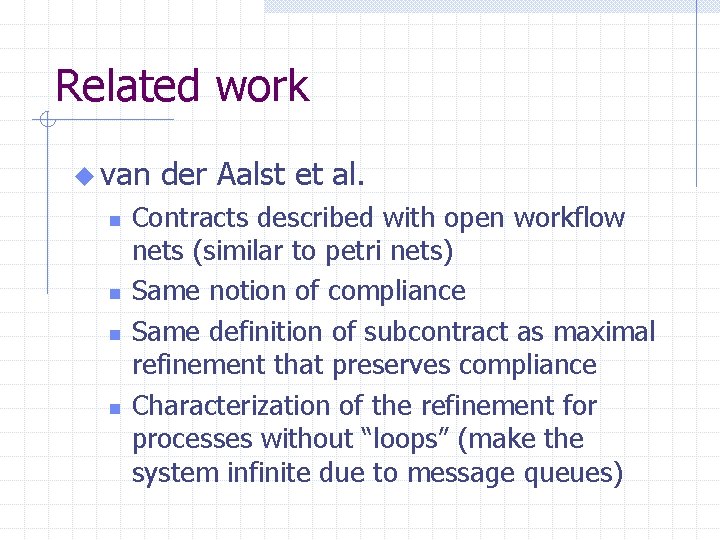

Related work u van n n der Aalst et al. Contracts described with open

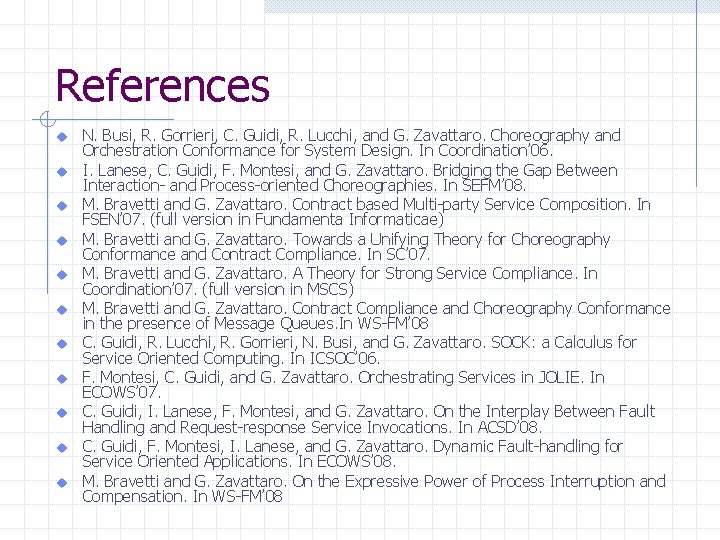

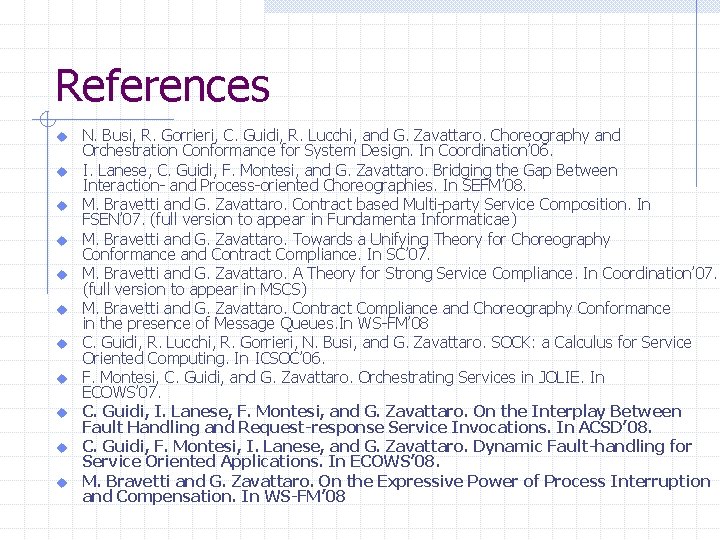

References u u u N. Busi, R. Gorrieri, C. Guidi, R. Lucchi, and G.

Slides: 123

Download presentation

www. sensoria-ist. eu Choreography, Orchestration, and Contracts Languages and Techniques for Service Composition Gianluigi Zavattaro http: //cs. unibo. it/~zavattar Based on joint work with: Department of Computer Science University of Bologna Mario Bravetti, Claudio Guidi, Ivan Lanese, Fabrizio Montesi

Plan of the Talk An “open” world of services u Service composition u n n u Contract-based service discovery n n n u Orchestration (bottom-up) Choreography (top-down) Output persistence Strong Compliance Message Queues Conclusion and future work

An “open” world of services u Service Oriented Computing is used to design systems working in a heterogeneous and open environment where services: n n may appear and disappear may not be realiable/trustworthy can be located worldwide are subject to communication via network that can cause delays, failures, …

Let us organize problems… u Not only the issue of inter-operability (computing across different platforms): n n Loose coupling: computing across enterprise boundaries (when you use a service you must account for possible deviations from the expected behavior) Open endedness: new services can enter, and old ones leave, while computation proceeds (you should dynamically re-build your system at run-time)

An Example: Web Services -1 - -2 FIND SERVICE PUBLISH SERVICE -3 - SOAP n n n WSDL (interface definition language) UDDI (service discovery) SOAP (service invocation protocol)

Plan of the Talk An “open” world of services u Service composition u n n u Contract-based service discovery n n n u Orchestration (bottom-up) Choreography (top-down) Output persistency Strong Compliance Message Queues Conclusion and future work

Buying an electronic ticket

Buying an electronic ticket u Web search engines u Public advertisements u Friends u… or colleagues

Buying an electronic ticketing service 1 ticketing service 2 ticketing service n

Buying an electronic ticket request ticketing service 1 ticketing service 2 ticketing service n

Buying an electronic ticketing service 1 no ticketing service 2 ticketing service n

Buying an electronic ticket request ticketing service 1 ticketing service 2 ticketing service n

Buying an electronic ticketing service 1 ticketing service 2 no ticketing service n

Buying an electronic ticketing service 1 ticketing service 2 request ticketing service n

Buying an electronic ticketing service 1 ticketing service 2 ticketing service n

Buying an electronic ticket [using an orchestrator]

Buying an electronic ticket [using an orchestrator] request orchestrator

Buying an electronic ticket [using an orchestrator] ticketing service 1 ticketing service 2 orchestrator ticketing service n

Buying an electronic ticket [using an orchestrator] ticketing service 1 request orchestrator request ticketing service n ticketing service 2

Buying an electronic ticket [using an orchestrator] ticketing service 1 ticketing service 2 orchestrator ticketing service n

Buying an electronic ticket [using an orchestrator] ticketing service 1 ticket orchestrator ticketing service n ticketing service 2

Buying an electronic ticket [using an orchestrator] ticketing service 1 cancel ticketing service 2 orchestrator cancel ticketing service n

Buying an electronic ticket [using an orchestrator] ticketing service 1 ticketing service 2 orchestrator ticketing service n

Orchestration u The orchestrator provides a new “meta”-service u Central point of coordination: it invokes several “sub”-services u The client of the “meta”-service interacts only with the orchestrator

Orchestration Languages used to program orchestrators n n n XLANG: proposed by Microsoft in 2001 WSFL: proposed by IBM in 2001 WS-BPEL (formerly BPEL 4 WS): proposed in 2002 by a consortium including IBM, Microsoft, SAP, BEA, …

XLANG: based on -calculus Start; Receive(req 1, req 2); ( ( Invoke(req 1)@srv 1; Reply(req 1) ) | ( Invoke(req 2)@srv 2; Reply(req 2) ) ); End

WSFL: based on Petri-nets Receive(req 1, req 2) Invoke(req 1)@srv 1 Invoke(req 2)@srv 2 Reply(req 1) Reply(req 2)

WS-BPEL: join XLANG and WSFL Start; Receive(req 1, req 2); ( ( Invoke(req 1)@srv 1; Send(int. Link); Reply(req 1) ) | ( Invoke(req 2)@srv 2; Recv(int. Link); Reply(req 2) ) ); End

WS-BPEL u Join n the WSFL and XLANG approaches Combine Petri-nets and -calculus u Add mechanisms for event, fault, termination and compensation handling n n Timed events Long-running transactions

Choreography Languages u Specification language (not executable) u No central point of coordination n The composed services interact reciprocally u WS-CDL: proposed by W 3 C in 2004 u BPEL 4 Chor: recently proposed by researchers involved in WS-BPEL

Web Service Choreography Description Language u Describe the interaction among the combined services from a top abstract view Choreography (e. g. WS-CDL) Top abstract view of whole system: each action is a communication involving two of its participants Orchestration (e. g. WS-BPEL) One Party detailed view of the system that orchestrates a part of it by sending (to other parties) & receiving messages

Similar to Specification of Chryptographic Protocols u Protocol for the request to a trusted entity of the creation of a session key: Alice Trent: Trent Alice: Alice Bob: Alice, Bob {KAB}KA , {KAB}KB

Similar to UML Sequence Diagrams

WS-CDL u Global view of service interactions Seller Buyer Bank

WS-CDL u Global view of service interactions Seller Request Buyer Bank

WS-CDL u Global view of service interactions Seller Request Offer Buyer Pay. Descr Bank

WS-CDL u Global view of service interactions Seller Request Offer Buyer Pay. Descr Payment Bank

WS-CDL u Global view of service interactions Seller Request Offer Buyer Pay. Descr Confirm Payment Receipt Bank

WS-CDL Request. Buyer Seller ; ( Offer. Seller Buyer | Pay. Descr. Seller Bank ) ; Payment. Buyer Bank ; ( Confirm. Bank Seller | Receipt. Bank Buyer )

BPEL 4 Chor u The WS-BPEL approach to choreography: n n Parallel composition of abstract WS-BPEL descriptions Abstract WS-BPEL: description of the externally observable message passing behaviour (opacifies internal details)

Buyer-Seller-Bank example Seller Request Offer Buyer Pay. Descr Confirm Payment Receipt Bank Choreography, Orchestration, and Contracts Barcelona - 3. 11. 2008

Projection of the Choreography on the Single Participants Buyer: Invoke(Request)@Seller; Receive(Offer); Invoke(Payment)@Bank; Receive(Receipt) Seller: Receive(Request); (Invoke(Offer)@Buyer | Invoke(Pay. Descr)@Bank); Receive(Confirm) Bank: Receive(Pay. Descr); Receive(Payment); (Invoke(Receipt)@Buyer | Invoke(Confirm)@Seller)

WS-CDL vs. BPEL 4 Chor u Can we always project a WS-CDL specification in an equivalent BPEL 4 Chor one? u Which kind of equivalences are preserved?

A Formal Model for WS-CDL u. A global choreography language: H : : = ar s | 1 | 0 | H; H | H+H | H|H | H*

A Formal Model for WS-CDL u. A global choreography language: H : : = ar s | 1 | 0 | H; H | H+H | H|H | H* r invokes the operation a of s Unsuccessful Successful termination

A Formal Model for WS-CDL u. A global choreography language: H : : = ar s | 1 | 0 | H; H | H+H | H|H | H* Sequence Choice Parallel Repetition

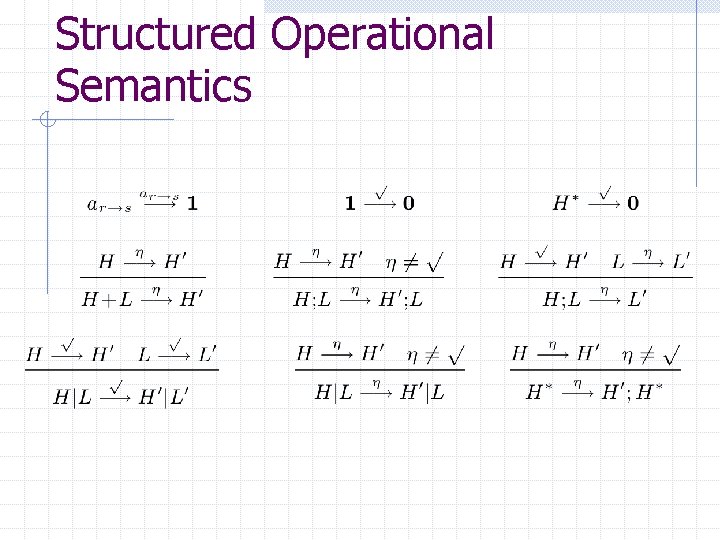

Structured Operational Semantics
