WWW. PTVAG. COM Integration of Active Traffic Management in the transport planning process observations and experiences from Germany TRB Application Conference, May 2009, Houston, TX Dr. Rainer Schwarzmann, PTV AG (Germany) Transport Consulting Business Unit

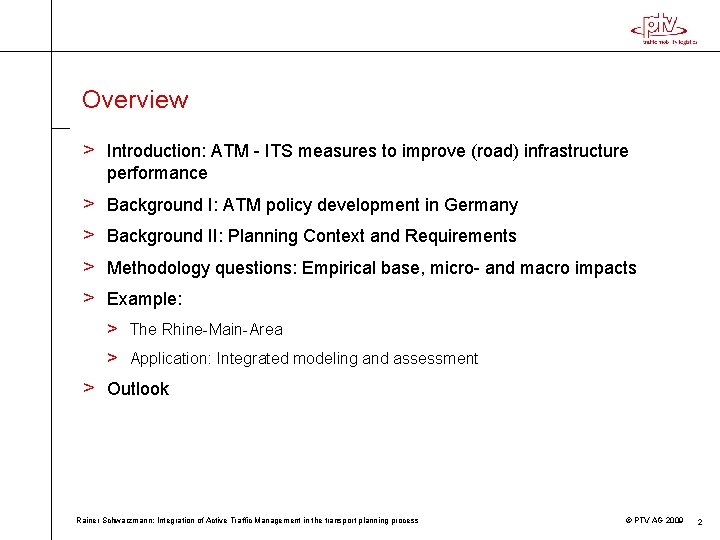

Overview > Introduction: ATM - ITS measures to improve (road) infrastructure performance > Background I: ATM policy development in Germany > Background II: Planning Context and Requirements > Methodology questions: Empirical base, micro- and macro impacts > Example: > The Rhine-Main-Area > Application: Integrated modeling and assessment > Outlook Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 2

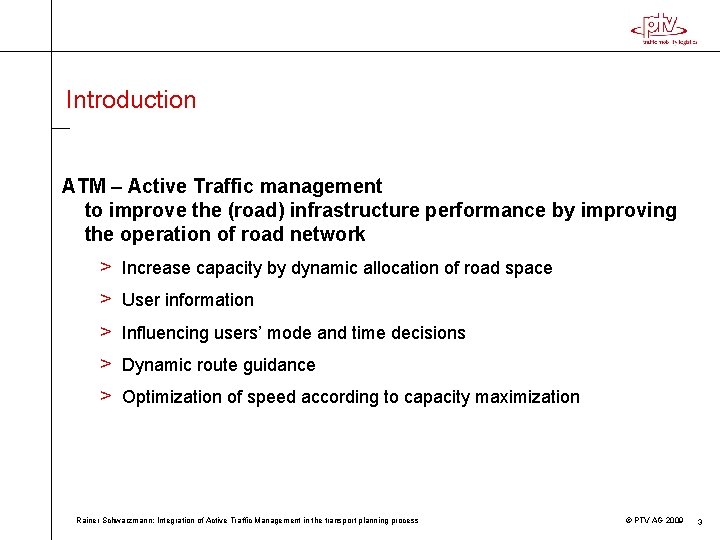

Introduction ATM – Active Traffic management to improve the (road) infrastructure performance by improving the operation of road network > Increase capacity by dynamic allocation of road space > User information > Influencing users’ mode and time decisions > Dynamic route guidance > Optimization of speed according to capacity maximization Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 3

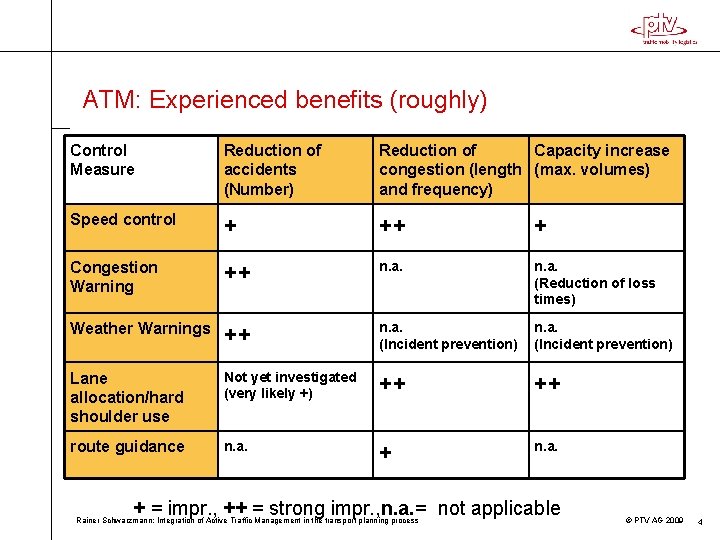

ATM: Experienced benefits (roughly) Control Measure Reduction of accidents (Number) Reduction of Capacity increase congestion (length (max. volumes) and frequency) Speed control + ++ + Congestion Warning ++ n. a. (Reduction of loss times) Weather Warnings ++ n. a. (Incident prevention) Lane allocation/hard shoulder use Not yet investigated (very likely +) ++ ++ route guidance n. a. + = impr. , ++ = strong impr. , n. a. = not applicable Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 4

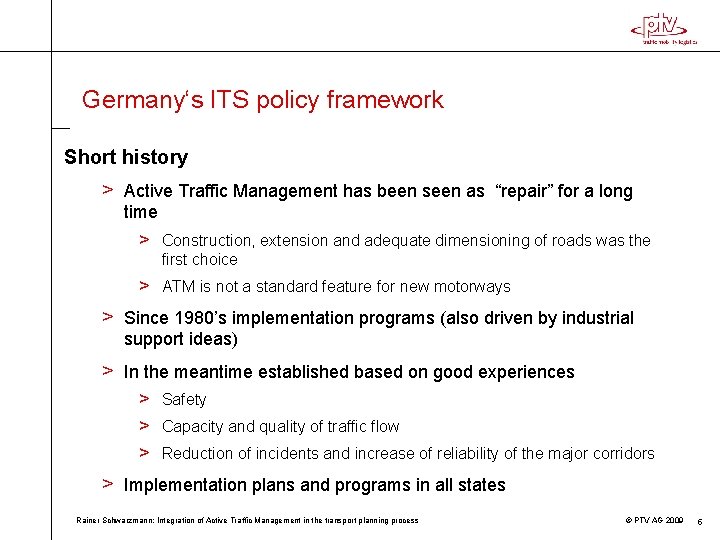

Germany‘s ITS policy framework Short history > Active Traffic Management has been seen as “repair” for a long time > Construction, extension and adequate dimensioning of roads was the first choice > ATM is not a standard feature for new motorways > Since 1980’s implementation programs (also driven by industrial support ideas) > In the meantime established based on good experiences > Safety > Capacity and quality of traffic flow > Reduction of incidents and increase of reliability of the major corridors > Implementation plans and programs in all states Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 5

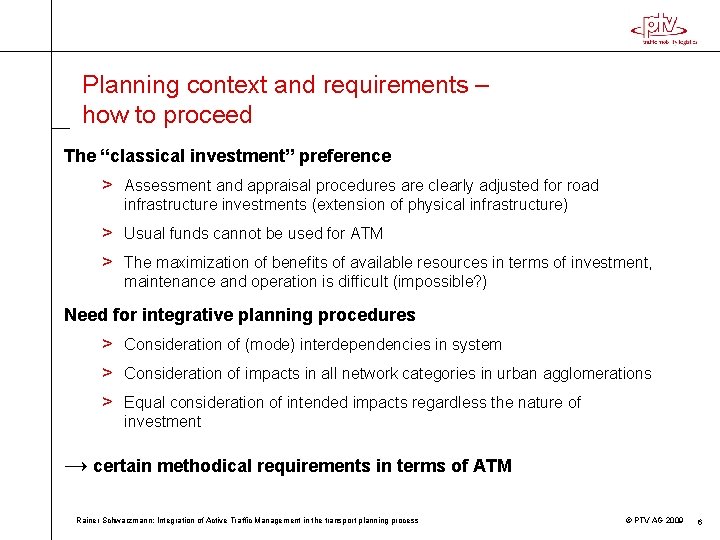

Planning context and requirements – how to proceed The “classical investment” preference > Assessment and appraisal procedures are clearly adjusted for road infrastructure investments (extension of physical infrastructure) > Usual funds cannot be used for ATM > The maximization of benefits of available resources in terms of investment, maintenance and operation is difficult (impossible? ) Need for integrative planning procedures > Consideration of (mode) interdependencies in system > Consideration of impacts in all network categories in urban agglomerations > Equal consideration of intended impacts regardless the nature of investment → certain methodical requirements in terms of ATM Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 6

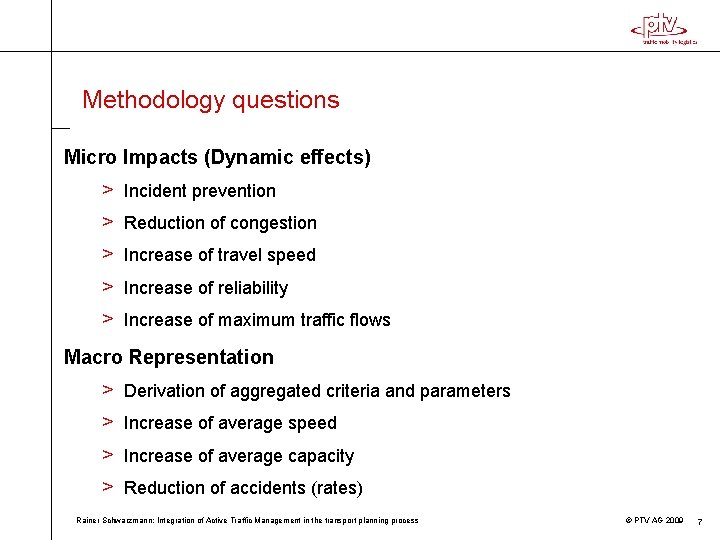

Methodology questions Micro Impacts (Dynamic effects) > Incident prevention > Reduction of congestion > Increase of travel speed > Increase of reliability > Increase of maximum traffic flows Macro Representation > Derivation of aggregated criteria and parameters > Increase of average speed > Increase of average capacity > Reduction of accidents (rates) Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 7

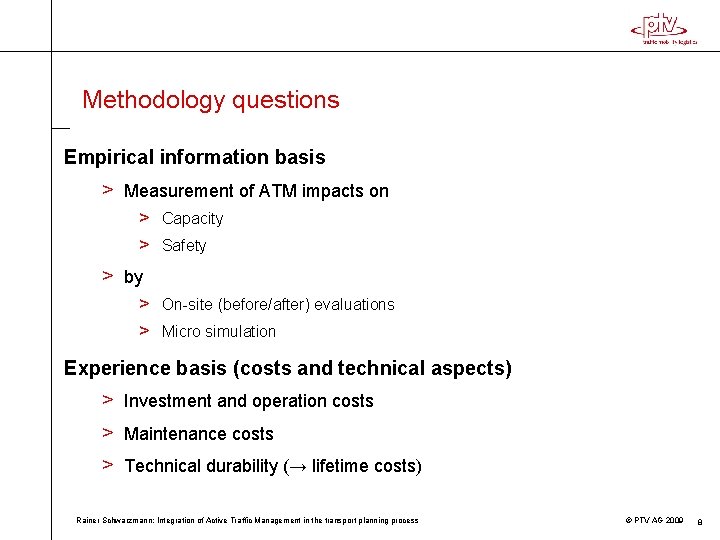

Methodology questions Empirical information basis > Measurement of ATM impacts on > Capacity > Safety > by > On-site (before/after) evaluations > Micro simulation Experience basis (costs and technical aspects) > Investment and operation costs > Maintenance costs > Technical durability (→ lifetime costs) Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 8

Example: Safety Impacts of Section Control Systems - compared to whole federal motorway network Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 9

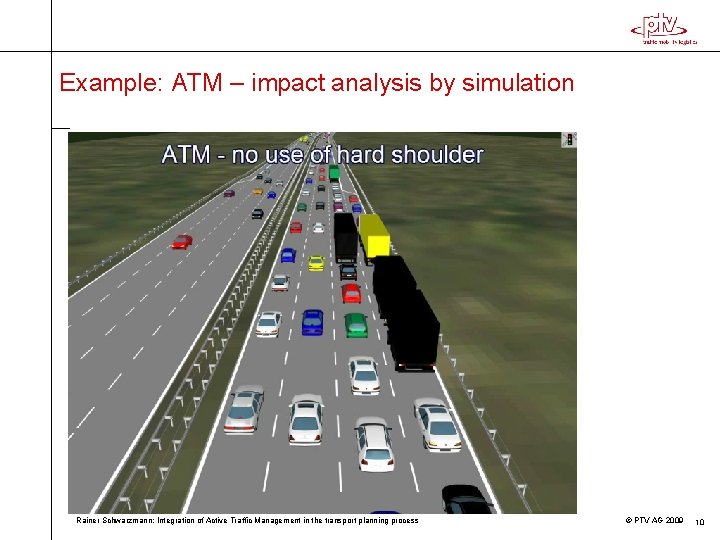

Example: ATM – impact analysis by simulation Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 10

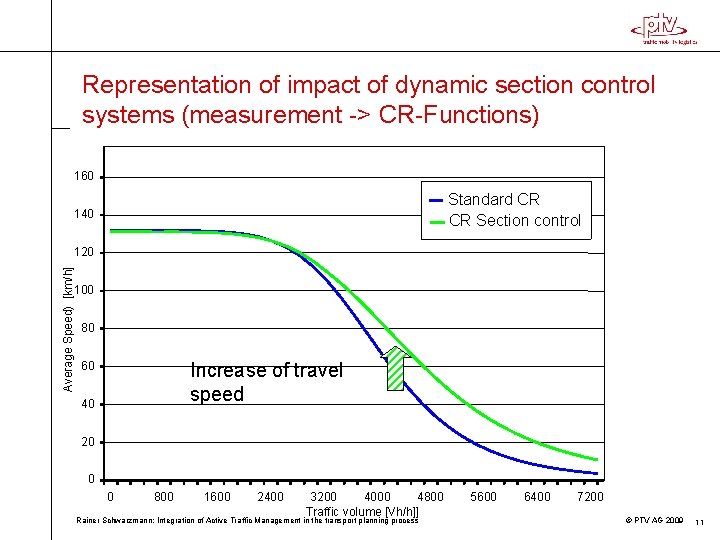

Representation of impact of dynamic section control systems (measurement -> CR-Functions) 160 Standard CR CR Section control 140 Average Speed) [km/h] 120 100 80 60 Increase of travel speed 40 20 0 0 800 1600 2400 3200 4000 4800 Traffic volume [Vh/h]] Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process 5600 6400 7200 © PTV AG 2009 11

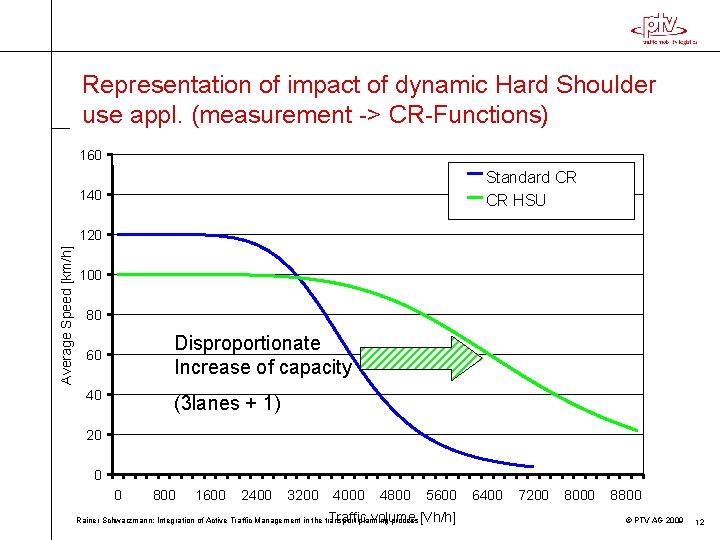

Representation of impact of dynamic Hard Shoulder use appl. (measurement -> CR-Functions) 160 Standard CR CR HSU 140 Average Speed [km/h] 120 100 80 Disproportionate Increase of capacity 60 40 (3 lanes + 1) 20 0 0 800 1600 2400 3200 4000 4800 5600 Traffic volume [Vh/h] Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process 6400 7200 8000 8800 © PTV AG 2009 12

Example: The Rhine-Main Area ‘Mobility Master Plan’ The Rhine-Main area [speak “rine-mine”] > One of 11 “European Metropolitan Regions” in Germany > top higher-order central place: Frankfurt (+ some other big cities) > 5, 5 million Inhabitants > 2 million employees > forming one of the most busiest areas in Germany Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 13

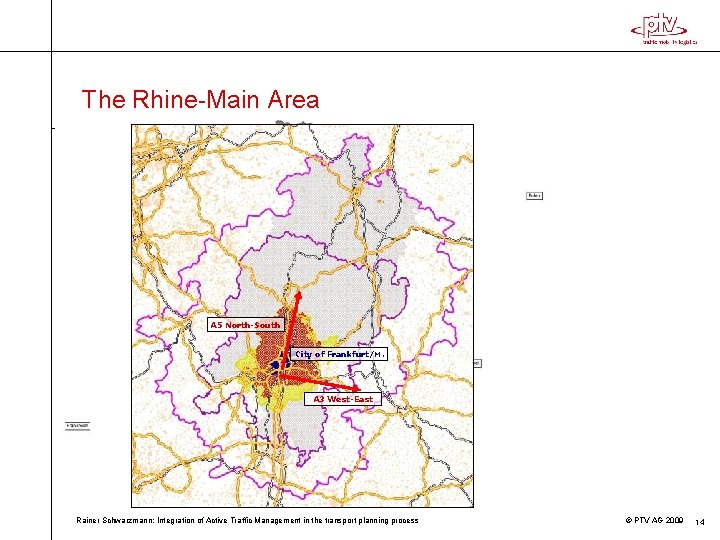

The Rhine-Main Area A 5 North-South City of Frankfurt/M. A 3 West-East Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 14

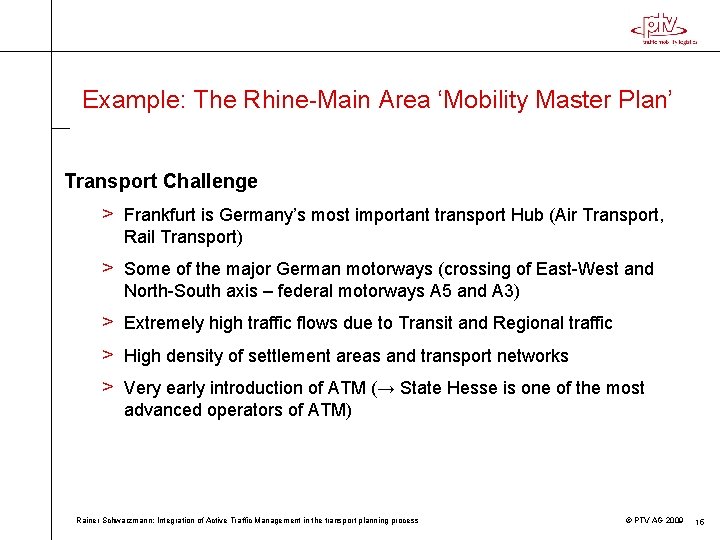

Example: The Rhine-Main Area ‘Mobility Master Plan’ Transport Challenge > Frankfurt is Germany’s most important transport Hub (Air Transport, Rail Transport) > Some of the major German motorways (crossing of East-West and North-South axis – federal motorways A 5 and A 3) > Extremely high traffic flows due to Transit and Regional traffic > High density of settlement areas and transport networks > Very early introduction of ATM (→ State Hesse is one of the most advanced operators of ATM) Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 15

ATM in Rhine-Main Area: Dynamic Section Control Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 16

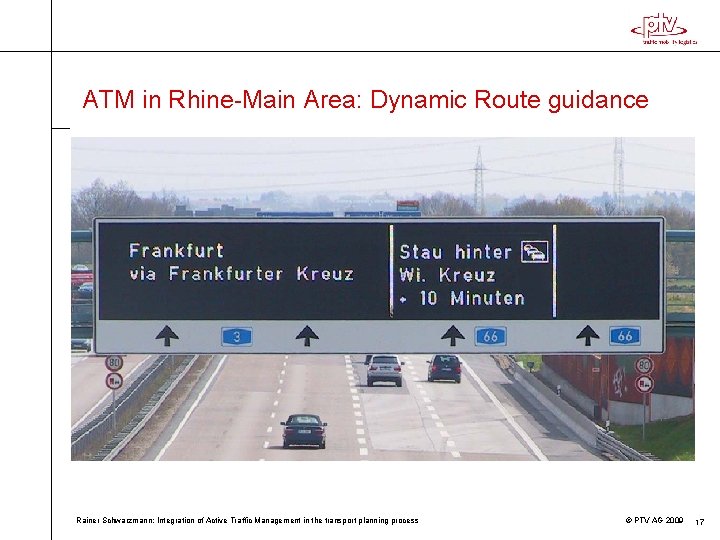

ATM in Rhine-Main Area: Dynamic Route guidance Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 17

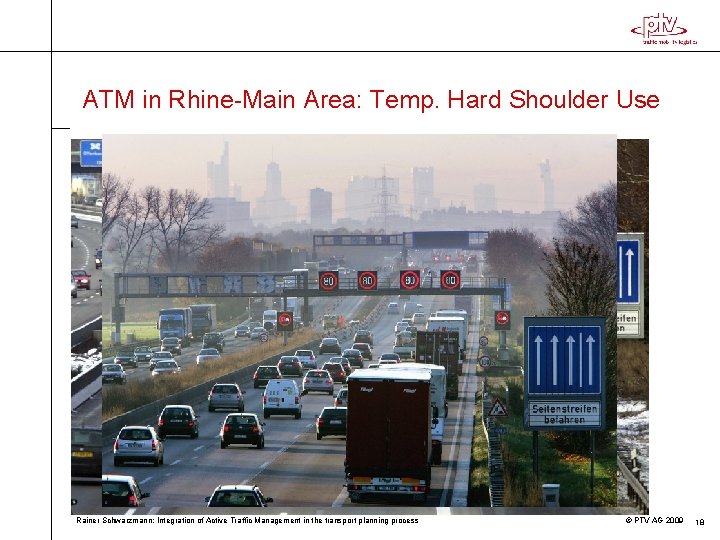

ATM in Rhine-Main Area: Temp. Hard Shoulder Use Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 18

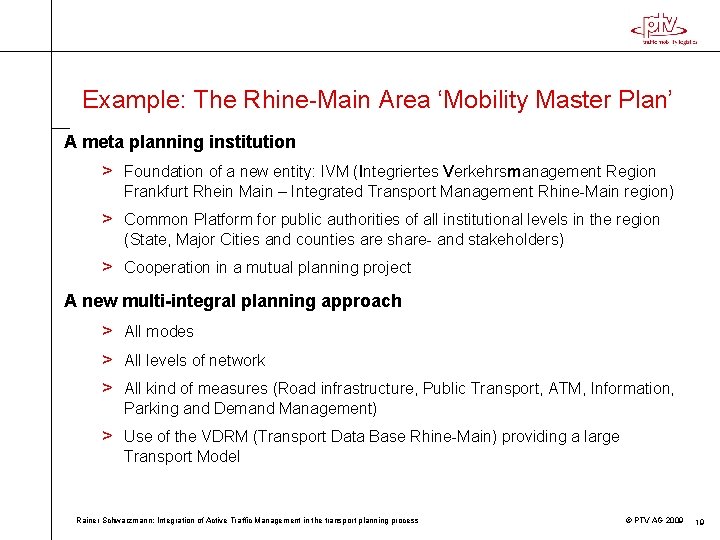

Example: The Rhine-Main Area ‘Mobility Master Plan’ A meta planning institution > Foundation of a new entity: IVM (Integriertes Verkehrsmanagement Region Frankfurt Rhein Main – Integrated Transport Management Rhine-Main region) > Common Platform for public authorities of all institutional levels in the region (State, Major Cities and counties are share- and stakeholders) > Cooperation in a mutual planning project A new multi-integral planning approach > All modes > All levels of network > All kind of measures (Road infrastructure, Public Transport, ATM, Information, Parking and Demand Management) > Use of the VDRM (Transport Data Base Rhine-Main) providing a large Transport Model Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 19

Example: The Rhine-Main Area ‘Mobility Master Plan’ The VDRM Transport Model Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 20

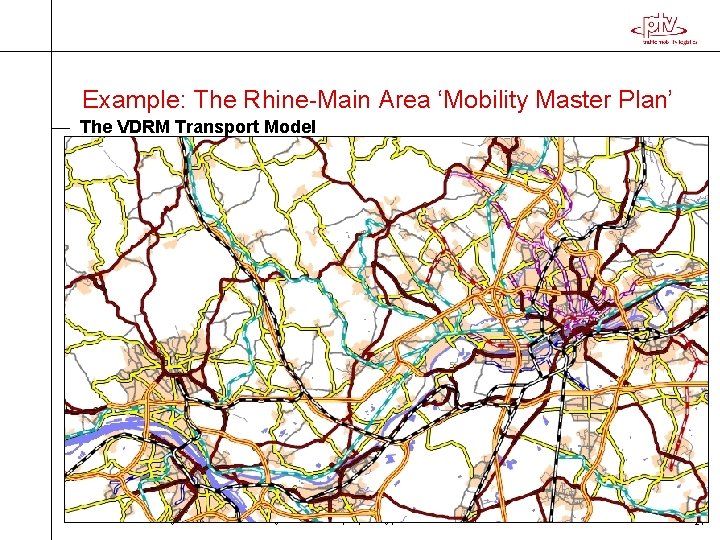

Example: The Rhine-Main Area ‘Mobility Master Plan’ The VDRM Transport Model The model area Frankfurt /Main VDRM Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 21

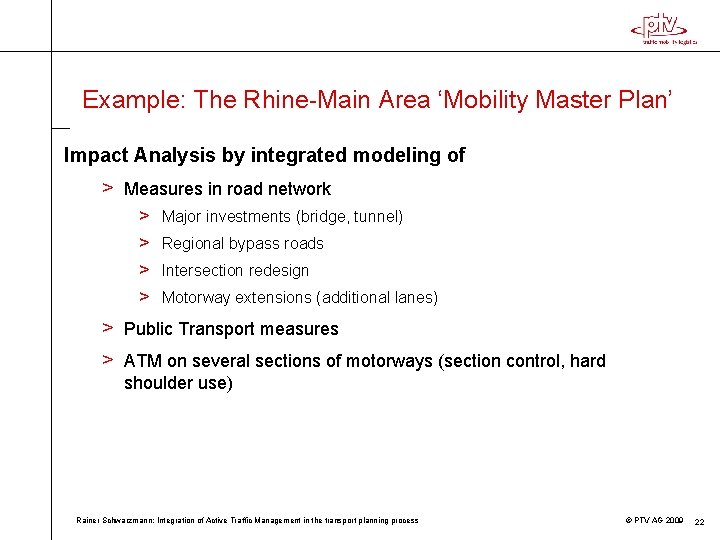

Example: The Rhine-Main Area ‘Mobility Master Plan’ Impact Analysis by integrated modeling of > Measures in road network > > Major investments (bridge, tunnel) Regional bypass roads Intersection redesign Motorway extensions (additional lanes) > Public Transport measures > ATM on several sections of motorways (section control, hard shoulder use) Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 22

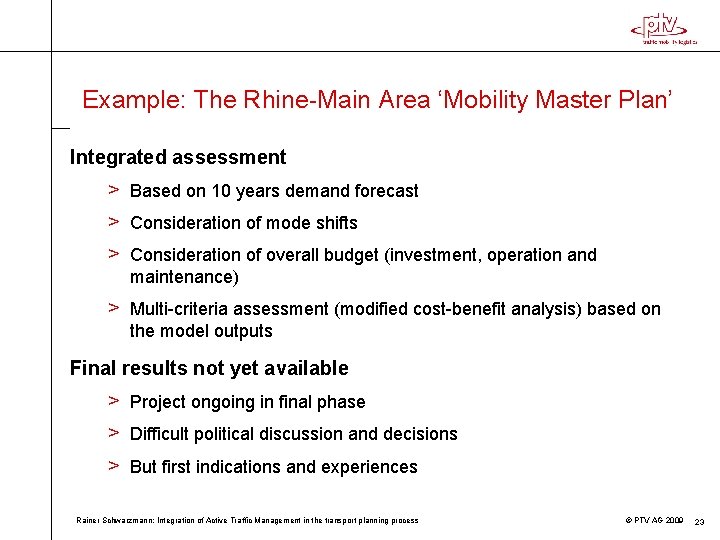

Example: The Rhine-Main Area ‘Mobility Master Plan’ Integrated assessment > Based on 10 years demand forecast > Consideration of mode shifts > Consideration of overall budget (investment, operation and maintenance) > Multi-criteria assessment (modified cost-benefit analysis) based on the model outputs Final results not yet available > Project ongoing in final phase > Difficult political discussion and decisions > But first indications and experiences Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 23

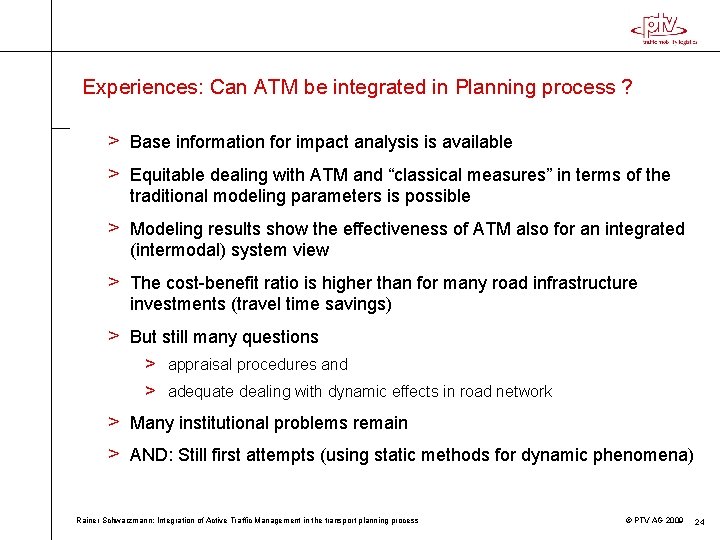

Experiences: Can ATM be integrated in Planning process ? > Base information for impact analysis is available > Equitable dealing with ATM and “classical measures” in terms of the traditional modeling parameters is possible > Modeling results show the effectiveness of ATM also for an integrated (intermodal) system view > The cost-benefit ratio is higher than for many road infrastructure investments (travel time savings) > But still many questions > appraisal procedures and > adequate dealing with dynamic effects in road network > Many institutional problems remain > AND: Still first attempts (using static methods for dynamic phenomena) Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 24

Outlook > Expectations and assumptions > ATM and other road operation tools will become standard features > Growing understanding of Traffic management impacts > Commitment to integration of planning and operation (institutional setup!) > Changes and developments > > > Dynamic modeling dealing with hourly congestion rather than with daily volumes Corresponding collection of “dynamic data” Adaptation of appraisal procedures Vertical and horizontal integration of planning and operation (including integration of interurban ATM - and urban ITS- strategies) Support by corresponding tools (Borders between strategic and traffic engineering tools will disappear) Rainer Schwarzmann: Integration of Active Traffic Management in the transport planning process © PTV AG 2009 25
