www msm cam ac ukphasetransteaching html Crystallography Lecture
- Slides: 64
www. msm. cam. ac. uk/phase-trans/teaching. html Crystallography Lecture notes Many other things
Crystallography Introduction and point groups Stereographic projections Low symmetry systems Space groups Deformation and texture Interfaces, orientation relationships Martensitic transformations H. K. D. H. Bhadeshia
Introduction
Liquid Crystals (Z. Barber)
Form
Anisotropy (elastic modulus, MPa) Ag Mo
Polycrystals

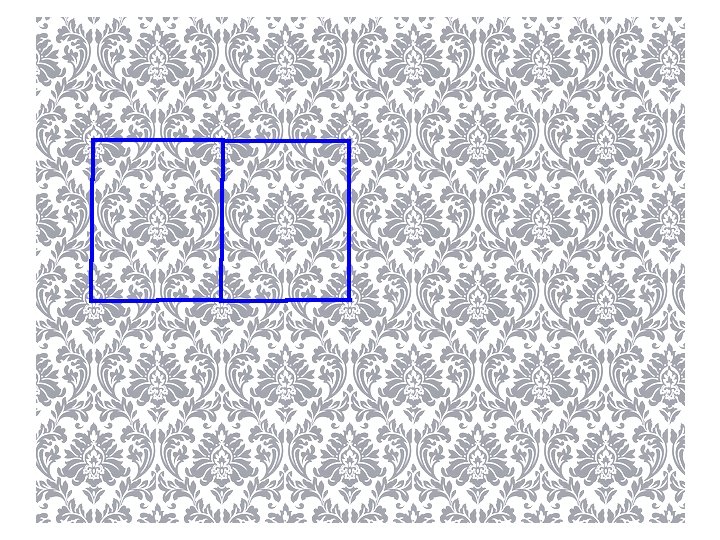

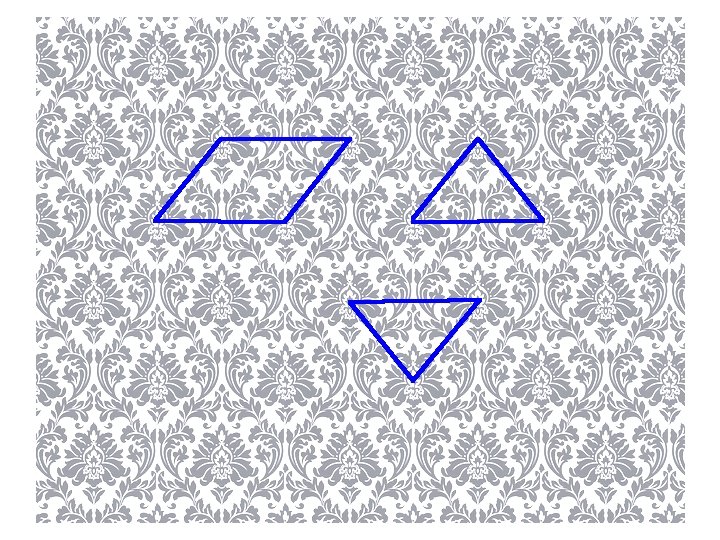

The Lattice

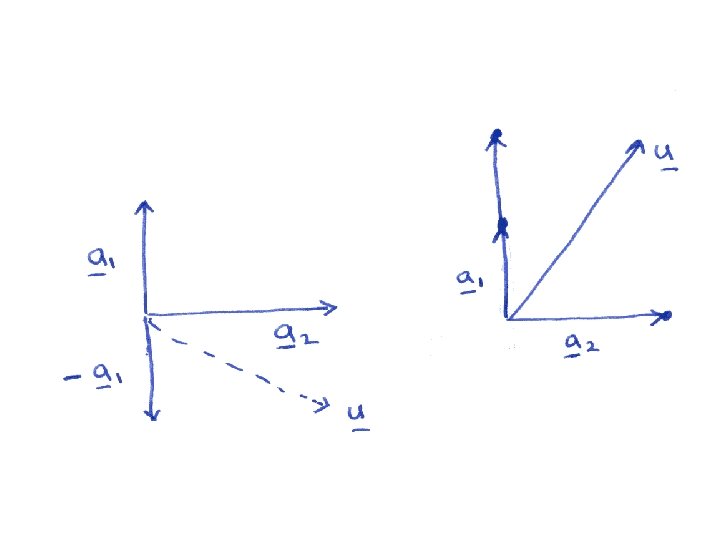

Centre of symmetry and inversion

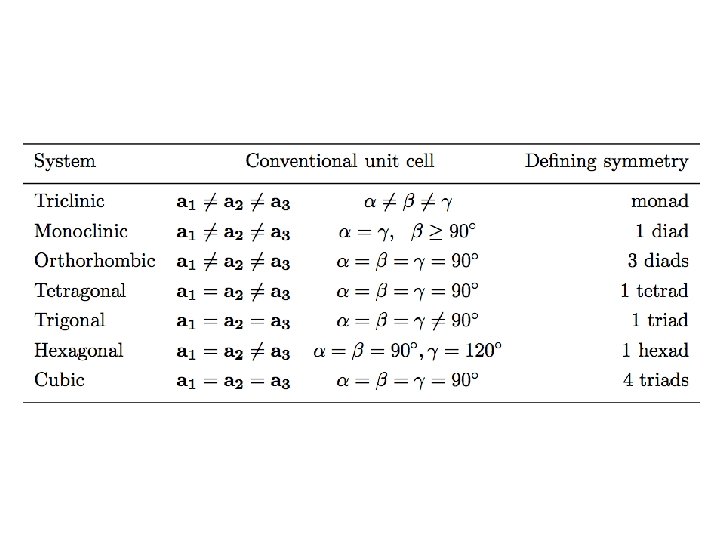

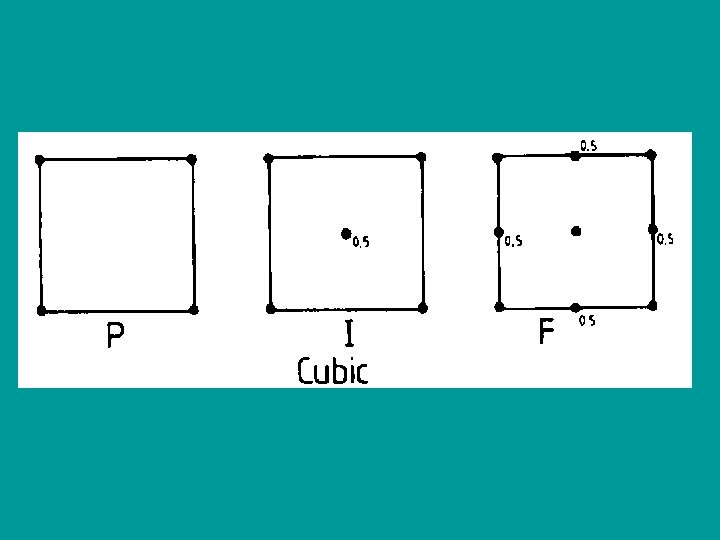

Bravais Lattices • Triclinic P • Monoclinic P & C • Orthorhombic P, C, I & F • Tetragonal P & I • Hexagonal • Trigonal P • Cubic P, F & I
Bravais Lattices

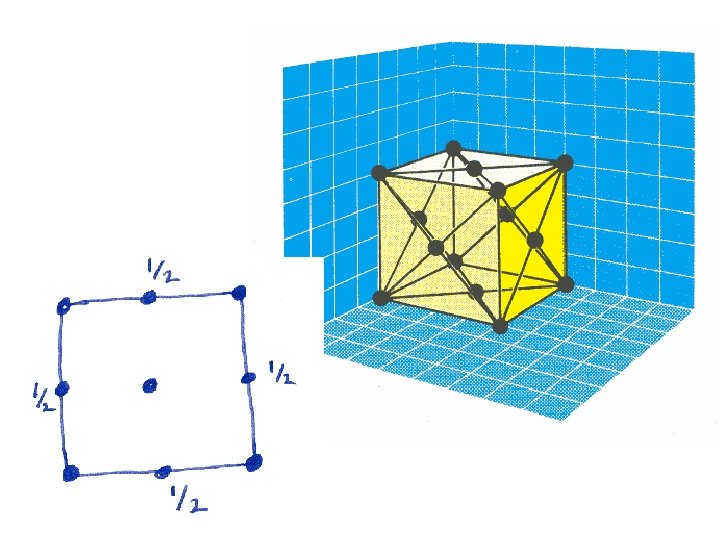

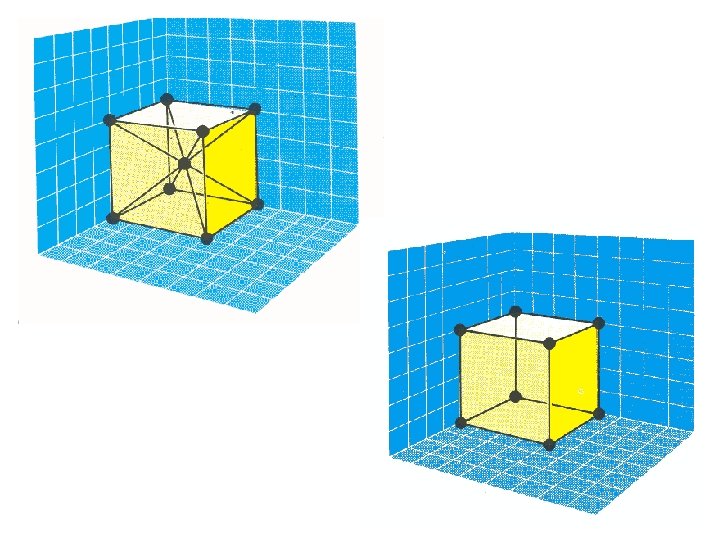

body-centred cubic (ferrite) face-centred cubic
Bundy (1965)
Fe Ru Os Hs 6 d 2 s
Cohesive energy (e. V/atom) -35 Cubic-P Diamond cubic Pure iron -45 Hexagonal-P -55 -65 b. c. c. p h. c. p 0. 8 1. 0 1. 2 1. 4 1. 6 Normalised volume Paxton et al. (1990)
2 D lattices
Graphene, nanotubes

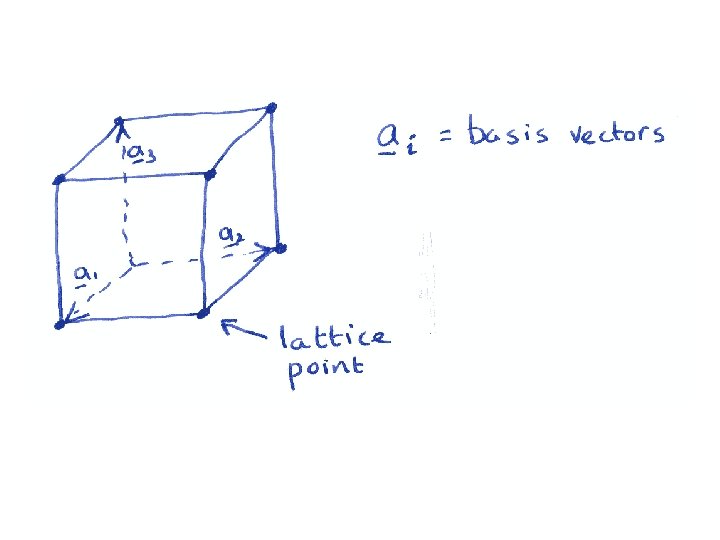

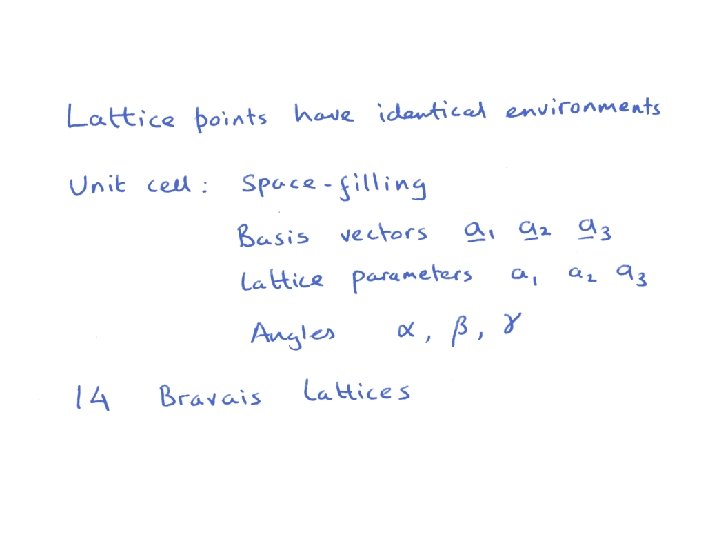

Amorphous - homogeneous, isotropic Crystals - long range order, anisotropic Crystals - solid or liquid Crystals - arbitrary shapes Polycrystals Lattice, lattice points Unit cell, space filling Primitive cell, lattice vectors Bravais lattices Directions, planes Weiss zone rule Symmetry Crystal structure Point group symmetry Point group symbols Examples

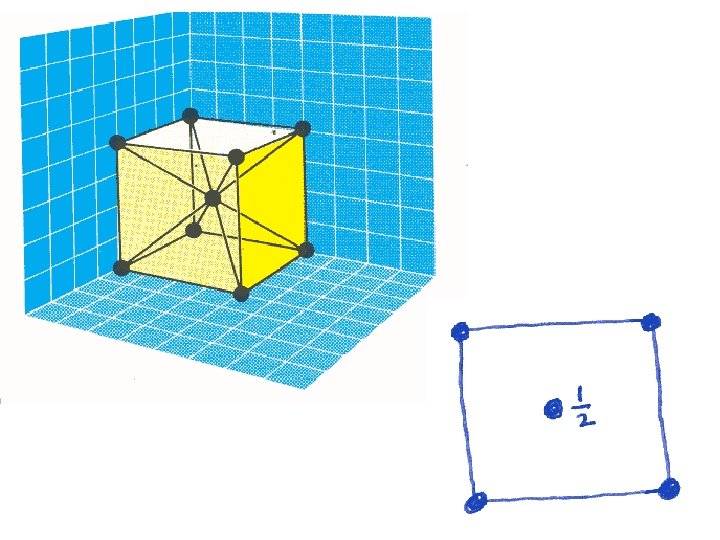

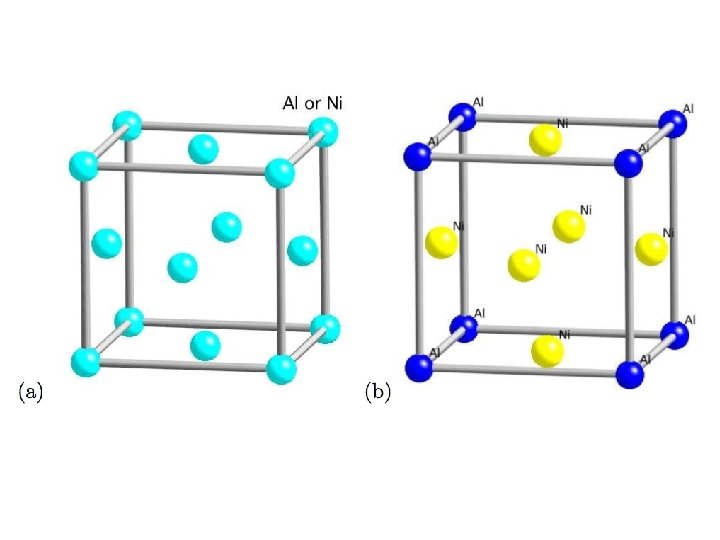

1/2 1/2 Crystal Structure

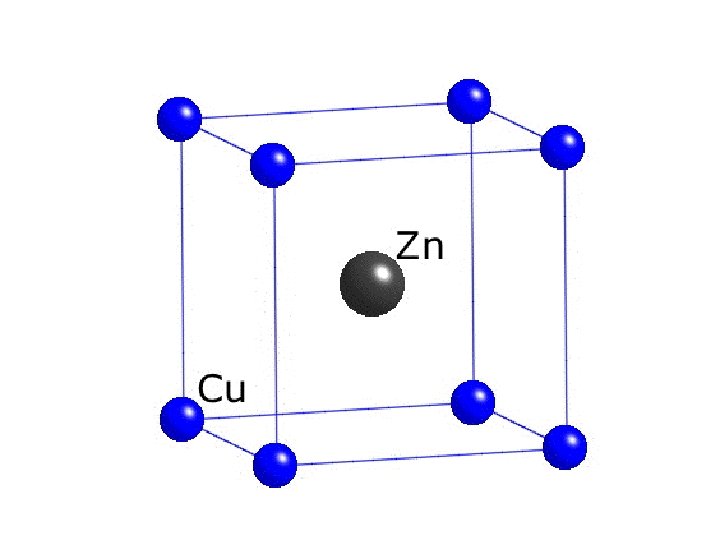

lattice + motif = structure primitive cubic lattice motif = Cu at 0, 0, 0 Zn at 1/2, 1/2

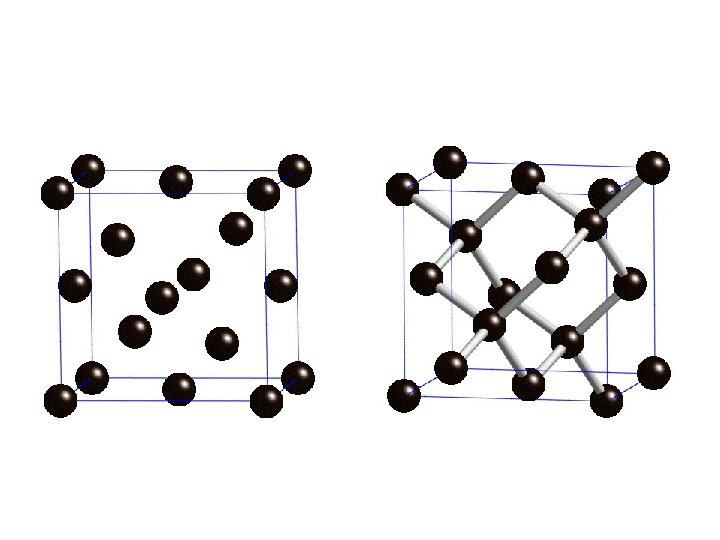

1/4 3/4 1/4 Lattice: face-centred cubic Motif: C at 0, 0, 0 C at 1/4, 1/4
3/4 1/4 3/4

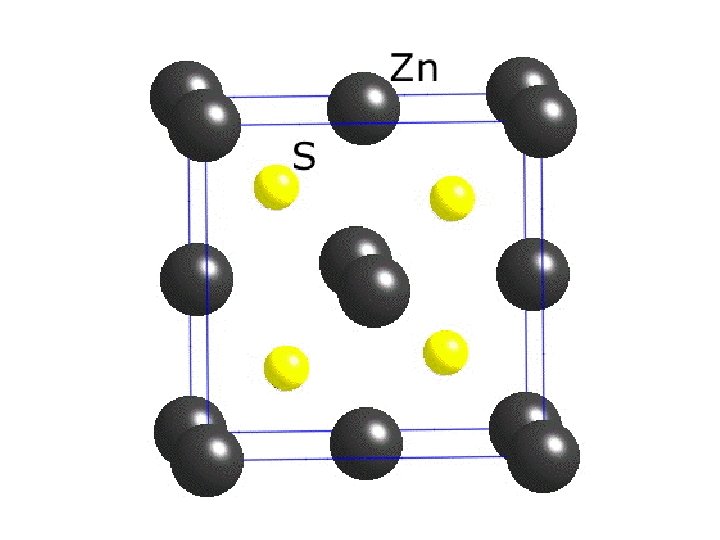

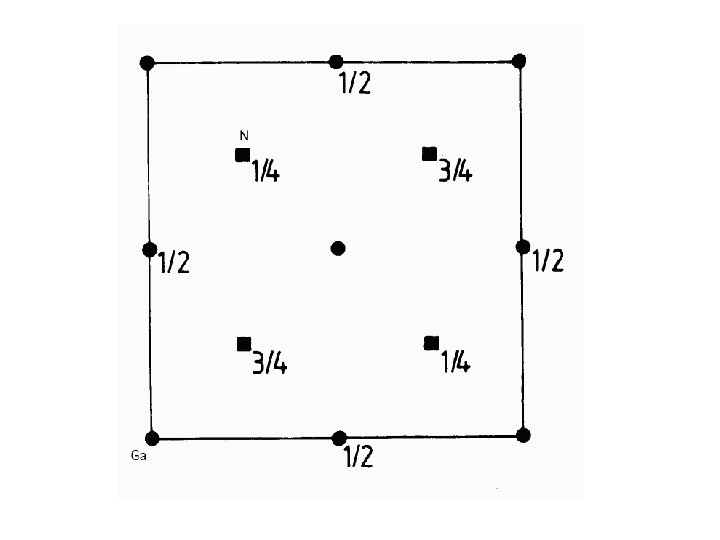

3/4 1/4 3/4 Lattice: face-centred cubic Motif: Zn at 0, 0, 0 S at 1/4, 1/4

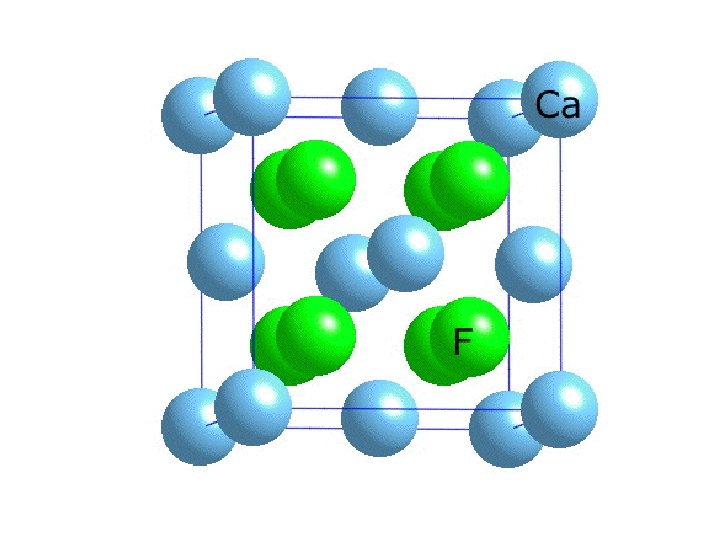

fluorite

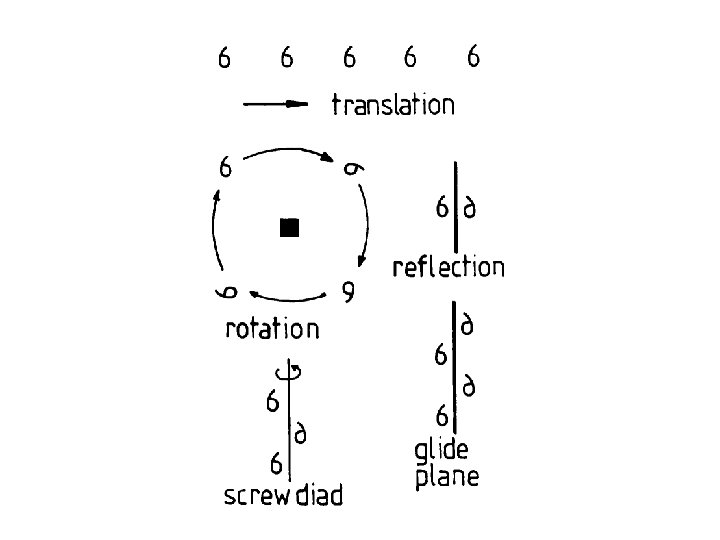

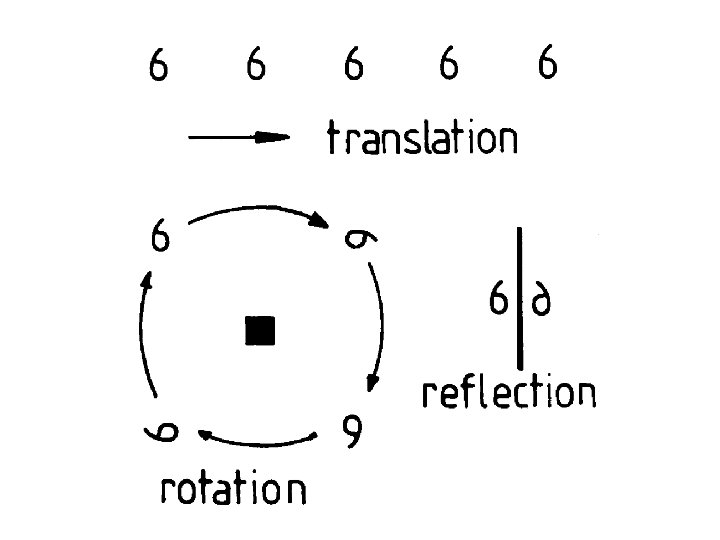

Rotation axes 2 diad 3 triad 4 tetrad 6 hexad
Point groups 2 m
Water and sulphur tetrafluoride have same point symmetry and hence same number of vibration modes - similar spectra
Sulphur tetraflouride
Gypsum 2/m
222 Epsomite
4/m mm or 4/mmm
first number c-axis second number normal to c-axis some exceptions

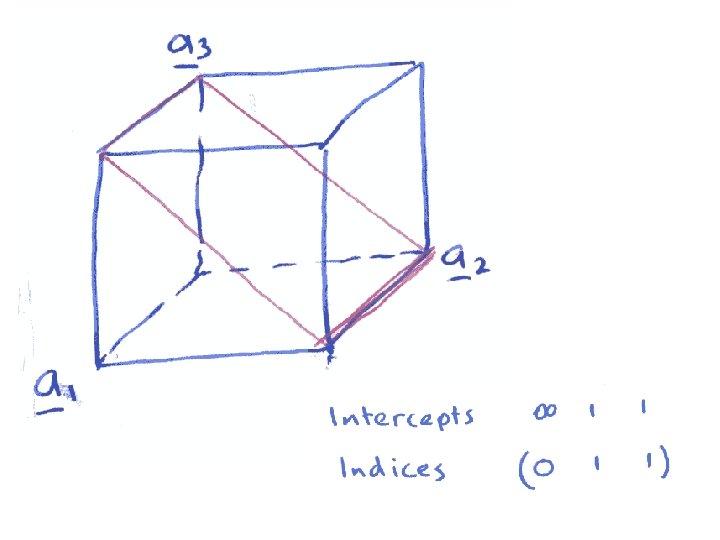

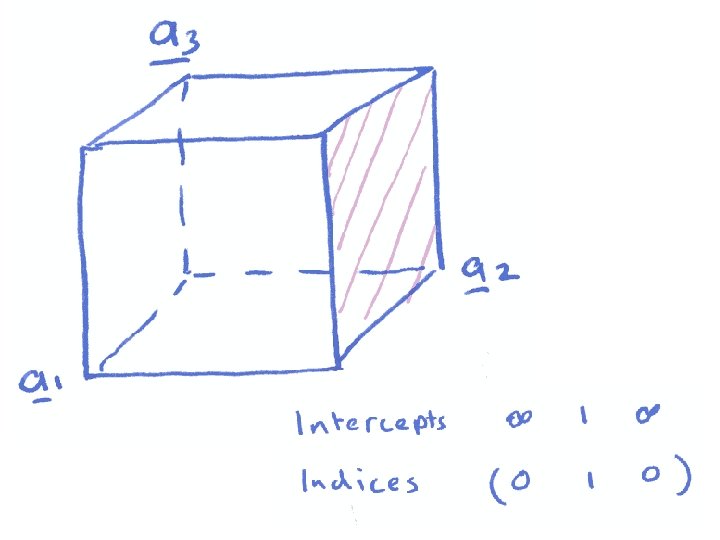

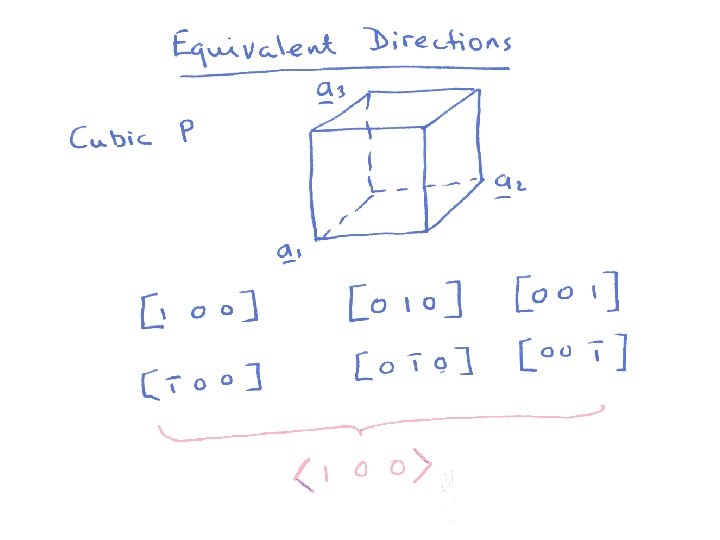

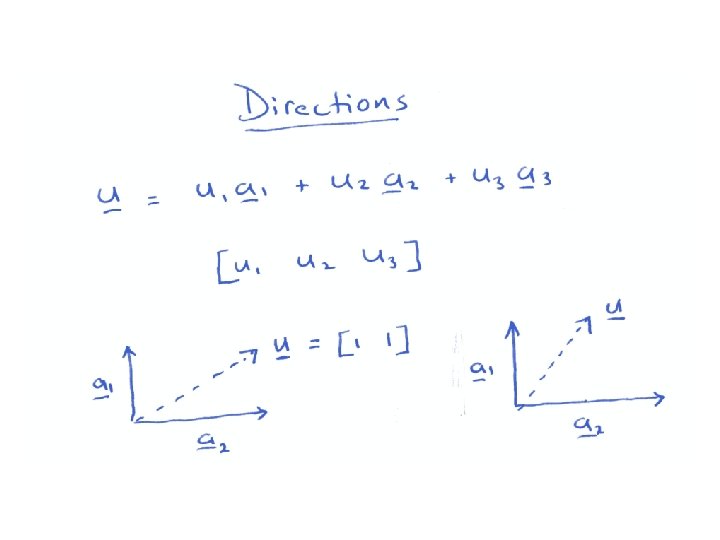

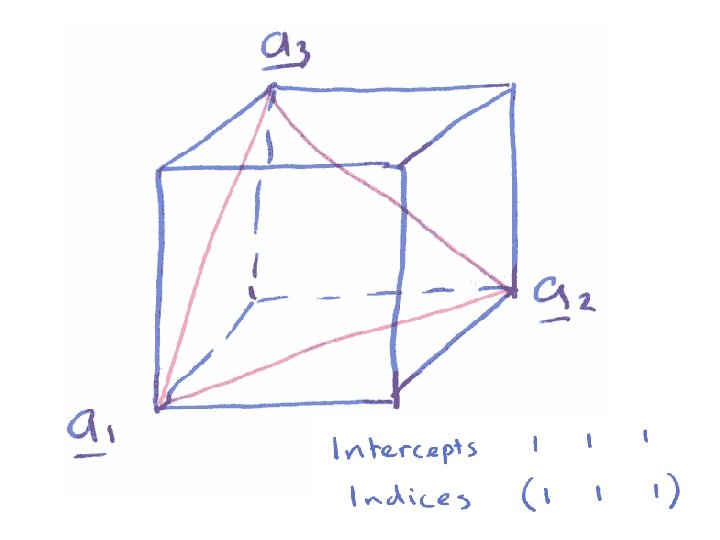

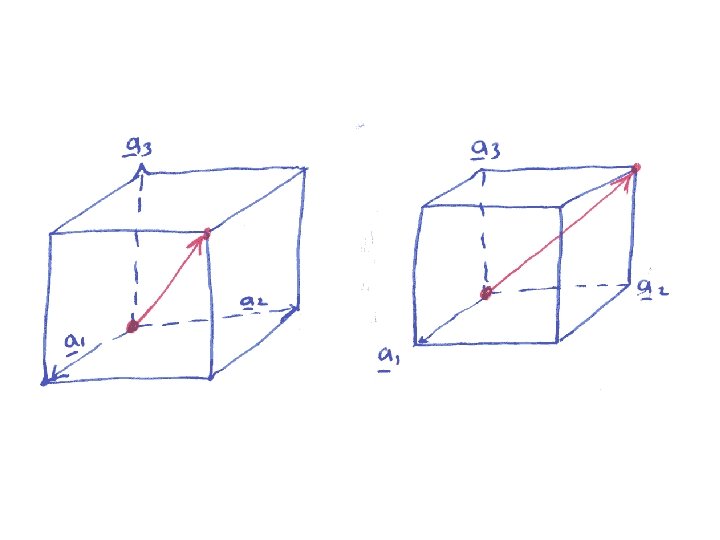

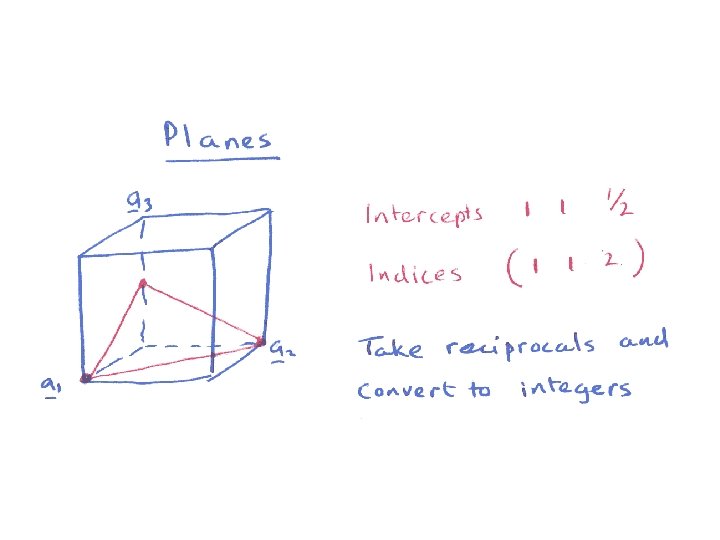

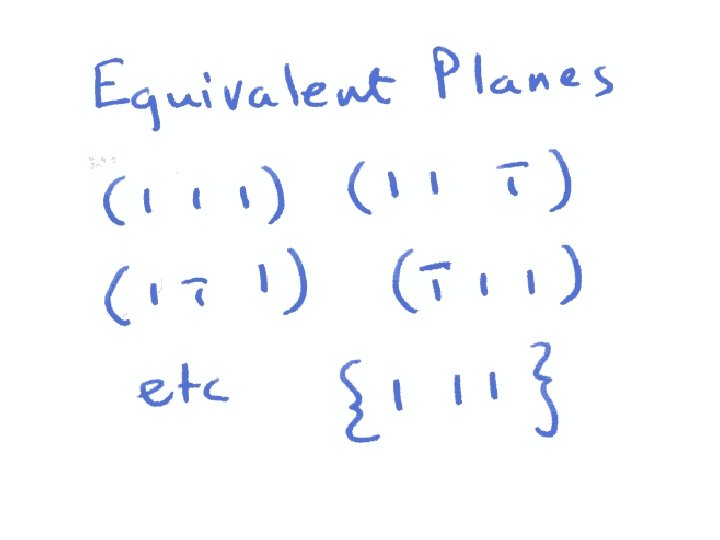

Weiss Law If a direction [uvw] lies in a plane (hkl) then [uv w] uh+vk+wl = 0 (hkl)
z ) (110 y x [11 0] z y x
