MESSER is a polish manufacturing company. It has been founded in Warsaw (Poland), 1995. Since 1999 the only company activity are the projects and the manufacturing of the units for remote objects monitoring - by the radio connection mainly. Company offers their own complete monitoring system basing at the modern radio data transmit protocol (MESSER-3000). Moreover, in our offer we also have devices compatible with radio systems of other known and popular manufacturers. These are the transmitters as well as repeaters and the base radio monitoring stations. Since 2005 company began manufacturing of monitoring devices using phone and Internet lines.

CERTIFICATES All of our devices are produced basing on the technical requirements of the European Union (СЕ). Please notice that our equipment is compliant with the RTTE-ETSI requirements (technical radio parameters specification). According to its high demands, we have no problem with certification of our products in countries, which do not use European standards. Trying to accomodate to our customers requirements, we offer the software and manuals in three languages: Polish, English and Russian. Our systems are installed and successfully working in many EU and CIS countries, as i. a. Lithuania, Ukraine, Georgia, Azerbaijan, Moldova and Russian Federation and many others. On our clients’ demand, we are able to make any language version.

RADIO SYSTEMS We offer devices compatible with the following systems: - MESSER-Plus and MESSER 3000 – our own systems - VISONIC* MILCOL* D and V 32 – systems of VISONIC LТD company - LARS* and LARS 1 – systems of KP-Systems company - INFORMER 12000* – system of C&K* company - And others, accordingly to request. . . - * used descriptions are registered names or trademarks used to specify the products only

RADIO DEVICES We can provide each Security Agency with the set of devices being the full complete needed for its operating: - RMV-2003/x - Basic Monitoring Stations - RPT-2003/x – Long range repeaters - UNR-01/x – Radio transmitters - Messer Monitor software

Monitoring stations RMV-2003/x General features: - 3 housing designs: RAK-19”, MINI-19 cm or PC-BOX Compatibility with radio protocols: Messer UFR-M and M 3000, Lars 1, Milcol. D 3+1 and 4+2 (Visonic 32 b) - Measurement of the radio signal digital quality (BER) - Two-way communication with repeaters - Optional communication with remote repeaters over GPRS link! - Received messages buffer (up to 16 384 records) - 2 RS-232 ports: - - For communication with various software (many popular wire protocols) For communication with printer (e. g. EPSON LX 300+) Technical specifications: - 4 alarm outputs activated by received messages - 2 alarm inputs activated by various external devices - Buffered power supply with 12 V/7 Ah rechargeable battery - Signals’ compatibility with Motorola GM-340 transceiver

Repeaters RPT-2003/x General features: - Compatibility with radio protocols: Messer UFR-M and M 3000, Lars 1, Milcol. D 3+1 and 4+2 (Visonic 32 b) Measurement of the radio signal digital quality (BER) - Retransmitted signals’ confirmation - Received messages buffer (up to 8191 records) - Transmitting of supervisory messages - Optional communication with monitoring station over GPRS link! - Repeater power supply status reporting - Simple configuration through RS-232 port (Windows Hyperterminal) - Technical specifications: - Single tamper input Metal housing for wall mounting - Signal level compatibility with Motorola GM-340 transceivers -

TRANSMITTERS We are offering three different variants of these devices: Transmitters with Alarm Panel and LCD keypad - UNR 01 VHF/ RA 816 Transmitters with DTMF decoders - UNR- 01 UHF/ DTMF Standard transmitters (8 inputs) - UNR-01 UHF

Standard transmitters UNR 01 - VHF General features: - Simple parameters’ programming through RS-232 port (frequency, report codes, etc. ) Two objects’ numbers service* Operating with two monitoring stations * Operating at two programmable frequencies* Simple alarm panel (arming with f. ex. remote controller) option* Technical specifications: - 8 NO/NC programmable inputs - On/off input for built-in alarm panel* - Alarm output for siren control* - External battery charging circuit (no need any additional power supply) - Two internal inputs for battery and transformer’s voltage monitoring - Output for powering PIR sensors* - High frequency stability in wide temperature range - Programmable frequency synthesizer - VHF (137 174 MHz) or UHF (420 470 МHz) frequency range; only! * features specific for MESSER’s production transceivers

Transceivers with DTMF communicator General features: - UNR 01 - VHF Simple programming through RS-232 port of all parameters (frequency, report codes, etc. ) Two objects’ numbers service* Operating with two monitoring stations * Operating at two programmable frequencies* Serial data receiving from any alarm panel equipped with the phone communicator and Ademco** DTMF 4+2 (Ademco Express) protocol; hardware Watch-dog circuit; Technical specifications: - 8 NO/NC programmable inputs - DTMF interface module - External battery charging circuit (no need any additional power supply) - Two internal inputs for battery and transformer’s voltage monitoring, - High frequency stability in wide temperature range - Programmable frequency synthesizer - VHF (137 174 MHz) or UHF (420 470 МHz) frequency range; * features specific for MESSER’s production transceivers only! * Ademco is registered name of Ademco Co.

Transceivers with alarm panel and LCD keypads Radio ALERT 816 LINES’ FEATURES: l 8 inputs for PIR sensors on the main board l Additional 8 inputs on extension module l 2 independent partitions (zones) Line programming options: - N. O. or N. C. line - 24 hour line - Silent or loud line (siren activation) - Bypassed line - Excluded line - Separate or common line for partition - Night line (Stay) - Delayed input/output line (0 -99 sec). - Line alarm counter l OUTPUT FEATURES: l 1 siren control output (PGM 150 m. A) l 4 outputs on extension module l 1 output for PIR sensors powering (300 m. A) SYSTEM COUNTERS l Programmable exit time (0 -99 sec) EVENTS MEMORY: l Programmable entry time (0 -99 sec) 99 latest events l Programmable siren time (5 -99 sec) l

Transceivers with alarm panel and LCD keypads Radio ALERT 816 USER OPTIONS: - 6 User codes (4 -8 digits) 1 Master code - 1 Installer code for alarm panel keypad programming - 1 Administrator code for PC programming Users have a ability to: Arm/Disarm system or partition - Arm system into Night mode - Bypass alarm lines - Activate keypad alarms: Police / Fire / Medical - Change user codes (master code) Make periodical siren test Activate door lock (simple access control) PROGRAMMING METHODS: KEYPAD OPTIONS: - Maximum no. of keypads: 4 with connection msupervisor Keypads are addressable separately for each partition - Alarm panel programming and User control - User options: keypad only Monitoring center settings: PC software only - Alarm panel settings: PC software and keypad - All programmings protected with passwords

MONITORING SYSTEM MESSER 3000

Radio protocol parameters Messer-3000 MESSER-3000 ENCRYPTION PROTOCOL : In comparison to other formats, UFR-M 3000 distinguishes itself i. e. with very short transmission time. This feature enables handling a large number of objects numbers (transceivers) operating at one frequency channel. Advanced method of radio encryption and CRC coded protocol with an autocorrect function allow for a very high receiving efficiency. RADIO TRANSMISSION PARAMETERS OBJECT NUMBER: 8191 NETWORK CODE NUMBER (STATION ID): 16 REPORT CODE NUMBER: 256 (00 -FF) TRANSMITT TIME: ~650 ms

Radio system assembling schematics Messer-3000

Network construction example Messer-3000

Multifrequency network Messer-3000 Working on single frequency Working with two frequencies

Multifrequency network Messer-3000 Working with 3 frequencies

Example of addressing network devices Messer-3000

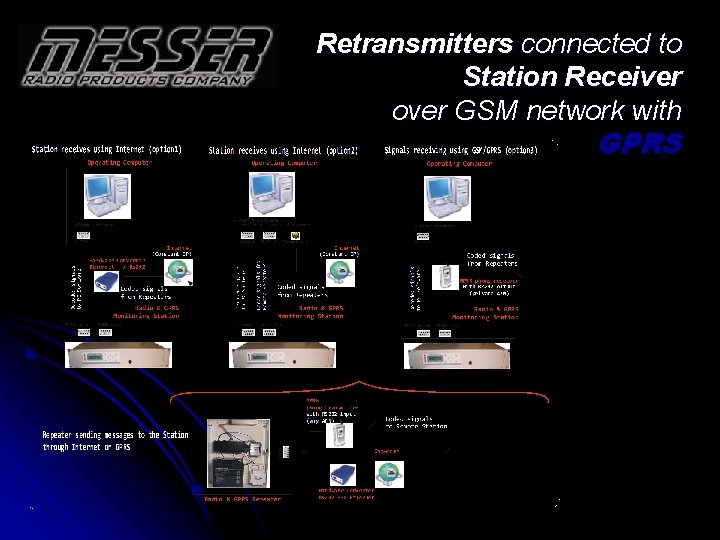

Retransmitters connected to Station Receiver over GSM network with GPRS

OTHER DEVICES of MESSER COMPANY

Telephone monitoring station RMT-2003/x General features: - 2 housing designs: MINI-19 cm or PC-BOX - Protocol compatibility: Ademco DTMF 4+2 and Contact ID - Telephone lines’ efficiency control - Inoperational or „blind” transmissions monitoring - Supply voltage control - Received messages buffer (up to 16 384 messages) - RS-232 port for PC software communication (many different protocols) Technical specifications: - Simultaneous handling fo up to 4 telephone lines (separate processors) - Compatibility with telephone lines in different international standards - Robust protection against overvoltage on telephone line

GPRS technology for alarm systems monitoring Manufacturing plans for year 2010 cover developement of the GSM/GPRS devices: - Object communicators (transceivers) – GPRS – with alarm panel and LCD keypad. Mobile GPRS transmitters with GPS system positioning.

Software All of our stations are equipped with various protocols for communication with any software available in the market that can be used for monitoring station control, according to the operator’s fancy, e. g. SIMS, SIS, Alarm Center, SMS, etc. But if you do not have the software to operate with our station, we can provide You with Messer Monitor software, created especially on our demand. The software is available in 3 languages: English, Russian, Polish. Other language options also available on special demand.
