www. jaquet. com 05. 11. 202 0 JAQUET Products for Gas, Steam and Hydraulic Turbines 1
05. 11. 202 0 Mission Statement n To design, manufacture, market and service both standard and customized products that n detect, measure, diagnose and control SPEED under any circumstances. n To be dedicated to excellence and continuously develop innovative new solutions 2 www. jaquet. com n To create a competitive edge for our customers’ applications, and secure high quality and reliability standards
Diesel- and Gas-Motors n Cam- and Crank-Shaft speed n Turbocharger Speed n Overspeed Protection Engine Diagnostics n Industrial Applications n Speed of Spinning Head n Operator Protection i. e. Textile machines Automotive Applications 3 n Speed of VG Turbocharger n Cam- and Crank-Shaft speed n Engine Diagnostics www. jaquet. com 05. 11. 202 0 Markets served
05. 11. 202 0 Markets served Mobile Hydraulics n Speed-Measurement n Overspeed Protection Position Control n n Speed measurement n Pole wheels and Pole bands n Speed Sensors for all applications Overspeed Protection n Railway Systems n Brake Control n Feedback Loop for Propulsion System n Door Interlock Black Box Information n 4 www. jaquet. com Gas- Steam and Water-Turbines
Gas- Steam- and Water-Turbines 5 www. jaquet. com 05. 11. 202 0 Markets served
05. 11. 202 0 Markets served n Speed measurement l Pole wheels and Pole bands l Sensors for all needs Overspeed Protection Gas- Steam- and Water-Turbines 6 www. jaquet. com n
Mission www. jaquet. com 05. 11. 202 0 Speed Measurement 7
Mission 05. 11. 202 0 Speed Measurement Detecting the actual speed of: l Gas- Steam- and Hydraulic-Turbines l Compressors With elements specially designed for these applications 8 www. jaquet. com l Water- and Oil-Pumps
Pole wheels and Pole bands 05. 11. 202 0 Speed Measurement n Precise pole wheels of all dimensions l Simple disc versions l Split versions 9 www. jaquet. com l Shaft fixing
Pole wheels and Pole bands 05. 11. 202 0 Speed Measurement n Pole bands for large shafts l Length up to 3 m in the basic execution l Special construction for shaft diameters up www. jaquet. com to 3 m -> ~ 10 m length of the pole band 10
05. 11. 202 0 Speed Measurement Speed Sensors n Robust and reliable design n Adaptable housing dimensions l Electro magnetic Sensor DSE 2220 SHV / AHV l Ferrostatic Sensor DSF 2215. 00 STZ / ATZ l Hall effect Sensor DSF 2210. 87 SHV / AHV l Differential Hall effect DSD 2210. 01 SHV/AHV n Ex versions available n Integral cable or connector 11 www. jaquet. com n Different technologies in the same housing available:
05. 11. 202 0 Electronic Speed Sensor Electromagnetic Sensor n Coil System n Internal Magnet Hall Effect Sensor n Hall-Element n Internal Magnet n Schmitt-Trigger and Amplifier Differential Hall-Sensor n Double Hall-Element n Internal Magnet n Schmitt-Trigger and Amplifier 12 www. jaquet. com Ferrostatic Sensor n Ferromagnetic Resistor n Internal Magnet
05. 11. 202 0 Overspeed Protection Mission To safely protect all kinds of large prime movers from overspeed conditions, such as: l Gas- Steam- and Hydraulic-Turbines l Compressors without compromising the availability of the installation. 13 www. jaquet. com l Water- and Oil-Pumps
05. 11. 202 0 FT 3000 System Requirements n Modular and flexible Construction n Sensor Monitoring , On-Line test functions n True 3 -Channel-Design n High Level of System Security & Availability n Attractively Priced 14 www. jaquet. com n Programming with PC-based software
05. 11. 202 0 FT 3000 System Modular and flexible A 1/Test n Channels built as Compact Modules n High Level of Hardware Integration n Input Cards for all Applications (Ex, API etc. ) n 3 Relays on Motherboard 1 15 www. jaquet. com n Expansion Card for 4 Additional Relays (plugged onto the motherboard)
Test functions 05. 11. 202 0 FT 3000 System n Sensor Monitoring, Static and Dynamic n Live System Self-Test n Test Generator integrated into the Basic Module www. jaquet. com n Communication with PC System 16
www. jaquet. com 05. 11. 202 0 FT 3000 System 17 Mission

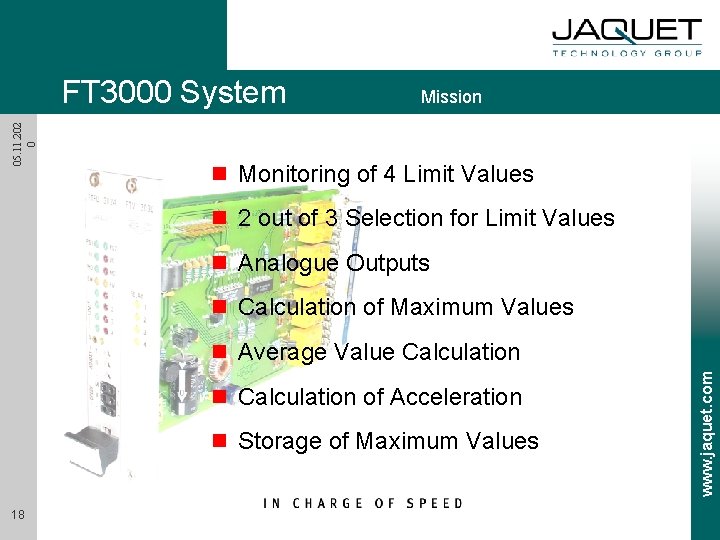

05. 11. 202 0 FT 3000 System Mission n Monitoring of 4 Limit Values n 2 out of 3 Selection for Limit Values n Analogue Outputs n Calculation of Maximum Values n Calculation of Acceleration n Storage of Maximum Values 18 www. jaquet. com n Average Value Calculation
Communication 05. 11. 202 0 FT 3000 System n Bi-directional Data Transmission via the Communications Module n Windows Program n Password Protection on 3 Levels n Documentation Printout 19 www. jaquet. com n User Friendly Access to all Parameters
Setup Program www. jaquet. com 05. 11. 202 0 FT 3000 System 20
Print Out www. jaquet. com 05. 11. 202 0 FT 3000 System 21
05. 11. 202 0 FT 3000 System Advantages n Complete solution with pole wheel, sensor and system from one source n IEC 61508 SIL 3 certified n Very fast reaction time n Static and dynamic sensor monitoring n Low power consumption 22 www. jaquet. com n Extensive test functions
05. 11. 202 0 FT 3000 System Advantages n Simple interface to PC or Host n Programming & commissioning via PC n Programmable filter n Controllable via binary inputs n Configuration and display in process values 23 www. jaquet. com n Arithmetic & logic functions available
Thank you for your attention 24 www. jaquet. com 05. 11. 202 0 JAQUET Products for Gas, Steam and Hydraulic Turbines
