Internet 2: an overview HEANET Conference Heather Boyles heather@internet 2. edu 16 November 2001

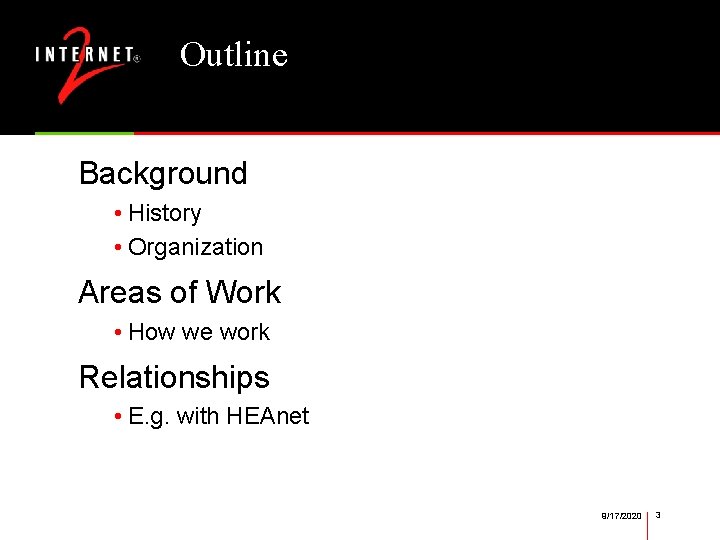

Outline Background • History • Organization Areas of Work • How we work Relationships • E. g. with HEAnet 9/17/2020 3

Why Internet 2? The Internet was not designed for: • Millions of users • Congestion • Multimedia • Real time interaction But, only the Internet can: • Accommodate explosive growth • Enable convergence of information work, mass media, and human collaboration 9/17/2020 4

Internet Development Spiral Commercialization Privatization Today’s Internet Research and Development Internet 2 Partnerships 9/17/2020 Source: Ivan Moura Campos 5

Why University Leadership? The Internet came from the academic community • Stanford -- the Internet protocols • NSFNet -- the scaled-up Internet • CERN -- the WWW protocols • University of Illinois -- the Web browser Universities’ research and education mission require an advanced Internet and have demonstrated they can develop it 9/17/2020 6

Internet 2 Universities 188 Universities as of November 2001 9/17/2020 7

Internet 2 Partnerships Internet 2 universities are recreating the partnerships that fostered the Internet in its infancy • Industry • Government • International 9/17/2020 8

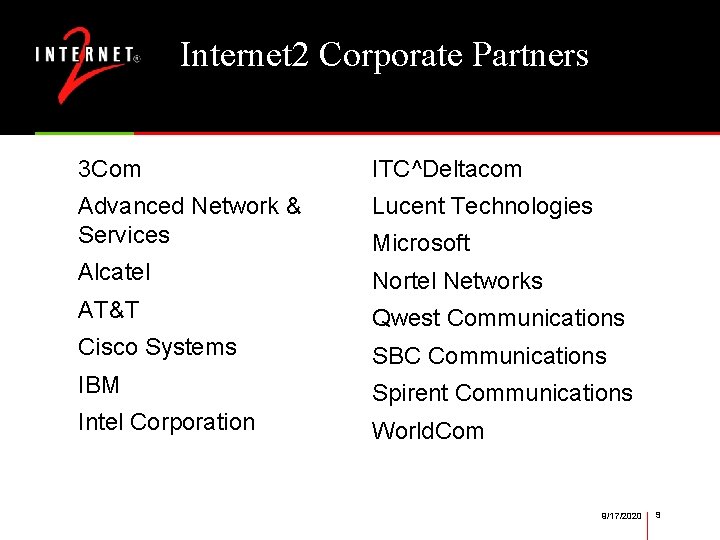

Internet 2 Corporate Partners 3 Com ITC^Deltacom Advanced Network & Services Lucent Technologies Alcatel Nortel Networks AT&T Qwest Communications Cisco Systems SBC Communications IBM Spirent Communications Intel Corporation World. Com Microsoft 9/17/2020 9

Internet 2 Goals Enable new generation of applications Re-create leading edge R&E network capability Transfer technology and experience to the global production Internet 9/17/2020 10

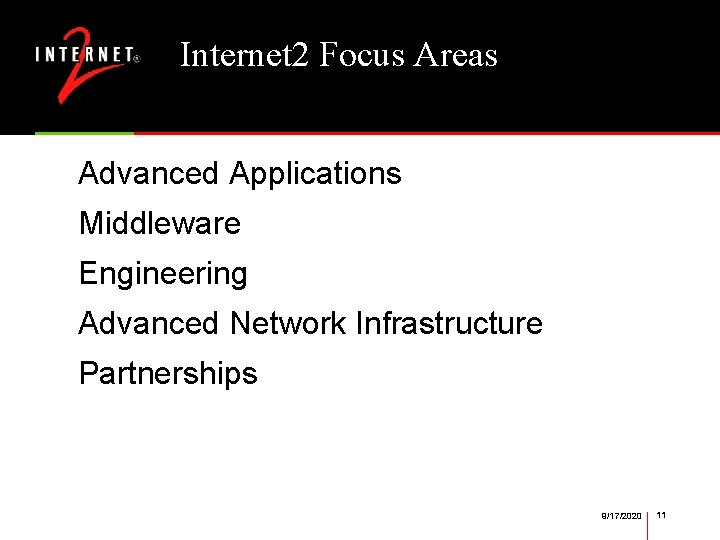

Internet 2 Focus Areas Advanced Applications Middleware Engineering Advanced Network Infrastructure Partnerships 9/17/2020 11

Internet 2 Focus Areas Advanced Applications Middleware Engineering Advanced Network Infrastructure Partnerships 9/17/2020 12

Different Disciplines/Contexts Sciences Library Arts Classroom Humanities Clinic Health care Office Business/Law Laboratory Administration Dorm room … … 9/17/2020 13

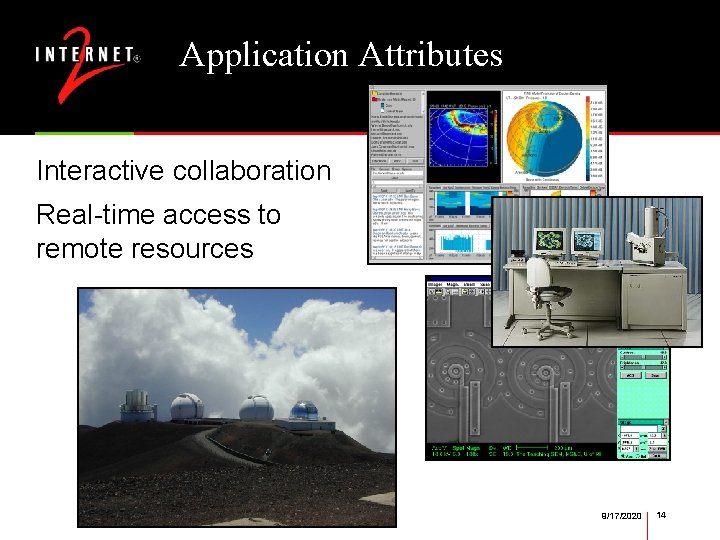

Application Attributes Interactive collaboration Real-time access to remote resources 9/17/2020 14

Remote Scanning Electron Microscope The University of Michigan 16 November 2001

Philips XL 30 9/17/2020 16

9/17/2020 17

Real-Time Tele-Operation of Remote Equipment North Carolina State University http: //CARL. ce. ncsu. edu/ 16 November 2001

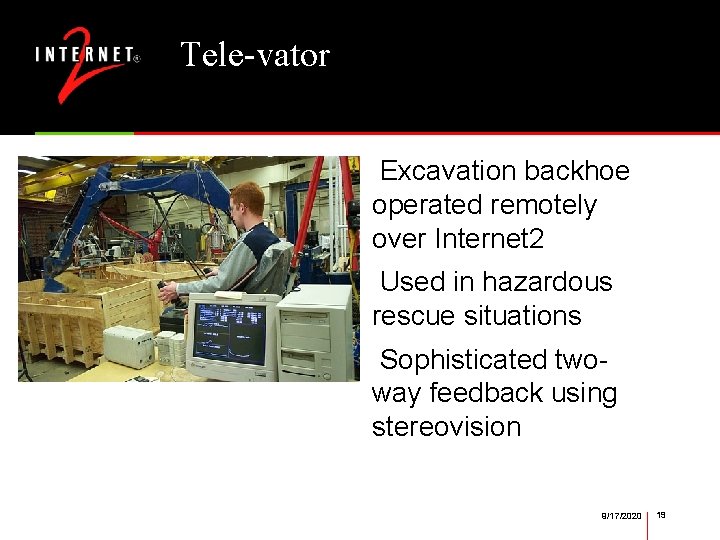

Tele-vator Excavation backhoe operated remotely over Internet 2 Used in hazardous rescue situations Sophisticated twoway feedback using stereovision 9/17/2020 19

Space Physics and Aeronomy Research Collaboratory University of Michigan 16 November 2001

9/17/2020 21

9/17/2020 22

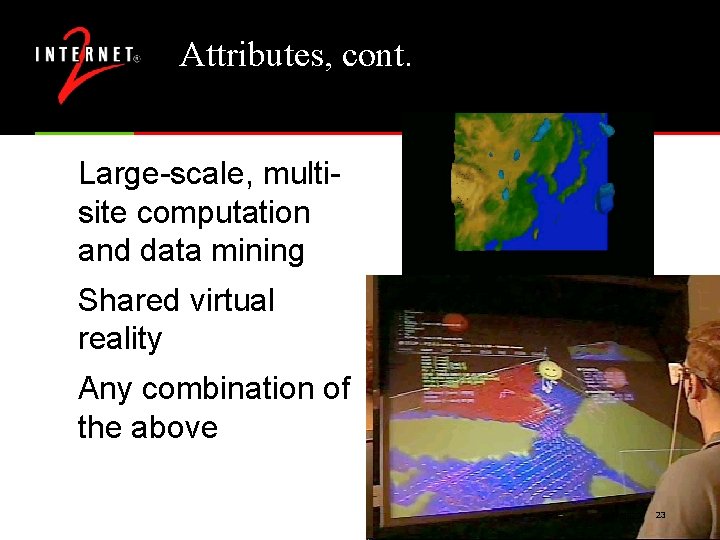

Attributes, cont. Large-scale, multisite computation and data mining Shared virtual reality Any combination of the above 9/17/2020 23

Grid Projects 16 November 2001

What is the Grid? Global resources available to communities of researchers The protocols, services, and applications that enable new forms of collaboration 9/17/2020 25

Grid Resources Instruments Libraries Workstations Data sets People 9/17/2020 26

Examples Network for Earthquake Engineering Simulation • Collaboration environment for earthquake researchers (e. g. , structural engineers, geotechnical and tsunami scientists) Grid Physics Network • Petabyte scale environment for dataintensive applications (Large Hadron Collider, Sloan Digital Sky Survey, Laser Interferometer Gravitational Wave Observatory) 9/17/2020 27

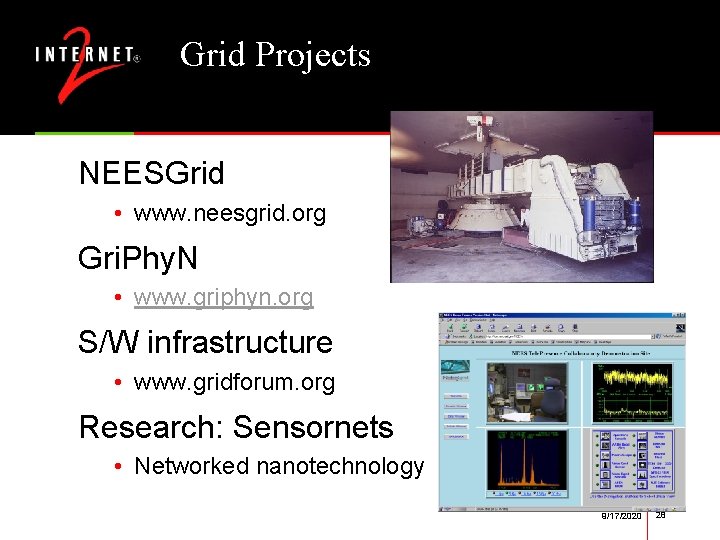

Grid Projects NEESGrid • www. neesgrid. org Gri. Phy. N • www. griphyn. org S/W infrastructure • www. gridforum. org Research: Sensornets • Networked nanotechnology 9/17/2020 28

High Fidelity Digital Video/Audio Teaching Music University of Oklahoma 9/17/2020 29

Video Futures Tele-immersive “Office of the Future” 9/17/2020 Source: University of North Carolina 30

The Internet 2 Commons An effort to encourage and support large -scale, distributed collaboration for the research and education community • Enabling one-to-one, one-to-group, and group-to -group collaboration • Supporting personal communications, meetings, conferences, and teaching and learning • For Internet 2 members and their international counterparts 9/17/2020 31

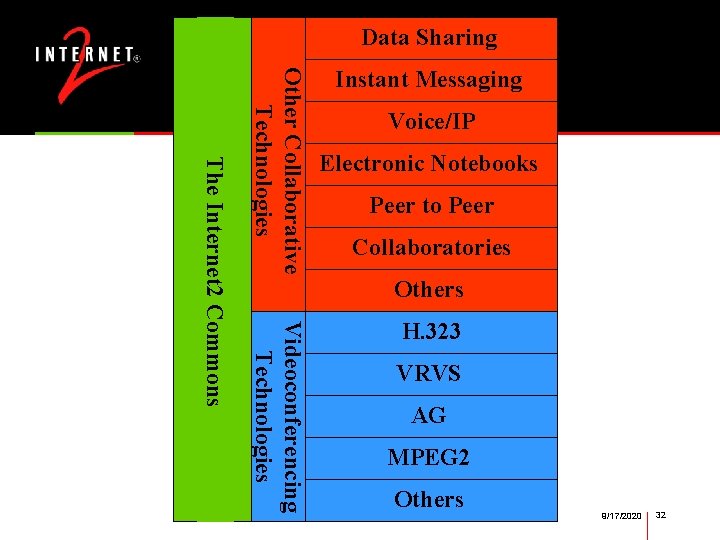

Data Sharing Voice/IP Electronic Notebooks Peer to Peer Collaboratories Others Videoconferencing Technologies The Internet 2 Commons Other Collaborative Technologies Instant Messaging H. 323 VRVS AG MPEG 2 Others 9/17/2020 32

Internet 2 Focus Areas Advanced Applications Middleware Engineering Advanced Network Infrastructure Partnerships 9/17/2020 33

Middleware } Applications Advanced Network Services (Distributed Network Middleware) Authentication, Identification, Authorization, Directories, Security Advanced Physical Network Infrastructure 9/17/2020 34

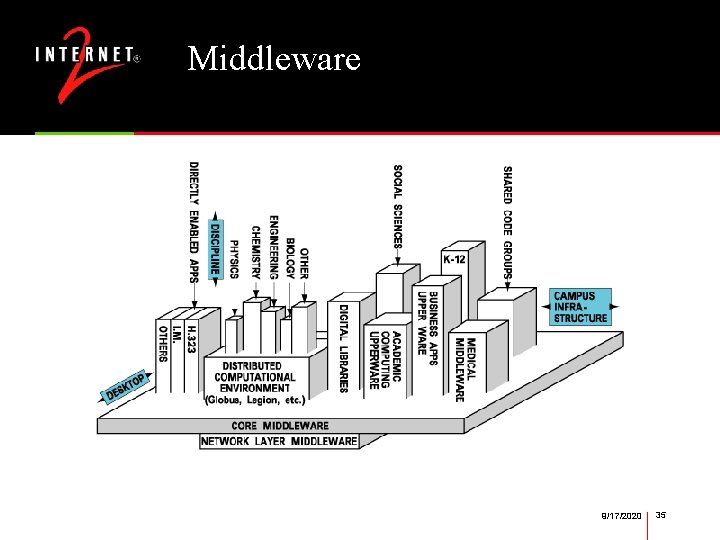

Middleware 9/17/2020 35

Internet 2 Middleware Initiative Focus on core middleware as infrastructure Interoperability • 190 universities will never buy the same software Getting stuff implemented • Best practices Integrate across applications • Discourage ‘islands’ of middleware infrastructure • E. g. core mware just for this grid project Enable community to share resources • Grid, remote instruments, shared classes 9/17/2020 36

I 2 MI core middleware activities Identifiers • Early Adopters - survey/docs about how campuses are assigning and relating identifiers Authentication • Web. ISO (Web Initial Sign-on): share expertise, code Directories • Do. DHE: Dir. of Directories for HE: inter-institutional directory searching, using edu. Person and LDAP Recipe • edu. Person: an LDAP object class that includes widely-used person attributes in higher education • LDAP Recipe: promote common design Authorization Certificates and PKI • Internet 2 PKI Labs 9/17/2020 37

Internet 2 Focus Areas Advanced Applications Middleware Engineering Advanced Network Infrastructure Partnerships 9/17/2020 38

Internet 2 Focus Areas Advanced Applications Middleware Engineering Advanced Network Infrastructure Partnerships 9/17/2020 39

How Internet 2 works Universities commit: • Engineering lead: connect university to rest of Internet 2 community, deploy new technologies • Applications lead: support apps development on campus • Middleware architect: work with I 2 MI to implement middleware infrastructure Working groups: • Of expert/interested individuals within community • Chaired by volunteer (sometimes by staff) • Staff support 9/17/2020 40

How Internet 2 works, cont’d Projects, e. g. Abilene • Executive team and Project team • Qwest, Cicso, Nortel • Indiana University supplies NOC Projects, e. g. Shibboleth • IBM providing coding • Designed by MACE (volunteers from community) • Supported by Staff Internet 2 Staff • Primarily facilitate, coordinate, flywheel • ~50 9/17/2020 41

Internet 2 Focus Areas Advanced Applications Middleware Engineering Advanced Network Infrastructure Partnerships 9/17/2020 42

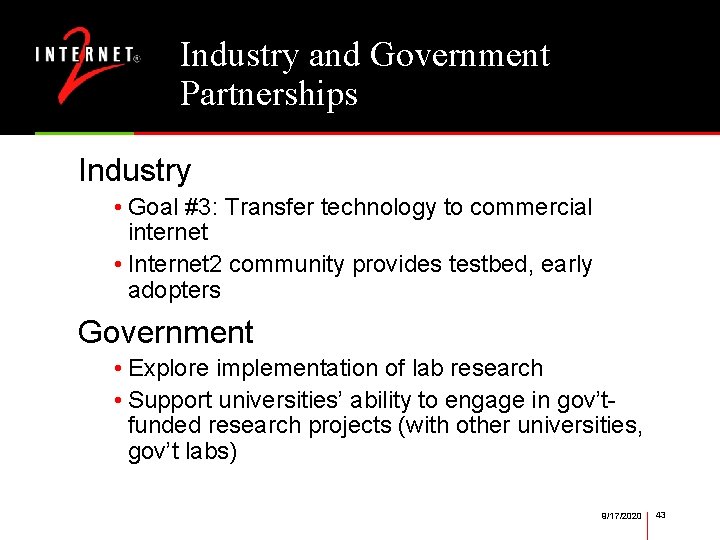

Industry and Government Partnerships Industry • Goal #3: Transfer technology to commercial internet • Internet 2 community provides testbed, early adopters Government • Explore implementation of lab research • Support universities’ ability to engage in gov’tfunded research projects (with other universities, gov’t labs) 9/17/2020 43

Internet 2 International Goals Ensure global interoperability • of the next generation of Internet technologies and applications Enable global collaboration • in research and education providing/promoting the development of an advanced networking environment internationally 9/17/2020 44

International Partners Build effective partnerships in other countries With organizations of similar goals/objectives and similar constituencies Mechanism: Memoranda of Understanding Internet 2 and HEAnet: August, 1999 9/17/2020 45

Mo. U in brief Provide/promote interconnectivity between communities Collaborate on technology development and deployment Facilitate collaboration between members on applications Encourage technology transfer 9/17/2020 46

9/17/2020 47

International Mo. U Partners AAIREP (Australia) APAN (Asia-Pacific) APAN-KR (Korea) ARNES (Slovenia) BELNET (Belgium) CANARIE (Canada) CARNET (Croatia) CESnet (Czech Republic) CERNET, CSTNET, NSFCNET (China) CUDI (Mexico) DANTE (Europe) DFN-Verein (Germany) GIP RENATER (France) GRNET (Greece) HEAnet (Ireland) HUNGARNET (Hungary) INFN-GARR (Italy) Israel-IUCC (Israel) JAIRC (Japan) JUCC (Hong Kong) NORDUnet (Nordic countries) POL-34 (Poland) RCCN (Portugal) Red. IRIS (Spain) RESTENA (Luxembourg) RETINA (Argentina) REUNA (Chile) RNP 2 (Brazil) Sing. AREN (Singapore) Stichting SURF (Netherlands) SWITCH (Switzerland) TAnet 2 (Taiwan) TERENA (Europe) 9/17/2020 JISC/UKERNA (UK) 48

More Internet 2 Information On the Web • www. internet 2. edu Email • info@internet 2. edu 9/17/2020 49
