www Gas Badge com Its a Gas Badge
www. Gas. Badge. com
It’s a Gas. Badge… www. Gas. Badge. com

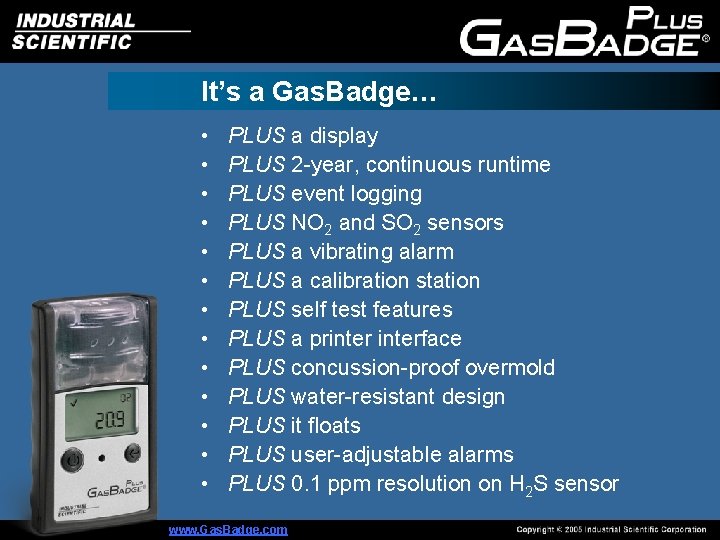

It’s a Gas. Badge… • • • • PLUS a display PLUS 2 -year, continuous runtime PLUS event logging PLUS NO 2 and SO 2 sensors PLUS a vibrating alarm PLUS a calibration station PLUS self test features PLUS a printerface PLUS concussion-proof overmold PLUS water-resistant design PLUS it floats PLUS user-adjustable alarms PLUS 0. 1 ppm resolution on H 2 S sensor www. Gas. Badge. com

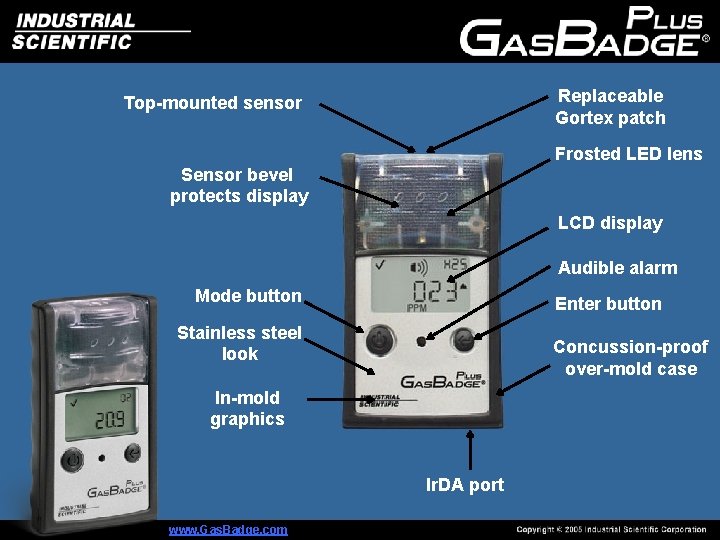

Replaceable Gortex patch Top-mounted sensor Frosted LED lens Sensor bevel protects display LCD display Audible alarm Mode button Enter button Stainless steel look Concussion-proof over-mold case In-mold graphics Ir. DA port www. Gas. Badge. com

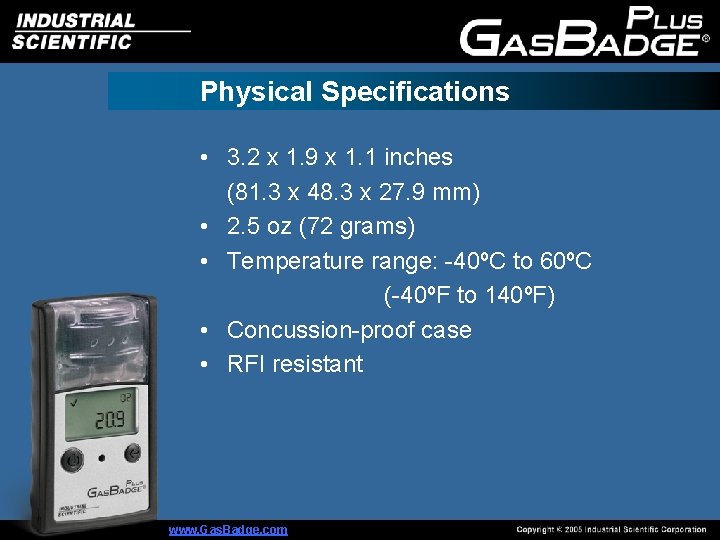

Physical Specifications • 3. 2 x 1. 9 x 1. 1 inches (81. 3 x 48. 3 x 27. 9 mm) • 2. 5 oz (72 grams) • Temperature range: -40ºC to 60ºC (-40ºF to 140ºF) • Concussion-proof case • RFI resistant www. Gas. Badge. com
Monitoring Choices • CO (0 – 1500 ppm) • H 2 S (0 – 500 ppm) – 0. 1 ppm resolution • O 2 (0 – 30% by vol) • NO 2 (0 – 150 ppm) • SO 2 (0 – 150 ppm) www. Gas. Badge. com

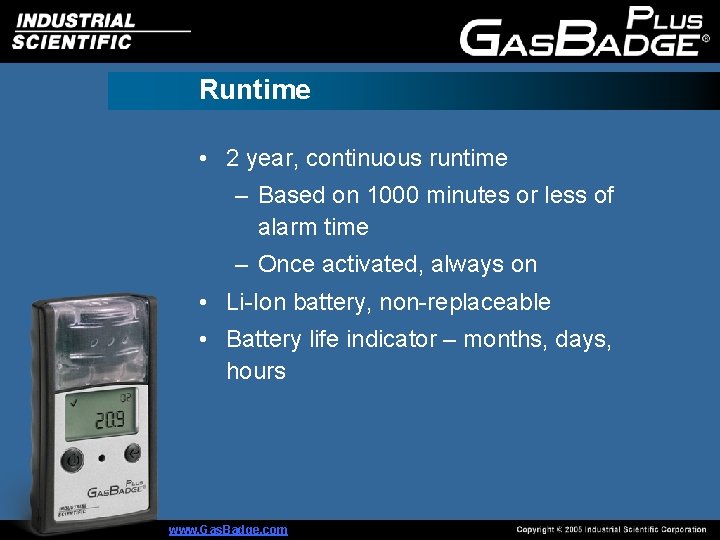

Runtime • 2 year, continuous runtime – Based on 1000 minutes or less of alarm time – Once activated, always on • Li-Ion battery, non-replaceable • Battery life indicator – months, days, hours www. Gas. Badge. com
Display • Custom LCD • Icons and numeric digits • Backlight www. Gas. Badge. com
Display • User-selectable modes – Direct reading mode – “Go / No-Go” mode www. Gas. Badge. com

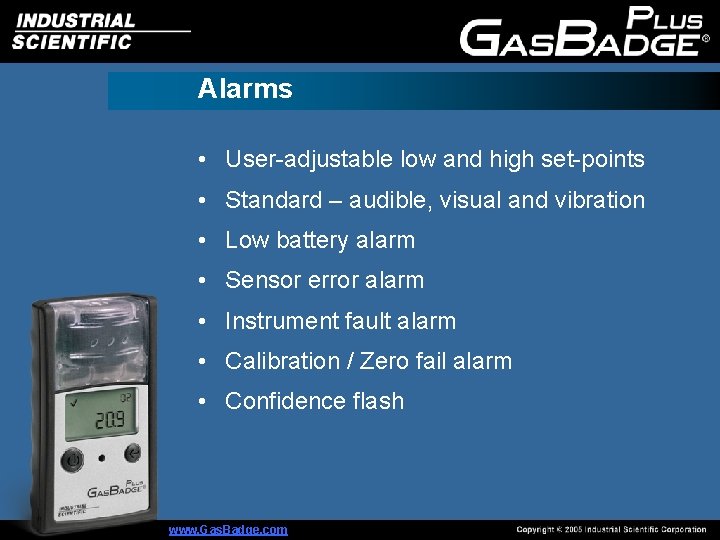

Alarms • User-adjustable low and high set-points • Standard – audible, visual and vibration • Low battery alarm • Sensor error alarm • Instrument fault alarm • Calibration / Zero fail alarm • Confidence flash www. Gas. Badge. com

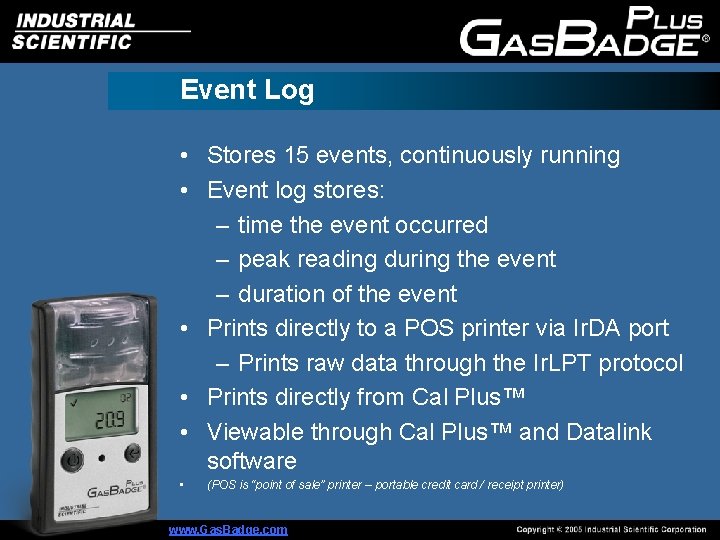

Event Log • Stores 15 events, continuously running • Event log stores: – time the event occurred – peak reading during the event – duration of the event • Prints directly to a POS printer via Ir. DA port – Prints raw data through the Ir. LPT protocol • Prints directly from Cal Plus™ • Viewable through Cal Plus™ and Datalink software • (POS is “point of sale” printer – portable credit card / receipt printer) www. Gas. Badge. com
Self Test • Automatic self-test – Runs continuously every 2 minutes – Test for sensor presence – Tests for operation of electronics • Manual self-test – Push-button activated – Tests display and audible/ visual/ vibrating alarms www. Gas. Badge. com

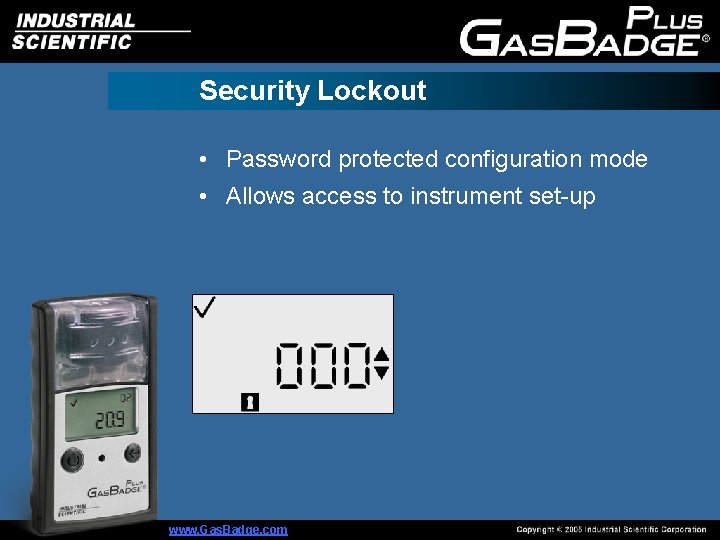

Security Lockout • Password protected configuration mode • Allows access to instrument set-up www. Gas. Badge. com

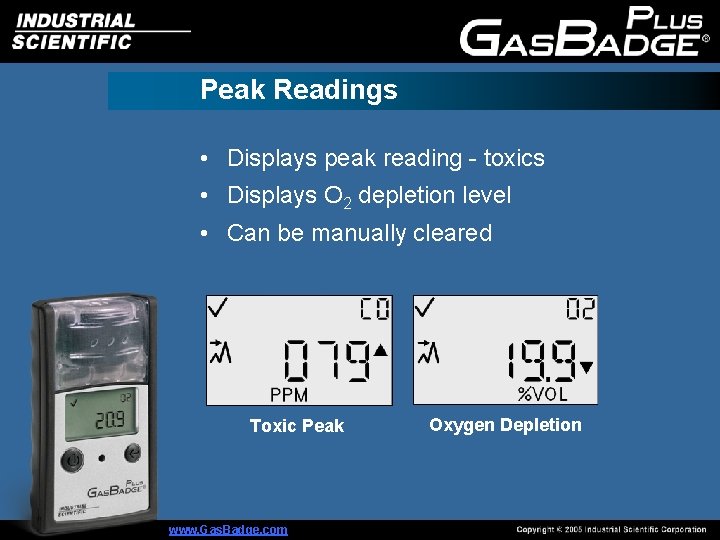

Peak Readings • Displays peak reading - toxics • Displays O 2 depletion level • Can be manually cleared Toxic Peak www. Gas. Badge. com Oxygen Depletion
Calibration Indicator • Shows days since last calibration www. Gas. Badge. com

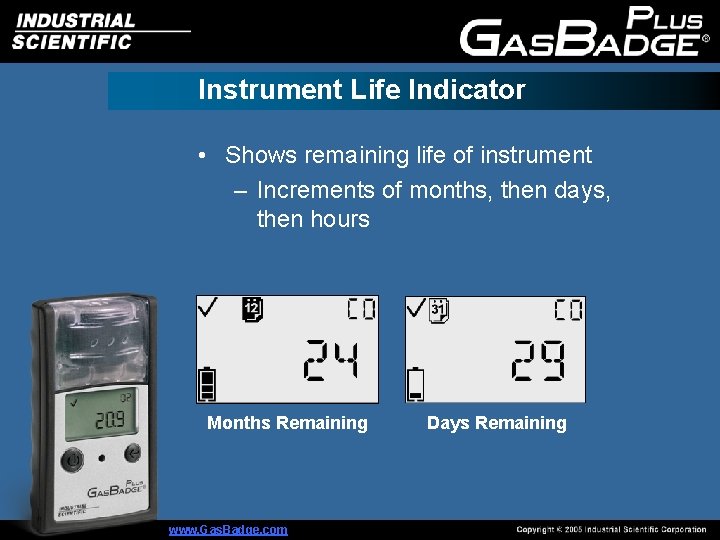

Instrument Life Indicator • Shows remaining life of instrument – Increments of months, then days, then hours Months Remaining www. Gas. Badge. com Days Remaining

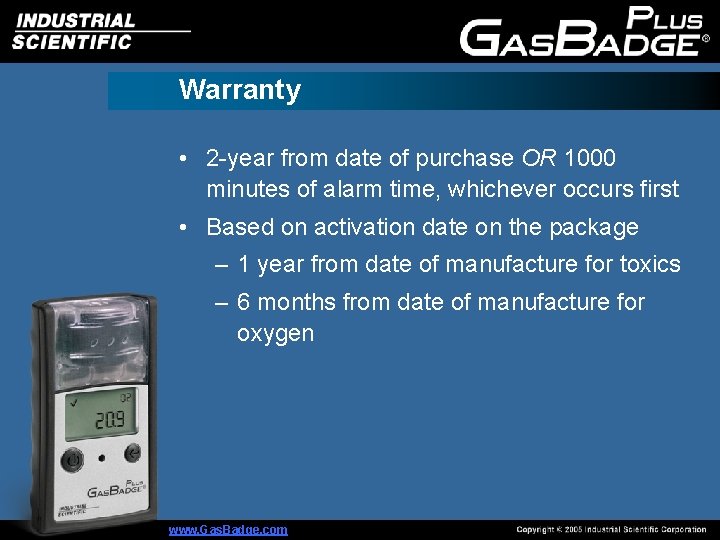

Warranty • 2 -year from date of purchase OR 1000 minutes of alarm time, whichever occurs first • Based on activation date on the package – 1 year from date of manufacture for toxics – 6 months from date of manufacture for oxygen www. Gas. Badge. com

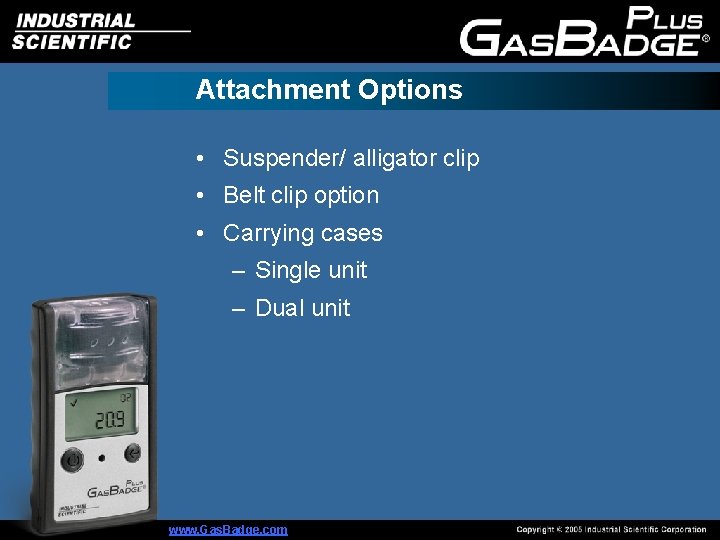

Attachment Options • Suspender/ alligator clip • Belt clip option • Carrying cases – Single unit – Dual unit www. Gas. Badge. com
Datalink • • Downloads event-log Configures instrument Connects to PC via USB Ir. DA interface to instrument www. Gas. Badge. com
Cal Plus™ Calibration Station • • • Automated calibration/ bump Ir. DA interface to instrument Prints certificates automatically Optional internal printer Connects to PC via USB – View, saves and prints event log, cal/ bump reports www. Gas. Badge. com
Unique Features of the Gas. Badge Plus • • • 0. 1 ppm resolution on H 2 S User-selectable display modes LCD backlight Confidence indicator Calibration indicator Dual carrying case Calibration/ bump station Rugged/ durable design Water resistant design – (IP 67 pending) It floats! Dual test modes – Automatic self-test www. Gas. Badge. com

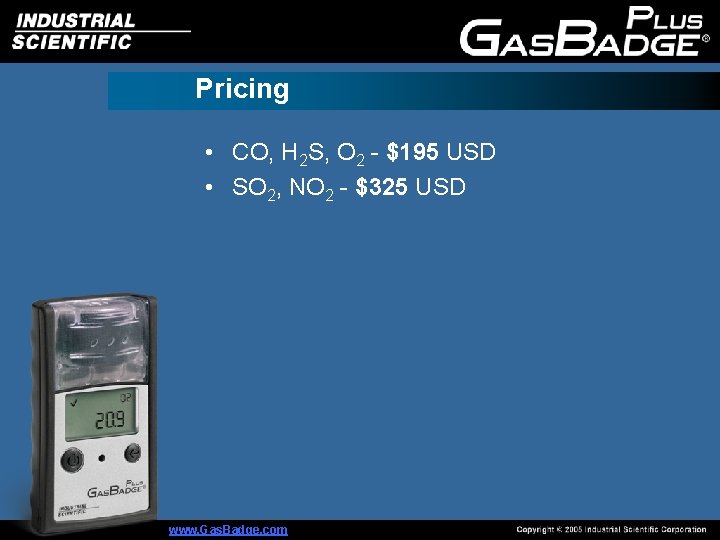

Pricing • CO, H 2 S, O 2 - $195 USD • SO 2, NO 2 - $325 USD www. Gas. Badge. com
Approval Dates • c. UL : Currently in review • ATEX: Mid/end of September • Australian: November www. Gas. Badge. com

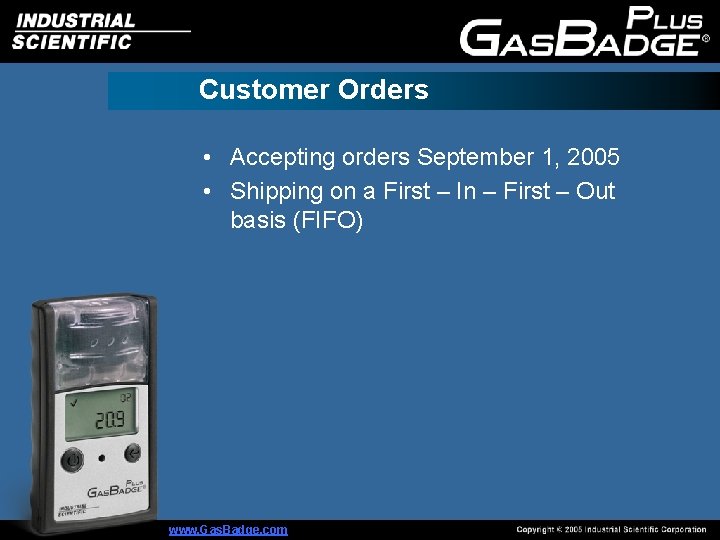

Customer Orders • Accepting orders September 1, 2005 • Shipping on a First – In – First – Out basis (FIFO) www. Gas. Badge. com
Manufacturing Capacity • Building and maintaining stock (currently) • Created new 1 – piece work flow • At full capacity – 1 instrument every 3 minutes • Total Manufacturing time = 12 minutes • Stock maintained as FIFO • Current plan: 3500 units per month • Max capacity: 150 units per shift www. Gas. Badge. com

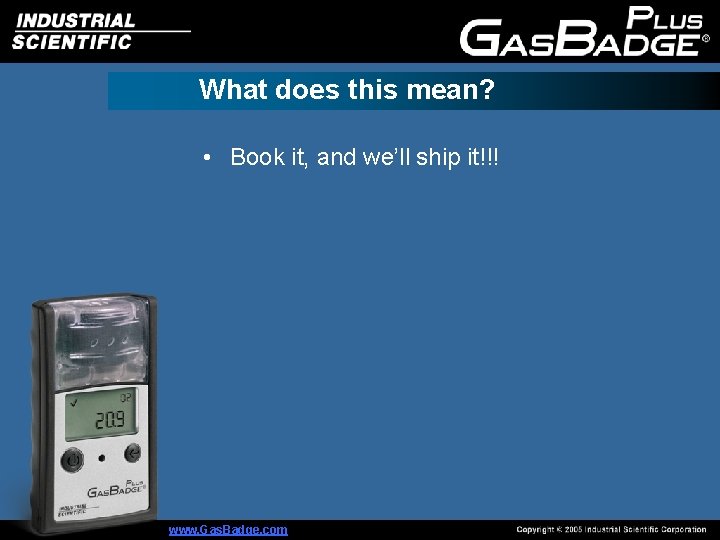

What does this mean? • Book it, and we’ll ship it!!! www. Gas. Badge. com

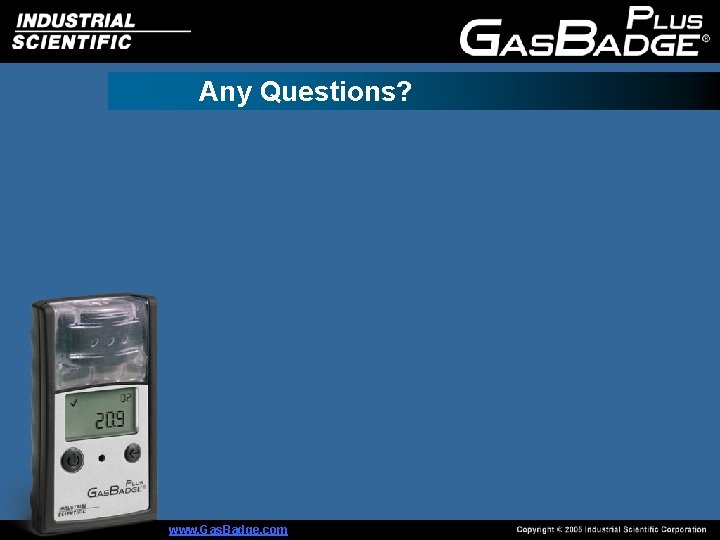

Any Questions? www. Gas. Badge. com
