www. earthobservations. org www. gfoi. org MRV & Reporting Status & Related Space Data Needs México Author/Presenter Michael Schmidt, José María Michel, Alberto Sandoval SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Introduction • “The Measuring, Reporting and Verification - Activity Data (MRV-AD) Monitoring System within the Mexican REDD+ program” = MAD-Mex SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Project objetives 1. The development and reinforcement of a transparent and accurate MRV system to estimate greenhouse gas (GHG) forest emissions. 2. The promotion of Mexico as a centre of excellence for South cooperation to exchange experiences and capacities on MRV systems and REDD+ implementation. 3. Characterization of local financial incentives: research on REDD+ funding through accumulated experiences and case studies in Mexico SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Matorrales SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Matorrales SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Selvas secas SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Selvas húmedas SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Bosques de pinos SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Bosques de pino-encino SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Manglares SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Dulceacuícolas SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Pastizales SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org Legal aspects for the MRV project EMISION FACTOR www. gfoi. org GHGEI ACTIVITY DATA Optical Data Processing System MAD-Mex AFOLU NFI data Models Carbon stotrage and uptake SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org Status of National MRV Implementation www. gfoi. org National Forest Inventory (INFy. S) Impl. Data base to model Carbon storage based on INFy. S Impl. in progr. Test Sites with permanent plots to validate/calibrate in progress AD processing system, stable and running, DONE Set-up of Satellite Images QA/QC system with CONAFOR and INEGI, DONE Implementation in Google Cloud, DONE Processing of 5 L 5/l 7 Mosaics (‘ 94, ‘ 95, 97, 00 ’ 03) over México, DONE Processing of Rapid. Eye Coverage 2011 Sept. 2013 Processing of Rapid. Eye Coverage 2012 Nov. 2013 Adding Functionalities to Earth. Engine / Map. Engine IN PROGRESS SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org AVANCES 1993 1995 2000 2003 Historic deforestation rate 2008 Reference scenario NFI Change Map: 1: 20000 2005 2010 2015 2020 target: SDCG-4, National Caltech, CA, USA emission reduction 4 th-6 th September 2013

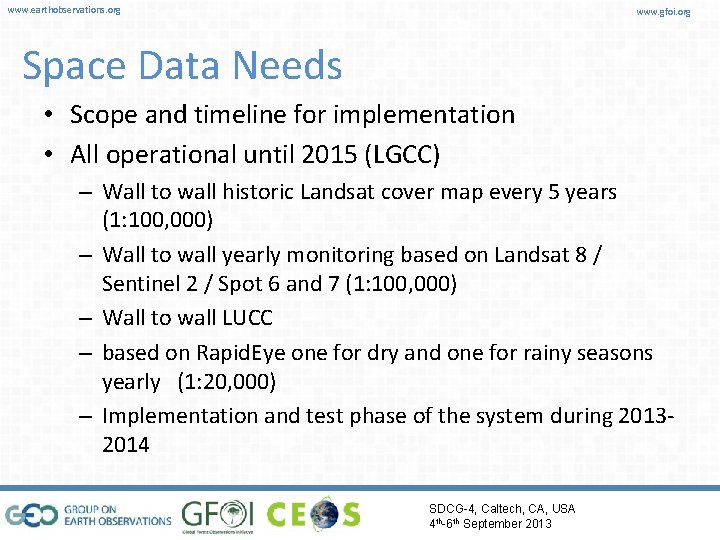

www. earthobservations. org www. gfoi. org Space Data Needs • Scope and timeline for implementation • All operational until 2015 (LGCC) – Wall to wall historic Landsat cover map every 5 years (1: 100, 000) – Wall to wall yearly monitoring based on Landsat 8 / Sentinel 2 / Spot 6 and 7 (1: 100, 000) – Wall to wall LUCC – based on Rapid. Eye one for dry and one for rainy seasons yearly (1: 20, 000) – Implementation and test phase of the system during 20132014 SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Space Data Needs • The system will work with the following set of imagery – Landsat 8 – Spot 6 and 7 – Sentinel 2 – Rapid Eye since 2011 – VHR for validation, support to the NFI and PES payments SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Space Data Needs • Current challenges & obstacles where GFOI assistance may be most valuable – User friendly dissemination and visualization system for national and international showcasing – Stable pre-processing systems for optical data, Landsat Ledaps works, other data lack this – Standardized change detection methodology, Mexico has a proposal. Consensus – tune up. – National discussion about the data processing infrastructure to avoid duplicities – Support the development of the standardization for the SDI SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
www. earthobservations. org www. gfoi. org Space Data Needs • Access to a high resolution / hi-quality DEM for geo-correction for instance SRTM 30 m data or Tandem-X data • For countries without receiving stations, a global yearly wall to wall acquisition strategy SDCG-4, Caltech, CA, USA 4 th-6 th September 2013
