www. axgate. com 빈틈없는 고성능 네트워크 보안 UTM / FW / VPN 엑스게이트 제품 소개 Copyright ⓒ 2015 AXGATE Co. , Ltd. All rights reserved.
Contents www. axgate. com 01 AXGATE Series 제안 배경 02 AXGATE Series 특장점 / 주요 기능 03 일반 공통 기능 정의 04 제품 라인업 & 상세 성능 05 인증 및 특허 현황 06 Reference Copyright ⓒ 2015 AXGATE Co. , Ltd. All rights reserved.

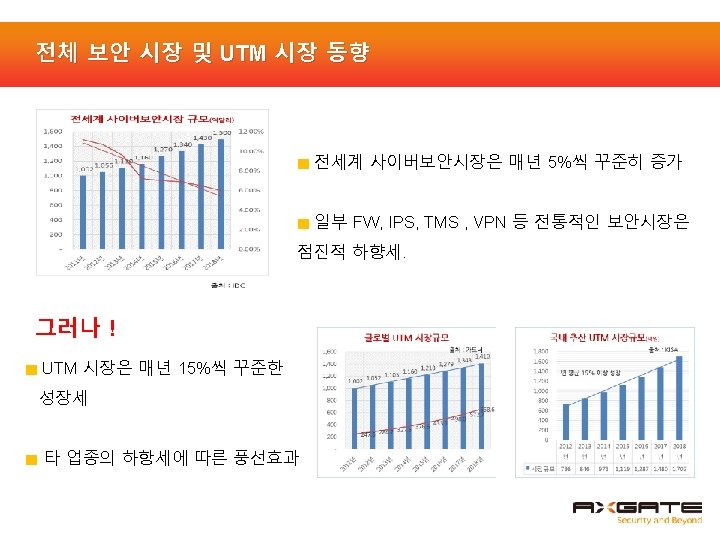

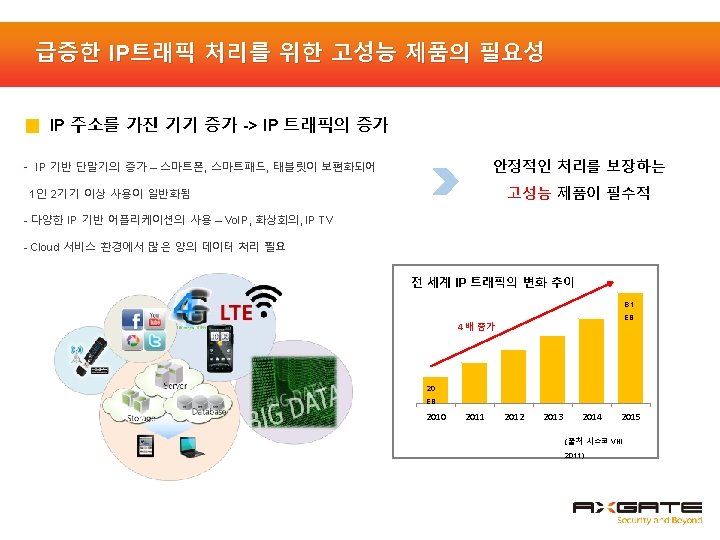

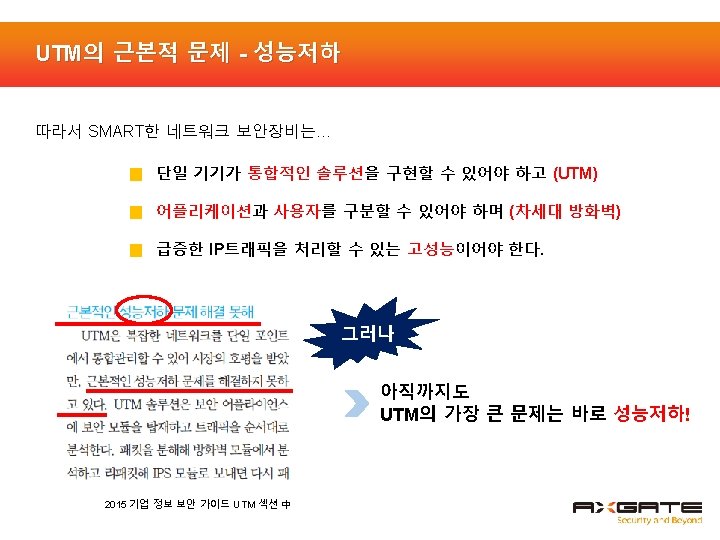

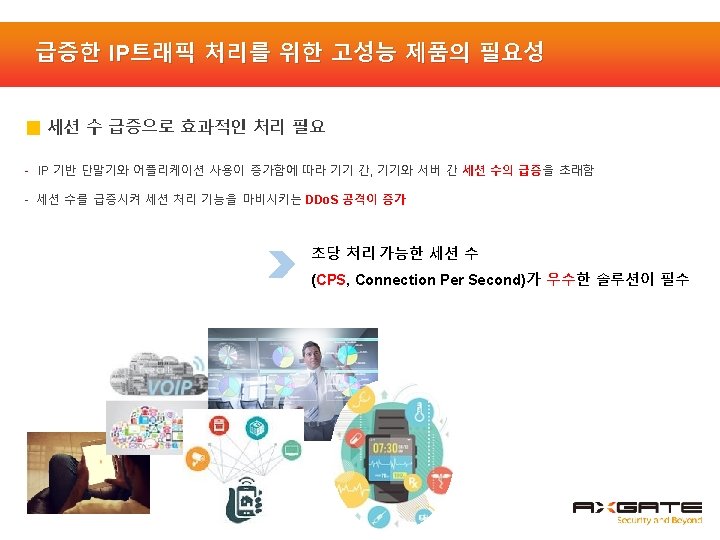

AXGATE Series 제안 배경 www. axgate. com Copyright ⓒ 2015 AXGATE Co. , Ltd. All rights reserved.
AXGATE Series 특장점 / 주요 기능 www. axgate. com Copyright ⓒ 2015 AXGATE Co. , Ltd. All rights reserved.

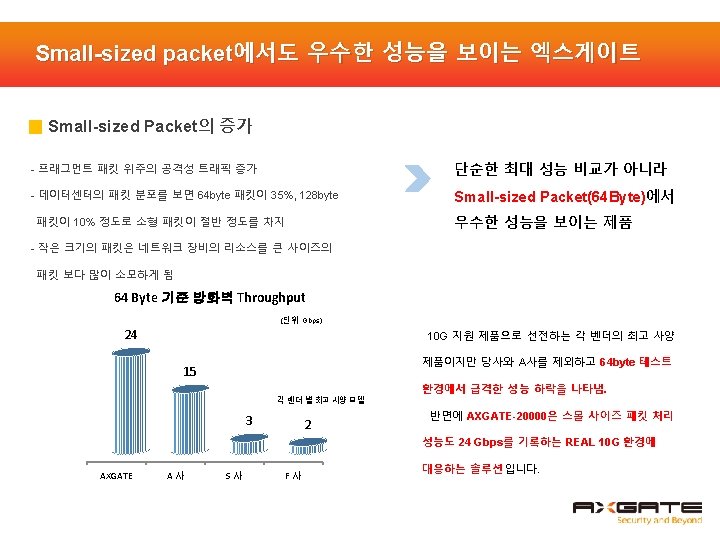

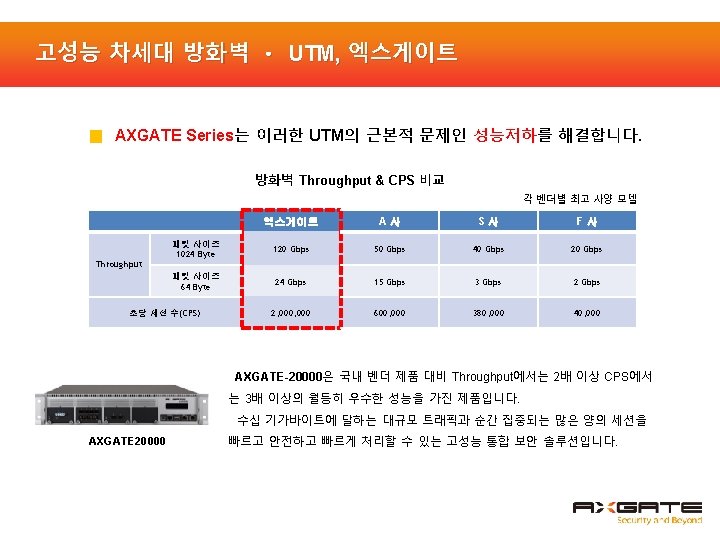

AXGATE Series 특장점

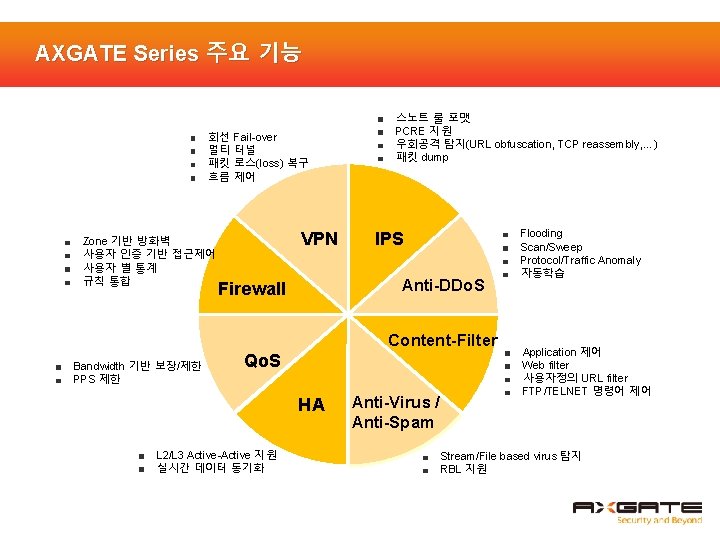

AXGATE Series 주요 기능 회선 멀티 패킷 흐름 Zone 기반 방화벽 사용자 인증 기반 접근제어 사용자 별 통계 규칙 통합 Fail-over 터널 로스(loss) 복구 제어 VPN 스노트 룰 포맷 PCRE 지원 우회공격 탐지(URL obfuscation, TCP reassembly, …) 패킷 dump IPS Anti-DDo. S Firewall Content-Filter Bandwidth 기반 보장/제한 PPS 제한 Qo. S HA L 2/L 3 Active-Active 지원 실시간 데이터 동기화 Anti-Virus / Anti-Spam Flooding Scan/Sweep Protocol/Traffic Anomaly 자동학습 Application 제어 Web filter 사용자정의 URL filter FTP/TELNET 명령어 제어 Stream/File based virus 탐지 RBL 지원

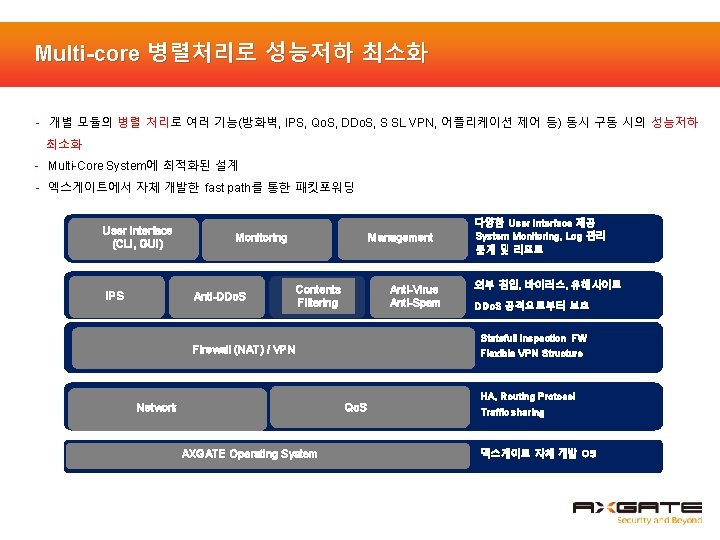

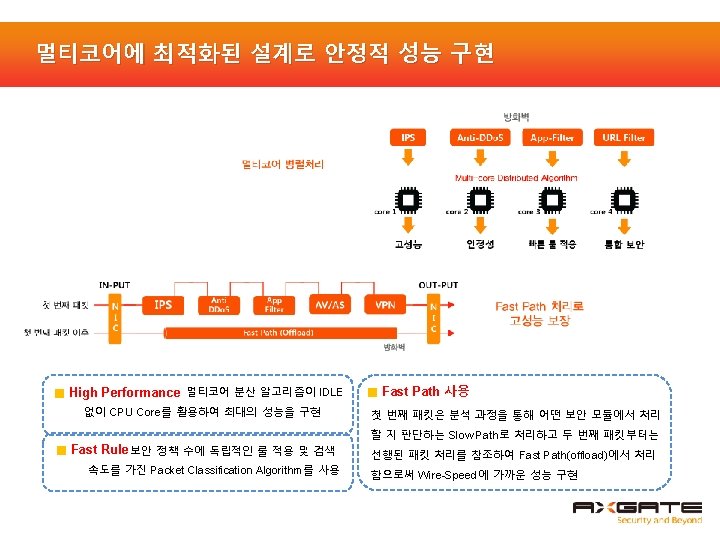

Multi-core 병렬처리로 성능저하 최소화 - 개별 모듈의 병렬 처리로 여러 기능(방화벽, IPS, Qo. S, DDo. S, S SL VPN, 어플리케이션 제어 등) 동시 구동 시의 성능저하 최소화 - Multi-Core System에 최적화된 설계 - 엑스게이트에서 자체 개발한 fast path를 통한 패킷포워딩 User Interface (CLI, GUI) IPS Monitoring Anti-DDo. S Management Contents Filtering Anti-Virus Anti-Spam Qo. S AXGATE Operating System 외부 침입, 바이러스, 유해사이트 DDo. S 공격으로부터 보호 Statefull Inspection FW Flexible VPN Structure Firewall (NAT) / VPN Network 다양한 User Interface 제공 System Monitoring, Log 관리 통계 및 리포트 HA, Routing Protocol Traffic sharing 엑스게이트 자체 개발 OS

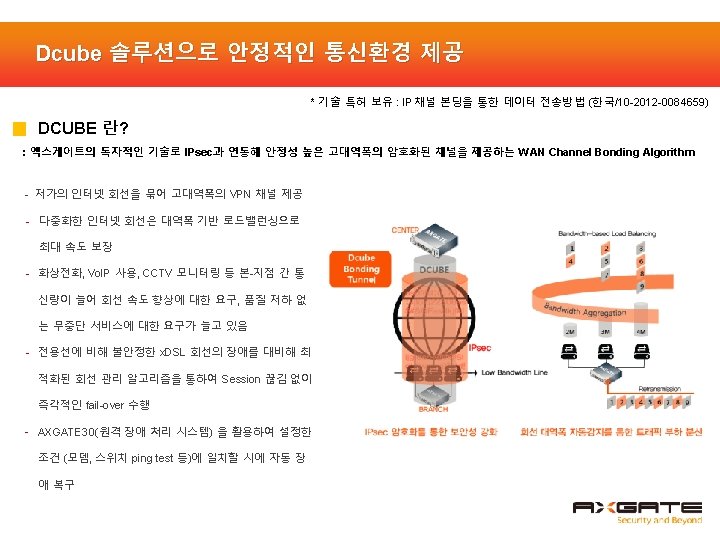

Dcube 솔루션으로 안정적인 통신환경 제공 * 기술 특허 보유 : IP채널 본딩을 통한 데이터 전송방법 (한국/10 -2012 -0084659) Out of Order AXGATE VPN 타 장비의 경우 Bonding Concentrator Retransmission Request From #4 To #9 Bonding Concentrator Retransmission Request #4 Jitter by Out of Order Loss Reduced Jitter by Loss control of DCube Loss 회선 속도 총 6 M 회선 속도 총 9 M (2 M+2 M+2 M) 2 M 3 M 2 M 4 M 4 M Retransmission Bonding CPE 3 M Bonding CPE (2 M+3 M+4 M)

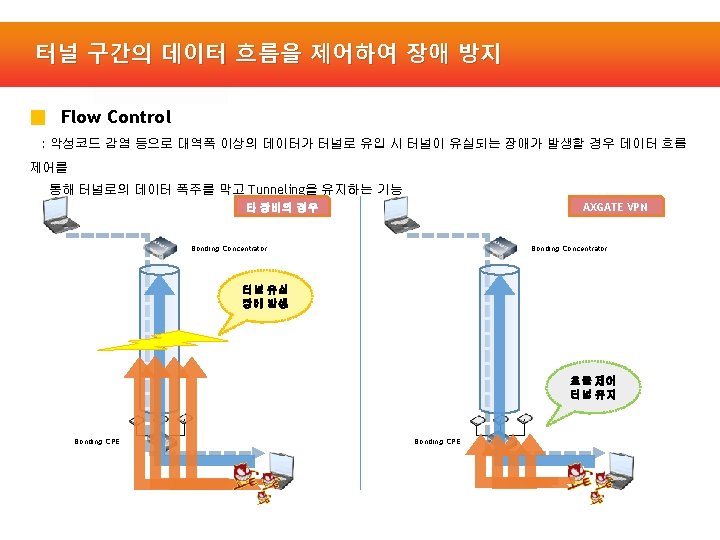

다양한 라우팅 프로토콜 지원 ■ Unicast와 Multicast 비교 구간 Int. #1 IP-TV Server OUT 100 개소 X 100명 X 1 Mbps= 10 Gbps 1 Mbps IN 100 개소 X 100명 X 1 Mbps= 10 Gbps 1 Mbps OUT 100 개소 X 100명 X 1 Mbps= 10 Gbps 100 개소 X 1 Mbps= 100 Mbps 100명 X 1 Mbps= 10 Gbps 1 Mbps 100 명 X 1 Mbps= 100 Mbps 100 개소 X 1 Mbps 100 Mbps #2 Network Concentrator IN #3 CPE OUT Unicast 거점 수: 100 개소 / 거점 별 사용자 수: 100명 / 트래픽: HD급 영상 – 1 Mbps Multicast

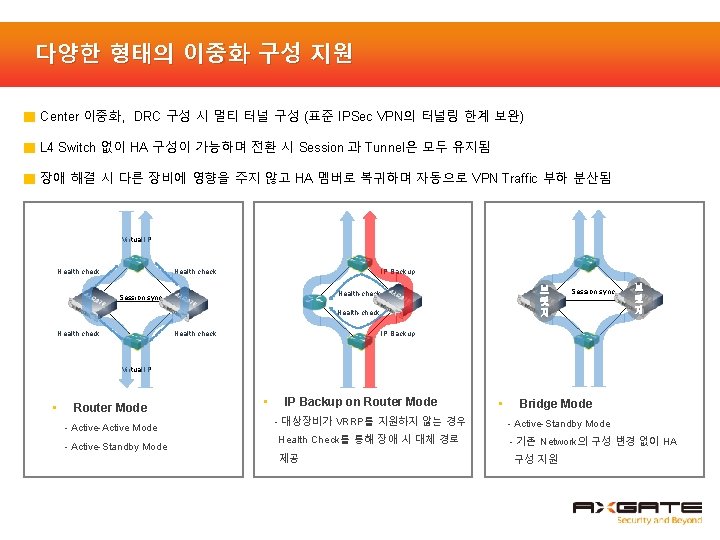

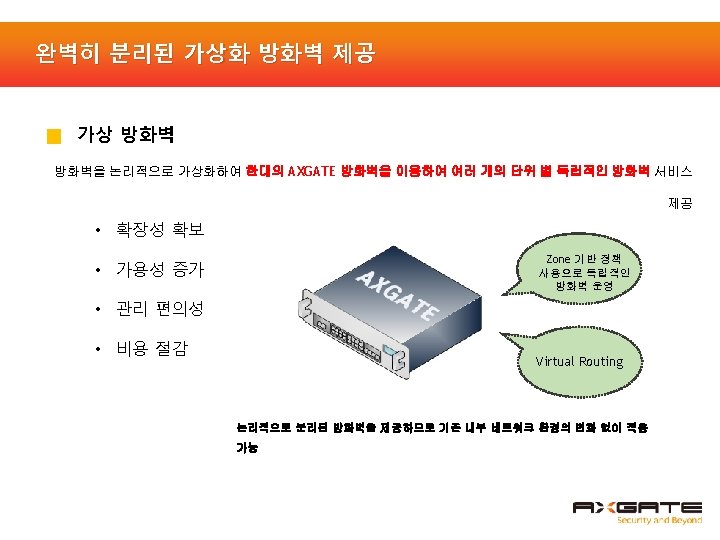

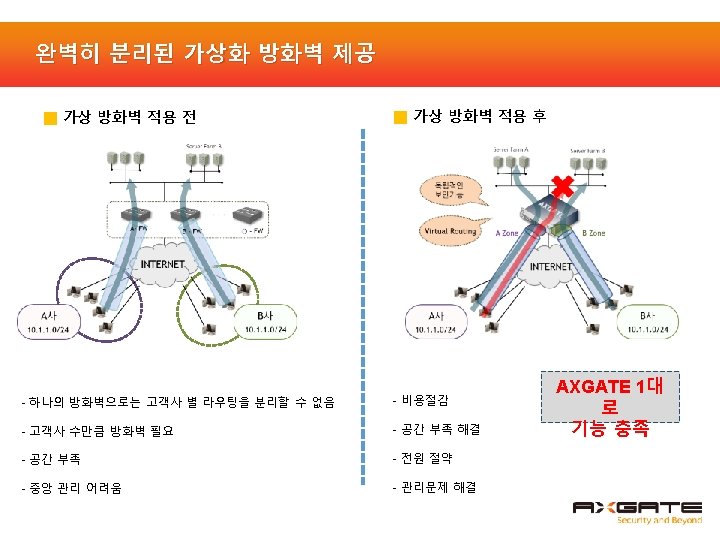

다양한 형태의 이중화 구성 지원 ■ Center 이중화, DRC 구성 시 멀티 터널 구성 (표준 IPSec VPN의 터널링 한계 보완) ■ L 4 Switch 없이 HA 구성이 가능하며 전환 시 Session 과 Tunnel은 모두 유지됨 ■ 장애 해결 시 다른 장비에 영향을 주지 않고 HA 멤버로 복귀하며 자동으로 VPN Traffic 부하 분산됨 Virtual IP Health check IP Backup 브 릿 지 Health-check Session sync Health-check Health check Session sync 브 릿 지 IP Backup Virtual IP • Router Mode - Active-Active Mode - Active-Standby Mode • IP Backup on Router Mode - 대상장비가 VRRP를 지원하지 않는 경우 Health Check를 통해 장애 시 대체 경로 제공 • Bridge Mode - Active-Standby Mode - 기존 Network의 구성 변경 없이 HA 구성 지원

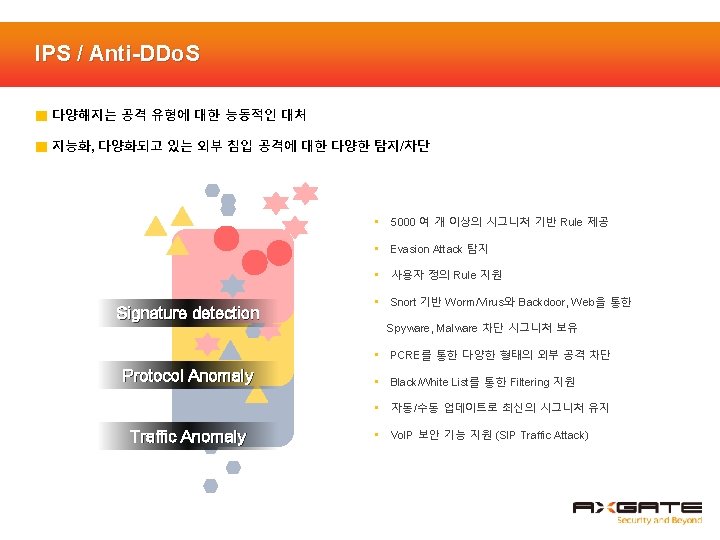

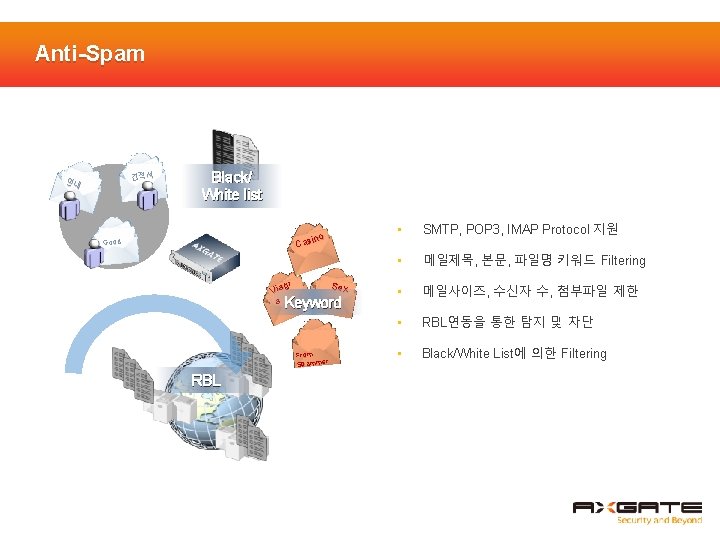

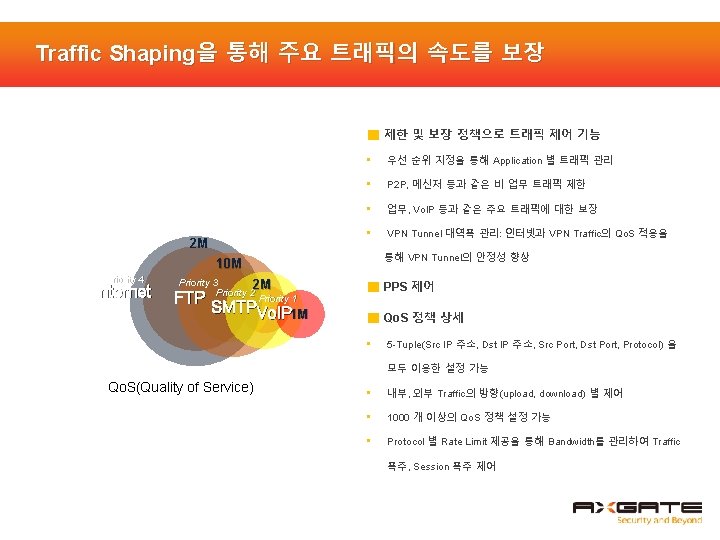

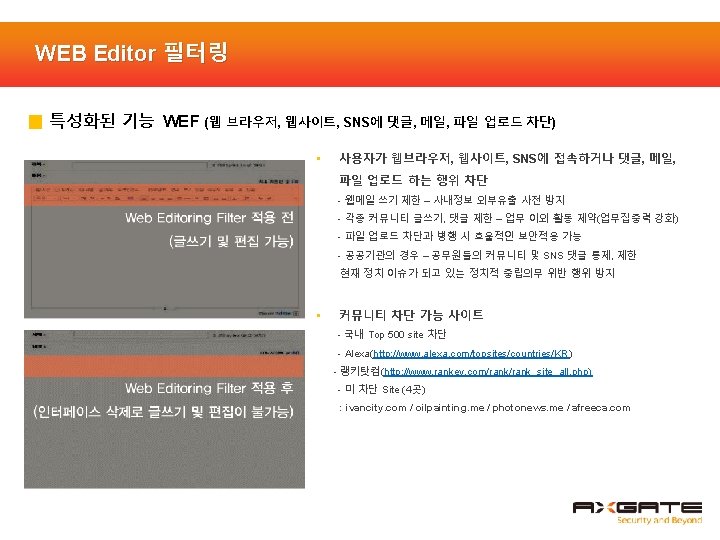

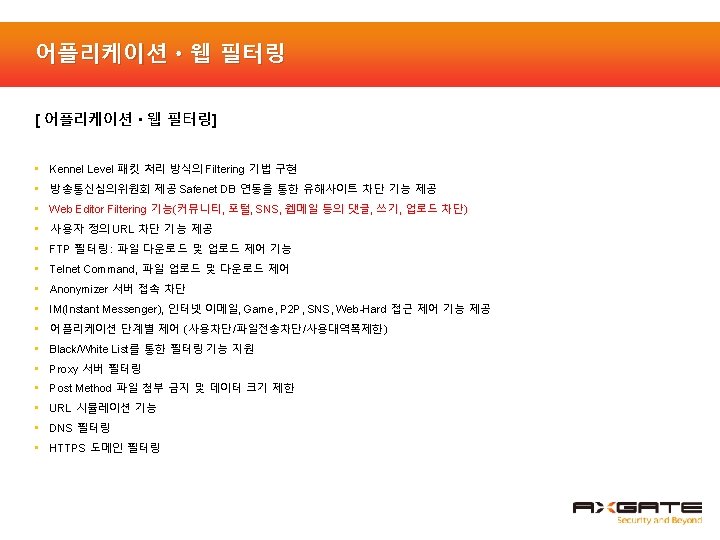

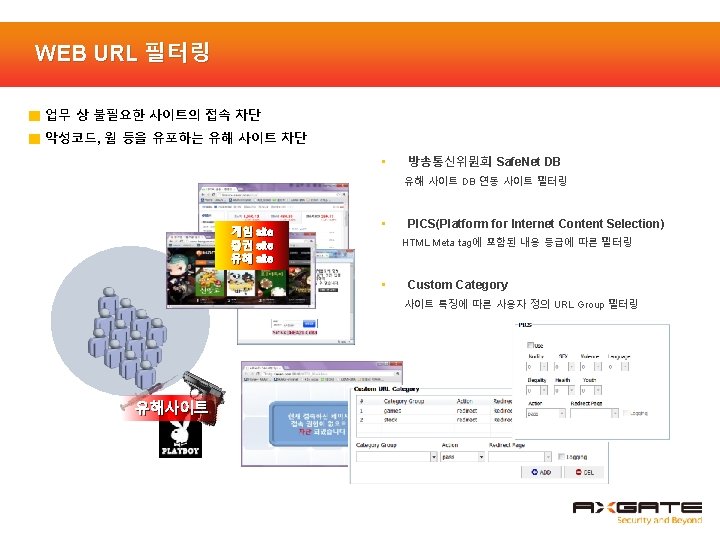

Anti-Spam 견적서 안내 Black/ White list ino Cas Good gr Sex Via a Keyword From Spammer RBL • SMTP, POP 3, IMAP Protocol 지원 • 메일제목, 본문, 파일명 키워드 Filtering • 메일사이즈, 수신자 수, 첨부파일 제한 • RBL연동을 통한 탐지 및 차단 • Black/White List에 의한 Filtering

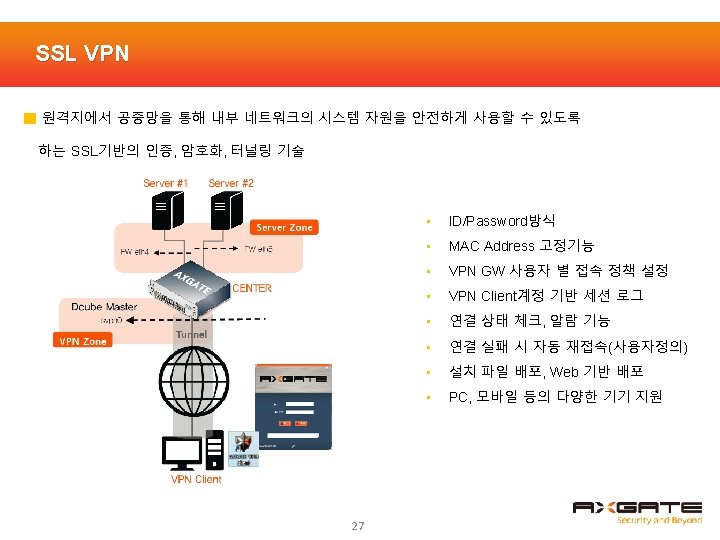

일반 공통 기능 정의 www. axgate. com Copyright ⓒ 2015 AXGATE Co. , Ltd. All rights reserved.

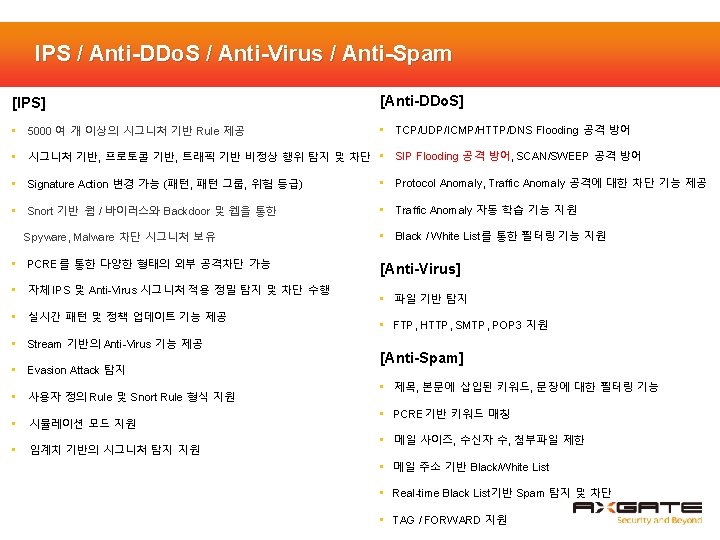

VPN [VPN 기능] • 표준 IPsec Protocol 지원 및 IKE v 1, v 2를 모두 지원 • IKE Diffie-Hellman group 1, 2, 5, 14, 15, 16, 17, 18 • 3 DES, AES(128, 192, 256), SEED, ARIA(128, 192, 256)등 암호화 알고리즘 지원 • SHA 1, SHA-256, SHA-384, HAS-160, MD 5 등의 무결성 알고리즘 지원 • NAT-Traversal 및 Dead Peer Detection 기능 지원 • Multi-tunnel 지원을 통해 L 4 switch 없이 Active-Active 구성 가능 • Bandwidth-Based Load-balancing • WAN Channel Bonding Algorithm 지원 (다중 회선 사용시 회선 Bonding 기능 지원) : Dcube Bondingg (특허보유) • 전송 중 발생하는 Loss 트래픽 감시 및 해당 패킷 수신 후 재전송 기능 지원 • 터널링 패킷 Flow Control • L 2 Bridge VPN기능 • 클라이언트 프로그램을 통한 SSL VPN 기능 지원 (Gateway to Client VPN) • VPN 클라이언트 계정 기반 세션 로그 • 모바일 환경에서의 VPN 지원 (Android, i. OS) • 임베디드 단말에 VPN 지원

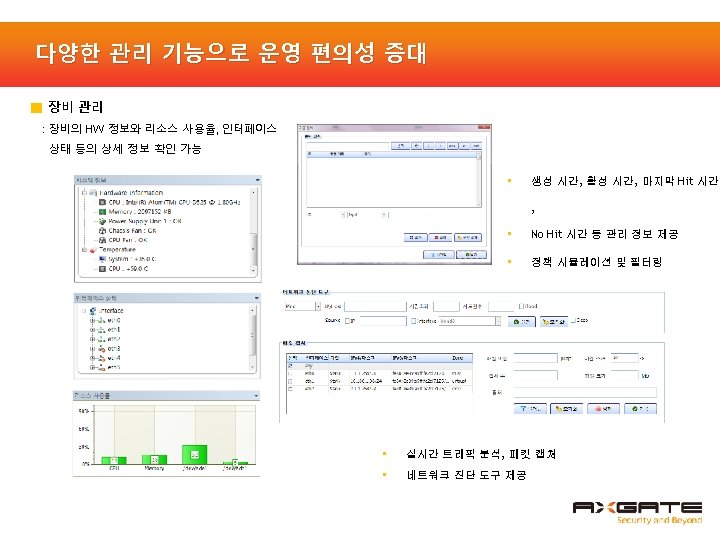

기타 [ 네트워크] [ HA] • Transperent, Router Mode • Active-Active, Active-Standby • Static, RIP. OSPF Routing • 세션 끊김 없는 안정적인 Failover • Policy-based Routing / User-based Routing • 세션 동기화 / 정책 동기화 (자동, 수동) • Multicast Routing (PIM-SM, PIM-DM, IGMP) 지원 • Virtual MAC 지원 • VRRP, IP Backup • 최대 32대 구성 • 802. 1 q VLAN • HA간 시간 동기화 제공 • 802. 3 ad Ling Aggregation • Virtual Routing 지원 [ 관리] • IPIP, GRE Tunnel • Dashboard형식의 모니터링 • DHCP Server / Client / Relay • 정책 Import / Export기능 [ IPv 6] • 자동 / 수동 시그니처 업데이트 • IPv 6 Firewall / IPS / Anti-DDo. S / NAT / IPsec • 실시간 세션 검색 • IPv 6 Routing • CPS. BPS, PPS 정보 제공 • IPv 4 / IPv 6 Transition (Dual Stack, NAT-PT, Tunneling, 6 to 4, ISATAP) • 백업 로그 viewer • IPv 6 DHCP • 패킷 캡쳐 기능 • IPv 6 RA (Router Advertisement) • 실시간 트래픽 분석 기능 [ Qo. S] • 통계 리포트 제공 • Rule 기반 대역폭 보장 / 제한 정책 • PPS 제어 • 우선 순위 지정 • 각종 로그 검색 기능 • 알람 기능 제공
제품 라인 업 & 상세 성능 www. axgate. com Copyright ⓒ 2015 AXGATE Co. , Ltd. All rights reserved.
제품 Specification ▌ Enterprise Model AXGATE 4000 AXGATE 7000 AXGATE 10000 AXGATE 20000 CPU Intel 3. 5 GHz / 4 Core Intel Xeon 2. 53 GHz / 4 Core x 2 Intel Xeon 2. 9 GHz / 8 Core x 2 Memory 8 GB 32 GB 24 GB 64 GB Flash Memory 4 GB HDD 1 TB 2 TB 4 TB Power 300 W Redundant 380 W Redundant 600 W Redundant 800 W Redundant 10/1000 Base-T 6 (Max 14) 8 (Max 20) Option (Max 28) Option (Max 32) 1000 Base-X 4 (Max 12) 8 (Max 20) 8 (Max 28) 8 (Max 32) 1 G Combo - - Option (Max 4) 2 (Max 8) 4 (Max 6) 4 (Max 16) NIC Appearance 10 G Base-R Option Module Bypass (Copper / Fiber) - 4/8 Ports 10/1000 Base-T - 4/8 Ports 1000 Base-X - 2/4 Ports 10 G Base-R - 4 Ports 10/1000 Base-T + 4 Ports 1000 Base-X - 4/8 Ports 10/1000 Base-T - 4/8 Ports 1000 Base-X - 2/4 Ports 10 G Base-R - 4/8 Ports 10/1000 Base-T - 4/8 Ports 1000 Base-X - 2 Ports 10 G Base-X - 4/8 Ports 10/1000 Base-T - 4/8 Ports 1000 Base-X - 2/4 Ports 10 G Base-R (2/0) Option F/W Throughput (Max) 40 G 120 G IPS Throughput (Max) 6. 1 G 7. 9 G 10. 1 G 20 G VPN Throughput (Max) 8. 9 G 12. 4 G 7. 8 G 19 G VPN Tunnel (권장) 41, 000 50, 000 40, 000 80, 000 Concurrent Sessions (Max) 5, 000, 002 25, 000 14, 000 30, 000 OS AOS AOS Dimensions (Wx. Hx. D mm) 438 x 88 x 405 430 x 88 x 455 430 x 88 x 460 440 x 88 x 560 Weight (kg) 9. 1 11. 2 12. 5 16
제품 Specification ▌ Middle-sized Model AXGATE 1000 AXGATE 1300 AXGATE 2300 AXGATE 5000 CPU MIPS 1 GHz / 4 Core Intel 1. 7 GHz / 4 Core Intel 2. 4 GHz / 4 Core Intel Xeon 3. 4 GHz / 4 Core Memory 4 GB 8 GB Flash Memory 4 GB HDD 1 TB Power 150 W Single 300 W Redundant 10/1000 Base-T 4 6 (Max 10) 8 (Max 16) 4 1000 Base-X - 4 (Max 4) 4 (Max 8) Option (Max 4) 1 G Combo 4 - - 4 10 G Base-R - - - Option (Max 2) Option Module - Bypass (Copper / Fiber) (2/0) (1/0) (2/2) F/W Throughput (Max) 8 G 10 G 16 G 20 G IPS Throughput (Max) 1. 35 G 1. 9 G 2. 5 G 7. 2 G VPN Throughput (Max) 2. 8 G 2. 7 G 4 G VPN Tunnel (권장) 10, 000 20, 000 40, 000 20, 000 Concurrent Sessions (Max) 2, 000, 000 5, 000 4, 000 OS AOS AOS Dimensions (Wx. Hx. D mm) 430 x 44 x 403 430 x 44 x 310 443 x 44 x 405 430 x 88 x 450 Weight (kg) 7 6 7. 2 9. 5 NIC Appearance - 4 Ports 10/1000 Base-T - 4 Ports 1000 Base-X - 4/8 Ports 10/1000 Base-T - 4/8 Ports 1000 Base-X - 4 Ports 1000 Base-X - 2 Ports 10 G Base-R
제품 Specification ▌ Branch Model AXGATE 50 AXGATE 80 AXGATE 100 AXGATE 300 CPU MIPS 500 MHz / 2 Core MIPS 700 MHz / 2 Core Intel 1. 8 GHz / 2 Core Intel 1. 7 GHz / 4 Core Memory 1 GB 4 GB Flash Memory 4 GB 2 GB 4 GB HDD - - 500 GB Power 30 W Single 40 W Single 150 W Single 10/1000 Base-T 6 6 1000 Base-X - - 1 G Combo - - 10 G Base-R - - Bypass (Copper / Fiber) - - (1/0) (2/0) F/W Throughput (Max) 1. 9 G 2 G 3. 6 G IPS Throughput (Max) 273 M 503 M 970 M 1. 9 G VPN Throughput (Max) 624 M 998 M 326 M 2 G VPN Tunnel (권장) 5, 000 10, 000 20, 000 Concurrent Sessions (Max) 300, 000 500, 000 2, 000 OS AOS AOS Dimensions (Wx. Hx. D mm) 246 x 44 x 172 300 x 44 x 158 428 x 44 x 300 430 x 44 x 310 Weight (kg) 1. 5 1. 2 4 5 NIC Appearance
인증 및 특허 현황 www. axgate. com Copyright ⓒ 2015 AXGATE Co. , Ltd. All rights reserved.

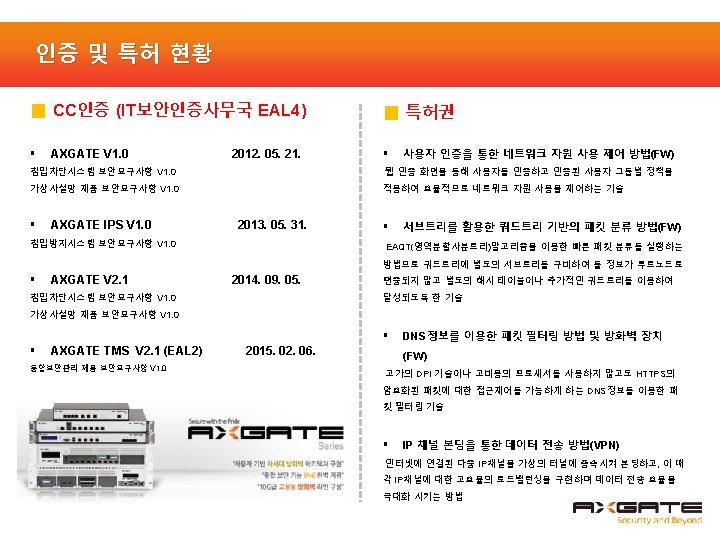

REFERENCE 공공 / 교육&금융 / 기업 www. axgate. com Copyright ⓒ 2015 AXGATE Co. , Ltd. All rights reserved.
Thank You (주)엑스게이트 www. axgate. com 경기도 성남시 분당구 삼평동 625 판교세븐벤처밸리 1단지 2동 402호 엑스게이트 대표전화 : 070 -4034 -6410 / 팩스 : 031 -8016 -1778 / E-mail : soymilks@axgate. com Copyright ⓒ 2015 AXGATE Co. , Ltd. All rights reserved.
