WSV 337 Building a Microsoft Private Cloud with HP Steve Tramack Sr. Engineering Manager HP Paul Gavin Sales Enablement and Training Manager HP
1. “Worldwide Enterprise Server Cloud Computing 2010– 2014 Forecast” IDC, May 2010 2. “WW Enterprise Server Cloud Computing, 2011 -2015” IDC 2011 3. “Cloud Computing Attitudes” IDC, April 2010 4. “ IDC, 2011, Market Analysis Perspective: Worldwide Datacenter Trends and Strategies” 5. “Cloud Sizing by Delivery Model and Geography” Oliver Wyman, Sep 2010” 6. “ IDC WW System Infrastructure Software Predictions”

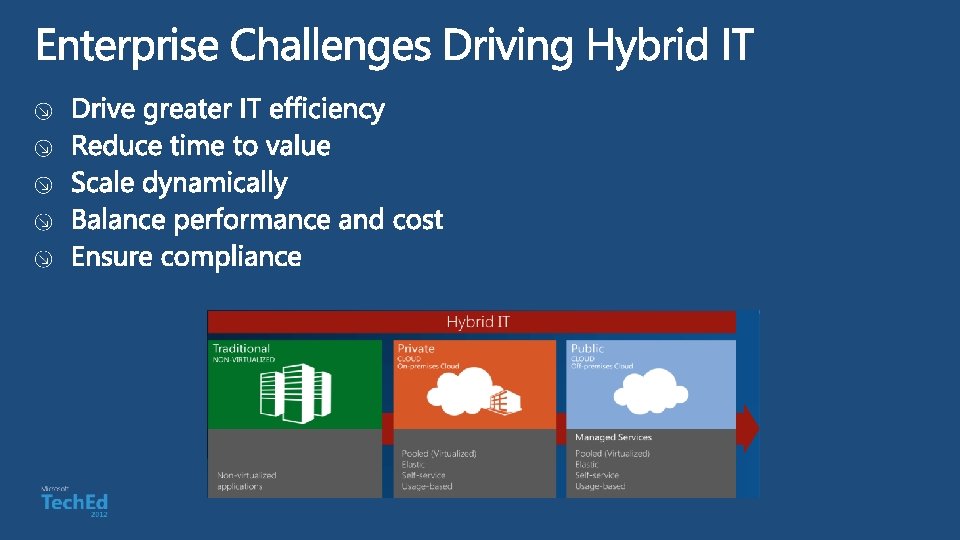

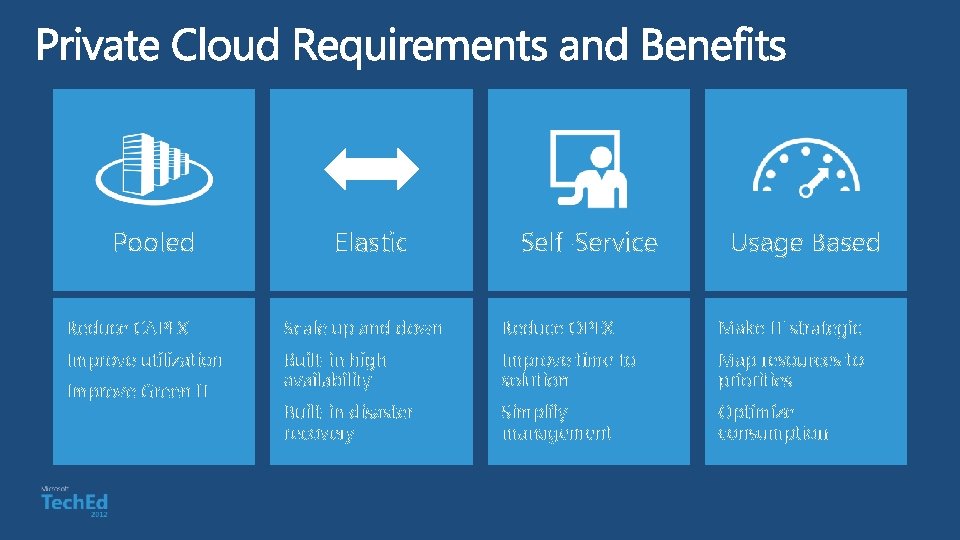

Pooled Elastic Self-Service Usage Based Reduce CAPEX Scale up and down Reduce OPEX Make IT strategic Improve utilization Built-in high availability Improve time to solution Map resources to priorities Built-in disaster recovery Simplify management Optimize consumption Improve Green IT
Best in class Storage Virtual. System Servers Cloud. System Networking Software App. System
Reference Architectures Prescriptive Guidance HW & SW Guidelines Workload Target Reference Configurations HW & SW Identified Validated Configuration Appliances HW & SW Optimized Factory Built & Tested Successfully Design a new system using best practices Successfully Buy a new configuration with known abilities Successfully Deploy a new solution with proven performance

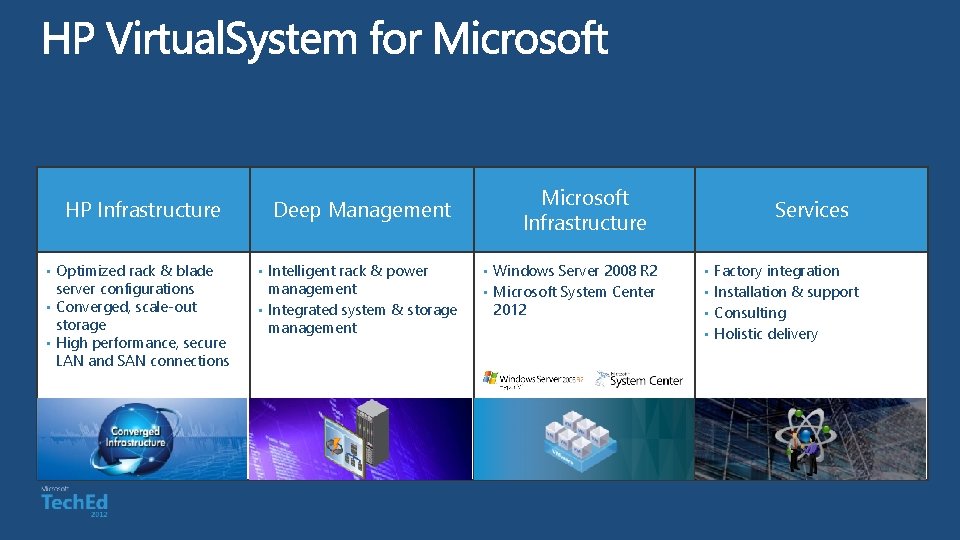

HP Infrastructure Optimized rack & blade server configurations • Converged, scale-out storage • High performance, secure LAN and SAN connections • Microsoft Infrastructure Deep Management Intelligent rack & power management • Integrated system & storage management • Windows Server 2008 R 2 • Microsoft System Center 2012 • Services Factory integration • Installation & support • Consulting • Holistic delivery •
Network switches Management nodes Compute nodes Storage nodes
For any size business HP Virtual. System VS 3 HP Virtual. System VS 2/CV 2– Base and Extended HP Virtual. System VS 1– Base and Extended New

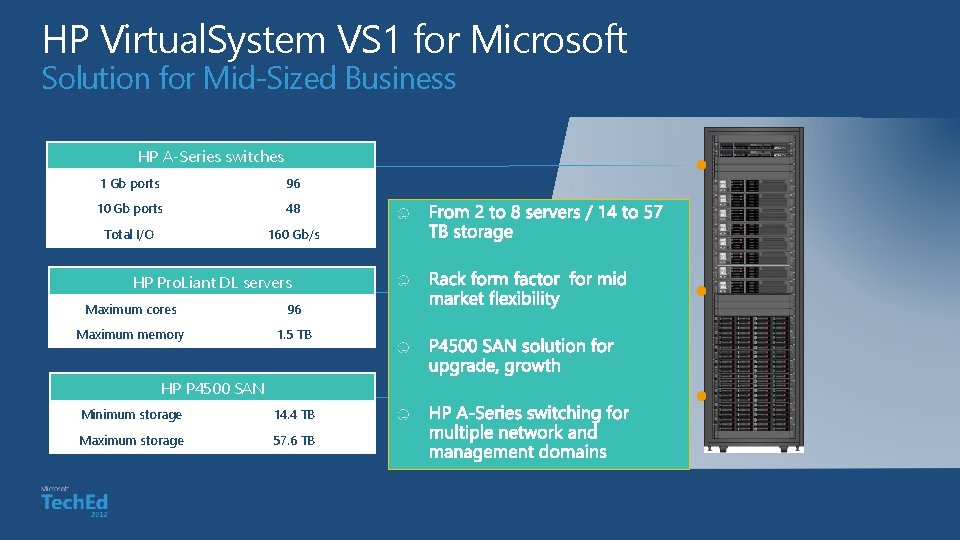

HP Virtual. System VS 1 for Microsoft Solution for Mid-Sized Business HP A-Series switches 1 Gb ports 96 10 Gb ports 48 Total I/O 160 Gb/s HP Pro. Liant DL servers Maximum cores 96 Maximum memory 1. 5 TB HP P 4500 SAN Minimum storage 14. 4 TB Maximum storage 57. 6 TB

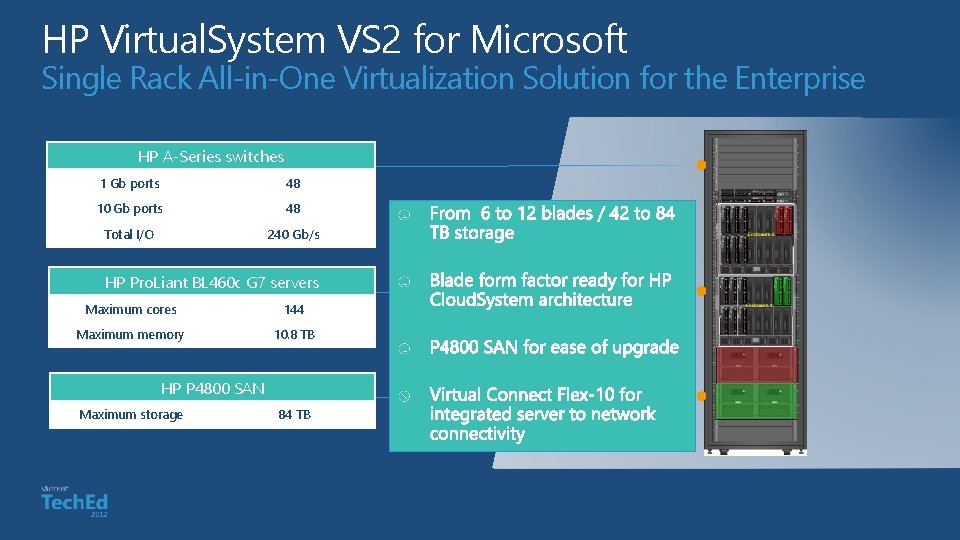

HP Virtual. System VS 2 for Microsoft Single Rack All-in-One Virtualization Solution for the Enterprise HP A-Series switches 1 Gb ports 48 10 Gb ports 48 Total I/O 240 Gb/s HP Pro. Liant BL 460 c G 7 servers Maximum cores 144 Maximum memory 10. 8 TB HP P 4800 SAN Maximum storage 84 TB
HP Virtual. System VS 3 for Microsoft High Performance, Cloud-Ready Solution for Large Data Centers New HP A-Series switches 1 Gb ports 48 10 Gb ports 48 Total I/O 240 Gb/s HP Pro. Liant BL 460 c G 8 servers Maximum cores 512 Maximum memory 6. 12 TB 3 PAR SAN Storage Maximum storage 384 TB
VS 3 has Gen 8’s Energy Efficiency Improvements Reduce energy usage and increase compute capacity HP Platinum. Plus Power Supplies 3 D Sea of Sensors Support for Low Voltage Smart. Memory HP Intelligent Series rack $640 K Power savings in 10 K sq. feet datacenter/year 7% higher airflow efficiency 10% Less energy consumed Based on internal testing with a fully online firmware and system software update with HP SUM 5. 0 vs. HP SUM 4. 2.
HP Virtual. System with Flex. Fabric Industry’s first integrated virtual solution with flattened fabric architecture High-performance 4 -chassis virtualized core IRF Virtual Connect Blade servers Rack servers 2 -tier with HP IRF 1 -tier with Virtual Connect Comparisons of traditional network configurations with Flex. Fabric

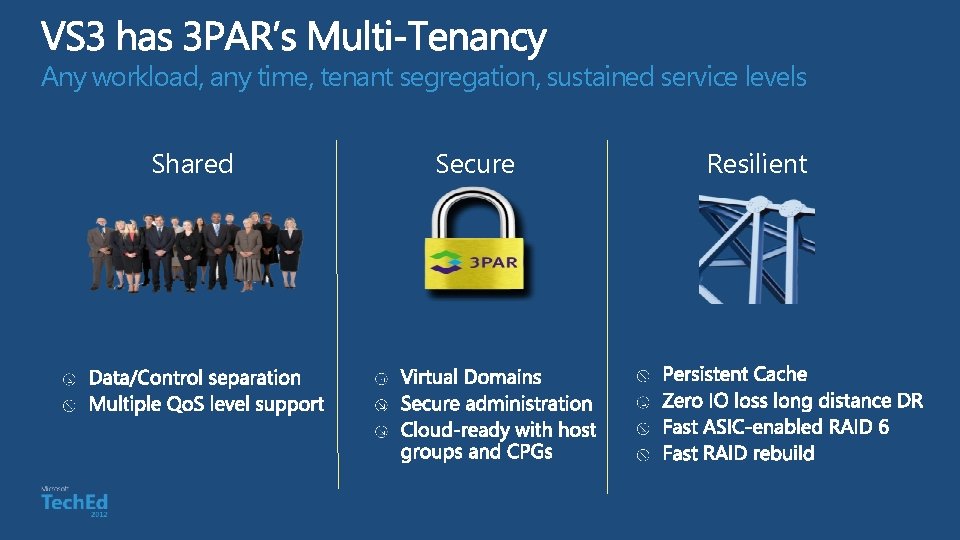

Any workload, any time, tenant segregation, sustained service levels Shared Secure Resilient
Insight Control for System Center Comprehensive Health Monitoring Total Remote Control via i. LO Advanced • • • Bare Metal OS Deployment Agentless Gen 8 Windows Linux VMware Blade enclosures Comprehensive server lifecycle management Driver and Firmware Updates Detailed HP Inventory Proactive VM migration based on health status
System Customization Hardware and rack configuration • Custom system settings • Cabling • Asset tagging and labeling • Without Factory Express Solution Service Single point of contact • On-site set-up • Integration to customer’s environment • With Factory Express
Onsite Deployment
Virtualization Cloud Transformation Experience Workshop Virtualization Assessment 1 Day 4 Weeks Executive visioning workshop to align customer strategy and outline the way forward Virtual. System, Start Service Migration, Integration Services Custom Discover and analyze Find a platform current systems to designed for virtual understand best computing or build candidates for toward partner cloud virtualization solution Included in VS 1 and VS 2 SOW needed for VS 3 Migrate workloads into Virtual. System and further integrate into the data center Services for partner cloud Services for Exchange Private Cloud 30 Days or Custom 45 Days or Custom Integration of HW, Microsoft Hyper-V, and SC Suite* Layered on top of Compute Service; Based on Exchange 2010*
* ESG Performance Preliminary Results Table 1. Jetsress 2010 Performance Results HP VS 2 Virtual Machines Exchange 2010 Mailboxes Achieved IOs per second Average DB Read response time (ms) 1 4, 000 1, 593 7. 3 2 8, 000 2, 738 9. 0 4 16, 000 3, 801 11. 8 8 32, 000 4, 896 17. 8
DEMO SC VMM O/S Deployment Paul Gavin Hewlett Packard
DEMO Insight Control for System Center 2012 Integration with SCOM Paul Gavin Hewlett Packard

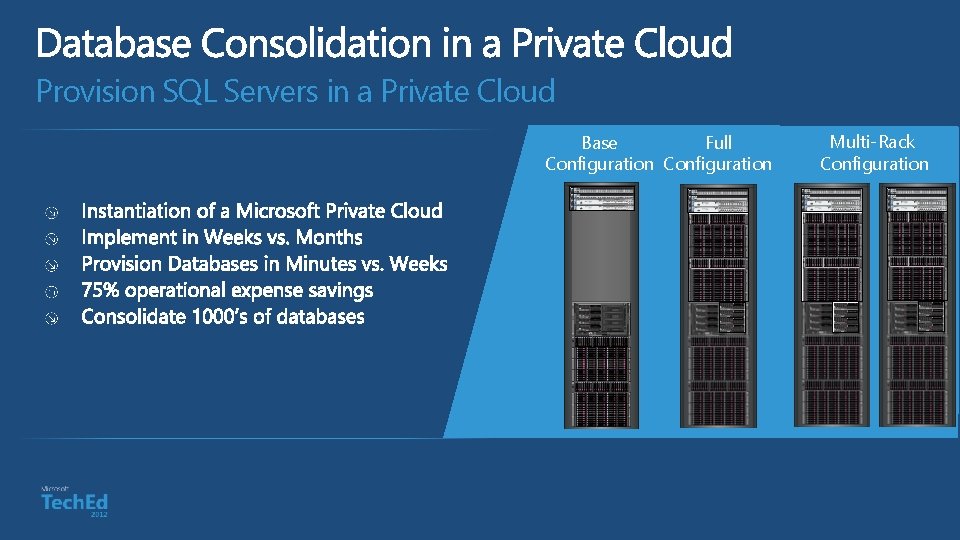

Provision SQL Servers in a Private Cloud Base Full Configuration Multi-Rack Configuration

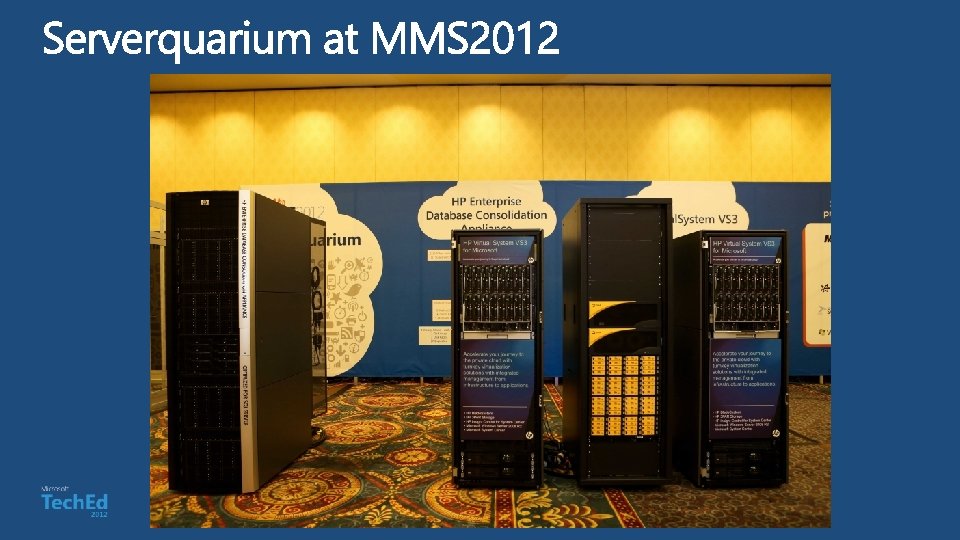

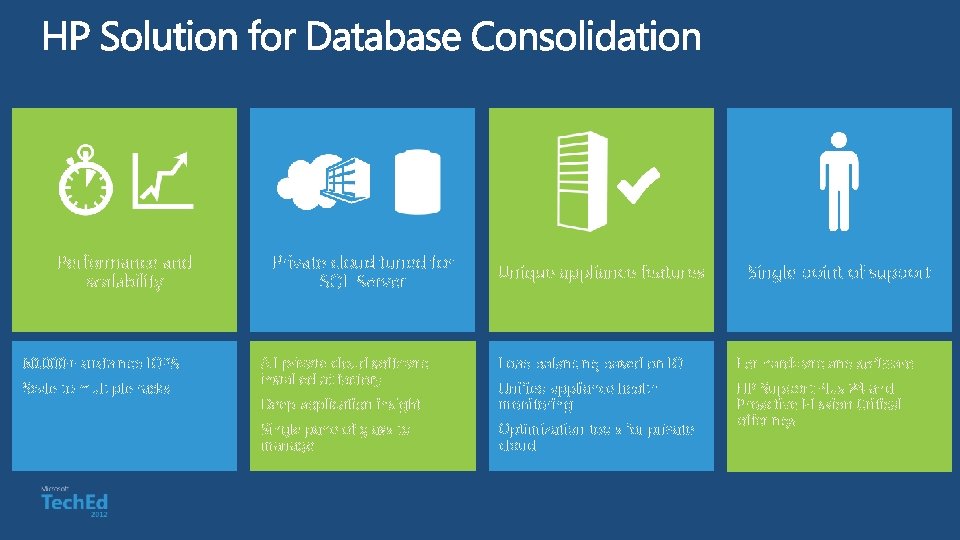

Performance and scalability 60, 000+ sustained IOPS Scale to multiple racks Private cloud tuned for SQL Server Unique appliance features Single point of support Load balancing based on IO For hardware and software Deep application insight Unified appliance health monitoring Single pane of glass to manage Optimization tools for private cloud HP Support Plus 24 and Proactive Mission Critical offerings All private cloud software installed at factory

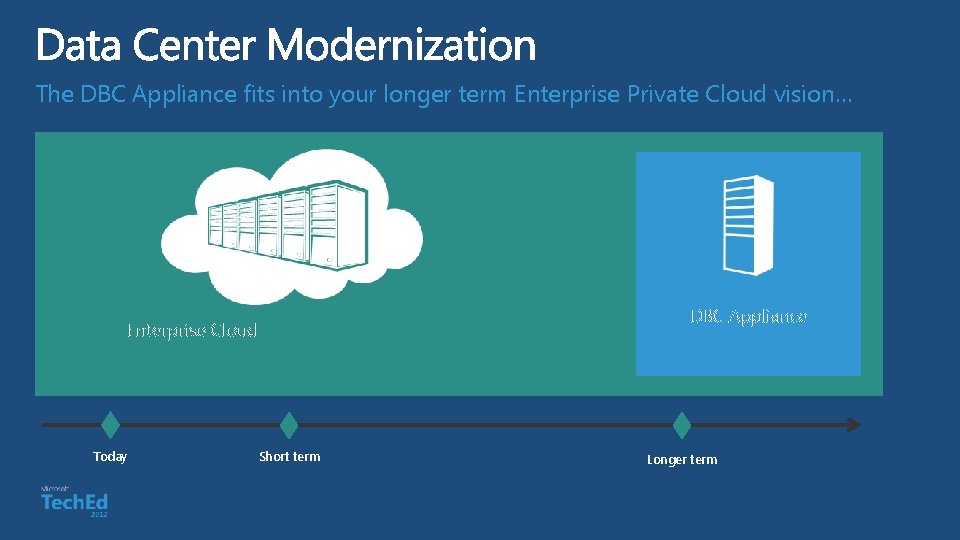

Traditional Data Center Enterprise Cloud Today Short term SQL Optimized Resource Pool The DBC Appliance fits into your longer term Enterprise Private Cloud vision… DBC Appliance Longer term

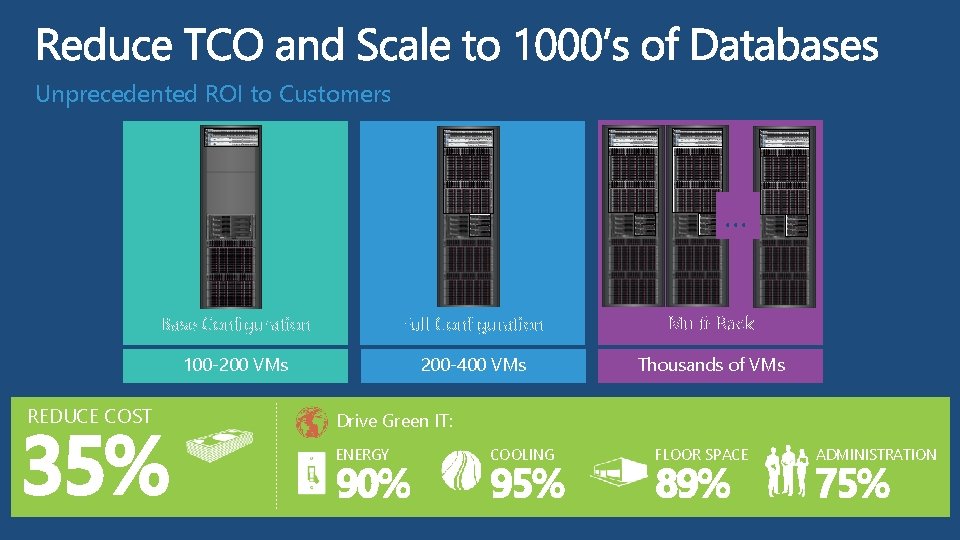

Unprecedented ROI to Customers … Base Configuration Full Configuration Multi-Rack 100 -200 VMs 200 -400 VMs Thousands of VMs REDUCE COST 35% Drive Green IT: in the first year ENERGY 90% COOLING 95% FLOOR SPACE 89% ADMINISTRATION 75%
Managed from OS to Database Benefits Run any version of SQL Server Tools Database consolidation appliance 2012 Configuration validation Inventory, Planning and sizing Unified health monitoring Streamline appliance management Products Enterprise edition Enhanced BPA toolkit Enhanced MAP tool PRO packs Appliance management VM management Appliance Updates Unlimited virtualization Streamline firmware/driver updates Create and assign storage Integrate appliance management with Microsoft System Center HP Smart Update Manager HP Storage Management tools HP Insight Control – System Center
Small • • 1 Virtual Processor 2 GB RAM 100 GB formatted disk space 50 IOPS / VM Medium • • 2 Virtual Processors 4 GB RAM 200 GB formatted disk space 400 IOPS / VM Large • • 4 Virtual Processors 16 GB RAM 400 GB formatted disk space 1600 IOPS / VM A single rack configuration is optimized for a balanced mix of about 200 database instances

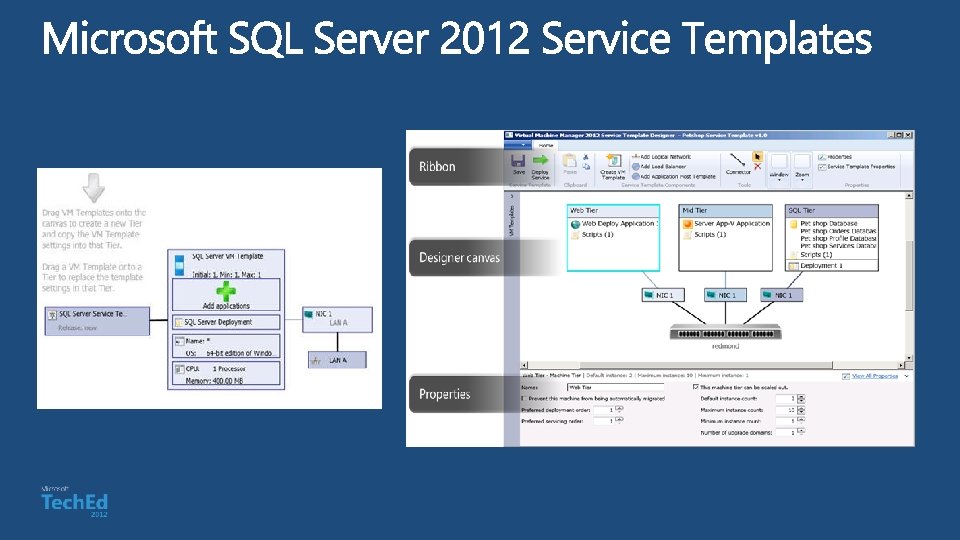

Windows Server, Hyper-V, System Center VMM Use Cases and Scenarios VM VM VM Existing Servers P 2 V Server #1 P 2 V Server #2 P 2 V SQL Server 2012 SQL Server EE 2005 Server #3 SQL Server SE 2008 R 2 Room to grow Provision Newly created VMs. Can reuse existing ‘IT template’ VMs. Self-Service provisioning with workflow Bank of VMs VM 1 VM 2 VM 3
DEMO Identifying consolidation options using the MAP toolkit Steve Tramack Hewlett Packard
DEMO Hardware Alerting through PRO Pack Steve Tramack Hewlett Packard
DEMO Live Migration Initiated through PRO tips Steve Tramack Hewlett Packard
Appliance vs. Solution Architecture Model HP Virtual. System VS 1 Mid-sized business all-in-one solution HP Pro. Liant rack servers/ 5800 Series networking P 4500 Left. Hand SAN …provides choice and flexibility in workload support, deployment and on-site integration …is available in multiple configurations (Server and storage models; base/extended configs) HP Virtual. System VS 2 Enterprise business single rack solution for server or client virtualization Optimized for compute density, flexibility HP Blade. System / 5800 Series networking P 4800 Left. Hand SAN for Blade. System SAN …is a fixed, scalable configuration …includes a single support model …includes DBCA-specific tools and software HP Virtual. System VS 3 Enterprise business solution for large, demanding DCs Optimized for storage scalability and performance HP Blade. System / 5800 Series networking / 3 PAR Utility Storage Both HP VS and DBCA… …are examples of a Microsoft Private Cloud …improve time to value and mitigate risk …feature best-of-breed Converged Infrastructure …include tight integration with System Center
