WSV 324 Building a Highly Available Failover Cluster

WSV 324 Building a Highly Available Failover Cluster Solution with Windows Server 2012 from the Ground UP Rob Hindman Program Manager Microsoft Corporation

Infrastructure for the Private Cloud Management for the private cloud Hyper-V Platform for the private cloud Infrastructure for the private cloud

Demo Server Manager – Adding the Hyper-V Role and Failover Clustering Feature

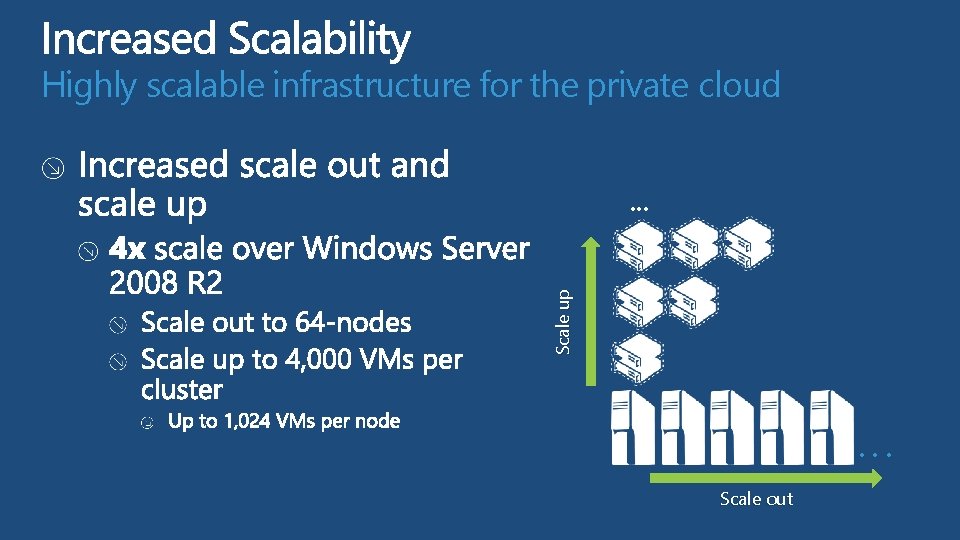

Highly scalable infrastructure for the private cloud Scale up . . . Scale out

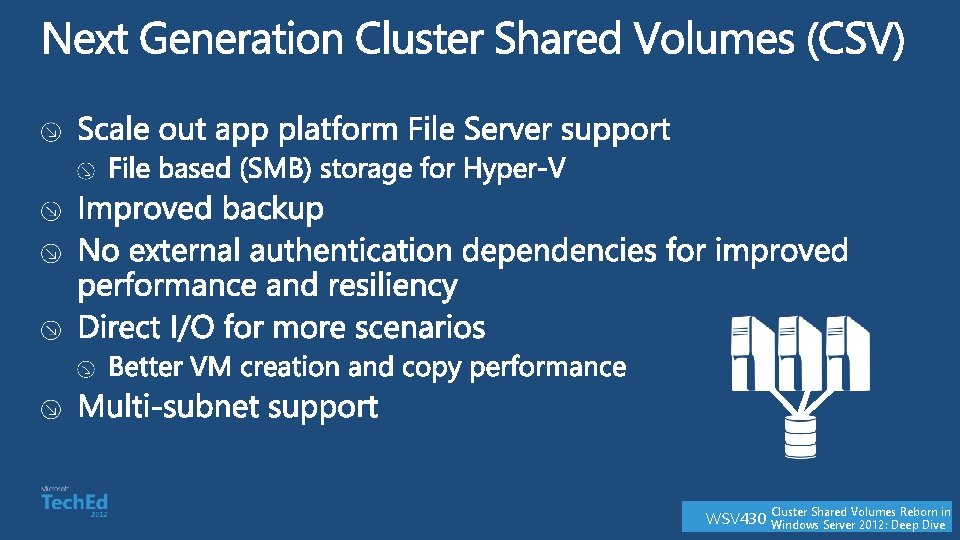

WSV 430 Cluster Shared Volumes Reborn in Windows Server 2012: Deep Dive

Demo Add disk to CSV in Windows Server 2012

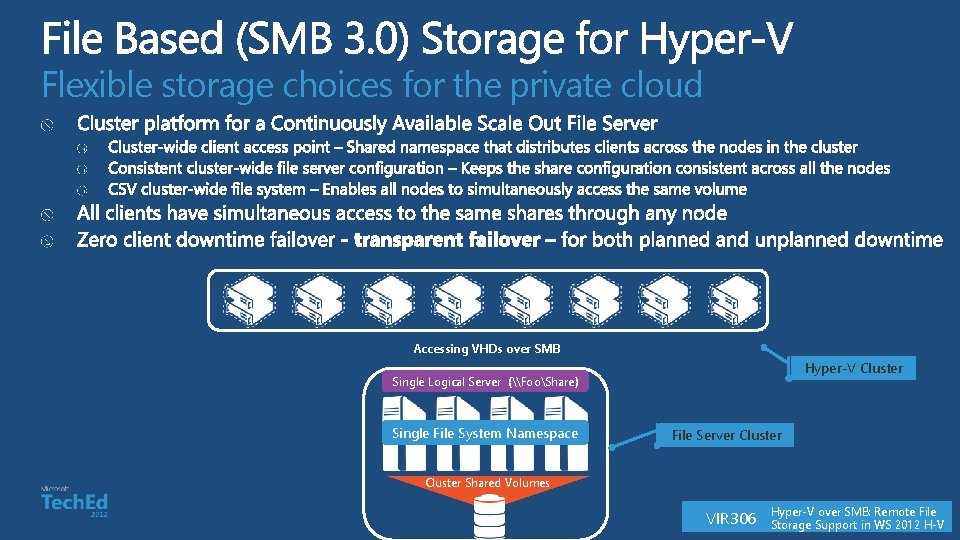

Flexible storage choices for the private cloud Accessing VHDs over SMB Hyper-V Cluster Single Logical Server (\FooShare) Single File System Namespace File Server Cluster Shared Volumes VIR 306 Hyper-V over SMB: Remote File Storage Support in WS 2012 H-V

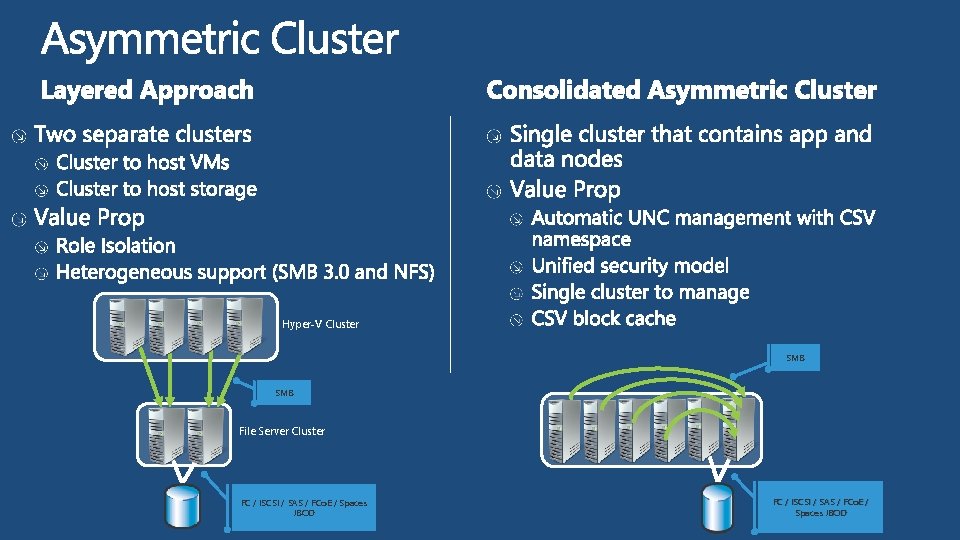

Hyper-V Cluster SMB File Server Cluster FC / i. SCSI / SAS / FCo. E / Spaces JBOD

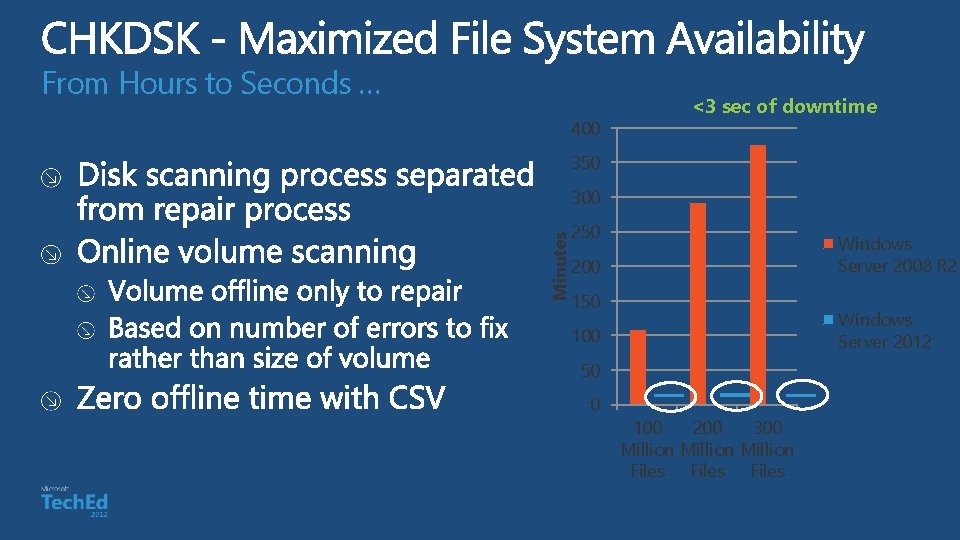

From Hours to Seconds … 400 <3 sec of downtime 350 Minutes 300 250 Windows Server 2008 R 2 200 150 Windows Server 2012 100 50 0 100 200 300 Million Files

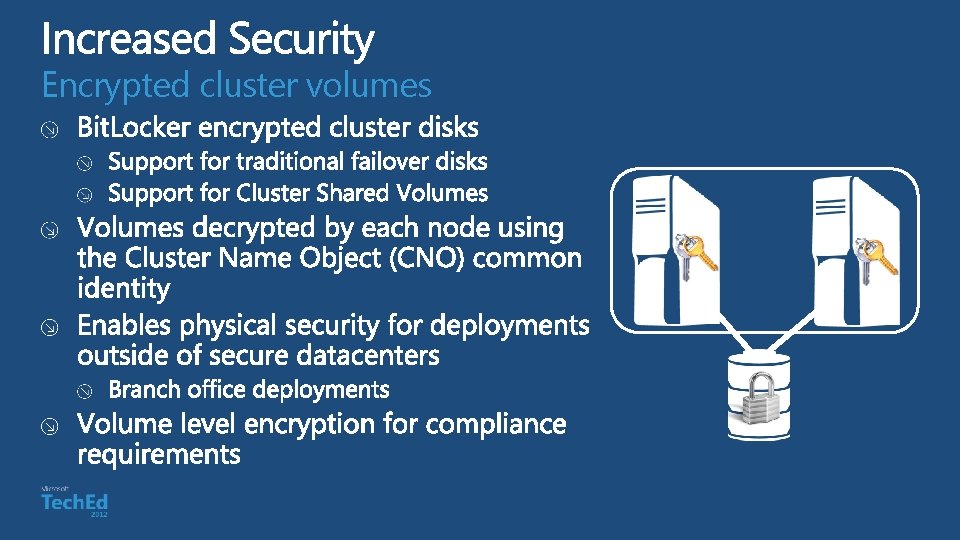

Encrypted cluster volumes

Demo Bit. Locker on CSV

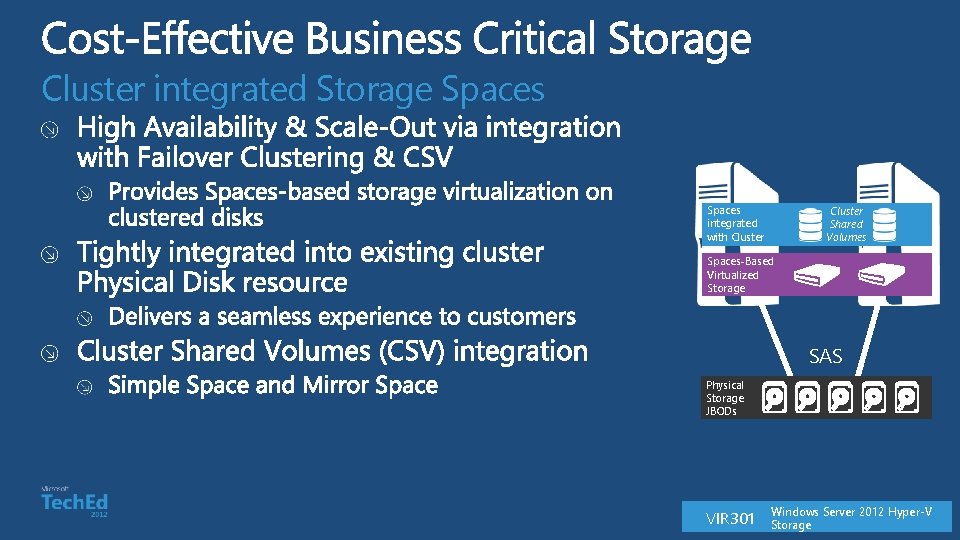

Cluster integrated Storage Spaces integrated with Cluster Shared Volumes Spaces-Based Virtualized Storage SAS Physical Storage JBODs VIR 301 Windows Server 2012 Hyper-V Storage

Demo Add Storage Space to CSV

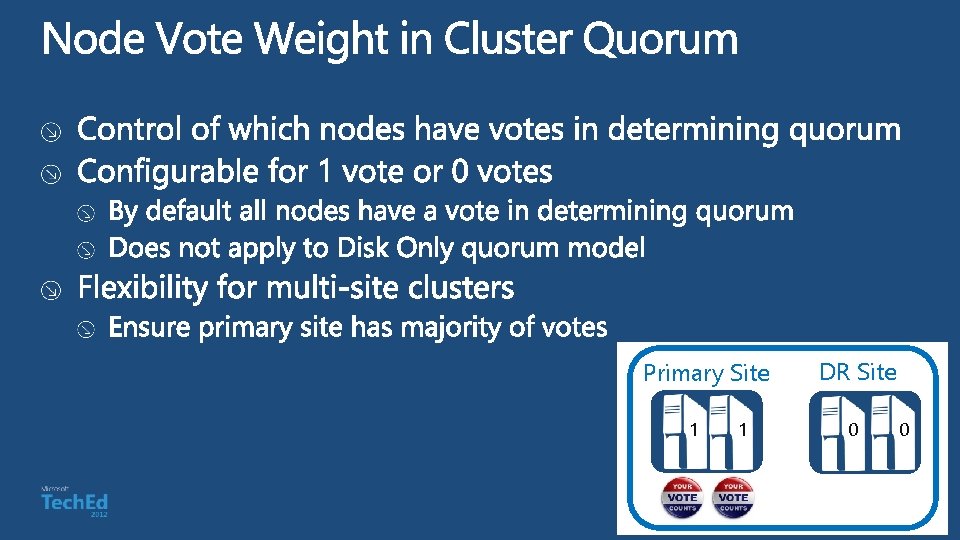

Primary Site 1 1 DR Site 0 0

Cluster managed node votes 1 1 1 0

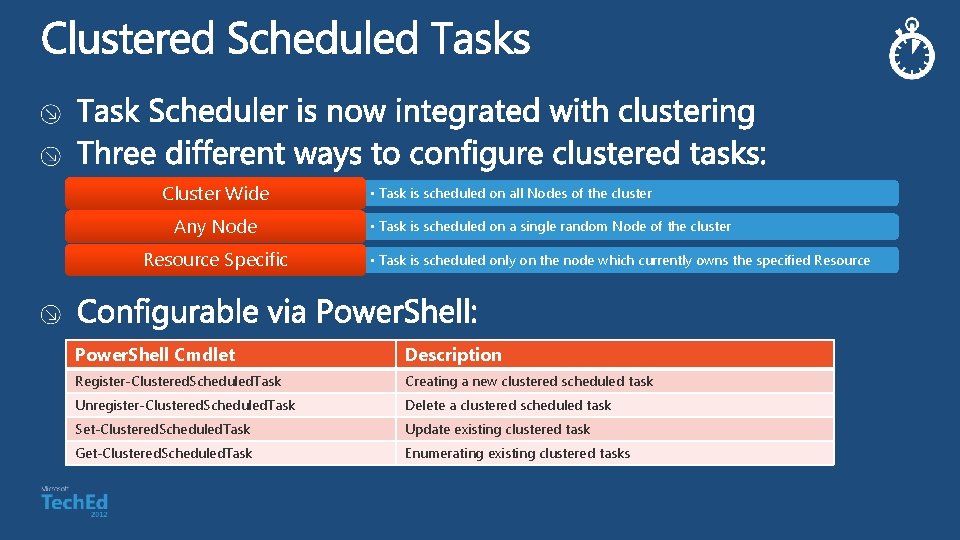

Cluster Wide Any Node Resource Specific • Task is scheduled on all Nodes of the cluster • Task is scheduled on a single random Node of the cluster • Task is scheduled only on the node which currently owns the specified Resource Power. Shell Cmdlet Description Register-Clustered. Scheduled. Task Creating a new clustered scheduled task Unregister-Clustered. Scheduled. Task Delete a clustered scheduled task Set-Clustered. Scheduled. Task Update existing clustered task Get-Clustered. Scheduled. Task Enumerating existing clustered tasks

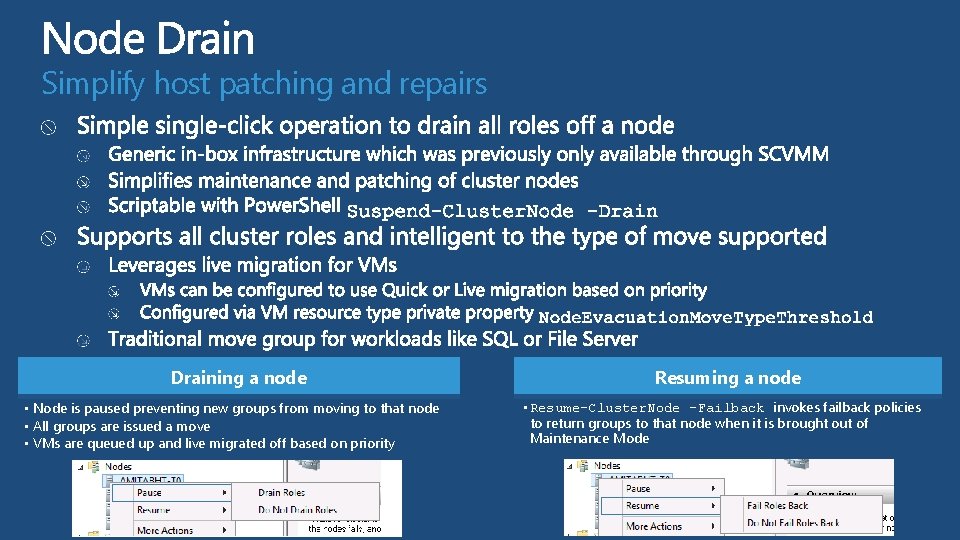

Simplify host patching and repairs Draining a node • Node is paused preventing new groups from moving to that node • All groups are issued a move • VMs are queued up and live migrated off based on priority Resuming a node • Resume-Cluster. Node –Failback invokes failback policies to return groups to that node when it is brought out of Maintenance Mode

Demo Node Drain

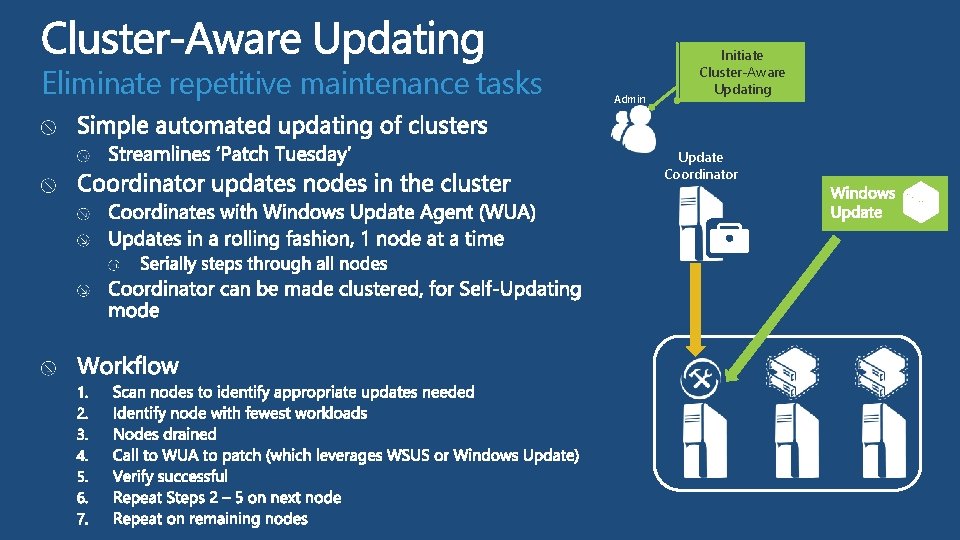

Eliminate repetitive maintenance tasks Admin Initiate Cluster-Aware Updating Update Coordinator

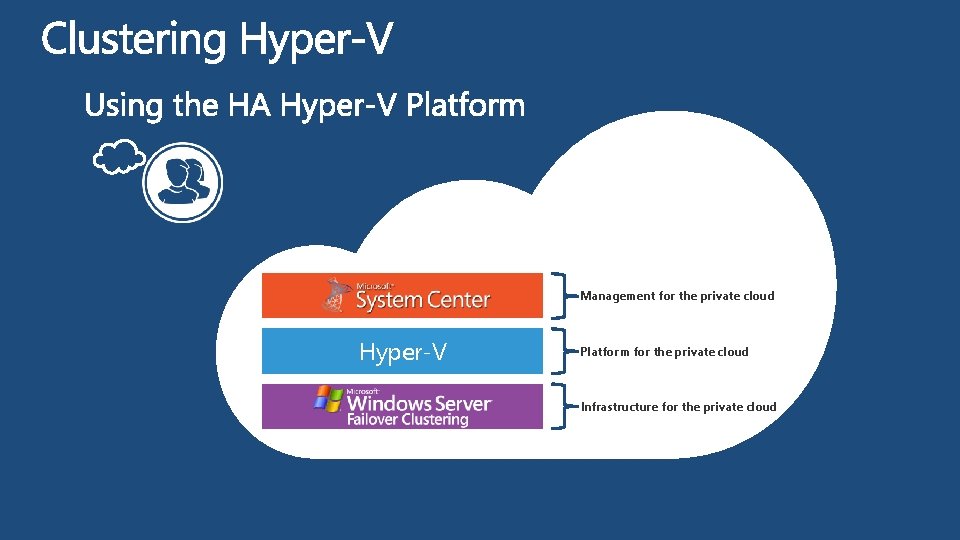

Management for the private cloud Hyper-V Platform for the private cloud Infrastructure for the private cloud

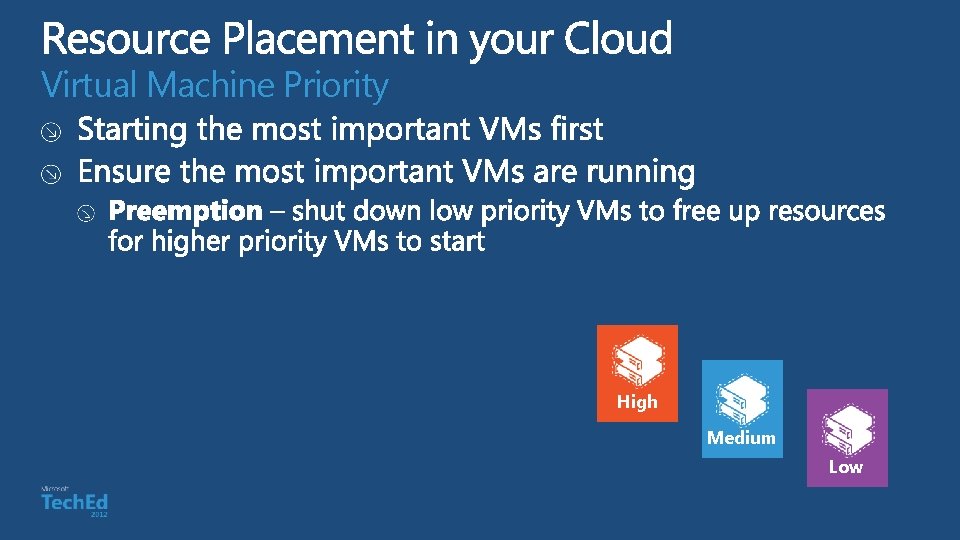

Virtual Machine Priority High Medium Low

Demo VM Priority

Improved VM mobility within the cluster VIR 304 Hyper-V Live Migration and Storage Migration

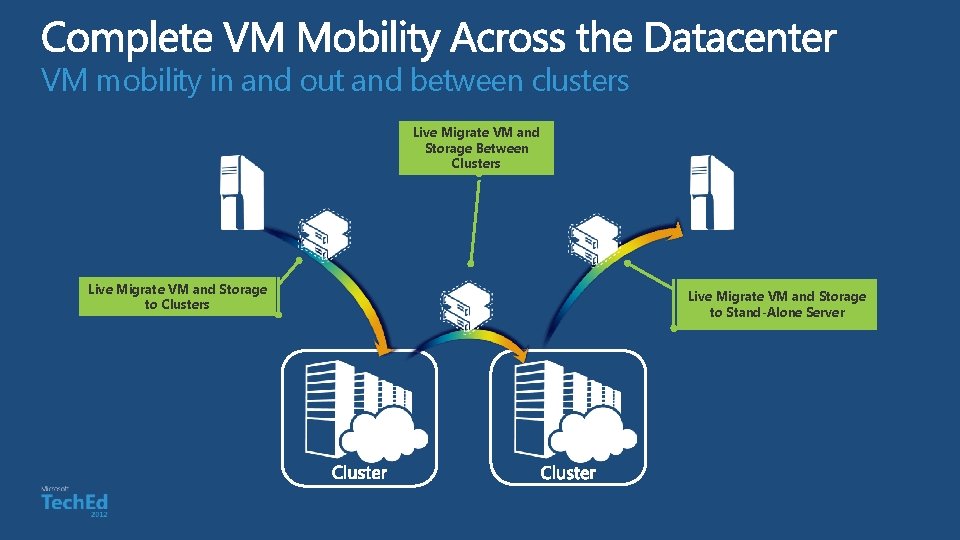

VM mobility in and out and between clusters Live Migrate VM and Storage Between Clusters Live Migrate VM and Storage to Stand-Alone Server

Demo Live Migration in Clusters

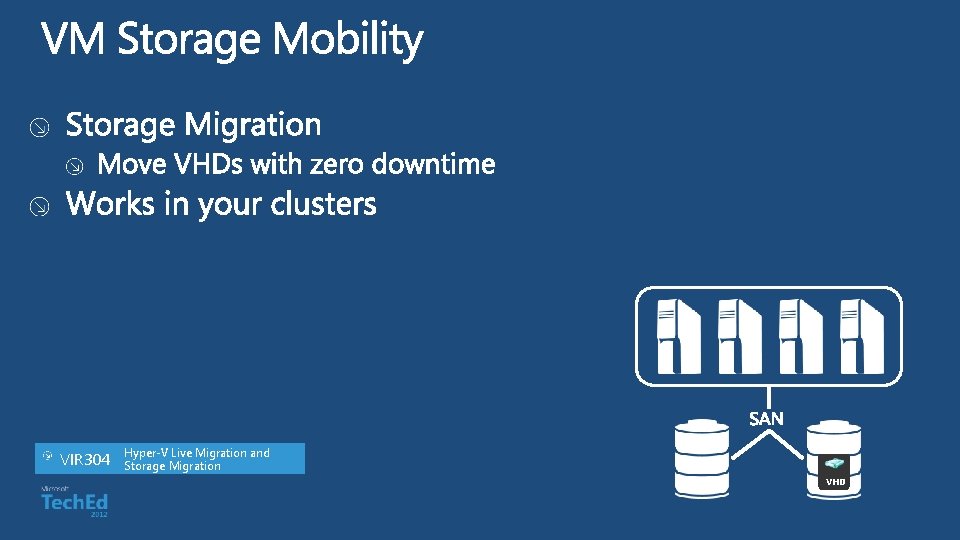

VIR 304 Hyper-V Live Migration and Storage Migration VHD

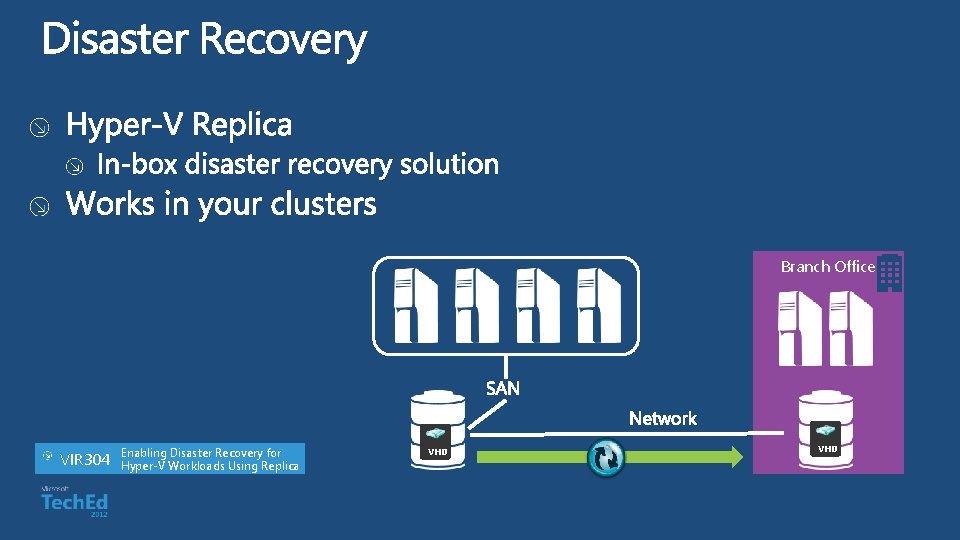

Branch Office VIR 304 Enabling Disaster Recovery for Hyper-V Workloads Using Replica VHD

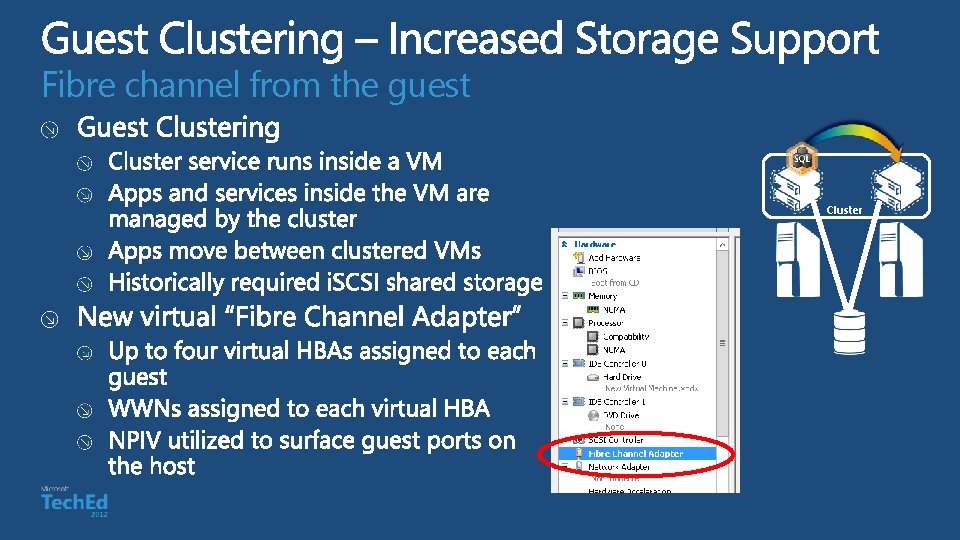

Fibre channel from the guest Cluster

Health detection of applications inside a virtual machine

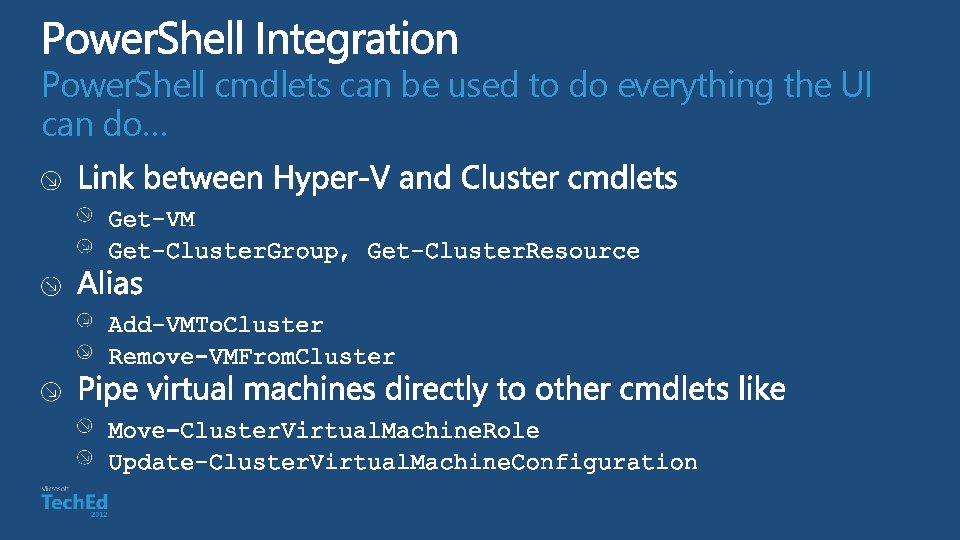

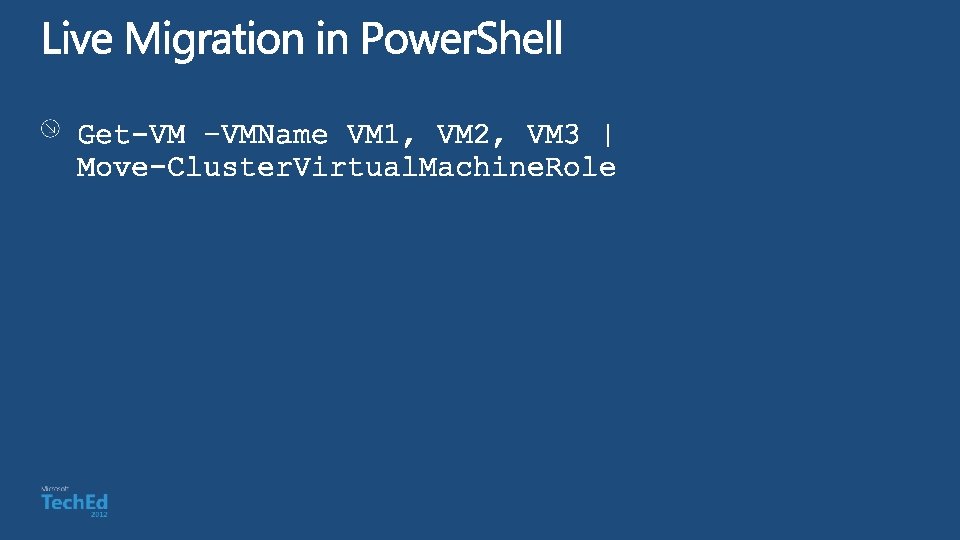

Power. Shell cmdlets can be used to do everything the UI can do…

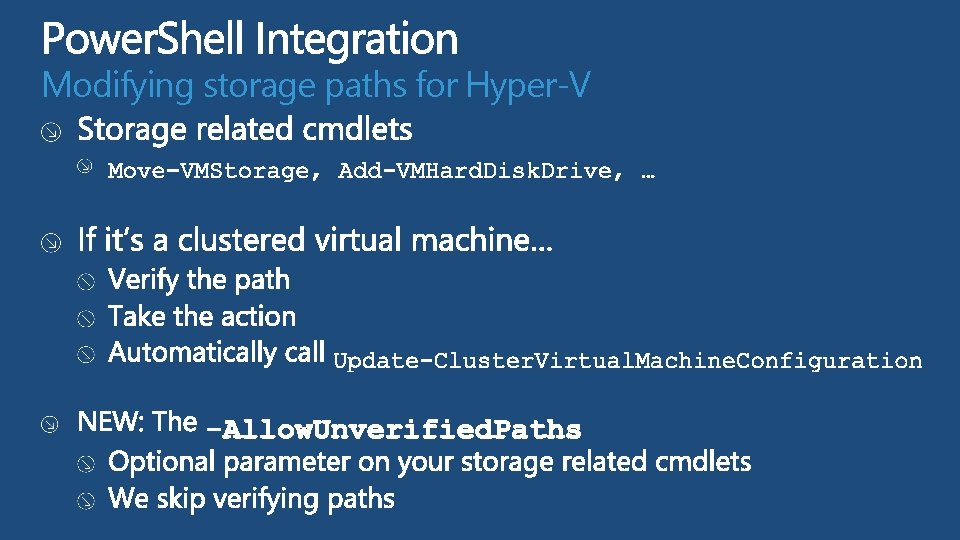

Modifying storage paths for Hyper-V

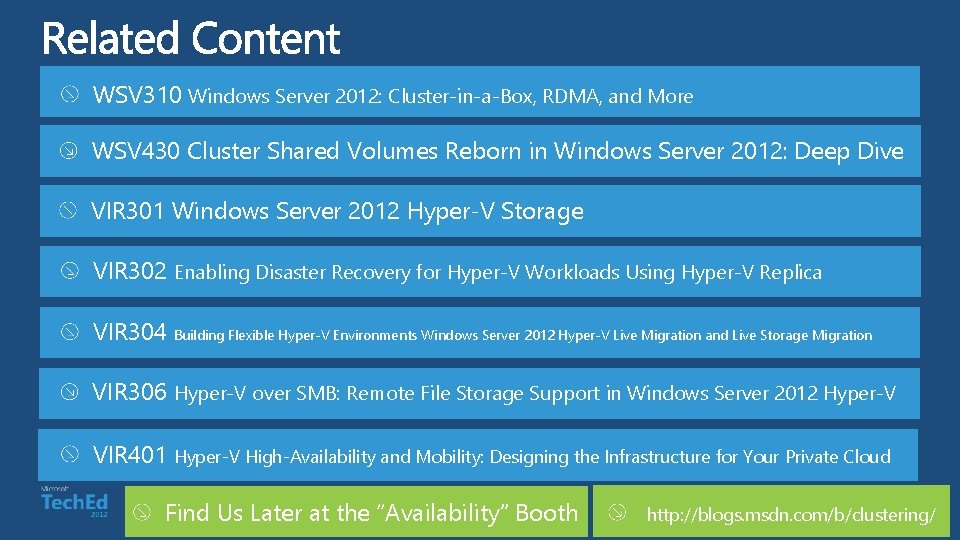

WSV 310 Windows Server 2012: Cluster-in-a-Box, RDMA, and More WSV 430 Cluster Shared Volumes Reborn in Windows Server 2012: Deep Dive VIR 301 Windows Server 2012 Hyper-V Storage VIR 302 Enabling Disaster Recovery for Hyper-V Workloads Using Hyper-V Replica VIR 304 Building Flexible Hyper-V Environments Windows Server 2012 Hyper-V Live Migration and Live Storage Migration VIR 306 Hyper-V over SMB: Remote File Storage Support in Windows Server 2012 Hyper-V VIR 401 Hyper-V High-Availability and Mobility: Designing the Infrastructure for Your Private Cloud Find Us Later at the “Availability” Booth http: //blogs. msdn. com/b/clustering/
