WSV 210 Dell Windows Server 2012 Greenfield Data Design: Hosted Service / Private Cloud Terry Storey Senior Global Architect Dell Corporation
Who is NTTX 3
Customer Requirements 4
Customer Requirements • Data. Centre flexibility for diverse workloads on a single core design and fabric. • • • VDI RDSH Share. Point Lync Exchange SQL Backup Anti-Spam VM Server hosting IIS • The core design must allow these varying types of VM workloads to be deployed across the system, in other words dedicated configuration of hosts or network components to meet the requirements of specific services is not attractive. As it breaks modular scalability goals. • Opening new markets for VDI and RDSH. • Graphics and CAD / CAM. (Remote. FX GPU’s) - Dell 12 th Generation R 720 supports 4 x GPU’s (AMD 7800 p) • Iwarp (inbox software GPU) for lesser Directx 11 graphics workloads (Office 2010 for example) • Make the VM look, perform and feel like a physical machine. • Delivery of end-to-end solution on commodity hardware. • JBODS • SANS • No 3 rd party middleware costs reductions. (no VMware or Citrix for example ) 5
Customer Requirements • Provide true duel site HA with minimum cost – Via Hyper-v Replica (out of the box solution) • Deliver full high-availability and continuous availability across all subsystems and services. • Compete abstraction between storage fabric and Hyper-Visor layer. – Continuous Available Storage File cluster – Hyper-v over SMB – Hyper-v Application workload server • “Hot” scale out, therefore allowing hardware to be purchased and deployed inline with user demand. • Complete “zero hands” deployment, management and administration. – Reduction in management technologies and API’s. • Power. Shell now primary platform. • Previous generations of O/S have required over 10 different technologies to achieve the same task. 6
Windows Server 2012 Solution Soft GPU VDI Cluster Hard GPU VDI - P R D M A HV Cluster - Workloads R D M A SMB Cluster 1 SMB (\File. ServerVHDX-Store 1) SMB (\File. ServerVHDX-Store 2) CSV (Volume 1) CSV (Volume 2) Spaces 1 (Mirrored) Spaces 2 (Mirrored) Pool 1 Pool 2 RDMA 7 SSD - Platinum 10 K - Silver
Dell Test/Poc Platform • Dell 12 th Generation Server R 720 – 256 GB RAM – 4 x ATI 7800 P GPU’s (4 x GPU fitting kits) • MD 12000 Powervault Storage – 4 x MD 1200 Daisy chained for each R 720 node – Dual 6 Gb SAS HA controllers for scale and resiliency (> 800 IOPS) • Storage Spaces. – Mirrored Spaces - Pool 1, Space 1 per node • Clustering – 4 x Node HA Continuously Available File services – Hyper-v over SMB to present \ share to Hyper-v application servers 8

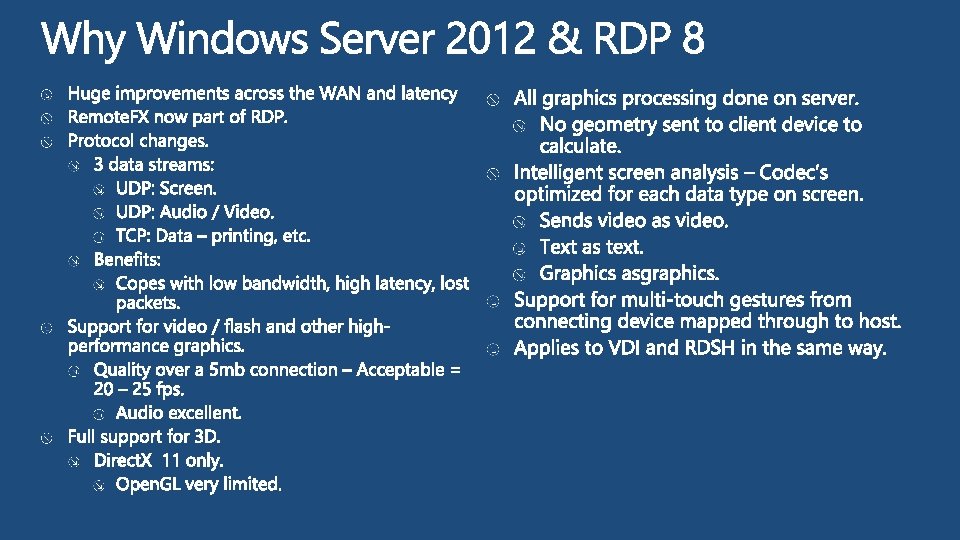

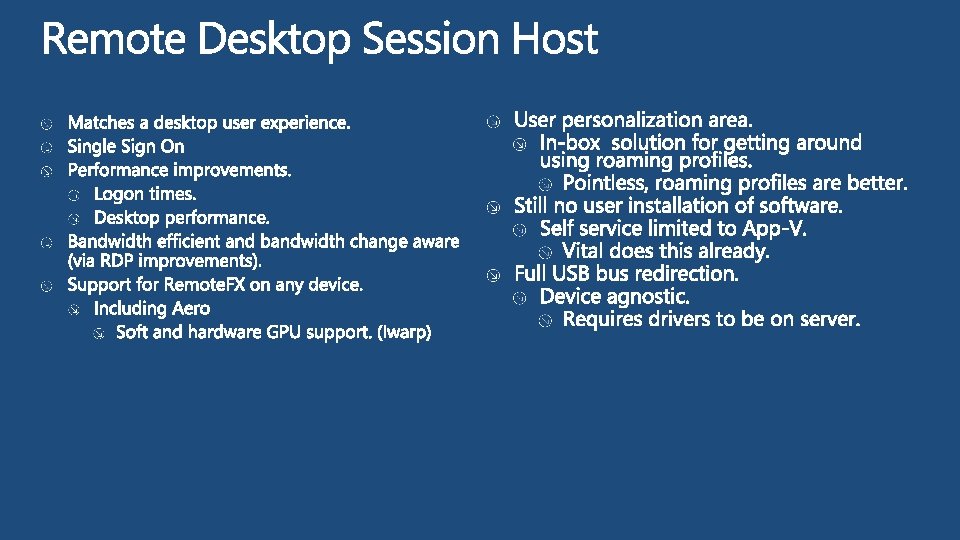

3 rd Party Software Spend reduction • Windows Server 2012 Hyper-v Maturity – Removal of VMware license costs – System Centre 2012 for Multi-Hypervisor management • Migration and Coexistence with Hyper-v • Windows Server 2012 RDP/RDSH Maturity – Removal of Citrix costs for more scenarios compared to 2008 R 2 SP 1 • WAN scenarios / High Latency Scenarios • Closer to near local performance responses for browser applications • Graphics scenarios (Hardware GPU and Software GPU) • WAN Links tested FOR VDI & RDSH (RDP 8 does actually work) – Flash and I. E applications work well simultaneously ( compared to RDP 7) – 512 KB - very useable for I. E, Word , Excel – 4 MB / Second - very useable for Audio, Video play back and is near local perf • 2/3 MB /S IS THE TARGET (With Remotefx , Audio/Video) – Above 100 MS response becomes laggy with touch • Clustering – 4 x Node HA Continuously Available File services – Hyper-v over SMB to present \ share to Hyper-v application servers 9

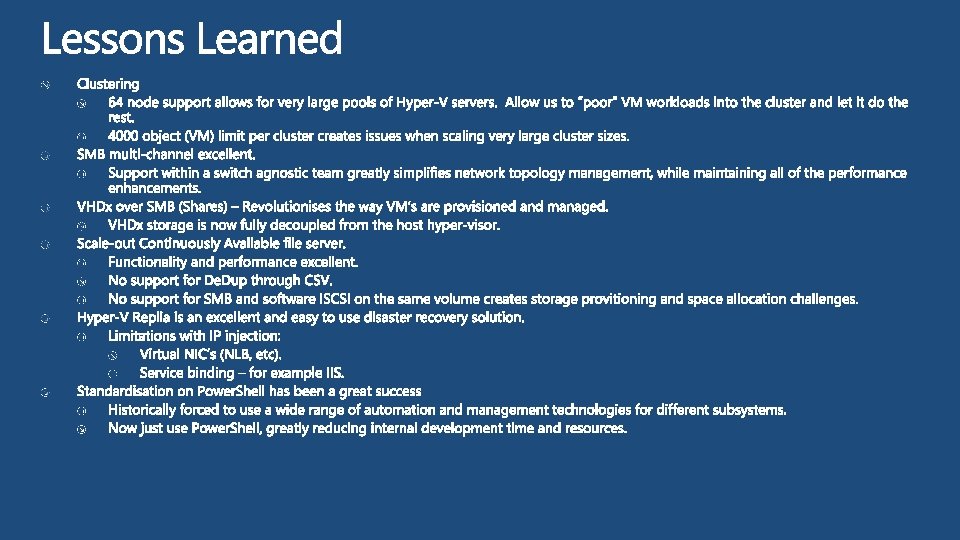

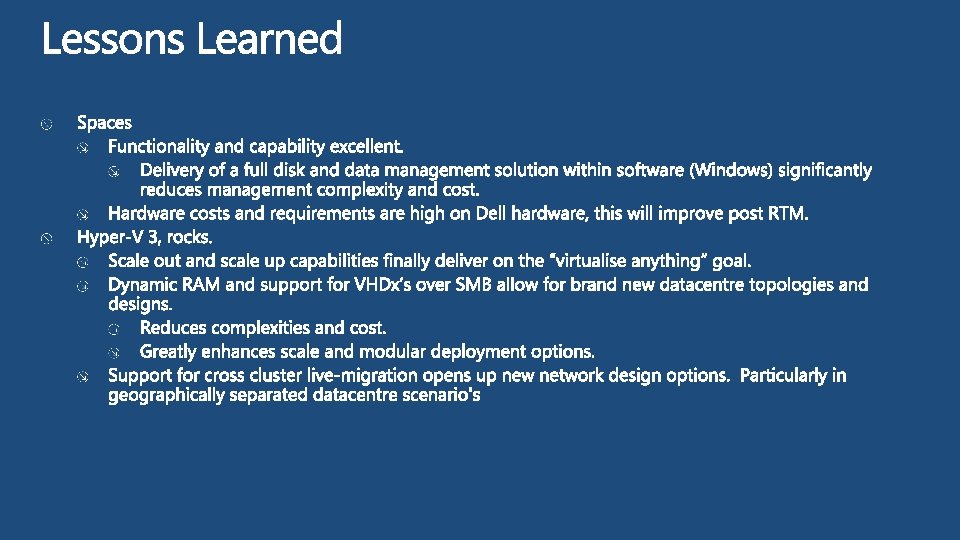

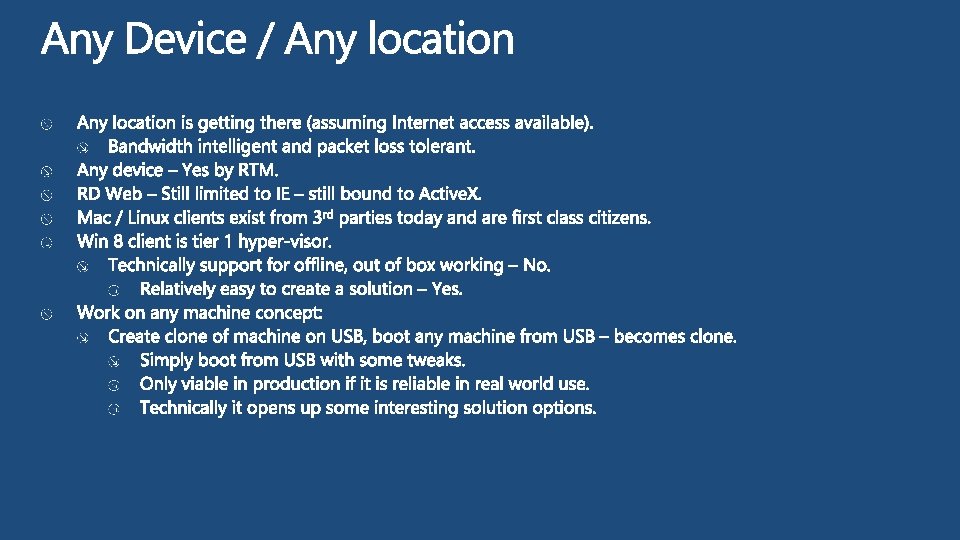

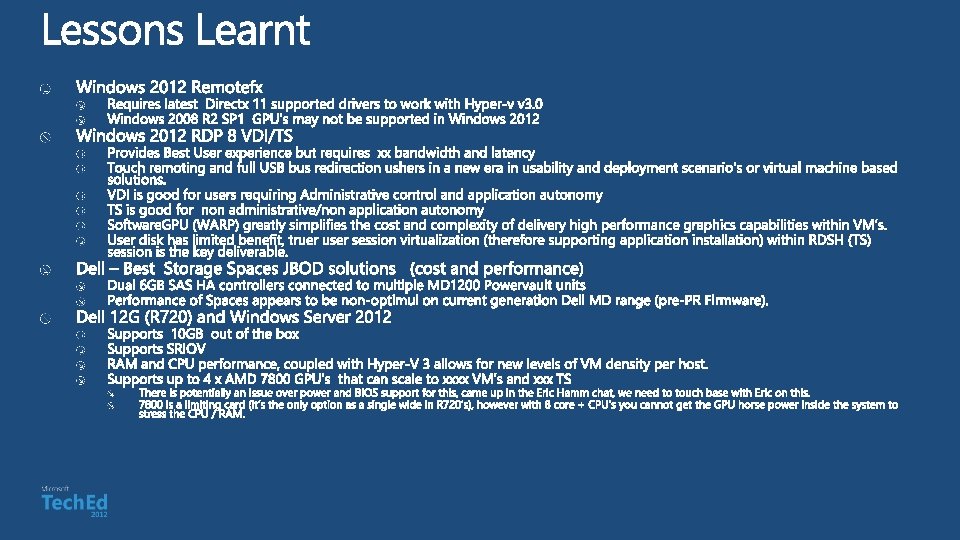

Offloaded Data Transfer
Dell Equal. Logic & Compellent Enabled
Equal. Logic VHDX file copy 250 ODX Disabled 200 ODX Enabled 150 100 50 0 File Copy MB/s
Across Arrays Equal. Logic ODX Disabled ODX Enabled Equal. Logic VHD file copy operation between two storage arrays.
SR-IOV
11 G SR-IOV Supported Platforms Presentation Title | Location | Date
Engineered to Increase Scalability
Throughput to a VM VM Throughput (Gbps) Non-SR-IOV Host to Host SR-IOV Host to SRIOV VM Host vs. VM SR-IOV Throughput (Gbps)
Choice of technology: 1 Gb. E to 10 GE transition Choice of interface: SFP+ to Base-T (Rack) and KR (Blade) Choice of vendor: Broadcom, Intel , QLogic
SMB Multi. Channel
Placeholder
Consistent Device Naming
Dell Driven Solution http: //www. pcisig. com/specifications/pciexpress/specifications/ECR_Slot_Naming-10. pdf
Addresses Deployment Issues Before CDN – Ethernet 4 is physical NIC 1 (Mismatch) With CDN – J_NIC 1 is aligned to physical NIC 1
Dell & Microsoft – “Better Together” For your Windows Server needs
MORE DEPLOYMENT OPTIONS FOR WINDOWS 2012 External Storage Arrays Clustered PCI RAID Storage Spaces Remote File Servers New for Windows 2012 33
Shared Storage FC i. SCSI SAS RBOD FCo. E Space s RAID HBA SAS JBOD Data Replication SMB Hardware Replication Software Replication Application Replication
> – – – Dell Windows 2012 & Commodity Storage 96 SAS disks, MD 1200 support Exposing SAS connection to Windows 2012 Storage Spaces for low cost solution Allowing Storage spaces to configure resiliency and scale No copy offload Will support SMB-Direct Will Support SMB-Multi-channel Basic SAS (no cache or RAID) controller support – SAS connection to JBOD systems as per Storage Spaces team rec 35 Dell Services
Windows Server 2012 ODX – Development efforts under way to support ODX with Storage Center 6. x Thin Provisioning/TRIM (UNMAP) – – Development efforts under way to support ODX with Storage Center 6. x and 5. x Support for deduplication and free space recovery Storage Management – We will be building upon the SMI-S framework to handle storage management calls Power. Shell – Updates to existing Storage Center Command Set for Power. Shell to incorporate enhancements with Windows Server 2012 and Power. Shell v 3
Windows Server 2012 Replay Manager – Extend our snapshot consistency software to integrate with Windows Server 2012 Hyper-V – Support for Hyper-V with Storage Center Boot from SAN – Enable Windows 8 Servers to boot from Storage Center Cloud – – Support for multi-tenancy DR Automation (TBD)
Other Microsoft Integrations System Center Integration SCVMM 2012 – SMI-S integration to allow customers to easily provision storage from single interface within Microsoft System Center SCOM 2012 – New management pack to support SCOM Orchestrator – UI
Schedule Milestones Beta Release Feb • Preliminary testing for BIOS, HW, drivers • Licensing disclosures 40 Dell Confidential RC Release May • OM 7. 1 test and document • Server logo RTM (Gold) Jul/Aug • Final test • Factory Images • Media Creation Dell OEM RTS Nov/Dec • OM 7. 2 Full Support
#TEWSV 210 Hands-On Labs Talk to our Experts at the TLC DOWNLOAD Windows Server 2012 Release Candidate DOWNLOAD Microsoft System Center 2012 Evaluation microsoft. com/windowsserver microsoft. com/systemcenter
Learning Connect. Share. Discuss. Microsoft Certification & Training Resources http: //europe. msteched. com www. microsoft. com/learning Tech. Net Resources for IT Professionals Resources for Developers http: //microsoft. com/technet http: //microsoft. com/msdn
Evaluations Submit your evals online http: //europe. msteched. com/sessions
