Writing Lab Reports Adapted by Meryl Probst from

Writing Lab Reports Adapted by Meryl Probst from Dr. Tamara O’Connor http: //student-learning. tcd. ie

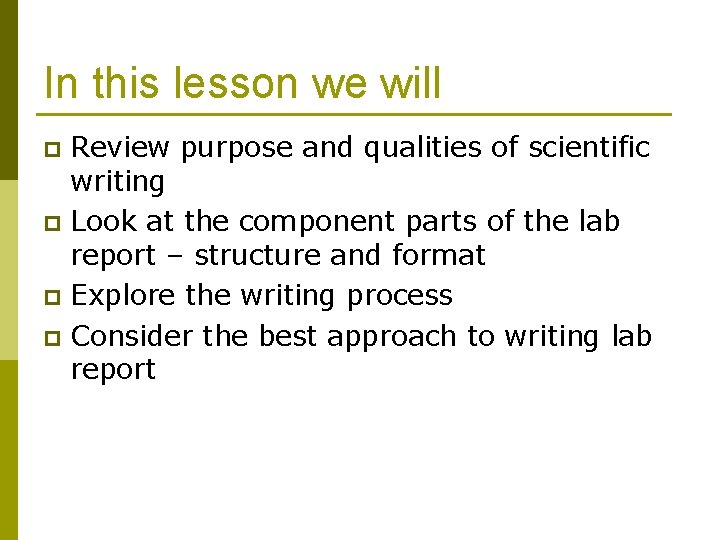

In this lesson we will Review purpose and qualities of scientific writing p Look at the component parts of the lab report – structure and format p Explore the writing process p Consider the best approach to writing lab report p

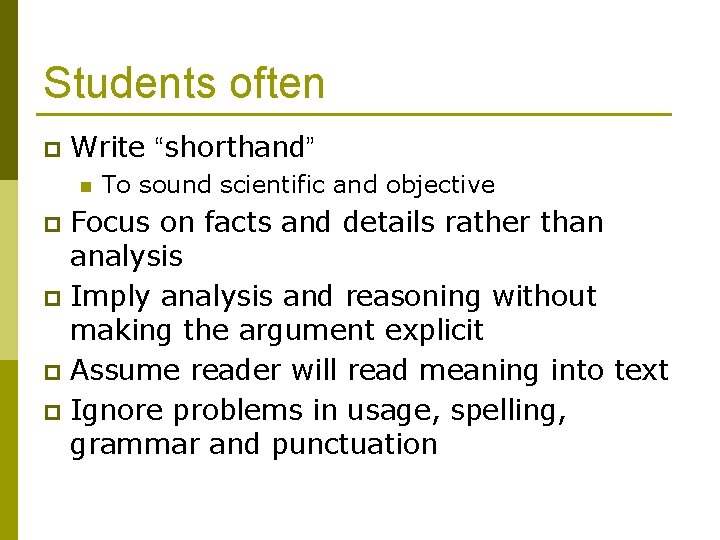

Students often p Write “shorthand” n To sound scientific and objective Focus on facts and details rather than analysis p Imply analysis and reasoning without making the argument explicit p Assume reader will read meaning into text p Ignore problems in usage, spelling, grammar and punctuation p

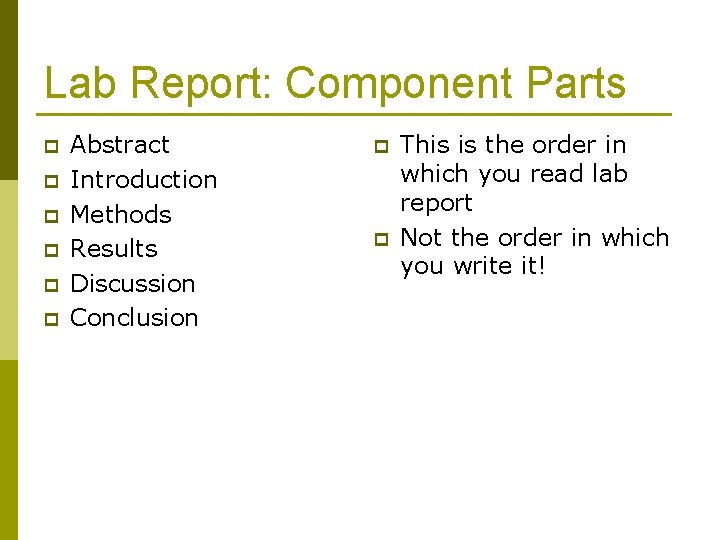

Lab Report: Component Parts p p p Abstract Introduction Methods Results Discussion Conclusion p p This is the order in which you read lab report Not the order in which you write it!

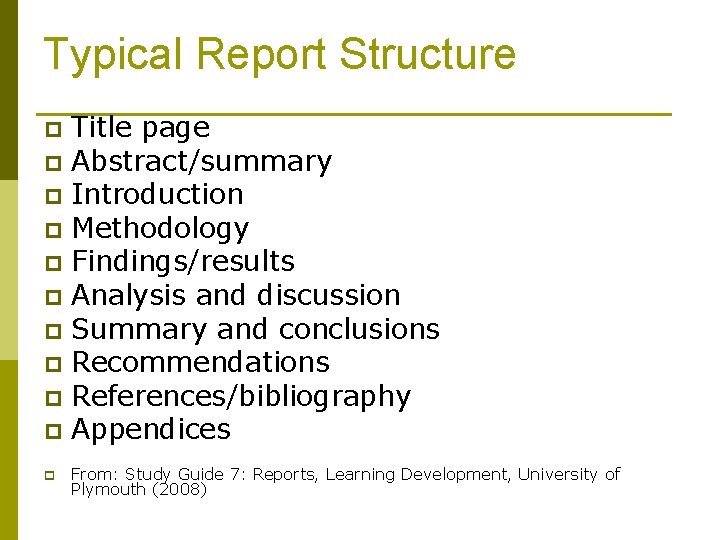

Typical Report Structure Title page p Abstract/summary p Introduction p Methodology p Findings/results p Analysis and discussion p Summary and conclusions p Recommendations p References/bibliography p Appendices p p From: Study Guide 7: Reports, Learning Development, University of Plymouth (2008)

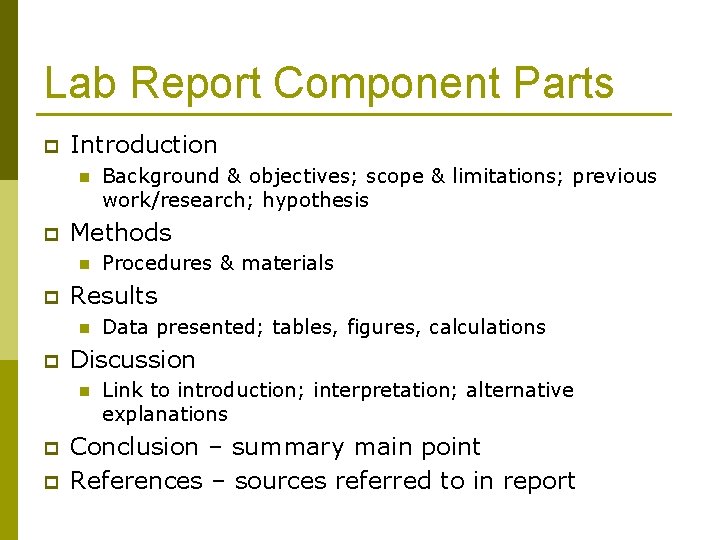

Lab Report Component Parts p Introduction n p Methods n p p Data presented; tables, figures, calculations Discussion n p Procedures & materials Results n p Background & objectives; scope & limitations; previous work/research; hypothesis Link to introduction; interpretation; alternative explanations Conclusion – summary main point References – sources referred to in report

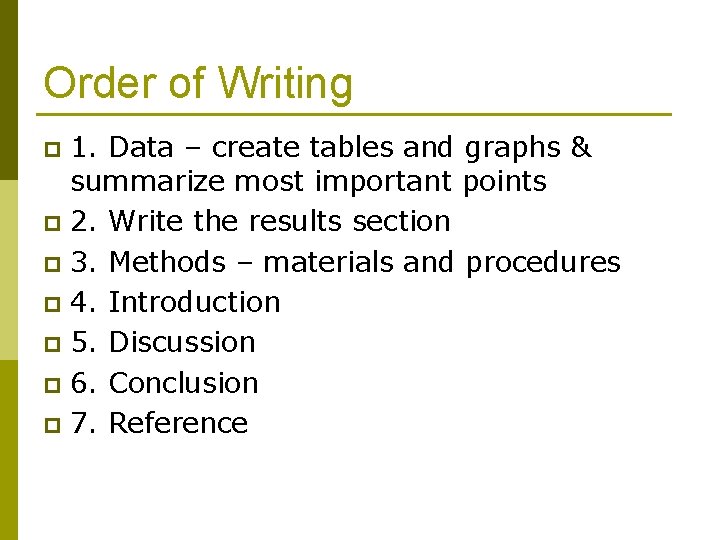

Order of Writing 1. Data – create tables and graphs & summarize most important points p 2. Write the results section p 3. Methods – materials and procedures p 4. Introduction p 5. Discussion p 6. Conclusion p 7. Reference p

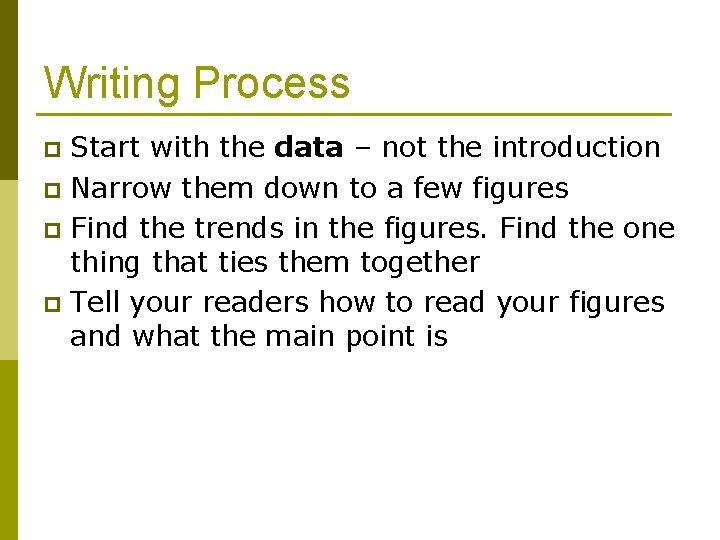

Writing Process Start with the data – not the introduction p Narrow them down to a few figures p Find the trends in the figures. Find the one thing that ties them together p Tell your readers how to read your figures and what the main point is p

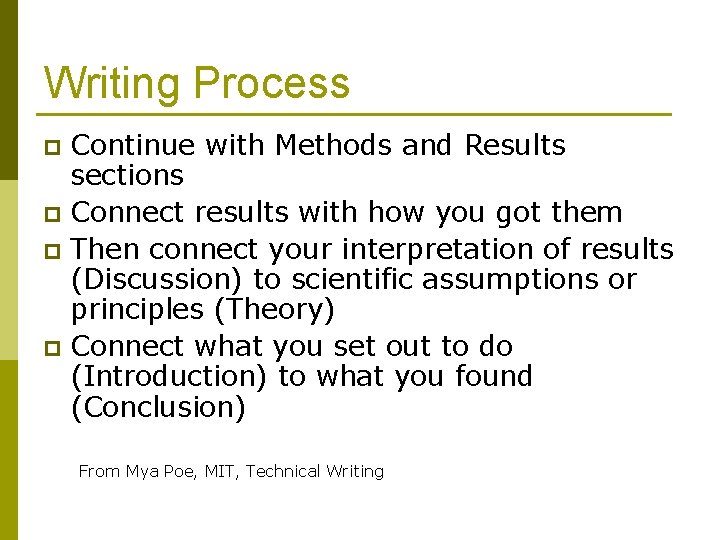

Writing Process Continue with Methods and Results sections p Connect results with how you got them p Then connect your interpretation of results (Discussion) to scientific assumptions or principles (Theory) p Connect what you set out to do (Introduction) to what you found (Conclusion) p From Mya Poe, MIT, Technical Writing

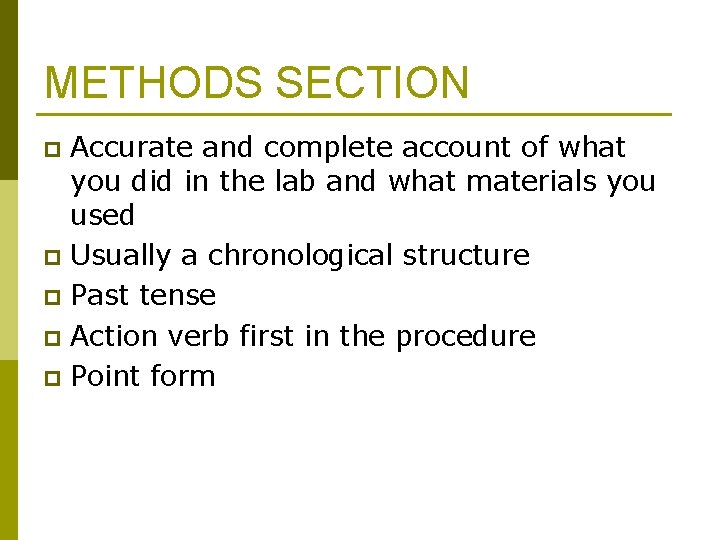

METHODS SECTION Accurate and complete account of what you did in the lab and what materials you used p Usually a chronological structure p Past tense p Action verb first in the procedure p Point form p

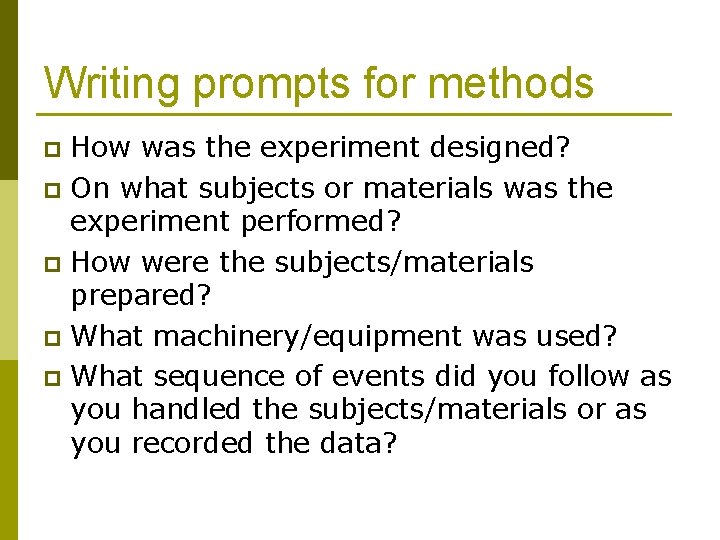

Writing prompts for methods How was the experiment designed? p On what subjects or materials was the experiment performed? p How were the subjects/materials prepared? p What machinery/equipment was used? p What sequence of events did you follow as you handled the subjects/materials or as you recorded the data? p

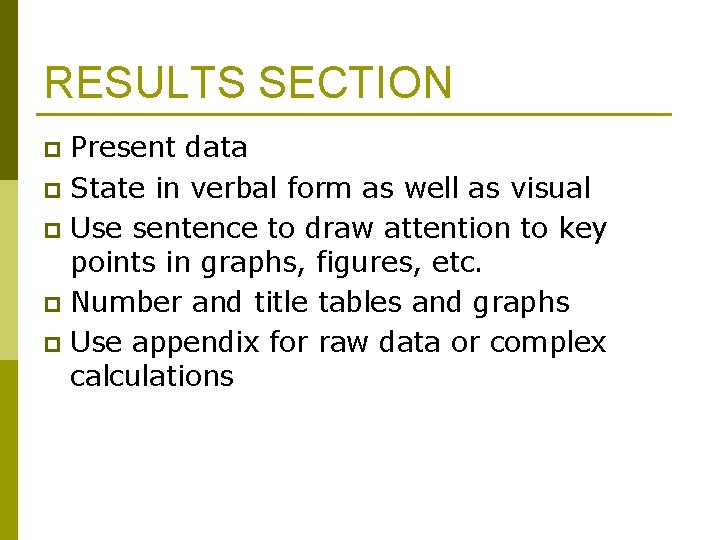

RESULTS SECTION Present data p State in verbal form as well as visual p Use sentence to draw attention to key points in graphs, figures, etc. p Number and title tables and graphs p Use appendix for raw data or complex calculations p

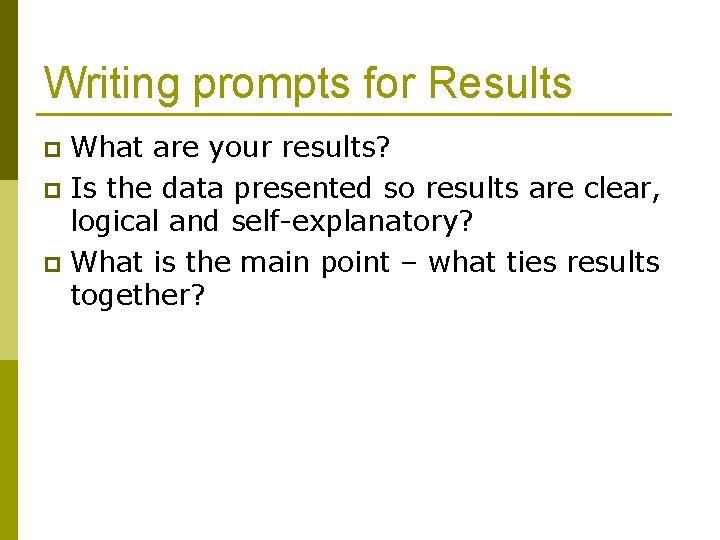

Writing prompts for Results What are your results? p Is the data presented so results are clear, logical and self-explanatory? p What is the main point – what ties results together? p

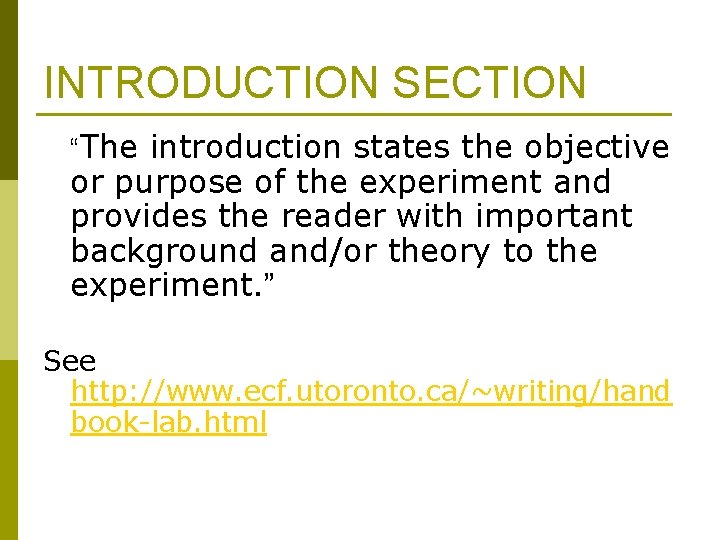

INTRODUCTION SECTION “The introduction states the objective or purpose of the experiment and provides the reader with important background and/or theory to the experiment. ” See http: //www. ecf. utoronto. ca/~writing/hand book-lab. html

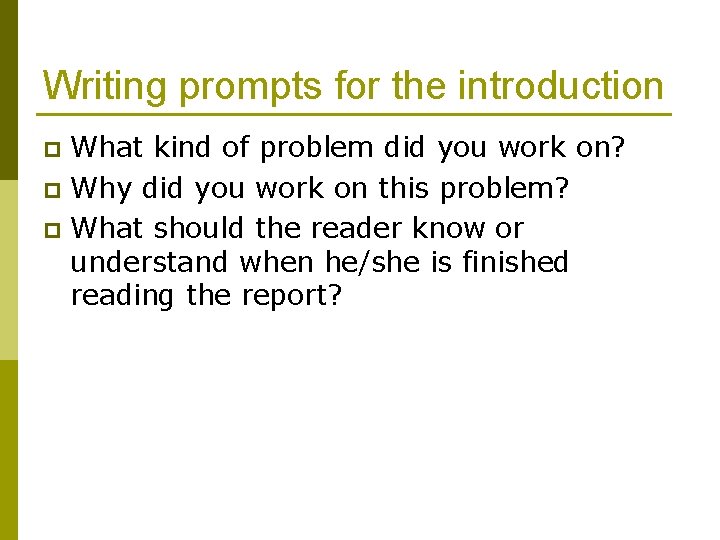

Writing prompts for the introduction What kind of problem did you work on? p Why did you work on this problem? p What should the reader know or understand when he/she is finished reading the report? p

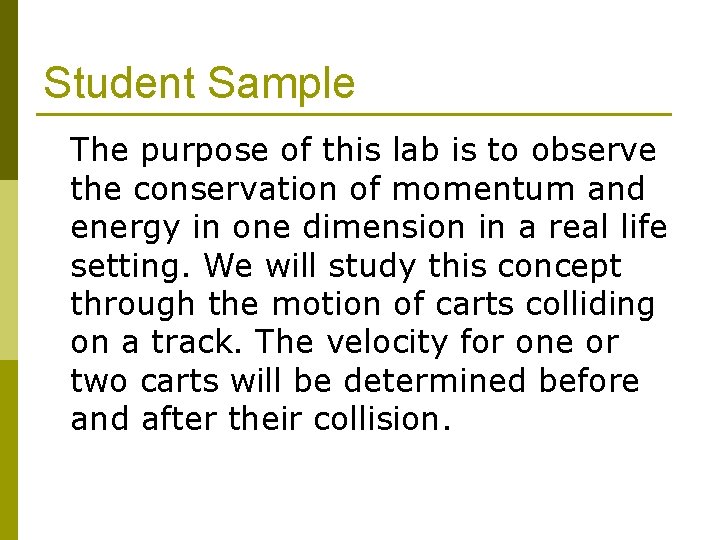

Student Sample The purpose of this lab is to observe the conservation of momentum and energy in one dimension in a real life setting. We will study this concept through the motion of carts colliding on a track. The velocity for one or two carts will be determined before and after their collision.

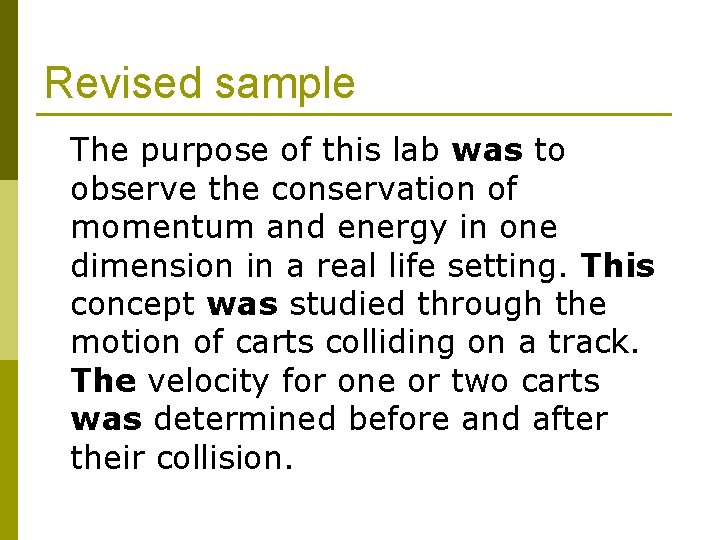

Revised sample The purpose of this lab was to observe the conservation of momentum and energy in one dimension in a real life setting. This concept was studied through the motion of carts colliding on a track. The velocity for one or two carts was determined before and after their collision.

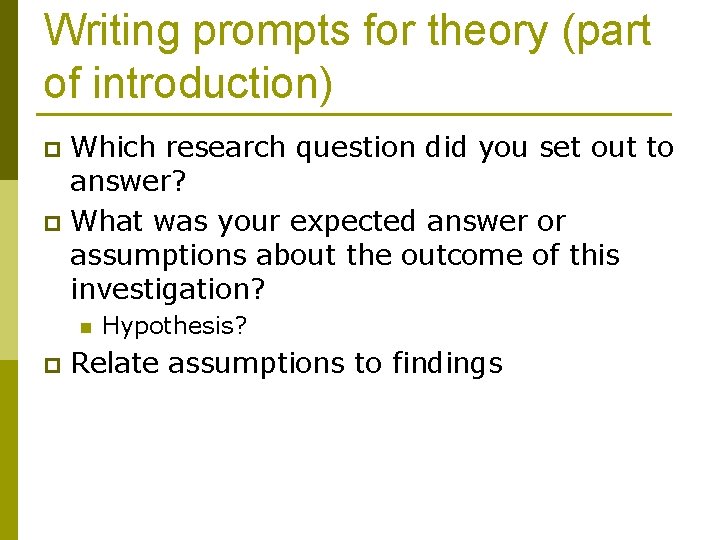

Writing prompts for theory (part of introduction) Which research question did you set out to answer? p What was your expected answer or assumptions about the outcome of this investigation? p n p Hypothesis? Relate assumptions to findings

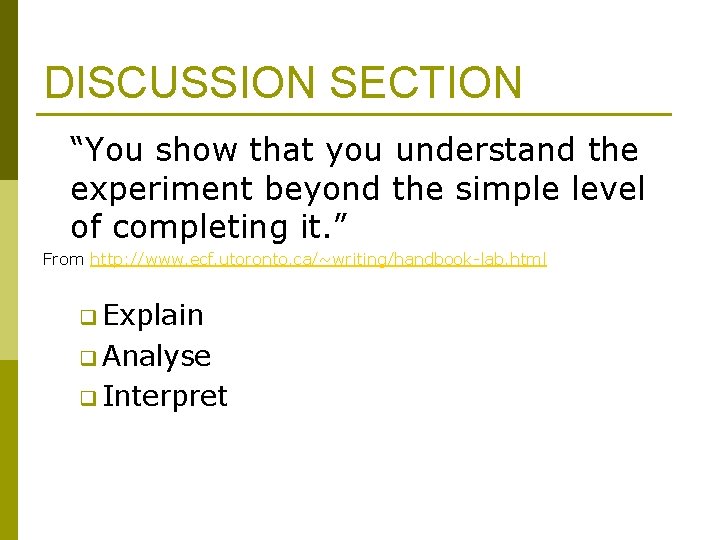

DISCUSSION SECTION “You show that you understand the experiment beyond the simple level of completing it. ” From http: //www. ecf. utoronto. ca/~writing/handbook-lab. html q Explain q Analyse q Interpret

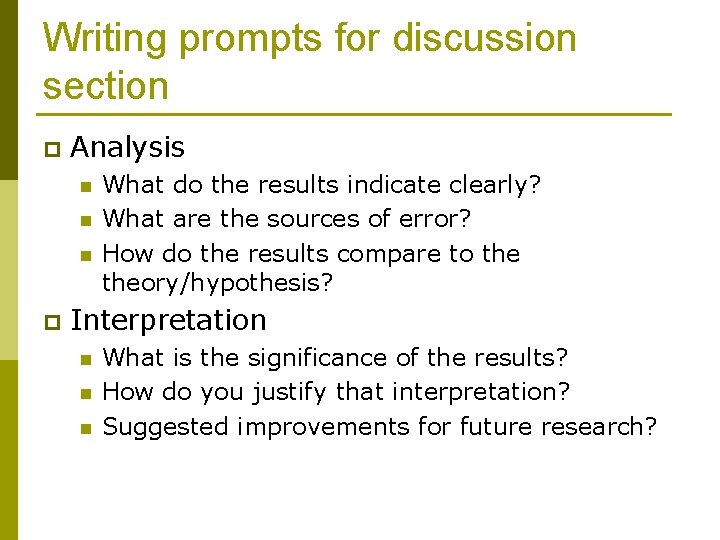

Writing prompts for discussion section p Analysis n n n p What do the results indicate clearly? What are the sources of error? How do the results compare to theory/hypothesis? Interpretation n What is the significance of the results? How do you justify that interpretation? Suggested improvements for future research?

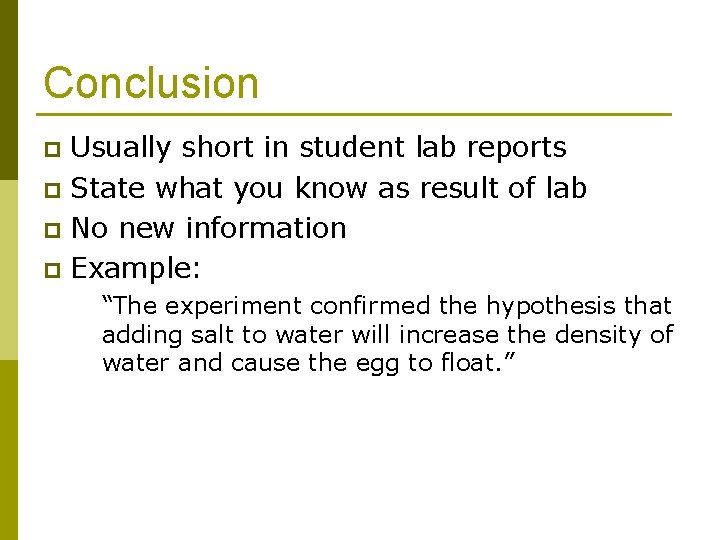

Conclusion Usually short in student lab reports p State what you know as result of lab p No new information p Example: p “The experiment confirmed the hypothesis that adding salt to water will increase the density of water and cause the egg to float. ”

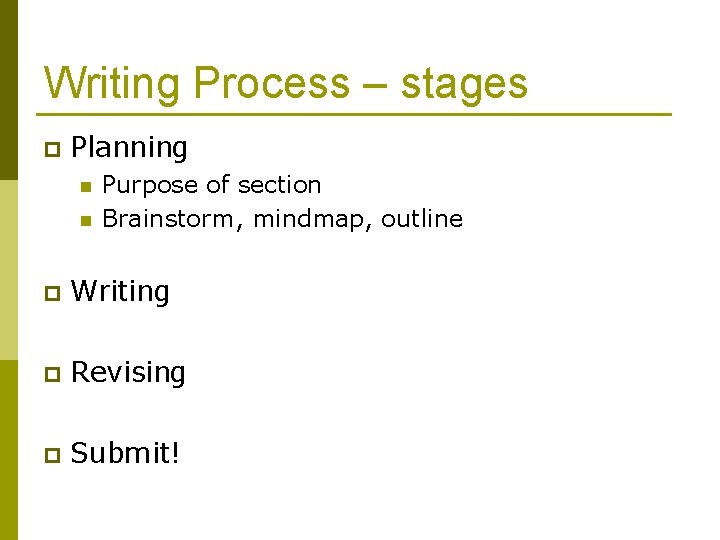

Writing Process – stages p Planning n n Purpose of section Brainstorm, mindmap, outline p Writing p Revising p Submit!

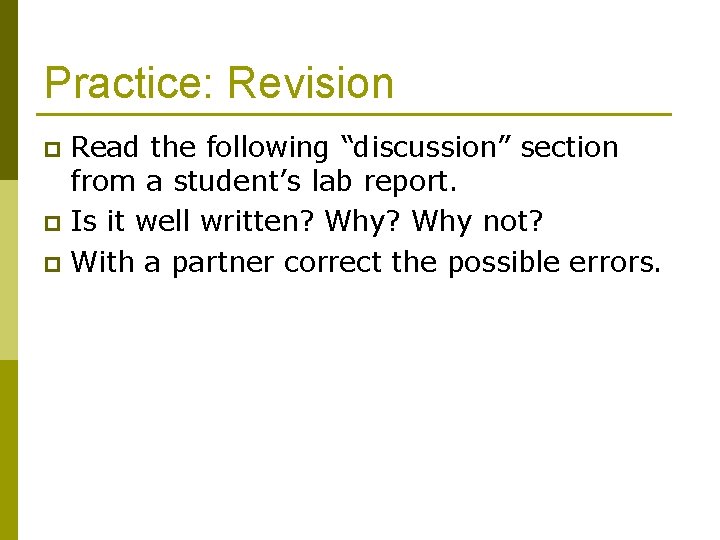

Practice: Revision Read the following “discussion” section from a student’s lab report. p Is it well written? Why not? p With a partner correct the possible errors. p

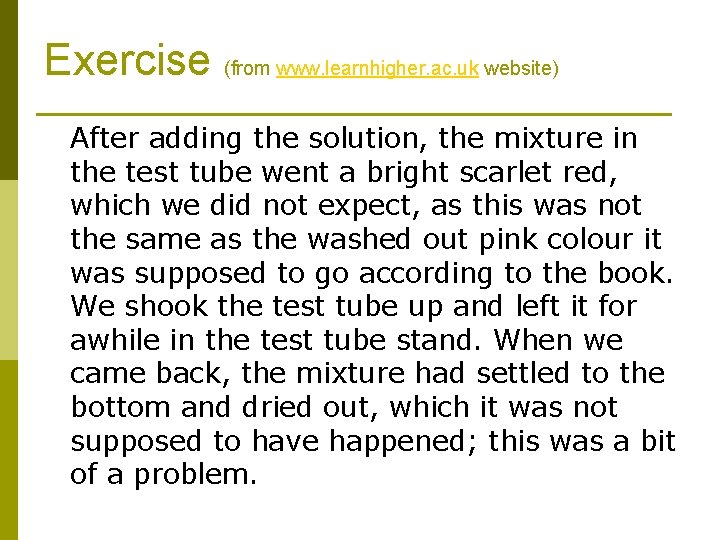

Exercise (from www. learnhigher. ac. uk website) After adding the solution, the mixture in the test tube went a bright scarlet red, which we did not expect, as this was not the same as the washed out pink colour it was supposed to go according to the book. We shook the test tube up and left it for awhile in the test tube stand. When we came back, the mixture had settled to the bottom and dried out, which it was not supposed to have happened; this was a bit of a problem.
