Writing A Number in Engineering Notation Shift the

Writing A Number in Engineering Notation • Shift the decimal point in “groups of three” until the number before the decimal point is between 0 and 999. • Multiply by a power of 10 that is equal to the number of places the decimal point has been moved. • The power of 10 is positive if the decimal point is moved to the left and negative if the decimal point is moved to the right. 1

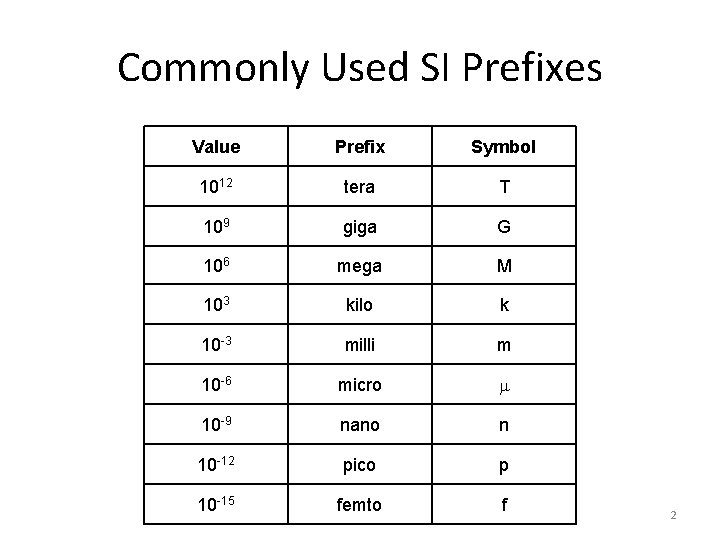

Commonly Used SI Prefixes Value Prefix Symbol 1012 tera T 109 giga G 106 mega M 103 kilo k 10 -3 milli m 10 -6 micro 10 -9 nano n 10 -12 pico p 10 -15 femto f 2

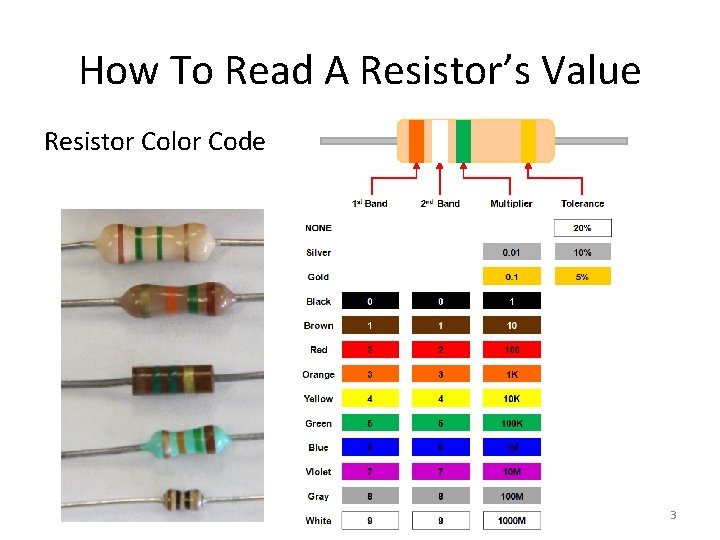

How To Read A Resistor’s Value Resistor Color Code 3

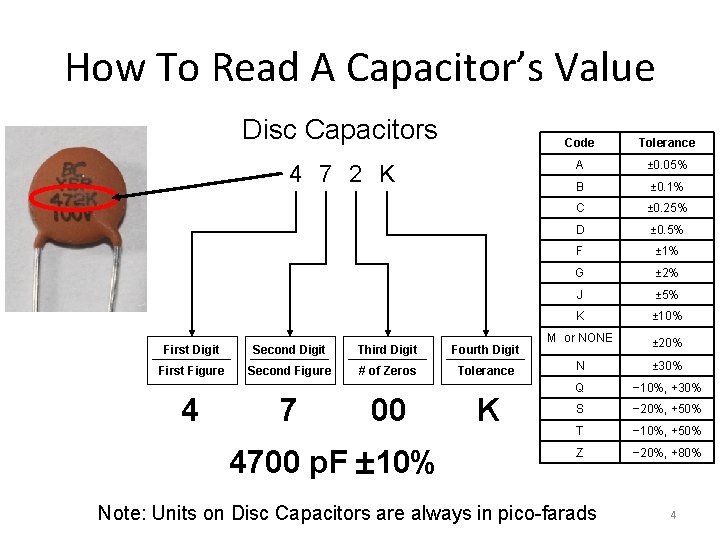

How To Read A Capacitor’s Value Disc Capacitors 4 7 2 K First Digit Second Digit Third Digit Fourth Digit First Figure Second Figure # of Zeros Tolerance 4 7 00 4700 p. F 10% K Code Tolerance A ± 0. 05% B ± 0. 1% C ± 0. 25% D ± 0. 5% F ± 1% G ± 2% J ± 5% K ± 10% M or NONE ± 20% N ± 30% Q − 10%, +30% S − 20%, +50% T − 10%, +50% Z − 20%, +80% Note: Units on Disc Capacitors are always in pico-farads 4

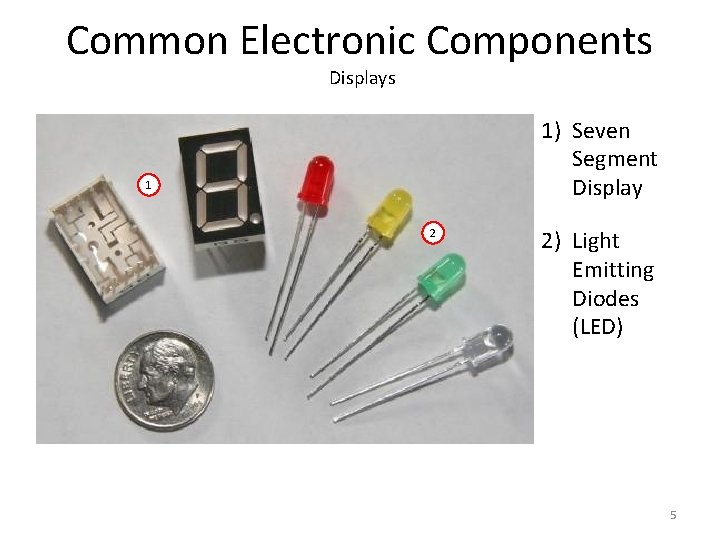

Common Electronic Components Displays 1) Seven Segment Display 1 2 2) Light Emitting Diodes (LED) 5

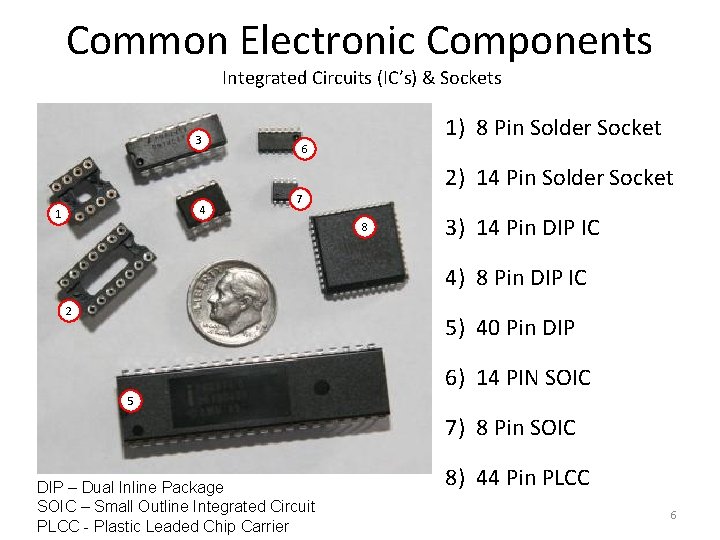

Common Electronic Components Integrated Circuits (IC’s) & Sockets 3 4 1 1) 8 Pin Solder Socket 6 2) 14 Pin Solder Socket 7 8 3) 14 Pin DIP IC 4) 8 Pin DIP IC 2 5) 40 Pin DIP 6) 14 PIN SOIC 5 7) 8 Pin SOIC DIP – Dual Inline Package SOIC – Small Outline Integrated Circuit PLCC - Plastic Leaded Chip Carrier 8) 44 Pin PLCC 6

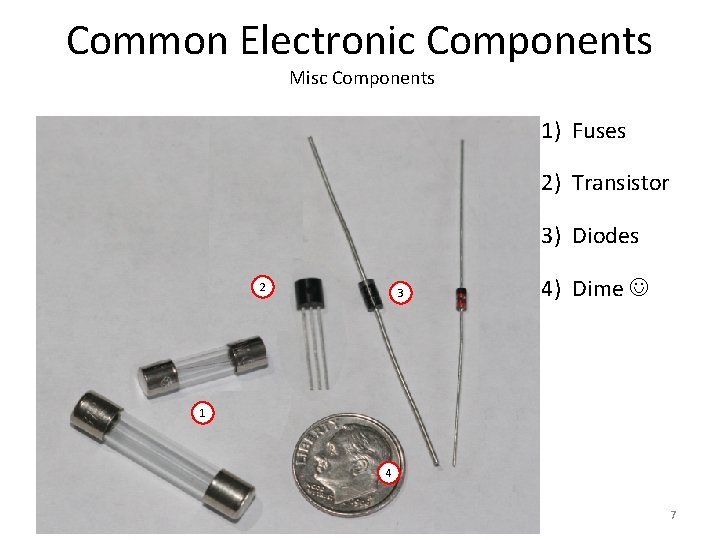

Common Electronic Components Misc Components 1) Fuses 2) Transistor 3) Diodes 2 3 4) Dime 1 4 7
