WRF Tutorial For Version 2 2 Synoptic Lab

WRF Tutorial For Version 2. 2 / Synoptic Lab 10/3/2007 Robert Fovell rfovell@ucla. edu http: //tinyurl. com/2 uagrc or http: //www. atmos. ucla. edu/~fovell/WRF/wrf_tutorial_2007. ppt. htm

Background on WRF model • “Weather Research and Forecasting” • Co-developed by research and operational communities – ARW core “Advanced Research WRF” – NMM core “Nonhydrostatic Mesoscale Model” • Supercedes MM 5 and Eta models • Current version 2. 2 • Platforms include Linux and Mac OS X

WRF advantages • Better numerics than MM 5 – Arakawa C grid, R-K scheme, odd order advection w/ implicit diffusion – Much less diffusive, larger effective resolution, permits longer time steps • Better handling of topography than Eta (original NAM) – NAM model is now WRF-NMM • Fortran 95 (MM 5 was F 77) • Net. CDF, GRIB 1 and GRIB 2

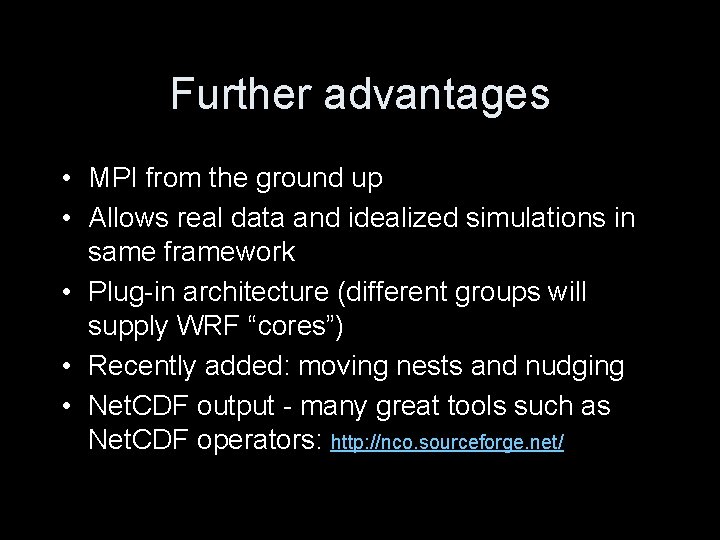

Further advantages • MPI from the ground up • Allows real data and idealized simulations in same framework • Plug-in architecture (different groups will supply WRF “cores”) • Recently added: moving nests and nudging • Net. CDF output - many great tools such as Net. CDF operators: http: //nco. sourceforge. net/

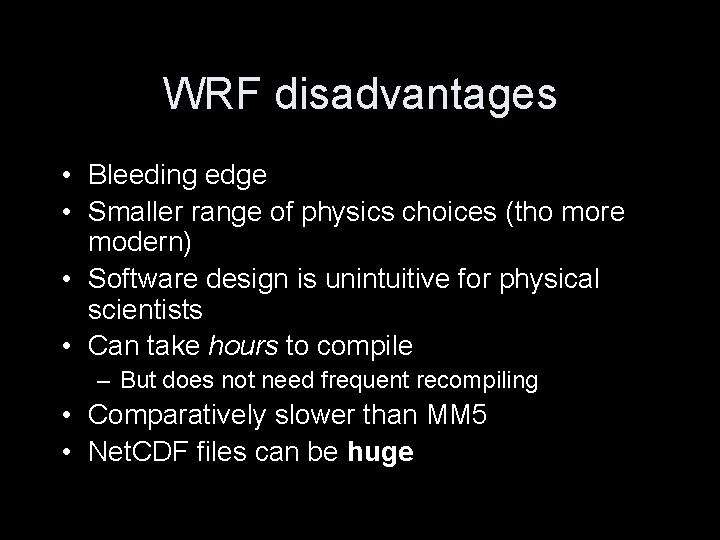

WRF disadvantages • Bleeding edge • Smaller range of physics choices (tho more modern) • Software design is unintuitive for physical scientists • Can take hours to compile – But does not need frequent recompiling • Comparatively slower than MM 5 • Net. CDF files can be huge

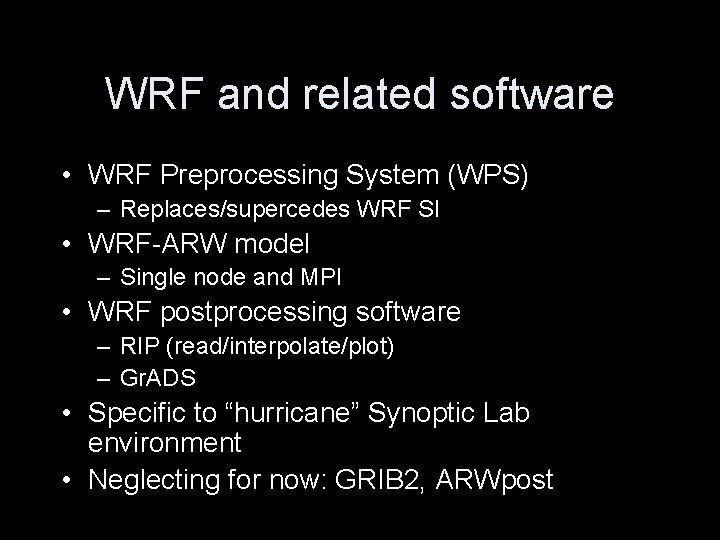

WRF and related software • WRF Preprocessing System (WPS) – Replaces/supercedes WRF SI • WRF-ARW model – Single node and MPI • WRF postprocessing software – RIP (read/interpolate/plot) – Gr. ADS • Specific to “hurricane” Synoptic Lab environment • Neglecting for now: GRIB 2, ARWpost

Web resources • WRF model users site http: //www. mmm. ucar. edu/wrf/users/user_main. html • ARW users’ guide http: //www. mmm. ucar. edu/wrf/users/docs/user_guide/contents. html • WRF-ARW/WPS online tutorial http: //www. mmm. ucar. edu/wrf/On. Line. Tutorial/index. htm • WRF namelist description http: //www. mmm. ucar. edu/wrf/users/docs/user_guide/users_gu ide_chap 5. html#Nml • Tutorial presentations http: //www. mmm. ucar. edu/wrf/users/tutorial_presentatio n. htm

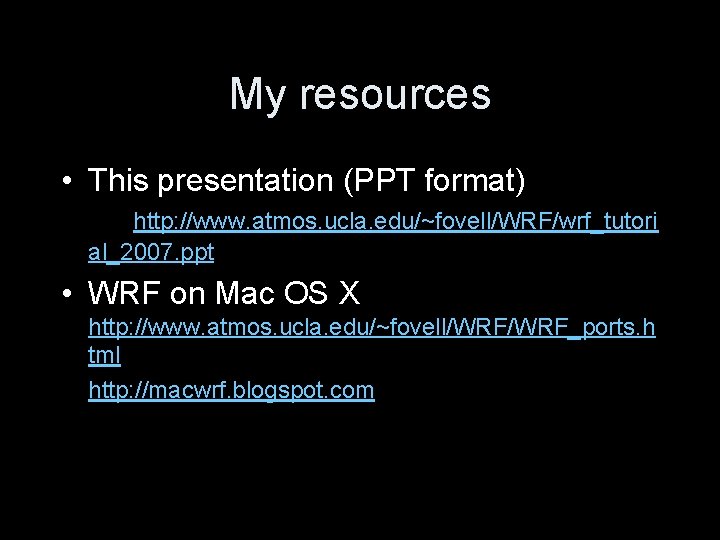

My resources • This presentation (PPT format) http: //www. atmos. ucla. edu/~fovell/WRF/wrf_tutori al_2007. ppt • WRF on Mac OS X http: //www. atmos. ucla. edu/~fovell/WRF_ports. h tml http: //macwrf. blogspot. com

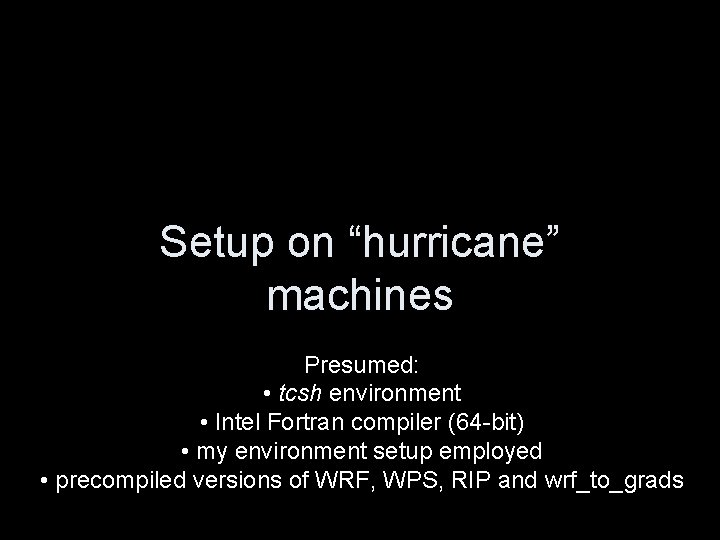

Setup on “hurricane” machines Presumed: • tcsh environment • Intel Fortran compiler (64 -bit) • my environment setup employed • precompiled versions of WRF, WPS, RIP and wrf_to_grads

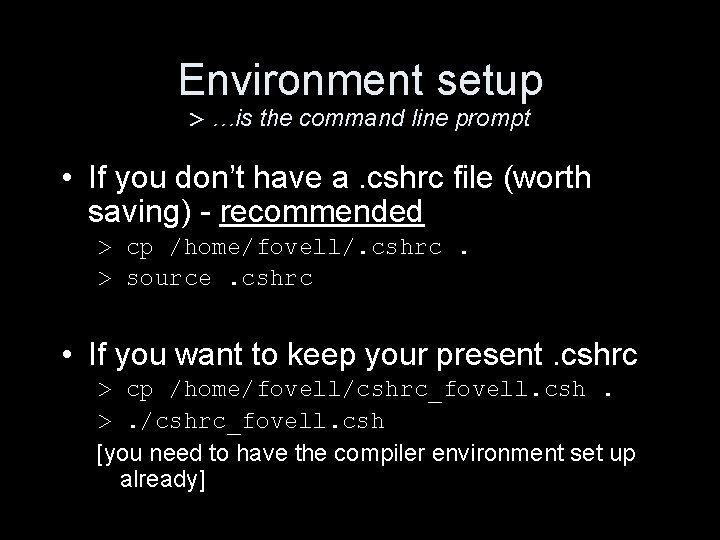

Environment setup > …is the command line prompt • If you don’t have a. cshrc file (worth saving) - recommended > cp /home/fovell/. cshrc. > source. cshrc • If you want to keep your present. cshrc > cp /home/fovell/cshrc_fovell. csh. >. /cshrc_fovell. csh [you need to have the compiler environment set up already]

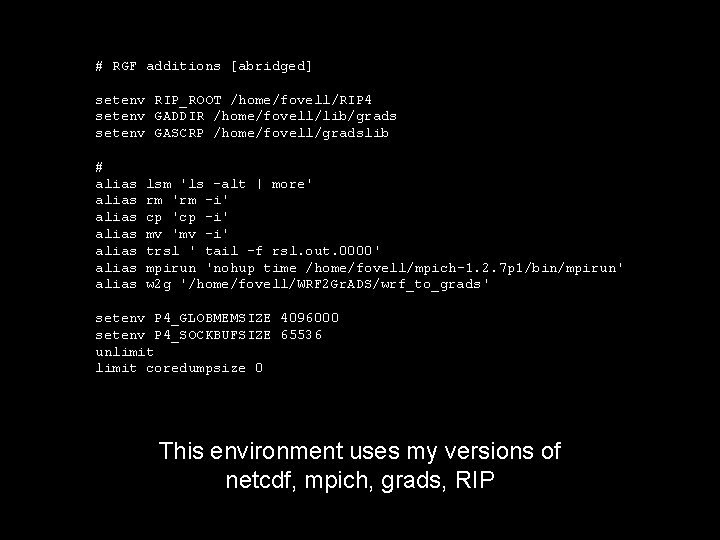

# RGF additions [abridged] setenv RIP_ROOT /home/fovell/RIP 4 setenv GADDIR /home/fovell/lib/grads setenv GASCRP /home/fovell/gradslib # alias alias lsm 'ls -alt | more' rm 'rm -i' cp 'cp -i' mv 'mv -i' trsl ' tail -f rsl. out. 0000' mpirun 'nohup time /home/fovell/mpich-1. 2. 7 p 1/bin/mpirun' w 2 g '/home/fovell/WRF 2 Gr. ADS/wrf_to_grads' setenv P 4_GLOBMEMSIZE 4096000 setenv P 4_SOCKBUFSIZE 65536 unlimit coredumpsize 0 This environment uses my versions of netcdf, mpich, grads, RIP

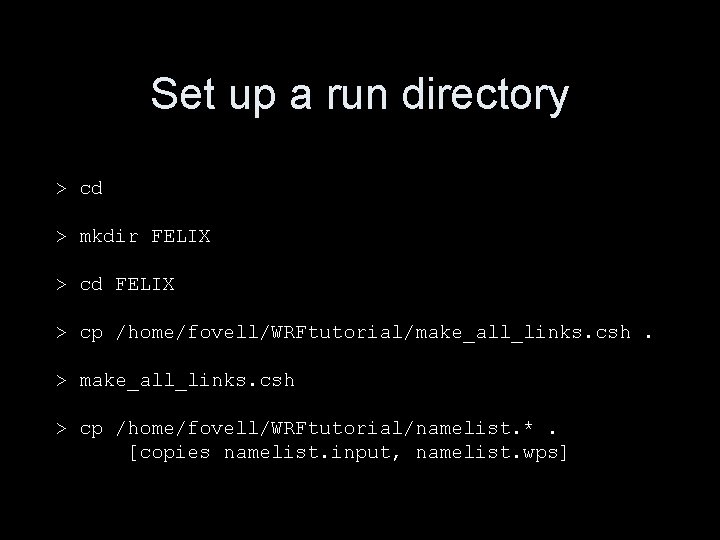

Set up a run directory > cd > mkdir FELIX > cd FELIX > cp /home/fovell/WRFtutorial/make_all_links. csh. > make_all_links. csh > cp /home/fovell/WRFtutorial/namelist. *. [copies namelist. input, namelist. wps]

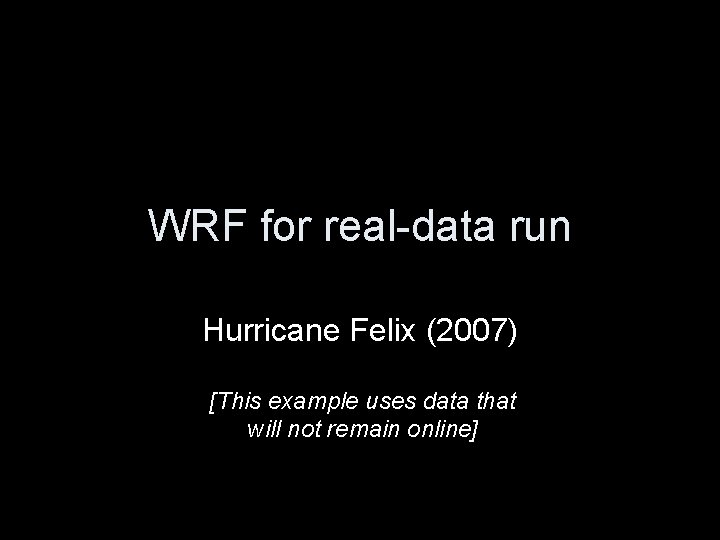

WRF for real-data run Hurricane Felix (2007) [This example uses data that will not remain online]

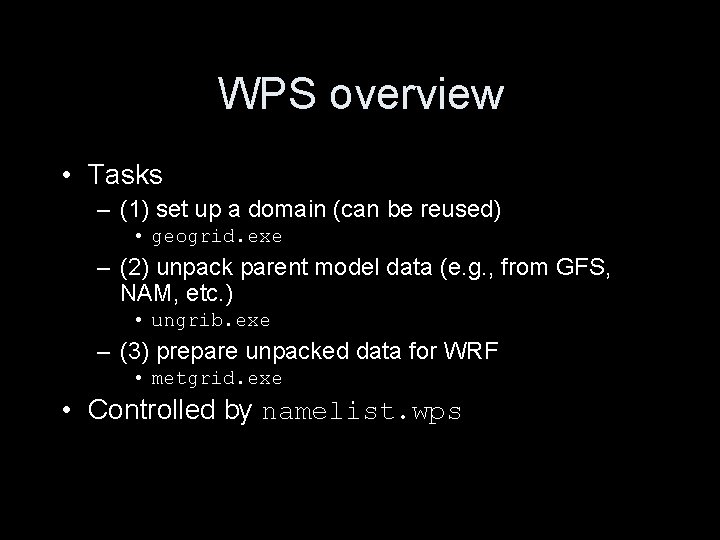

WPS overview • Tasks – (1) set up a domain (can be reused) • geogrid. exe – (2) unpack parent model data (e. g. , from GFS, NAM, etc. ) • ungrib. exe – (3) prepare unpacked data for WRF • metgrid. exe • Controlled by namelist. wps

namelist. wps &share wrf_core = 'ARW', max_dom = 1, start_date = '2007 -09 -02_00: 00: 00', end_date = '2007 -09 -03_12: 00: 00', interval_seconds = 10800, io_form_geogrid = 2, / • For start_date, end_date need one column for each domain • interval_seconds is parent model data frequency (here, 3 h)

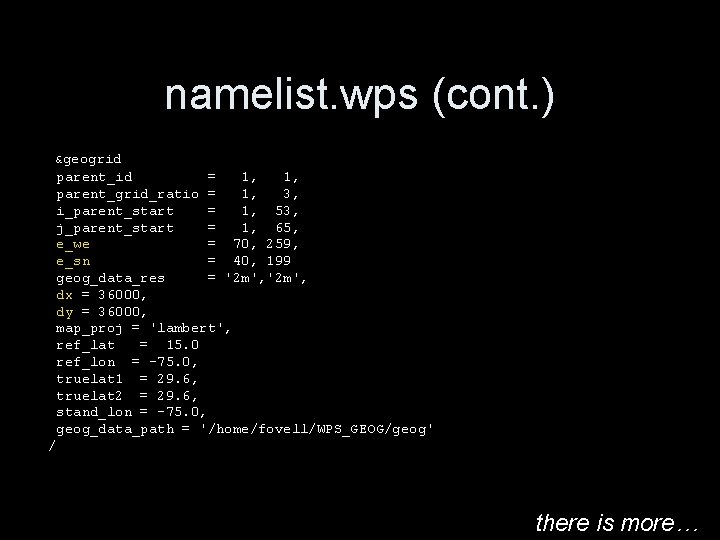

namelist. wps (cont. ) &geogrid parent_id = 1, 1, parent_grid_ratio = 1, 3, i_parent_start = 1, 53, j_parent_start = 1, 65, e_we = 70, 259, e_sn = 40, 199 geog_data_res = '2 m', dx = 36000, dy = 36000, map_proj = 'lambert', ref_lat = 15. 0 ref_lon = -75. 0, truelat 1 = 29. 6, truelat 2 = 29. 6, stand_lon = -75. 0, geog_data_path = '/home/fovell/WPS_GEOG/geog' / there is more…

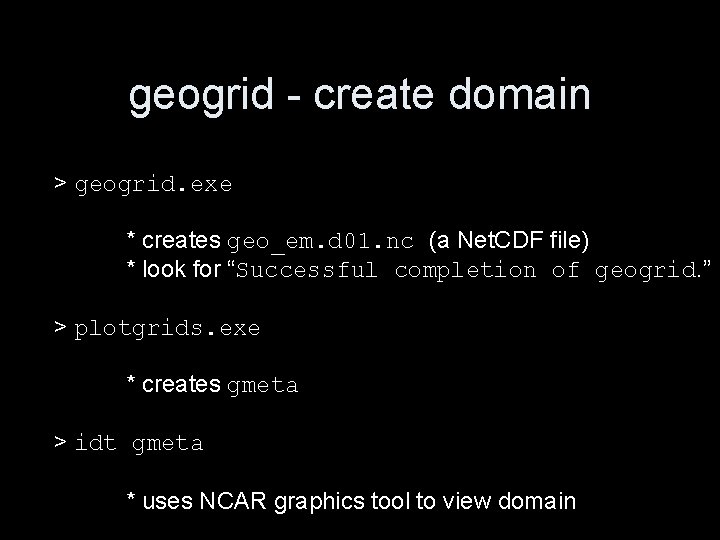

geogrid - create domain > geogrid. exe * creates geo_em. d 01. nc (a Net. CDF file) * look for “Successful completion of geogrid. ” > plotgrids. exe * creates gmeta > idt gmeta * uses NCAR graphics tool to view domain

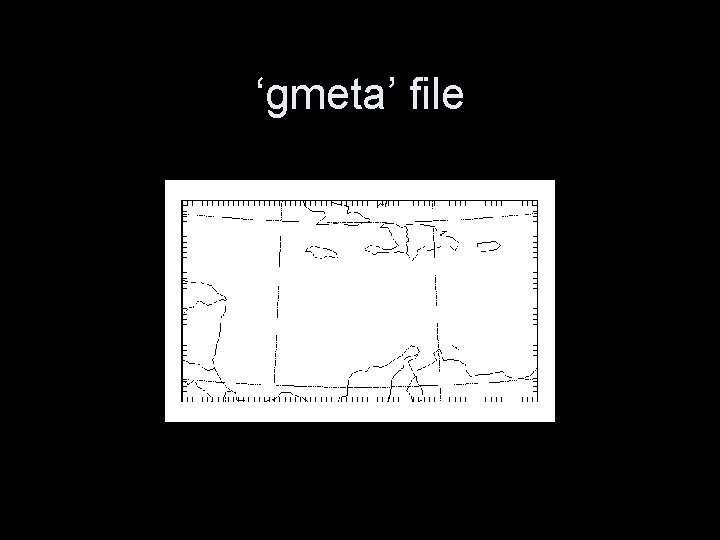

‘gmeta’ file

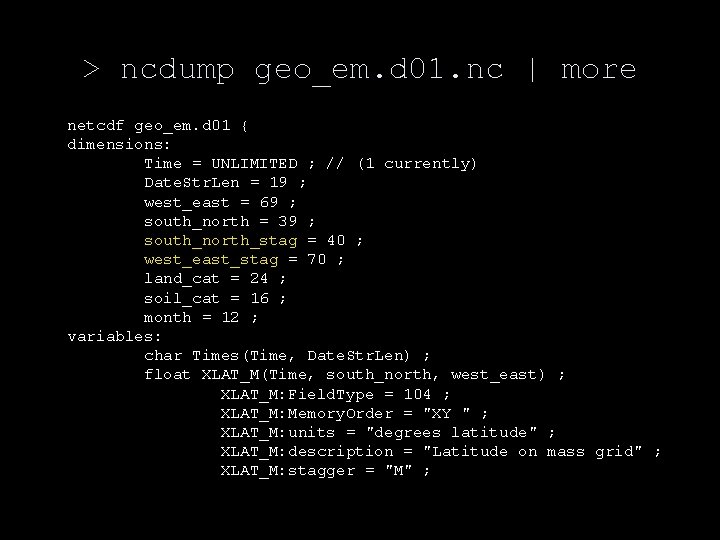

> ncdump geo_em. d 01. nc | more netcdf geo_em. d 01 { dimensions: Time = UNLIMITED ; // (1 currently) Date. Str. Len = 19 ; west_east = 69 ; south_north = 39 ; south_north_stag = 40 ; west_east_stag = 70 ; land_cat = 24 ; soil_cat = 16 ; month = 12 ; variables: char Times(Time, Date. Str. Len) ; float XLAT_M(Time, south_north, west_east) ; XLAT_M: Field. Type = 104 ; XLAT_M: Memory. Order = "XY " ; XLAT_M: units = "degrees latitude" ; XLAT_M: description = "Latitude on mass grid" ; XLAT_M: stagger = "M" ;

Parent model data issues • Sources include GFS, NAM, NARR reanalysis data, etc. • Need a different Vtable (variable table) for each source – e. g. , Vtable. GFS, Vtable. AWIP (NAM), Vtable. NARR, etc. – Look in /home/fovell/WRFtutorial

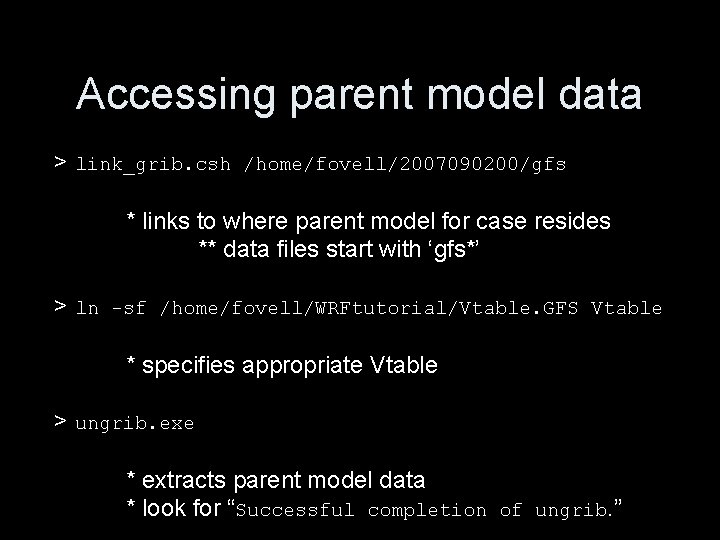

Accessing parent model data > link_grib. csh /home/fovell/2007090200/gfs * links to where parent model for case resides ** data files start with ‘gfs*’ > ln -sf /home/fovell/WRFtutorial/Vtable. GFS Vtable * specifies appropriate Vtable > ungrib. exe * extracts parent model data * look for “Successful completion of ungrib. ”

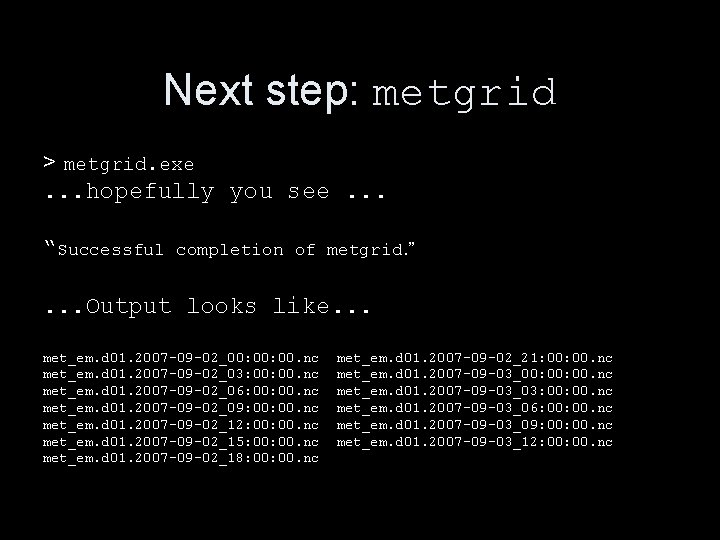

Next step: metgrid > metgrid. exe. . . hopefully you see. . . “Successful completion of metgrid. ” . . . Output looks like. . . met_em. d 01. 2007 -09 -02_00: 00. nc met_em. d 01. 2007 -09 -02_03: 00. nc met_em. d 01. 2007 -09 -02_06: 00. nc met_em. d 01. 2007 -09 -02_09: 00. nc met_em. d 01. 2007 -09 -02_12: 00. nc met_em. d 01. 2007 -09 -02_15: 00. nc met_em. d 01. 2007 -09 -02_18: 00. nc met_em. d 01. 2007 -09 -02_21: 00. nc met_em. d 01. 2007 -09 -03_00: 00. nc met_em. d 01. 2007 -09 -03_03: 00. nc met_em. d 01. 2007 -09 -03_06: 00. nc met_em. d 01. 2007 -09 -03_09: 00. nc met_em. d 01. 2007 -09 -03_12: 00. nc

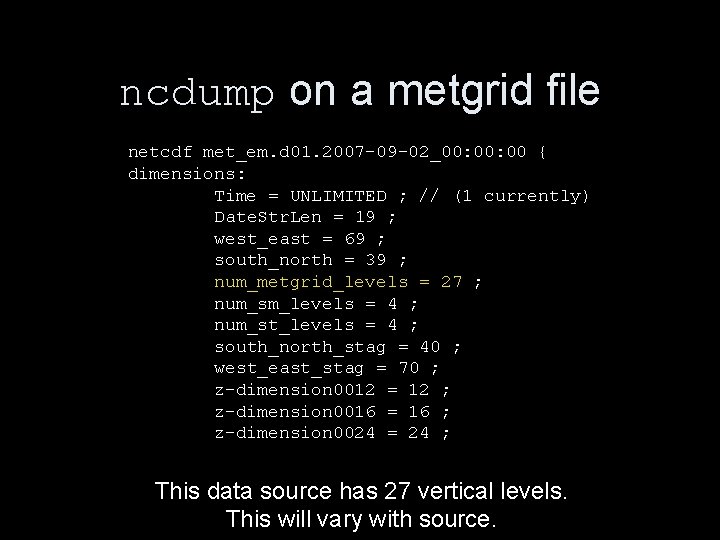

ncdump on a metgrid file netcdf met_em. d 01. 2007 -09 -02_00: 00 { dimensions: Time = UNLIMITED ; // (1 currently) Date. Str. Len = 19 ; west_east = 69 ; south_north = 39 ; num_metgrid_levels = 27 ; num_sm_levels = 4 ; num_st_levels = 4 ; south_north_stag = 40 ; west_east_stag = 70 ; z-dimension 0012 = 12 ; z-dimension 0016 = 16 ; z-dimension 0024 = 24 ; This data source has 27 vertical levels. This will vary with source.

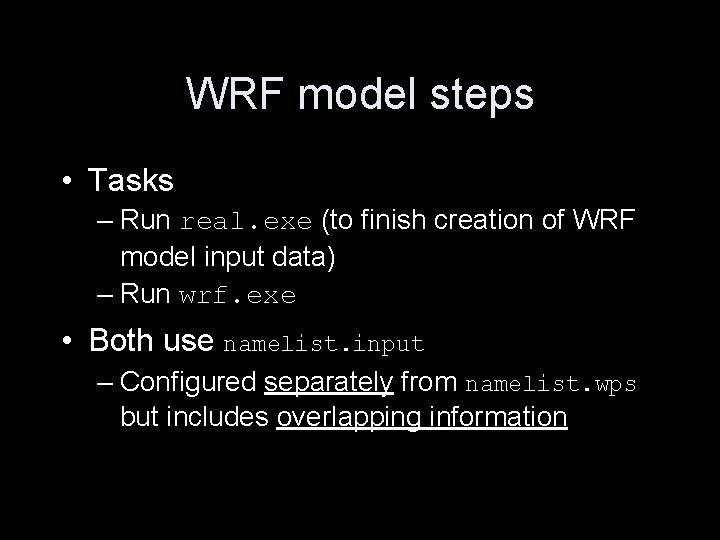

WRF model steps • Tasks – Run real. exe (to finish creation of WRF model input data) – Run wrf. exe • Both use namelist. input – Configured separately from namelist. wps but includes overlapping information

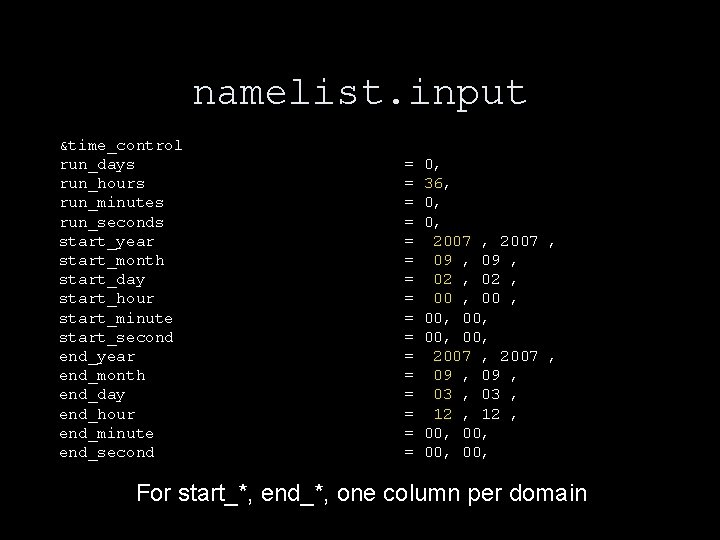

namelist. input &time_control run_days run_hours run_minutes run_seconds start_year start_month start_day start_hour start_minute start_second end_year end_month end_day end_hour end_minute end_second = = = = 0, 36, 0, 0, 2007 , 09 , 02 , 00, 00, 2007 , 09 , 03 , 12 , 00, 00, For start_*, end_*, one column per domain

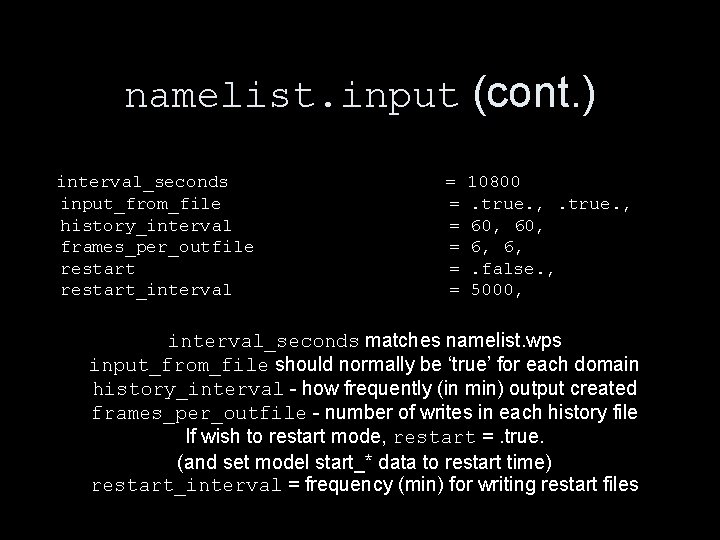

namelist. input (cont. ) interval_seconds input_from_file history_interval frames_per_outfile restart_interval = = = 10800. true. , 60, 6, 6, . false. , 5000, interval_seconds matches namelist. wps input_from_file should normally be ‘true’ for each domain history_interval - how frequently (in min) output created frames_per_outfile - number of writes in each history file If wish to restart mode, restart =. true. (and set model start_* data to restart time) restart_interval = frequency (min) for writing restart files

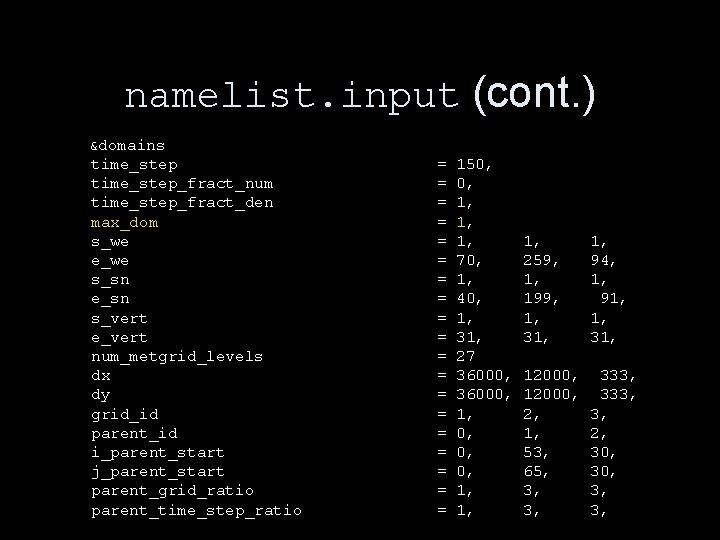

namelist. input (cont. ) &domains time_step_fract_num time_step_fract_den max_dom s_we e_we s_sn e_sn s_vert e_vert num_metgrid_levels dx dy grid_id parent_id i_parent_start j_parent_start parent_grid_ratio parent_time_step_ratio = = = = = 150, 0, 1, 1, 1, 70, 1, 40, 1, 31, 27 36000, 1, 0, 0, 0, 1, 1, 259, 1, 199, 1, 31, 1, 94, 1, 91, 1, 31, 12000, 2, 1, 53, 65, 3, 3, 333, 3, 2, 30, 3, 3,

namelist. input (cont. ) &physics mp_physics [Microphysics] = ra_lw_physics [Longwave rad] = ra_sw_physics [Shortwave rad] = radt [Radiation time step; min] = sf_sfclay_physics [Surface layer] = sf_surface_physics [Surface] = bl_physics [Boundary layer] = bldt [Boundary layer time step; min]= cu_physics [cumulus scheme] = cudt [cumulus time step; min] = isfflx = ifsnow = icloud = surface_input_source = num_soil_layers = mp_zero_out = 1 , 1 , 1 , 10 , 1 , 1 , 1 , 0, 0, 1 , 0 , 5 , 1, 0, 1, 1, 5 , 0 ,

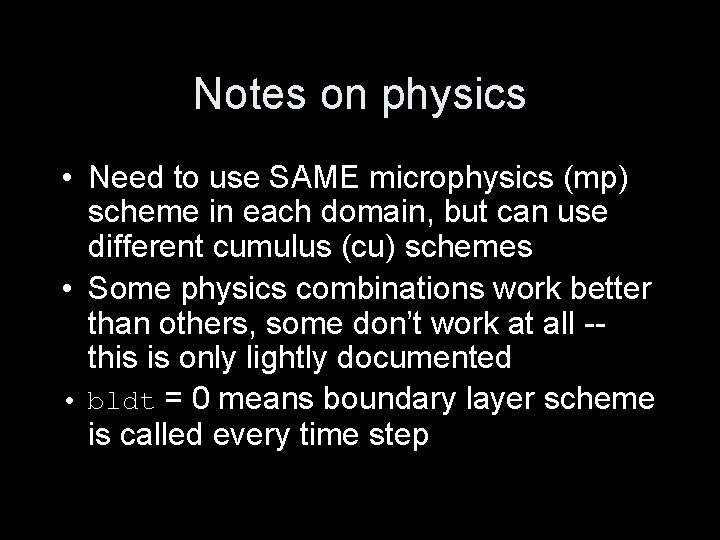

Notes on physics • Need to use SAME microphysics (mp) scheme in each domain, but can use different cumulus (cu) schemes • Some physics combinations work better than others, some don’t work at all -this is only lightly documented • bldt = 0 means boundary layer scheme is called every time step

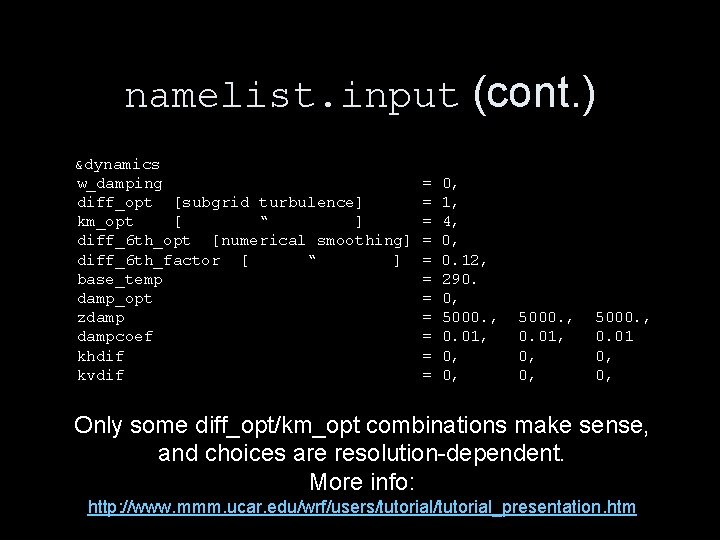

namelist. input (cont. ) &dynamics w_damping diff_opt [subgrid turbulence] km_opt [ “ ] diff_6 th_opt [numerical smoothing] diff_6 th_factor [ “ ] base_temp damp_opt zdampcoef khdif kvdif = = = 0, 1, 4, 0, 0. 12, 290. 0, 5000. , 0. 01, 0, 0, 5000. , 0. 01 0, 0, Only some diff_opt/km_opt combinations make sense, and choices are resolution-dependent. More info: http: //www. mmm. ucar. edu/wrf/users/tutorial_presentation. htm

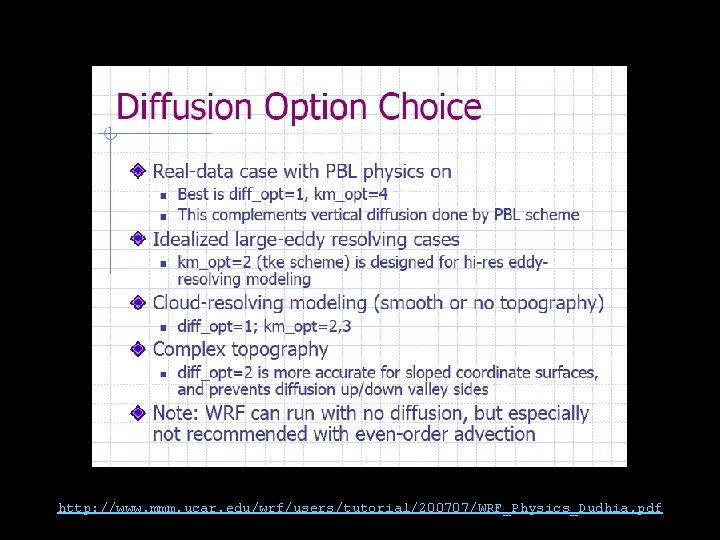

http: //www. mmm. ucar. edu/wrf/users/tutorial/200707/WRF_Physics_Dudhia. pdf

real. exe • Has changed a lot since version 2. 1. 2 • Number of vertical model levels now specified w/ real. exe e_vert num_metgrid_levels = 31, = 27 31, • The num_metgrid_levels comes from parent model; you set e_vert (number of WRF levels) here – Can reset WRF levels by rerunning real. exe – Can also specify which levels you want

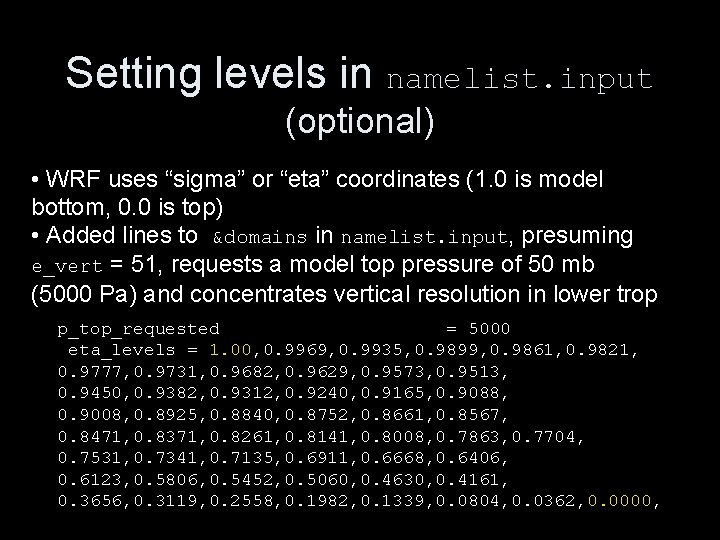

Setting levels in namelist. input (optional) • WRF uses “sigma” or “eta” coordinates (1. 0 is model bottom, 0. 0 is top) • Added lines to &domains in namelist. input, presuming e_vert = 51, requests a model top pressure of 50 mb (5000 Pa) and concentrates vertical resolution in lower trop p_top_requested = 5000 eta_levels = 1. 00, 0. 9969, 0. 9935, 0. 9899, 0. 9861, 0. 9821, 0. 9777, 0. 9731, 0. 9682, 0. 9629, 0. 9573, 0. 9513, 0. 9450, 0. 9382, 0. 9312, 0. 9240, 0. 9165, 0. 9088, 0. 9008, 0. 8925, 0. 8840, 0. 8752, 0. 8661, 0. 8567, 0. 8471, 0. 8371, 0. 8261, 0. 8141, 0. 8008, 0. 7863, 0. 7704, 0. 7531, 0. 7341, 0. 7135, 0. 6911, 0. 6668, 0. 6406, 0. 6123, 0. 5806, 0. 5452, 0. 5060, 0. 4630, 0. 4161, 0. 3656, 0. 3119, 0. 2558, 0. 1982, 0. 1339, 0. 0804, 0. 0362, 0. 0000,

Run real. exe > mpirun -np 2 real. exe wrf@iniki. atmos. ucla. edu's password: starting wrf task 0 of 2 starting wrf task 1 of 2 2. 624 u 1. 248 s 0: 12. 63 30. 5% 0+0 k 0+0 io 0 pf+0 w > tail rsl. out. 0000 --> extrapolating TEMPERATURE near sfc: i, j, psfc, p target d 01 2007 -09 -03_12: 00 forcing artificial silty clay loam LAND CHANGE = 0 WATER CHANGE = 0 d 01 2007 -09 -03_12: 00 Timing for processing 0 s. LBC valid between these times 2007 -09 -03_09: 00. 0000 2007 -09 -03 d 01 2007 -09 -03_12: 00 Timing for output 0 s. d 01 2007 -09 -03_12: 00 Timing for loop # 13 = 0 s. d 01 2007 -09 -03_12: 00 real_em: SUCCESS COMPLETE REAL_EM INIT

Aside: password-less execution • Last slide’s mpirun command asked for 2 cpus (-np 2) • By default, 2 cpus on same workstation are accessed • To avoid being asked for password: > cd ~/. ssh > ssh-keygen -t dsa [then hit return 4 times] Your public key has been saved in /home/wrf/. ssh/id_dsa. pub. The key fingerprint is: cc: 78: 50: 1 e: 77: 23: ca: 8 f: 81: 3 d: f 0: d 2: a 4: 8 a: 2 e: a 7 wrf@iniki. atmos. ucla. edu > cp id_dsa. pub authorized_keys [if does not already exist] > cd. . /FELIX

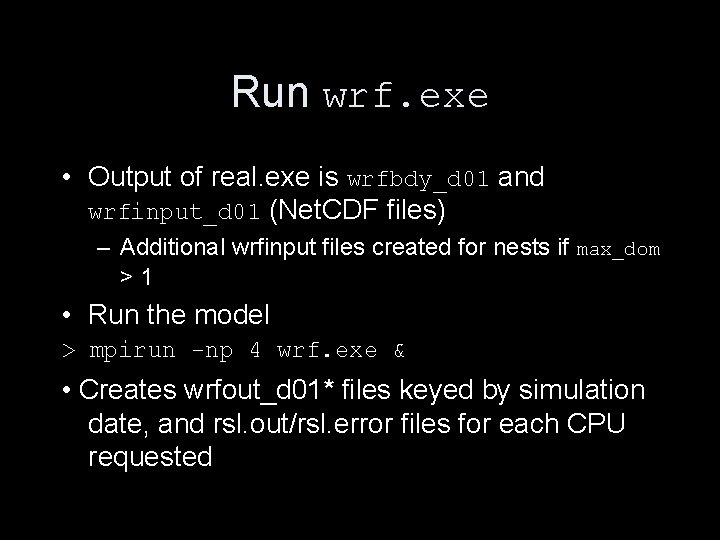

Run wrf. exe • Output of real. exe is wrfbdy_d 01 and wrfinput_d 01 (Net. CDF files) – Additional wrfinput files created for nests if max_dom >1 • Run the model > mpirun -np 4 wrf. exe & • Creates wrfout_d 01* files keyed by simulation date, and rsl. out/rsl. error files for each CPU requested

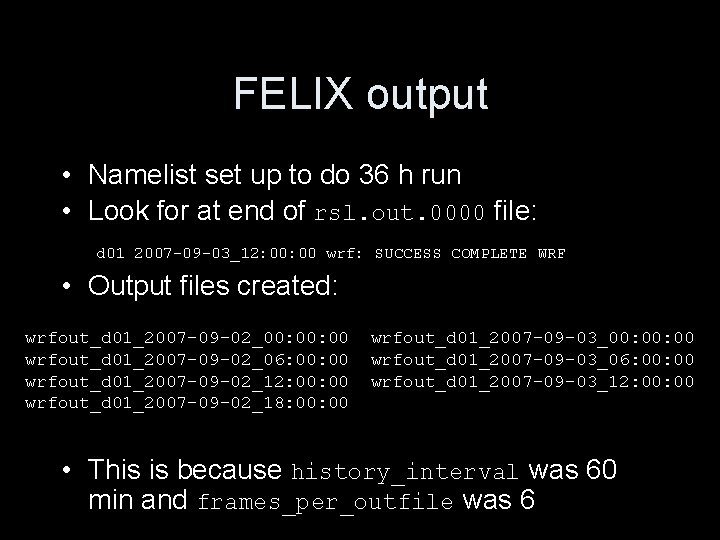

FELIX output • Namelist set up to do 36 h run • Look for at end of rsl. out. 0000 file: d 01 2007 -09 -03_12: 00 wrf: SUCCESS COMPLETE WRF • Output files created: wrfout_d 01_2007 -09 -02_00: 00 wrfout_d 01_2007 -09 -02_06: 00 wrfout_d 01_2007 -09 -02_12: 00 wrfout_d 01_2007 -09 -02_18: 00 wrfout_d 01_2007 -09 -03_00: 00 wrfout_d 01_2007 -09 -03_06: 00 wrfout_d 01_2007 -09 -03_12: 00 • This is because history_interval was 60 min and frames_per_outfile was 6

Postprocessing WRF output: RIP and Gr. ADS (Vis 5 D and ARWpost also exist)

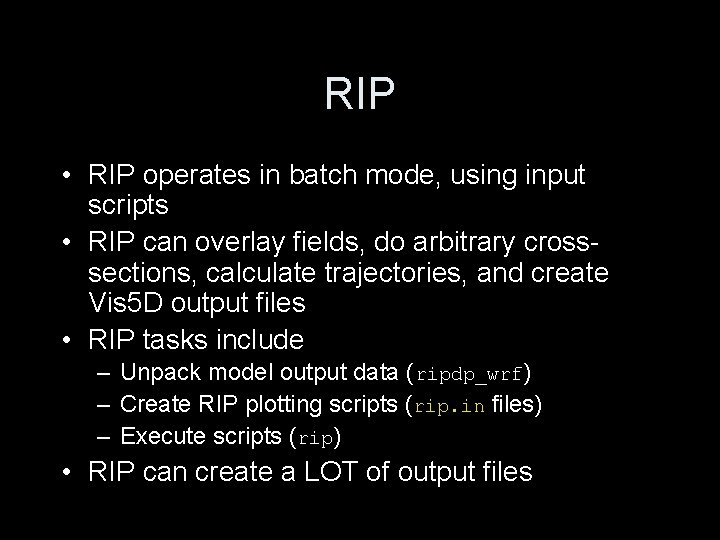

RIP • RIP operates in batch mode, using input scripts • RIP can overlay fields, do arbitrary crosssections, calculate trajectories, and create Vis 5 D output files • RIP tasks include – Unpack model output data (ripdp_wrf) – Create RIP plotting scripts (rip. in files) – Execute scripts (rip) • RIP can create a LOT of output files

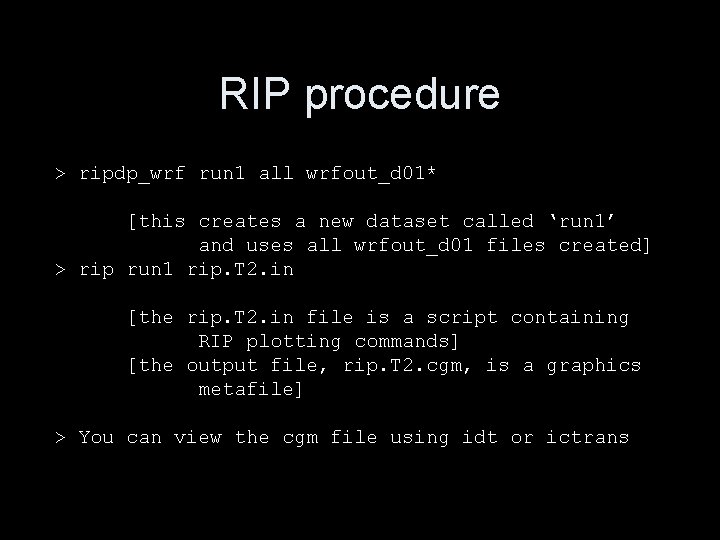

RIP procedure > ripdp_wrf run 1 all wrfout_d 01* [this creates a new dataset called ‘run 1’ and uses all wrfout_d 01 files created] > rip run 1 rip. T 2. in [the rip. T 2. in file is a script containing RIP plotting commands] [the output file, rip. T 2. cgm, is a graphics metafile] > You can view the cgm file using idt or ictrans

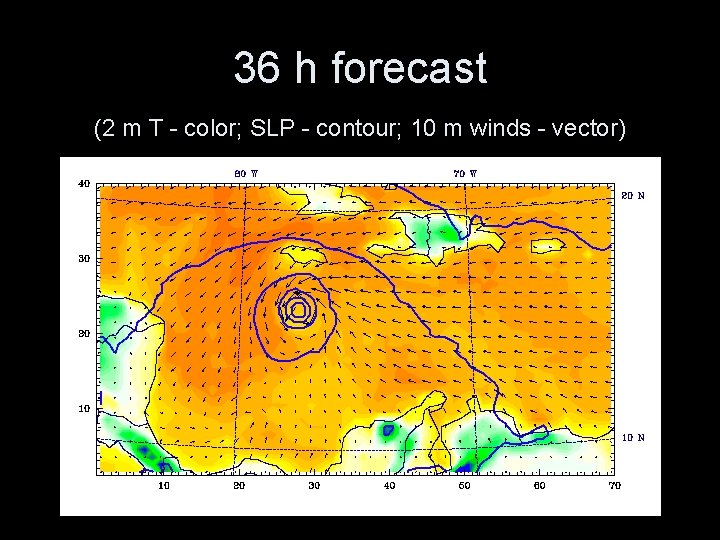

36 h forecast (2 m T - color; SLP - contour; 10 m winds - vector)

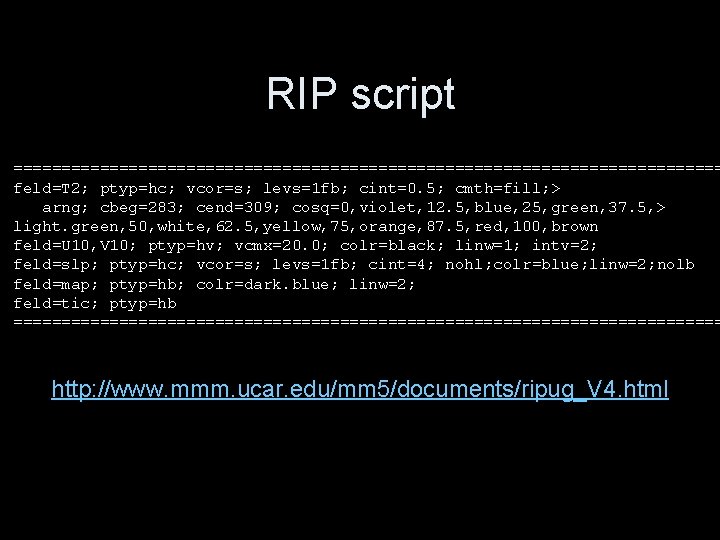

RIP script ===================================== feld=T 2; ptyp=hc; vcor=s; levs=1 fb; cint=0. 5; cmth=fill; > arng; cbeg=283; cend=309; cosq=0, violet, 12. 5, blue, 25, green, 37. 5, > light. green, 50, white, 62. 5, yellow, 75, orange, 87. 5, red, 100, brown feld=U 10, V 10; ptyp=hv; vcmx=20. 0; colr=black; linw=1; intv=2; feld=slp; ptyp=hc; vcor=s; levs=1 fb; cint=4; nohl; colr=blue; linw=2; nolb feld=map; ptyp=hb; colr=dark. blue; linw=2; feld=tic; ptyp=hb ===================================== http: //www. mmm. ucar. edu/mm 5/documents/ripug_V 4. html

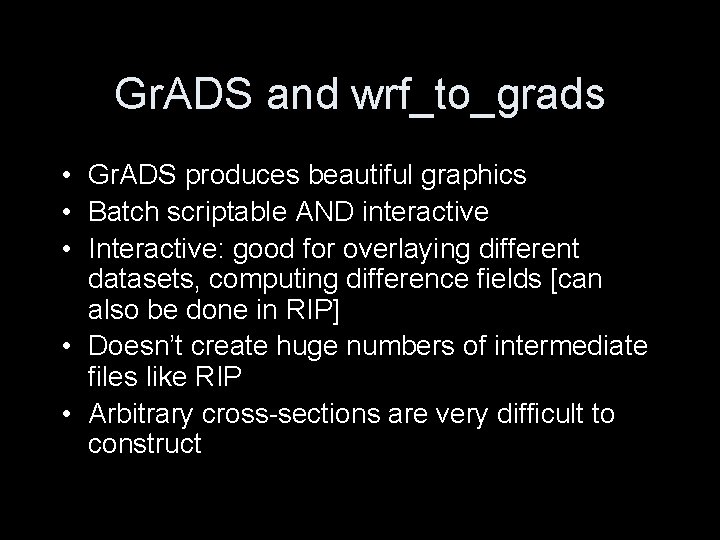

Gr. ADS and wrf_to_grads • Gr. ADS produces beautiful graphics • Batch scriptable AND interactive • Interactive: good for overlaying different datasets, computing difference fields [can also be done in RIP] • Doesn’t create huge numbers of intermediate files like RIP • Arbitrary cross-sections are very difficult to construct

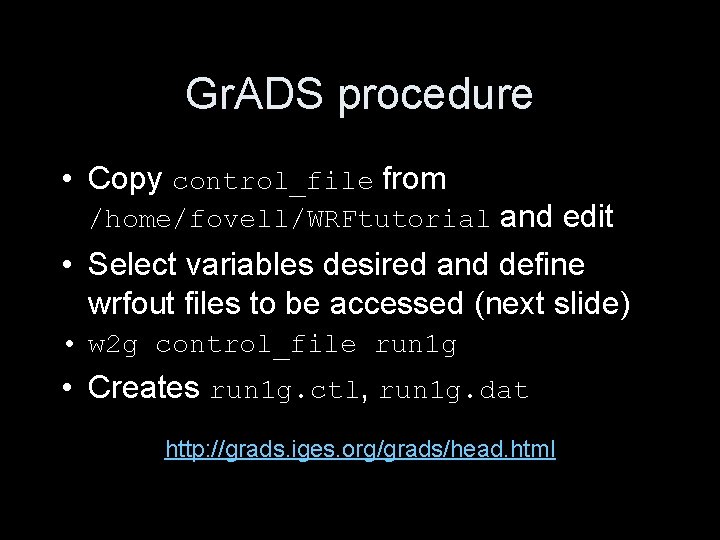

Gr. ADS procedure • Copy control_file from /home/fovell/WRFtutorial and edit • Select variables desired and define wrfout files to be accessed (next slide) • w 2 g control_file run 1 g • Creates run 1 g. ctl, run 1 g. dat http: //grads. iges. org/grads/head. html

control_file -3 ! times to put in Gr. ADS file, negative ignores this 0001 -01 -01_00: 00 0001 -01 -01_00: 05: 00 0001 -01 -01_00: 10: 00 end_of_time_list ! 3 D variable list for Gr. ADS file ! indent one space to skip U ! U Compoment of wind V ! V Component of wind UMET ! U Compoment of wind - rotated (diagnostic) VMET ! V Component of wind - rotated (diagnostic) W ! W Component of wind THETA ! Theta TK ! Temperature in K TC ! Temperature in C List of available 2 D fields follows

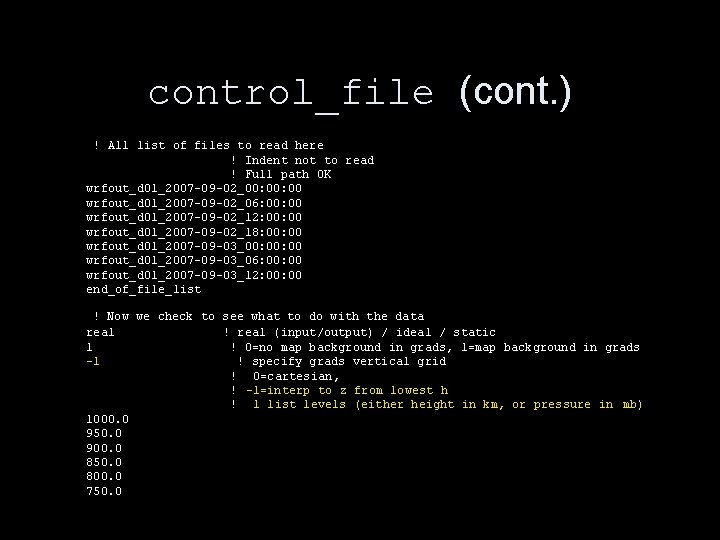

control_file (cont. ) ! All list of files to read here ! Indent not to read ! Full path OK wrfout_d 01_2007 -09 -02_00: 00 wrfout_d 01_2007 -09 -02_06: 00 wrfout_d 01_2007 -09 -02_12: 00 wrfout_d 01_2007 -09 -02_18: 00 wrfout_d 01_2007 -09 -03_00: 00 wrfout_d 01_2007 -09 -03_06: 00 wrfout_d 01_2007 -09 -03_12: 00 end_of_file_list ! Now we check to see what to do with the data real ! real (input/output) / ideal / static 1 ! 0=no map background in grads, 1=map background in grads -1 ! specify grads vertical grid ! 0=cartesian, ! -1=interp to z from lowest h ! 1 list levels (either height in km, or pressure in mb) 1000. 0 950. 0 900. 0 850. 0 800. 0 750. 0

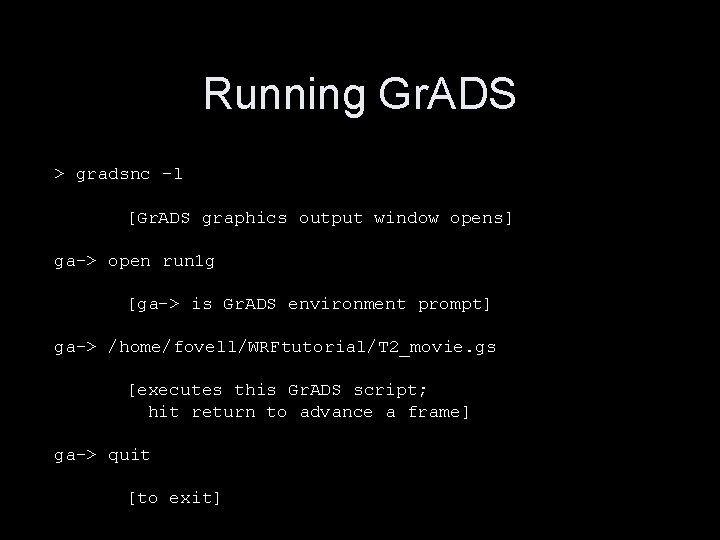

Running Gr. ADS > gradsnc -l [Gr. ADS graphics output window opens] ga-> open run 1 g [ga-> is Gr. ADS environment prompt] ga-> /home/fovell/WRFtutorial/T 2_movie. gs [executes this Gr. ADS script; hit return to advance a frame] ga-> quit [to exit]

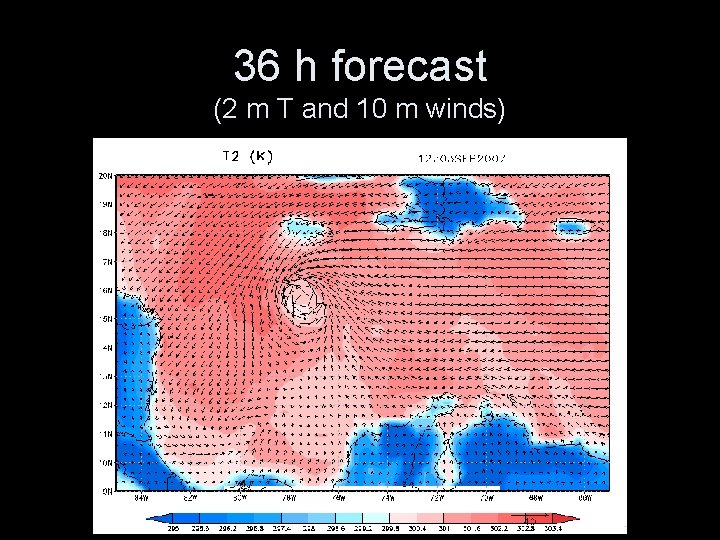

36 h forecast (2 m T and 10 m winds)

= end =
