Mag. Net @ CERN IN SM 18 Mag. Net is hosted at CERN in b. 2173, known as SM 18 Is a test stand for superconducting magnet test Marta Bajko Annual Meeting Glasgow 2017

1 st International WORKSHOP of the Superconducting Magnets Test Stands 65 registered participants Marta Bajko Annual Meeting Glasgow 2017

Vertical test stands: new infrastructure Cluster G Cluster D The vertical cryostats zone , called Cluster G of about 400 m 2 is under upgrade with an extra space called Cluster D of 150 m 2 to accommodate the test of larger diameter magnets @ higher operating current for HL LHC. Marta Bajko Annual Meeting Glasgow 2017

Vertical test stands: new infrastructure Cluster G Investment by CERN. Open for TNA Marta Bajko Annual Meeting Glasgow 2017

Vertical test stands: new infrastructure Cluster D 5. 5 m 2 m 0 m -3 m Marta Bajko Annual Meeting Glasgow 2017 -10 m Expected in operation : in April 2017 Investment by CERN. Open for TNA

Optical Fiber Laboratory: new instruments • Dedicated cryogen- free test station • Optical Interrogators sm 125 Sm 130 Hyperion Courtesy of A. Chiuchiolo Marta Bajko Annual Meeting Glasgow 2017

Approved Mag. Net projects 1. FOSx. CRYO (Fiber Optic Sensors FOR CRYogenic Applicati. Ons and Superconducting Magnets) Project leader: Dr. Andrea Cusano UNIversity of Sanio (IT) 7 members ( It + Hu) Ongoing: See Talk of A. Chiuchiolo 2. Th. Mo_Nb 3 Sn (NUMERICAL MODELLING OF NB 3 SN MAGNETS FOR PARTICLE ACCELERATORS ) Project leader: Dr. Fabrizzio Bellina UNIversity of Udine (IT) 5 members ( IT+ USA) finished 3. AMIT_Mag He. BP (AMIT Magnet Helium Bath Performance) Project leader: Dr. Fernando Toral CIEMAT (SP) 5 members (all SP) finished 4. Cont. Sys. Temp. Sens (Control System for Temperature Sensors ) Project leader: Dr. Vardaine Szarka Angela University of Debrecen (HU) 4 members (all HU) ongoing 5. AHTDRMC (Analysis of the Heater Tests Data from the Nb 3 Sn-model magnet) Project leader: Dr. Tiina Mary Salmi (FI) 4 members (all FI) 6. Electromagnetic and Thermal Analysis of Nb 3 Sn Cables and Magnets for Particle Accelerators ( Mag. Tin 2016) Project leader: Dr. Fabrizzio Bellina UNIversity of Udine (IT) 4 members (all IT) Marta Bajko Annual Meeting Glasgow 2017 ongoing

Approved Mag. Net projects 7. Fisher for Cryo (Fisher Connectors For CRYOgenics ) Project leader Mr. Jaques Mieville Fisher Connectors SA 2 members (CH) finished 8. SUSHI Septum (Superconducting Shield for Septum ) Project leader: Dr. Daniel Barna WIGNER RESEARCH CENTRE FOR PHYSICS, BUDAPEST, HUNGARY 5 members ( HU+ RU + IT) The Su. SHi team together with the CERN support members in front of the experiment ready with its superconducting shield in Mag. Net 9. High Volt (High Voltage Test) Project leader: Dr. Vardaine Szarka Angela University of Debrecen (HU) 5 members (all HU) Marta Bajko Annual Meeting Glasgow 2017 ongoing

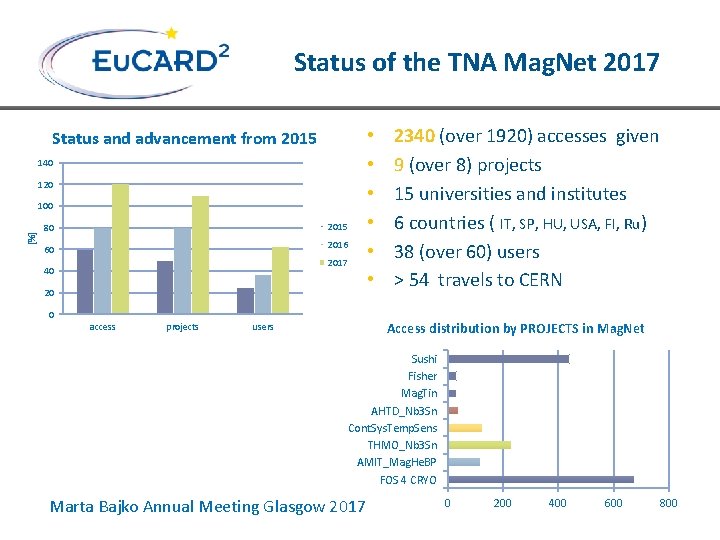

Status of the TNA Mag. Net 2017 • • • Status and advancement from 2015 140 120 [%] 100 80 2015 60 2016 2017 40 20 0 access projects 2340 (over 1920) accesses given 9 (over 8) projects 15 universities and institutes 6 countries ( IT, SP, HU, USA, FI, Ru) 38 (over 60) users > 54 travels to CERN Access distribution by PROJECTS in Mag. Net users Sushi Fisher Mag. Tin AHTD_Nb 3 Sn Cont. Sys. Temp. Sens THMO_Nb 3 Sn AMIT_Mag. He. BP FOS 4 CRYO Marta Bajko Annual Meeting Glasgow 2017 0 200 400 600 800
