WP 4 day Barcelona Introduction Maite Barroso 13052003

-WP 4 day @ Barcelona. Introduction Maite Barroso 13/05/2003 Maite. Barroso. Lopez@cern. ch Maite Barroso – WP 4 meeting @ Barcelona – 13/05/2003 - n° 1

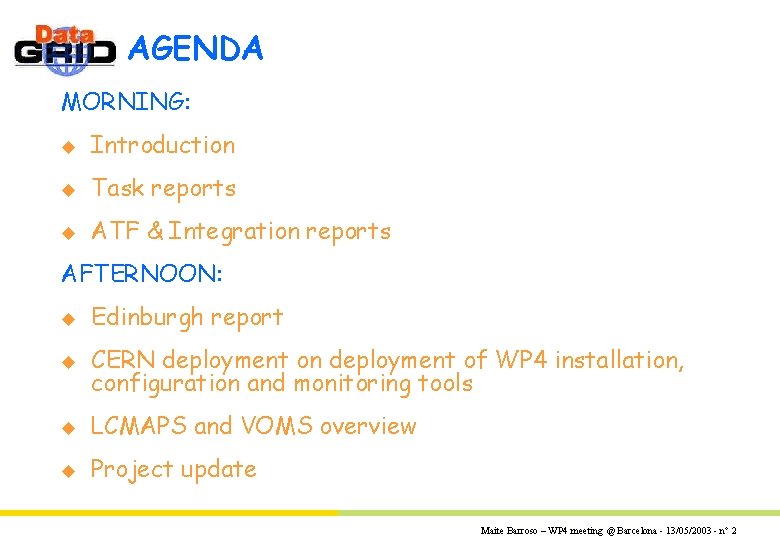

AGENDA MORNING: u Introduction u Task reports u ATF & Integration reports AFTERNOON: u Edinburgh report u CERN deployment on deployment of WP 4 installation, configuration and monitoring tools u LCMAPS and VOMS overview u Project update Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 2

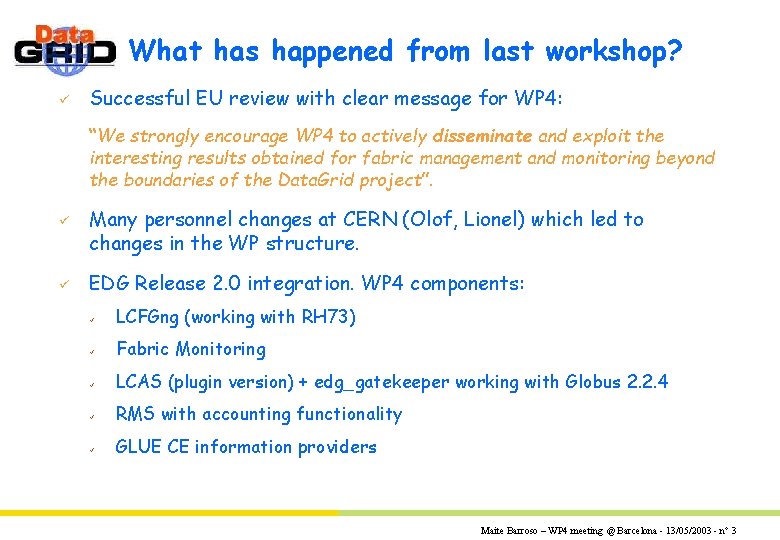

What has happened from last workshop? ü Successful EU review with clear message for WP 4: “We strongly encourage WP 4 to actively disseminate and exploit the interesting results obtained for fabric management and monitoring beyond the boundaries of the Data. Grid project”. ü ü Many personnel changes at CERN (Olof, Lionel) which led to changes in the WP structure. EDG Release 2. 0 integration. WP 4 components: ü LCFGng (working with RH 73) ü Fabric Monitoring ü LCAS (plugin version) + edg_gatekeeper working with Globus 2. 2. 4 ü RMS with accounting functionality ü GLUE CE information providers Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 3

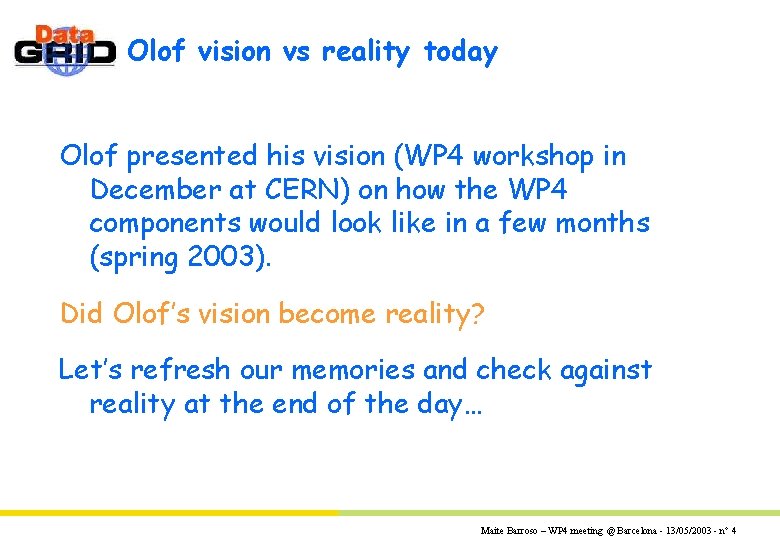

Olof vision vs reality today Olof presented his vision (WP 4 workshop in December at CERN) on how the WP 4 components would look like in a few months (spring 2003). Did Olof’s vision become reality? Let’s refresh our memories and check against reality at the end of the day… Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 4

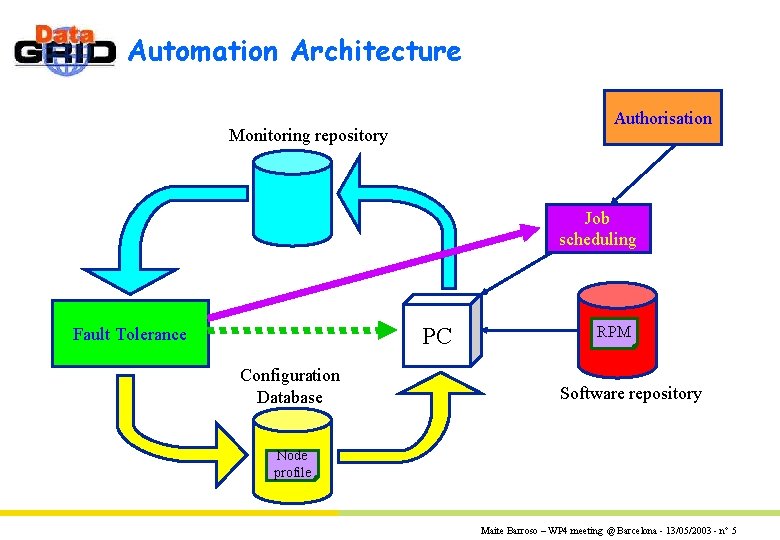

Automation Architecture Authorisation Monitoring repository Job scheduling PC Fault Tolerance Configuration Database RPM Software repository Node profile Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 5

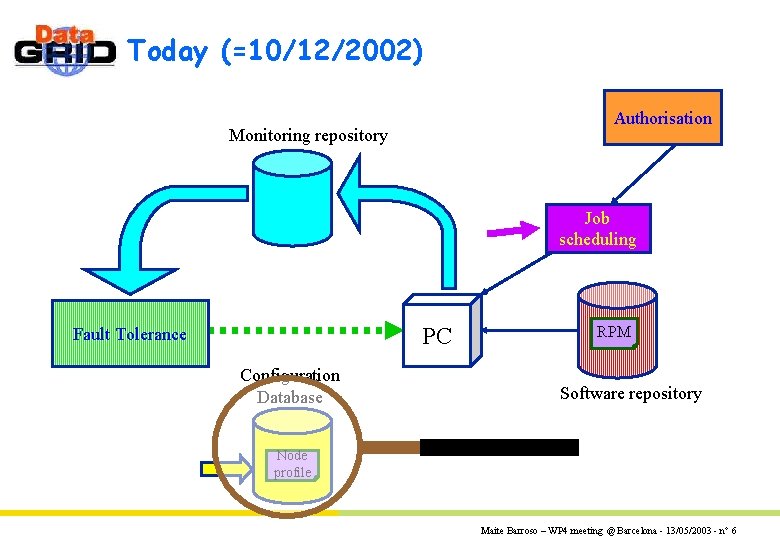

Today (=10/12/2002) Authorisation Monitoring repository Job scheduling PC Fault Tolerance Configuration Database RPM Software repository Node profile Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 6

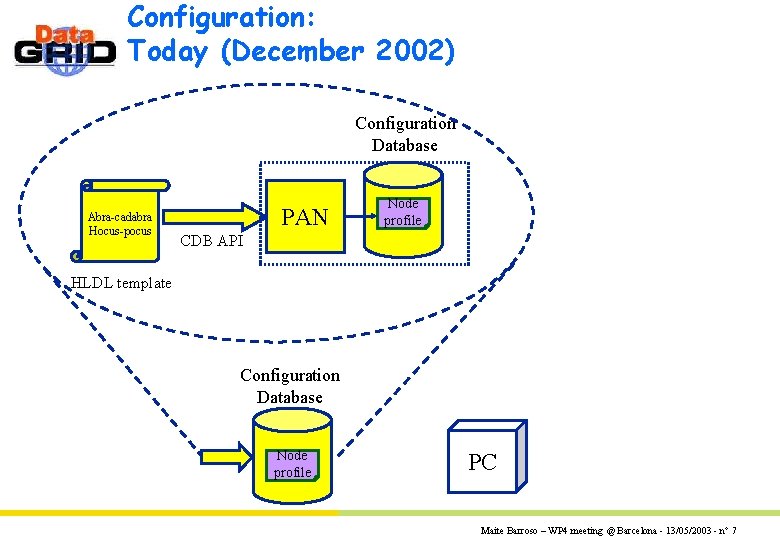

Configuration: Today (December 2002) Configuration Database Abra-cadabra Hocus-pocus PAN Node profile CDB API HLDL template Configuration Database Node profile PC Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 7

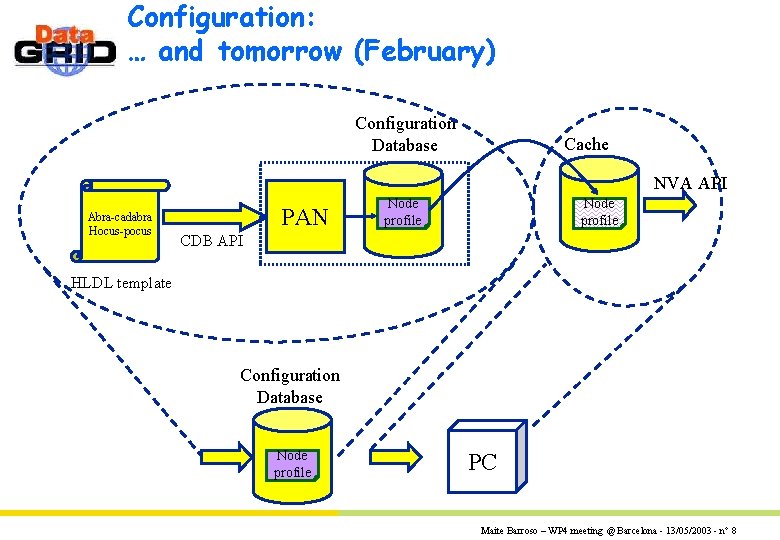

Configuration: … and tomorrow (February) Configuration Database Cache NVA API Abra-cadabra Hocus-pocus PAN Node profile CDB API HLDL template Configuration Database Node profile PC Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 8

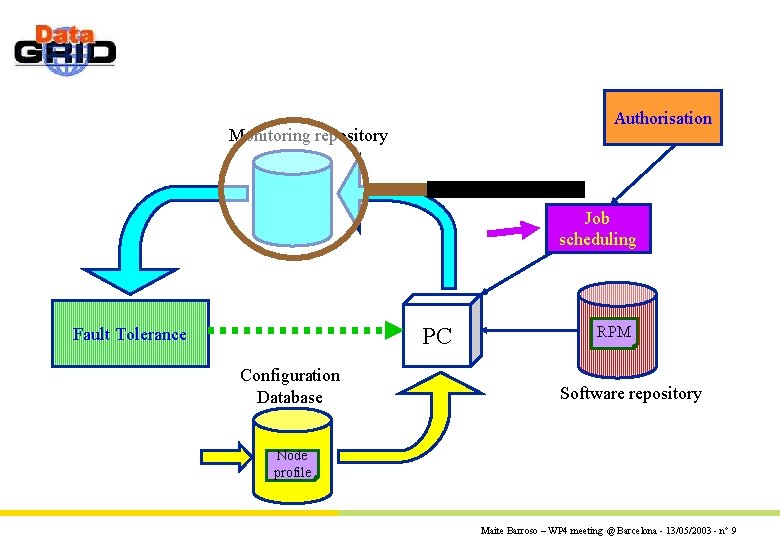

Authorisation Monitoring repository Job scheduling PC Fault Tolerance Configuration Database RPM Software repository Node profile Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 9

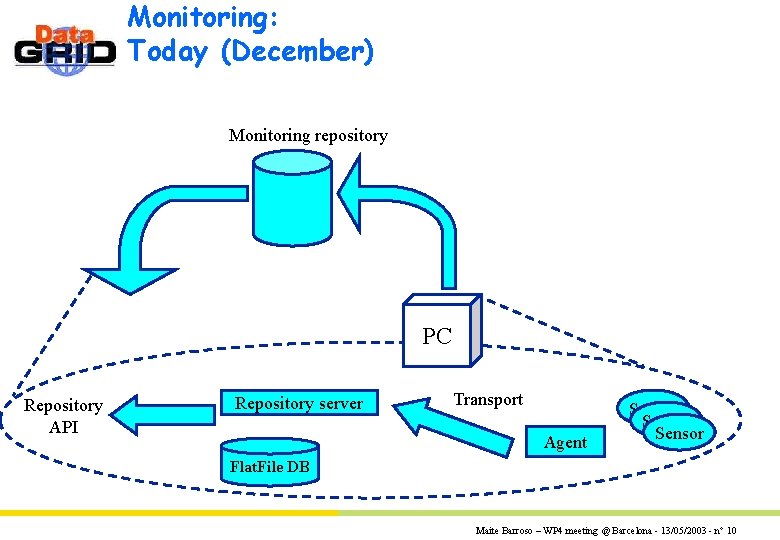

Monitoring: Today (December) Monitoring repository PC Repository API Repository server Transport Agent Sensor Flat. File DB Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 10

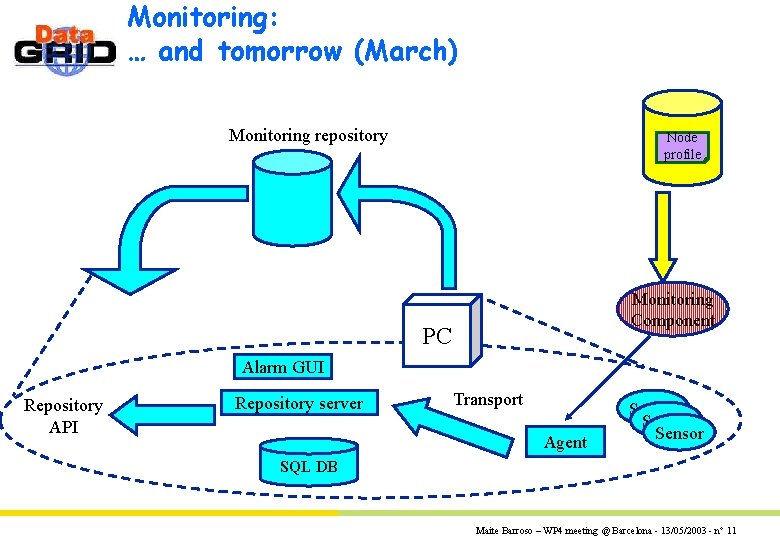

Monitoring: … and tomorrow (March) Monitoring repository Node profile Monitoring Component PC Alarm GUI Repository API Repository server Transport Agent Sensor SQL DB Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 11

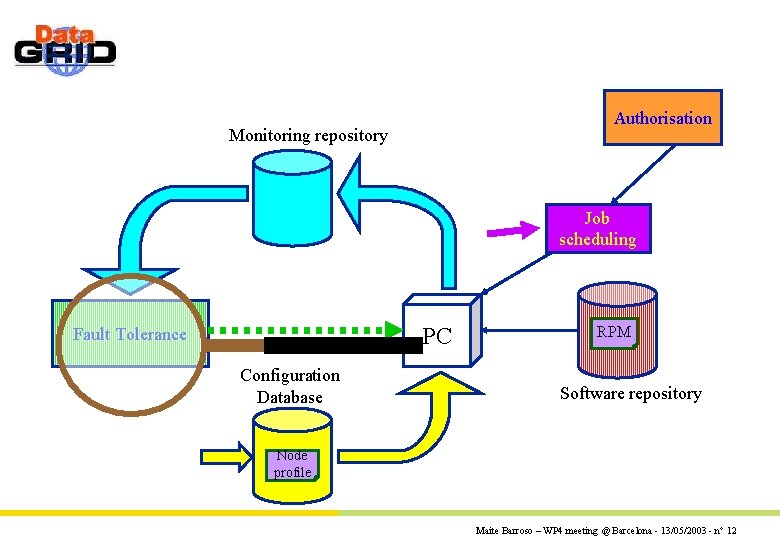

Authorisation Monitoring repository Job scheduling PC Fault Tolerance Configuration Database RPM Software repository Node profile Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 12

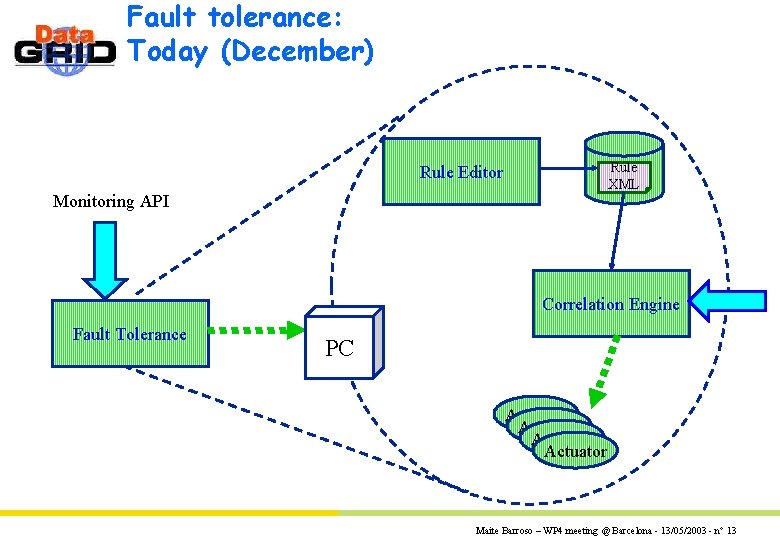

Fault tolerance: Today (December) Rule XML Rule Editor Monitoring API Correlation Engine Fault Tolerance PC Actuator Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 13

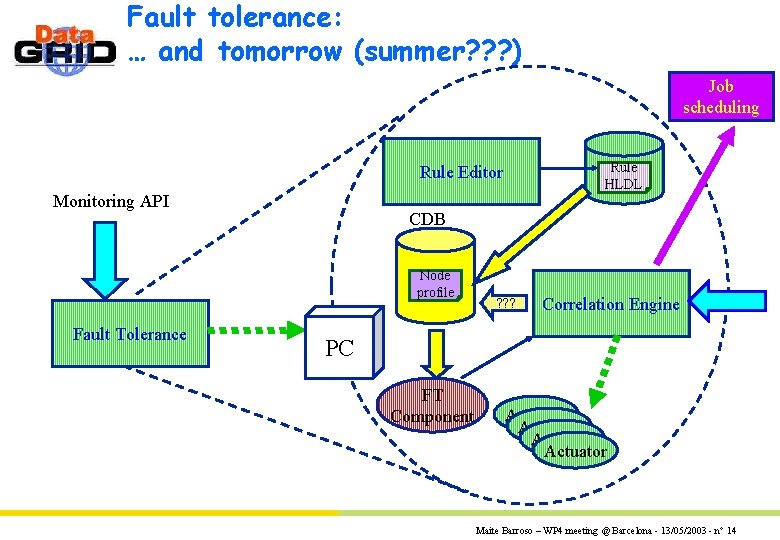

Fault tolerance: … and tomorrow (summer? ? ? ) Job scheduling Rule HLDL Rule Editor Monitoring API CDB Node profile Fault Tolerance ? ? ? Correlation Engine PC FT Component Actuator Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 14

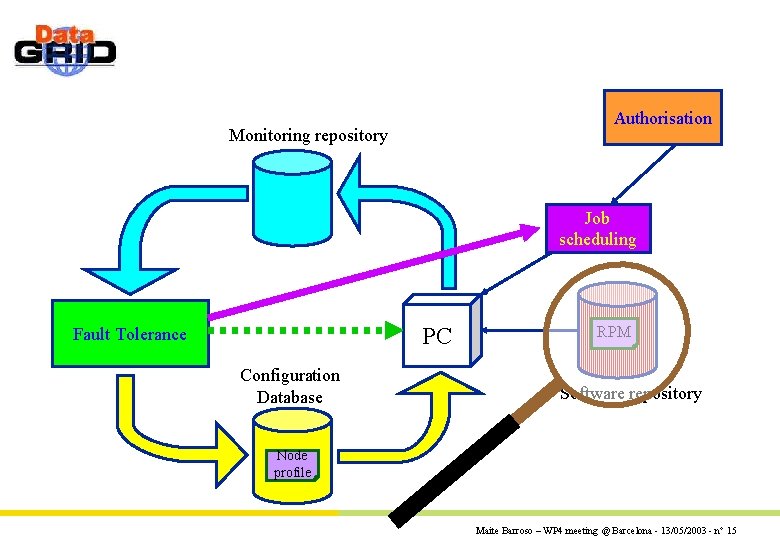

Authorisation Monitoring repository Job scheduling PC Fault Tolerance Configuration Database RPM Software repository Node profile Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 15

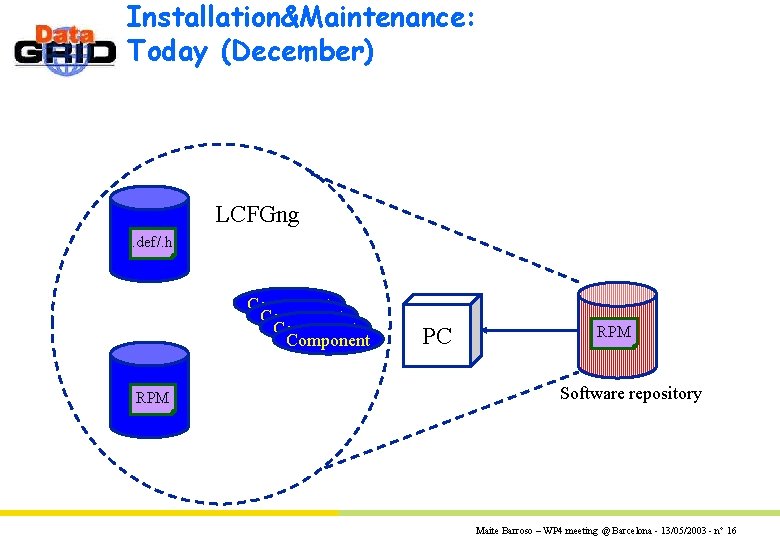

Installation&Maintenance: Today (December) LCFGng. def/. h Component RPM PC RPM Software repository Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 16

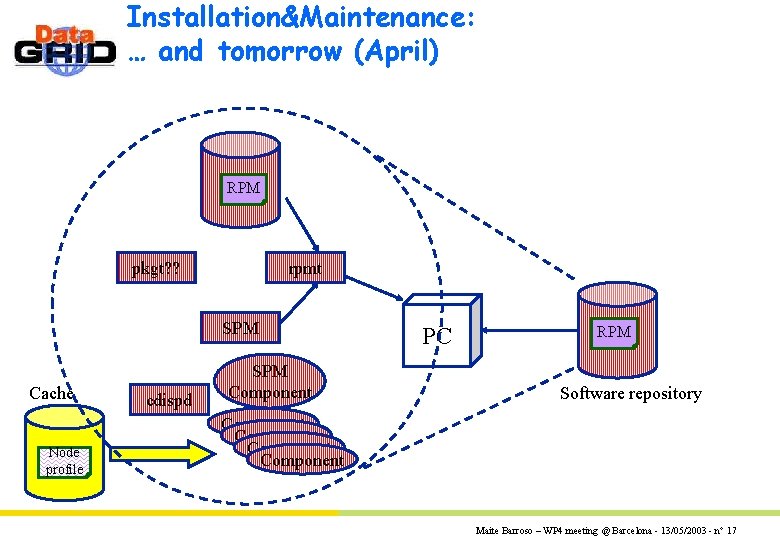

Installation&Maintenance: … and tomorrow (April) RPM pkgt? ? rpmt SPM Cache Node profile cdispd SPM Component PC RPM Software repository Component Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 17

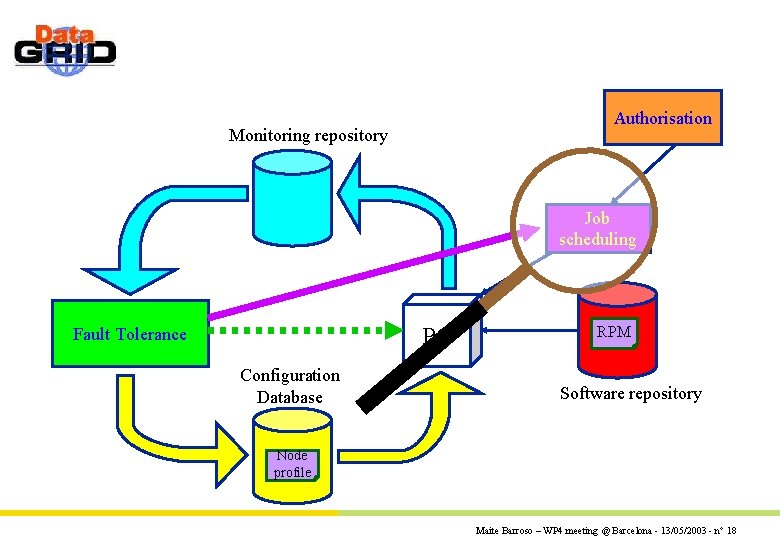

Authorisation Monitoring repository Job scheduling PC Fault Tolerance Configuration Database RPM Software repository Node profile Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 18

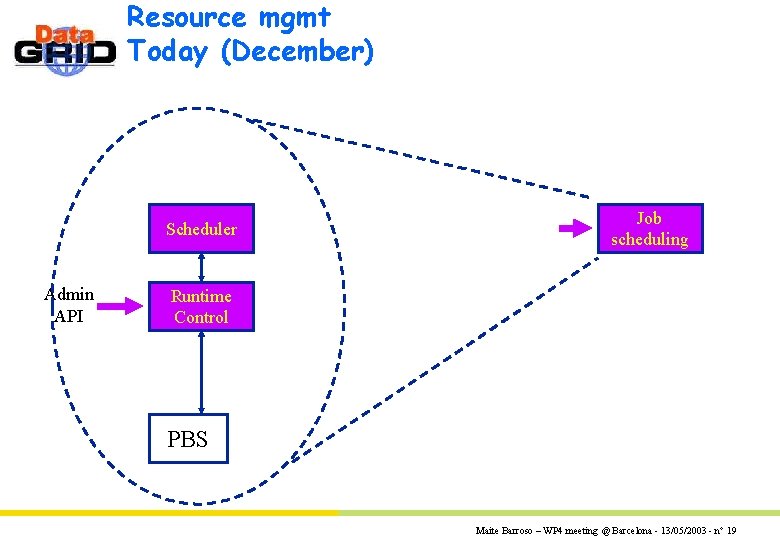

Resource mgmt Today (December) Scheduler Admin API Job scheduling Runtime Control PBS Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 19

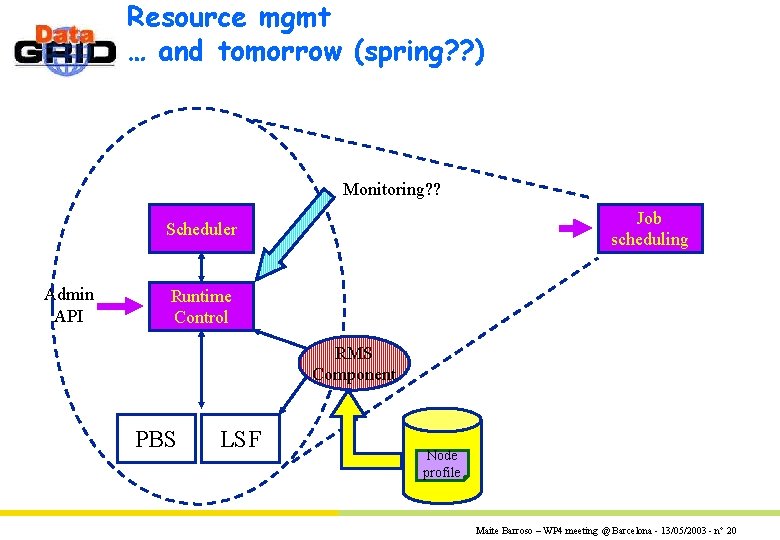

Resource mgmt … and tomorrow (spring? ? ) Monitoring? ? Job scheduling Scheduler Admin API Runtime Control RMS Component PBS LSF Node profile Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 20

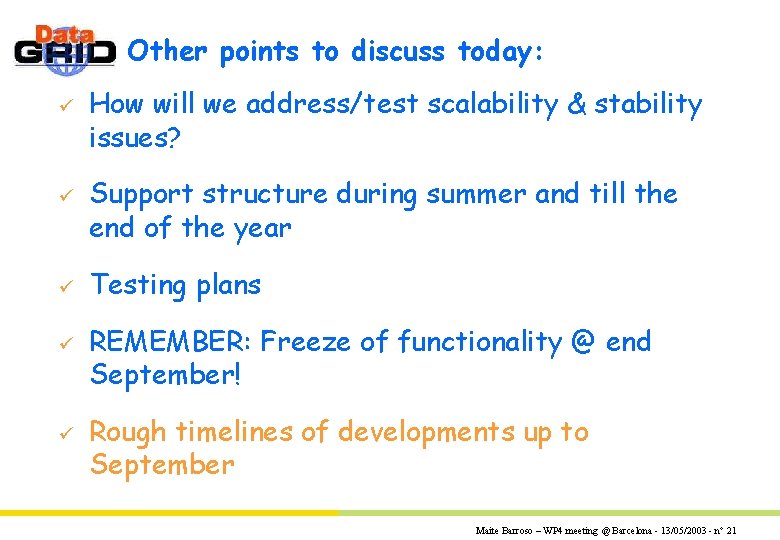

Other points to discuss today: ü ü ü How will we address/test scalability & stability issues? Support structure during summer and till the end of the year Testing plans REMEMBER: Freeze of functionality @ end September! Rough timelines of developments up to September Maite Barroso – WP 4 meeting @ Barcelona - 13/05/2003 - n° 21
