Wow BMS/EMS (Building/Energy Management System) The future is now Chris Peto, XMART , 28. 03. 2019

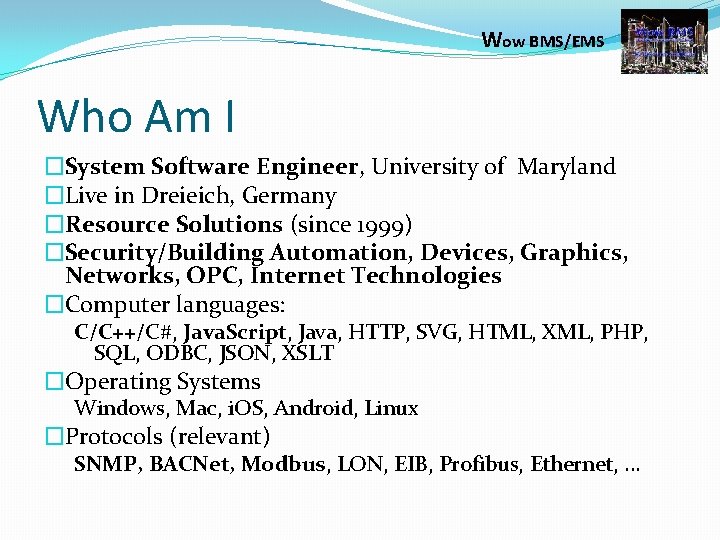

Wow BMS/EMS Who Am I �System Software Engineer, University of Maryland �Live in Dreieich, Germany �Resource Solutions (since 1999) �Security/Building Automation, Devices, Graphics, Networks, OPC, Internet Technologies �Computer languages: C/C++/C#, Java. Script, Java, HTTP, SVG, HTML, XML, PHP, SQL, ODBC, JSON, XSLT �Operating Systems Windows, Mac, i. OS, Android, Linux �Protocols (relevant) SNMP, BACNet, Modbus, LON, EIB, Profibus, Ethernet, . . .

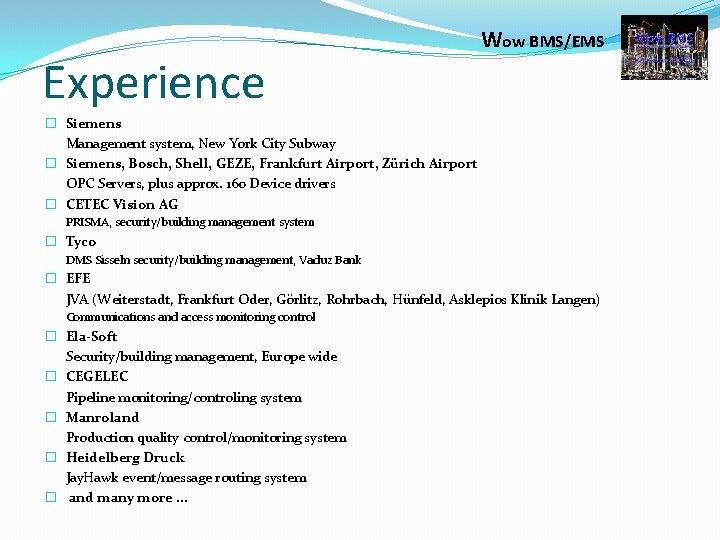

Experience Wow BMS/EMS � Siemens Management system, New York City Subway � Siemens, Bosch, Shell, GEZE, Frankfurt Airport, Zürich Airport OPC Servers, plus approx. 160 Device drivers � CETEC Vision AG PRISMA, security/building management system � Tyco DMS Sisseln security/building management, Vaduz Bank � EFE JVA (Weiterstadt, Frankfurt Oder, Görlitz, Rohrbach, Hünfeld, Asklepios Klinik Langen) Communications and access monitoring control � Ela-Soft Security/building management, Europe wide � CEGELEC Pipeline monitoring/controling system � Manroland Production quality control/monitoring system � Heidelberg Druck Jay. Hawk event/message routing system � and many more. . .

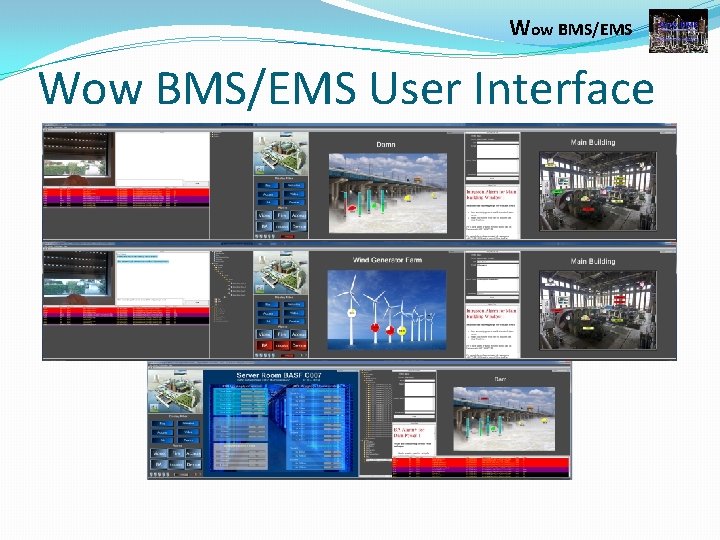

Wow BMS/EMS User Interface

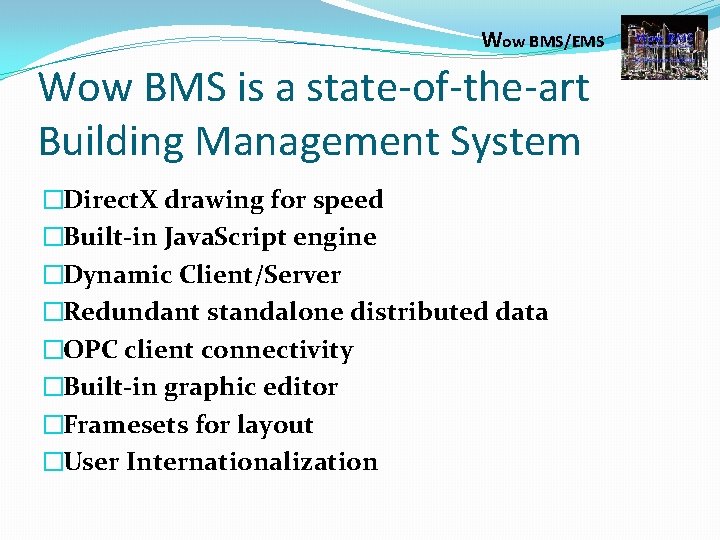

Wow BMS/EMS Wow BMS is a state-of-the-art Building Management System �Direct. X drawing for speed �Built-in Java. Script engine �Dynamic Client/Server �Redundant standalone distributed data �OPC client connectivity �Built-in graphic editor �Framesets for layout �User Internationalization

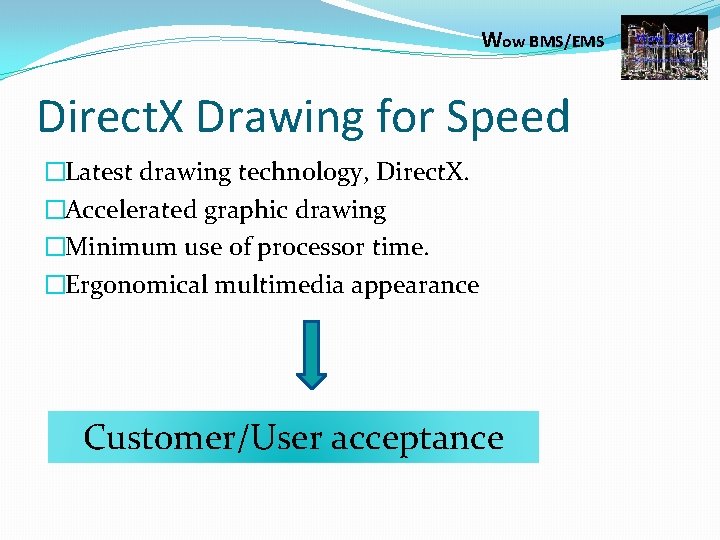

Wow BMS/EMS Direct. X Drawing for Speed �Latest drawing technology, Direct. X. �Accelerated graphic drawing �Minimum use of processor time. �Ergonomical multimedia appearance Customer/User acceptance

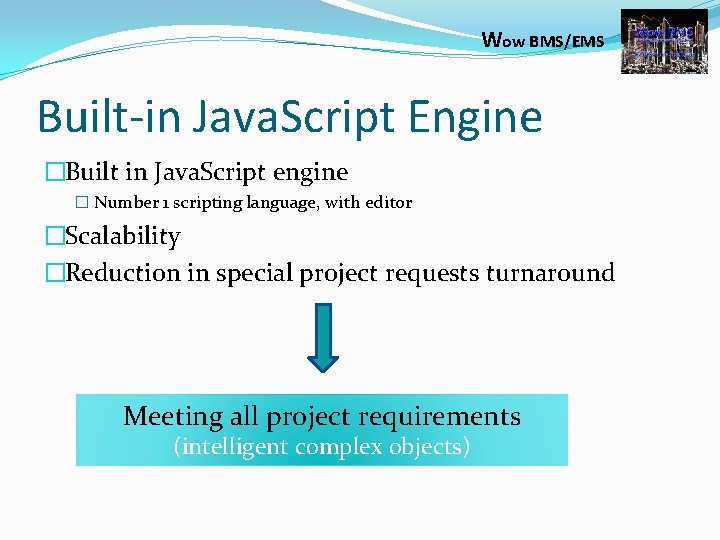

Wow BMS/EMS Built-in Java. Script Engine �Built in Java. Script engine � Number 1 scripting language, with editor �Scalability �Reduction in special project requests turnaround Meeting all project requirements (intelligent complex objects)

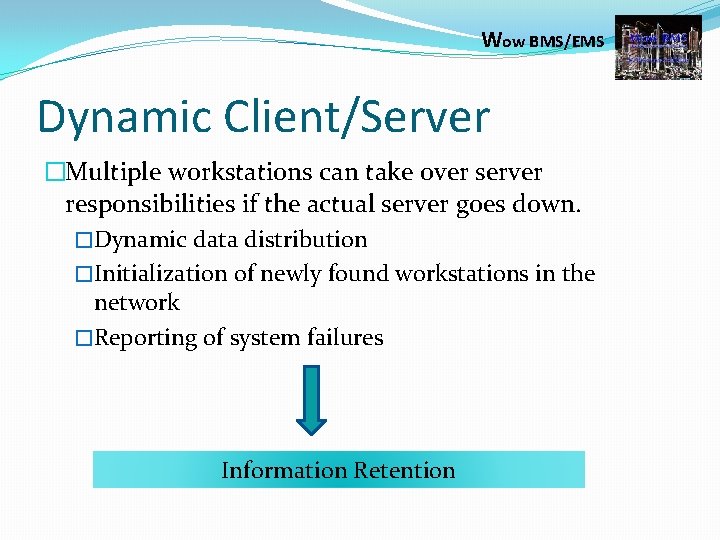

Wow BMS/EMS Dynamic Client/Server �Multiple workstations can take over server responsibilities if the actual server goes down. �Dynamic data distribution �Initialization of newly found workstations in the network �Reporting of system failures Information Retention

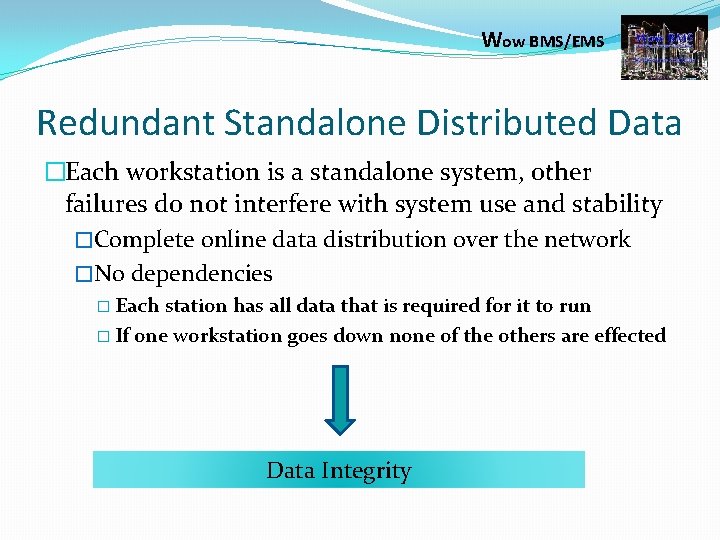

Wow BMS/EMS Redundant Standalone Distributed Data �Each workstation is a standalone system, other failures do not interfere with system use and stability �Complete online data distribution over the network �No dependencies � Each station has all data that is required for it to run � If one workstation goes down none of the others are effected Data Integrity

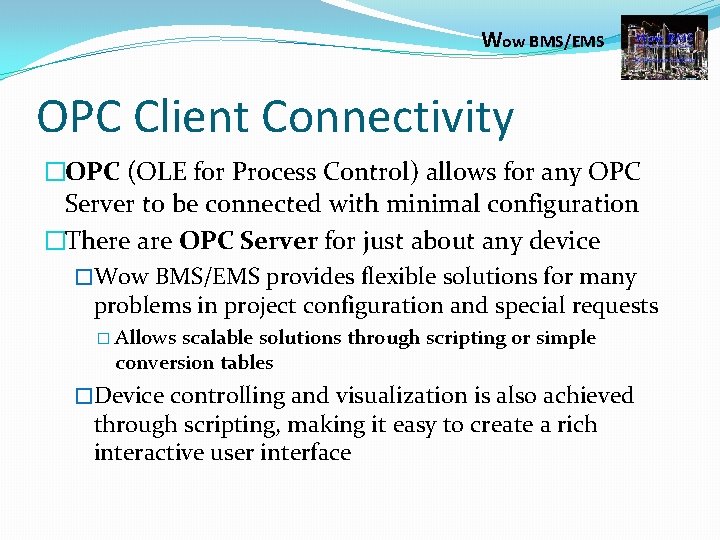

Wow BMS/EMS OPC Client Connectivity �OPC (OLE for Process Control) allows for any OPC Server to be connected with minimal configuration �There are OPC Server for just about any device �Wow BMS/EMS provides flexible solutions for many problems in project configuration and special requests � Allows scalable solutions through scripting or simple conversion tables �Device controlling and visualization is also achieved through scripting, making it easy to create a rich interactive user interface

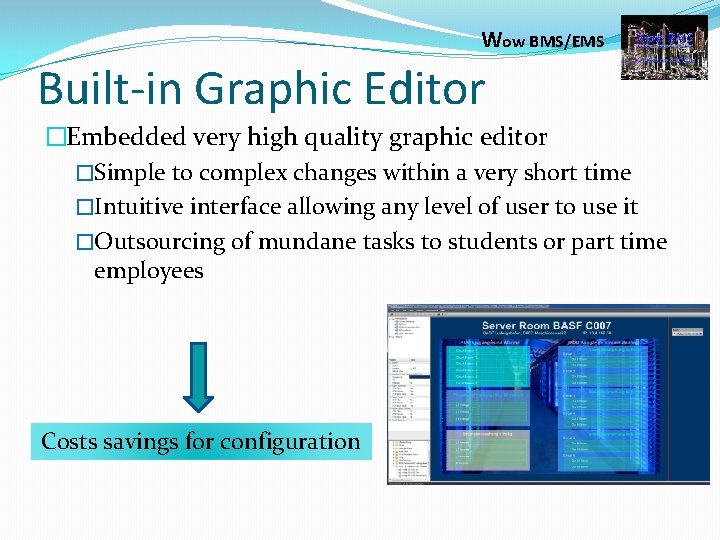

Wow BMS/EMS Built-in Graphic Editor �Embedded very high quality graphic editor �Simple to complex changes within a very short time �Intuitive interface allowing any level of user to use it �Outsourcing of mundane tasks to students or part time employees Costs savings for configuration

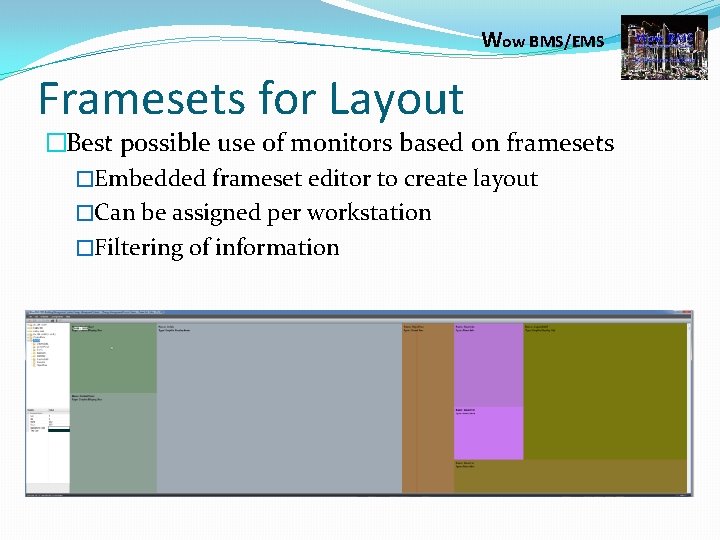

Wow BMS/EMS Framesets for Layout �Best possible use of monitors based on framesets �Embedded frameset editor to create layout �Can be assigned per workstation �Filtering of information

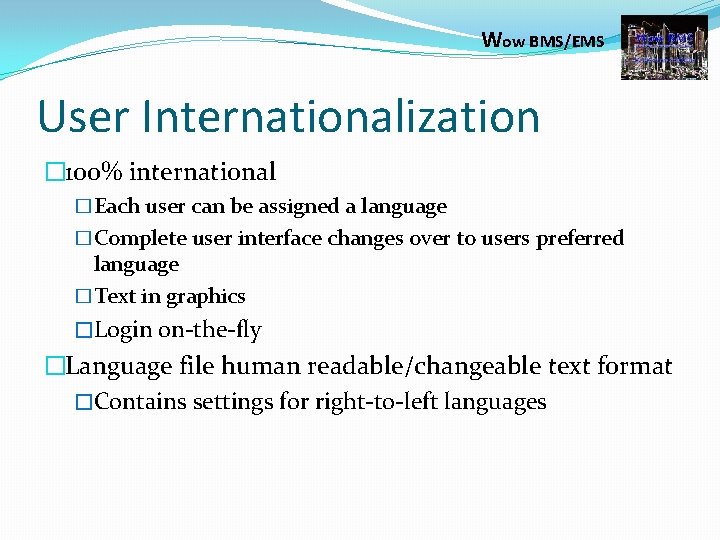

Wow BMS/EMS User Internationalization � 100% international �Each user can be assigned a language �Complete user interface changes over to users preferred language �Text in graphics �Login on-the-fly �Language file human readable/changeable text format �Contains settings for right-to-left languages

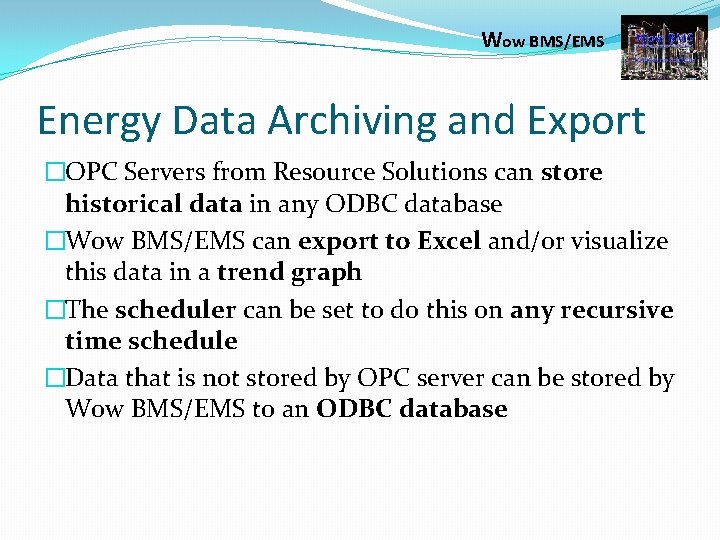

Wow BMS/EMS Energy Data Archiving and Export �OPC Servers from Resource Solutions can store historical data in any ODBC database �Wow BMS/EMS can export to Excel and/or visualize this data in a trend graph �The scheduler can be set to do this on any recursive time schedule �Data that is not stored by OPC server can be stored by Wow BMS/EMS to an ODBC database

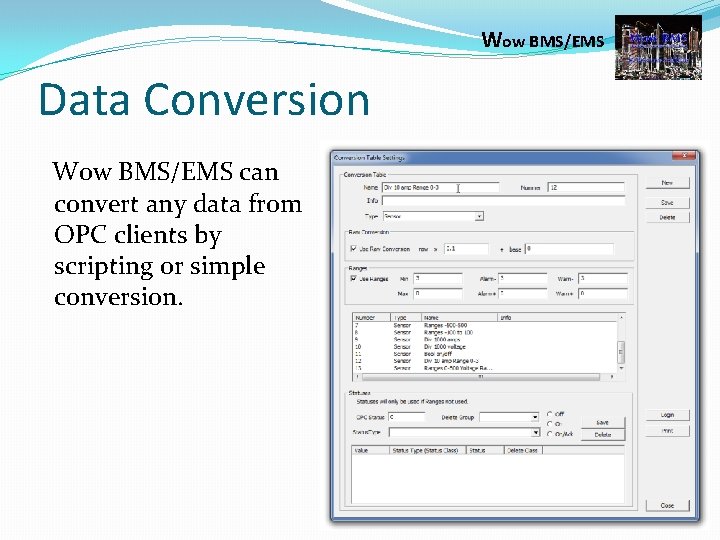

Wow BMS/EMS Data Conversion Wow BMS/EMS can convert any data from OPC clients by scripting or simple conversion.

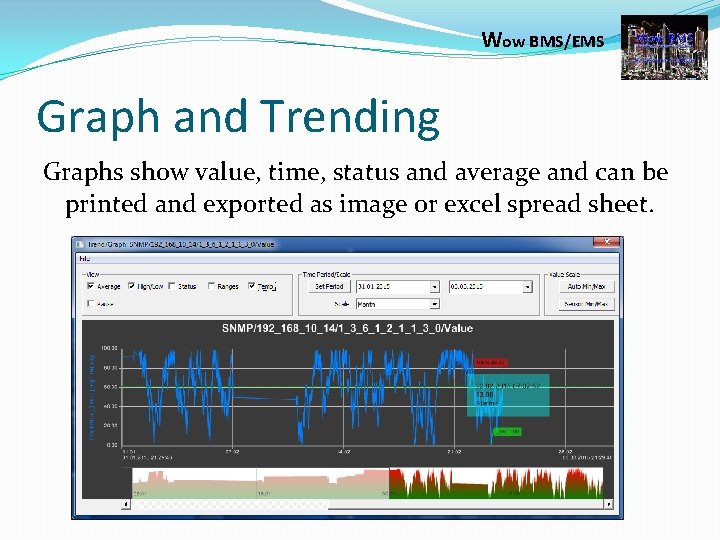

Wow BMS/EMS Graph and Trending Graphs show value, time, status and average and can be printed and exported as image or excel spread sheet.

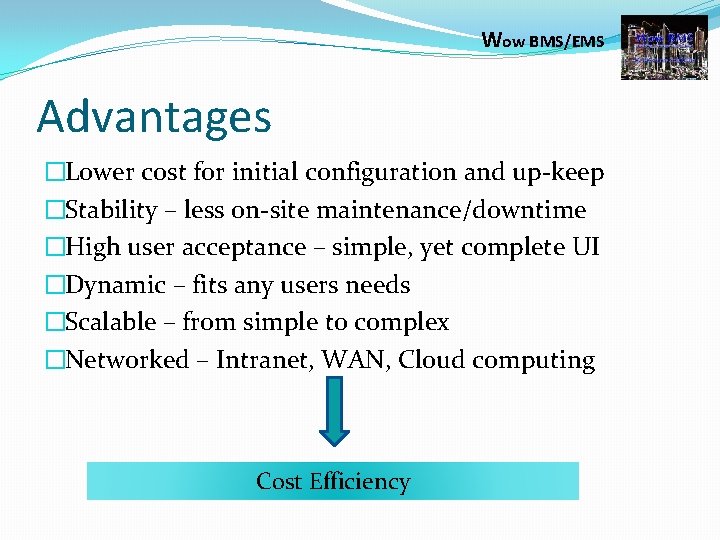

Wow BMS/EMS Advantages �Lower cost for initial configuration and up-keep �Stability – less on-site maintenance/downtime �High user acceptance – simple, yet complete UI �Dynamic – fits any users needs �Scalable – from simple to complex �Networked – Intranet, WAN, Cloud computing Cost Efficiency

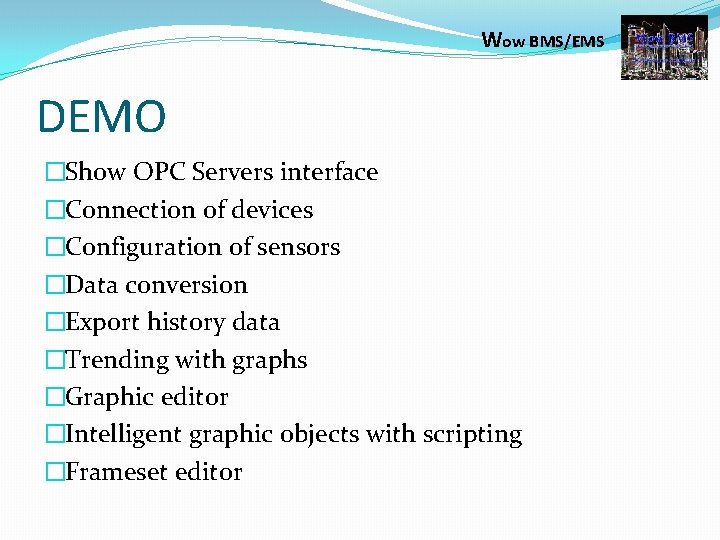

Wow BMS/EMS DEMO �Show OPC Servers interface �Connection of devices �Configuration of sensors �Data conversion �Export history data �Trending with graphs �Graphic editor �Intelligent graphic objects with scripting �Frameset editor

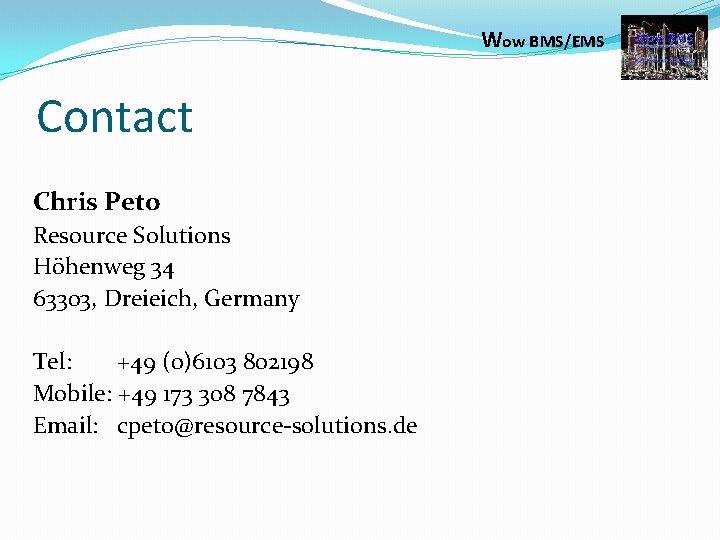

Wow BMS/EMS Contact Chris Peto Resource Solutions Höhenweg 34 63303, Dreieich, Germany Tel: +49 (0)6103 802198 Mobile: +49 173 308 7843 Email: cpeto@resource-solutions. de
