WORLDWIDE ENC DATABASE WORKING GROUP (WENDWG) Report of the representative of the RSAHC on the implementation of ENC Schemes Saeid Parizi I. R. of IRAN International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Background • ROPME Sea Area Hydrographic Commission (RSAHC) established in October 2000. • Core Members: Bahrain, IR of Iran, Kuwait, Oman, Pakistan, Qatar, Saudi Arabia, United Arab Emirates. • Associate Members: France, Iraq, United Kingdom, United States of America. • Observers: Regional Organization for the Protection of the Marine Environment (ROPME), Middle East Navigation Service (MENAS). International Association of Marine Aids to Navigation and Lighthouse Authorities (IALA), Arabian Maritime and Navigation Aids Services LLC (AMNAS) • INT Charting Region ‘I’ created on October 2000 in Tehran, I. R. of IRAN. • RSAHC INT Chart Coordination Working Group (RSAICCWG) established in March 2011. • RSAICCWG fully manned – IR of IRAN acting as regional charting coordinator. • RSAHC approved that the development and maintenance of ENC schemes in the region should be coordinated by the RSAICCWG, in place of the RSAHC. International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Overview of Region I (Persian Gulf, Oman Sea and Arabian Sea) INT Region IHO COUNCIL International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Status of the ENC Scheme UB 1 in Region I Scale Usage Band Number of ENC Published Overview≤ 1: 1, 500, 000 UB 1 5 International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Status of the ENC Scheme UB 2 in Region I Scale Usage Band Number of ENC Published 1: 1, 500, 000 < General ≤ 1: 350, 000 UB 2 7+6=13 International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

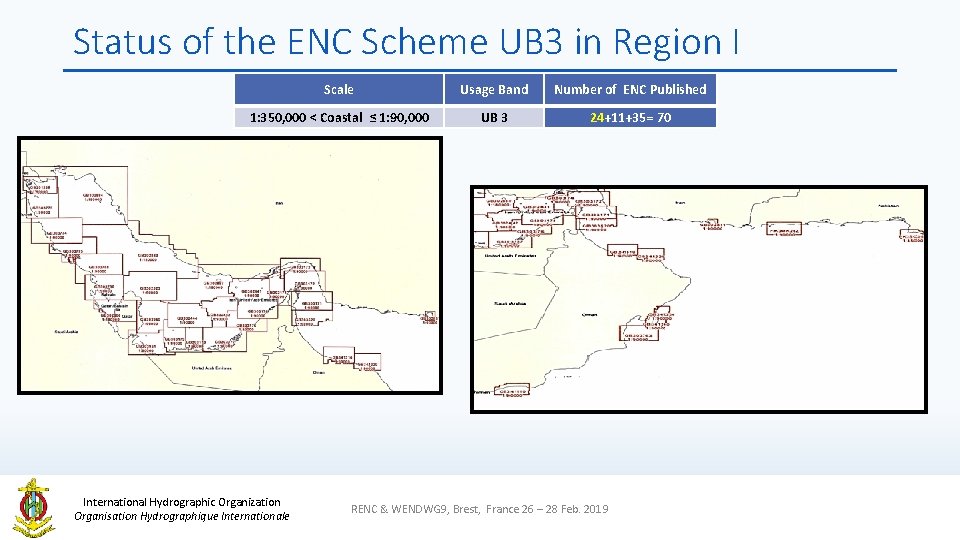

Status of the ENC Scheme UB 3 in Region I Scale Usage Band Number of ENC Published 1: 350, 000 < Coastal ≤ 1: 90, 000 UB 3 24+11+35= 70 International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Status of the ENC Scheme UB 3 in Region I( I. R. of Iran) Scale 1: 350, 000 < Coastal ≤ 1: 90, 000 Number of ENC To be Produced Usage Band Published 1 st Stage 2 nd Stage UB 3 International Hydrographic Organization Organisation Hydrographique Internationale 24 7 - No 1 2 3 4 5 6 7 8 9 ENC IR 303072 IR 303073 IR 303074 IR 303075 IR 303076 IR 303077 IR 303078 IR 303079 IR 303080 INt Chart 7297 7304 7307 7251 7253 7256 7242 7221 7217 Product Title Bahregan to Oil Field to Emam Hassan Bandar-e Genaveh to Jazireh-ye Kharg Bandar-e Bushehr to Bandar-e Rostami to Kangan Oil Field to Kangan Bandar-e Pars to Tombak & Teben Bandar-e Javadol_Aemmeh to Jazireh-ye Lavan Jazireh-ye Kish to Jazireh-ye Hendurabi Bandar-e Lengeh to Jazireh-ye Siri Scale 1: 100000 1: 100000 1: 100000 UB 3 3 3 3 3 10 IR 303081 7214 Jazireh-ye Tonb-e Bozorg to Jazireh-ye Abu Musa 1: 100000 3 11 12 13 14 15 IR 303082 IR 308600 IR 308601 IR 308602 IR 308603 7225 new new Khuran & Jazireh-ye Qeshm (East Part) Khalij-e Gwater East of Gulf of Chah Bahar Khalij-e Cha Bahar Damagheh- ye Tang 1: 100000 1: 100000 3 3 3 16 IR 308604 new Damagheh- ye Tang to Damagheh-ye Meydan 1: 100000 3 17 18 19 20 IR 308605 IR 308606 IR 308607 IR 308608 new new 1: 100000 3 3 21 IR 308609 new 1: 100000 3 22 23 24 IR 318610 IR 308755 IR 308760 new New Gugsar to Gabrik Jagin to Jask to Ra’s Al Kuh to Ra’s Osh Shir to Bandar-e Sirik including Musanam Peninsula Bandar Abas to Jazireh-ye Qeshm Bahregan Bandar Imam Khomeyni 1: 100000 3 3 3 RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Status of the ENC Scheme UB 4 in Region I International Hydrographic Organization Organisation Hydrographique Internationale Scale Usage Band Number of ENC Published 1: 90, 000 <Approach ≤ 1: 22, 000 UB 4 40+29+57= 126 RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Status of the ENC Scheme UB 4 in Region I ( I. R. of Iran) Scale 1: 90, 000 <Approach ≤ 1: 22, 000 Usage Band UB 4 International Hydrographic Organization Organisation Hydrographique Internationale Number of ENC To be Produced Published 1 st Stage 2 nd Stage 40 8 15 No. ENC No. INt Chart No. Scale Usage Band 1 IR 403012 7207 Approaches to Bandar-e Shahid Bahonar and Bandar-e Shahid Rajai 1: 50000 4 2 IR 403025 7228 Khalij-e Nay Band 1: 25000 4 3 IR 403031 7306 Jazire-ye Kharg 1: 25000 4 4 IR 403051 7283 Bandar-E Emam Khomeini 1: 25000 4 5 IR 403052 7280 Khowr-e- Musa Middle Part 1: 25000 4 6 IR 403054 7231 Approaches to Bandar-e Kaveh 1: 30000 4 7 IR 403056 7257 Damaghe- ye Motaf 1: 25000 4 8 IR 403060 7234 Jazire-ye Kish 1: 25000 4 9 IR 403070 7205 Bandar-E Shahid Rajai 1: 25000 4 10 IR 403087 7320 Moghuyeh 1: 25000 4 11 IR 403088 7321 Hasineh 1: 25000 4 12 IR 403086 7319 Bostaneh 1: 25000 4 13 IR 403089 7322 Bandar-e Aftab 1: 25000 4 14 IR 403090 7323 Bandar-e Charak to Jazire- ye Kish 1: 50000 4 15 IR 403091 7324 Bandar-e Chiruye 1: 25000 4 16 IR 403095 7325 Jazireh-ye Larak 1: 25000 4 17 IR 403111 7269 Damaghe- ye Motaf East 1: 25000 4 18 IR 403112 7271 Dayyer- West 1: 25000 4 19 IR 403040 7240 Khalij-e Nay Band Approaches to Bandar-e Pars 1: 30000 4 20 IR 403016 7237 Bandare-e Lengeh 1: 25000 4 21 IR 403027 7231 Bandare-e Taheri 1: 25000 4 22 IR 403096 7262 Khalij-e Nay Band (West) 1: 25000 4 23 IR 403059 7247 Approaches to Bandar-E Javadol Aemmeh 1: 25000 4 24 IR 403093 new Akhtar 1: 25000 25 IR 403097 new Khalij-e Nay Band (South West) 1: 25000 4 4 26 IR 403110 new Jazireh-ye- Lavan 1: 50000 4 27 IR 405003 7184 Jask 1: 25000 4 28 IR 405001 7184 Khalij-e Chabahar (East Part) 1: 25000 4 29 IR 405002 7184 Khalij-e Chabahar (West Part) 1: 25000 4 30 IR 404015 new Approaches to Fereydunkenar 1: 25000 4 31 IR 404017 new Approaches to Bandar-e Nowshahr 1: 25000 4 32 IR 47606 E new Approaches to Bandar-e Imam Hasan 1: 25000 4 33 IR 47703 A new Khowr-e Musa (South Part) 1: 25000 4 34 IR 47703 B new Khowr-e Musa (South Part) 1: 25000 4 35 IR 47703 C new Approaches to Bandar-e Sajafi 1: 25000 4 36 IR 47703 D new Khowr-e Musa (South West Part) 1: 25000 4 37 IR 47307 C new Approaches to Bandar-e Bushehr 1: 25000 4 38 IR 47803 A new Imam Khomeyni Port 1: 25000 4 39 IR 47803 B new Khowr-e Musa (North Part) 1: 25000 4 40 IR 47803 C new Khowr-e Musa (North West Part) 1: 25000 4 RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019 Product Title

Status of the ENC Scheme UB 5 in Region I International Hydrographic Organization Organisation Hydrographique Internationale Scale Usage Band Number of ENC Published 1: 22, 000 <Harbour ≤ 1: 4, 000 UB 5 7+1 +43= 51 WENDWG-8, Buenos Aires, Argentina 20 – 22 March 2018

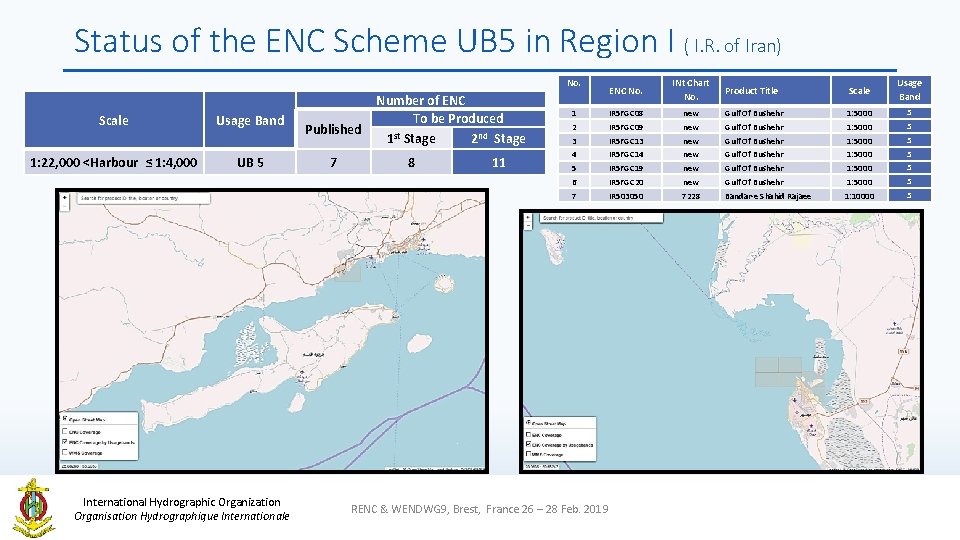

Status of the ENC Scheme UB 5 in Region I ( I. R. of Iran) No. Scale 1: 22, 000 <Harbour ≤ 1: 4, 000 Usage Band UB 5 International Hydrographic Organization Organisation Hydrographique Internationale Published 7 Number of ENC To be Produced 1 st Stage 2 nd Stage 8 11 ENC No. INt Chart No. Product Title Scale Usage Band 1 IR 5 FGC 08 new Gulf Of Bushehr 1: 5000 5 2 IR 5 FGC 09 new Gulf Of Bushehr 1: 5000 5 3 IR 5 FGC 13 new Gulf Of Bushehr 1: 5000 5 4 IR 5 FGC 14 new Gulf Of Bushehr 1: 5000 5 5 IR 5 FGC 19 new Gulf Of Bushehr 1: 5000 5 6 IR 5 FGC 20 new Gulf Of Bushehr 1: 5000 5 7 IR 503050 7228 Bandar-e Shahid Rajaee 1: 10000 5 RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Status of the ENC Scheme UB 6 in Region I Scale Usage Band Number of ENC Published 1: 4, 000 <Berthing UB 6 5 Status of the ENC Scheme UB 6 in Region I ( I. R. of Iran) Scale Usage Band 1: 4, 000 <Berthing International Hydrographic Organization Organisation Hydrographique Internationale UB 6 Number of ENC To be Produced Published 1 st Stage 2 nd Stage - RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019 - 7

Glance to all the Overlaps in RSAHC Region International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

ENC Overlap in RSAHC ENC Overlaps of Pakistan & India Extensive correspondence has been made in this regard, and the issue has been considered analyzed in our different meetings with them, resulting in proposals from the two sides. However, the two sides did not reach an agreement over the issue, which can be considered an example of taking action in accordance with recommendation number 9 of IRCC 10 to RHCs, mentioned in previous slides. International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

ENC Overlap in RSAHC Iran & Sultanate of Oman v. IR 403080, GB 302441 & GB 303175 The scope of Nautical Chart IR 403082 (INT 7225) falls under the agreement between Iran and Oman regarding the continental shelf boundary, and Iran is therefore going to delete its information from the overlap area. v. IR 403081, GB 302441, GB 303174 & GB 303175 v. IR 403082 & GB 303172 Nautical Charts IR 403080 (INT 7217) & IR 403081 (INT 7214) cover some of the Omani waters, since the boundary of the relevant continental shelf has not been determined. v. It is worth mentioning, for instance, that the Omani Chart 1219 prepared at 1: 125000 for the Strait of Hormuz, overlaps with the Iranian INT 7204, and covers some Iranian waters. International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

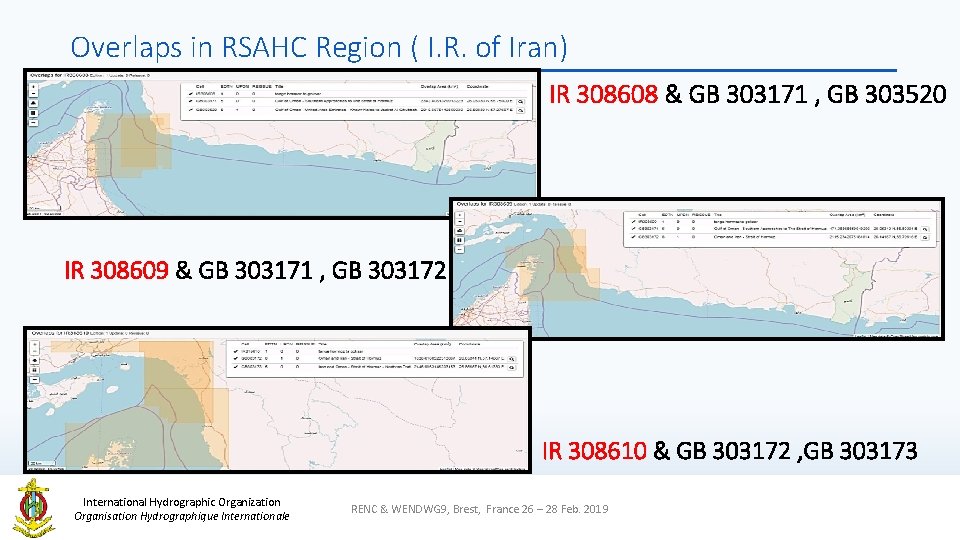

Overlaps in RSAHC Region ( I. R. of Iran) IR 308608 & GB 303171 , GB 303520 IR 308609 & GB 303171 , GB 303172 IR 308610 & GB 303172 , GB 303173 International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Overlaps in RSAHC Region ( I. R. of Iran) IR 47703 A & GB 401269 IR 477703 C & GB 401269 IR 477703 B & GB 401268 , GB 401269 IR 47703 D & GB 401269 International Hydrographic Organization Organisation Hydrographique Internationale

Overlaps in RSAHC Region ( I. R. of Iran) IR 47307 C (Bushehr) & GB 400027 IR 308755 & GB 302884 IR 308760 (BIK Port) & GB 301235, GB 302884 , GB 303773 International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Existence of overlapping ENCs that may have a possible impact on safe navigation Cell Name 1 Cell Name 2 UB Risk Justification Action Requested IR 308601 GB 302851 3 Low PRIMAR has agreed to make the required coordination for resolving overlap cases, UKHO Should Cut the overlap IR 308602 GB 302851 3 Low PRIMAR has agreed to make the required coordination for resolving overlap cases, Should be replaced with Iranian Chart IR 308607 GB 303171 & GB 303520 3 Med PRIMAR has agreed to make the required coordination for resolving overlap cases, UKHO Should Cut the overlap IR 308608 GB 303171 & GB 303520 3 Med PRIMAR has agreed to make the required coordination for resolving overlap cases, Should be replaced with Iranian Chart IR 308609 GB 303171 & GB 303172 3 Med PRIMAR has agreed to make the required coordination for resolving overlap cases, UKHO Should Cut the overlap IR 308610 GB 303172 & GB 303173 3 Med PRIMAR has agreed to make the required coordination for resolving overlap cases, UKHO Should Cut the overlap IR 47703 A GB 401269 4 Low PRIMAR has agreed to make the required coordination for resolving overlap cases, UKHO Should Cut the overlap IR 47703 B GB 401268 & GB 401269 4 Med PRIMAR has agreed to make the required coordination for resolving overlap cases, UKHO Should Cut the overlap IR 47703 C GB 401269 4 Low PRIMAR has agreed to make the required coordination for resolving overlap cases, Should be replaced with Iranian Chart IR 47703 D GB 401269 4 Med PRIMAR has agreed to make the required coordination for resolving overlap cases, UKHO Should Cut the overlap International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Existence of overlapping ENCs that may have a possible impact on safe navigation Cell Name 1 Cell Name 2 UB IR 308755 GB 302884 3 IR 403080 GB 302441 & GB 303175 4 IR 403081 GB 302441, GB 303174 & GB 303175 4 IR 403082 GB 303172 4 IR 47307 C GB 400027 4 International Hydrographic Organization Organisation Hydrographique Internationale Risk Justification Action Requested Med Low Med Nautical Charts IR 403080 & IR 403081 cover some of the Omani waters, . since the boundary of the relevant continental shelf has not been determined, first the boundaries should be define. The scope of Nautical Chart IR 403082 falls under the agreement between Iran and Oman regarding the continental shelf boundary, Iran is going to delete its information from the overlap area. PRIMAR has agreed to make the required coordination for resolving overlap cases, Should be replaced with Iranian Chart RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Existence of overlapping ENCs that may have a possible impact on safe navigation Cell Name 1 IR 403051 Cell Name 2 UB GB 501269 4 Risk Justification Med ENC cell GB 501269 has the same compilation scale with ENC IR 403051, but in different usage band. GB 51269 B. 3. 0. 0 is in approach user band as compilation scale saying so. Then must be replaced with IR’s cells. GB 500011 is in approach user band as compilation scale saying so. Then must be replaced with IR’s cells. IR 403031 GB 500011 4 Med GB 500011 has the same compilation scale with IR 403031, but in different usage band. UK changed it to harbor while compilation scale remained unchanged and set at 1: 22000. IR 308760 GB 301235, GB 302884 & GB 303773 3 Med PRIMAR has agreed to make the required coordination for resolving overlap cases, Low/Med Extensive correspondence has been made in this regard, and the issue has been considered analyzed in our different meetings with them, resulting in proposals from the two sides. The two sides did not reach an agreement over the issue PKINB 572 In 121 MTB &IN 122 MCC & IN 17705 B & IN 17706 C 1 Note: Risk assessments are not according to IC-ENC/PRIMAR guideline. International Hydrographic Organization Organisation Hydrographique Internationale Action Requested RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019 UKHO Should Cut the overlap It can be considered an example of taking action in accordance with recommendation number 9 of IRCC 10 to RHCs.

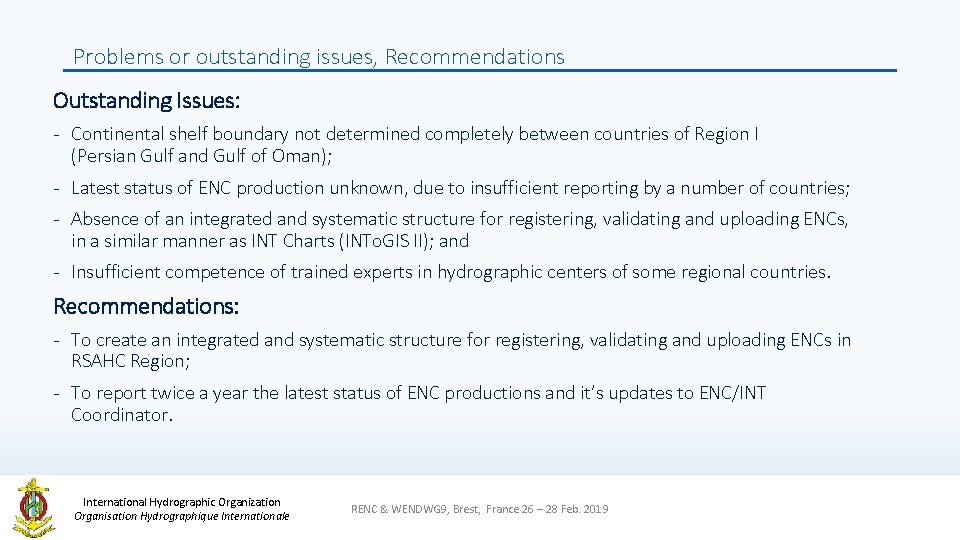

Problems or outstanding issues, Recommendations Outstanding Issues: - Continental shelf boundary not determined completely between countries of Region I (Persian Gulf and Gulf of Oman); - Latest status of ENC production unknown, due to insufficient reporting by a number of countries; - Absence of an integrated and systematic structure for registering, validating and uploading ENCs, in a similar manner as INT Charts (INTo. GIS II); and - Insufficient competence of trained experts in hydrographic centers of some regional countries. Recommendations: - To create an integrated and systematic structure for registering, validating and uploading ENCs in RSAHC Region; - To report twice a year the latest status of ENC productions and it’s updates to ENC/INT Coordinator. International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019

Actions requested of WENDWG • WENDWG is invited to note the report from the RSAHC. International Hydrographic Organization Organisation Hydrographique Internationale RENC & WENDWG 9, Brest, France 26 – 28 Feb. 2019
