World Leader in Braided Reinforcements QISOTM and Bimax

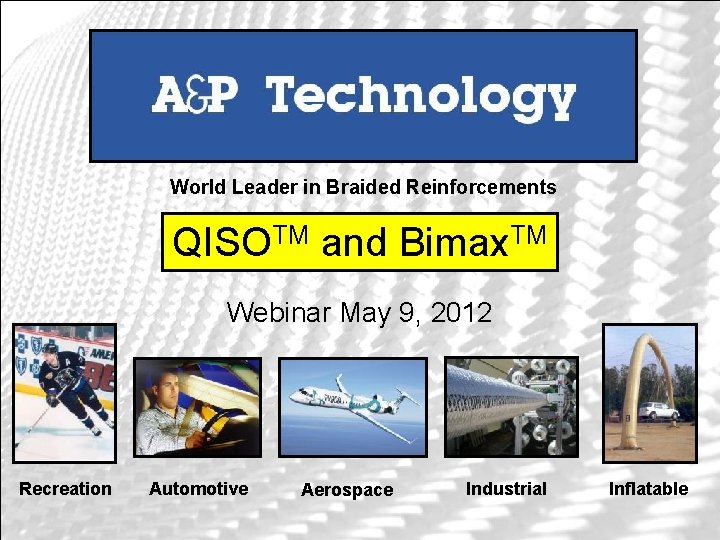

World Leader in Braided Reinforcements QISOTM and Bimax. TM Webinar May 9, 2012 Recreation Automotive Aerospace Industrial Inflatable
Overview • QISO™ architecture • Applications using QISO™ • Why QISO™ • Customization • Cost/Properties • Bimax™
• Quasi-Isotropic Reinforcement in a Single Braid Layer • Symmetric and Balanced with One Ply 0° (axial) -60° (bias) 33% +60° (bias) 33% Uniform Stiffness In All Directions

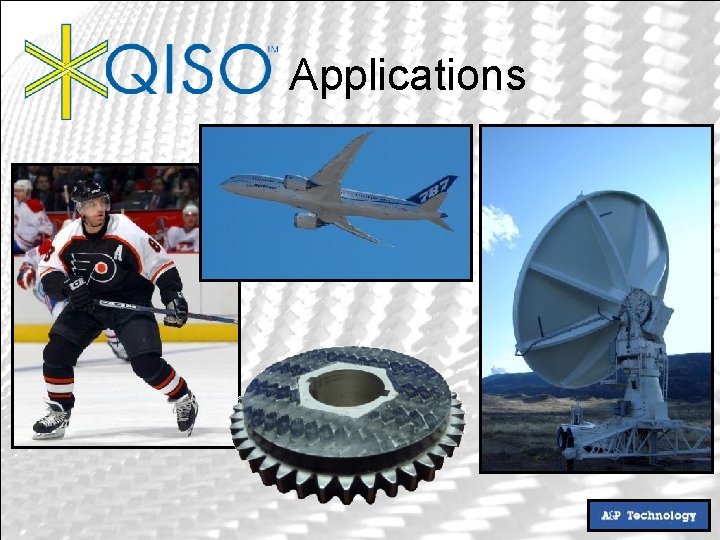

Applications
Applications I-65 Bridge Repair
Why QISO™? QISOTM – Every Ply Balanced & Symmetric 0/90 ± 45 0/90 1 layer braid 4 layers woven or 8 layers tape • QISO allows for decreased layup time • Reduced thickness, less weight
Why QISO™? Symmetric & Balanced Lamina 1 layer QISOTM 0°, ± 60° Asymmetric & Unbalanced Laminate 2 layers fabric 0°, 90°, ± 45°

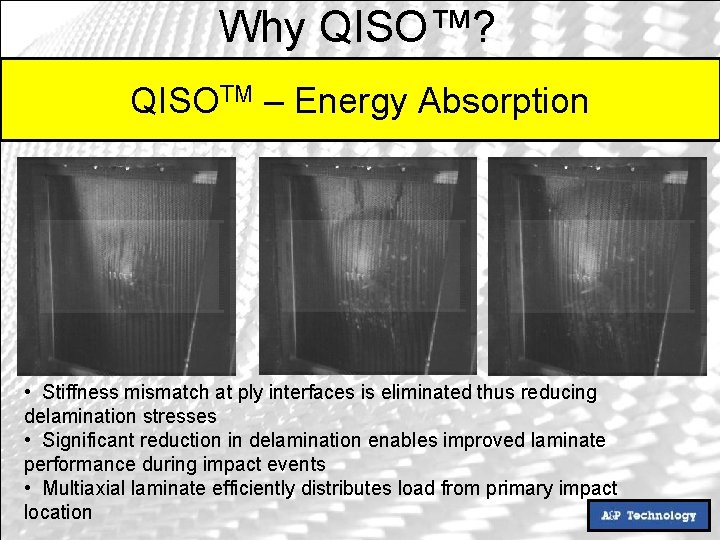

Why QISO™? QISOTM – Energy Absorption • Stiffness mismatch at ply interfaces is eliminated thus reducing delamination stresses • Significant reduction in delamination enables improved laminate performance during impact events • Multiaxial laminate efficiently distributes load from primary impact location
Why QISO™? Resistance to Crack Propagation (Velocity above penetration threshold) Front Back QISOTM arrests cracks with highly integrated multiaxial architecture
Why QISO™? TM (Reduced Material Scrap) QISO Plain Weave 52% Material Waste 33% Material Waste 19% Material Waste

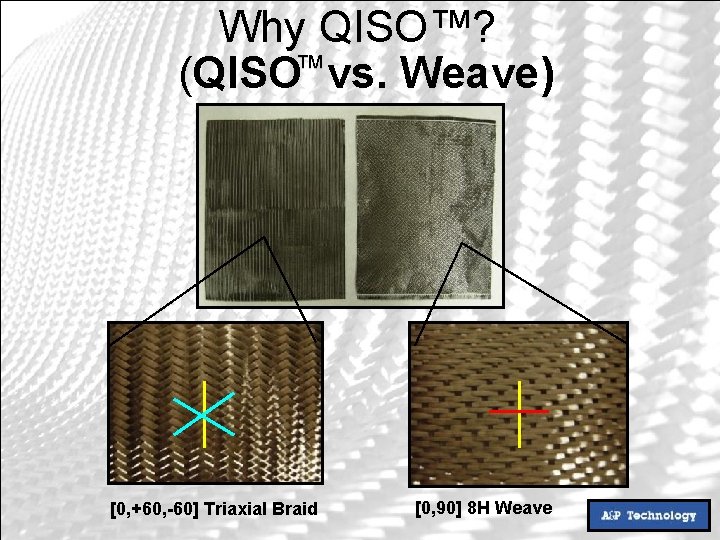

Why QISO™? TM (QISO vs. Weave) [0, +60, -60] Triaxial Braid [0, 90] 8 H Weave
Why QISO™? Woven Cone
Why QISO™? Woven Cone
Why QISO™?
Why QISO™? QISOTM
Why QISO™? Using QISO™ over changing cross-sections, there is: • Reduced Concern Over Fiber Misalignment • Simplicity In Design, Manufacturing, and Quality
Customization • • • Widths To Optimize Utilization Areal Weights / Thickness Yarn Type Hybrids Fiber Orientation Strategic Axial Placement
Customization
Customization

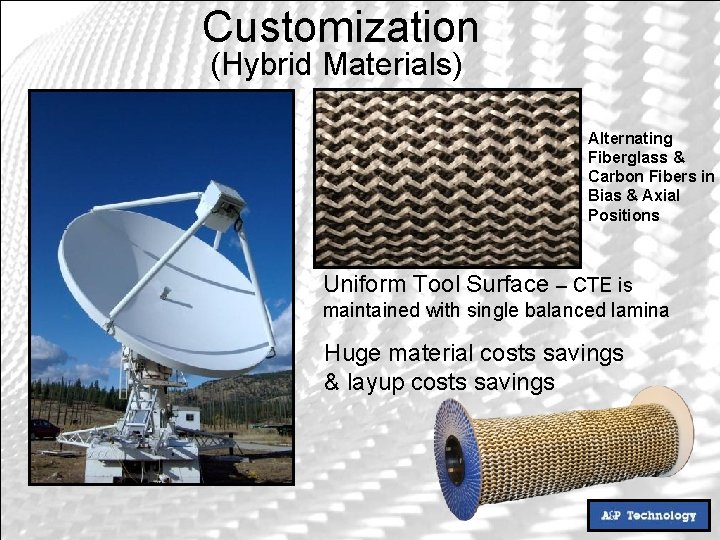

Customization (Hybrid Materials) Alternating Fiberglass & Carbon Fibers in Bias & Axial Positions Uniform Tool Surface – CTE is maintained with single balanced lamina Huge material costs savings & layup costs savings

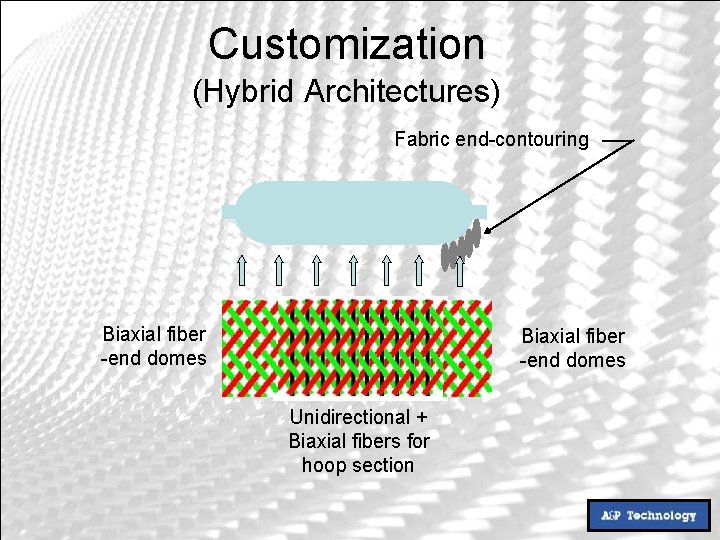

Customization (Hybrid Architectures) Fabric end-contouring Biaxial fiber -end domes Unidirectional + Biaxial fibers for hoop section

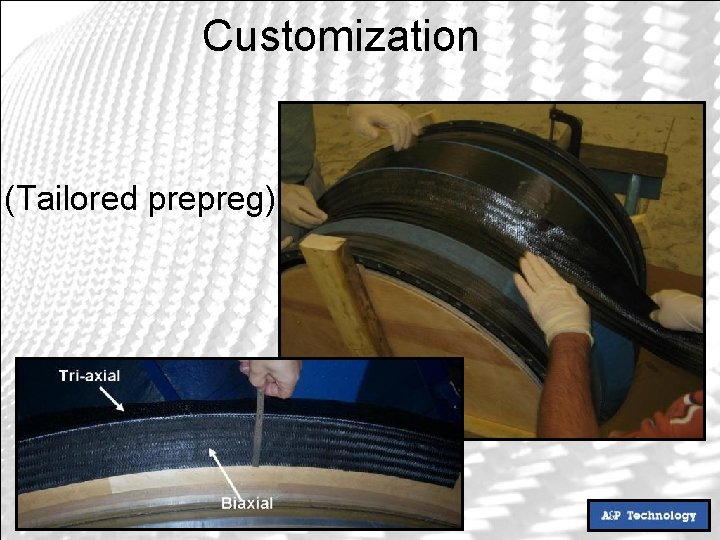

Customization (Tailored prepreg)
Customization (Tailored prepreg)

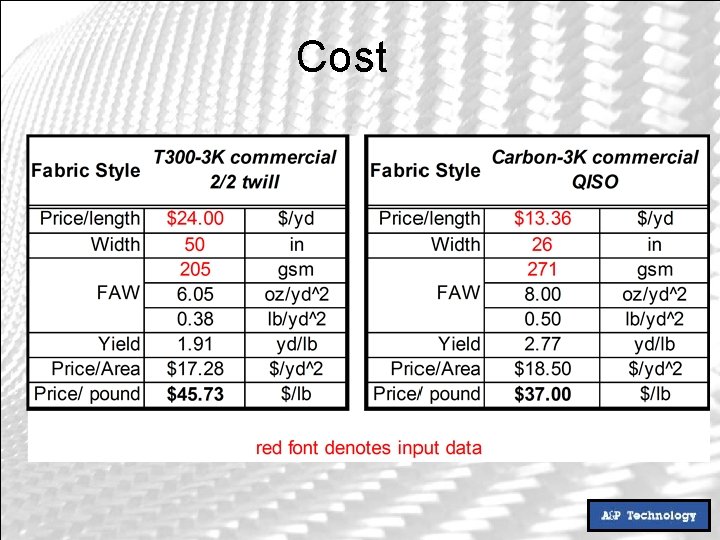

Cost
QISO Properties • Significant material characterization done in various research efforts • Several epoxy systems tested (PR 520, 3502, 5208, 862/W), Vinyl Ester (Derakane 411) and Phenolic • Primarily in-plane properties at room temperature • Detailed data can be supplied upon request
Resources Contacts: Pam Schneider: PSchneider@braider. com 513 -688 -3286 Dave Kehrl: DKehrl@braider. com 513 -688 -3297 A&P Technology www. braider. com 513 -688 -3200

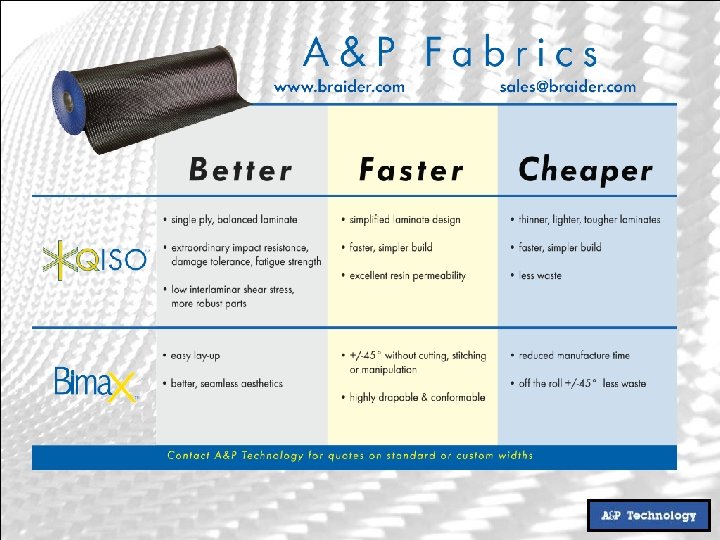

Bimax. TM – Affordable ± 45° Bias Fabric Eliminates cutting 0°/90° fabrics to create bias plies • Reduces Waste • Saves labor • Eliminates splices improving laminate quality
