Workshop on Ontologies and their Applications, September 28, 2004, São Luís do Maranhão (Brazil) Ontological Foundations for Biomedical Sciences Stefan Schulz, Kornél Markó, Udo Hahn Department of Medical Informatics University Hospital Freiburg (Germany) Text Knowledge Engineering Lab University of Jena (Germany)
The World of Life Sciences… Evolution of Life Millions of Species Morphology Function …requires sophisticated organization Dysfunction Organisms Organ Systems Organs Tissues Cells Genes Molecules
Ontologies Domain Philosophy Computer Science Cognitive Science Logics
Bio-Ontologies Domain: Biology Computer Science Philosophy: Realism Logics: Cognitive Science FOL
Top-Level Division Biological Entitiy Continuants: Occurrents: (Changes of) states of affairs of the physical world: Examples: process, state, event, disease, procedure… Entities of the physical world („Biomedical Structure“): Examples: body, organ, tissue, molecule, . . disjoint depend on
Representation of Continuants in Bio-ontologies. What exists ? n Human Anatomy n Foundational Model of Anatomy (FMA) n Portions of SNOMED, Open. Galen, Me. SH n Other Organisms n Open Biological Ontologies (OBO) n. Mouse (developmental stages), Zebrafish, Drosophila, … n UMLS Semantic Network n Species-Independent n Gene Ontology: Cellular Component branch Size: 14 (UMLS SN) – 103 (Adult Mouse) – 105 (FMA)
Deficiencies of existing Bio. Ontologies n. Redundancy n. Synonymy n. Ambiguity n. Underspecification
Redundancy
Synonymy n “Motor Neuron instance-of Neuron” (Fly. Base) n “Motor Neuron narrower Neuron” (Me. SH) n “Motor Neuron subclass-of Neuron” (FMA, Open. GALEN) Neuron Is-A ? Motor Neuron
Ambiguity, Underspecification n “Cell has-part Axon” (Gene Ontology) n Do cells without axons exist ? n Do axons without cells exist ? n “Neuron has-part Axon” (FMA) n Does every neuron has an axon?
Ambiguity, Underspecification n “Cell has-part Axon” (Gene Ontology) n Do cells without axons exist ? n Do axons without cells exist ? n “Neuron has-part Axon” (FMA) n Does every neuron has an axon? “Keep in mind that part_of means can be a part of, not is always a part of “ GO Editorial Style Guide, Oct 2003 “The part_of relationship (…) is usually necessarily is_part” GO Editorial Style Guide, Jan 2004 “A part_of B if and only if: for any instance x of A there is some instance y of B which is such that x stands to y in the instance-level part relation, and vice versa”. Rosse & Smith MEDINFO 2004
Semantic framework for biological structure… n. Foundational Relations n. General Attributes n. Theories
Semantic framework for biological structure… n. Foundational Relations n. General Attributes n. Theories
Bio-ontologies Occurrents Continuants Life, Appendectomy, Mitosis Hand, Blood, Cell, Tree My Life, Appedectomy of Patient #123, this Mitosis My Hand, Blood Sample #12345, this Cell, the Maple Tree in front of the house #xyz (Changes of) states of affairs Entities of the physical world: Universals (Concepts, Classes of Individuals) Particulars (Concrete Objects in the world) Four disjoint partitions
Some Foundational Relations between Biological Continuants Rel(x, y) y x Universals Particulars Is-A Instance-of part-of, has-location has-branch, bounds, connects has-developmental-form
Some Foundational Relations between Biological Continuants Rel(x, y) y x Universals Particulars Is-A Instance-of part-of, has-location has-branch, bounds, connects has-developmental-form
Some Foundational Relations between Biological Continuants Rel(x, y) y x Universals Particulars Is-A, Part-Of, Has-Location Bounds, Has-Branch, Connects Has-Developmental-Form Instance-of part-of, has-location has-branch, bounds, connects has-developmental-form
From Instance-to-Instance relations to Class-to-Class Relations A, B are classes, membership rel: relation between instances Rel (A, B) =def inst-of = class Rel: relation between classes x: inst-of (x, A) inst-of (y, B) rel (x, y) OR x: inst-of(x, A) y: inst -of (y, B) rel (x, y) OR y: inst-of(y, B) x: inst-of (x, A) rel (x, y) cf. Schulz & Hahn (KR 2004, ECAI 2004) Rosse & Smith (MEDINFO 2004)
From Instance-to-Instance relations to Class-to-Class Relations A, B are classes, membership rel: relation between instances Rel (A, B) =def inst-of = class Rel: relation between classes x: inst-of (x, A) inst-of (y, B) rel (x, y) OR x: inst-of(x, A) y: inst -of (y, B) rel (x, y) OR y: inst-of(y, B) x: inst-of (x, A) rel (x, y) cf. Schulz & Hahn (KR 2004, ECAI 2004) Rosse & Smith (MEDINFO 2004)
From Instance-to-Instance relations to Class-to-Class Relations A, B are classes, membership rel: relation between instances Rel (A, B) =def inst-of = class Rel: relation between classes x: inst-of (x, A) inst-of (y, B) rel (x, y) OR x: inst-of(x, A) y: inst -of (y, B) rel (x, y) AND y: inst-of(y, B) x: inst-of (x, A) rel (x, y) cf. Schulz & Hahn (KR 2004, ECAI 2004) Rosse & Smith (MEDINFO 2004)
Semantic framework for biological structure… n. Foundational Relations n. General Attributes n. Theories
General Attributes (mutually disjoint classes) n Dimensionality: Point, 1 -D, 2 -D, 3 -D
General Attributes (mutually disjoint classes) n Dimensionality: Point, 1 -D, 2 -D, 3 -D n Solids vs. hollow spaces, vs. Boundaries
General Attributes (mutually disjoint classes) n Dimensionality: Point, 1 -D, 2 -D, 3 -D n Solids vs. hollow spaces, vs. Boundaries n Collections vs. Masses vs. Count Objects cf. Schulz & Hahn, FOIS 01
Semantic framework for biological structure… n. Foundational Relations n. General Attributes n. Theories
Theories n A set of formal axioms which describe a restricted (local) domain. n Four orthogonal theories for Biological Structure n. Granularity n. Species n. Development n. Canonicity
Theories n A set of formal axioms which describe a restricted (local) domain. n Four orthogonal theories for Biological Structure n. Granularity n. Species n. Development n. Canonicity
Granularity n Level of detail (molecular, cellular, tissue, organ) n Change in Granularity level may be nonmonotonous n Change of sortal restrictions: n 3 -D 2 -D boundary n. Count concept Mass concept n Change of relational attributions: ndisconnected
Theories n A set of formal axioms which describe a restricted (local) domain. n Four orthogonal theories for Biological Structure n. Granularity n. Species n. Development n. Canonicity
Linnean Taxonomy of Species http: //tolweb. org
Linnean Taxonomy of Species http: //tolweb. org
Linnean Taxonomy of Species http: //tolweb. org
Species Introduction of axioms at the highest common level Has-Part Skull Has-Part Vertebra Has-Part Jaw
Theories n A set of formal axioms which describe a restricted (local) domain. n Four orthogonal theories for Biological Structure n. Granularity n. Species n. Development n. Canonicity
Development n Represents timedependent “snapshots” from the life cycle of an organism, e. g. , zygote, embryo, fetus, child, adult n Development stages are speciesdependent e. g. metamorphosis
Theories n A set of formal axioms which describe a restricted (local) domain. n Four orthogonal theories for Biological Structure n. Granularity n. Species n. Development n. Canonicity
Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure

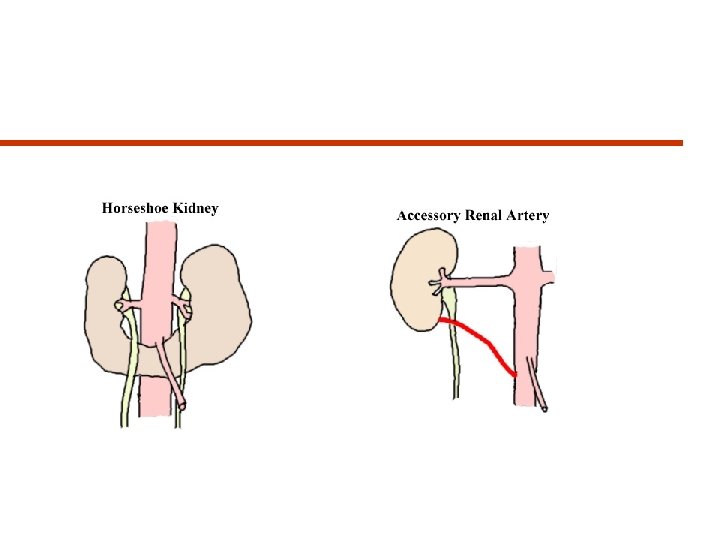

Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure n Structural Variations
Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure n Structural Variations n Pathological Structure acquired congenital
Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure n Structural Variations n Pathological Structure n Lethal Structure
Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure n Structural Variations n Pathological Structure n Lethal Structure n Derivates of biological structure
Canonicity n Five canonicity levels: each level introduces axioms valid for higher levels
Examples Granularity Species Development Canonicity low high general specific embryo adult low high
Coverage: Foundational Model of Anatomy Granularity Species Development Canonicity low high general specific embryo adult low high
Coverage: Gene Ontology Granularity Species Development Canonicity low high general specific embryo adult low high
Coverage: Mouse Anatomy Granularity Species Development Canonicity low high general specific embryo adult low high
Examples Connects (Right. Ventricle, Left Ventricle) Granularity Species Development Canonicity = normal = mammal = adult = 4 -5 Granularity Species Development Canonicity = any = vertebrate = early embryo = any false true Is-A (Membrane, 3 -D object) Granularity Species Development Canonicity = normal = any true Granularity Species Development Canonicity = lowest = any false
Conclusion n Integration of bio-ontologies requires n Uncontroversial semantics of relations and attributes n Clear commitment to theories, such as granularity, species, development and canonicity n Redundancy can be avoided n Encoding axioms at the highest common level in the species taxonomy (e. g. vertebrates, arthropods, primates) and benefit from inheritance in subsumption hierarchies
…requires sophisticated organization n Formalization and Standardization of Clinical Terminologies n Basis for the Annotation of Genes and Gene Products n Semantic reference for scientific communication n Machine-supported reasoning and decisionsupport Bio-ontologies !
Upper level classification of entities Individuals (concrete objects) • my left hand Continuants • a blood sample (physical objects, …) • a concrete cell Occurrents (events, processes, actions…) • Peter’s diabetes • appendectomy of Patient #12345 Universals (Concepts, Classes of Individuals) • Hand, • Blood • Cell • Diabetes mellitus • Appendectomy
Mereotopological Quiz • Cranial Cavity has-location Head Is Cranial Cavity part-of Head ? • Brain has-location Cranial Cavity Is Brain part of Cranial Cavity ? • Glioblastoma has-location Brain Glioblastoma part-of Brain? • Brain metastasis has-location Brain metastasis part-of Brain? • Embryo has-location Uterus Embryo part-of Uterus ? Images from: Sobotta CD-ROM
part-of HL has-location is-a HS (Solid) is HE Head -a -a is Head is-a HP p SL is-a has-location SS is-a is -a (Solid) SE Skull -a is Skull SP p CL is-a has-location -a is is-a p -a (Hole) CE Cranial Cavity is Cranial Cavity CS CP BL has-location is-a is BE Brain p -a (Solid) is Brain -a BS BP transitive closure by taxonomic subsumption has-location
Subtheories of an Ontology of Biological Structure 1. Taxonomy „is-a“ 2. 3. Topology „part-of“ „connection“ Mereology Hand part-of Thumbnail
Subtheories of an Ontology of Biological Structure 1. Taxonomy „is-a“ 2. Mereology „part-of“ 3. Topology „connection“ • Canonical relationships X Y X Y XY (Schulz et al. AMIA 2000) • Topological Primitives: X Y Y X XY YX
Structure of Talk n Introduction n Foundational Relations n Foundational Attributes n Theories n Granularity n Species n Development n “Canonicity”
The World of Life Sciences…
Generalized Representation of Living Systems: Top Level Biological Entities Biological Occurrents process, state, event, … dependence Biological Continuants organism, organ, tissue, cell, molecule, . .
Ontological Account for Biological Continuants n. Foundational Relations n. Foundational Attributes n. Theories n. Granularity n. Species n. Development n“Canonicity”

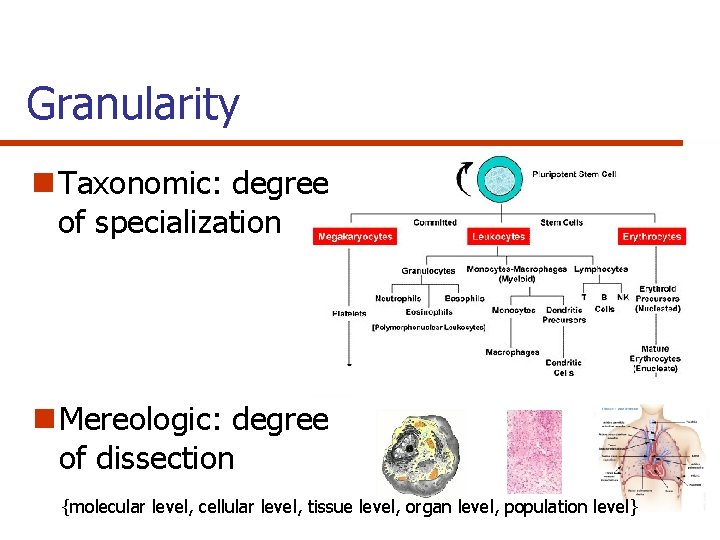

Granularity n Taxonomic: degree of specialization n Mereologic: degree of dissection {molecular level, cellular level, tissue level, organ level, population level}
Change in Granularity level may be non-monotonous n Change of sortal restrictions: n 3 -D 2 -D boundary n Count concept Mass concept n Change of relational attributions: n disconnected n
Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure
Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure n Structural Variations
Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure n Structural Variations n Pathological Structure
Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure n Structural Variations n Pathological Structure n Lethal Structure
Canonicity n Degrees of “Wellformedness” of Biological Structure: n Canonic structure n Structural Variations n Pathological Structure n Lethal Structure n Derivates of biological structure
