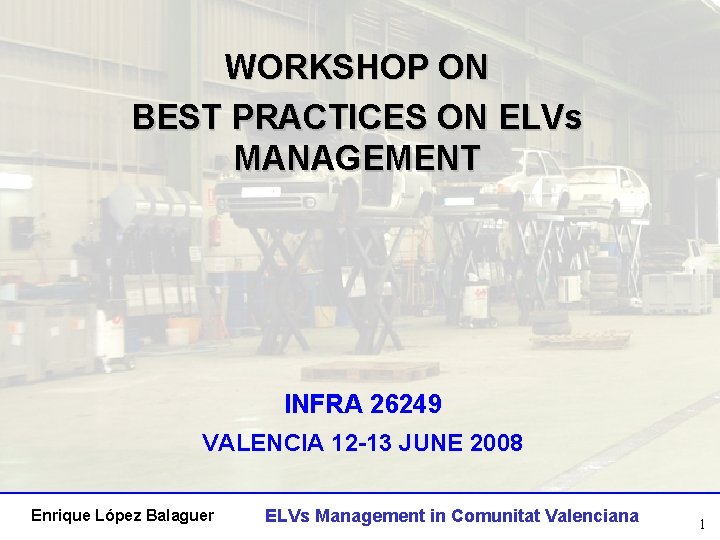

WORKSHOP ON BEST PRACTICES ON ELVs MANAGEMENT INFRA 26249 VALENCIA 12 -13 JUNE 2008 Enrique López Balaguer ELVs Management in Comunitat Valenciana 1

End of Life Vehicles (ELVs) Management in Comunitat Valenciana Ø Introduction Ø Spanish Transposition of Directive 2000/53/EC Ø ELVs Management in Valencia Region Enrique López Balaguer ELVs Management in Comunitat Valenciana 2

23. 255 km 2 (4, 6% Spain) 4. 885. 029 inh (10, 81% Spain) 210, 1 hab. /km² 542 Municipalities Enrique López Balaguer ELVs Management in Comunitat Valenciana 3

REGIONAL MINISTRY OF ENVIRONMENT, WATER, URBANISM AND HOUSING Secretary General Environment, Water, Urbanism and Housing DG Zoning DG Housing and Urban Projects DG Water DG Landscape DG Natural Environment Management Undersecretary General (Administrative functions) Environmental Inspectorate Waste Area (IW & MW) DG Climate Change Clean Technologies Center Environmental Quality Area Enrique López Balaguer ELVs Management in Comunitat Valenciana 4

ROYAL DECREE 2002/1383, 20 DECEMBER, ON ELVS MANAGEMENT Transposition of Directive 2000/53/EC to ensure: ELVs are transfered to Authorised Treatment Facilities (ATFs) Suitable enviromnental management of vehicles and components Fulfilment of reuse and recovery targets IMPROVEMENT IN THE ENVIRONMENTAL PERFORMANCE OF ALL OF ECONOMIC OPERATORS Special relevance adquires CERTIFICATE OF DESTRUCTION Enrique López Balaguer ELVs Management in Comunitat Valenciana 5

VEHICLE Any defined in Annex IIA of Directive 70/156/EEC Category M 1 <= 8 seats + the driver's seat (carriage of passengers) Category N 1 max. mass < 3, 5 ton (carriage of goods) and 3 wheel motor vehicles as def. in Directive 92/61/EEC but excluding motor tricycles END-OF-LIFE VEHICLE Vehicle which is waste acording to Directive 75/442/ECC In any case, vehicles are considered as waste from the moment they are transfered to ATF, which fills in CD, to be treated Enrique López Balaguer ELVs Management in Comunitat Valenciana 6

COLLECTION Economic operators set up systems for collection of all ELVs Adequate availability of collection facilities and ensure that all ELVs are transferred to authorised installations Producers assume costs of the implementation Delivery of the vehicle to an ATF without any cost for the last holder and/or owner as a result of the vehicle's having no or a negative market value not fully free of charge if does not contain the essential components Enrique López Balaguer ELVs Management in Comunitat Valenciana 7

CERTIFICATE OF DESTRUCTION Accredits the end of life and its consideration as hazardous waste Minimum requirements set out in Commission Decision 2002/151/EC ATF Vehicle < 30 days ELV Certificate of Destruction DEPOLLUTE shall be issued to holder and/or owner when an ELV is transferred to ATF Its presentation is a condition for de-registration of vehicle Enrique López Balaguer ELVs Management in Comunitat Valenciana 8

ORDER INT/249/2004, 5 FEBRUARY, ON DEREGISTRATION OF DEPOLLUTED ELVs Model of certificate of destruction and certificate of recepcion Aplication for de-registration Personal identity documents Vehicle’s specific documents Certificate of destruction Certify true copy of de-registration Same date as de-registration Holder and/or owner ATF Modified by ORDER INT/624/2008, 26 FEBRUARY, ON ELECTRONIC DE-REGISTRATION OF DEPOLLUTED ELVS Enrique López Balaguer ELVs Management in Comunitat Valenciana 9

ECONOMIC OPERATORS shall ensure the system for the collection with provisions set out: Ø Directly Ø Agreement competent authorities - economic sectors In Spain producers have guaranteed these provisions directly by means of SIGRAUTO Spanish Vehicles Treatment Installations Association Spanish Vehicles Importers Association Spanish Vehicles Manufacturers Association Spanish Recovery Federation Enrique López Balaguer ELVs Management in Comunitat Valenciana 10

COMUNITAT VALENCIANA Ø Collection of all (more than 97%) ELVs and transferred to ATFs Ø Suitable treatment of ELVs Ø Improvement of professionalism of sector Ø Erradication of non-authorised facilities Enrique López Balaguer ELVs Management in Comunitat Valenciana 11

PERMITS D. G. For Climate Change is the one to entitle to authorize ELVs management activities Authorized Treatment Facilities (ATF) Hazardous waste managment permits (16 01 04* end-of-life vehicles) Reception, temporarily storage, depolluting and stripping of ELVs Authorized Shredder Facilities Non hazardous waste managment permits (16 01 06 end-of-life vehicles, containing neither liquids nor other hazardous components) Shredder depolluted ELVs Enrique López Balaguer ELVs Management in Comunitat Valenciana 12

ATF AUTHORISATION REQUIREMENTS Sites for storage (also temporarily) Technical Requirements Impermeable surfaces for appropriate areas Spillage collection facilities Decanters and cleanser-degreasers Equipment for the treatment of water (inc. rainwater) Enrique López Balaguer ELVs Management in Comunitat Valenciana 13

Sites for Storage Technical Requirements Concrete base José Jareño, S. A. Reception Area Enrique López Balaguer Spillage & Rain Water Collector ELVs Management in Comunitat Valenciana 14

Sites for Storage Technical Requirements Desguace Europa 2000, S. L. Decanter and cleanser-degreaser Enrique López Balaguer ELVs Management in Comunitat Valenciana 15

Sites for Treatment Technical Requirements Roof and Impermeable surfaces for appropriate areas Spillage collection facilities that ensure tightness Appropriate storage for Dismantled spare parts Batteries, filters and PCB/PCT ELV fluids Used tyres Enrique López Balaguer ELVs Management in Comunitat Valenciana 16

Sites for Treatment Technical Requirements Roof José Jareño, S. A. Concrete base Treatment Area Spillage Collector Enrique López Balaguer ELVs Management in Comunitat Valenciana 17

Treatment Requirements for Depollution Removal of Batteries and liquified gas tanks Potential explosive components Fuel, motor, transmission, gearbox and hydraulic oil, cooling liquids, antifreeze, brake fluids, air-conditioning system fluids and any other, unless they are necessary for re-use Components identified as containing mercury Enrique López Balaguer ELVs Management in Comunitat Valenciana 18

Treatment Requirements to Promote Recycling Removal of Catalysts Glass Metal components containing Cu, Al, Mg Tyres and large plastic components (bumpers, dashboard, fluid containers. . . ) if not segregated in shredding process Ensure Fulfilment of Reuse and Recovery Targets Enrique López Balaguer ELVs Management in Comunitat Valenciana 19

ADMINISTRATIVE REQUIREMENTS General Documents Acceptance documents from ATC for the hazardous waste streams Manager with a university degree Environmental insurance of 600. 000 € Financial Guarantee Enrique López Balaguer ELVs Management in Comunitat Valenciana 20

Calculation of Financial Guarantee Total (€) = A + B A = 6 x TC + 6. 000 (€) TC: Treatment capacity (ELVs/year) (€) RZS: ELVs reception zone surface (m 2) (9. 000 to 60. 000 €) Enrique López Balaguer ELVs Management in Comunitat Valenciana 21

Content of ATF authorisation Treatment Capacity (ELVs/year) max. 1 ELV/year per each m 2 Validity of the authorisation 5 years + 2 extensions of 5 years Used Tyres Storage According D. 2003/2 and RD. 2005/619 Treatment operations Ensure appropiate degree of depollution and Targets Documentary Register and Yearly Report nº and type of vehicle and % reuse, recycled and recovery Enrique López Balaguer ELVs Management in Comunitat Valenciana 22

AUTHORISED TREATMENT FACILITIES IN CV Enough capacity to ensure the treatment for the estimated ELVs generation even for vehicles excluded of the Directive (industrial vehicles, buses, motorbikes. . . ) Enrique López Balaguer ELVs Management in Comunitat Valenciana 23

CERTIFICATE OF DESTRUCTION Vehicle’s data Holder’s and/or Owner’s data Reception installation’s data ATF’s data Enrique López Balaguer ELVs Management in Comunitat Valenciana 24

Thank you very much for your kind attention. lopez_enrbal@gva. es A. Pardo. Hoces del Cabriel Natural Park Enrique López Balaguer ELVs Management in Comunitat Valenciana 25
