WORKSHOP 1 MULTI LANE FREE FLOW Zaida Abdul

WORKSHOP 1: MULTI LANE FREE FLOW Zaida Abdul Aziz Malaysian Highway Authority 22 April 2011

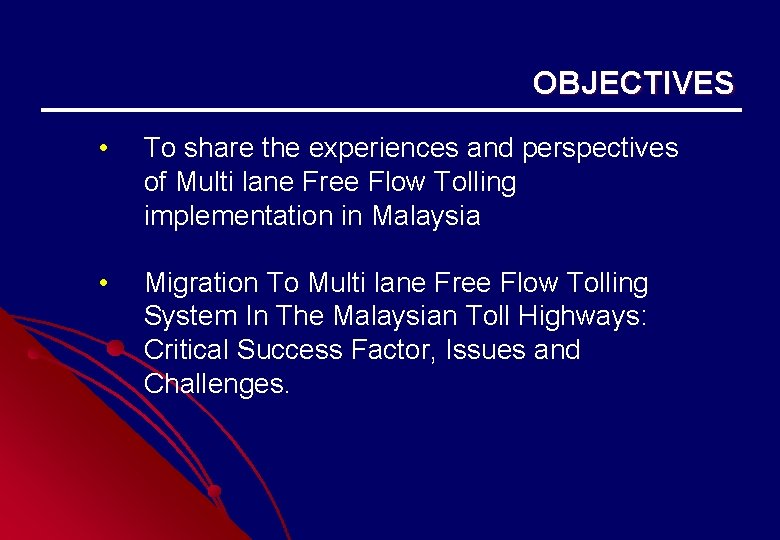

OBJECTIVES • To share the experiences and perspectives of Multi lane Free Flow Tolling implementation in Malaysia • Migration To Multi lane Free Flow Tolling System In The Malaysian Toll Highways: Critical Success Factor, Issues and Challenges.

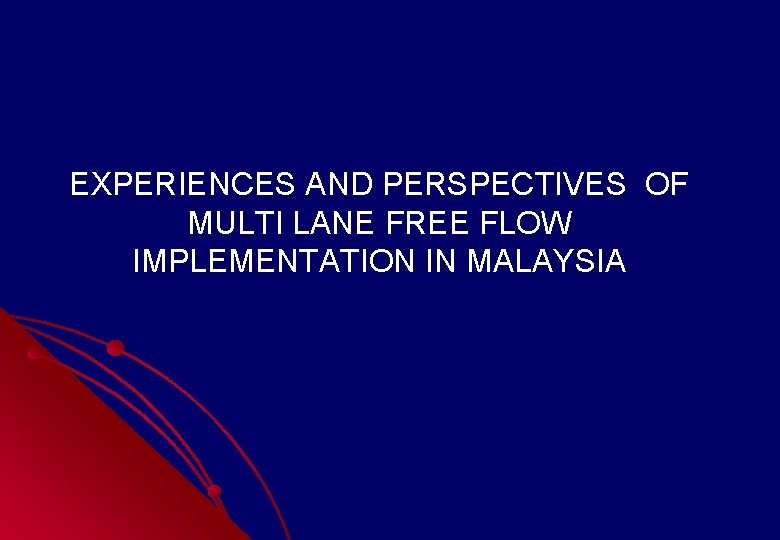

EXPERIENCES AND PERSPECTIVES OF MULTI LANE FREE FLOW IMPLEMENTATION IN MALAYSIA

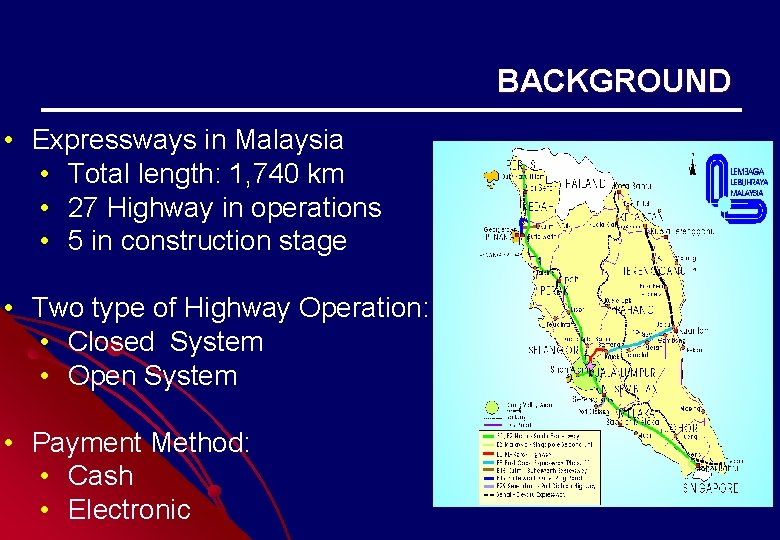

BACKGROUND • Expressways in Malaysia • Total length: 1, 740 km • 27 Highway in operations • 5 in construction stage • Two type of Highway Operation: • Closed System • Open System • Payment Method: • Cash • Electronic

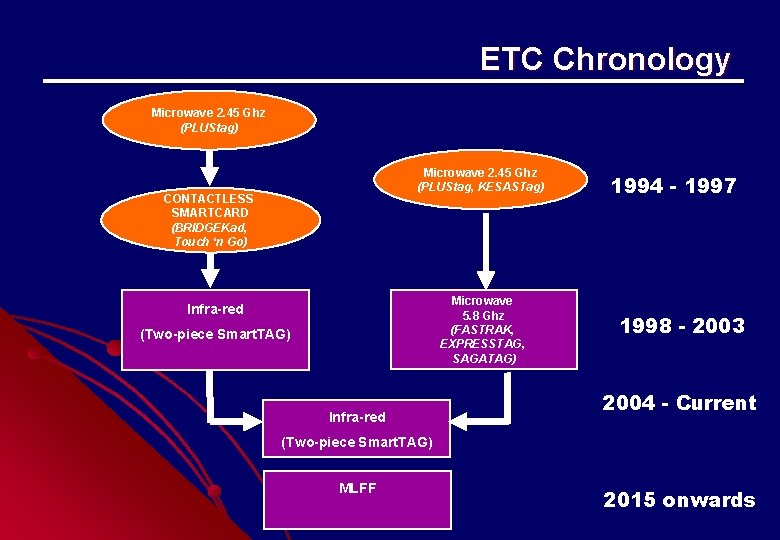

ETC Chronology Microwave 2. 45 Ghz (PLUStag) Microwave 2. 45 Ghz (PLUStag, KESASTag) CONTACTLESS SMARTCARD (BRIDGEKad, Touch ‘n Go) Microwave 5. 8 Ghz (FASTRAK, EXPRESSTAG, SAGATAG) Infra-red (Two-piece Smart. TAG) Infra-red 1994 - 1997 1998 - 2003 2004 - Current (Two-piece Smart. TAG) MLFF 2015 onwards

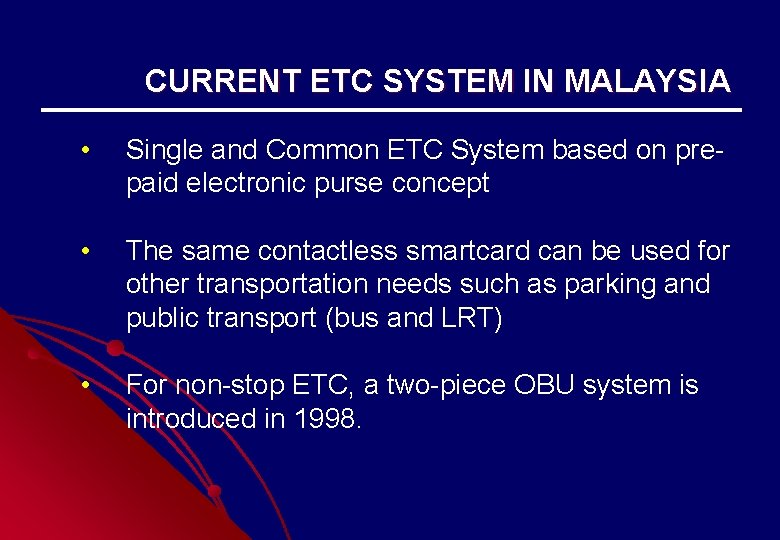

CURRENT ETC SYSTEM IN MALAYSIA • Single and Common ETC System based on prepaid electronic purse concept • The same contactless smartcard can be used for other transportation needs such as parking and public transport (bus and LRT) • For non-stop ETC, a two-piece OBU system is introduced in 1998.

CONTACTLESS SMARTCARD APPLICATION PIARC 14 -16 AUGUST 2006

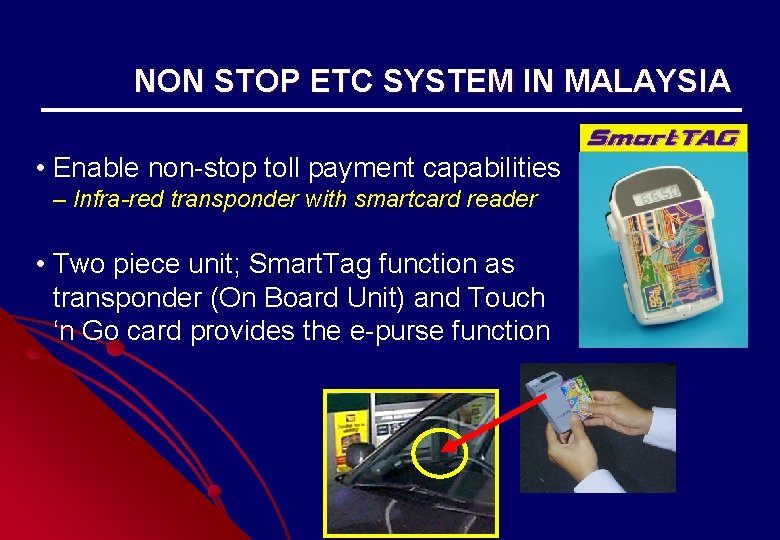

NON STOP ETC SYSTEM IN MALAYSIA • Enable non-stop toll payment capabilities – Infra-red transponder with smartcard reader • Two piece unit; Smart. Tag function as transponder (On Board Unit) and Touch ‘n Go card provides the e-purse function

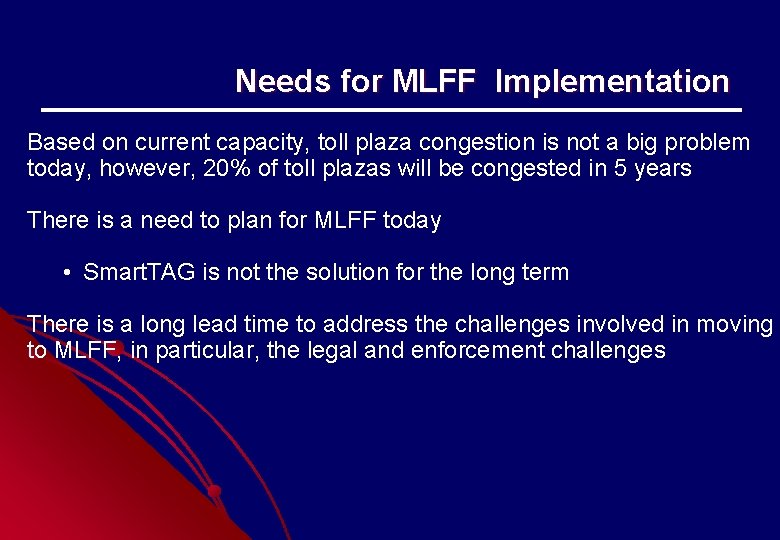

Needs for MLFF Implementation Based on current capacity, toll plaza congestion is not a big problem today, however, 20% of toll plazas will be congested in 5 years There is a need to plan for MLFF today • Smart. TAG is not the solution for the long term There is a long lead time to address the challenges involved in moving to MLFF, in particular, the legal and enforcement challenges

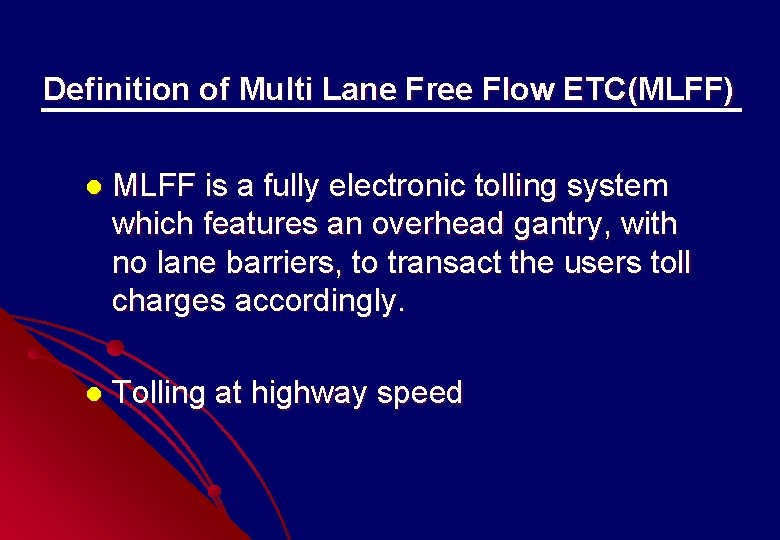

Definition of Multi Lane Free Flow ETC(MLFF) l MLFF is a fully electronic tolling system which features an overhead gantry, with no lane barriers, to transact the users toll charges accordingly. l Tolling at highway speed

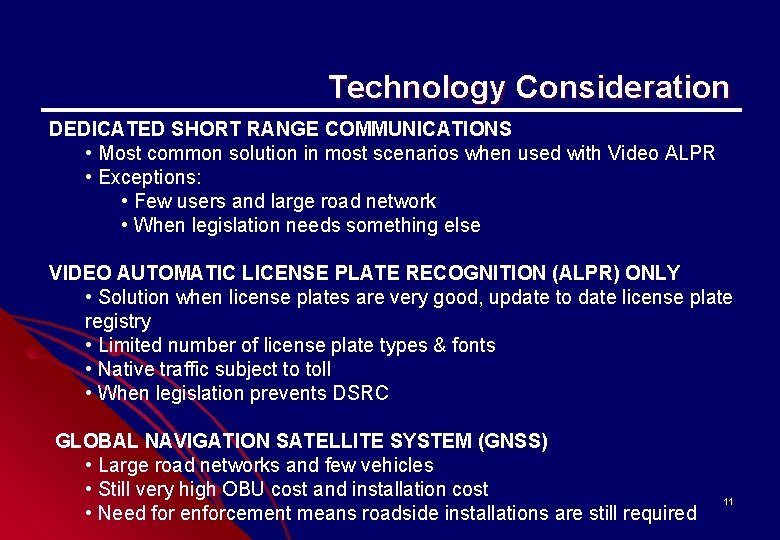

Technology Consideration DEDICATED SHORT RANGE COMMUNICATIONS • Most common solution in most scenarios when used with Video ALPR • Exceptions: • Few users and large road network • When legislation needs something else VIDEO AUTOMATIC LICENSE PLATE RECOGNITION (ALPR) ONLY • Solution when license plates are very good, update to date license plate registry • Limited number of license plate types & fonts • Native traffic subject to toll • When legislation prevents DSRC GLOBAL NAVIGATION SATELLITE SYSTEM (GNSS) • Large road networks and few vehicles • Still very high OBU cost and installation cost • Need for enforcement means roadside installations are still required 11

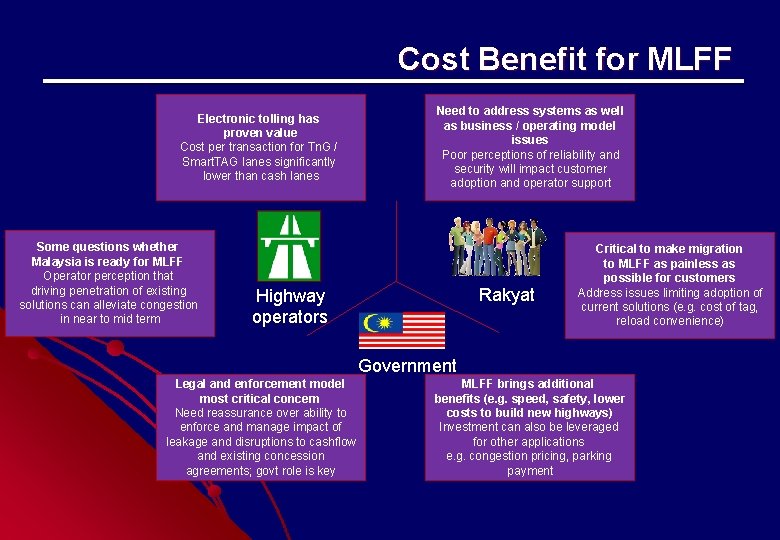

Cost Benefit for MLFF Need to address systems as well as business / operating model issues Poor perceptions of reliability and security will impact customer adoption and operator support Electronic tolling has proven value Cost per transaction for Tn. G / Smart. TAG lanes significantly lower than cash lanes Some questions whether Malaysia is ready for MLFF Operator perception that driving penetration of existing solutions can alleviate congestion in near to mid term Rakyat Highway operators Critical to make migration to MLFF as painless as possible for customers Address issues limiting adoption of current solutions (e. g. cost of tag, reload convenience) Government Legal and enforcement model most critical concern Need reassurance over ability to enforce and manage impact of leakage and disruptions to cashflow and existing concession agreements; govt role is key MLFF brings additional benefits (e. g. speed, safety, lower costs to build new highways) Investment can also be leveraged for other applications e. g. congestion pricing, parking payment

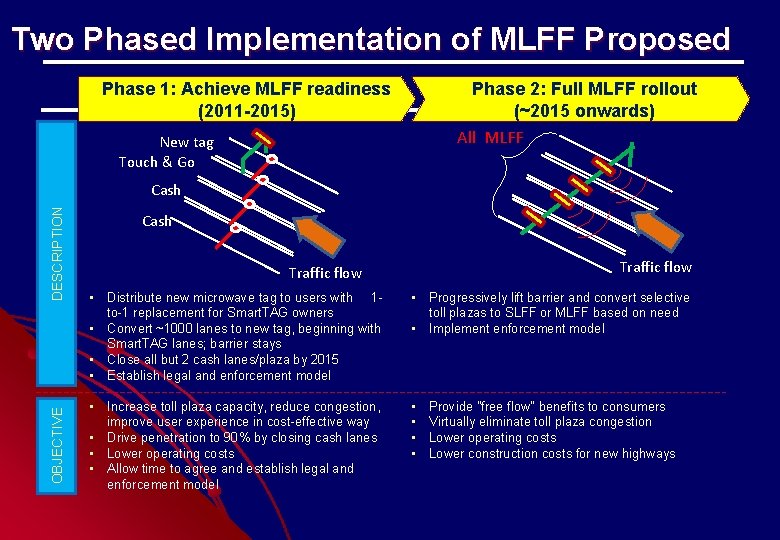

Two Phased Implementation of MLFF Proposed Phase 1: Achieve MLFF readiness (2011 -2015) Phase 2: Full MLFF rollout (~2015 onwards) All MLFF New tag Touch & Go OBJECTIVE DESCRIPTION Cash Traffic flow • Distribute new microwave tag to users with 1 to-1 replacement for Smart. TAG owners • Convert ~1000 lanes to new tag, beginning with Smart. TAG lanes; barrier stays • Close all but 2 cash lanes/plaza by 2015 • Establish legal and enforcement model • Progressively lift barrier and convert selective toll plazas to SLFF or MLFF based on need • Implement enforcement model • Increase toll plaza capacity, reduce congestion, improve user experience in cost-effective way • Drive penetration to 90% by closing cash lanes • Lower operating costs • Allow time to agree and establish legal and enforcement model • • Provide "free flow" benefits to consumers Virtually eliminate toll plaza congestion Lower operating costs Lower construction costs for new highways

Malaysian like MLFF concept but quick to express concerns and question value Free flow concept appeals to drivers. . . Positive reaction to MLFF concept board and pictures "This would be awesome to use" – Tn. G user "OBU is so stylish" – Cash user Customers see potential benefits of speed, convenience and security "It is more convenient because I don't need to slow down" – Smart. TAG user "Better than Smart. TAG because of free flow" - Smart. TAG user "Smaller size makes it easier to keep and carry around" – Tn. G user ? . . . But pricing and security concerns quickly follow. . . Immediate concerns of how much extra cost for added benefits "Number one concern is price, It has to be value for money" – Smart. TAG user "We must know how much you’re going to charge for it" – Cash user "Is it free for us? " – Tn. G user And other questions around capabilities and security "The question is, how good is thing first? " – Smart. TAG user . . . Along with questions of value add and enforceability ? Value add of MLFF questioned by some users "Many times congestion is after the Toll so what's the point of this new system" – Tn. G user High scepticism regarding enforceability "You must remember, this is Malaysia. If we can have free lunches, we’ll go for it. How are they going to control? " -Smart. TAG "You cannot even serve summons, how are you going to enforce MLFF? " –Smart. TAG "What about security? Someone can steal it right? " – Tn. G user Despite concerns, high acceptance amongst users towards idea of Mandatory MLFF

MIGRATION TO MULTI LANE FREE FLOW IN THE MALAYSIAN TOLL HIGHWAYS: CRITICAL SUCCESS FACTOR, CHALLENGES AND ISSUES

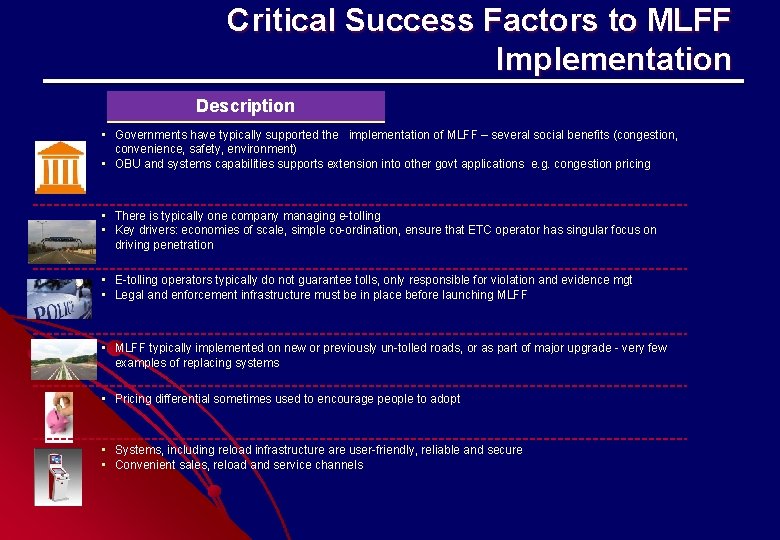

Critical Success Factors to MLFF Implementation Description • Governments have typically supported the implementation of MLFF – several social benefits (congestion, convenience, safety, environment) • OBU and systems capabilities supports extension into other govt applications e. g. congestion pricing • There is typically one company managing e-tolling • Key drivers: economies of scale, simple co-ordination, ensure that ETC operator has singular focus on driving penetration • E-tolling operators typically do not guarantee tolls, only responsible for violation and evidence mgt • Legal and enforcement infrastructure must be in place before launching MLFF • MLFF typically implemented on new or previously un-tolled roads, or as part of major upgrade - very few examples of replacing systems • Pricing differential sometimes used to encourage people to adopt • Systems, including reload infrastructure are user-friendly, reliable and secure • Convenient sales, reload and service channels

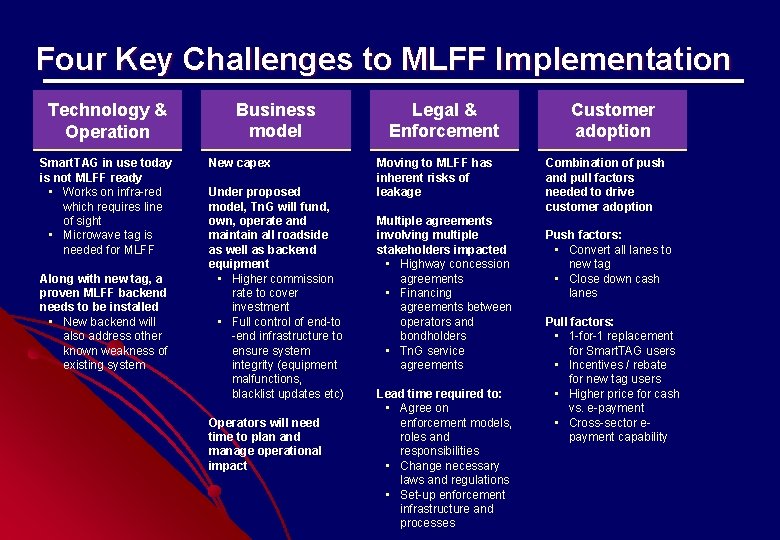

Four Key Challenges to MLFF Implementation Technology & Operation Smart. TAG in use today is not MLFF ready • Works on infra-red which requires line of sight • Microwave tag is needed for MLFF Along with new tag, a proven MLFF backend needs to be installed • New backend will also address other known weakness of existing system Business model New capex Under proposed model, Tn. G will fund, own, operate and maintain all roadside as well as backend equipment • Higher commission rate to cover investment • Full control of end-to -end infrastructure to ensure system integrity (equipment malfunctions, blacklist updates etc) Operators will need time to plan and manage operational impact Legal & Enforcement Moving to MLFF has inherent risks of leakage Multiple agreements involving multiple stakeholders impacted • Highway concession agreements • Financing agreements between operators and bondholders • Tn. G service agreements Lead time required to: • Agree on enforcement models, roles and responsibilities • Change necessary laws and regulations • Set-up enforcement infrastructure and processes Customer adoption Combination of push and pull factors needed to drive customer adoption Push factors: • Convert all lanes to new tag • Close down cash lanes Pull factors: • 1 -for-1 replacement for Smart. TAG users • Incentives / rebate for new tag users • Higher price for cash vs. e-payment • Cross-sector epayment capability

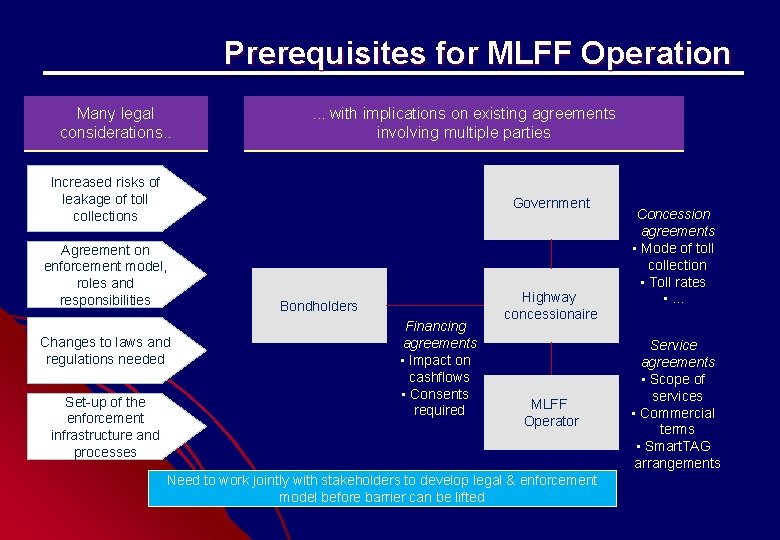

Prerequisites for MLFF Operation Many legal considerations. . . with implications on existing agreements involving multiple parties Increased risks of leakage of toll collections Government Agreement on enforcement model, roles and responsibilities Changes to laws and regulations needed Set-up of the enforcement infrastructure and processes Bondholders Financing agreements • Impact on cashflows • Consents required Highway concessionaire MLFF Operator Need to work jointly with stakeholders to develop legal & enforcement model before barrier can be lifted Concession agreements • Mode of toll collection • Toll rates • . . . Service agreements • Scope of services • Commercial terms • Smart. TAG arrangements

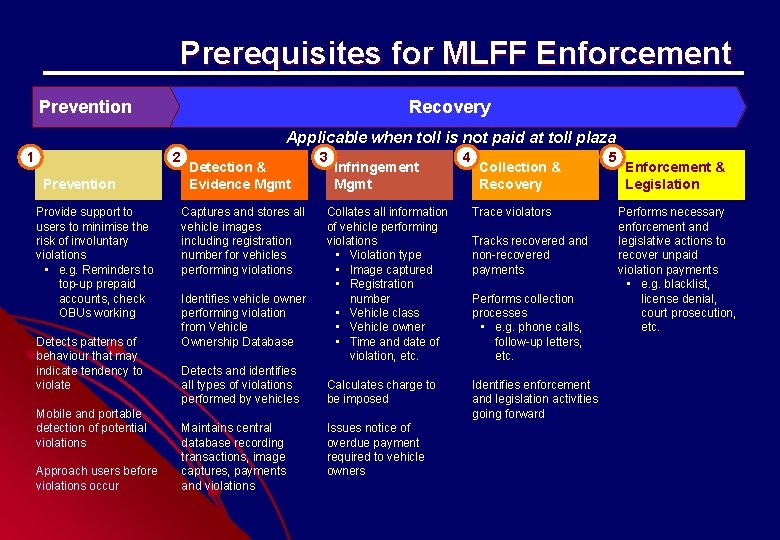

Prerequisites for MLFF Enforcement Prevention Recovery Applicable when toll is not paid at toll plaza 1 2 Prevention Provide support to users to minimise the risk of involuntary violations • e. g. Reminders to top-up prepaid accounts, check OBUs working Detects patterns of behaviour that may indicate tendency to violate Mobile and portable detection of potential violations Approach users before violations occur Detection & Evidence Mgmt Captures and stores all vehicle images including registration number for vehicles performing violations Identifies vehicle owner performing violation from Vehicle Ownership Database Detects and identifies all types of violations performed by vehicles Maintains central database recording transactions, image captures, payments and violations 3 Infringement Mgmt 4 Collection & Recovery Collates all information of vehicle performing violations • Violation type • Image captured • Registration number • Vehicle class • Vehicle owner • Time and date of violation, etc. Trace violators Calculates charge to be imposed Identifies enforcement and legislation activities going forward Issues notice of overdue payment required to vehicle owners Tracks recovered and non-recovered payments Performs collection processes • e. g. phone calls, follow-up letters, etc. 5 Enforcement & Legislation Performs necessary enforcement and legislative actions to recover unpaid violation payments • e. g. blacklist, license denial, court prosecution, etc.

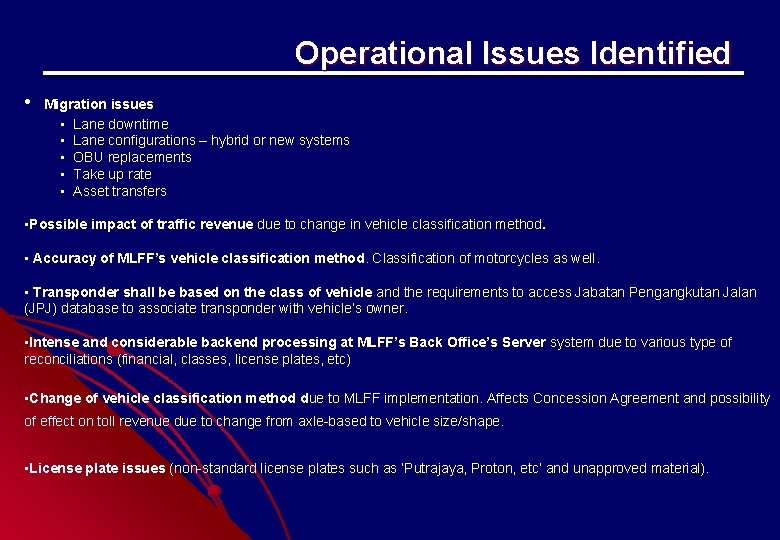

Operational Issues Identified • Migration issues • • • Lane downtime Lane configurations – hybrid or new systems OBU replacements Take up rate Asset transfers • Possible impact of traffic revenue due to change in vehicle classification method. • Accuracy of MLFF’s vehicle classification method. Classification of motorcycles as well. • Transponder shall be based on the class of vehicle and the requirements to access Jabatan Pengangkutan Jalan (JPJ) database to associate transponder with vehicle’s owner. • Intense and considerable backend processing at MLFF’s Back Office’s Server system due to various type of reconciliations (financial, classes, license plates, etc) • Change of vehicle classification method due to MLFF implementation. Affects Concession Agreement and possibility of effect on toll revenue due to change from axle-based to vehicle size/shape. • License plate issues (non-standard license plates such as ‘Putrajaya, Proton, etc’ and unapproved material).

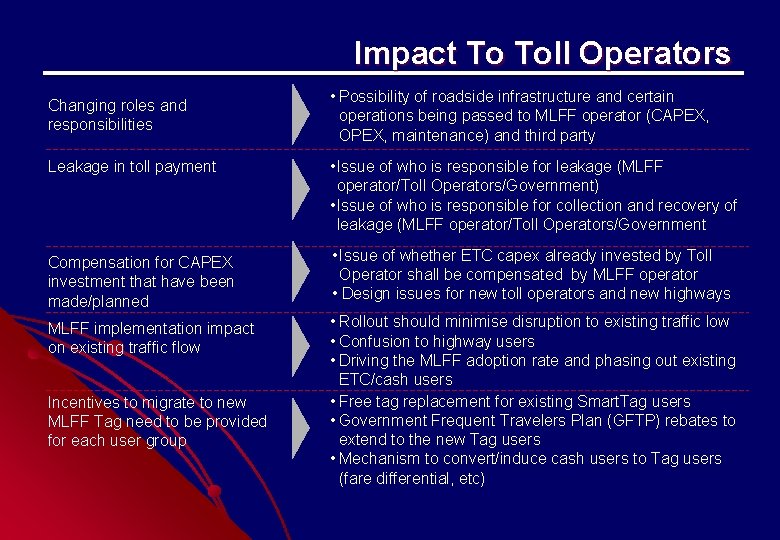

Impact To Toll Operators Changing roles and responsibilities • Possibility of roadside infrastructure and certain operations being passed to MLFF operator (CAPEX, OPEX, maintenance) and third party Leakage in toll payment • Issue of who is responsible for leakage (MLFF operator/Toll Operators/Government) • Issue of who is responsible for collection and recovery of leakage (MLFF operator/Toll Operators/Government Compensation for CAPEX investment that have been made/planned • Issue of whether ETC capex already invested by Toll Operator shall be compensated by MLFF operator • Design issues for new toll operators and new highways MLFF implementation impact on existing traffic flow • Rollout should minimise disruption to existing traffic low • Confusion to highway users • Driving the MLFF adoption rate and phasing out existing ETC/cash users • Free tag replacement for existing Smart. Tag users • Government Frequent Travelers Plan (GFTP) rebates to extend to the new Tag users • Mechanism to convert/induce cash users to Tag users (fare differential, etc) Incentives to migrate to new MLFF Tag need to be provided for each user group

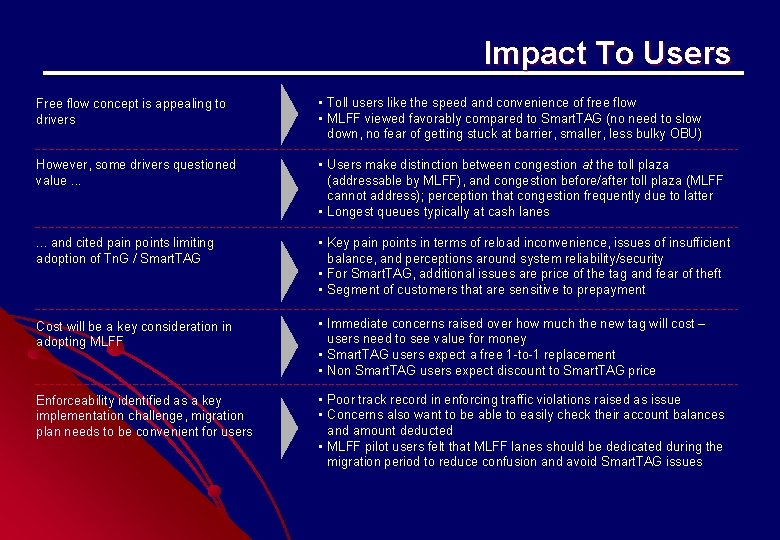

Impact To Users Free flow concept is appealing to drivers • Toll users like the speed and convenience of free flow • MLFF viewed favorably compared to Smart. TAG (no need to slow down, no fear of getting stuck at barrier, smaller, less bulky OBU) However, some drivers questioned value. . . • Users make distinction between congestion at the toll plaza (addressable by MLFF), and congestion before/after toll plaza (MLFF cannot address); perception that congestion frequently due to latter • Longest queues typically at cash lanes . . . and cited pain points limiting adoption of Tn. G / Smart. TAG • Key pain points in terms of reload inconvenience, issues of insufficient balance, and perceptions around system reliability/security • For Smart. TAG, additional issues are price of the tag and fear of theft • Segment of customers that are sensitive to prepayment Cost will be a key consideration in adopting MLFF • Immediate concerns raised over how much the new tag will cost – users need to see value for money • Smart. TAG users expect a free 1 -to-1 replacement • Non Smart. TAG users expect discount to Smart. TAG price Enforceability identified as a key implementation challenge, migration plan needs to be convenient for users • Poor track record in enforcing traffic violations raised as issue • Concerns also want to be able to easily check their account balances and amount deducted • MLFF pilot users felt that MLFF lanes should be dedicated during the migration period to reduce confusion and avoid Smart. TAG issues
