Worksheet Chapters 1 7 Review Grading rubric 1
Worksheet: Chapters 1 -7 Review Grading rubric
1. Give the units for the following quantities and tell me whether they are a vector or scalar quantity. Quantity Units Vector or Scalar Distance meters (m) Scalar Speed m/s Scalar Time Seconds (s) Scalar Velocity m/s Vector Mass Kg Scalar Acceleration m/s 2 Vector Force Newtons (N) Vector
2. What two things does a vector tell us?
2. What two things does a vector tell us? Magnitude and diretion
3. What one thing does a scalar quantity tell us?
3. What one thing does a scalar quantity tell us? Magnitude
4. What is the difference between speed and velocity?
4. What is the difference between speed and velocity? Speed is a scalar quantity and velocity is a vector (Velocity has a direction as well as magnitude)
5. Give me a situation when an object can have constant speed but not constant velocity.
5. Give me a situation when an object can have constant speed but not constant velocity. Moving in a curved path at constant speed
6. What is a force?
6. What is a force? A push or pull on an object
7. What is net force?
7. What is net force? The sum of all forces acting on an object
8. Diagram the following on the diagram to the right: a. Force of gravity b. Support or Normal Force c. What is the net force?
8. Diagram the following on the diagram to the right: a. Force of gravity b. Support or Normal Force c. What is the net force? Support or normal force Force of gravity Net force = 2 – 2 = 0 N
9. The force of gravity is also known as
9. The force of gravity is also known as weight
10. Calculate the resultant vector for the following vectors (draw a diagram of each) a. 200 Newtons down and 50 Newtons up 50 N -200 N
10. Calculate the resultant vector for the following vectors (draw a diagram of each) a. 200 Newtons down and 50 Newtons up 50 N -200 N -150 N
10. Calculate the resultant vector for the following vectors (draw a diagram of each) b. 45 Newtons pushing a crate with 15 Newtons of friction. 15 N 45 N
10. Calculate the resultant vector for the following vectors (draw a diagram of each) b. 45 Newtons pushing a crate with 15 Newtons of friction. 15 N 45 N Net force = 30 N
10. Calculate the resultant vector for the following vectors (draw a diagram of each) c. A 10 kg rock falling with 50 Newtons of air resistance. (Hint: Remember that Force of gravity (Fg) equals mass x gravity (Fg = mg) 50 N Fg = mg Fg = (10 kg)(10 m/s 2) Fg = 100 N -100 N
10. Calculate the resultant vector for the following vectors (draw a diagram of each) c. A 10 kg rock falling with 50 Newtons of air resistance. (Hint: Remember that Force of gravity (Fg) equals mass x gravity (Fg = mg) 50 N Fg = mg Fg = (10 kg)(10 m/s 2) Fg = 100 N -100 N
10. Calculate the resultant vector for the following vectors (draw a diagram of each) d. A boat rowing across a river at 5 km/hr with a current flowing at 3 km/hr 5 km/hr 3 km/hr
10. Calculate the resultant vector for the following vectors (draw a diagram of each) d. A boat rowing across a river at 5 km/hr with a current flowing at 3 km/hr 5 km/hr 3 km/hr
10. Calculate the resultant vector for the following vectors (draw a diagram of each) e. An airplanes groundspeed when is it flying at 250 km/hr with a 50 km/hr headwind. 250 km/hr headwind
10. Calculate the resultant vector for the following vectors (draw a diagram of each) e. An airplanes groundspeed when is it flying at 250 km/hr with a 50 km/hr headwind. 250 km/hr headwind 200 km/hr groundspeed
10. Calculate the resultant vector for the following vectors (draw a diagram of each) f. An airplanes groundspeed when is it flying at 250 km/hr with a 50 km/hr tailwind. 250 km/hr tailwind
10. Calculate the resultant vector for the following vectors (draw a diagram of each) f. An airplanes groundspeed when is it flying at 250 km/hr with a 50 km/hr tailwind. 250 km/hr tailwind 300 km/hr groundspeed
11. What is friction? Which way does it always act in relation to the motion of an object?
11. What is friction? Which way does it always act in relation to the motion of an object? A force that acts in the opposite direction to motion
12. What is Newton’s First Law of Motion? .
12. What is Newton’s First Law of Motion? The law of inertia An object at rest will remain at rest, an object in motion will remain in motion unless acted on by a net force.
13. What is the difference between mass and weight?
13. What is the difference between mass and weight? Mass is the amount of matter that exists in an object (it does not change). Weight is the effect of gravity on a mass (weight changes when gravity changes. i. e. on the moon compared to Earth)
14. What is the difference between average speed and instantaneous speed? Average speed. Instantaneous speed-
14. What is the difference between average speed and instantaneous speed? Average speed- total distance divided by total time Instantaneous speed- the speed at any given time
16. What is the value of the acceleration of gravity (g) on Earth?
16. What is the value of the acceleration of gravity (g) on Earth? 9. 8 m/s 2
17. What is free fall?
17. What is free fall? A falling object when we disregard the force of air resistance (only force acting on object is the force of gravity)
18. If you throw an object straight up and it takes 6 seconds to return to you, how long did it take to get to the top? From the top of its path back down to you? 6 seconds to go up and down
18. If you throw an object straight up and it takes 6 seconds to return to you, how long did it take to get to the top? From the top of its path back down to you? 6 seconds to go up and down 3 seconds to get to top and 3 seconds from top to bottom
19. If you throw a rock straight up at 10 m/s, what will its speed be when you catch it again? 10 m/s ?
19. If you throw a rock straight up at 10 m/s, what will its speed be when you catch it again? 10 m/s
20. What is a projectile?
20. What is a projectile? An object traveling through space only acted upon by gravity (disregard air resistance)
21. Label and diagram below showing the terms and values: range, minimum vertical velocity, maximum vertical velocity, trajectory
21. Label and diagram below showing the terms and values: range, minimum vertical velocity, maximum vertical velocity, trajectory Minimum vertical velocity range Maximum vertical velocity
22. What force causes a projectile to fall short of its idealized path?
22. What force causes a projectile to fall short of its idealized path? Air resistance
23. What is Newton’s Second Law? Show the equation that summarizes the law.
23. What is Newton’s Second Law? Show the equation that summarizes the law. F=ma the relationship between force, mass, and acceleration

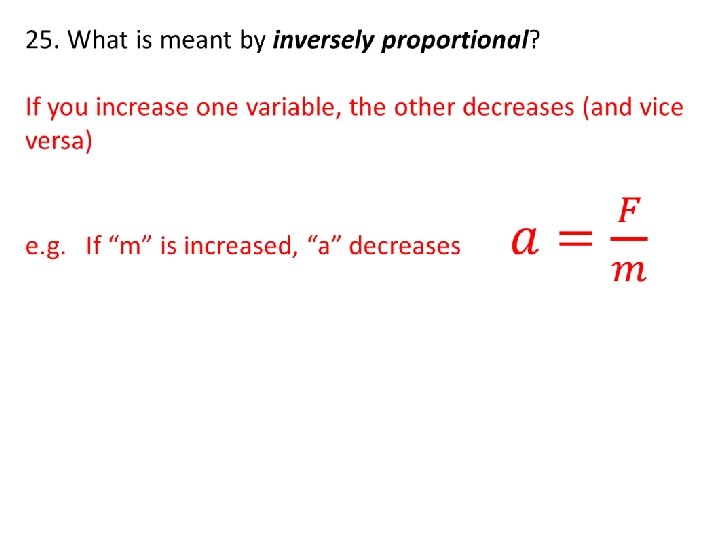

26. How is acceleration and Force related? How about acceleration and mass?
26. How is acceleration and Force related? How about acceleration and mass? “a” is directly proportional to “F” “a” is inversely proportional to “m”
27. What is required to accelerate an object?
27. What is required to accelerate an object? A force
29. What is terminal velocity or speed? When a falling objects force of gravity equals the air resistance force (net force = 0). The maximum velocity
30. What is the net force acting on an object that has reached terminal velocity?
30. What is the net force acting on an object that has reached terminal velocity? zero
32. What is Newton’s Third Law? Action – reaction (For every action, there is an equal and opposing reaction)
33. Label action force and reaction force in the diagram to the right.
33. Label action force and reaction force in the diagram to the right. action reaction or action
34. How can you compare the two forces in the diagram to the right? How about the acceleration of the gun compared to the bullet? Use F=ma to explain a. Forcesb. Accelerationsbullet gun F= a m F = ma
36. How much time will it take for a person to walk the length of a the San Clemente Pier (400 yards) at a constant speed of 5 ft/s?
37. Suppose you take a trip that covers 50 km and takes 1 hours to make. What is your average speed?
46. If a projectile is fired straight up at a speed of 20 m/s, the total time to return to its starting point is about v 0= 0 m/s t=? g = 10 m/s 2 t= 2 x 2 s = 4 s v = 20 m/s
