Workplace Ergonomics Contra Costa County Schools Insurance group

Workplace Ergonomics Contra Costa County Schools Insurance group Loss Prevention Services 1 9/8/2021

What will be covered. l l l l l What is Ergonomic Statistics The benefits of an Ergonomic program Ergonomic related injuries and their causes Identifying Ergonomic Risk Factors Office Ergonomics Industrial Ergonomics Control Strategies to minimize risk What you can do to prevent injury 2 9/8/2021

What is Ergonomics? l l Ergonomics is the science of fitting workplace conditions and job demands to the capabilities of employees. ( U. S. Dept. of Health) Ergonomic principles are used to improve the “fit” between the worker and the workplace. A practical approach to Ergonomics considers the match between the person, the equipment they use the work processes and the work environment. A persons capabilities, physical attributes and work habits must be recognized to improve ergonomic factors in the workplace. 3 9/8/2021

Ergonomic Statistics l l l 90% of all office workers use personal computers. In 1997 work related musculoskeletal disorders reached 275, 000 cases. Carpal Tunnel Syndrome comprises 13% of all workplace injuries. Women outnumber men 3: 1 sustaining Carpal Tunnel Syndrome. WMSD’s account for $20 billion in direct costs each year and $100 billion in indirect costs. 4 9/8/2021

The benefits of an ergonomic program Decreased injuries, illnesses, and workers’ compensation costs. l Increased efficiency at work. l Increased physical well being. l Decreased absenteeism and turnover. l Increase in employee morale. l 5 9/8/2021

Ergonomic related injuries May be called: l CTD’s (cumulative trauma disorders) l RSI’s (repetitive stress injuries) l RMI’s (repetitive motion injuries) l Which are all considered: l MSD’s (musculoskeletal disorders) l MSD’s can affect muscles, tendons, nerves, joints and spinal disks. l 6 9/8/2021

Common types of MSD’s Tendonitis l Carpal Tunnel Syndrome l Tennis Elbow l Neck and Back injuries l Strains/Sprains l Bursitis l Thoracic Outlet Syndrome l Trigger finger l 7 9/8/2021

Risk factors and causes of MSD’s Repetition l Force l Awkward Posture l Static Posture l Contact Stress l Temperature Extremes l Vibration l Psycho Social l 8 9/8/2021

Identifying Risk Factors Conditions or circumstances that increase the chances of developing a MSD. l The likelihood of developing an injury is dependent on the frequency and duration of exposure to risk factors. l Both occupational and personal risk factors can affect an individuals well being at home or work. l 9 9/8/2021

Repetition Occurs when the same or similar movements are performed frequently. l Repetition can also occur when different tasks are performed if those tasks have the same movements. l Injury may result from repetition when the tissues do not have adequate time to recover. l 10 9/8/2021

Force l l l Force is the amount of physical effort required by a person to do a task or maintain control of tools or equipment. A pinch grip produces 3 -5 times more force on the tendons in the wrist than a grip with the whole hand. With excessive force the muscles are contracting much harder than normal, this can lead to stress on the muscles, tendons and joints. 11 9/8/2021

Awkward Posture Is a deviation from the “neutral” body position. l A “neutral” body position is safest and most efficient position in which to work. l Awkward posture puts stress on muscles, tendons and joints. l 12 9/8/2021

Static Posture Static posture occurs when one position is held for a prolonged period of time. l The muscles will become fatigued from a lack of blood flow during a static posture. l This fatigue can lead to discomfort and even injury. l 13 9/8/2021

Contact Stress Contact stress is caused by any sharp or hard object putting localized pressure on a part of the body. l Contact stress will irritate local tissues and interfere with circulation and nerve function. l 14 9/8/2021

Temperature Extremes Environmental conditions such as extreme heat or cold can place stress on tissues. l Extreme cold constricts blood vessels and reduces sensitivity and coordination of body parts. l Excessive heat can result in increased fatigue and heat stress. l 15 9/8/2021

Vibration Exposure to vibration can occur while using power tools or while driving equipment. l Vibration from power tools can place stress on the tissues of the fingers, hand arms. l Whole body vibration from driving puts stress on the spinal tissues. l 16 9/8/2021

Psycho-social Issues Stress, boredom, job dissatisfaction and anxiety can contribute to the possibility of developing a MSD. l Psycho-social issues can create increased muscle tension and reduce a person’s awareness of work technique. l 17 9/8/2021

Office Ergonomics l l l By applying ergonomic principles to the office setting, risk factors are minimized, productivity is increased, and overall workplace quality is improved. The workstation must be adjusted to promote a neutral position while a person works. When adjusting a workstation, keep in mind that all of the equipment interacts. Making one adjustment may alter another. 18 9/8/2021

Adjusting the Workstation l Adjust the Chair. l Adjust reach requirements. l Adjust focal requirements. 19 9/8/2021

Correct the Environment l Check lighting, noise and temperature. l Check work pace and stress levels. l Check work processes. 20 9/8/2021

Improve Posture and Habits l Modify wrist/hand motions l Improve neck and back postures l Consider personal preferences 21 9/8/2021

Industrial Ergonomics By applying ergonomic principles in industrial settings, a safer, healthier and more productive work environment can be developed l Employees and employers need to know how to minimize risk factors by choosing the best tools and work techniques for a given task. l 22 9/8/2021

Arrange the work area l Consider the base of support. l Place equipment and materials where appropriate. 23 9/8/2021

Choose the appropriate tools l Check the fit. l Make sure the tools match the task. 24 9/8/2021

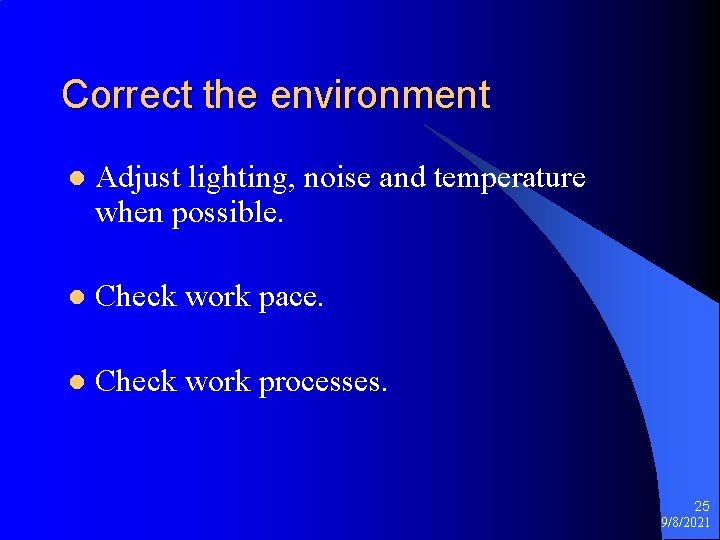

Correct the environment l Adjust lighting, noise and temperature when possible. l Check work pace. l Check work processes. 25 9/8/2021

Improve work techniques and habits l Improve postures. l Check work techniques. 26 9/8/2021

Control Strategies l The next step is to develop and implement control strategies to increase quality and productivity. l Once the risk factors and their causes are identified, control strategies can be implemented based on needs. 27 9/8/2021

Engineering Controls Appropriate initial design of the work station or work area. l Improving the design of the existing work area or equipment. l Providing necessary equipment and accessories. l Adjusting the work station layout and equipment. l 28 9/8/2021

Administrative Controls l Training workers in work methods. l Varying or rotating work tasks. l Limiting extended work hours. l Providing mini-breaks. 29 9/8/2021

Personal Protective Equipment PPE acts as a barrier between a person and a hazard. l PPE is only appropriate in situations when engineering or administrative controls cannot be implemented. l Back belts and other braces are not considered PPE. These devices should not be used in place of incorrect work techniques. l 30 9/8/2021

What you can do to prevent injury. Develop an Ergonomics program. l Take proper breaks. l Health and Fitness. l Be aware of your hobbies away from work. l 31 9/8/2021

When Ergonomics are improved in the workplace: We work smarter, not harder. l Quality, comfort and safety make us more productive and happy people. l Stay Healthy and Safe, Take action!!! l 32 9/8/2021
