Working Under Pressure? An Examination of a Two Phase System

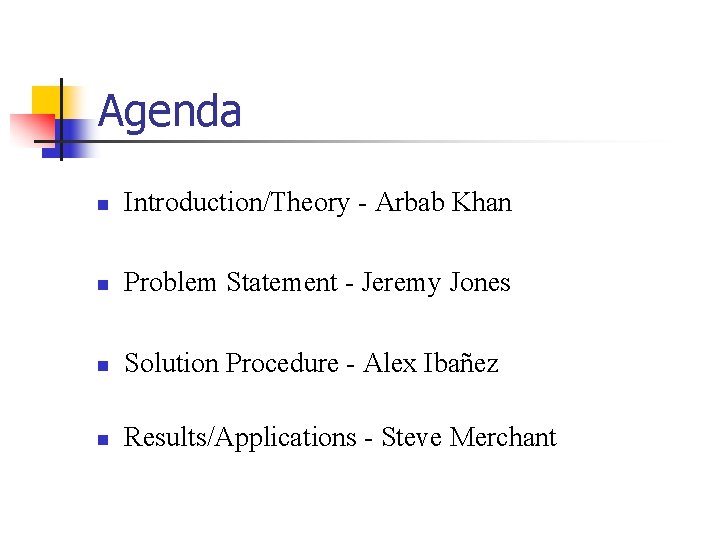

Agenda n Introduction/Theory - Arbab Khan n Problem Statement - Jeremy Jones n Solution Procedure - Alex Ibañez n Results/Applications - Steve Merchant

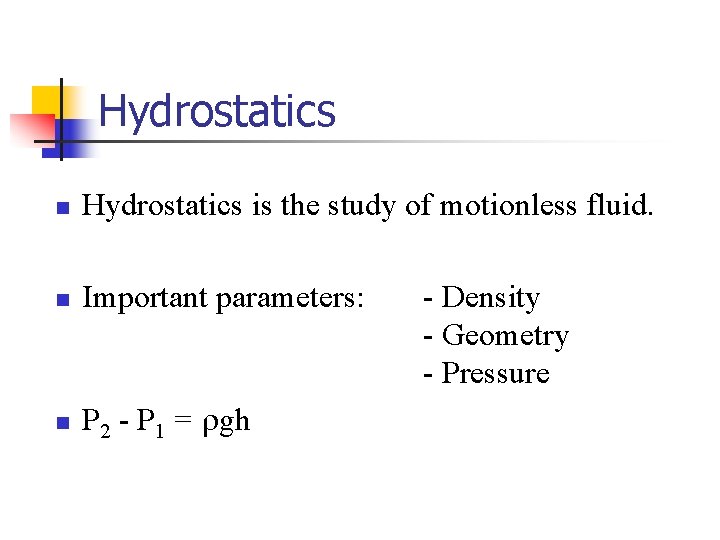

Hydrostatics n Hydrostatics is the study of motionless fluid. n Important parameters: n P 2 - P 1 = rgh - Density - Geometry - Pressure

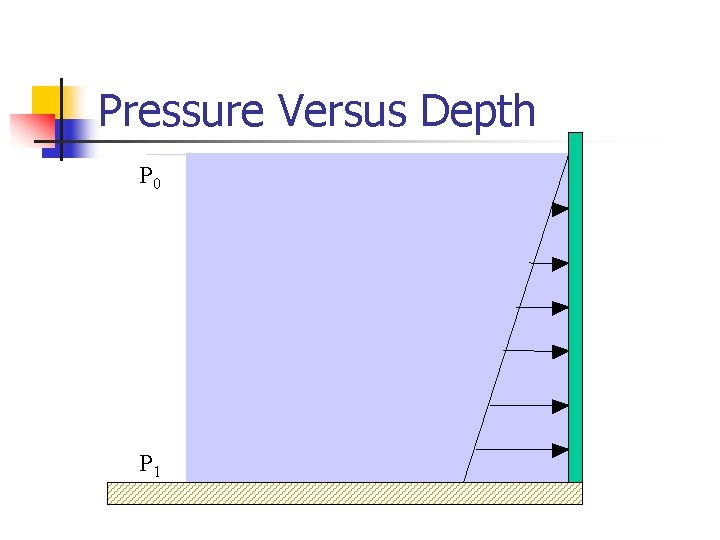

Pressure Versus Depth P 0 P 1

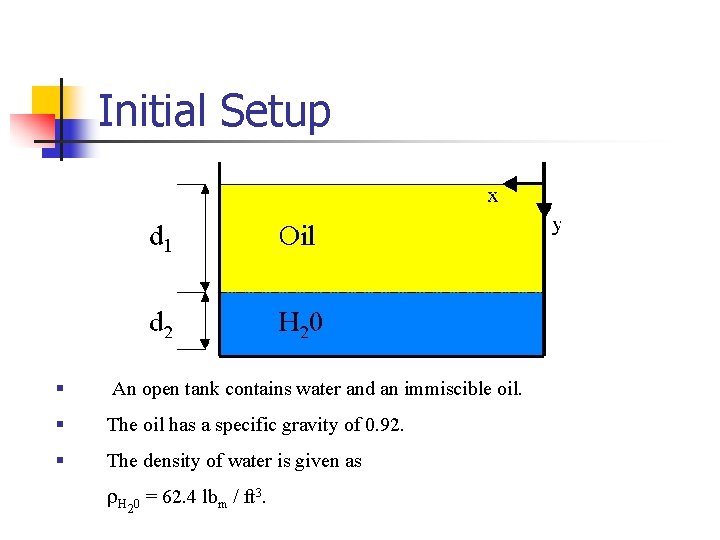

Initial Setup § An open tank contains water and an immiscible oil. § The oil has a specific gravity of 0. 92. § The density of water is given as r. H 20 = 62. 4 lbm / ft 3.

Initial Setup § d 1 = 8 ft ; d 2 = 5 ft § Gradient of pressure: § Law of hydrostatics for an incompressible fluid: P = rg Pb = Pa + rgh D

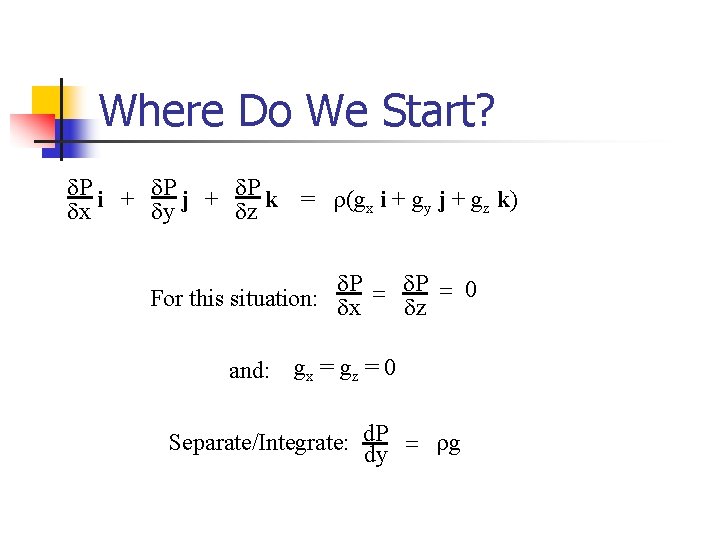

Where Do We Start? d. P i + d. P j + d. P k = r(g i + g j + g k) x y z dx dy dz d. P = 0 For this situation: dx dz and: gx = gz = 0 Separate/Integrate: d. P dy = rg

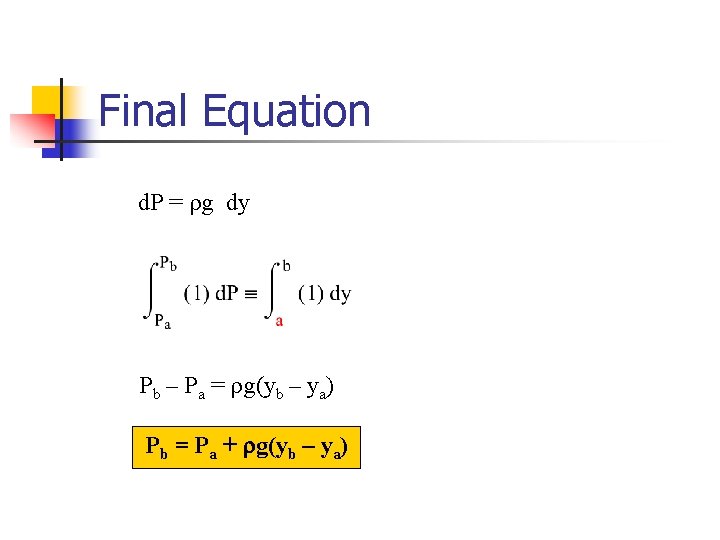

Final Equation d. P = rg dy Pb – Pa = rg(yb – ya) Pb = Pa + rg(yb – ya)

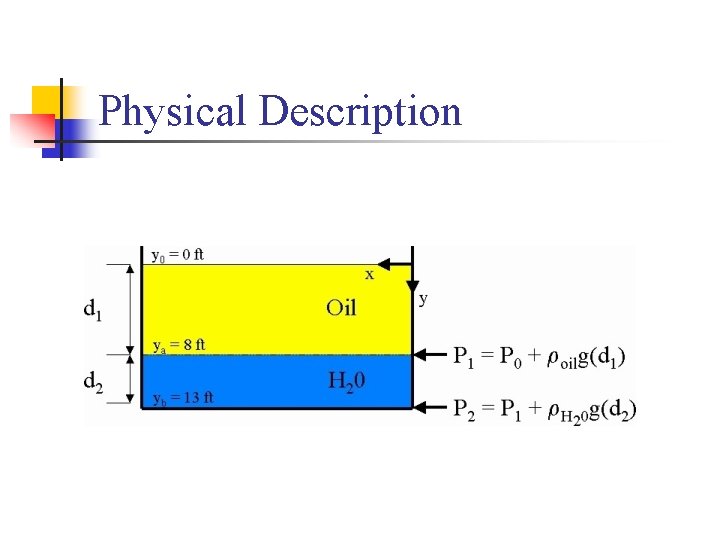

Physical Description

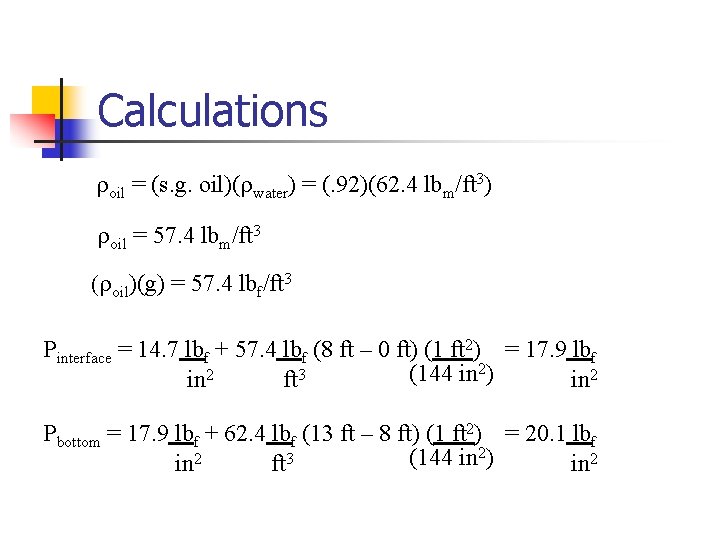

Calculations roil = (s. g. oil)(rwater) = (. 92)(62. 4 lbm/ft 3) roil = 57. 4 lbm/ft 3 (roil)(g) = 57. 4 lbf/ft 3 Pinterface = 14. 7 lbf + 57. 4 lbf (8 ft – 0 ft) (1 ft 2) = 17. 9 lbf (144 in 2) in 2 ft 3 in 2 Pbottom = 17. 9 lbf + 62. 4 lbf (13 ft – 8 ft) (1 ft 2) = 20. 1 lbf (144 in 2) in 2 ft 3 in 2

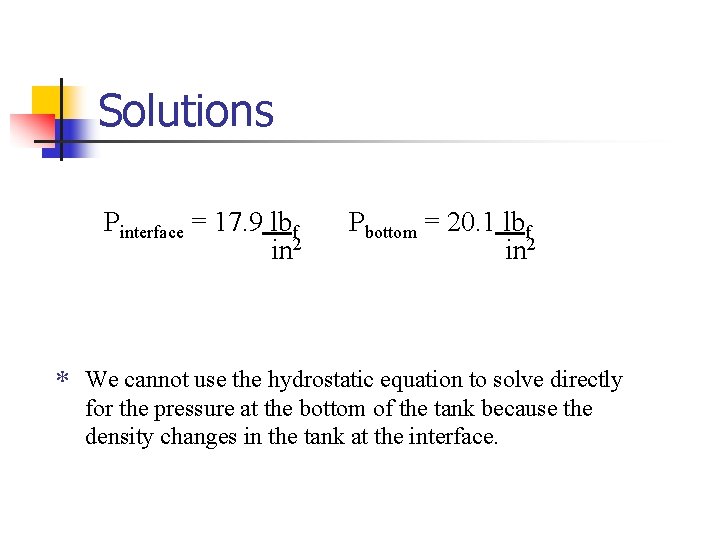

Solutions Pinterface = 17. 9 lbf in 2 Pbottom = 20. 1 lbf in 2 * We cannot use the hydrostatic equation to solve directly for the pressure at the bottom of the tank because the density changes in the tank at the interface.

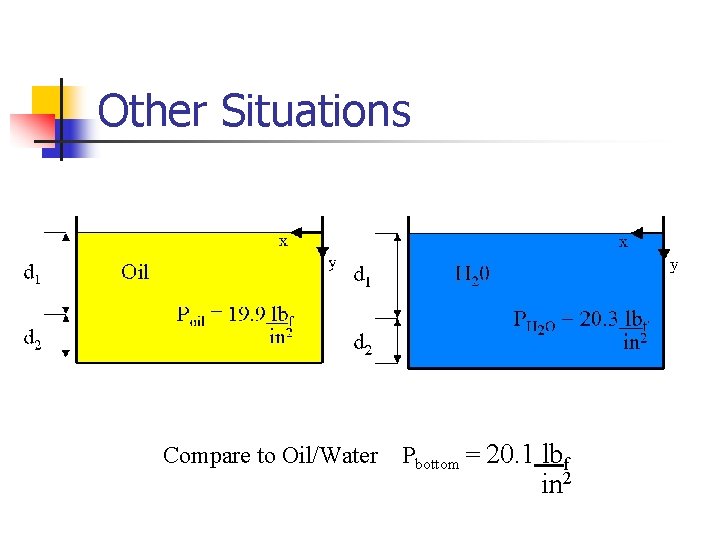

Other Situations Compare to Oil/Water Pbottom = 20. 1 lbf in 2

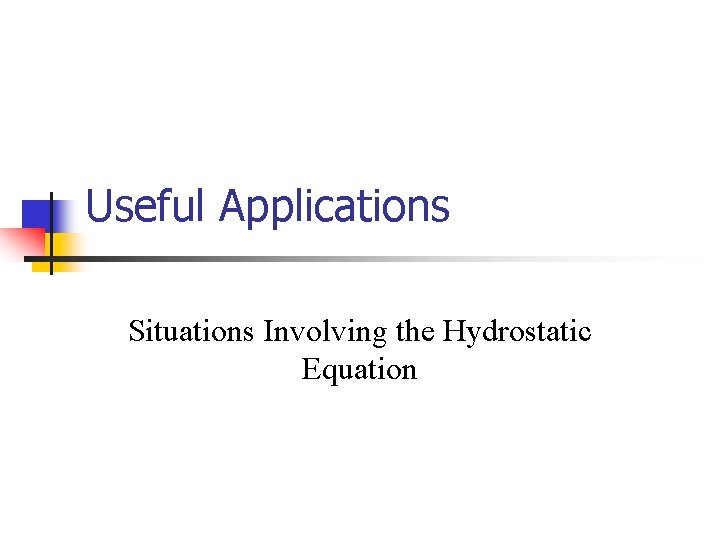

Useful Applications Situations Involving the Hydrostatic Equation

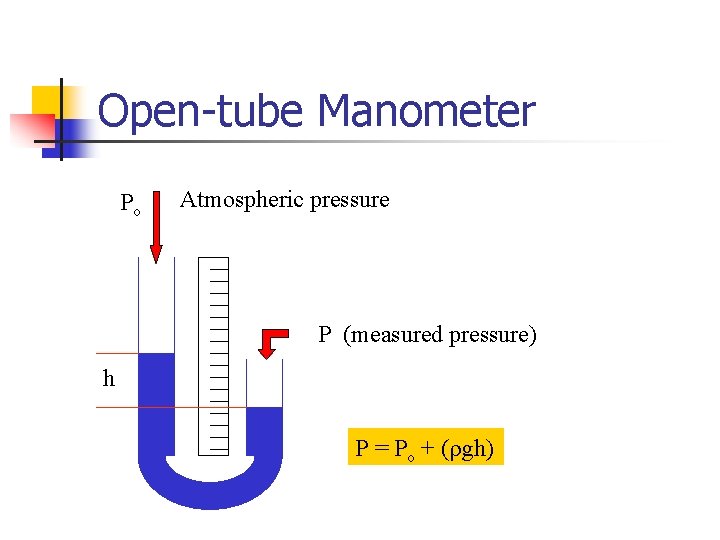

Open-tube Manometer Po Atmospheric pressure P (measured pressure) h P = Po + (rgh)

Mercury Barometer Po = 0 P = Po + (rgh) r = 13. 6 E 3 kg/m 3 P = 1 atm 76 cm g = 9. 80 m/s 2 h =. 760 m Mercury

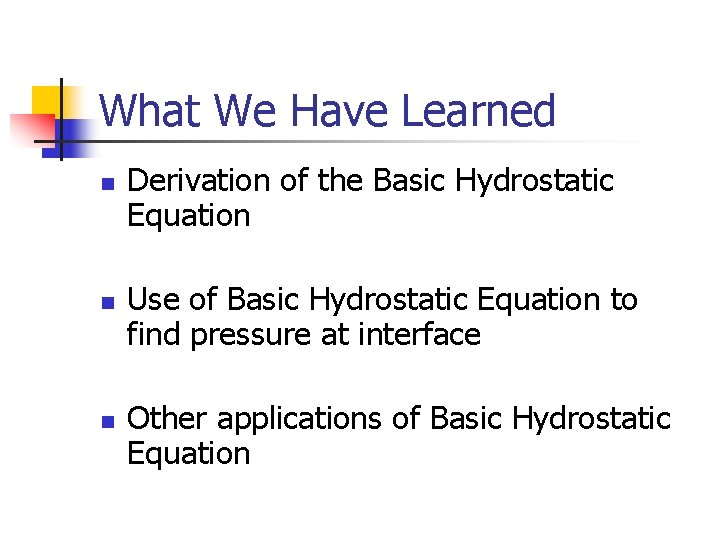

What We Have Learned n n n Derivation of the Basic Hydrostatic Equation Use of Basic Hydrostatic Equation to find pressure at interface Other applications of Basic Hydrostatic Equation
