Working Session: Finnish Case Study Workshop FMI Helsinki 16 February 2017 Peter Prak PSJ

Working Session: Finnish Case Study Workshop FMI Helsinki 16 February 2017 Peter Prak PSJ peter. prak@psjadvies. nl www. rain-project. eu This project has received funding from the European Union’s Seventh Framework Programme for research, technological development and demonstration under grant agreement no 608166. The contents of this presentation are the author's views. The European Union is not liable for any use that may be made of the information contained therein.

Scope and Task Scope: • • • Hazard and emergency response Land-based transport (rail

Scope and Task Scope: • • • Hazard and emergency response Land-based transport (rail and road) Energy and Telecommunications Task: • Inventory of extreme storm in Gulf of Finland • • hazards vulnerabilities consequences mitigation and emergency response Identify categories Set Probabilities Output of our work will be input for the development of the Bayesian Network within the Finnish Case Study

Working Method 1. 2. Divide group into three groups Facilitator 1. 2. 3. (Peter/PSJ)

Working Method 1. 2. Divide group into three groups Facilitator 1. 2. 3. (Peter/PSJ) (Ciaran/ROD) (Julie/ROD) Hazard assessment and emergency response Land-based transport infrastructure (rail and road) Energy and telecommunications infrastructure Interactive contribution from and discussion between participants Each group 1. 10’ introduction 2. 45’ collect input by ‘post-it’ mapping, two-three persons each question 3. 15’ coffee break 4. 45’ common discussion per question Return to common session 1. 10’ to present main results by facilitators 2. 10’ for conclusions

Working Groups Hazard Assessment and Emergency Response Facilitator: Peter (PSJ) • Hannu Rantanen •

Working Groups Hazard Assessment and Emergency Response Facilitator: Peter (PSJ) • Hannu Rantanen • Jyri Silmäri • Ville Estlander • Ahti Burtsoff • Peter Johansson • Taina Hanhikoski • Tuomo Bergman • Stefan Kirchner • Susanna Pääkkölä • Noora Veijalainen • Pekka Tiainen • Pekka Visuri Land-Based Transport Infrastructure Facilitator: Ciaran (ROD) • Heikki Tuomenvirta • Jari Gröhn • Matti Aaltonen • Pertti Nurmi • Juha Kilpinen • Maria Luskova • Bohus Leitner Energy and Telecommunications Infrastructure Facilitator: Julie (ROD) • Mats Fagerström • Andrea Vajda • Dominik Paprotny • Marko Marjamäki • Juha Rautjärvi • Timo Hellenberg • Noel Erp

RAIN Project www. rain-project. eu Peter Prak peter. prak@psjadvies. nl

RAIN Project www. rain-project. eu Peter Prak peter. prak@psjadvies. nl

Hazard What is considered ‘extreme’ in terms of a storm surge event in the

Hazard What is considered ‘extreme’ in terms of a storm surge event in the Gulf of Finland? • • Events greater than those that correspond to a 100 year return period; . . .

Hazard What are the major hazard effects associated with the occurrence of an extreme

Hazard What are the major hazard effects associated with the occurrence of an extreme storm surge event in the Gulf of Finland how are these classified? • Coastal flooding • …… Low/Medium/High

Hazard What are the cascading hazard effects that may occur during an extreme storm

Hazard What are the cascading hazard effects that may occur during an extreme storm surge event in the Gulf of Finland how are they classified? • • Flooding-induced bridge scour …… Low/Medium/High

Hazard What defence measures against extreme storm surge events and the associated hazard effects

Hazard What defence measures against extreme storm surge events and the associated hazard effects are present in East Uusimaa and how is their effectiveness classified? • Sea walls • …… Full protection for events less than a 100 year return period event

Hazard Are there any other factors that should be considered in relation to the

Hazard Are there any other factors that should be considered in relation to the characterisation of an extreme storm surge hazard event? • …

Infrastructure Vulnerability What are physical damage effects of an extreme storm surge event and

Infrastructure Vulnerability What are physical damage effects of an extreme storm surge event and the associated hazard effects on road infrastructure and how are these effects classified? • Road foundation collapse • … partial collapse, full collapse

Infrastructure Vulnerability What are physical damage effects of an extreme storm surge event and

Infrastructure Vulnerability What are physical damage effects of an extreme storm surge event and the associated hazard effects on rail infrastructure and how are these effects classified? • Rail track flood damage • … Low/Medium/High

Infrastructure Vulnerability What are physical damage effects of an extreme storm surge event and

Infrastructure Vulnerability What are physical damage effects of an extreme storm surge event and the associated hazard effects on energy infrastructure and how are these effects classified? • Fallen electricity poles due to high wind speeds • … Minor damage, collapse

Infrastructure Vulnerability What are physical damage effects of an extreme storm surge event and

Infrastructure Vulnerability What are physical damage effects of an extreme storm surge event and the associated hazard effects on telecommunications infrastructure and how are these effects classified? • Fallen telecommunication poles due to high wind speeds … • … Minor damage, collapse

Infrastructure Vulnerability What are inter-network damage effects that may occur during an extreme storm

Infrastructure Vulnerability What are inter-network damage effects that may occur during an extreme storm event and how are these classified? • Fallen electricity poles along a road • … single lane closure complete road closure

Infrastructure Vulnerability Are there any other factors that should be considered in relation to

Infrastructure Vulnerability Are there any other factors that should be considered in relation to the characterisation of the vulnerability of land-based, energy and telecommunications infrastructure to an extreme storm surge hazard event? • …

Direct Consequences What are the direct consequences of physical damage being caused to road

Direct Consequences What are the direct consequences of physical damage being caused to road infrastructure due to an extreme storm surge event and how are these classified? • • Road repair works … Low/Medium/High cost of repairs Aside from the hazard effects, what parameters influence these consequences • • Availability alternative routes …

Direct Consequences What are the direct consequences of physical damage being caused to rail

Direct Consequences What are the direct consequences of physical damage being caused to rail infrastructure due to an extreme storm surge event and how are these classified? • • Rail disruption … Local/Regional/National scale impact Aside from the hazard effects, what parameters influence these consequences • • Availability of contingency planning (buses provided) …

Direct Consequences What are the direct consequences of physical damage being caused to energy

Direct Consequences What are the direct consequences of physical damage being caused to energy infrastructure due to an extreme storm surge event and how are these classified? • • Power failure … Local/Regional/National scale impact Aside from the hazard effects, what parameters influence these consequences • • Backup power supply …

Direct Consequences What are the direct consequences of physical damage being caused to telecommunications

Direct Consequences What are the direct consequences of physical damage being caused to telecommunications infrastructure due to an extreme storm surge event and how are these classified? • • Disruption in cell-phone service … Local/Regional/National scale impact Aside from the hazard effects, what parameters influence these consequences • • Population density …

Direct Consequences Are there any other factors that should be considered in relation to

Direct Consequences Are there any other factors that should be considered in relation to the characterisation of the direct consequences of land-based, energy and telecommunications infrastructure to an extreme storm surge hazard event? • …

Indirect Consequences What indirect consequences are associated with land-based transport infrastructure (rail and road)

Indirect Consequences What indirect consequences are associated with land-based transport infrastructure (rail and road) failure due to an extreme storm surge event and how are they classified? • • Business losses due to the inability for people to travel to work … Low/Medium/High What parameters influence the extent of these consequences? • • Population density …

Indirect Consequences What indirect consequences are associated with energy infrastructure failure due to an

Indirect Consequences What indirect consequences are associated with energy infrastructure failure due to an extreme storm surge event and how are they classified? • • Fatalities due to electric roller shutters trapping people in houses … Number of fatalities What parameters influence the extent of these consequences? • • Population density …

Indirect Consequences What indirect consequences are associated with telecommunication infrastructure failure due to an

Indirect Consequences What indirect consequences are associated with telecommunication infrastructure failure due to an extreme storm surge event and how are they classified? • • Business losses … Low/Medium/High What parameters influence the extent of these consequences? • • Population density …

Indirect Consequences Are there any other factors that should be considered in relation to

Indirect Consequences Are there any other factors that should be considered in relation to the characterisation of the indirect consequences of land-based, energy and telecommunications infrastructure to an extreme storm surge hazard event? • …

Mitigation Measures What mitigation measures can be taken to reduce the vulnerability of road

Mitigation Measures What mitigation measures can be taken to reduce the vulnerability of road infrastructure to an extreme storm surge event and the associated hazard effects and how is their effectiveness classified? • • Prevention of moisture ingress … Low/Medium/High

Mitigation Measures What mitigation measures can be taken to reduce the vulnerability of rail

Mitigation Measures What mitigation measures can be taken to reduce the vulnerability of rail infrastructure to an extreme storm surge event and the associated hazard effects and how is their effectiveness classified? • • Temporary overflow storage tanks for tunnels … Capacity: Low/Medium/High rail

Mitigation Measures What mitigation measures can be taken to reduce the vulnerability of energy

Mitigation Measures What mitigation measures can be taken to reduce the vulnerability of energy infrastructure to an extreme storm surge event and the associated hazard effects and how is their effectiveness classified? • • Stockbridge damper … Low/Medium/High

Mitigation Measures What mitigation measures can be taken to reduce the vulnerability of telecommunications

Mitigation Measures What mitigation measures can be taken to reduce the vulnerability of telecommunications infrastructure to an extreme storm surge event and the associated hazard effects and how is their effectiveness classified? • • Protection against water ingress … Partial, complete protection

Mitigation Measures Are there any other factors that should be considered in relation to

Mitigation Measures Are there any other factors that should be considered in relation to the characterisation of the mitigation measures to reduce the impact of an extreme storm surge hazard event to land-based, energy and telecommunications infrastructure? • …

Emergency response What emergency response measures can be taken to reduce the impact of

Emergency response What emergency response measures can be taken to reduce the impact of an extreme storm events and the associated hazard effects and how is their effectiveness classified? • Temporary flood defence measures • …. Low/Medium/High level flood prevention

Emergency response What emergency response measures can be taken to reduce disruption to the

Emergency response What emergency response measures can be taken to reduce disruption to the road network due to an extreme storm event and the associated hazard effects and how is their effectiveness classified? • • Water pumping …. Rate of water extraction

Emergency response What emergency response measures can be taken to reduce disruption to the

Emergency response What emergency response measures can be taken to reduce disruption to the rail network due to an extreme storm event and the associated hazard effects and how is their effectiveness classified? • • Replacement with bus services …. Preparedness: Low/Medium/High

Emergency response What emergency response measures can be taken to reduce disruption to the

Emergency response What emergency response measures can be taken to reduce disruption to the energy network due to an extreme storm event and the associated hazard effects and how is their effectiveness classified? • • Available repair crews …. No/Yes; total number;

Emergency response What emergency response measures can be taken to reduce disruption to the

Emergency response What emergency response measures can be taken to reduce disruption to the telecommunication network due to an extreme storm event and the associated hazard effects and how is their effectiveness classified? • • Available repair crews …. No/Yes; total number;

Emergency response What factors influence the efficiency of emergency response measures and how is

Emergency response What factors influence the efficiency of emergency response measures and how is their effectiveness classified? • Timely storm forecasting • …. Warning time: short/medium/extended range

Emergency response What measures can be taken to ensure effective communication between emergency response

Emergency response What measures can be taken to ensure effective communication between emergency response teams during an extreme storm surge event and how is their effectiveness classified? • • Establishment of a regional rescue department …. Low/Medium/High

Emergency response Are there any other factors that should be considered in relation to

Emergency response Are there any other factors that should be considered in relation to the characterisation of the emergency response procedures associated with an extreme storm surge hazard event? • …

RAIN Project www. rain-project. eu Peter Prak peter. prak@psjadvies. nl

RAIN Project www. rain-project. eu Peter Prak peter. prak@psjadvies. nl

Critical Infrastructure Transport 1. 2. 3. 4. Terminals of intermodal transport Junctions for motorway

Critical Infrastructure Transport 1. 2. 3. 4. Terminals of intermodal transport Junctions for motorway Stations for bus and rail Bridges and tunnels (road and rail) Not mentioned • Technical installations • Operation centres (traffic control) • Junctions for rail • Overhead for rail

Critical Infrastructure Energy 1. 2. 3. 4. 5. 6. 7. Generators and auxiliary power

Critical Infrastructure Energy 1. 2. 3. 4. 5. 6. 7. Generators and auxiliary power systems Transmission lines (incl HVDC links) Transmission transformers (including feeders to distribution) Switches and breakers Protection relays SCADA and associated Telecoms Other Voltage-management devices

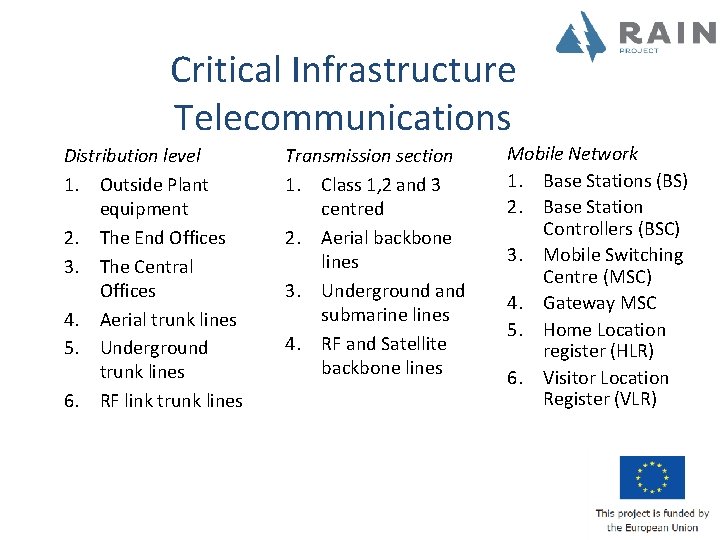

Critical Infrastructure Telecommunications Distribution level 1. Outside Plant equipment 2. The End Offices 3.

Critical Infrastructure Telecommunications Distribution level 1. Outside Plant equipment 2. The End Offices 3. The Central Offices 4. Aerial trunk lines 5. Underground trunk lines 6. RF link trunk lines Transmission section 1. Class 1, 2 and 3 centred 2. Aerial backbone lines 3. Underground and submarine lines 4. RF and Satellite backbone lines Mobile Network 1. Base Stations (BS) 2. Base Station Controllers (BSC) 3. Mobile Switching Centre (MSC) 4. Gateway MSC 5. Home Location register (HLR) 6. Visitor Location Register (VLR)
