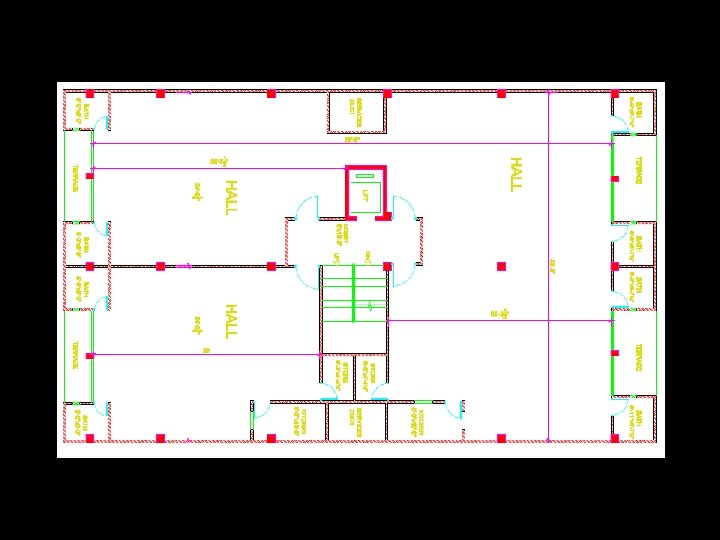

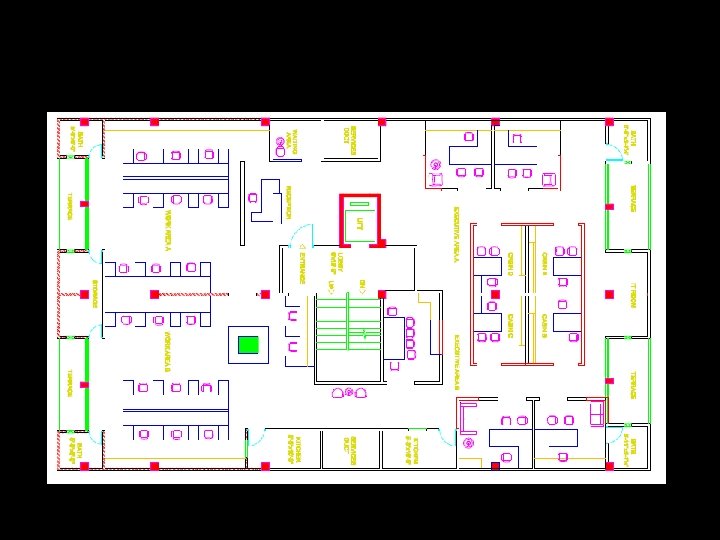

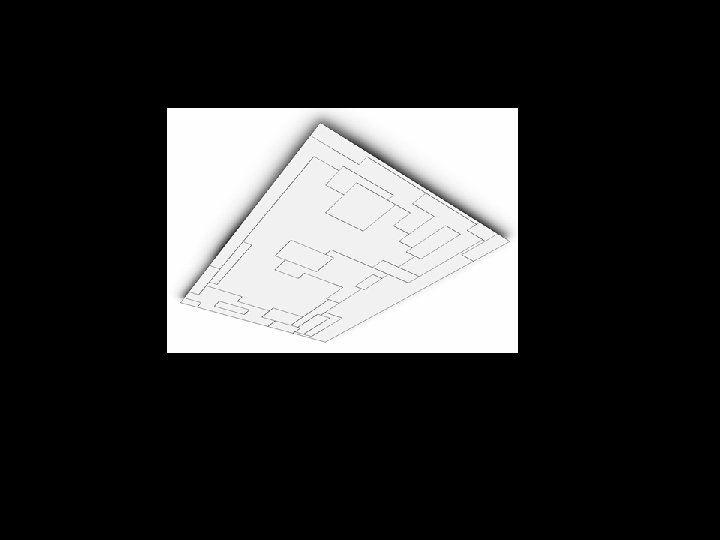

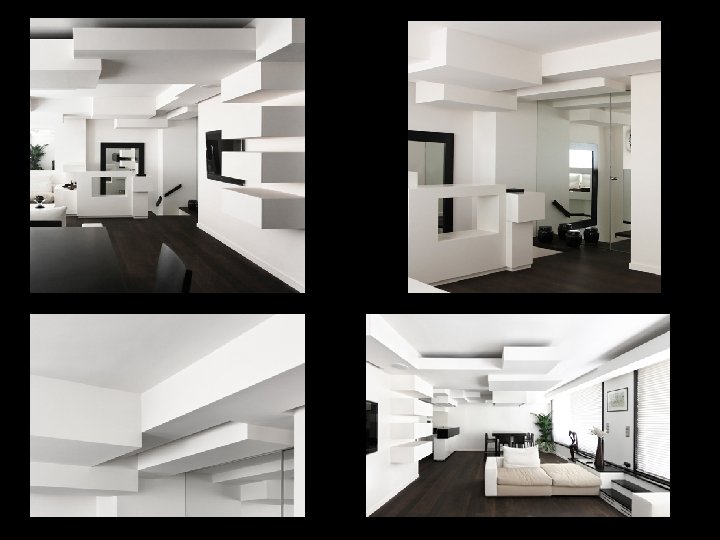

Work Station area A B Reception Waiting Executive
Work Station area A & B Reception & Waiting Executive Area A & B
Reception desk design Reference image for reception desk
Screen design for waiting area Reference image

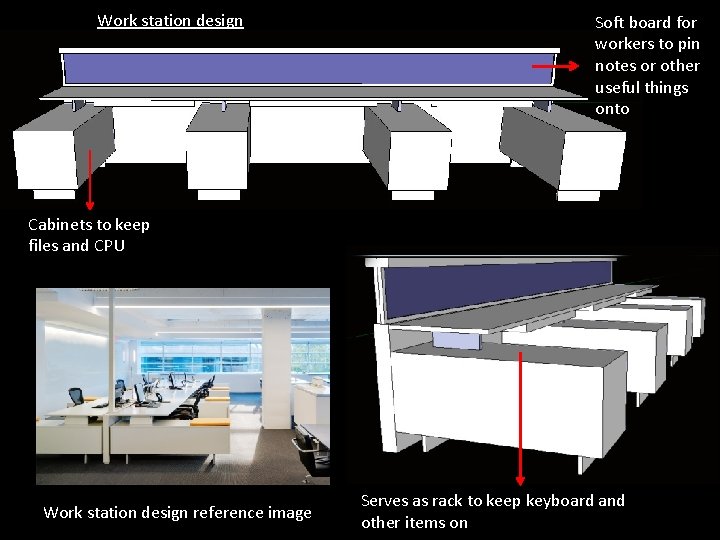

Work station design Soft board for workers to pin notes or other useful things onto Cabinets to keep files and CPU Work station design reference image Serves as rack to keep keyboard and other items on
Shelves design

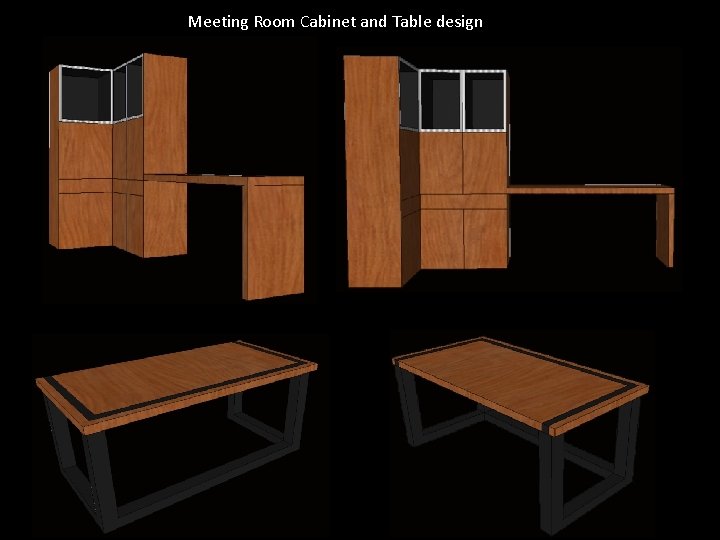

Meeting Room Cabinet and Table design
Open Cabin Design
Cabin Shelves and Table

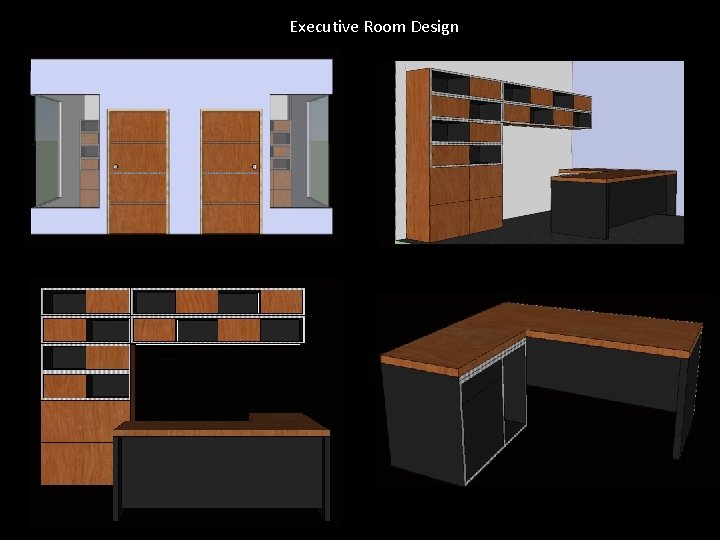

Executive Room Design
2 nd option images for workstations
Cabin 2 nd option Image

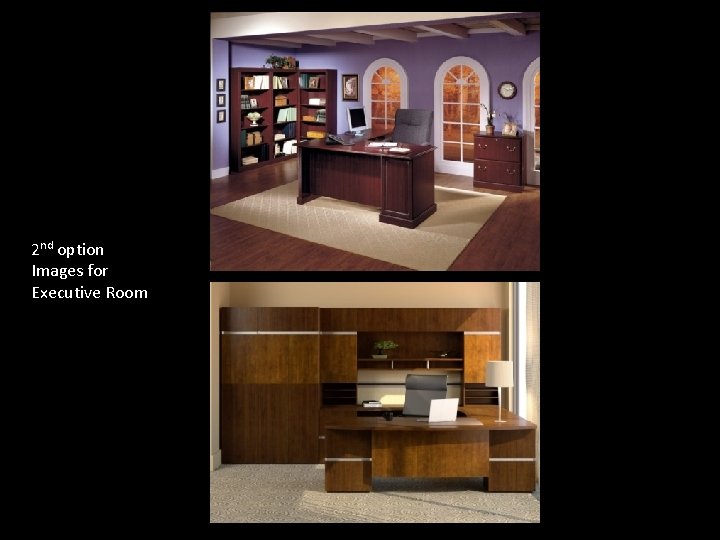

2 nd option Images for Executive Room
Partition walls and cabinets
reception • Reception wall – 11’, 10. 25” • Reception desk – 6’ with rack protruding 1’ 6” height of 2’ 10”
Waiting area • Screen – height of 5’ 6”, 4’ wide • Partition wall – 5’ 10” • Wooden trim all around

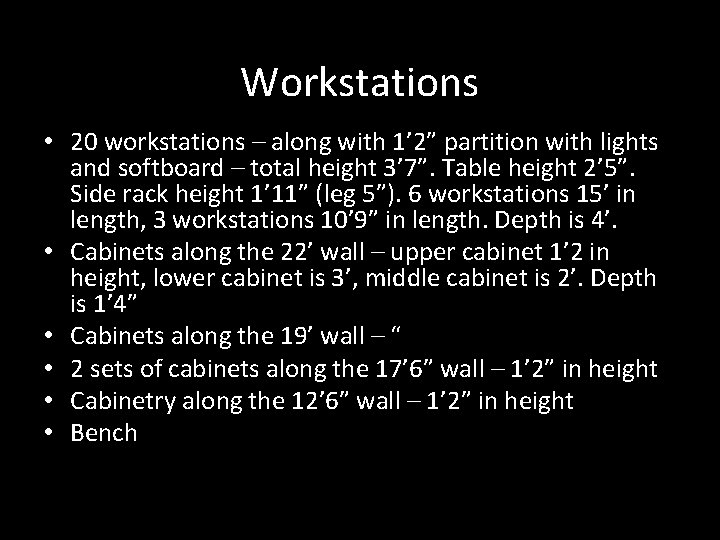

Workstations • 20 workstations – along with 1’ 2” partition with lights and softboard – total height 3’ 7”. Table height 2’ 5”. Side rack height 1’ 11” (leg 5”). 6 workstations 15’ in length, 3 workstations 10’ 9” in length. Depth is 4’. • Cabinets along the 22’ wall – upper cabinet 1’ 2 in height, lower cabinet is 3’, middle cabinet is 2’. Depth is 1’ 4” • Cabinets along the 19’ wall – “ • 2 sets of cabinets along the 17’ 6” wall – 1’ 2” in height • Cabinetry along the 12’ 6” wall – 1’ 2” in height • Bench
Meeting room 3 walls Wall 4’ Wall 12’ 7” Wall 7’ 7. 5” Wooden trim all around Cabinet – l-shaped. Height is 5’ 6”, depth is 1’ 4”. Lengths are 1’ 8” and 2’ 6” • Rack – 4’ 10. 75” in length, depth is 1’ 4” and height is 2’ 3” • • •
Executive rooms • 4 and a half walls per executive room • 4’ 4. 5”, 10’ 8. 75” (9’ 9” on one end), 10’. • Cabinets in 4 executive rooms – 7’ in height, depth of 1’ 4” and length of 3’ 2. 25”. • 2’ height, 6’ 2” length and 1’ 4” depth • Wooden trim all around
cabins • 4 walls – 19’ 6” and 15’ 4” • 4 cabinets – 9’ 3. 75” in length, 1’ 4 in depth height of 1’ 3”. • 2’ 6” in length and 1’ 4” in depth and 3’ 9” in height. • Wooden trim all around
kitchen • Rack and cabinetry work in 2 kitchens – 10’ 6” wall
IT room • Rack

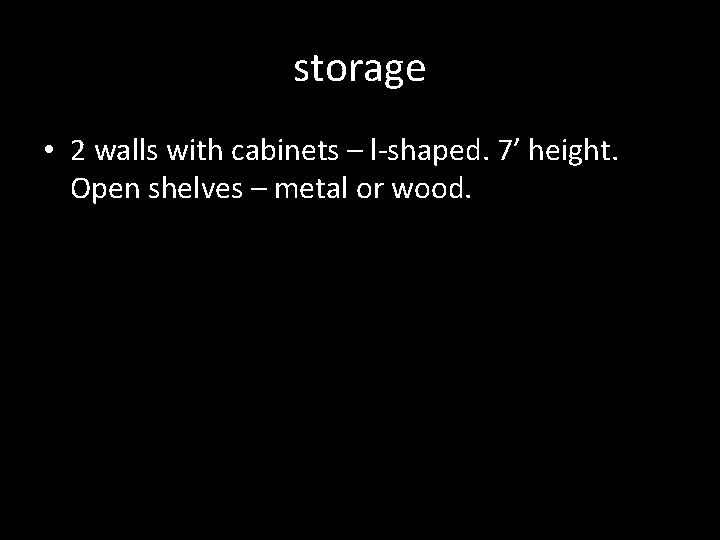

storage • 2 walls with cabinets – l-shaped. 7’ height. Open shelves – metal or wood.
furniture
chairs 28 staff chairs – 20 workstations 1 for it room 6 for meeting room 1 for reception 4 cabin chairs 4 executive chairs 19 visitor chairs (two for staff in corridoor, 8 for cabins, 8 for executive room, 1 for waiting area) • 2 single seaters (waiting area and executive rooms) • 3 double seater sofas (executive room) • •
Side Tables (small) • 6 tables (1 in corridor, 1 in waiting area, 4 in executive rooms
Desks • 4’ desks with racks for cabins – 4’ in length and 2’ 6” in depth and height 2’ 5”. Rack is 4’ 6” in length, 1’ 2” in depth and 2’ in height. • 5’ desks with racks for executive rooms – lshaped. 6’ in length depth of 2’ 6” and height of 2’ 6”. Rack is 3’, 2’ depth and height is same.
Table in meeting room • 6’ x 3’ table – 2’ 6” height

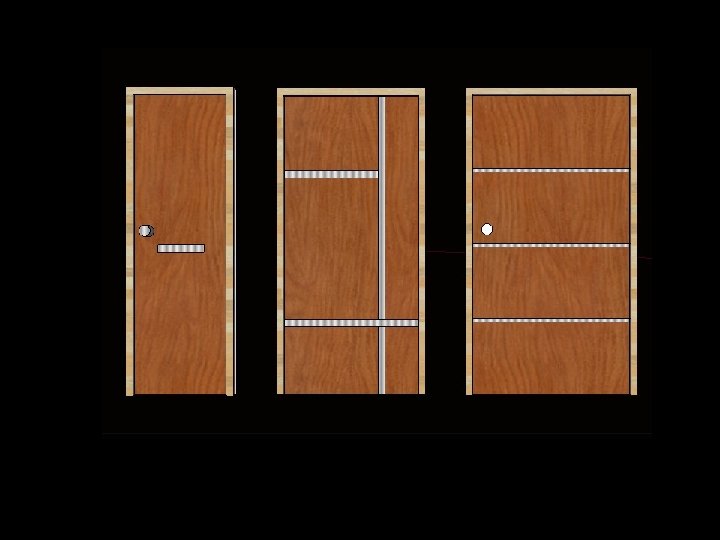

Doors • 1 entrance door – 3’ 6” wide and 7’ height • 4 executive doors – 4’ wide and 7’ height • 9 doors for bathroom, kitchen, storage and IT room

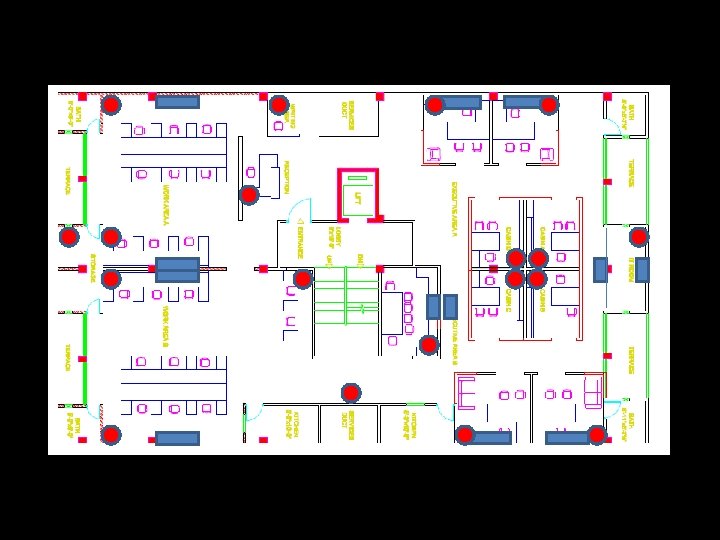

electrical
reception • • • Spotlights on the logo Bracket fan 2 electrical sockets (wapda) PTCL FPW
Waiting area • Bracket fan • Electrical sockets • PTCL

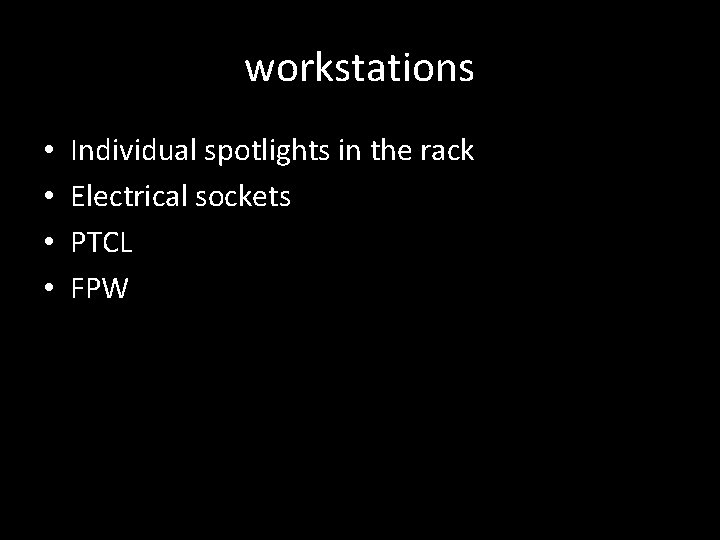

workstations • • Individual spotlights in the rack Electrical sockets PTCL FPW
Cabinets along the wall of workstations • Lights above the rack (beneath the shelves)
corridor • Light above the painting • Shelf on the longer wall and light above it
Meeting room • • Bracket fan PTCL Electrical sockets FPW
kitchen • • Bracket fan PTCL Electrical sockets FPW
Cabins • FPW • Lighting in the shelves
Executive rooms • FPW • Lighting in the shelves
IT room • FPW
storage • Bracket fan • Electrical sockets (wapda)
