Project planning • One of the first tasks is to break the large tasks into small tasks. • find identifiable parts of the tasks • find deliverables and milestones • measure progress. WBS 4 b 2

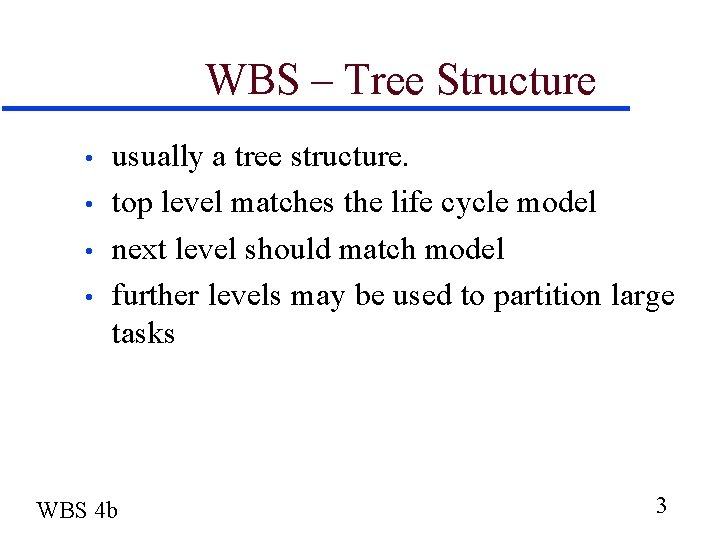

WBS – Tree Structure • • usually a tree structure. top level matches the life cycle model next level should match model further levels may be used to partition large tasks WBS 4 b 3

WBS Tree Structure LC model PM tasks WBS 4 b 4

Rule 1 - clarity • Every task and deliverable description must be understandable and unambiguous • The purpose of a wbs is communication with team members. If the team members misinterpret what the task or deliverable is supposed to be, there will be problems. WBS 4 b 5

Rule 2 - completion • • • Every task must have a completion criterion (often a deliverable) There must be a way to decide when a task is completed, because subtasks that have no definite ending encourage false expectations of progress. It may be a deliverable, for example, a complete design for the project and then a peer review can decide if it is complete. WBS 4 b 6

Rule 3 - artifacts • • WBS 4 b All deliverables (artifacts) must be identified A deliverable must be produced by some tasks or it won’t be produced. 7

Rule 4 – whole task • • WBS 4 b Positive completion of the tasks must imply completion of the whole task The purpose of the wbs is to identify the subtasks necessary to complete the whole task. If important tasks or deliverables are missing, the whole task will not be accomplished 8

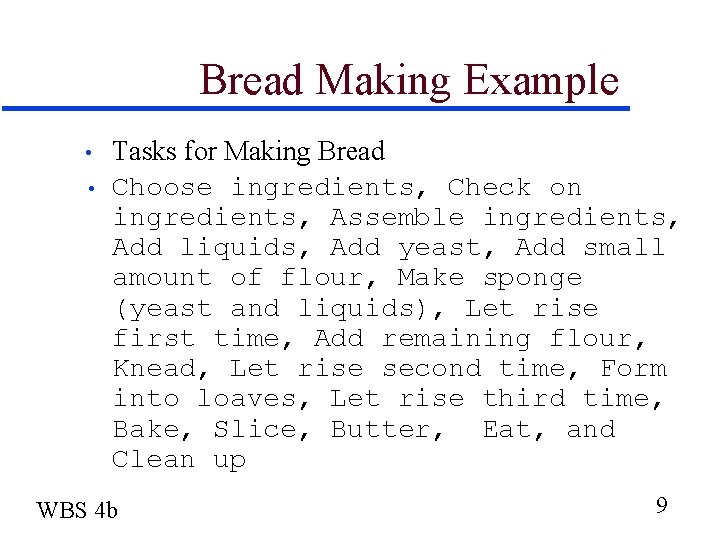

Bread Making Example • • Tasks for Making Bread Choose ingredients, Check on ingredients, Assemble ingredients, Add liquids, Add yeast, Add small amount of flour, Make sponge (yeast and liquids), Let rise first time, Add remaining flour, Knead, Let rise second time, Form into loaves, Let rise third time, Bake, Slice, Butter, Eat, and Clean up WBS 4 b 9

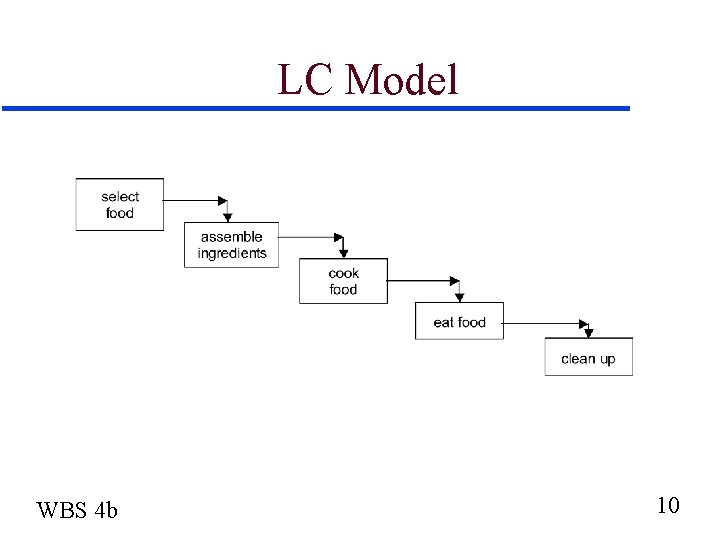

LC Model WBS 4 b 10

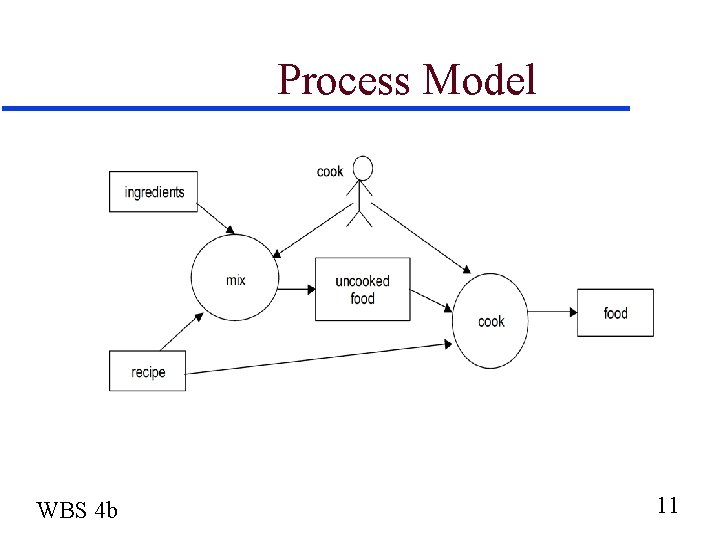

Process Model WBS 4 b 11

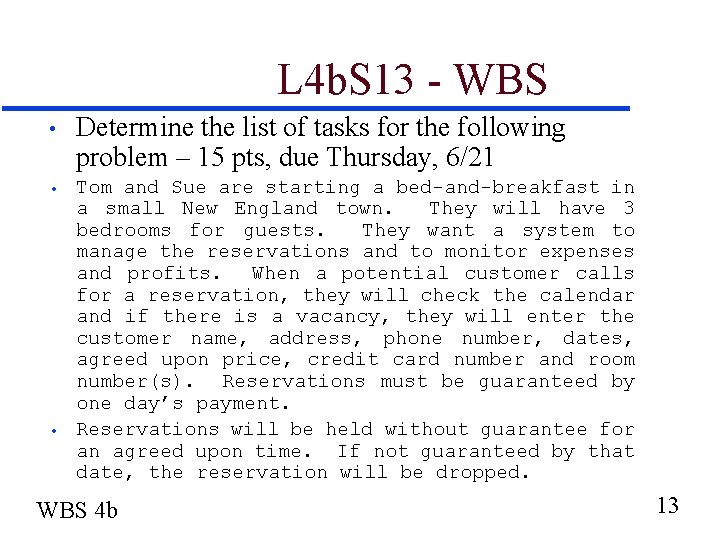

WBS Tree Select food Check on ingredients Choose ingredients Assemble ingredients Cook food mix Cook Add liquids Add yeast Add small amount of flour Make sponge (yeast and liquids) Let rise first time Add remaining flour Knead Let rise second time Form into loaves Let rise third time Bake Eat Slice Butter Eat Clean up WBS 4 b 12
