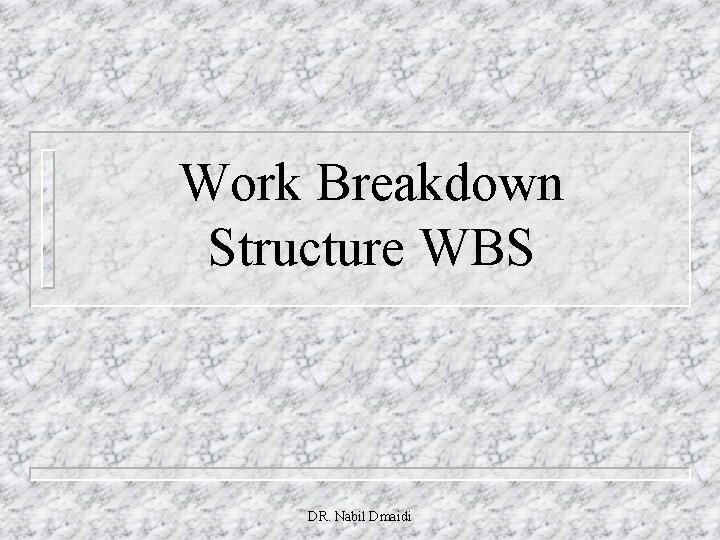

Work Breakdown Structure WBS DR. Nabil Dmaidi

Work Breakdown Structure (WBS) n A hierarchical system which sub-divides larger elements of the project into smaller elements. n The smallest unit of the WBS is the work package. DR. Nabil Dmaidi

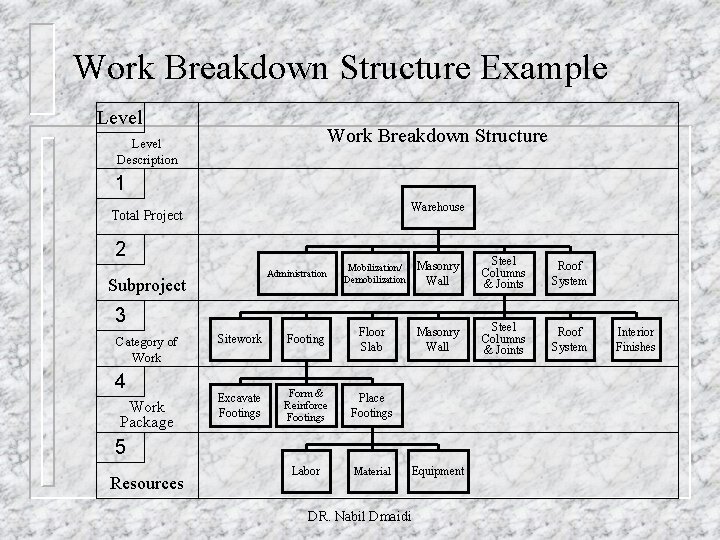

Work Breakdown Structure Example Level Work Breakdown Structure Level Description 1 Warehouse Total Project 2 Administration Subproject 3 Category of Work 4 Work Package Mobilization/ Demobilization Masonry Wall Steel Columns & Joints Roof System Sitework Footing Floor Slab Excavate Footings Form & Reinforce Footings Place Footings Labor Material 5 Resources DR. Nabil Dmaidi Equipment Interior Finishes

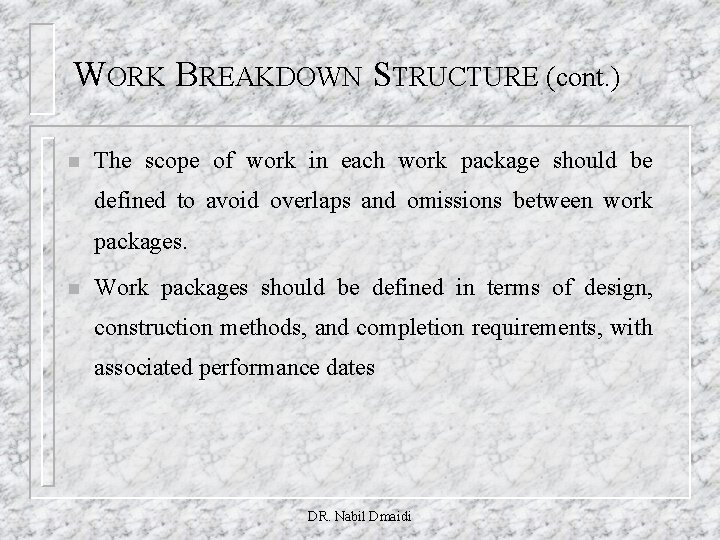

WORK BREAKDOWN STRUCTURE (cont. ) n The scope of work in each work package should be defined to avoid overlaps and omissions between work packages. n Work packages should be defined in terms of design, construction methods, and completion requirements, with associated performance dates DR. Nabil Dmaidi

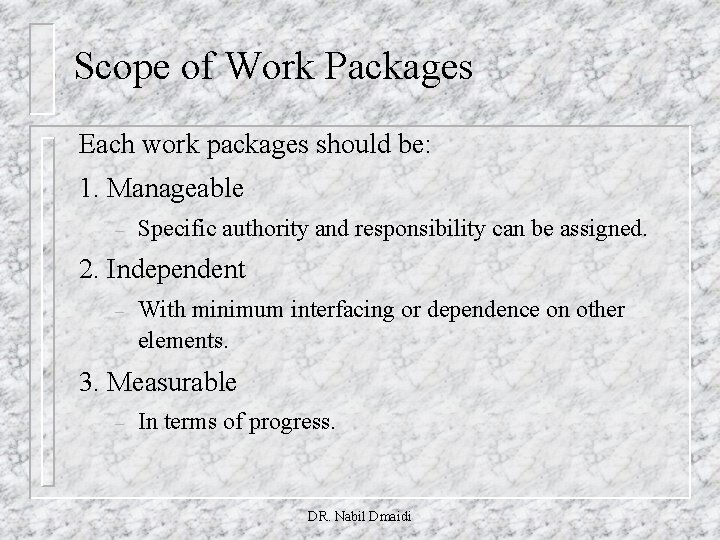

Scope of Work Packages Each work packages should be: 1. Manageable – Specific authority and responsibility can be assigned. 2. Independent – With minimum interfacing or dependence on other elements. 3. Measurable – In terms of progress. DR. Nabil Dmaidi

The Project Cost System Objectives of Establishing Project Cost System. 1. Keep the construction costs of the project within the established budget 2. Develop labor and equipment productivity information for estimating the cost of future work. DR. Nabil Dmaidi

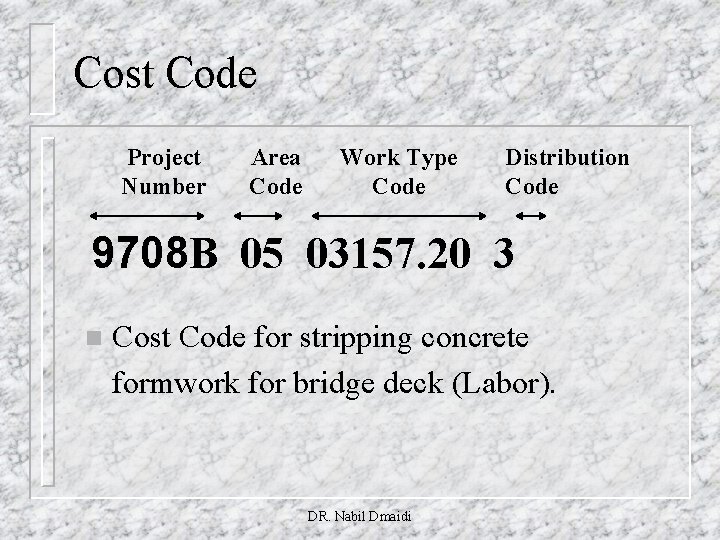

Cost Code Project Number Area Code Work Type Code Distribution Code 9708 B 05 03157. 20 3 n Cost Code for stripping concrete formwork for bridge deck (Labor). DR. Nabil Dmaidi

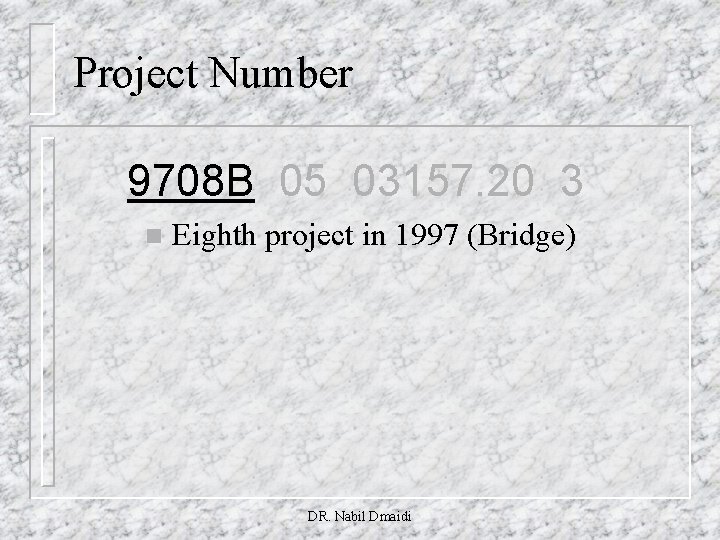

Project Number 9708 B 05 03157. 20 3 n Eighth project in 1997 (Bridge) DR. Nabil Dmaidi

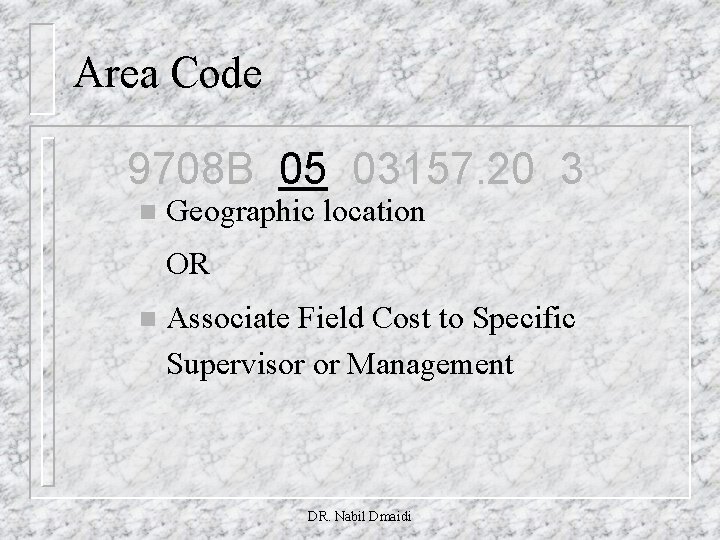

Area Code 9708 B 05 03157. 20 3 n Geographic location OR n Associate Field Cost to Specific Supervisor or Management DR. Nabil Dmaidi

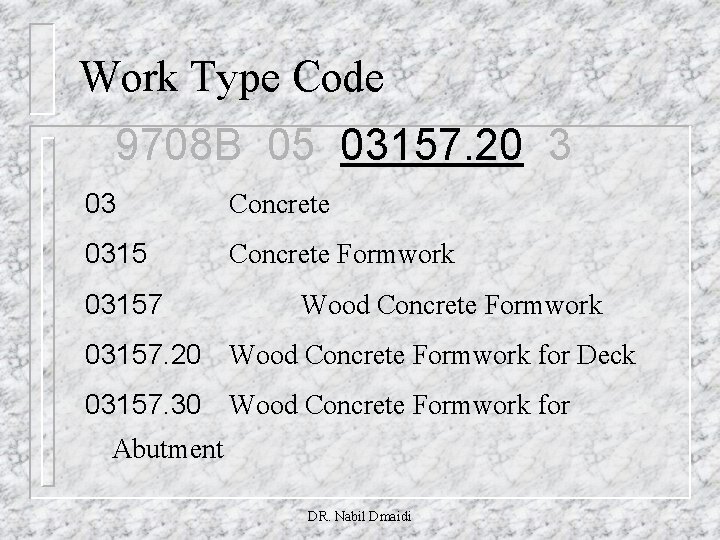

Work Type Code 9708 B 05 03157. 20 3 03 Concrete 0315 Concrete Formwork 03157 Wood Concrete Formwork 03157. 20 Wood Concrete Formwork for Deck 03157. 30 Wood Concrete Formwork for Abutment DR. Nabil Dmaidi

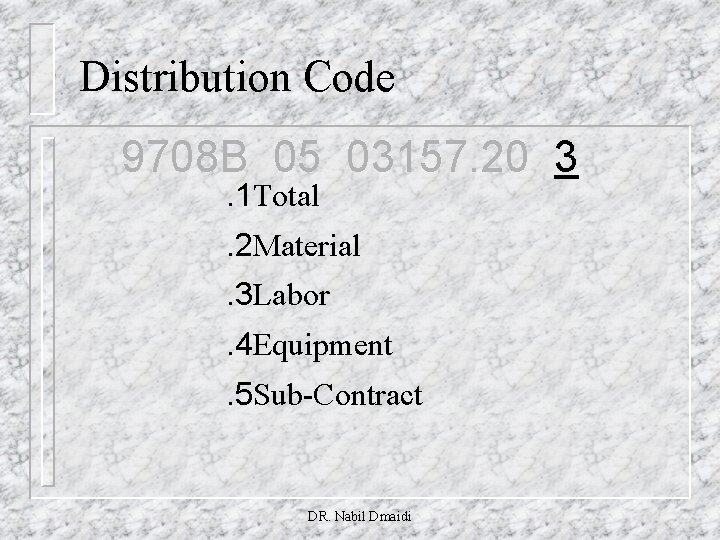

Distribution Code 9708 B 05 03157. 20 3. 1 Total . 2 Material. 3 Labor. 4 Equipment. 5 Sub-Contract DR. Nabil Dmaidi

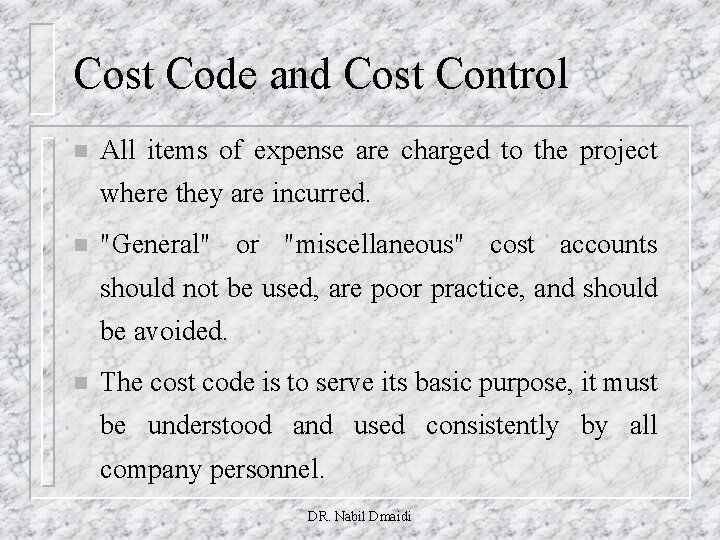

Cost Code and Cost Control n All items of expense are charged to the project where they are incurred. n "General" or "miscellaneous" cost accounts should not be used, are poor practice, and should be avoided. n The cost code is to serve its basic purpose, it must be understood and used consistently by all company personnel. DR. Nabil Dmaidi

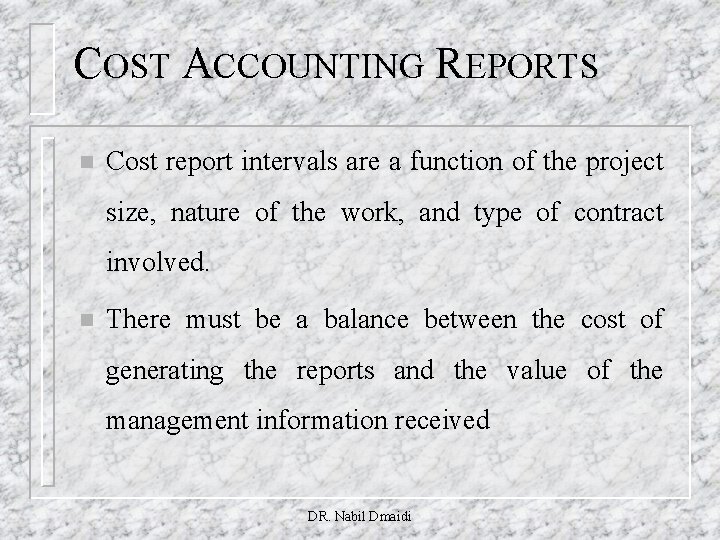

COST ACCOUNTING REPORTS n Cost report intervals are a function of the project size, nature of the work, and type of contract involved. n There must be a balance between the cost of generating the reports and the value of the management information received DR. Nabil Dmaidi

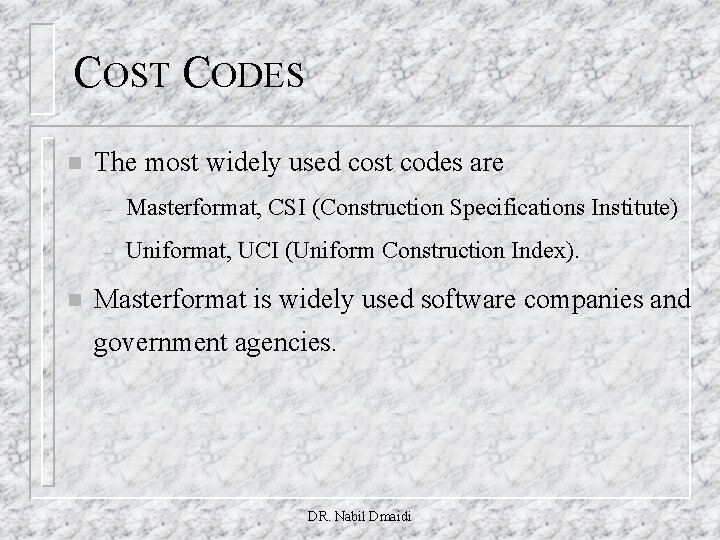

COST CODES n n The most widely used cost codes are – Masterformat, CSI (Construction Specifications Institute) – Uniformat, UCI (Uniform Construction Index). Masterformat is widely used software companies and government agencies. DR. Nabil Dmaidi

n Most contractors match their cost control system to their payroll periods and to their time-monitoring system. DR. Nabil Dmaidi

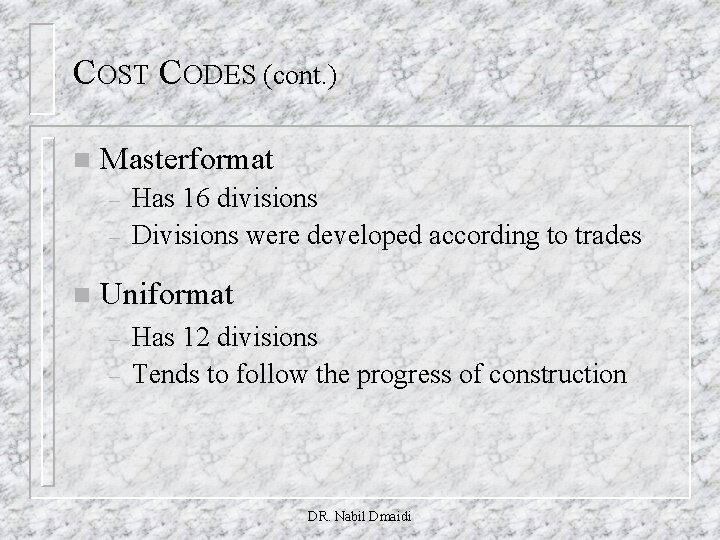

COST CODES (cont. ) n Masterformat – – n Has 16 divisions Divisions were developed according to trades Uniformat – – Has 12 divisions Tends to follow the progress of construction DR. Nabil Dmaidi

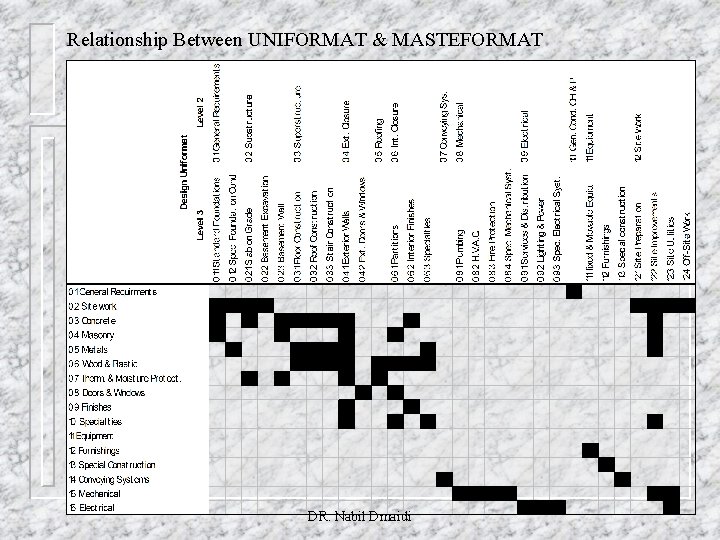

Relationship Between UNIFORMAT & MASTEFORMAT DR. Nabil Dmaidi

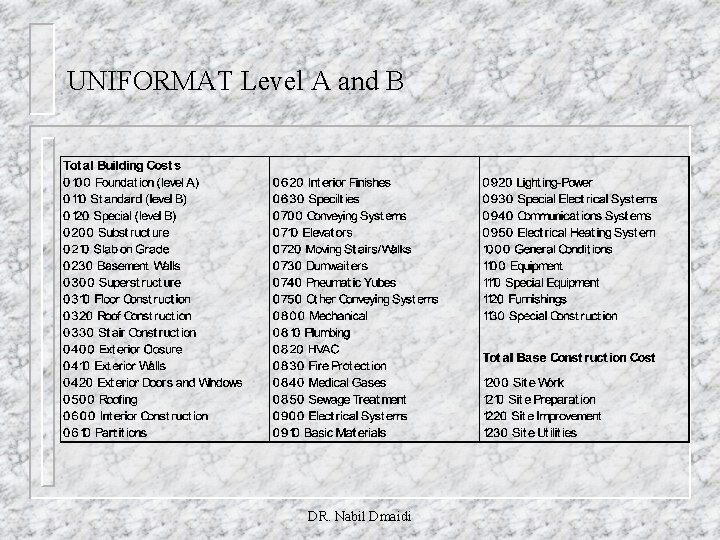

UNIFORMAT Level A and B DR. Nabil Dmaidi
