Work and Simple Machines What is work In

Work and Simple Machines

What is work? ® In science, the word work has a different meaning than you may be familiar with. ® The scientific definition of work is: using a force to move an object a distance (when both the force and the motion of the object are in the same direction. )

Work or Not? ® According to the scientific definition, what is work and what is not? a teacher lecturing to her class ® a mouse pushing a piece of cheese with its nose across the floor ®

Work or Not? ® According to the scientific definition, what is work and what is not? a teacher lecturing to her class ® a mouse pushing a piece of cheese with its nose across the floor ®

5

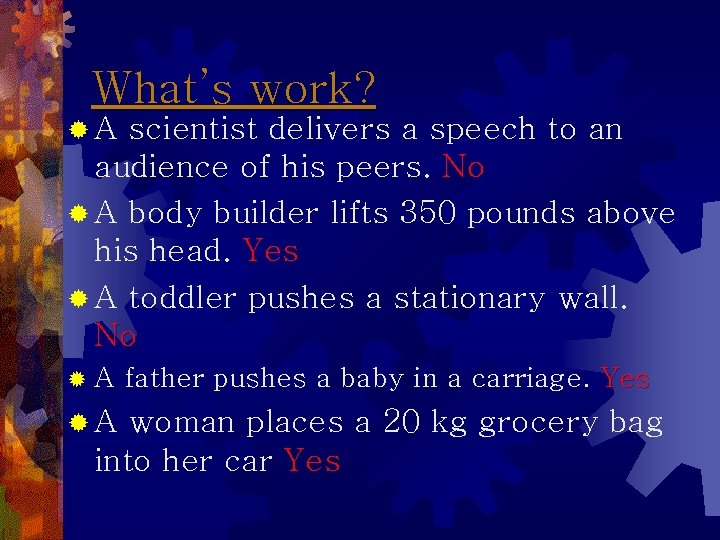

What’s work? ®A scientist delivers a speech to an audience of his peers. ® A body builder lifts 350 pounds above his head. ® A toddler pushes a stationary wall. ®A ®A father pushes a baby in a carriage. woman places a 20 kg grocery bag into her car

What’s work? ®A scientist delivers a speech to an audience of his peers. No ® A body builder lifts 350 pounds above his head. Yes ® A toddler pushes a stationary wall. No ®A ®A father pushes a baby in a carriage. Yes woman places a 20 kg grocery bag into her car Yes

Formula for work Work = Force x Distance ® The unit of force is newtons ® The unit of distance is meters ® The unit of work is newton-meters ® One newton-meter is equal to one joule ® So, the unit of work is a joule

W=FD Work = Force x Distance Calculate: If a man pushes a concrete block 10 meters with a force of 20 N, how much work has he done?

W=FD Work = Force x Distance Calculate: If a man pushes a concrete block 10 meters with a force of 20 N, how much work has he done? 200 joules (W = 20 N x 10 m)

Power ® Power is the rate at which work is done. ® Power ® The = Work*/Time *(force x distance) unit of power is the watt.

Check for Understanding How much power will it take to move a 10 kg mass at an acceleration of 2 m/s/s a distance of 10 meters in 5 seconds? This problem requires you to use the formulas force, work, and power all in the correct order. Force=Mass x Acceleration Work=Force x Distance Power = Work/Time

How much power will it take to move a 10 kg mass at an acceleration of 2 m/s/s a distance of 10 meters in 5 seconds? This problem requires you to use the formulas force, work, and power all in the correct order. Force=Mass x Acceleration Force=10 x 2 Force=20 N Work=Force x Distance Work = 20 x 10 Work = 200 Joules Power = Work/Time Power = 200/5 Power = 40 watts

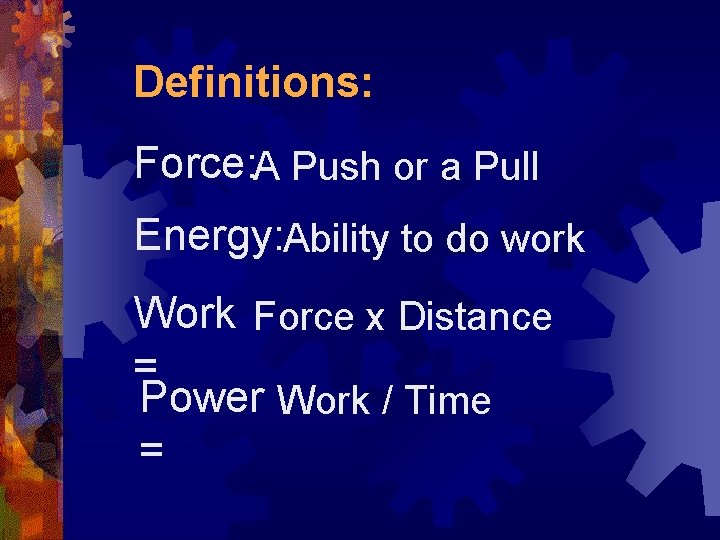

Definitions: Force: A Push or a Pull Energy: Ability to do work Work Force x Distance = Power Work / Time =

History of Work Before engines and motors were invented, people had to do things like lifting or pushing heavy loads by hand. Using an animal could help, but what they really needed were some clever ways to either make work easier or faster.

Simple Machines Ancient people invented simple machines that would help them overcome resistive forces and allow them to do the desired work against those forces.

Simple Machines ®A machine is a device that helps make work easier to perform by accomplishing one or more of the following functions: ® transferring a force from one place to another, ® changing the direction of a force, ® increasing the magnitude of a force, or ® increasing the distance or speed of a force.

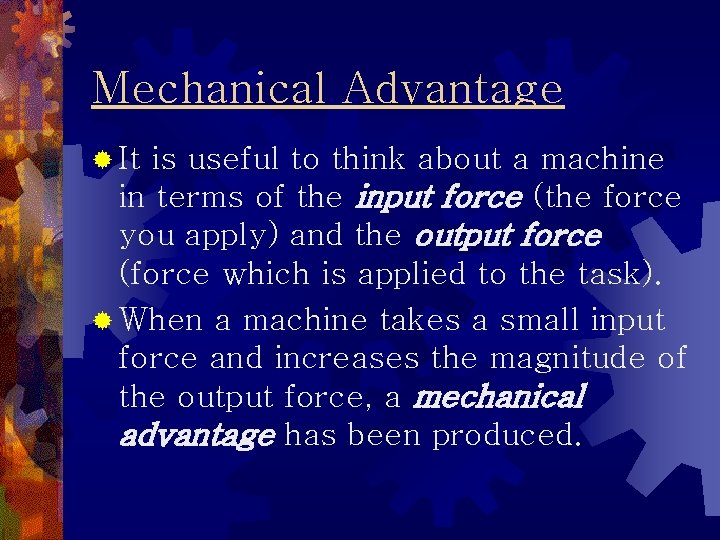

Mechanical Advantage ® It is useful to think about a machine in terms of the input force (the force you apply) and the output force (force which is applied to the task). ® When a machine takes a small input force and increases the magnitude of the output force, a mechanical advantage has been produced.

Mechanical Advantage Mechanical advantage is the ratio of output force divided by input force. If the output force is bigger than the input force, a machine has a mechanical advantage greater than one. ® If a machine increases an input force of 10 pounds to an output force of 100 pounds, the machine has a mechanical advantage (MA) of 10. ® In machines that increase distance instead of force, the MA is the ratio of the output distance and input distance. ® MA = output/input ®

No machine can increase both the magnitude and the distance of a force at the same time.

Efficiency ® We said that the input force times the distance equals the output force times distance, or: Input Force x Distance = Output Force x Distance However, some output force is lost due to friction. ® The comparison of work input to work output is called efficiency. ® No machine has 100 percent efficiency due to friction.

The 6 Simple Machines Inclined Plane Screw Pulley Lever Wedge Wheel and Axle

Inclined Plane

Inclined Plane ® The Egyptians used simple machines to build the pyramids. One method was to build a very long incline out of dirt that rose upward to the top of the pyramid very gently. The blocks of stone were placed on large logs (another type of simple machine - the wheel and axle) and pushed slowly up the long, gentle inclined plane to the top of the pyramid.

Inclined Planes ® An inclined plane is a flat surface that is higher on one end ® Inclined planes make the work of moving things easier

Work input and output ® Work input is the amount of work done on a machine. ® Input force x input distance ® Work output is the amount of work done by a machine. ® Output force x output distance Wout = Win Fout x Dout = Fin x Din Dout 3 m 10 N x 3 m = 2 N x 15 m 10 N Din 15 m Fin

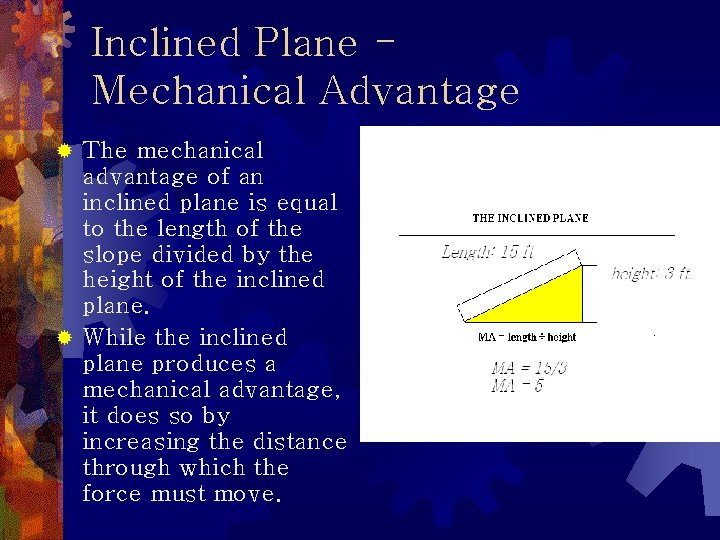

Inclined Plane Mechanical Advantage The mechanical advantage of an inclined plane is equal to the length of the slope divided by the height of the inclined plane. ® While the inclined plane produces a mechanical advantage, it does so by increasing the distance through which the force must move. ®

Screw The mechanical advantage of an screw can be calculated by dividing the circumference by the pitch of the screw. Pitch equals 1/ number of turns per inch.

Wedges ® Two inclined planes joined back to back. ® Wedges are used to split things.

Wedge – Mechanical Advantage The mechanical advantage of a wedge can be found by dividing the length of either slope (S) by the thickness (T) of the big end. S ® T ® As an example, assume that the length of the slope is 10 inches and the thickness is 4 inches. The mechanical advantage is equal to 10/4 or 2 1/2. As with the inclined plane, the mechanical advantage gained by using a wedge requires a corresponding increase in distance.

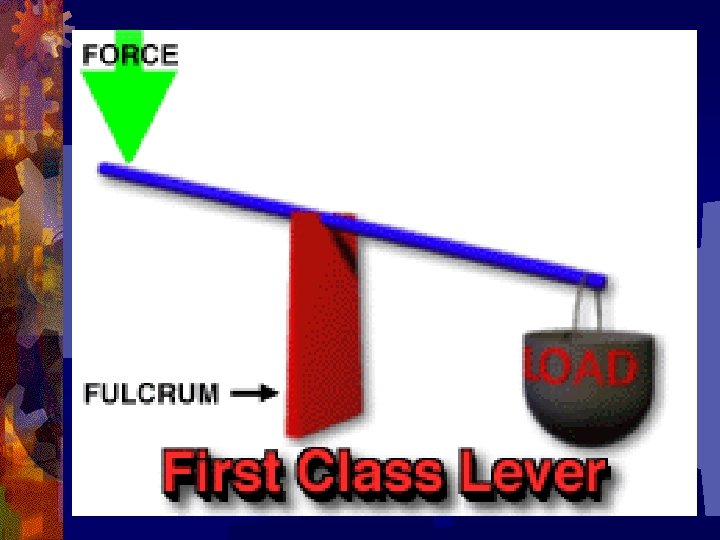

First Class Lever Fulcrum is between EF (effort) and RF (load) Effort moves farther than Resistance. Multiplies EF and changes its direction The mechanical advantage of a lever is the ratio of the length of the lever on the applied force side of the fulcrum to the length of the lever on the resistance force side of the fulcrum.

First Class Lever. ® Common examples of first-class levers include crowbars, scissors, pliers, tin snips and seesaws.

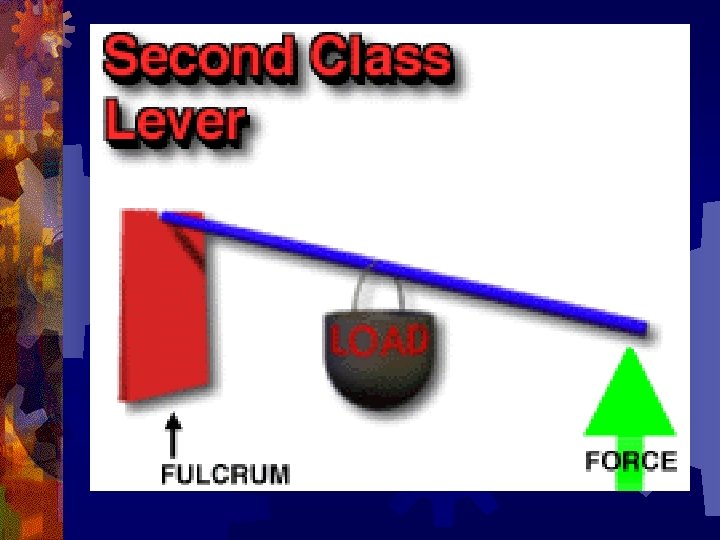

Second Class Lever RF (load) is between fulcrum and EF Effort moves farther than Resistance. Multiplies EF, but does not change its direction The mechanical advantage of a lever is the ratio of the distance from the applied force to the fulcrum to the distance from the resistance force to the fulcrum.

Second Class Lever ® Examples of second-class levers include nut crackers, wheel barrows, doors, and bottle openers.

Third Class Lever EF is between fulcrum and RF (load) Does not multiply force Resistance moves farther than Effort. Multiplies the distance the effort force travels The mechanical advantage of a lever is the ratio of the distance from the applied force to the fulcrum to the distance of the resistance force to the fulcrum

Third Class Lever ® Examples of third-class levers include tweezers, arm hammers, and shovels.

Pulleys ® Pulley are wheels and axles with a groove around the outside ® A pulley needs a rope, chain or belt around the groove to make it do work

Diagrams of Pulleys Fixed pulley: Movable Pulley: A fixed pulley changes the direction of a force; however, it does not create a mechanical advantage. The mechanical advantage of a moveable pulley is equal to the number of ropes that support the moveable pulley.

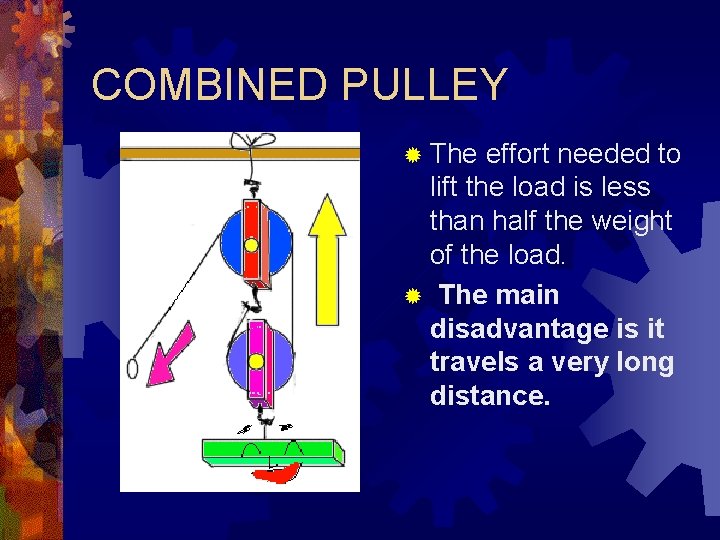

COMBINED PULLEY ® The effort needed to lift the load is less than half the weight of the load. ® The main disadvantage is it travels a very long distance.

WHEEL AND AXEL ® The axle is stuck rigidly to a large wheel. Fan blades are attached to the wheel. When the axel turns, the fan blades spin.

Wheel and Axel ® The mechanical advantage of a wheel and axle is the ratio of the radius of the wheel to the radius of the axle. 1 5 In the wheel and axle illustrated above, the radius of the wheel is five times larger than the radius of the axle. Therefore, the mechanical advantage is 5: 1 or 5. ® The wheel and axle can also increase speed by applying the input force to the axle rather than a wheel. This increase is computed like mechanical advantage. This combination would increase the speed 5 times. ®

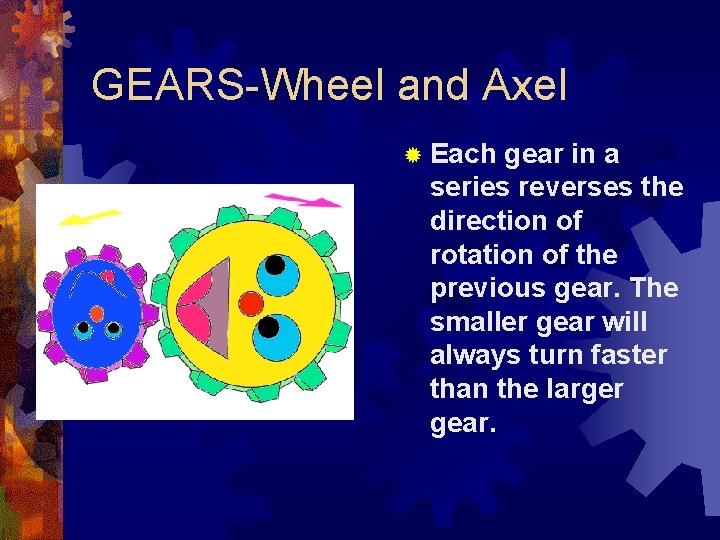

GEARS-Wheel and Axel ® Each gear in a series reverses the direction of rotation of the previous gear. The smaller gear will always turn faster than the larger gear.

Rube Goldberg Machines Rube Goldberg machines are examples of complex machines. ® All complex machines are made up of combinations of simple machines. ® Rube Goldberg machines are usually a complicated combination of simple machines. ® By studying the components of Rube Goldberg machines, we learn more about simple machines ®

Safety Device for Walking on Icy Pavemen When you slip on ice, your foot kicks paddle (A), lowering finger (B), snapping turtle (C) extends neck to bite finger, opening ice tongs (D) and dropping pi thus allowing you to fall on something soft.
