Work and Energy 2009 by Goodman Zavorotniy Conservation

Work and Energy © 2009 by Goodman & Zavorotniy

Conservation Principles The most powerful concepts in science are called
"conservation principles". These principles allow us to
solve problems without worrying much about the details
of a process. We just have to take a snapshot of a system initially and
finally; by comparing those two snapshots we can learn
a lot.

Conservation Principles A good example is a jar of candy. If you know that there are fifty pieces of candy at the
beginning. And you know that no pieces have been
taken out or added. . . you know that there must be 50
pieces at the end. Now, you could change the way you arrange
them. . . move them around, whatever. . . but you still will
have 50 pieces still 50 pieces

Conservation Principles In that case we would say that the number of pieces of
candy is conserved. That is, we should always get the same amount,
regardless of how they are arranged as long as we take
into account whether any have been added or taken
away. 50 pieces still 50 pieces

Conservation Principles We also have to be clear about the system that we're
talking about. If we're talking about one candy jar. . . we
can't suddenly start talking about a different one and
expect to get the same answers. We must define the system whenever we use a
conservation principle. 50 pieces still 50 pieces

Conservation of Energy is a conserved property of nature. It is not
created or destroyed, so in a closed system we will
always have the same amount of energy. The only way the energy of a system can change is if
it is open to the outside. . . if energy has been added or
taken away. You could ask "what is energy? " It turns out that energy is so fundamental, like space
and time, that there is no good answer to that
question.

Conservation of Energy However, just like space and time, that doesn't stop
us from doing very useful calculations with energy. We may not be able to define energy, but because it
is a conserved property of nature, it's a very useful
idea.

Conservation of Energy If we call the amount of energy that we start with as "Eo" and the amount we end up with as "Ef" then we would say
that if no energy is added to or taken away from a system
that Eo = Ef It turns out that there are only two ways to change the
energy of a system. One is with heat, which we won't deal
with here; the other is with "Work", "W". If we define positive work as that work which increases the
energy of a system our equation becomes: Eo + W = Ef

Work can only be done to a system by an external
force; a force from something that is not a part of the
system. So if our system is a box sitting on a table. . . and I come
along and push the box, I can increase the energy of
the box. . . I am doing work to the box.

Work Previously, we learned that the amount of work done to a
system, and therefore the amount of energy increase that
the system experiences is given by: Work = Force x Distanceparallel OR W = Fdparallel This is still valid, but we have to bring a new
interpretation to that equation based on what we know
about vector components. First, let's review some more
basic facts.

Work W = Fdparallel If the object that is experiencing the force does not
move (if dparallel = 0) then no work is done: W = 0. The energy of the system is unchanged. If the object moves in the direction opposite the
direction of the force (for instance if F is positive and
dparallel is negative) then the work is negative: W < 0. The energy of the system is reduced. If the object moves in the same direction as the
direction of the force (for instance if F is positive and
dparallel is also positive) then the work is positive: W > 0. The energy of the system is increased.

Units of Work and Energy W = Fdparallel This equation gives us the units of work. Since force is
measured in Newtons (N) and distance is measured in
meters (m) the unit of work is the Newton-meter (N-m). And since N = kg-m/s 2; a N-m also equals a kg-m 2/s 2. However, in honor of James Joule, who made critical
contributions in developing the idea of energy, the unit
of energy is also know as a Joule (J). 1 Joule = 1 Newton-meter = 1 kilogram-meter 2/second 2 1 J = 1 N-m = 1 kg-m 2/s 2

Units of Work and Energy Eo + W = Ef Since work changed the energy of a system: the
units of energy must be the same as the units of
work. The units of both work and energy are the Joule.

Force and Work v Previously, the force
was either parallel,
anti-parallel, or
perpendicular. F Let's look at those
three cases. Δx

Force and Work F v W = Fdparallel = 0 Δx v F W = Fdparallel = FΔx Δx F v W = Fdparallel = -FΔx Δx

Force and Work How do we interpret: F W = Fdparallel in this case. v Δx

Force and Work After breaking F into
components that are
 parallel and perpendicular to the direction of motion, we
can see that no Work
is done by the
perpendicular
component, only by
the parallel component. P P A F v Fperpendicular θ Fparallel Δx

Force and Work W = FΔxcosθ The work done on an
object by a force is
the product of the
magnitude of the
force and the
magnitude of the
displacement times
the cosine of the
angle between them. P P A F v Fperpendicular θ Fparallel Δx

Force and Work This is a similar case.
We just have to find the
component of force that
is parallel to the object's
displacement.

Force and Work The interpretation is the
same in this case, just
determine the angle
between the force and
displacement and use: Fparallel θ W = FΔxcosθ FA PP Fperpendicular Δx

A force F is at an angle θ above the horizontal is
used to pull a heavy suitcase of weight mg a
distance d along a level floor at constant velocity.
The coefficient of friction between the floor and the
suitcas μ. The work done by the force F is: 1 A Fdcos θ - μ mgd B Fdcos θ C -μ mg D 2 Fdsin θ - μ mgd E Fdcos θ - 1 F v θ

A force F is at an angle θ above the horizontal and
is used to pull a heav suitcase of weight mg a
distance d along a level floor at constant velocity.
The coefficient of friction between the floor and the
suitcas μ. The work done by the friction force
is: 2 A Fdcos θ - μ mgd F B 0 C -μd(mg - Fsinθ) D 2 Fdsin θ - μ mgd E Fdcos θ - 1 v θ

A force F is at an angle θ above the horizontal and
is used to pull a heavy suitcase of weight mg a
distance d along a level floor at constan velocity.
The coefficient of friction between the floor and the
suitcas μ. The work done by the normal force
is: 3 A Fdcos θ - μ mgd F B 0 C -μ mgd D 2 Fdsin θ - μ mgd E Fdcos θ - 1 v θ

A force F is at an angle θ above the horizontal and
is used to pull a heav suitcase of weight mg a
distance d along a level floor at constant velocity.
The coefficient of friction between the floor and the
suitcas μ. The work done by the gravitational
force is: 4 A Fdcos θ - μ mgd F B 0 C -μ mgd D 2 Fdsin θ - μ mgd E Fdcos θ - 1 v θ

A force F is at an angle θ above the horizontal and
is used to pull a heavy suitcase of weight mg a
distance d along a level floor at constan velocity.
The coefficient of friction between the floor and the
suitca is μ. The work done by the net force is: 5 A Fdcos θ - μ mgd B 0 C -μ mgd D 2 Fdsin θ - μ mgd E Fdcos θ - 1 F v θ

6 A 4 kg ball is attached to a 1. 5 m long string and
whirled in a horizontal circle at a constant speed of
 5 m/s. How much work is done on the ball during
one period? A 9 J B 4. 5 J C Zero D 2 J E 8 J

Gravitational Potential Energy A book of mass "m" is lifted vertically upwards a distance
"h" by an outside force. How much work does that
outside force do on the book? Fapp mg W = Fdparallel  ince a = 0, Fapp = mg W = (mg) dparallel  ince F and d are in the same direction
 . . and dparallel = h W = (mg) h W = mgh

Gravitational Potential Energy But we know that in general, Eo + W = Ef. If our book had no energy to begin with, Eo = 0, then W = Ef  ut we just showed that we did W = mgh to lift
 he book. . . so mgh = Ef  r Ef = mgh  he energy of a mass is increased by an  amount mgh when it is raised by a height "h".

Gravitational Potential Energy The name for this form of energy is Gravitational Potential
Energy (GPE). GPE = mgh One important thing to note is that changes in gravitational
potential energy are important, but their absolute value is
not. You can define any height to be the zero for height. . . and
therefore zero for GPE. But whichever height you choose
to call zero, changes in heights will result in changes of
GPE.

7 A 2 kg block is held at the top of an incline plane. gravitational potential energy of the
block? A 80 J B 60 J C 50 J D 40 J E 30 J
What is the

A 2 kg block released from rest from the top of an
incline plane. There i no friction between the
block and the surface. How much work is done by
the gravitational force on the block? 8 A 80 J B 60 J C 50 J D 40 J E 30 J

Kinetic Energy Imagine an object of mass "m" at rest at a height "h". If dropped, how fast will it be traveling just before striking the
ground? Use your kinematics equations to get a formula for v 2 = vo 2 + 2 ad  ince vo = 0, d = h, and a = g v 2 = 2 gh  nd we can solve this for "gh" gh = v 2 / 2  e're going to use this result later.

Kinetic Energy In this example, we dropped an object. While it was
falling, its energy was constant. . . but changing forms. It had only gravitational potential energy, GPE, at
beginning, because it had height but no velocity. It had only kinetic energy, KE, just before striking the
ground, as it had velocity but no height. In between, it had some of both.

Kinetic Energy Now let's look at this from an energy perspective. No external force acted on the system so its energy is constant.
Its original energy was in the form of GPE, which is "mgh". Eo + W = Ef   = 0 and Eo = mgh = Ef  olving for gh yields gh = Ef/m  ow let's use our result from kinematics  h = v 2 / 2 = Ef/m Ef = 1/2 mv 2 his is the energy an object has by   irtue of its motion: its kinetic energy

Kinetic Energy The energy an object has by virtue of its motion is called
its kinetic energy. The symbol we will be using for kinetic energy is KE. Like all forms of energy, it is measured in Joules (J). The amount of KE an object has is given by: KE = 1/2 mv 2

9 A D A stone is dropped from the edge of a cliff. Which
of the following graphs best represents the stone's
kinetic energy KE as a function of time t? C B E

A ball swings from point 1 to point 3. Assuming
the ball is in SHM and point 3 is 2 m above the
lowest point 2. Answer the following questions.
What happens to the kinetic energy of the ball
when it moves from point 1 to point 2? 10 A Increases B Decreases C Remains the same D Zero E More information is required

A ball swings from point 1 to point 3. Assuming
the ball is in SHM and point 3 is 2 m above the
lowest point 2. Answer the following questions.
What is the velocity of the ball at the lowest point
 2? 11 A 2. 2 m/s B 3. 5 m/s C 4. 7 m/s D 5. 1 m/s E 6. 3 m/s

A 2 kg block released from rest from the top of an
incline plane. There is no friction between the
block and the surface. What is the speed of the
block when it reaches the horizontal surface? 12 A 3. 2 m/s B 4. 3 m/s C 5. 8 m/s D 7. 7 m/s E 6. 6 m/s

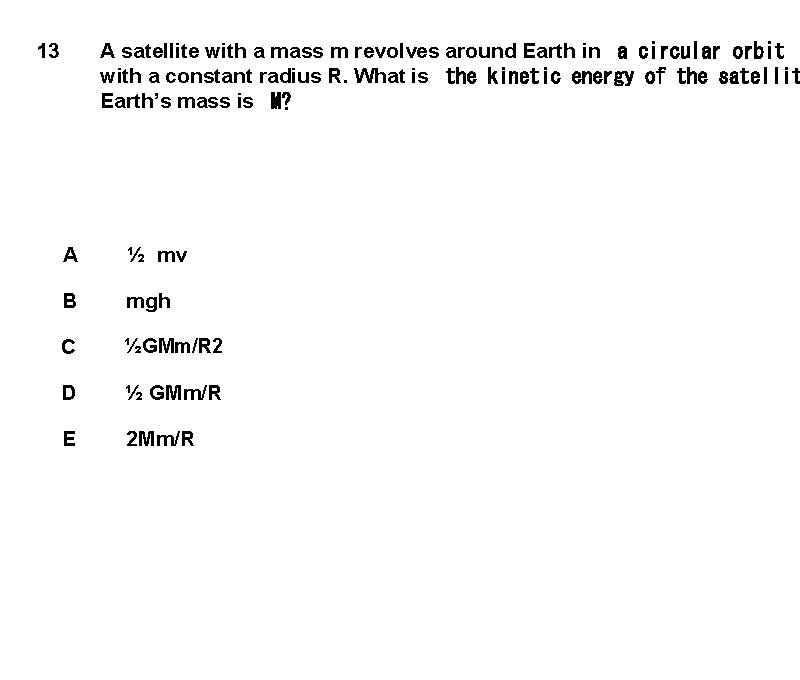

A satellite with a mass m revolves around Earth in
a circular orbit with a constant radius R. What is
the kinetic energy of the satellit Earth’s mass is
M? 13 A ½ mv B mgh C ½GMm/R 2 D ½ GMm/R E 2 Mm/R

An apple of mass m is thrown in horizontal from
the edge of a cliff with a height of H. What is the
total mechanical energy of the apple with respect
to the ground when it is at the edge of the cliff? 14 A 1/2 mv 02 B mg. H C ½ mv 02 - mg. H D mg. H - ½ mv 02 E mg. H + ½ mv 02

An apple of mass m is thrown in horizontal from
the edge of a cliff with a height of H. What is the
kinetic energy of the apple just befor it hits the
ground? 15 A ½ mv 02 + mg. H B ½ mv 02 - mg. H C mg. H D ½ mv 02 E mgh - 1/2 mv 02

16 A 500 kg roller coaster car starts from rest at point
A and moves down the curved track. Ignore any
energy loss due to friction. Find the speed of the
car at the lowest point B. A 10 m/s B 20 m/s C 30 m/s D 40 m/s E 50 m/s

A 500 kg roller coaster car starts from rest at point A
and moves down the curved track. Ignore any
energy loss due to friction. the speed of the car
when it reaches point C. 17 A 10 m/s B 20 m/s C 30 m/s D 40 m/s E 50 m/s Find

Two projectiles A and B are launched from the
ground with velocities of 50 m/s at 60 and 50
m/s at 30 � with respect to the horizontal.
Assuming there is no air resistance involved,
which projectile has greater kinetic energy when
it reaches the highest point? 18 A Projectile A B Projectile B C They both have the same none zero kinetic
energy D They both have zero kinetic energy at the
highest point E More information is required

19 An object with a mass of 2 kg is initially at rest
at a position x = 0. A non-constant force F is
applied to the object over 6 meters. What is the total work done on the object? A 200 J B 150 J C 170 J D 190 J E 180 J

20 An object with a mass of 2 kg is initially at rest at
a position x=0. A non-constant force F is applied
to the object over 6 meters. What is the velocity of the object at 6 meters? A 150 m/s B 25 m/s C 300 m/s D 12. 25 m/s E Not enough information

21 A D A metal ball is held stationary at a height h 0 above the floor and then thrown upward. Assuming the
collision with the floor is elastic, which graph best
shows the relationship between the total energy E of
the metal ball and its height h with respect to the
floor? B E C

22 A toy car travels with speed vo at point x. Point Y
is a height H below point x. Assuming there is no
frictional losses and no work is done by motor,
what is the speed at point Y? A (2 g. H+1/2 vo 2)1/2 B vo-2 g. H C (2 g. H + vo 2)1/2 D 2 g. H+(1/2 vo 2)1/2 E vo+2 g. H

Elastic Potential Energy can be stored in a spring, this energy is called
Elastic Potential Energy. Hooke observed the relationship between the force
necessary to compress a spring and how much the spring
was compressed. Fspring = -kx k represents the spring constant and is measured in N/m. x represents how much the spring is compressed. The - sign tells us that this is a restorative force.

Elastic Potential Energy The work needed to compress a spring is equal to the area
under its force vs. distance curve. W = 1/2 (base) (height) W = 1/2 (x) (F) W = 1/2 (x) (kx) W = 1/2 kx 2

Elastic Potential Energy The energy imparted to the spring by this work must be
stored in the Elastic Potential Energy (EPE) of the spring: EPE = 1/2 kx 2 Like all forms of energy, it is measured in Joules (J).

A force of 20 N compresses a spring with spring
constant 50 N/m. much energy is stored in
the spring? 23 A 2 J B 5 J C 4 J D 6 J E 8 J How

A block with a mass of m slides at a constant
velocity V 0 on a horizontal frictionless surface. The block collides with a spring and comes to rest
when the spring is compressed to the maximum
value. If the spring constant is K, what is the
maximum compression in the spring? 24 A V 0 (m/k)1/2 B Km. V 0 C V 0 K/m D m V 0/K E V 0 (K/m)1/2 F (V 0 m/K)1/2

25 A block of mass m is placed on a frictionless
inclined plane with an incline angle θ. The block is just in contact with a free end of an unstretched
spring with a spring constant k. If the block is
release from rest, what is the maximum
compression in the spring? A kmgsinθ B kmgcosθ C (2 mgsinθ)/k D (mg)/k E kmg

Recalling conservation of energy, we can now solve more
complicated problems if energy is conserved. A roller coaster is at the top of a track that is 80 m high. How fast
will it be going at t bottom of the hill? Eo + W = Ef  =0 Eo = Ef   0 = GPE, Ef = KE GPE = KE  ubstitute GPE and KE equations mgh = 1/2 m v 2  olving for v yields v 2 = 2 gh  ubstitute the values and solve v 2 = 2 (9. 8) 80  his method works with many energy v =39. 6 m/s roblems

26 A student uses a spring (with a spring constant of
 180 N/m) to launch a marble vertically into the air.
The mass of the marble is 0. 004 kg and the spring
is compressed 0. 03 m. How high will the marble
go?

27 A student uses a spring gun (with a spring
constant of 120 N/m) to launch a marble vertically
into the air. The mass of the marble is 0. 002 kg
and the spring is compressed 0. 04 m. How fast will it be going when it leaves the gun?

28 A student uses the lab apparatus shown below. A 5
kg block compresses a spring 6 cm. The spring
constant is 300 N/m. What will the block's velocity
be when released?

29 A mass is attached to an ideal spring on a
smooth horizontal surface. It is displaced an
amount Δxo and released. Which of the following is true? I. The KE is largest when the mass passes
through the equilibrium point. II. The PE is largest when the mass has a
displacement of ±Δxo. III. The PE and KE will never
be equal A I only B II only C III only D I and II only E I and III only

GPE and Escape Velocity The expression GPE = mgh only works near the surface
of a planet. As an object goes to a great height a more
general expression is needed based on Universal
Gravitational Force: FGravity = GMm/r 2. Deriving this accurately requires Calculus, but you can
remember it by thinking of it this way W = FΔxcosθ  Gravity = GMm/r 2; cosθ = -1; d = r W = -(GMm/r 2)r UG = -GMm/r

GPE and Escape Velocity To escape a planet, an object needs to have sufficient
kinetic energy to overcome its negative gravitaional
potential energy. Eo + W = Ef UG + KE + W = 0 -GMm/r + 1/2 mv 2 + 0 = 0 1/2 mv 2 = GMm/r v 2 = 2 GM/r v = (2 GM/r)1/2 Note that escape
velocity is
independent of the
mass of the
escaping object. It
only depends on the
mass and radius of
the object being
escaped from.

30 A rocket of mass 5, 000 kg will have _______ escape
velocity as a 10, 000 rocket? A larger B smaller C equal

31 Four objects are thrown with identical speeds in different
directions from the top of a building. Which will be moving
fastest when it strikes the ground? A B C D h E All will be the same

32 Four objects are thrown with identical speeds in different
directions from the top of a building. Which will strike the
ground soonest? A B C D h E All will be the same

33 Four objects are thrown with identical speeds in different
directions from the top of a building. Which will go the
highest? A B C D h E All will be the same

34 Four objects are thrown with identical speeds in different
directions from the top of a building. Which will land
farthest from the base of the building? A B C D h E All will be the same

35 Four objects are thrown with identical speeds in different
directions from the top of a building. Which will have the greatest horizontal component of velocity at its
maximum height? A B C D h E All will be the same

36 Four objects are thrown with identical speeds in different
directions from the top of a building. Which will have the greatest kinetic energy at its maximum height? A B C h D All will be the same

37 A rocket is launched from the surface of a planet
with mass M and radius R. What is the minimum
velocity the rocket must be given to completely
escape from the planet's gravitational field? A 2 GM/16 R 2 B (2 GM/R)1/2 C (GM/R)1/2 D 2 GM/R

Power It is often important to know not only if there is enough energy
available to perform a task but also how much time will be
required. Power is defined as the rate that work is done: P=W/t Since work is measured in Joules (J) and time is measured in
seconds (s) the unit of power is Joules per second (J/s). However, in honor of James Watt, who made critical
contributions in developing efficient steam engines, the unit
of power is also know as a Watt (W).

Power P=W/t  ince W = Fd parallel P = (Fd parallel) / t  egrouping this becomes P = F(d parallel / t)  ince v = d/t P = Fv parallel So power can be defined as the product of the force applied
and the velocity of the object parallel to that force.

Power A third useful expression for power can be derived from our
original statement of the conservation of energy principle. P=W/t  ince W = Ef - E 0 P = (Ef - E 0) / t So the power absorbed by a system can be thought of as the
rate at which the energy in the system is changing.

A driver in a 2000 kg Porsche wishes to pass a
slow moving school bus on a 4 lane road. What is
the average power in watts required to accelerate
the sports car from 30 m/s to 60 m/s in 9 seconds? 38 A 1, 800 W B 5, 000 W C 10, 000 W D 100, 000 W E 300, 000 W

39 A force F is applied in horizontal to a 10 kg block.
The block moves at a constant speed 2 m/s across
a horizontal surface. The coefficient of kinetic
friction between the block and the surface is 0. 5.
The work done by the force F in 1. 5 minutes is: A 9000 J B 5000 J C 3000 J D 2000 J E 1000 J

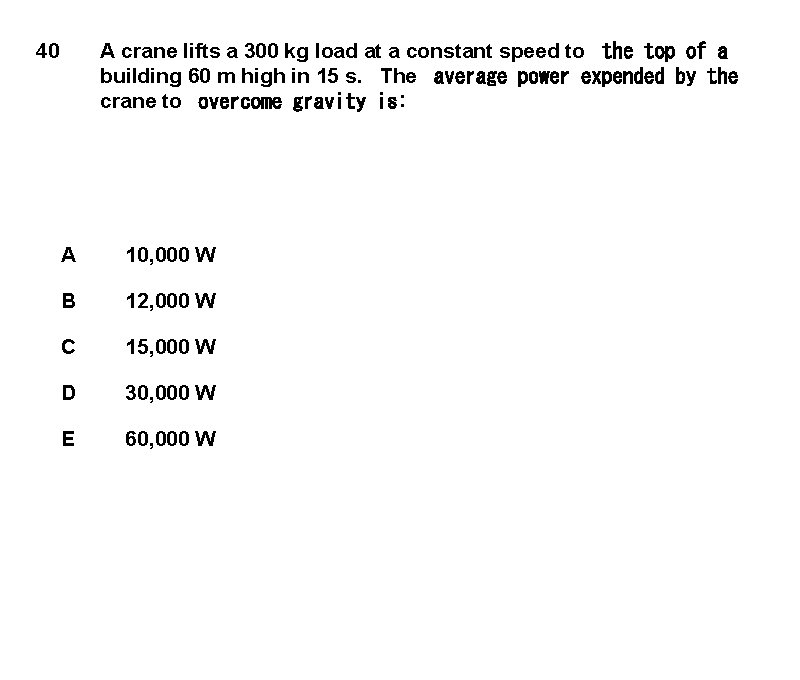

A crane lifts a 300 kg load at a constant speed to
the top of a building 60 m high in 15 s. The
average power expended by the crane to
overcome gravity is: 40 A 10, 000 W B 12, 000 W C 15, 000 W D 30, 000 W E 60, 000 W

41 In a physics lab a student uses three light
frictionless PASCO lab carts. Each cart is loaded
with some blocks, each having the same mass. The
same force F is applied to each cart and they move
equal distances d. In which one of these three
cases is more work done by force F? A cart I B cart II C cart III D the same work is done
on each E more information is required

42 In a physics lab a student uses three light
frictionless PASCO lab carts. Each cart is loaded
with some blocks, each having the same mass. The
same force F is applied to each cart and they move
equal distances d. Which cart will have more kinetic
energy at the end of distance d? A cart I B cart II C cart III D all three will have the
same kinetic energy E more information is required

In a physics lab a student uses three light
frictionless PASCO lab carts. Each cart is loaded
with some blocks, each having the same mass. The same force F is applied to each cart and they move
equal distances d. Which cart will move faster at
the end of distance d? 43 A cart I B cart II C cart III D all three will move
with the same speed E more information is required

A box of mass M begins at rest with point 1 at a
height of 6 R, where 2 R is the radius of the circular
part of the track. The box slides down the
frictionless track and around the loop. What is the
ratio betwe the normal force on the box at point 2
to the box's weight? 44 A 1 B 2 C 3 D 4 E 5

45 A ball of mass m is fastened to a string. The ball
swings in a vertical circle of radius r with the other
end of the string held fixed. Neglecting
resistance, the difference between the string's
tension at the bottom o the circle and at the top of
the circle is: A mg B 2 mg C 3 mg D 6 mg E 9 mg

Work and Energy Calculus Based

Work We learned before that work can be defined as: This equation comes from the scalar product of the force
vector and displacement vector. If the force however is changing the previous equation for
work does not apply. To account for the varying force like
for a varying velocity when you are trying to find
displacement requires the use of Calculus.

Work F x By breaking the varying force into small segments we can
precisely calculate the work done by a varying force.

Gravitational Potential Energy Work is defined as the change in energy, so to find the potential
energy due to gravity we integrate the gravitational force.

Power For a constant force the power equation can be represented in
several ways The average power can be represented as: To find the instantaneous power we use a limit expression
in which the interval is brought to essentially zero

Work along a curved path As you move from point 1 to point 2 along a curved
path, the segments of the curve can be divided into an
infinite amount of vector displacements denoted by dl. Φ

Force and Potential Energy We already have learned that work is the change in energy. The force is dependent on the components of the potential so the
force can be described as the negative gradient of the potential.

Energy Diagrams An energy diagram shows the relationship between the
objects position and the amount of potential energy. KE U -A 0 A This energy diagram shows the change of the potential for a
spring. At a maximum displacement (A or -A) the object on the
spring has maximum potential and at zero the object has
maximum kinetic energy.

Energy Diagrams Some energy diagrams are far more complex than that of a
spring. To find the magnitude of the force along the curve we
have to take the derivative because U unstable equilibrium x

Energy Diagrams In energy diagrams, stable equilibrium is anywhere the curve has
a minimum and unstable equilibrium occurs when the curve has
a maximum. To find the critical points take the derivative of the
equation and set it equal to zero. The minimum is where the
slope changes from negative to positive, and the maximum is
where the slope changes from positive to negative. Energy Diagrams to Force Diagrams U U x x F F x x

46 Given the equation U(x) = x 5 - 3 x 2 + 8. Find F(x). A 5 x 4 + 6 x B -5 x 4 + 6 x - 8 C -5 x 4 + 6 x D -5 x 4 - 5 x - 8 E 5 x 4 - 5 x

47 Given F(x) = -24 x 3 + 3 x 2 + 8 x - 7. Find U(x) from x = 0 to x = 1. A 0 J B 2 J C 4 J D 6 J E 8 J

A particle moves along the x-axis while acted on by
a force parallel to the x-axis. The force corresponds
to the potential energy function graphed. a) What is the direction of the force on
the particle when it is at point A? U(J) Negative A b) What is the direction of the force
on the particle when it is at point B? B C 0 Positive (m) c) What is the force on the particle
when it is at point C? Zero
