Word Window Classification and Neural Network 201983289 1

Word Window Classification and Neural Network 201983289 이유진 1

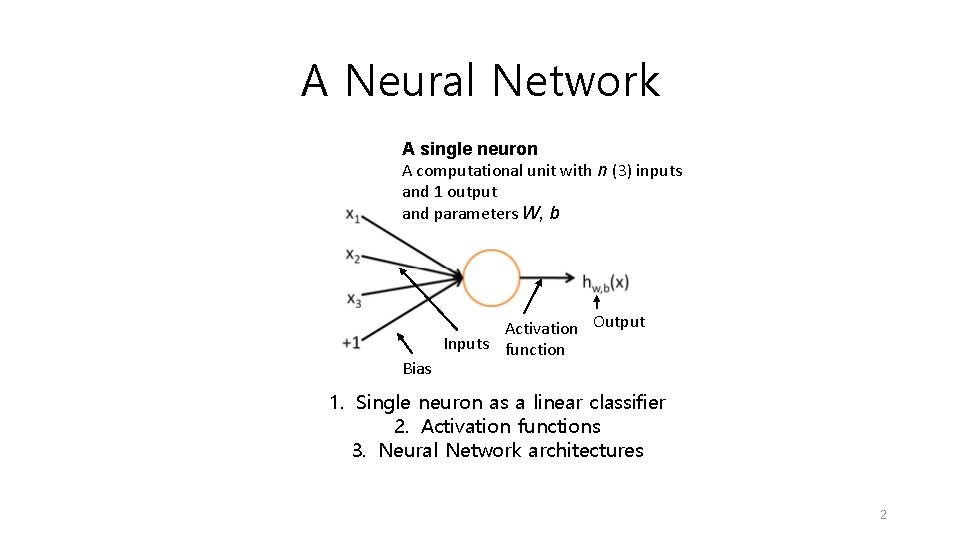

A Neural Network A single neuron A computational unit with n (3) inputs and 1 output and parameters W, b Bias Activation Output Inputs function 1. Single neuron as a linear classifier 2. Activation functions 3. Neural Network architectures 2

• A Neural Network z = Wx +b 3

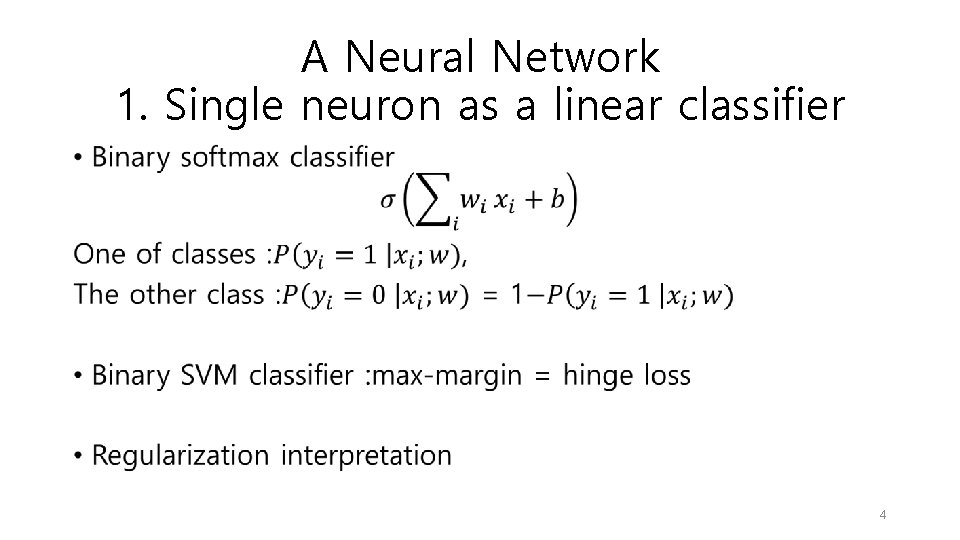

A Neural Network 1. Single neuron as a linear classifier • 4

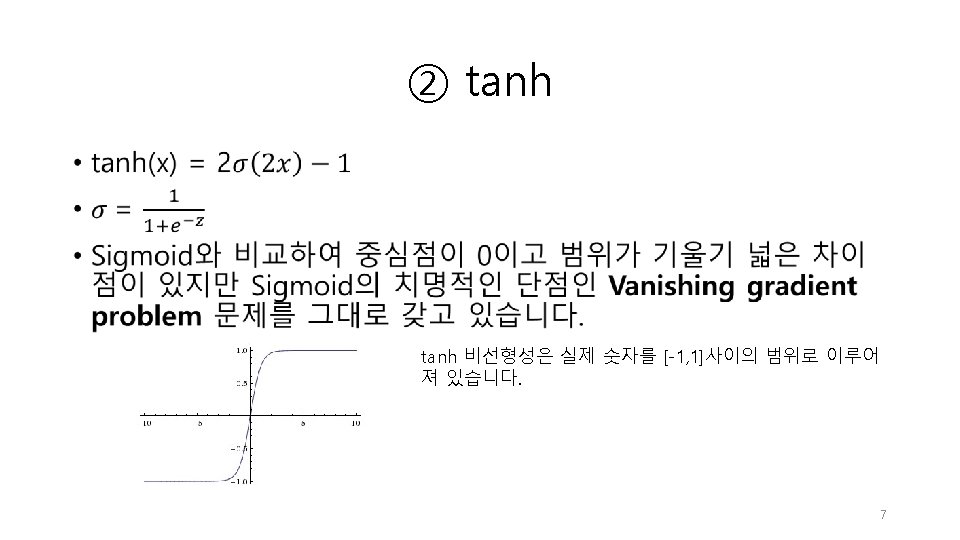

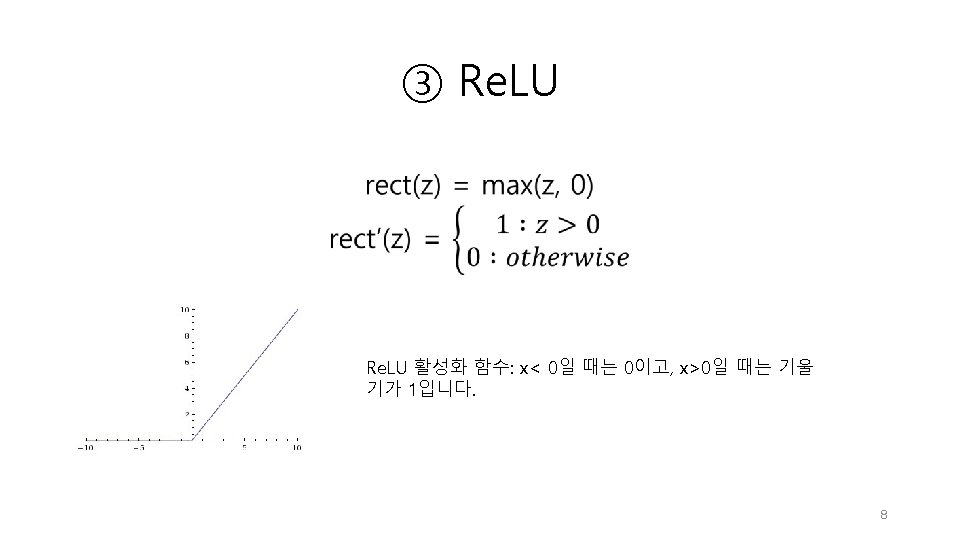

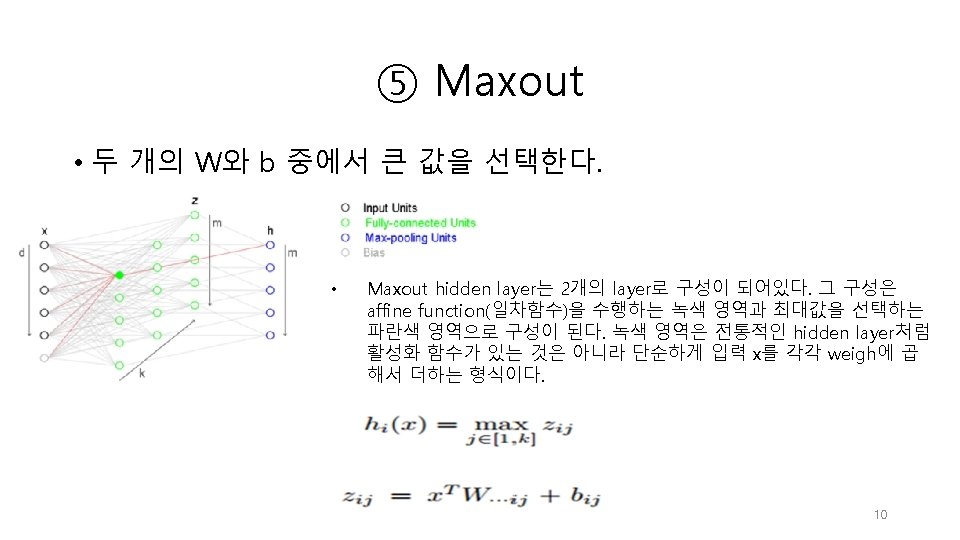

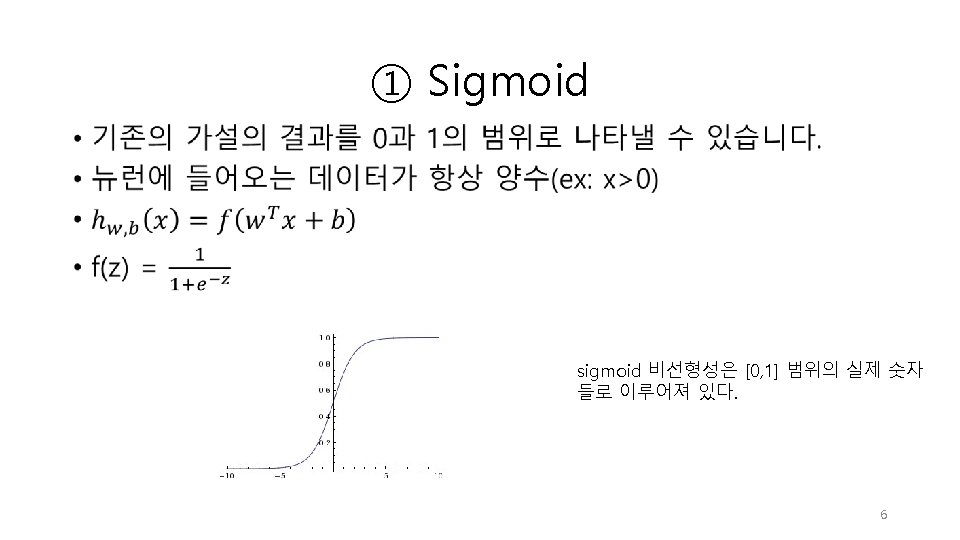

A Neural Network 2. Activation functions • 활성화 함수 사용의 이유는 Data를 비선형으로 바꾸기 위해 서이다. ① Sigmoid ②Tanh ③Re. LU ④Leaky Re. LU ⑤Maxout 5

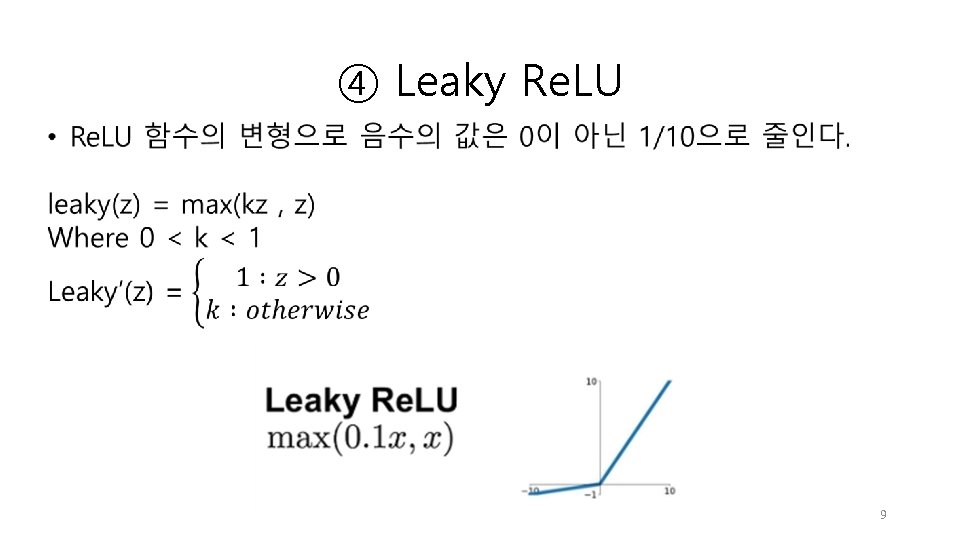

④ Leaky Re. LU 9

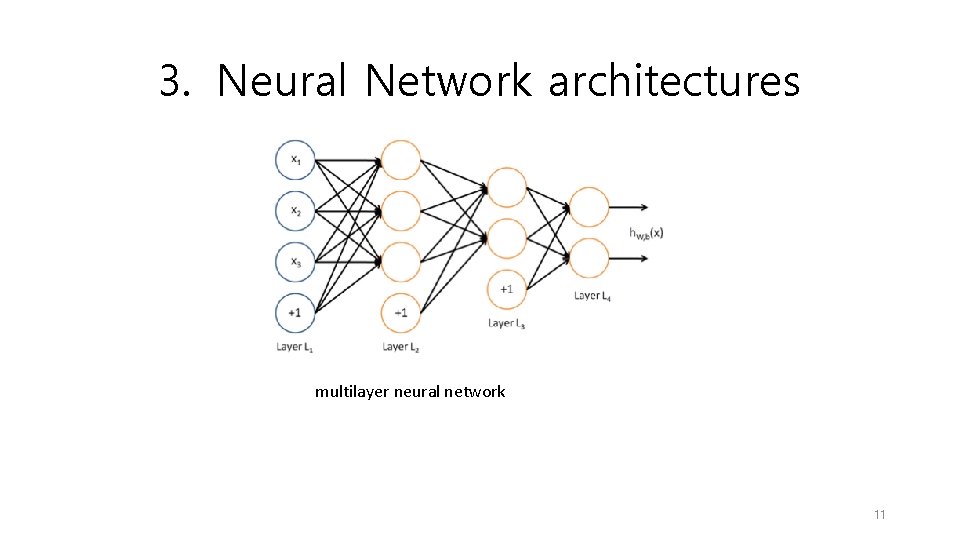

3. Neural Network architectures multilayer neural network 11

3. Neural Network architectures 12

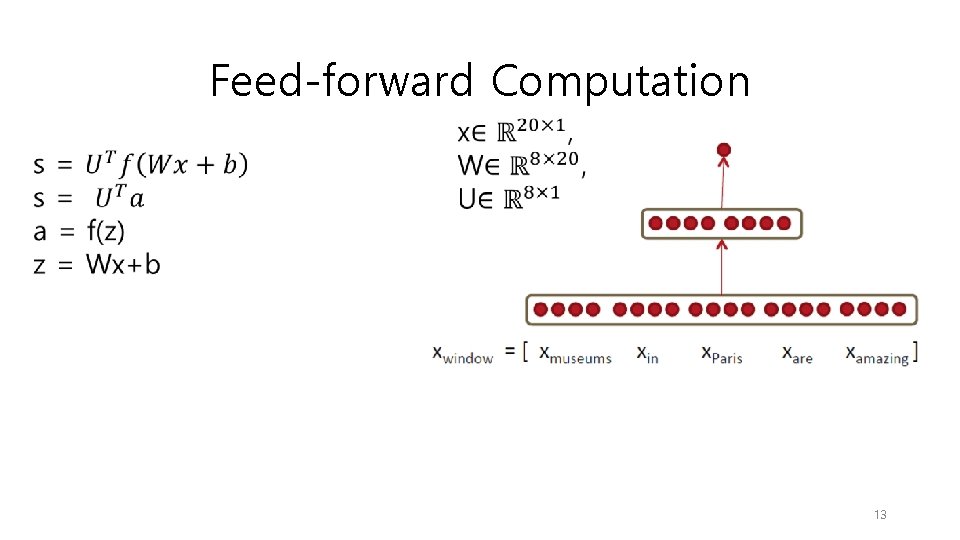

Feed-forward Computation 13

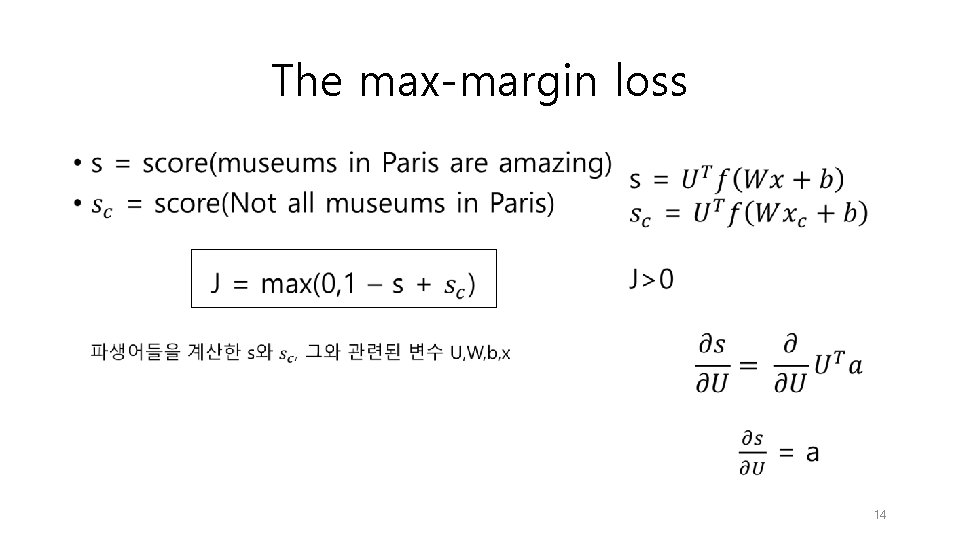

The max-margin loss • 14

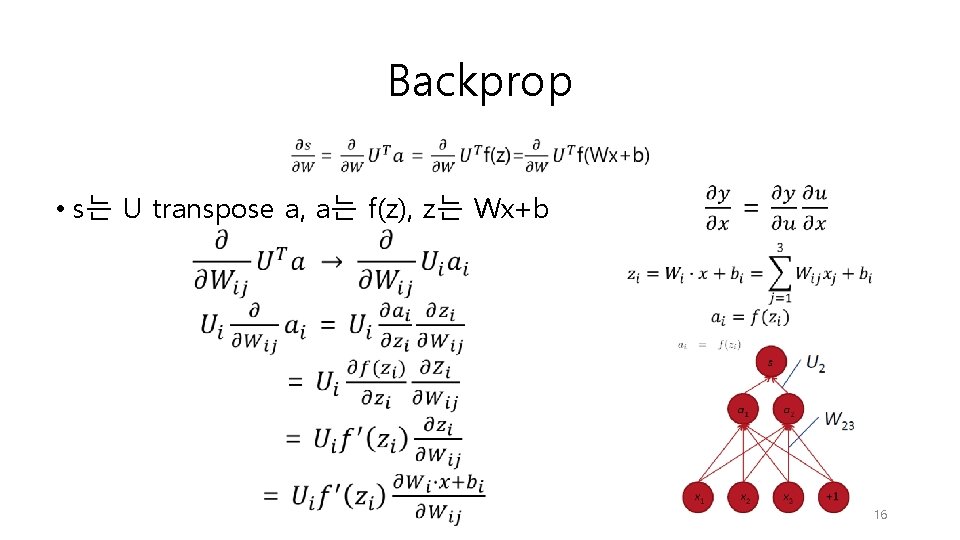

Backprop • s는 U transpose a, a는 f(z), z는 Wx+b 16
