Woodwork Planes Quiz

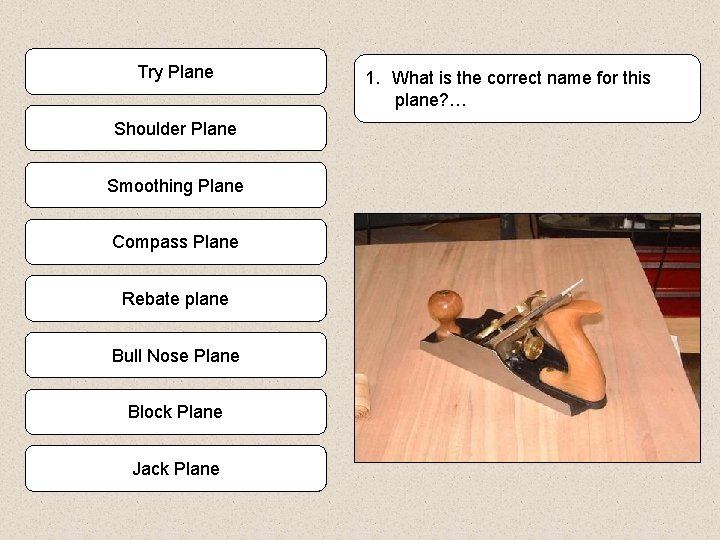

Try Plane Shoulder Plane Smoothing Plane Compass Plane Rebate plane Bull Nose Plane Block Plane Jack Plane 1. What is the correct name for this plane? …

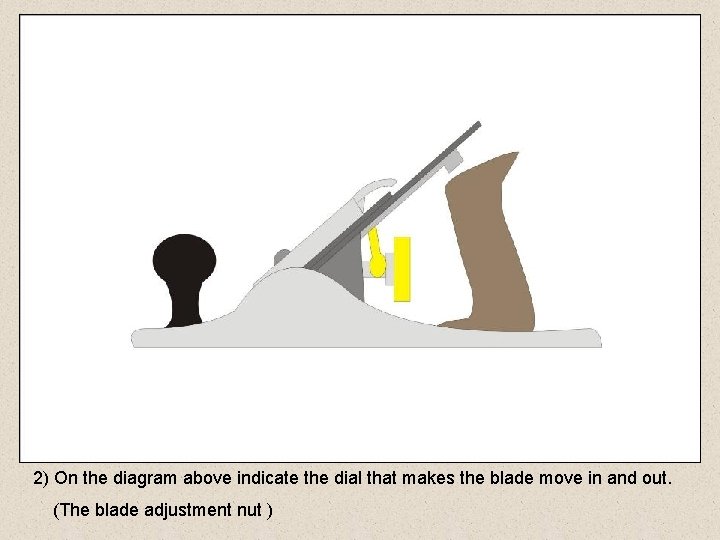

2) On the diagram above indicate the dial that makes the blade move in and out. (The blade adjustment nut )

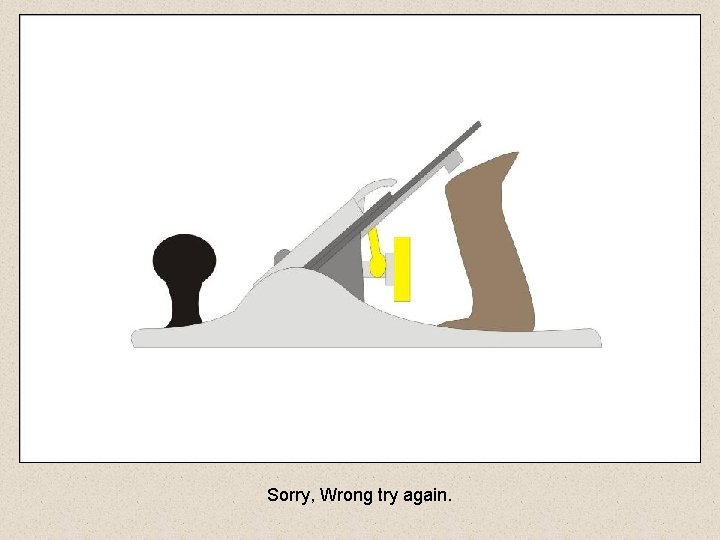

Sorry, Wrong try again.

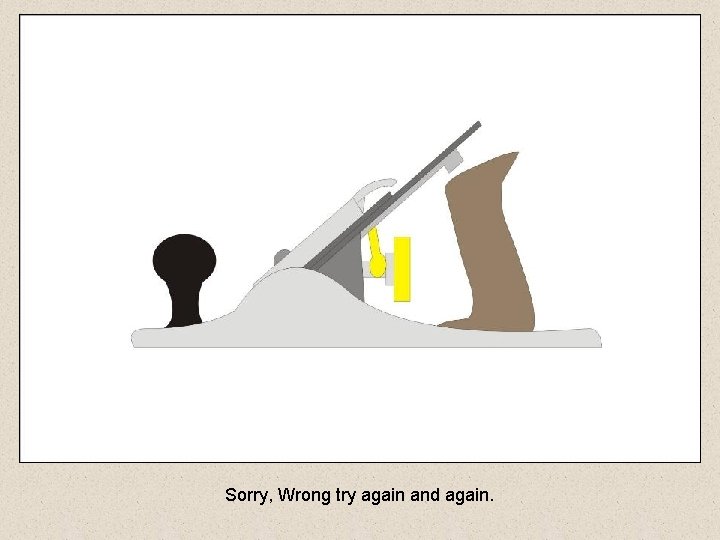

Sorry, Wrong try again and again.

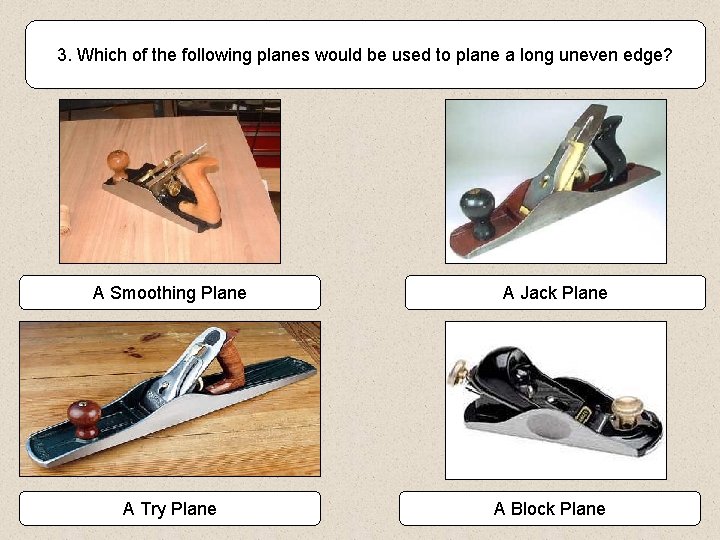

3. Which of the following planes would be used to plane a long uneven edge? A Smoothing Plane A Try Plane A Jack Plane A Block Plane

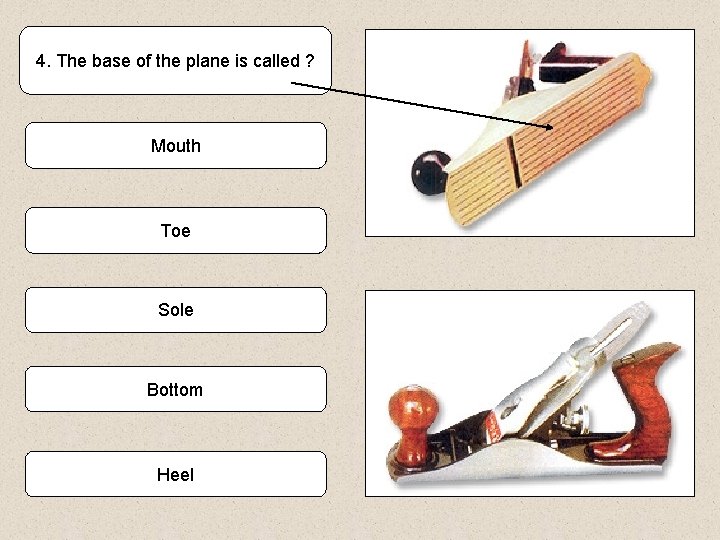

4. The base of the plane is called ? Mouth Toe Sole Bottom Heel

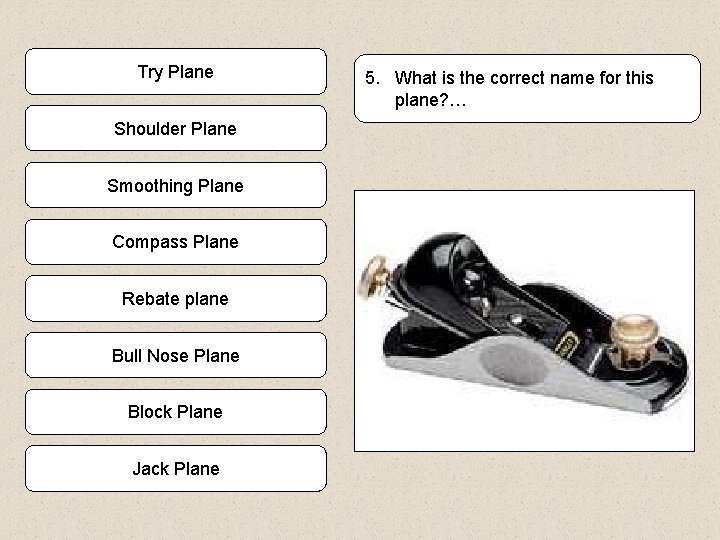

Try Plane Shoulder Plane Smoothing Plane Compass Plane Rebate plane Bull Nose Plane Block Plane Jack Plane 5. What is the correct name for this plane? …

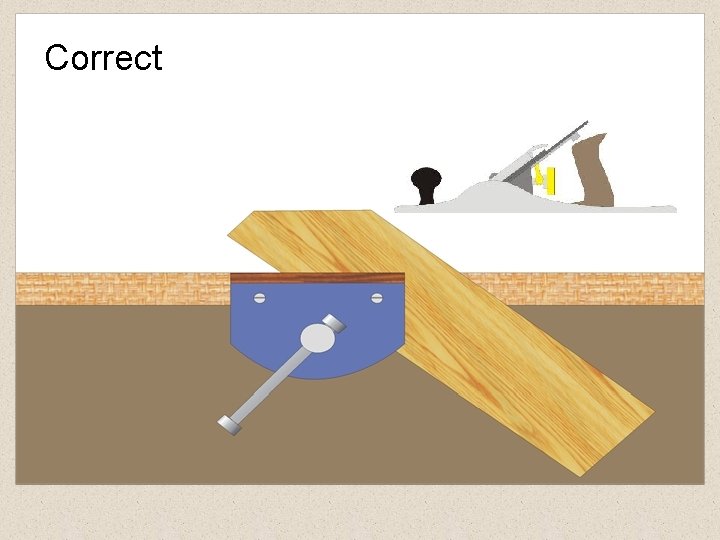

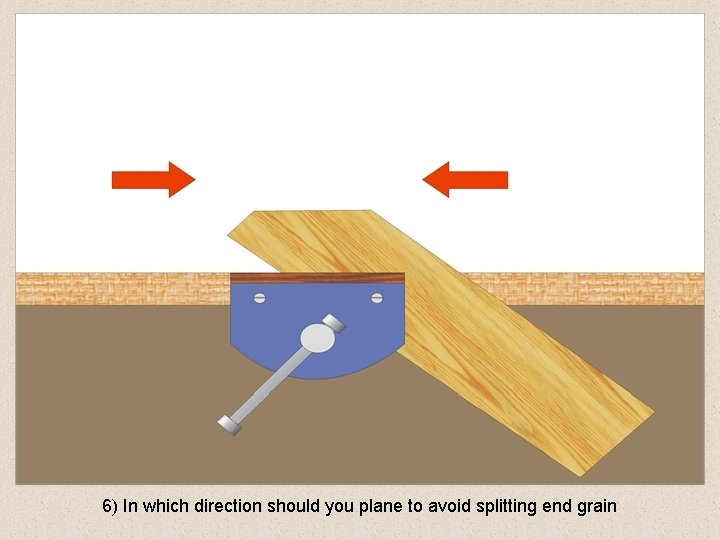

6) In which direction should you plane to avoid splitting end grain

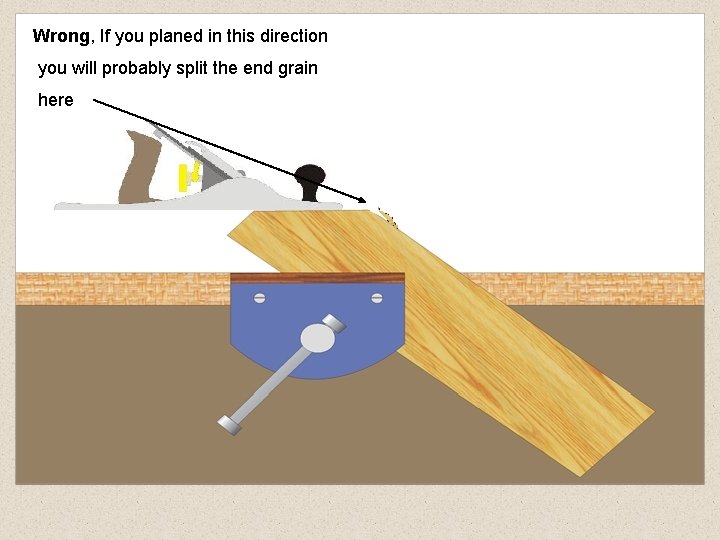

Wrong, If you planed in this direction you will probably split the end grain here

Correct

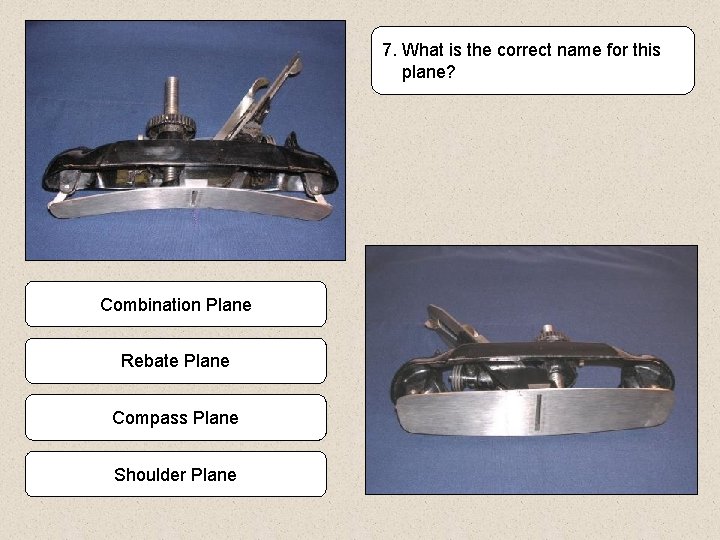

7. What is the correct name for this plane? Combination Plane Rebate Plane Compass Plane Shoulder Plane

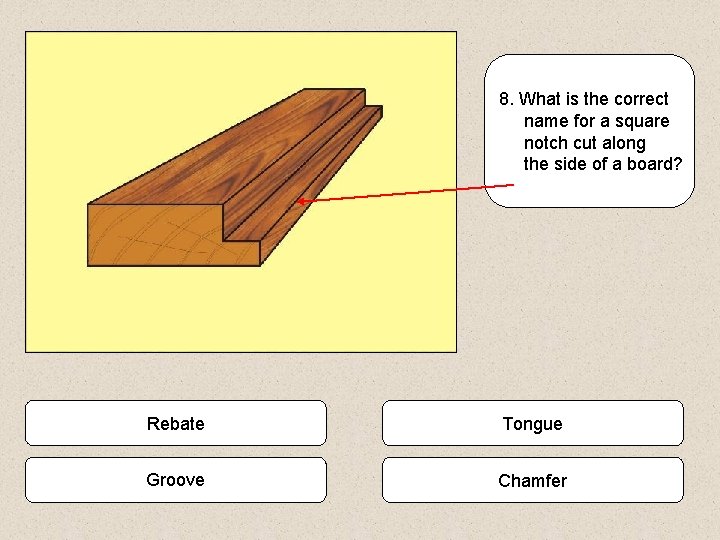

8. What is the correct name for a square notch cut along the side of a board? Rebate Tongue Groove Chamfer

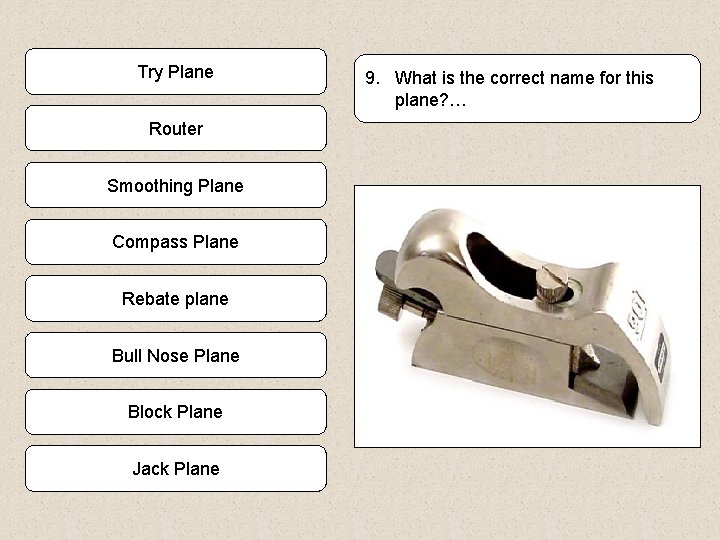

Try Plane Router Smoothing Plane Compass Plane Rebate plane Bull Nose Plane Block Plane Jack Plane 9. What is the correct name for this plane? …

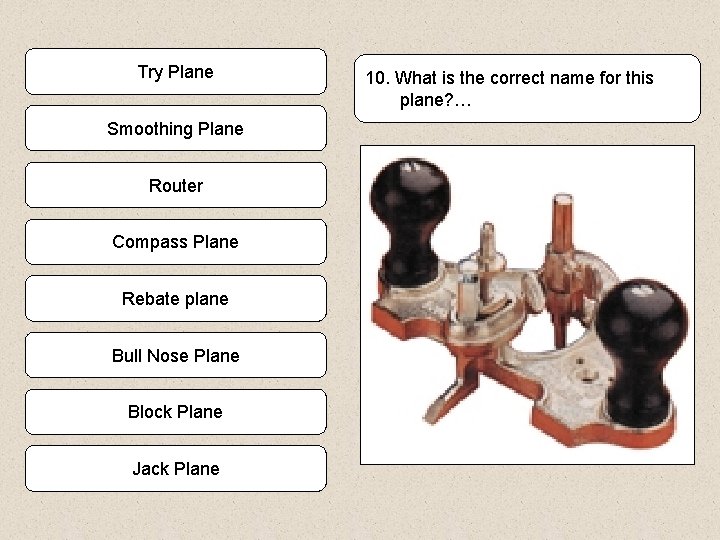

Try Plane Smoothing Plane Router Compass Plane Rebate plane Bull Nose Plane Block Plane Jack Plane 10. What is the correct name for this plane? …

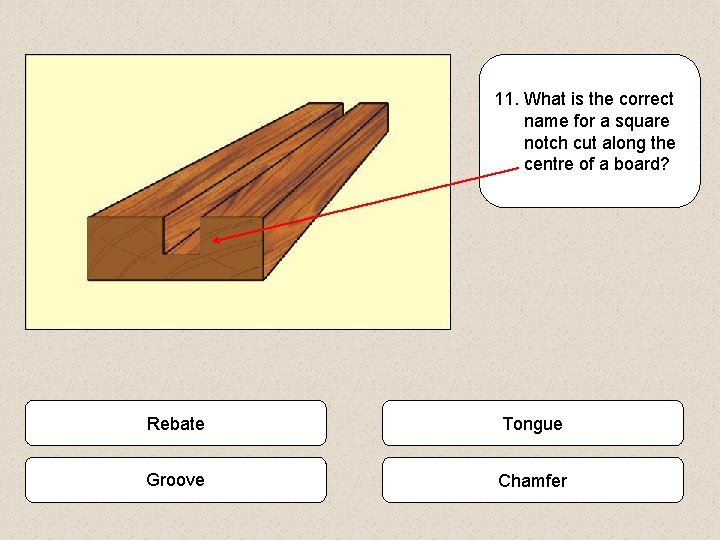

11. What is the correct name for a square notch cut along the centre of a board? Rebate Tongue Groove Chamfer

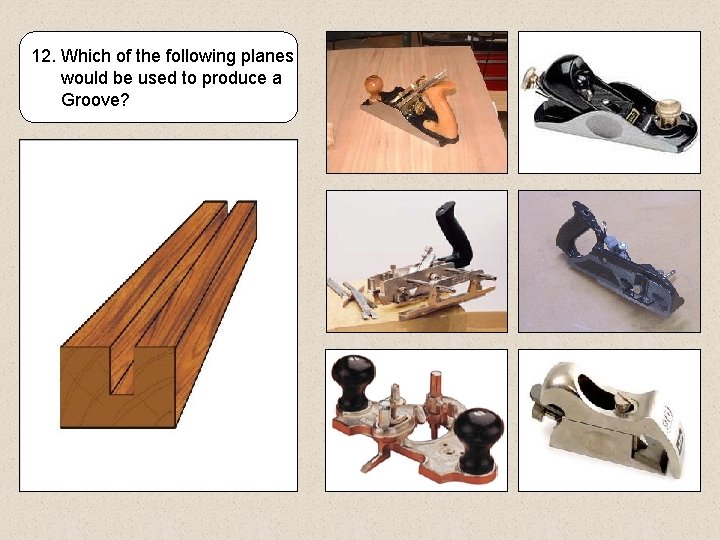

12. Which of the following planes would be used to produce a Groove?

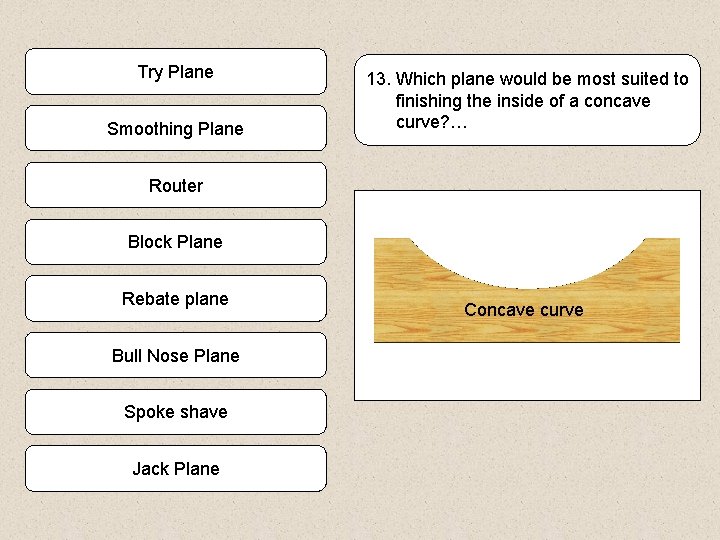

Try Plane Smoothing Plane 13. Which plane would be most suited to finishing the inside of a concave curve? … Router Block Plane Rebate plane Bull Nose Plane Spoke shave Jack Plane Concave curve

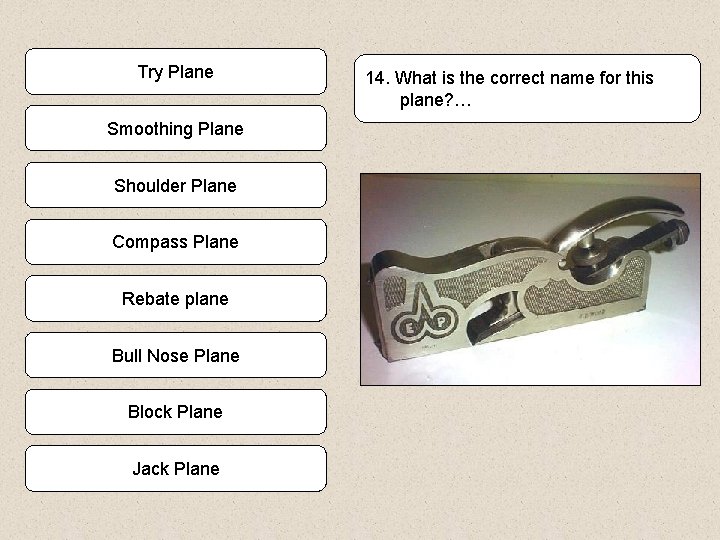

Try Plane Smoothing Plane Shoulder Plane Compass Plane Rebate plane Bull Nose Plane Block Plane Jack Plane 14. What is the correct name for this plane? …

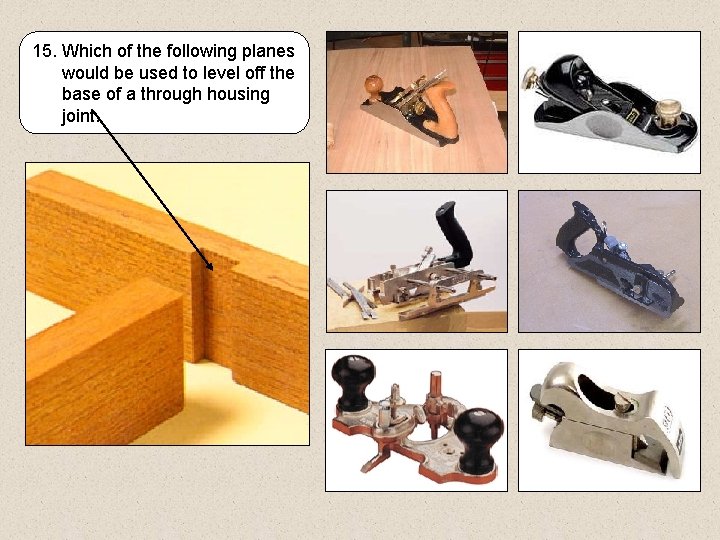

15. Which of the following planes would be used to level off the base of a through housing joint.

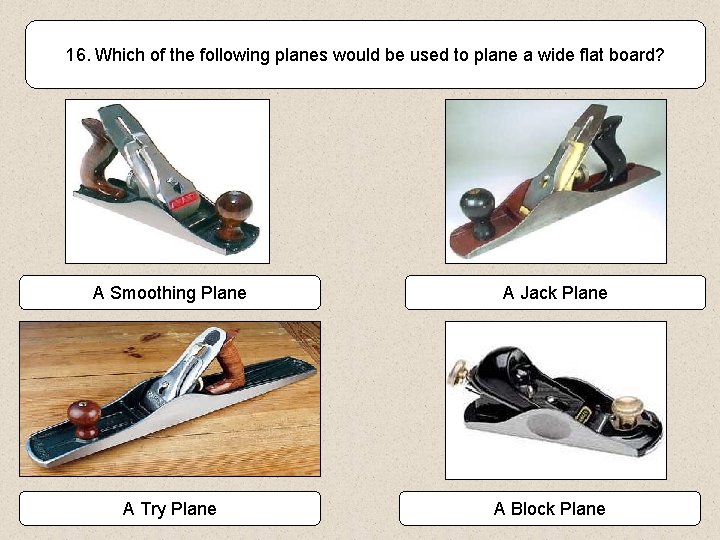

16. Which of the following planes would be used to plane a wide flat board? A Smoothing Plane A Try Plane A Jack Plane A Block Plane

Quiz Completed Well Done

Wrong Click here to try again
