World-Class Manufacturing World-class firms are always examining their business processes and continuously seeking solutions to improve in key areas such as: ü Reducing Lead Times ü Shortening Time to Market ü Cost Cutting ü Exceeding Customer Expectations ü Streamlining Processes ü Managing the Global Operation Schneider Electric - Division - Name – Date Master Recipe 2

Recipe management in manufacturing © Invens ys 04 June 2021 Functional completeness Batch Management The Gap in Industrial Software offerings Custom Recipe management HMI Recipe Management Custom Recipe management Recipe Execution scope 3 Invensys Schneider Electric - Division - Name – Date 3

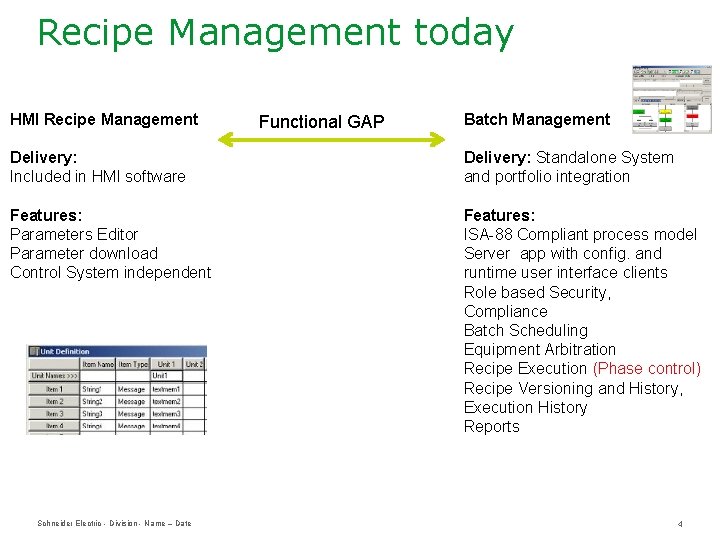

Recipe Management today HMI Recipe Management Functional GAP Batch Management Delivery: Included in HMI software Delivery: Standalone System and portfolio integration Features: Parameters Editor Parameter download Control System independent Features: ISA-88 Compliant process model Server app with config. and runtime user interface clients Role based Security, Compliance Batch Scheduling Equipment Arbitration Recipe Execution (Phase control) Recipe Versioning and History, Execution History Reports Schneider Electric - Division - Name – Date 4

What you asked for… HMI Recipe Management Functional GAP Batch Management Recipe Management Delivery: Standalone System and portfolio integration Features: Parameters editor Parameter download Control System independent Client - Server application Role based Security, Governance (Versioning, Approval) History & Reports Schneider Electric - Division - Name – Date 5

Wonderware Recipe management and execution strategy Functional completeness Wonderware In. Batch Wonderware Recipe Manager Plus In. Touch Recipe Manager Recipe Execution capabilities 6 Schneider Electric - Division - Name – Date 6

New Wonderware Software Offering ●Introducing the first industry web application for recipe formula management that can be used as a consistent standard across all your production equipment and automation systems. 7 Schneider Electric - Division - Name – Date 7

Value proposition Wonderware Recipe Manager Plus is designed for standardization of operational recipe management across your business, and to simplify the process to take new products to market. 8 Schneider Electric - Division - Name – Date 8

What does it do A ready to use multi user web application formula management and parameter download. Equipment Formulas Product Changeover Assign Review Adjust Download Make Fill Product Formulas Import Edit Map IO Approve Import Edit Approve Equipment/Machine Parameters Label Pack Schneider Electric - Division - Name – Date Import Master Recipe Data 9

Web application and user interface ● All configuration, runtime and reports user interface functionality in a browser ● Any device – PC, Panel or mobile device with HTML 5 capable browser ● Any HMI - Integrates to anything via browser control. ● Access from anywhere – secure and easy for central or remote engineering ● Administration, IT and Security friendly Schneider Electric - Division - Name – Date 10

Works with, and complements any SCADA, HMI and Control System ● Supports standalone use: ●connects to any system via OPC UA client (DA Spec. ) ●User interface for any device which offers HTML 5 Browser support ●Integration with any HMI which can embed a HTML 5 Browser control ● Integrated with Wonderware System Platform ●Object template and model importer Schneider Electric - Division - Name – Date 11

Benefits ● Operational efficiency ● Out of the box functionality, collaborative and remote multiuser access capabilities with central data management and web application architecture ● Standardization and low TCO ● Manage formulas with adaptability to any equipment with different automation and HMI systems, a consistent user experience and reduced number of formats and systems ● Fast time to value ● The IT and security friendly web application is quickly deployed, eliminating any client application installation and maintenance needs. Schneider Electric - Division - Name – Date 12

Wonderware Recipe Manager Plus 2014 User experience The Functionality at a glance: • Equipment Formulas – configuration • Formula Templates - configuration • Formula instances derived from F. Templates - config. • Formula download – runtime Formula download history - report views • Formula Parameter Extensions - configuration • Units of Measure used in Formulas - configuration • Role based Security - configuration/administration Schneider Electric - Division - Name – Date 13

Professional Recipe Formula Management and Governance Schneider Electric - Division - Name – Date 14

Formula Parameters Extensibility Schneider Electric - Division - Name – Date 15

Runtime functionality Schneider Electric - Division - Name – Date 16

Formula Download History Report views by Formula or Equipment Schneider Electric - Division - Name – Date 17

Target industries – solution scenarios 1. Food & Beverages, CPG, chemical industries for both - the make and the pack process ●Product formula changeover handling + Packaging/Filling machine/line parameterization/changeover + any additional formula parameter needs 2. Any system which requires consistent changeover of parameter sets/mode switching • Buildings – Winter/Summer mode – day/night mode switch • Energy consumption mode switching for optimization – normal/low/idle/saving etc. • Infrastructure's normal/emergency/idle behavior modes • …. Schneider Electric - Division - Name – Date 18

Recipe Management & Execution Strategy Roadmap and Future Plans Schneider Electric - Division - Name – Date 19

Recipe Manager Plus future scope • Can define product or non-product based (e. g. CIP) recipes • Recipe can include one or more of the following elements: • Parameters/Set Points • Formulas • Procedures • Recipe can be executed in Wonderware System Platform or downloaded to PLC or DCS • Procedures can be run in automatic or manual mode and will support S 88 state model • Procedural events will be historized (e. g. process cell start and complete; operation start and complete, etc. ) Operation 1 Transition 1 Operation 2 Transition 2 Operation 3 Operation 4 Transition 3 Operation 5 Transition 4 Schneider Electric - Division - Name – Date 20

Recipe Management & Execution Strategy Each offering can be deployed Independently… Wonderware MES Software Plus Wonderware In. Batch Software When Recipe Manager Pro is deployed with MES – common data such as materials, set points, etc. are maintained in MES When In. Batch is deployed with MES – common data such as orders, resources, materials, QA specs, etc. are maintained in MES Wonderware Recipe Manager Schneider Electric - Division - Name – Date NEW 21

Bill Of Materials & Product Specification Procedure 3 O-1 O-2 O-3 Process Cell #1 Recipe 1 Product Recipe 1 Parameter 2 Parameter 3 … … … Parameter 10 … Parameter n Value 1 Value 2 Value 3 … … … Value 10 … Value n Recipe 1 Procedure 3 Parameter 2 … Parameter 7 O-4 Schneider Electric - Division - Name – Date 22

Multiple Process Cell Coordination Schneider Electric - Division - Name – Date Production Recipe 1 Production Recipe 5 Production Recipe 9 Recipe 1 Procedure 3 Recipe 5 Procedure 2 Recipe 1 Procedure 9 Parameter 2 … Parameter 7 Parameter 1 … Parameter 16 Parameter 11 … Parameter 2 23

Enterprise Recipe Management PLM or Equivalent ERP Recipe Template Control Recipe Product Recipe ●Charter: ●Support the ability to seamlessly translate and augment a General or Site recipe maintained in a PLM or equivalent solution to a Master and/or Control recipe on the production floor. Schneider Electric - Division - Name – Date 24
