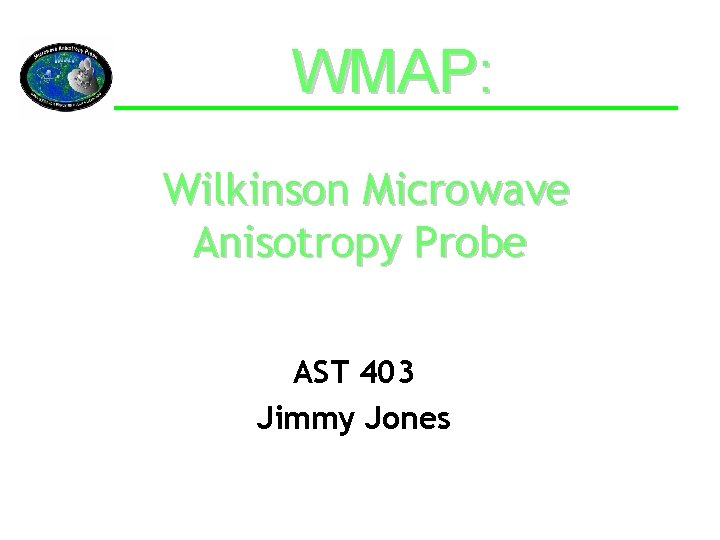

WMAP: Wilkinson Microwave Anisotropy Probe AST 403 Jimmy Jones

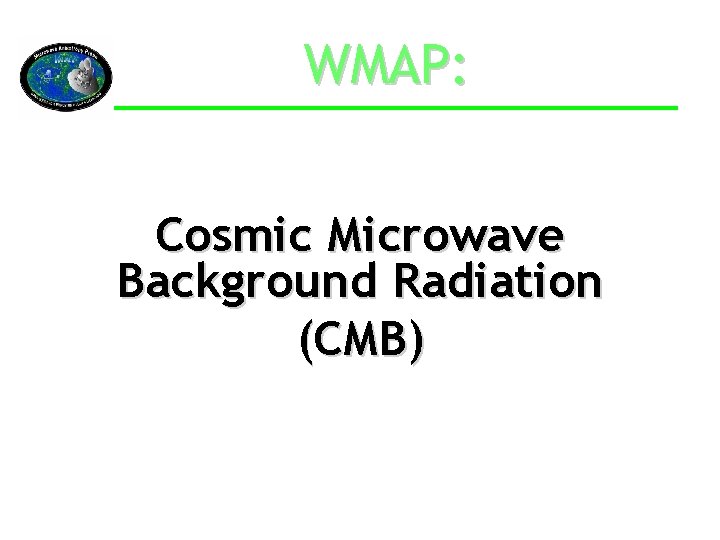

WMAP: Cosmic Microwave Background Radiation (CMB)

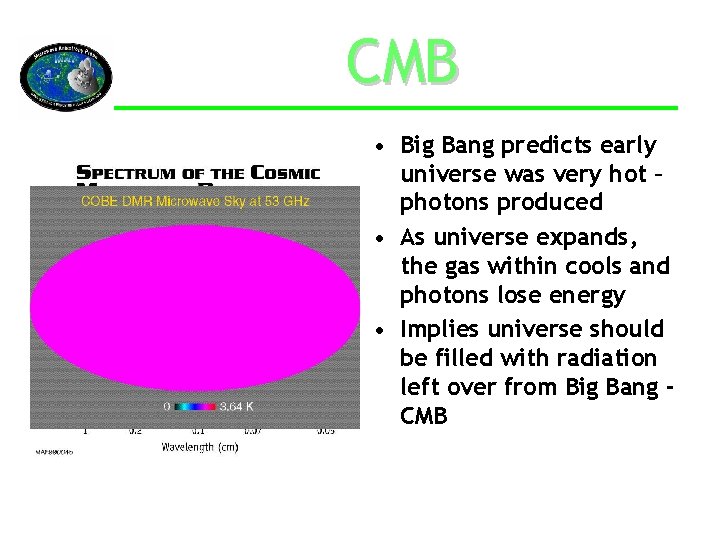

CMB • Big Bang predicts early universe was very hot – photons produced • As universe expands, the gas within cools and photons lose energy • Implies universe should be filled with radiation left over from Big Bang CMB

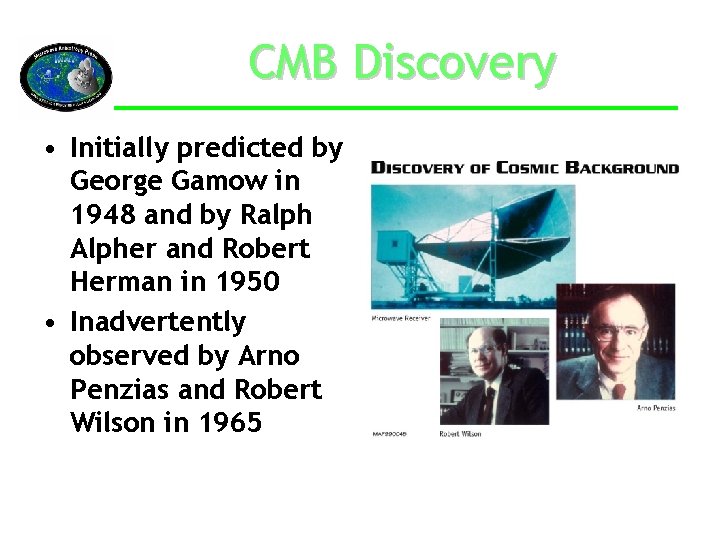

CMB Discovery • Initially predicted by George Gamow in 1948 and by Ralph Alpher and Robert Herman in 1950 • Inadvertently observed by Arno Penzias and Robert Wilson in 1965

COBE • Cosmic Background Explorer • Launched November 1989 • Designed to measure cosmic background radiation • Possessed three instruments: – DIRBE – infrared – DMR – microwave – FIRAS – spectrum analysis

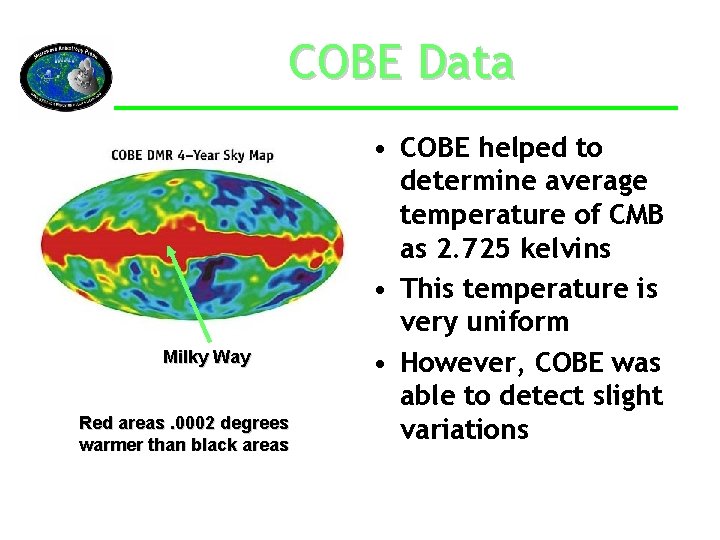

COBE Data Milky Way Red areas. 0002 degrees warmer than black areas • COBE helped to determine average temperature of CMB as 2. 725 kelvins • This temperature is very uniform • However, COBE was able to detect slight variations

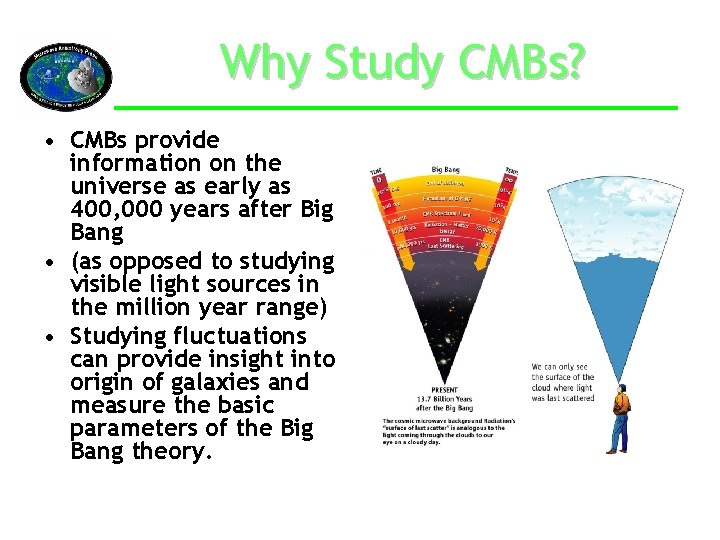

Why Study CMBs? • CMBs provide information on the universe as early as 400, 000 years after Big Bang • (as opposed to studying visible light sources in the million year range) • Studying fluctuations can provide insight into origin of galaxies and measure the basic parameters of the Big Bang theory.

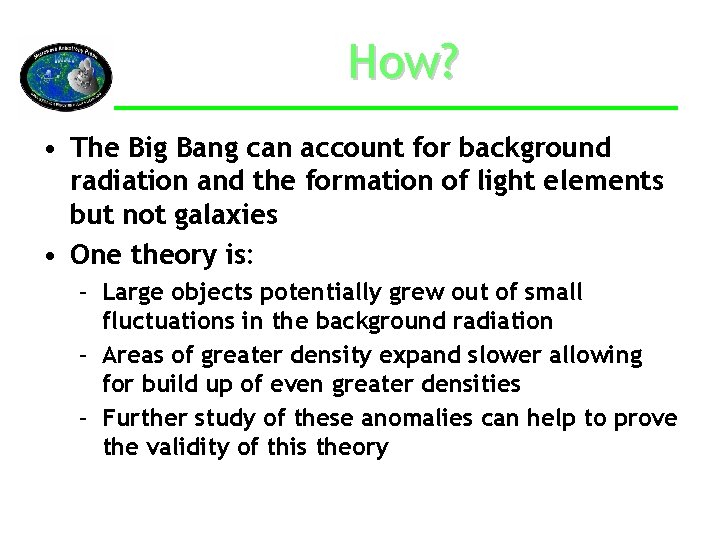

How? • The Big Bang can account for background radiation and the formation of light elements but not galaxies • One theory is: – Large objects potentially grew out of small fluctuations in the background radiation – Areas of greater density expand slower allowing for build up of even greater densities – Further study of these anomalies can help to prove the validity of this theory

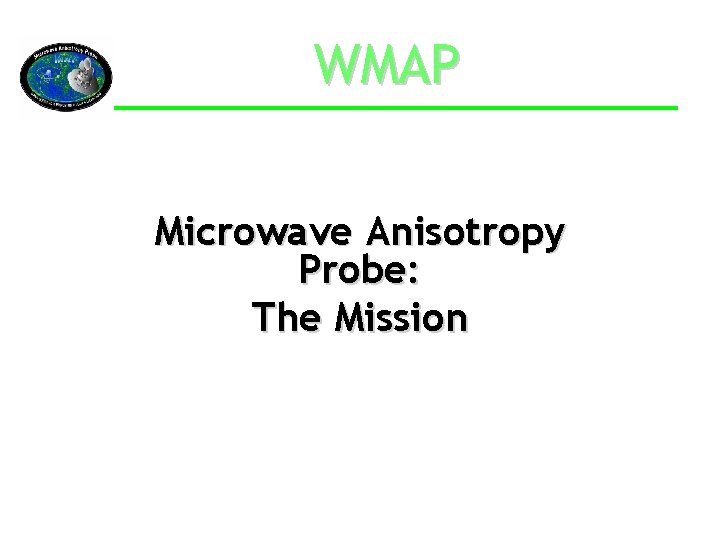

WMAP Microwave Anisotropy Probe: The Mission

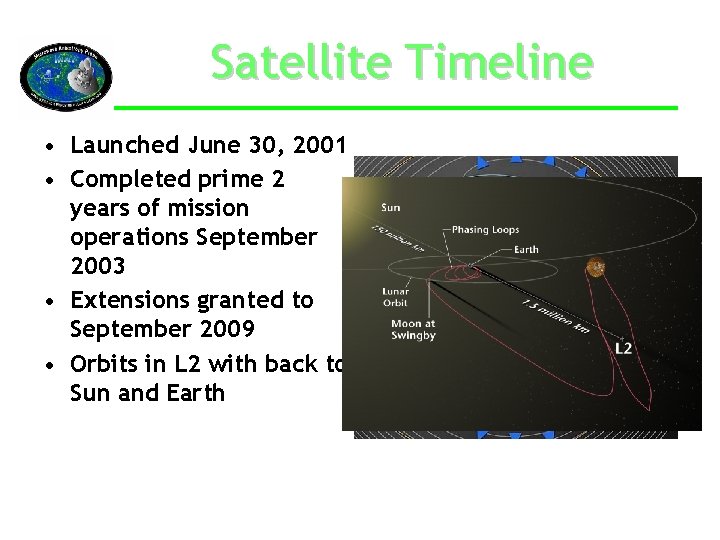

Satellite Timeline • Launched June 30, 2001 • Completed prime 2 years of mission operations September 2003 • Extensions granted to September 2009 • Orbits in L 2 with back to Sun and Earth

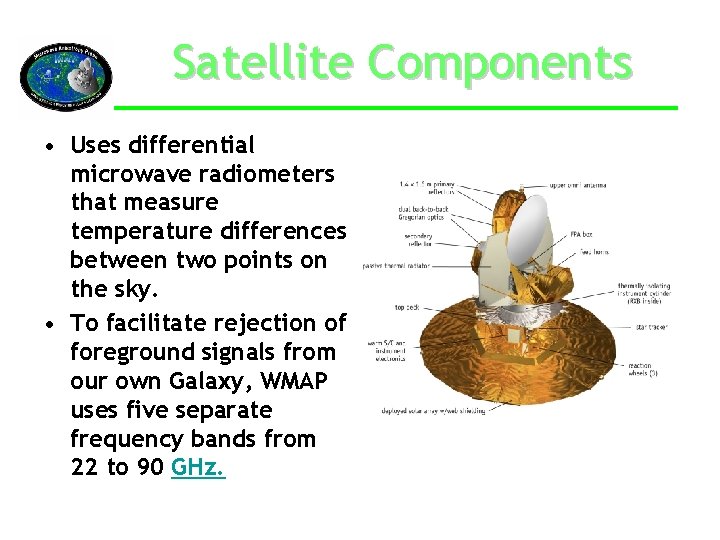

Satellite Components • Uses differential microwave radiometers that measure temperature differences between two points on the sky. • To facilitate rejection of foreground signals from our own Galaxy, WMAP uses five separate frequency bands from 22 to 90 GHz.

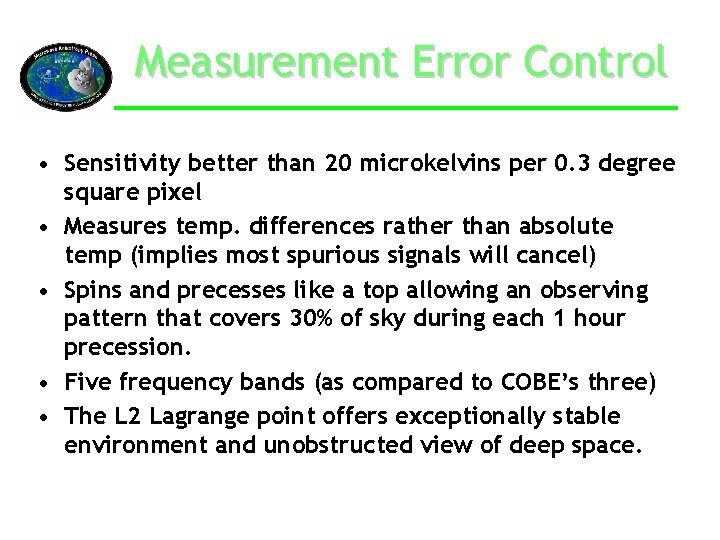

Measurement Error Control • Sensitivity better than 20 microkelvins per 0. 3 degree square pixel • Measures temp. differences rather than absolute temp (implies most spurious signals will cancel) • Spins and precesses like a top allowing an observing pattern that covers 30% of sky during each 1 hour precession. • Five frequency bands (as compared to COBE’s three) • The L 2 Lagrange point offers exceptionally stable environment and unobstructed view of deep space.

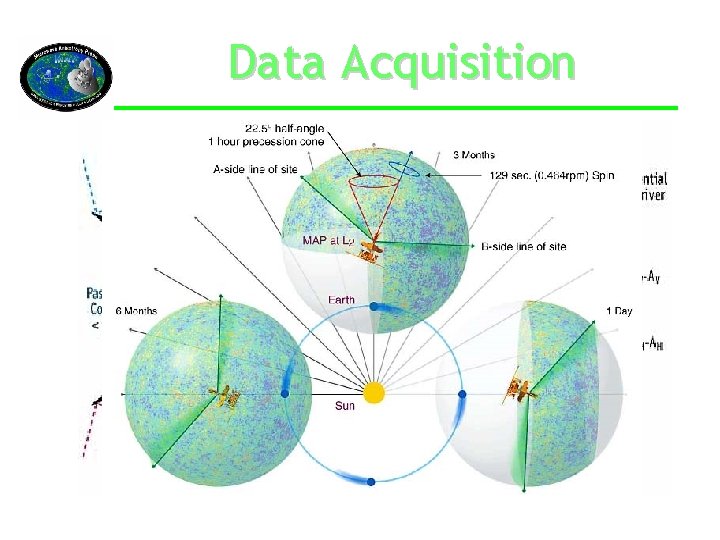

Data Acquisition

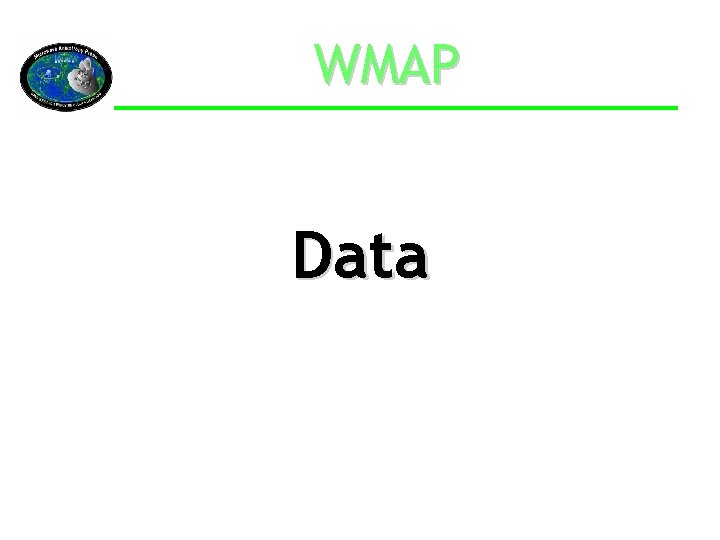

WMAP Data

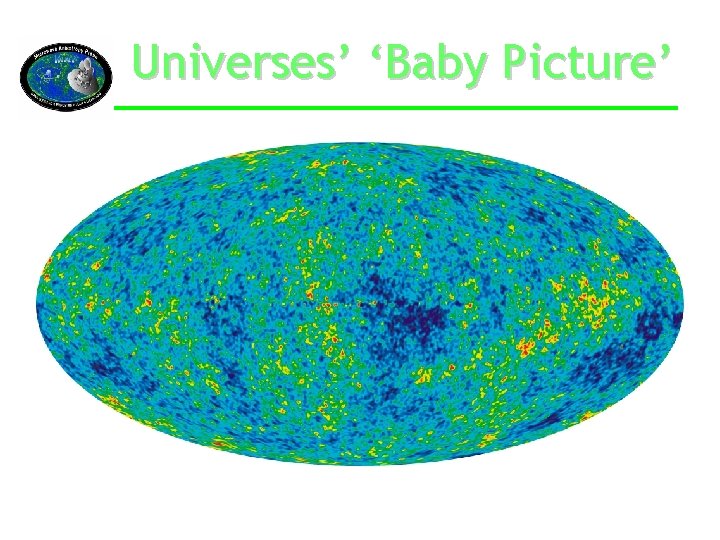

Universes’ ‘Baby Picture’

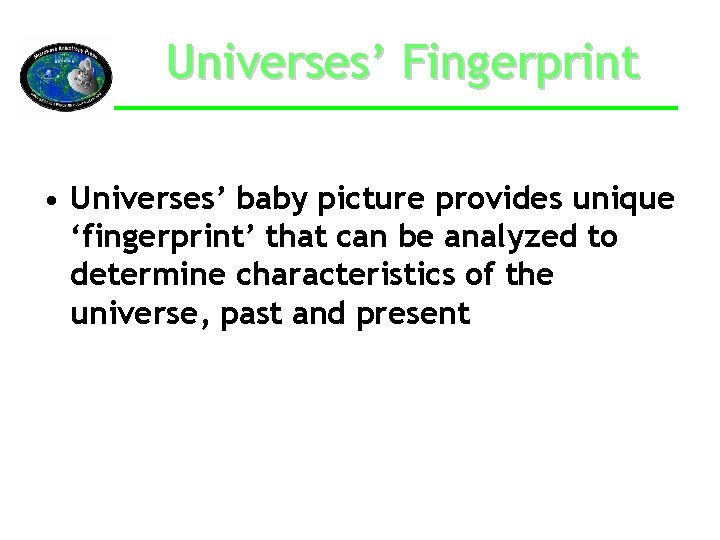

Universes’ Fingerprint • Universes’ baby picture provides unique ‘fingerprint’ that can be analyzed to determine characteristics of the universe, past and present

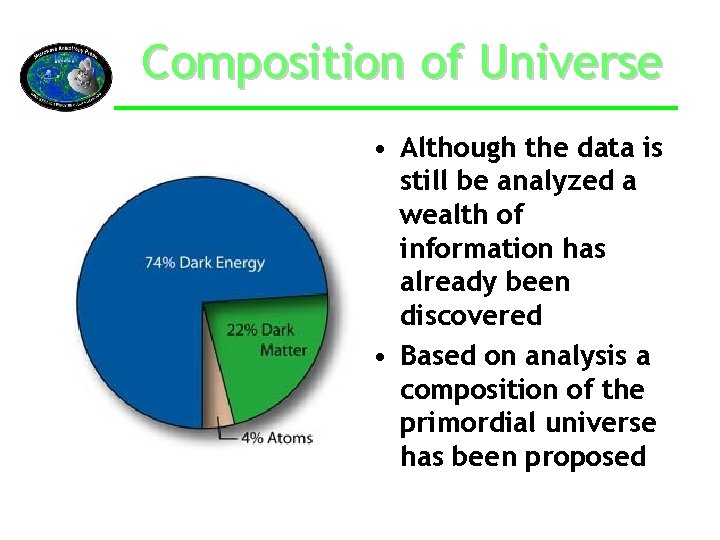

Composition of Universe • Although the data is still be analyzed a wealth of information has already been discovered • Based on analysis a composition of the primordial universe has been proposed

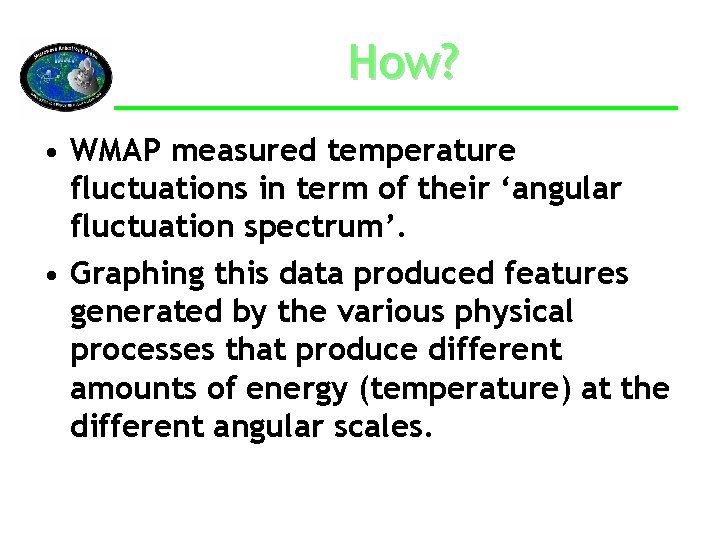

How? • WMAP measured temperature fluctuations in term of their ‘angular fluctuation spectrum’. • Graphing this data produced features generated by the various physical processes that produce different amounts of energy (temperature) at the different angular scales.

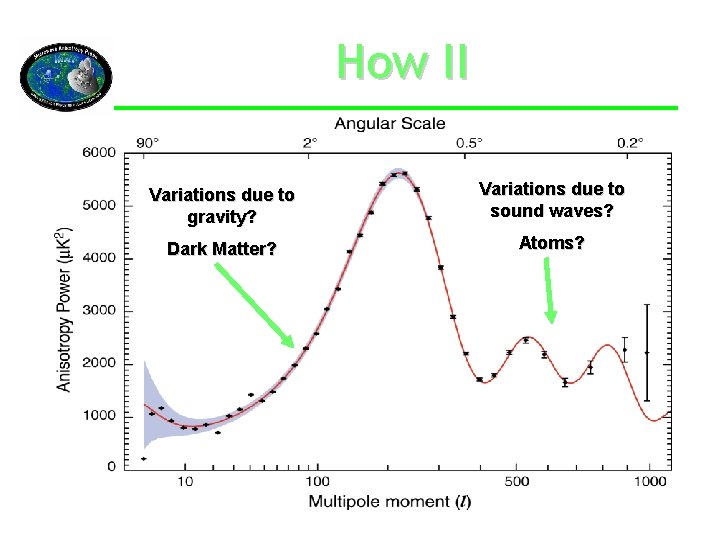

How II Variations due to gravity? Variations due to sound waves? Dark Matter? Atoms?

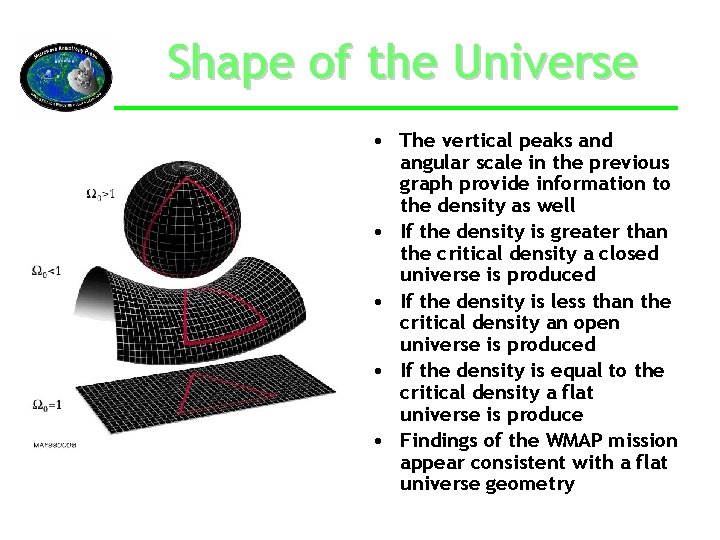

Shape of the Universe • The vertical peaks and angular scale in the previous graph provide information to the density as well • If the density is greater than the critical density a closed universe is produced • If the density is less than the critical density an open universe is produced • If the density is equal to the critical density a flat universe is produce • Findings of the WMAP mission appear consistent with a flat universe geometry

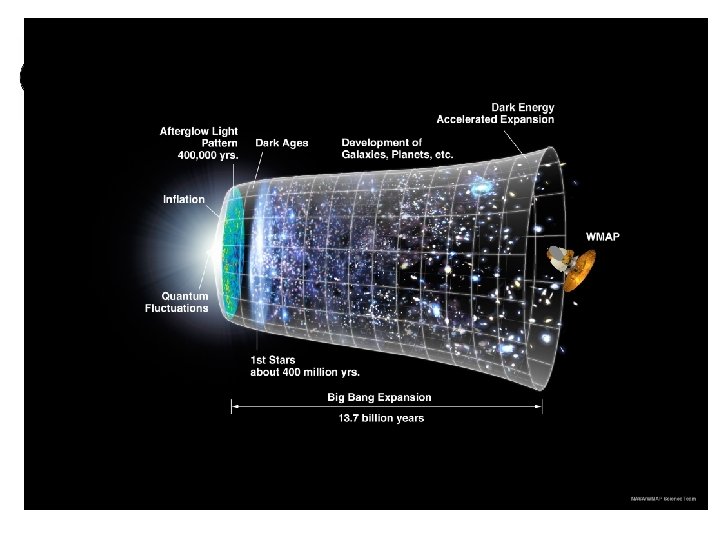

Rapid Inflation • Measures of the fluctuations on the angular scale seem to support theory that the universe underwent a period of extremely rapid (exponential) expansion

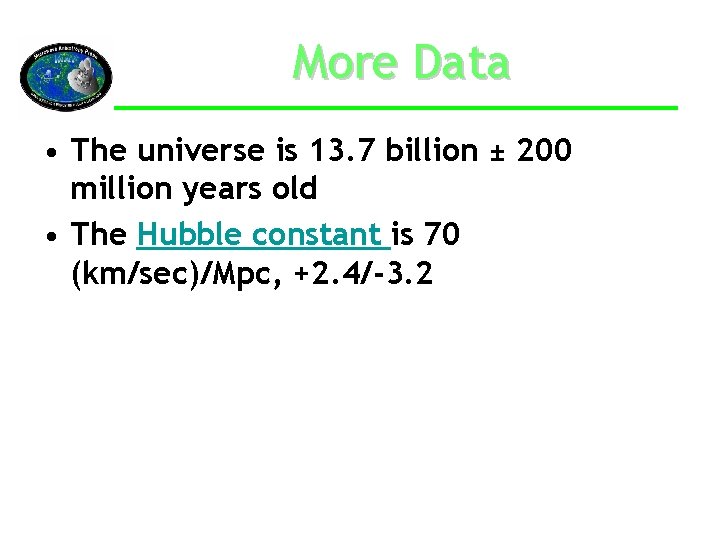

More Data • The universe is 13. 7 billion ± 200 million years old • The Hubble constant is 70 (km/sec)/Mpc, +2. 4/-3. 2

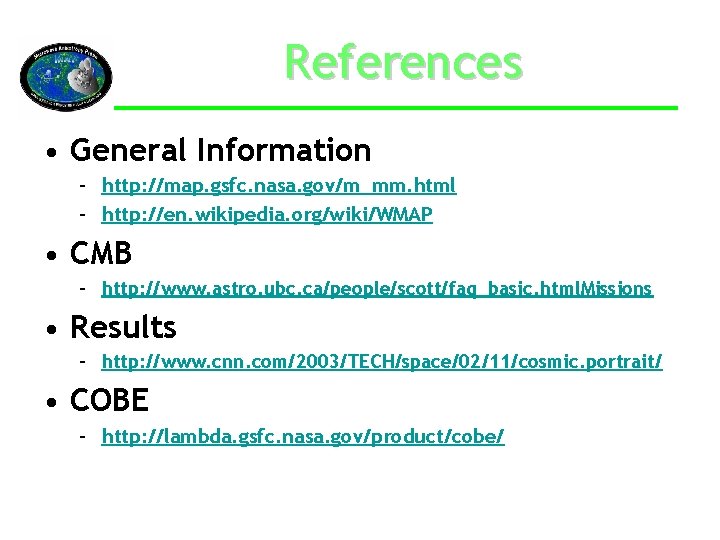

References • General Information – http: //map. gsfc. nasa. gov/m_mm. html – http: //en. wikipedia. org/wiki/WMAP • CMB – http: //www. astro. ubc. ca/people/scott/faq_basic. html. Missions • Results – http: //www. cnn. com/2003/TECH/space/02/11/cosmic. portrait/ • COBE – http: //lambda. gsfc. nasa. gov/product/cobe/
