WISCONSIN HEIGHT MODERNIZATION PROGRAM WESTERN REGION HEIGHT MOD

WISCONSIN HEIGHT MODERNIZATION PROGRAM WESTERN REGION HEIGHT MOD WEBINAR NOVEMBER 19, 2013 1

WI-HMP OBJECTIVES TO PROVIDE REAL-TIME, SUB 2 CM-HORIZONTAL AND VERTICAL POSITIONING STATEWIDE TWO RELIABLE, INDEPENDENT NETWORKS ARE NECESSARY TO MAKE THIS ACCURACY POSSIBLE. THE PASSIVE NETWORK IS THE GEODETIC CONTROL MONUMENTS AND THE ACTIVE NETWORK IS WISCORS WESTERN REGION HEIGHT MOD WEBINAR 2013 2

HISTORY OF WI-HMP § 50% OF ALL WISCONSIN’S ORIGINAL GEODETIC CONTROL STATIONS WERE DESTROYED BY THE LATE 1980 S § WISDOT WAS THE RECIPIENT OF A FEDERAL GRANT TO RESTORE GEODETIC CONTROL §OVER 8, 000 GEODETIC CONTROL STATIONS HAVE BEEN CONSTRUCTED THROUGHOUT THE STATE § AN IMPORTANT COMPONENT OF WI-HMP IS PRESERVING THESE CONTROL STATIONS WESTERN REGION HEIGHT MOD WEBINAR 2013 3

GEODETIC CONTROL STATIONS WESTERN REGION HEIGHT MOD WEBINAR 2013 4

GPS OBSERVATIONS A GNSS ANTENNA AND RECEIVER ARE USED TO COLLECT DATA FROM TWO SATELLITE CONSTELLATIONS WESTERN REGION HEIGHT MOD WEBINAR 2013 5

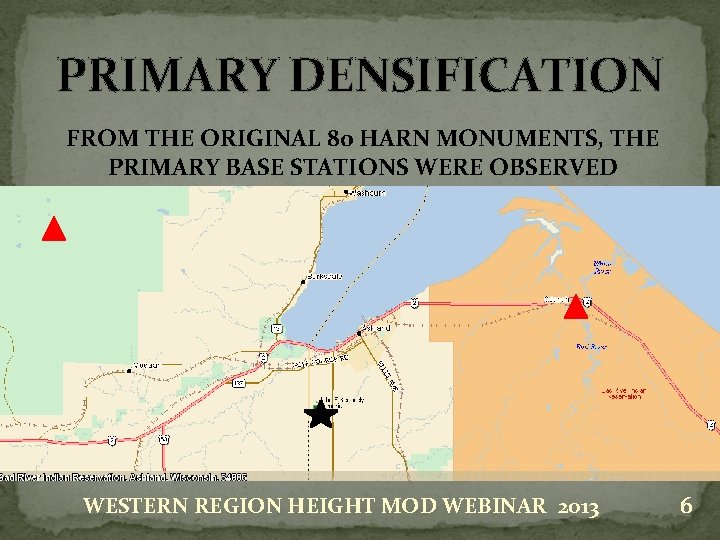

PRIMARY DENSIFICATION FROM THE ORIGINAL 80 HARN MONUMENTS, THE PRIMARY BASE STATIONS WERE OBSERVED WESTERN REGION HEIGHT MOD WEBINAR 2013 6

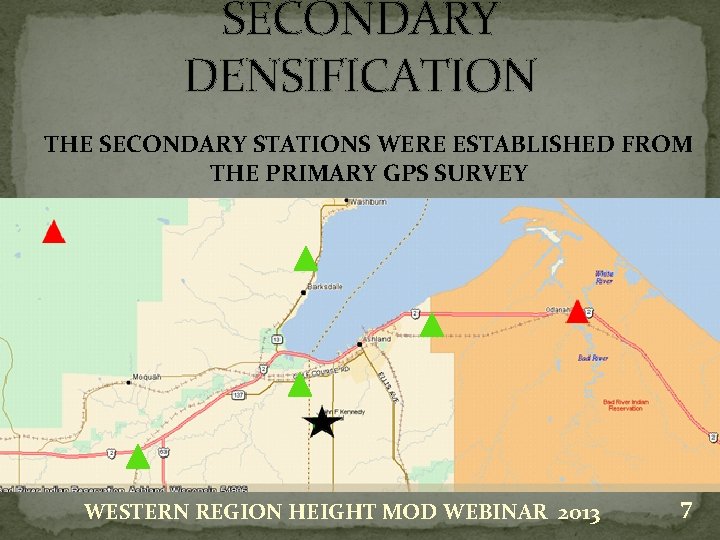

SECONDARY DENSIFICATION THE SECONDARY STATIONS WERE ESTABLISHED FROM THE PRIMARY GPS SURVEY WESTERN REGION HEIGHT MOD WEBINAR 2013 7

LOCAL DENSIFICATION THEN WE DENSIFY FURTHER WITH LOCAL GPS STATIONS WESTERN REGION HEIGHT MOD WEBINAR 2013 8

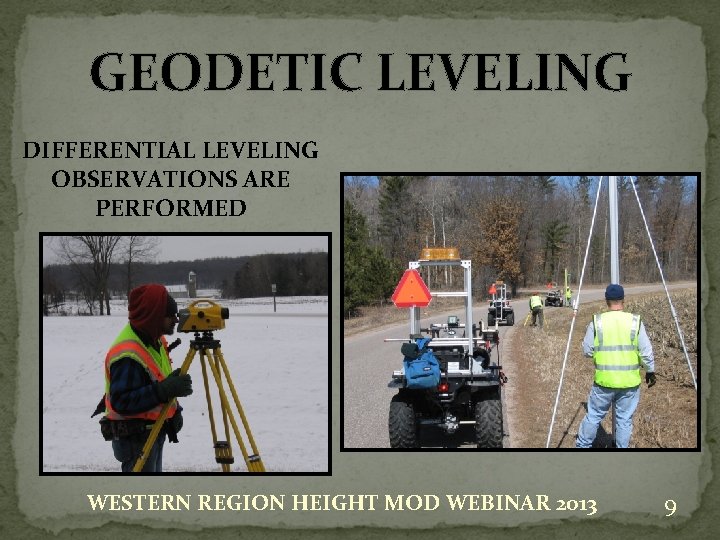

GEODETIC LEVELING DIFFERENTIAL LEVELING OBSERVATIONS ARE PERFORMED WESTERN REGION HEIGHT MOD WEBINAR 2013 9

GEODETIC LEVELING §LEVEL LINES USE NEW BENCH MARKS, GPS STATIONS, AND HISTORICAL MARKS § BENCHMARKS APPROXIMATELY 3 Km APART § SURVEYED TO SECOND ORDER, CLASS I WESTERN REGION HEIGHT MOD WEBINAR 2013 10

BENCHMARKS COMBINATION OF NEW AND EXISITING VERTICAL CONTROL WESTERN REGION HEIGHT MOD WEBINAR 2013 11

LEVEL LINES CONNECT GEODETIC MONUMENTATION WESTERN REGION HEIGHT MOD WEBINAR 2013 12

WISCORS NETWORK THEN SITS ON THE PASSIVE NETWORK WESTERN REGION HEIGHT MOD WEBINAR 2013 13

THE WISCORS NETWORK A NETWORK OF 85 PERMANENTLY MOUNTED GPS ANTENNAS SPACED 50 KM APART ACROSS THE STATE PROVIDING HIGHLY ACCURATE CORRECTIONS IN REAL TIME WESTERN REGION HEIGHT MOD WEBINAR 2013 14

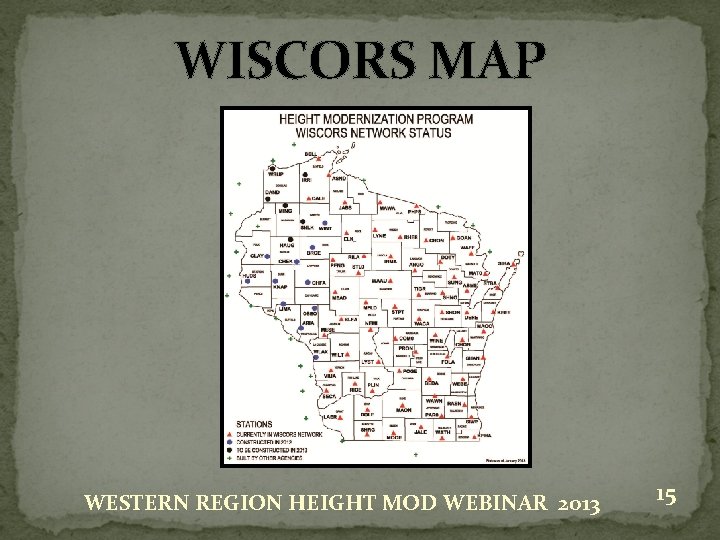

WISCORS MAP WESTERN REGION HEIGHT MOD WEBINAR 2013 15

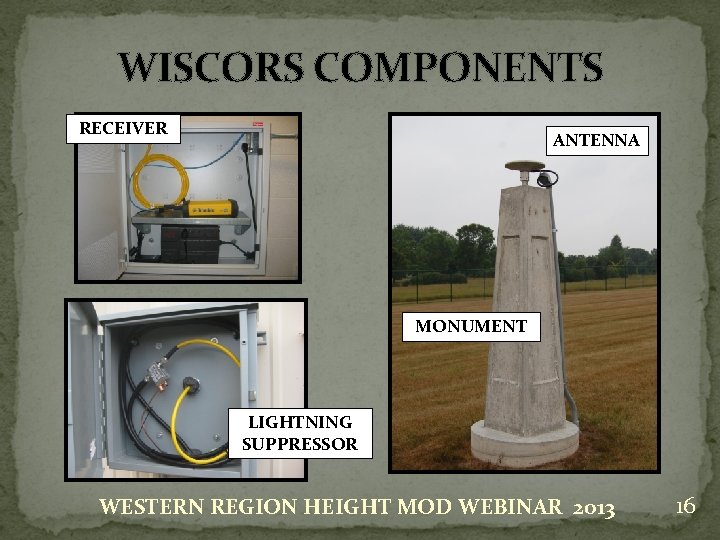

WISCORS COMPONENTS RECEIVER ANTENNA MONUMENT LIGHTNING SUPPRESSOR WESTERN REGION HEIGHT MOD WEBINAR 2013 16

WISCORS APPLICATIONS § SURVEYING AND ENGINEERING § FLOOD PLAIN MAPPING § EMERGENCY MANAGEMENT SERVICES § ZERO VISIBILITY SNOW PLOWING § UNDERGROUND UTILITY LOCATION § GIS MAPPING § PRECISION AGRICULTURE § MARITIME ACTIVITIES § POST PROCESSING REFERENCE DATA WESTERN REGION HEIGHT MOD WEBINAR 2013 17

WISCORS APPLICATIONS § MINING § EARTH MOVING § CONSTRUCTION § ATMOSPHERIC SCIENCES § RAILROAD SIGNAL TIMING § SEISMIC ACTIVITY § WATER LEVELS § LAND MANAGEMENT § DROUGHT MONITOR MAPS WESTERN REGION HEIGHT MOD WEBINAR 2013 18

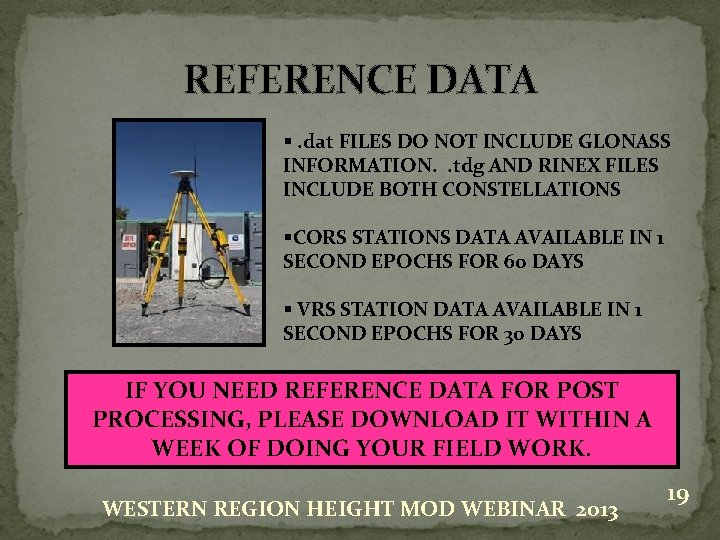

REFERENCE DATA §. dat FILES DO NOT INCLUDE GLONASS INFORMATION. . tdg AND RINEX FILES INCLUDE BOTH CONSTELLATIONS §CORS STATIONS DATA AVAILABLE IN 1 SECOND EPOCHS FOR 60 DAYS § VRS STATION DATA AVAILABLE IN 1 SECOND EPOCHS FOR 30 DAYS IF YOU NEED REFERENCE DATA FOR POST PROCESSING, PLEASE DOWNLOAD IT WITHIN A WEEK OF DOING YOUR FIELD WORK. WESTERN REGION HEIGHT MOD WEBINAR 2013 19

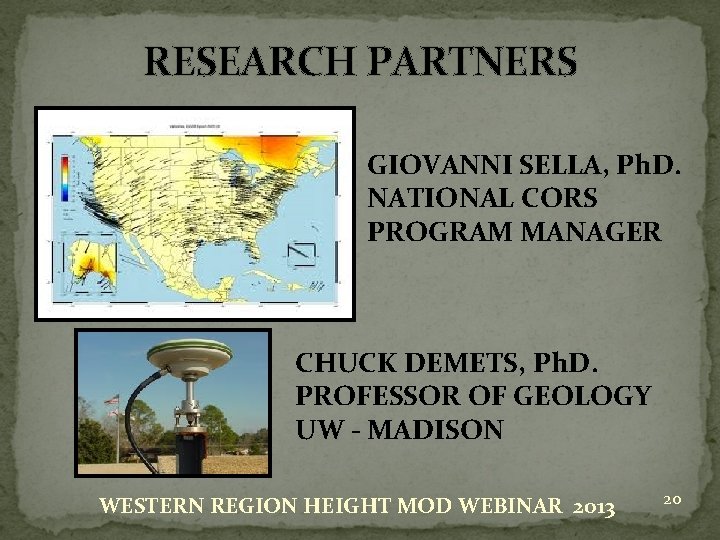

RESEARCH PARTNERS GIOVANNI SELLA, Ph. D. NATIONAL CORS PROGRAM MANAGER CHUCK DEMETS, Ph. D. PROFESSOR OF GEOLOGY UW - MADISON WESTERN REGION HEIGHT MOD WEBINAR 2013 20

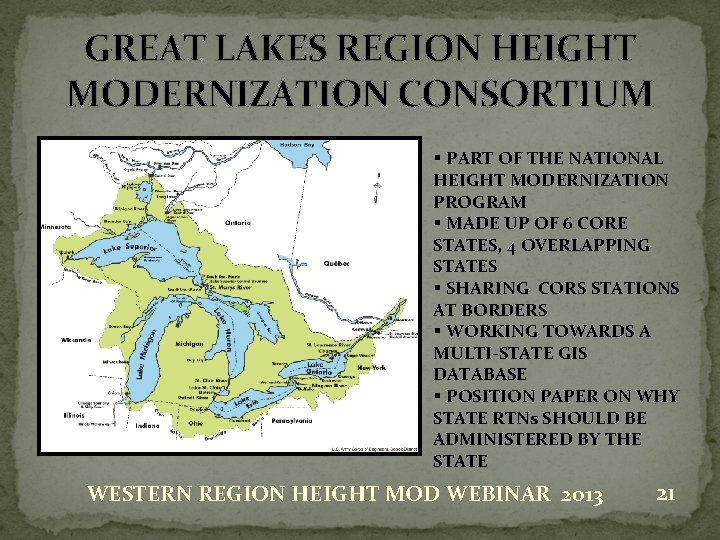

GREAT LAKES REGION HEIGHT MODERNIZATION CONSORTIUM § PART OF THE NATIONAL HEIGHT MODERNIZATION PROGRAM § MADE UP OF 6 CORE STATES, 4 OVERLAPPING STATES § SHARING CORS STATIONS AT BORDERS § WORKING TOWARDS A MULTI-STATE GIS DATABASE § POSITION PAPER ON WHY STATE RTNs SHOULD BE ADMINISTERED BY THE STATE WESTERN REGION HEIGHT MOD WEBINAR 2013 21

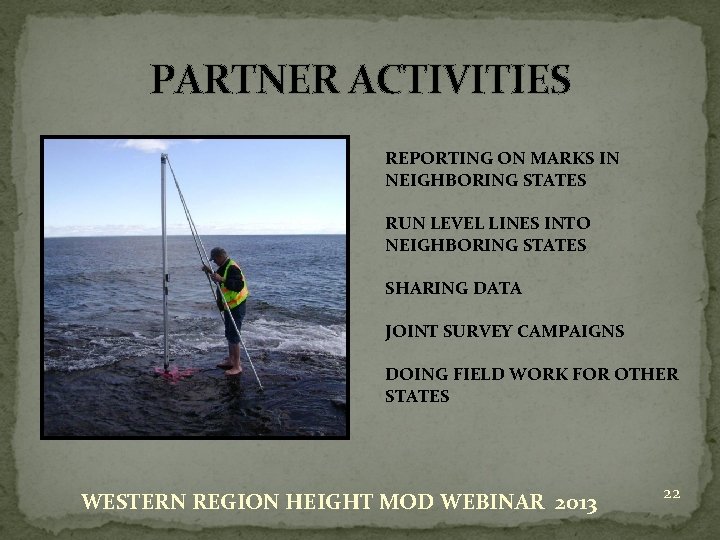

PARTNER ACTIVITIES REPORTING ON MARKS IN NEIGHBORING STATES RUN LEVEL LINES INTO NEIGHBORING STATES SHARING DATA JOINT SURVEY CAMPAIGNS DOING FIELD WORK FOR OTHER STATES WESTERN REGION HEIGHT MOD WEBINAR 2013 22

QUESTIONS OR COMMENTS? WESTERN REGION HEIGHT MOD WEBINAR 2013 23
