WIRING HARNESS - TRACTORS Sietz discussion document for Shigeru Kogyo visit v 6. pptx 0

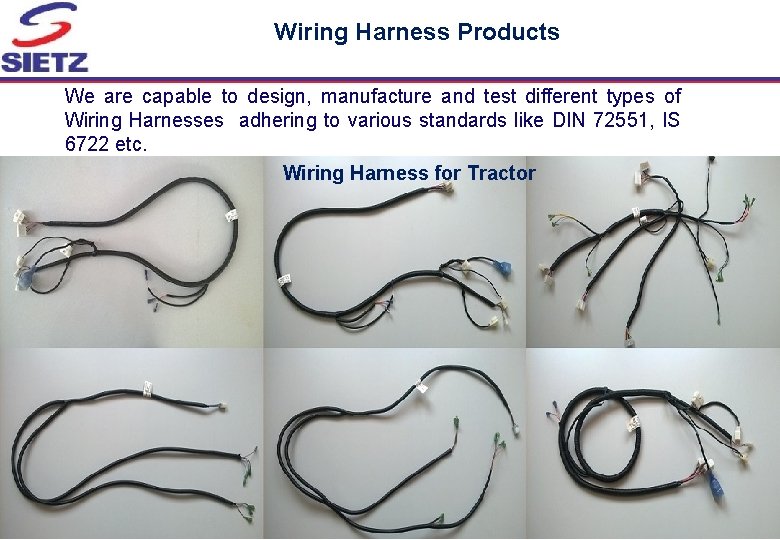

Wiring Harness Products We are capable to design, manufacture and test different types of Wiring Harnesses adhering to various standards like DIN 72551, IS 6722 etc. Wiring Harness for Tractor Sietz discussion document for Shigeru Kogyo visit v 6. pptx 1

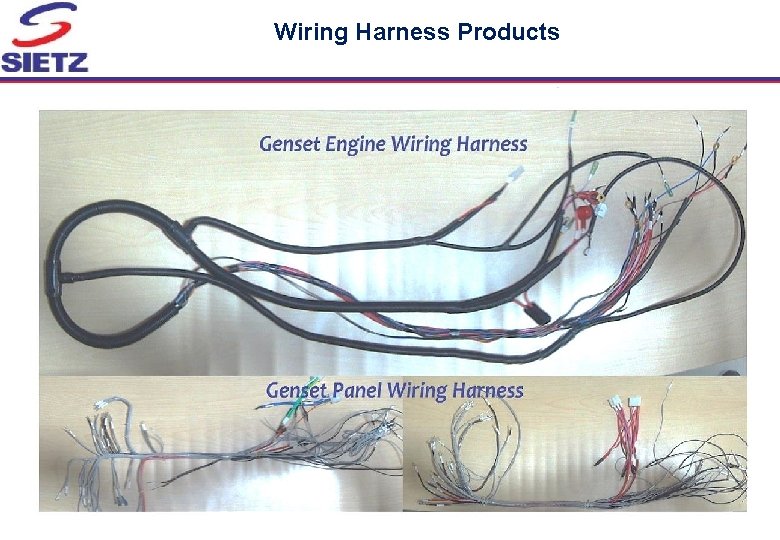

Wiring Harness Products Sietz discussion document for Shigeru Kogyo visit v 6. pptx 2

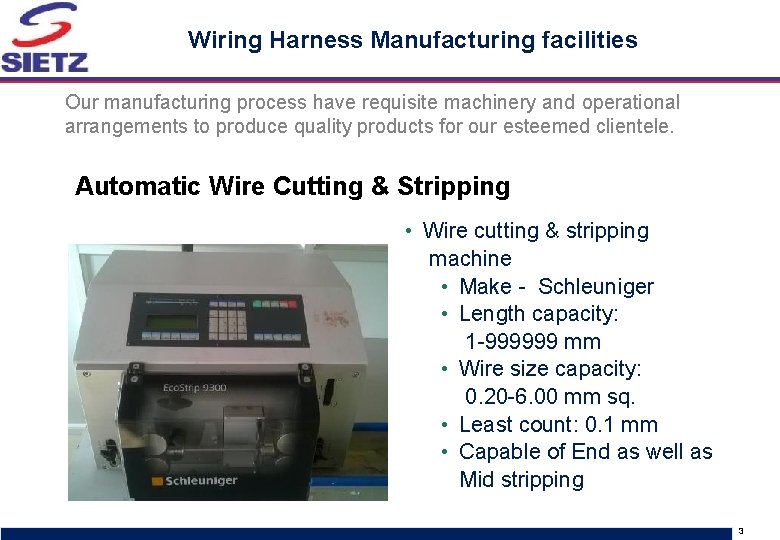

Wiring Harness Manufacturing facilities Our manufacturing process have requisite machinery and operational arrangements to produce quality products for our esteemed clientele. Automatic Wire Cutting & Stripping • Wire cutting & stripping machine • Make - Schleuniger • Length capacity: 1 -999999 mm • Wire size capacity: 0. 20 -6. 00 mm sq. • Least count: 0. 1 mm • Capable of End as well as Mid stripping Sietz discussion document for Shigeru Kogyo visit v 6. pptx 3

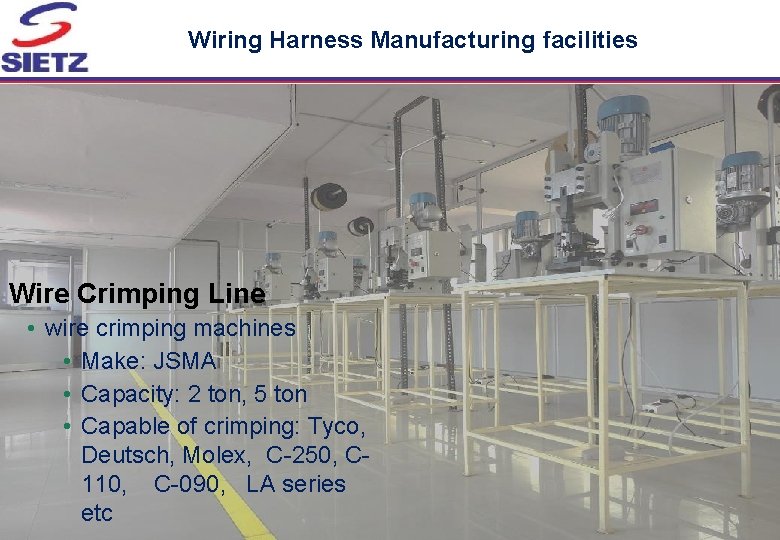

Wiring Harness Manufacturing facilities Wire Crimping Line • wire crimping machines • Make: JSMA • Capacity: 2 ton, 5 ton • Capable of crimping: Tyco, Deutsch, Molex, C-250, C 110, C-090, LA series etc Sietz discussion document for Shigeru Kogyo visit v 6. pptx 4

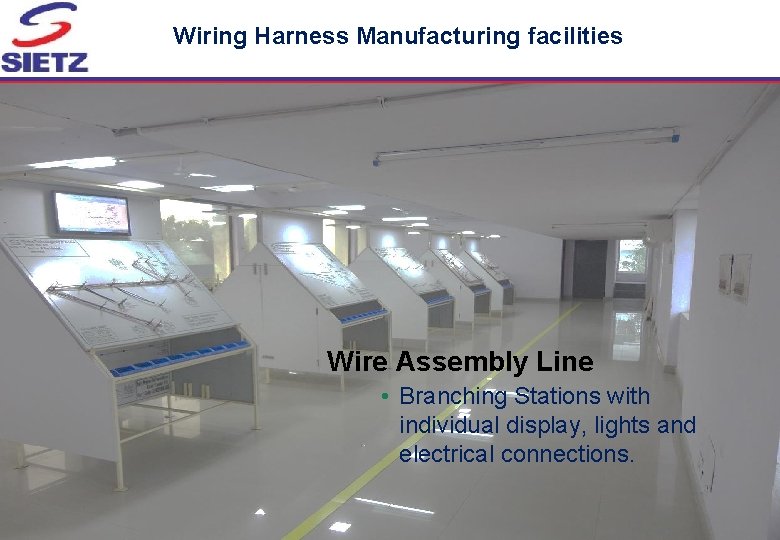

Wiring Harness Manufacturing facilities Wire Assembly Line • Branching Stations with individual display, lights and electrical connections. Sietz discussion document for Shigeru Kogyo visit v 6. pptx 5

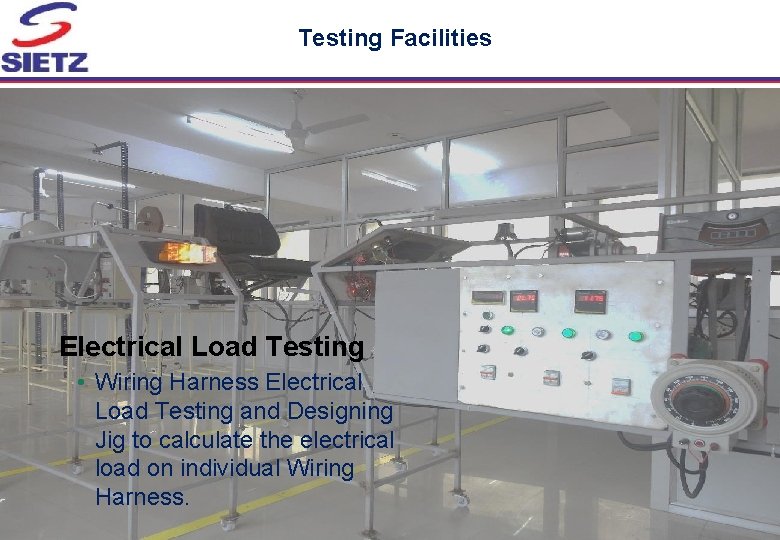

Testing Facilities Electrical Load Testing • Wiring Harness Electrical Load Testing and Designing Jig to calculate the electrical load on individual Wiring Harness. Sietz discussion document for Shigeru Kogyo visit v 6. pptx 6

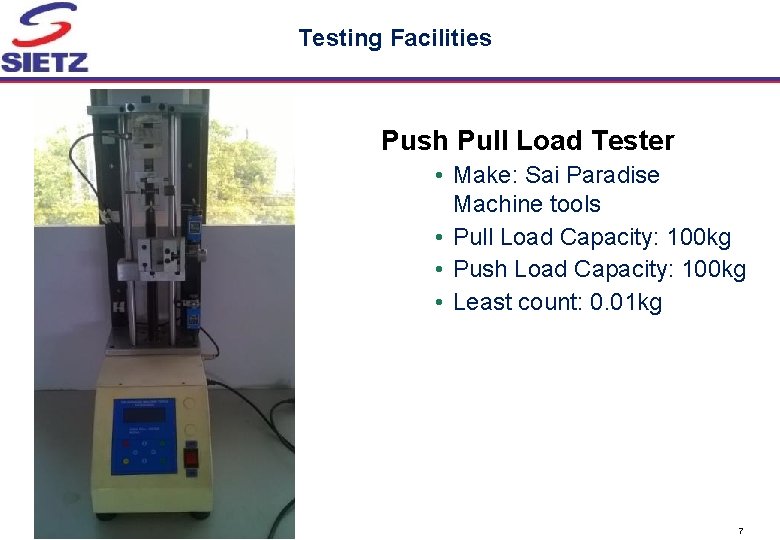

Testing Facilities Push Pull Load Tester • Make: Sai Paradise Machine tools • Pull Load Capacity: 100 kg • Push Load Capacity: 100 kg • Least count: 0. 01 kg Sietz discussion document for Shigeru Kogyo visit v 6. pptx 7

Testing Facilities Continuity Testing jig • Make: Futura Apsol Pvt. Ltd. • Harness Point capacity up to 320 • Faults Checked: Open circuit, Short circuit, Location interchange • The final bar code printout comes only after all the connections found ok Sietz discussion document for Shigeru Kogyo visit v 6. pptx 8
